AXEL MAERSK
9260419 | OUUY2 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:AXEL MAERSK
IMO Code:9260419
Call Sign:OUUY2
Line Operator:MSK
Class Name for Sister Ships:AXL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,206

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

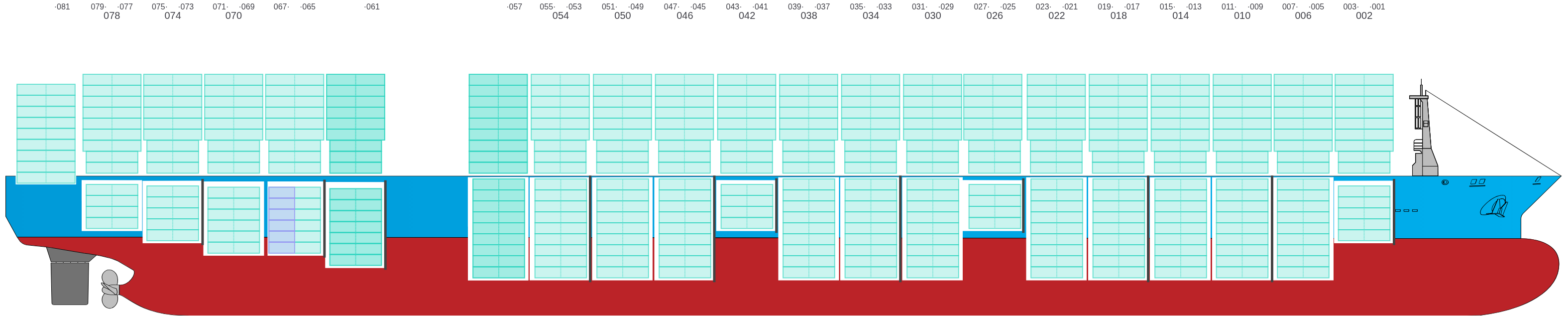

Side view of AXEL MAERSK

Hatch-Covers View

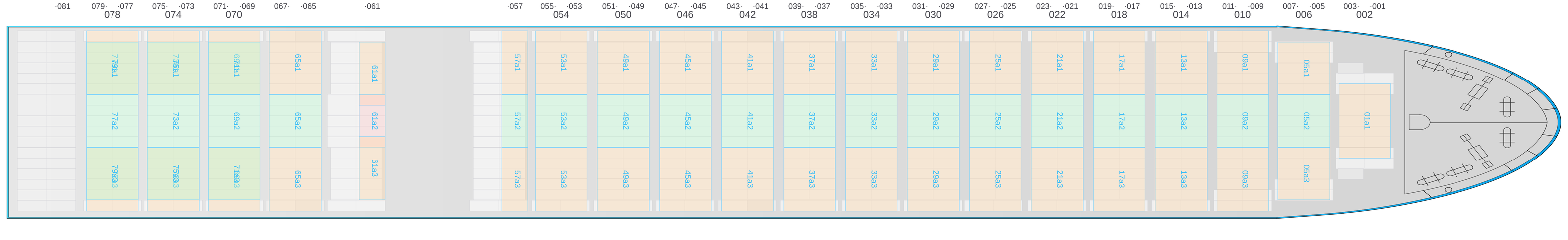

Deck view of AXEL MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

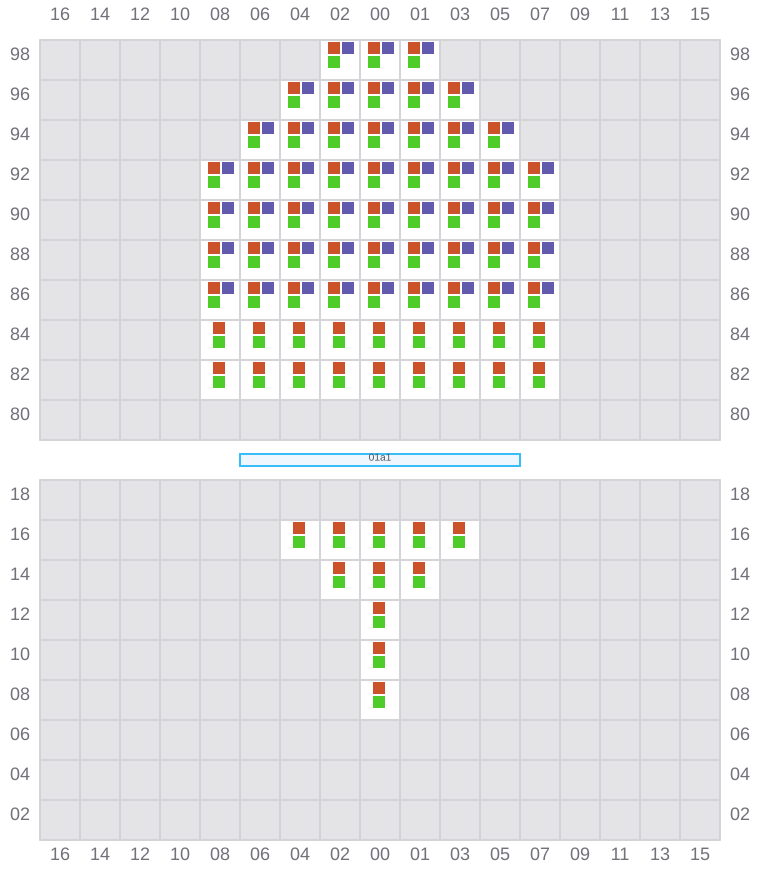

001 (002)

  • →
Bay 001 view and slots of AXEL MAERSK

003

  • ←

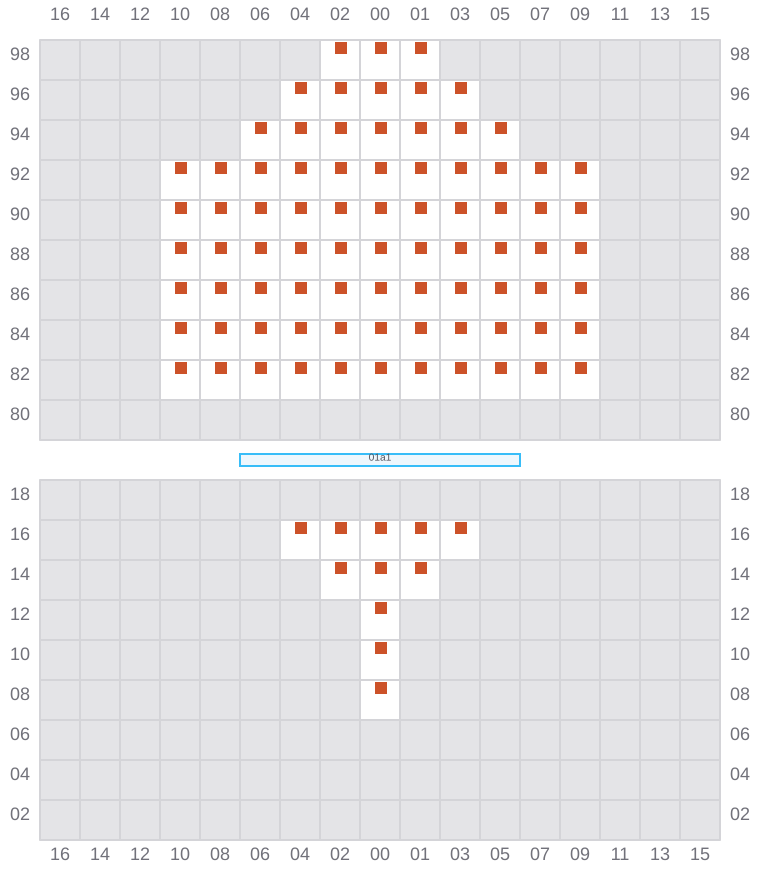

Bay 003 view and slots of AXEL MAERSK

005 (006)

  • →

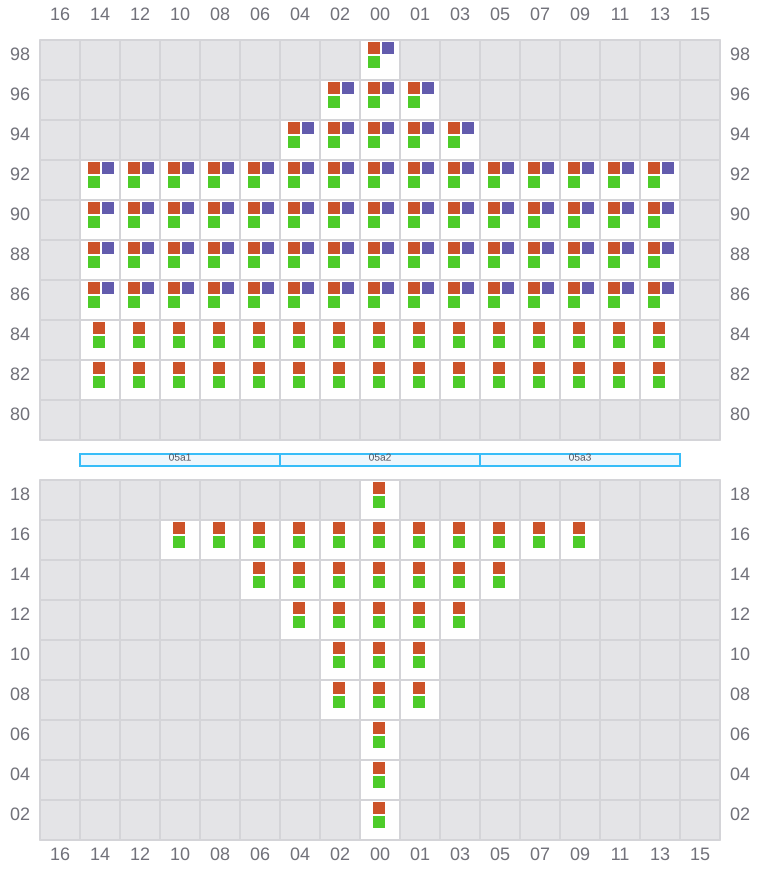

Bay 005 view and slots of AXEL MAERSK

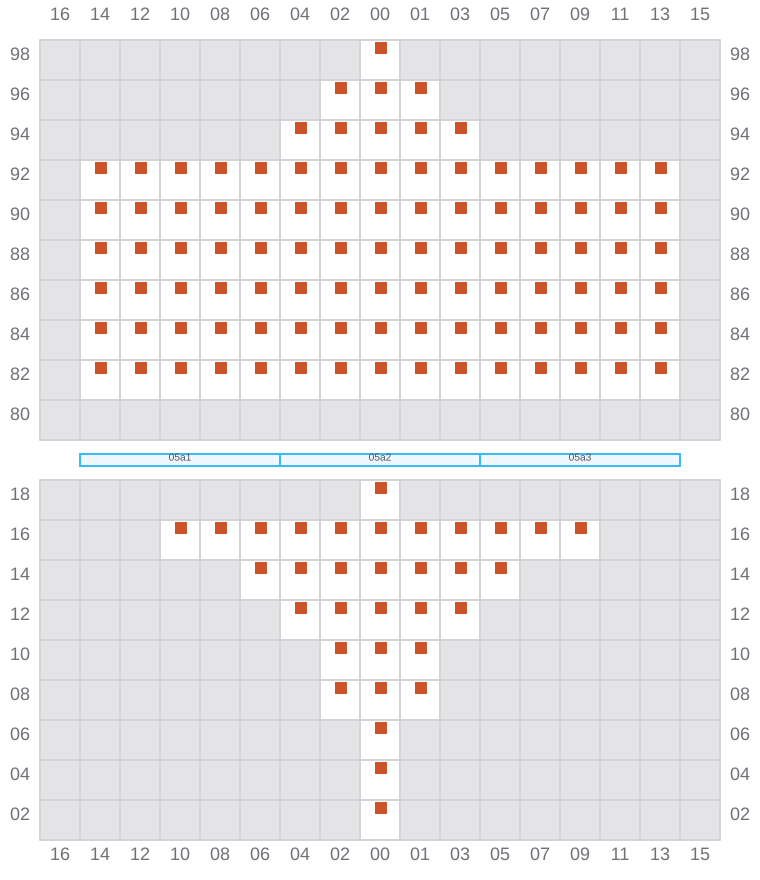

007

  • ←
Bay 007 view and slots of AXEL MAERSK

009 (010)

  • →

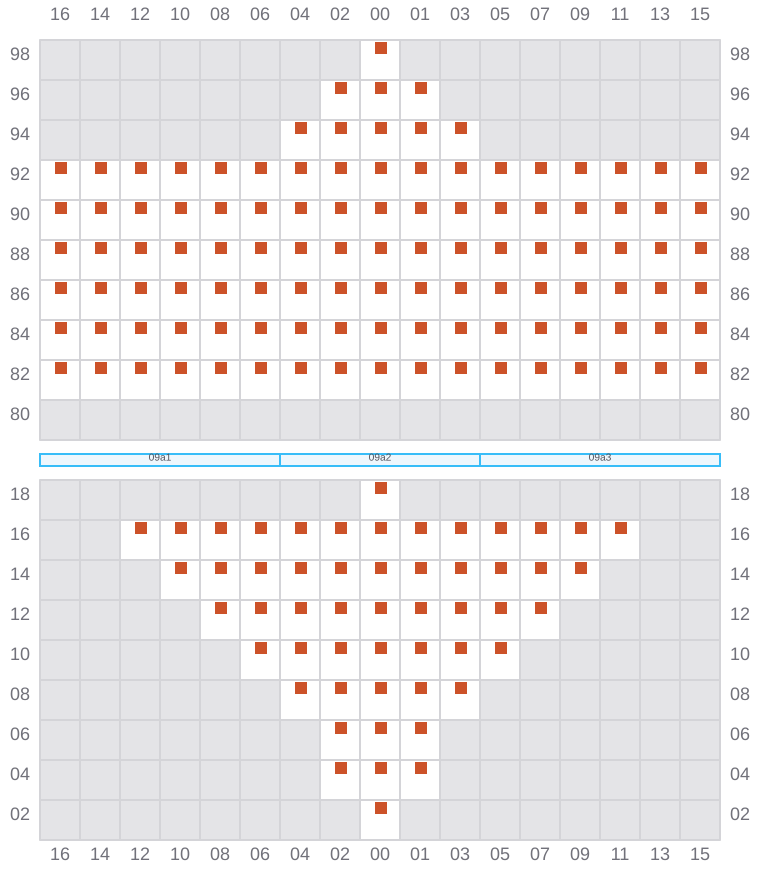

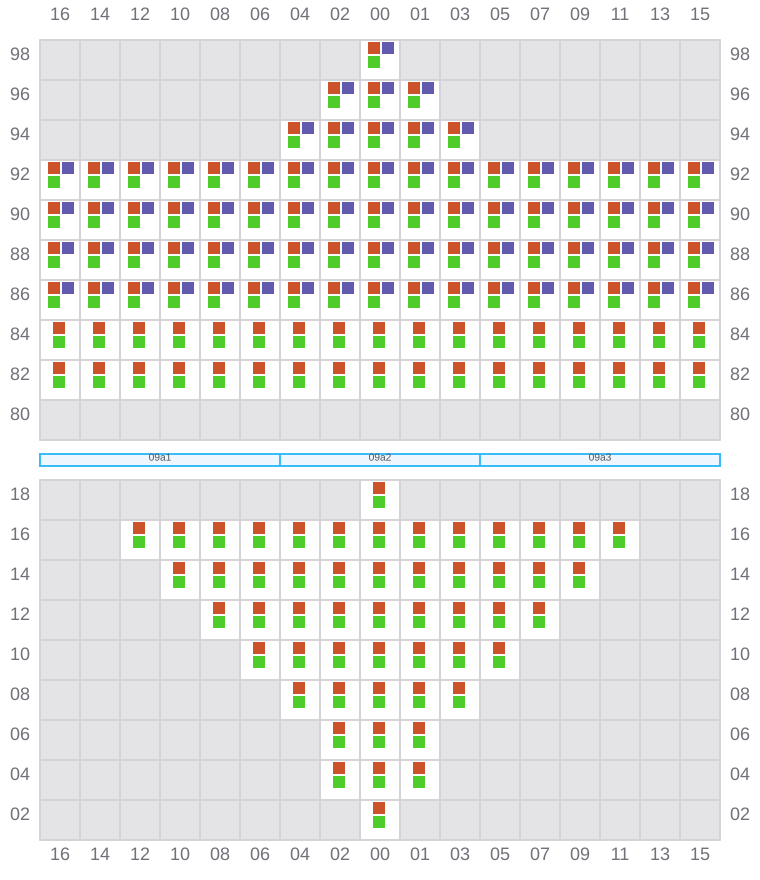

Bay 009 view and slots of AXEL MAERSK

011

  • ←
Bay 011 view and slots of AXEL MAERSK

013 (014)

  • →

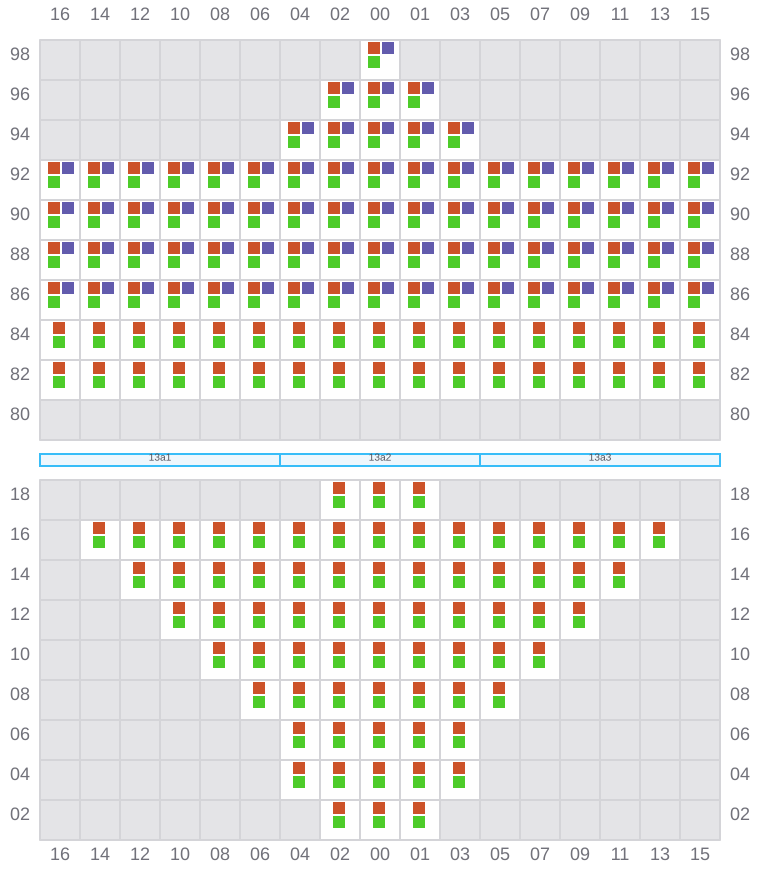

Bay 013 view and slots of AXEL MAERSK

015

  • ←

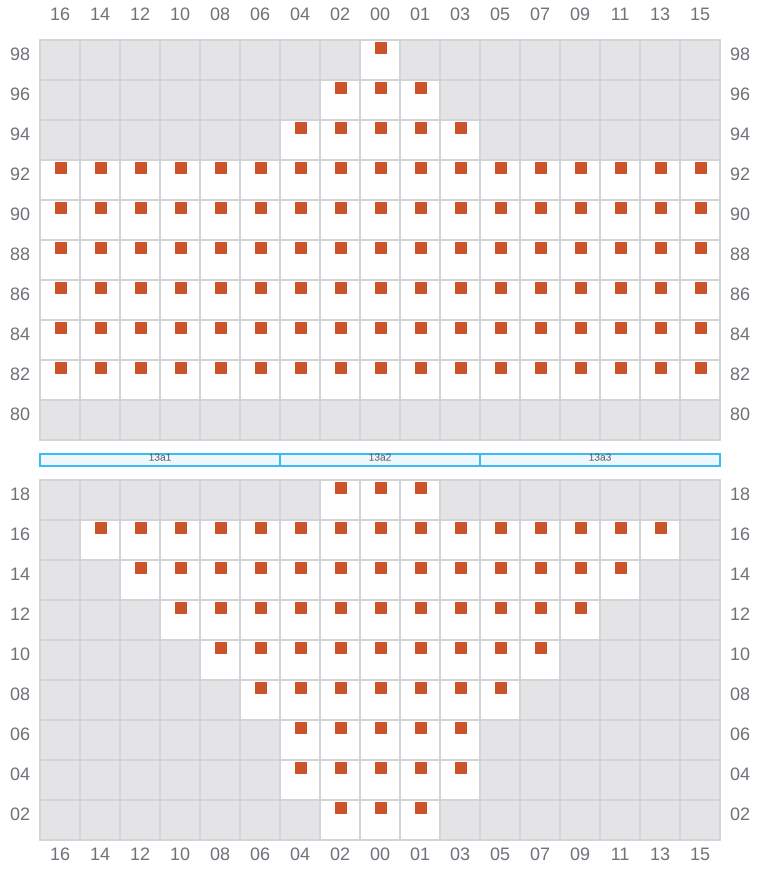

Bay 015 view and slots of AXEL MAERSK

017 (018)

  • →
  • ? / →
Bay 017 view and slots of AXEL MAERSK

019

  • ←
  • ? / →

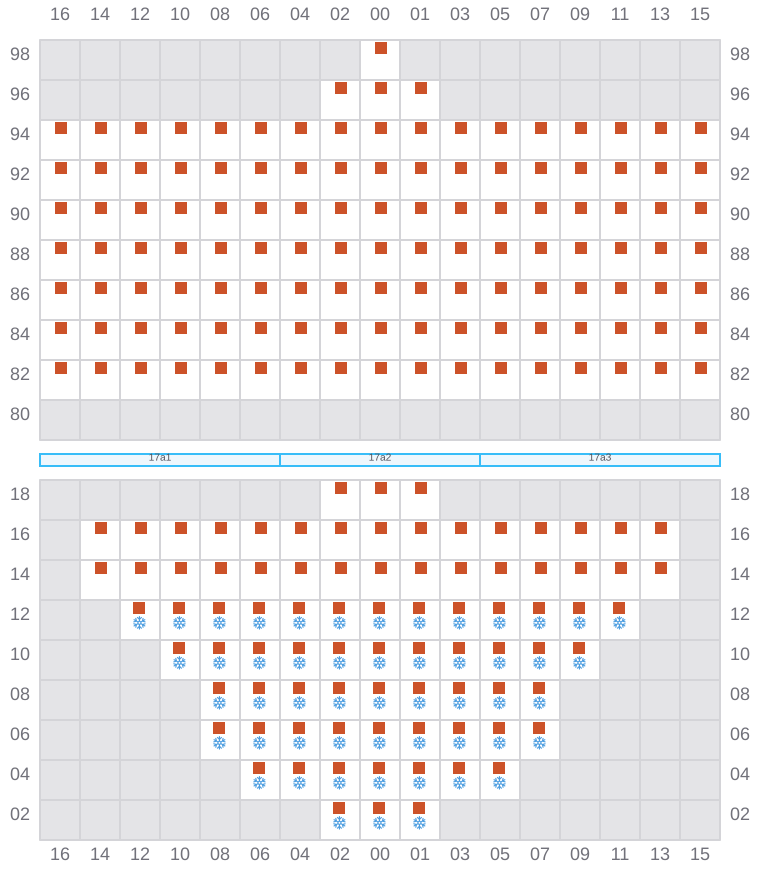

Bay 019 view and slots of AXEL MAERSK

021 (022)

  • →
Bay 021 view and slots of AXEL MAERSK

023

  • ←

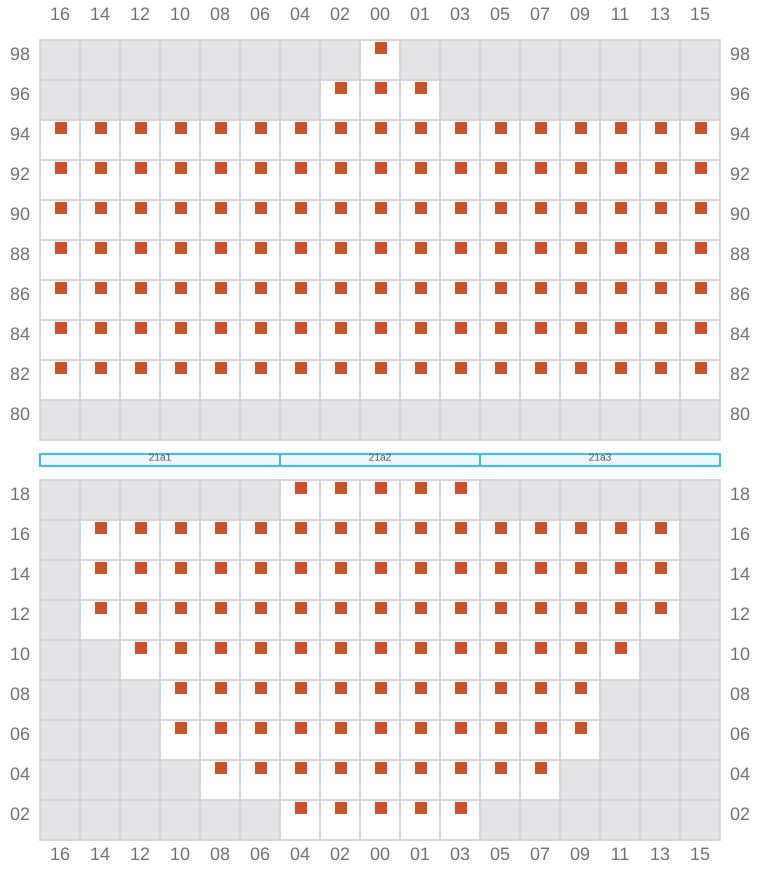

Bay 023 view and slots of AXEL MAERSK

025 (026)

  • →

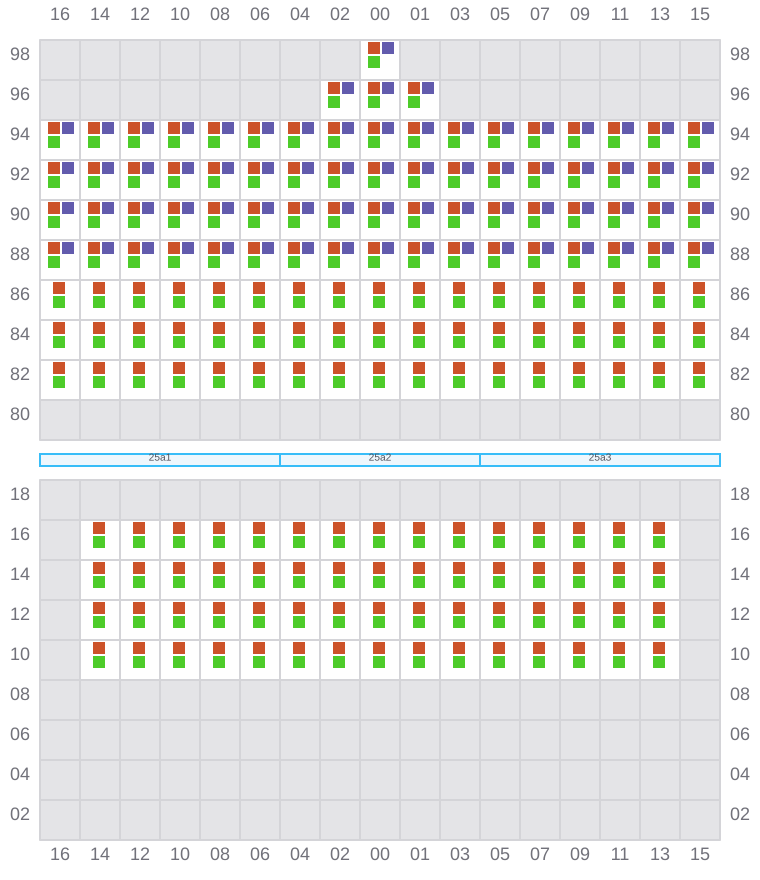

Bay 025 view and slots of AXEL MAERSK

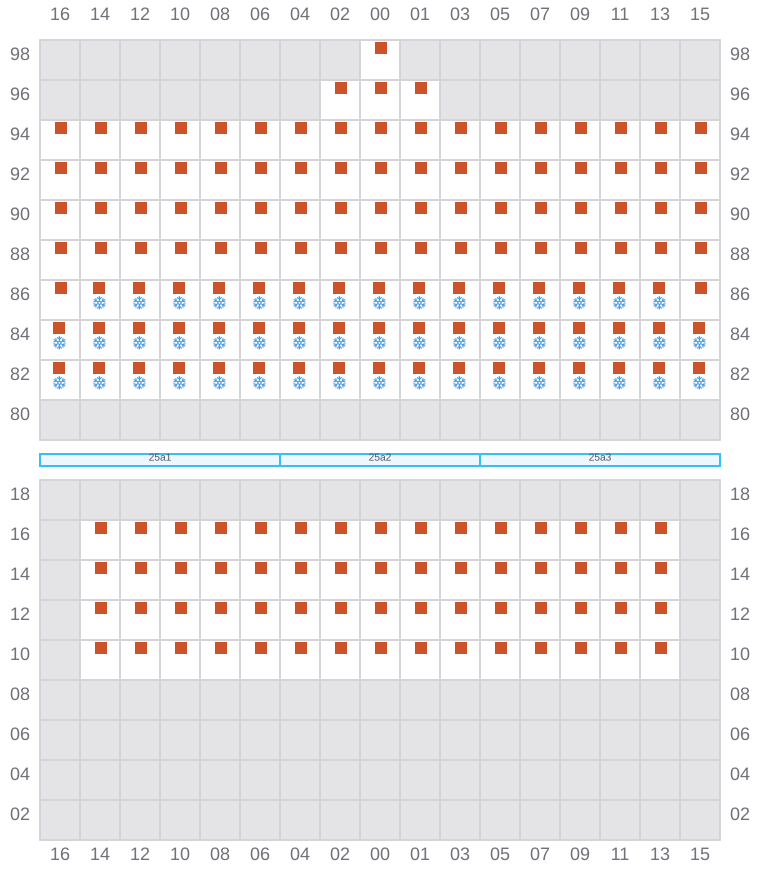

027

  • ←
  • → / ?
Bay 027 view and slots of AXEL MAERSK

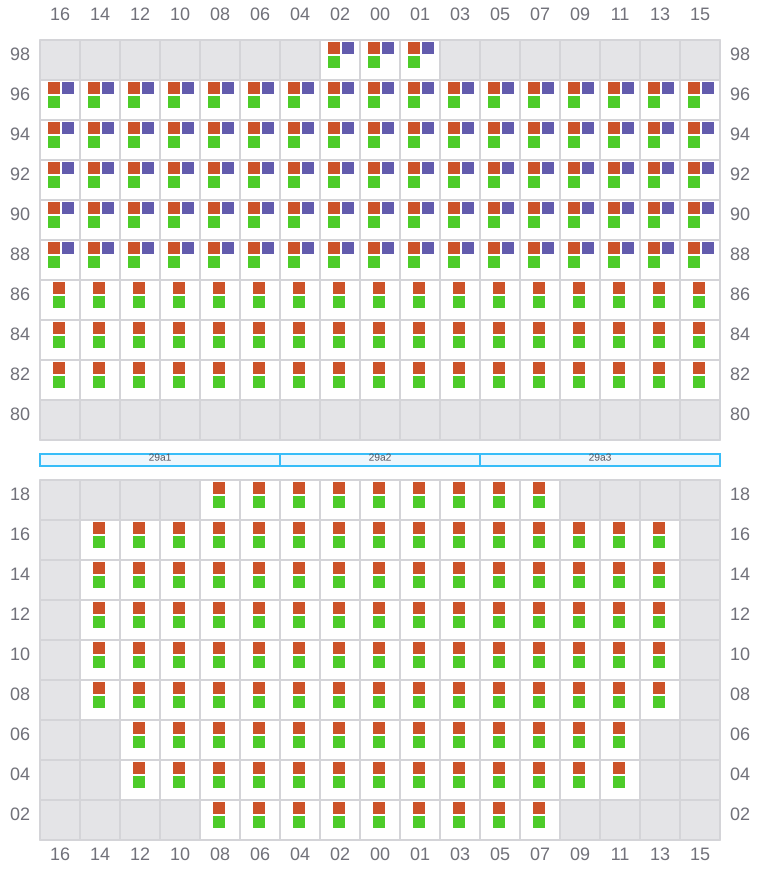

029 (030)

  • →
Bay 029 view and slots of AXEL MAERSK

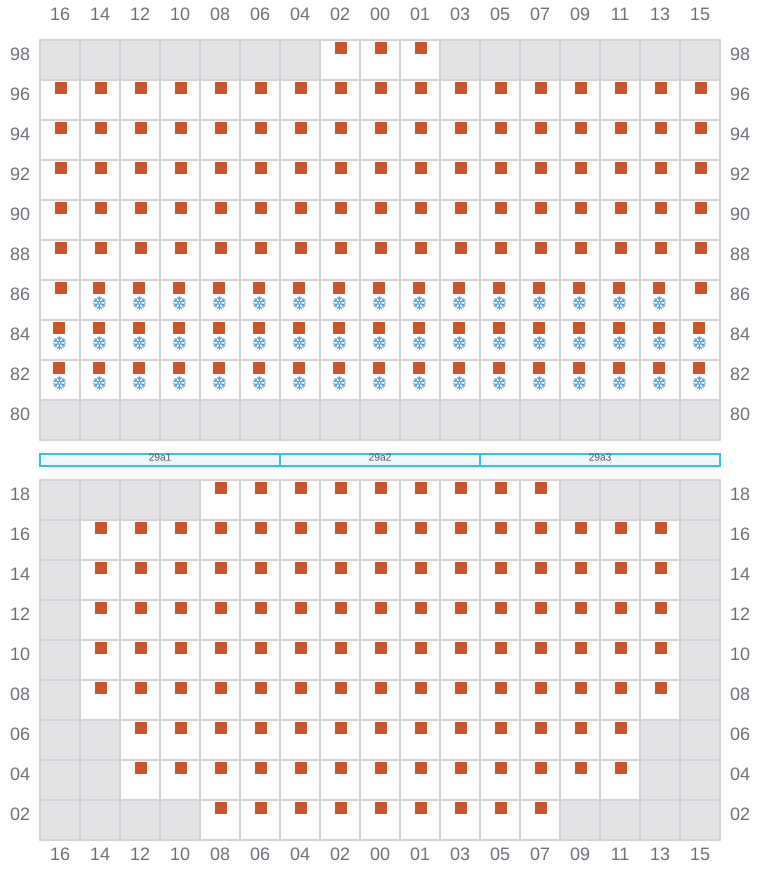

031

  • ←
  • → / ?
Bay 031 view and slots of AXEL MAERSK

033 (034)

  • →
  • ? / →
Bay 033 view and slots of AXEL MAERSK

035

  • ←
  • →

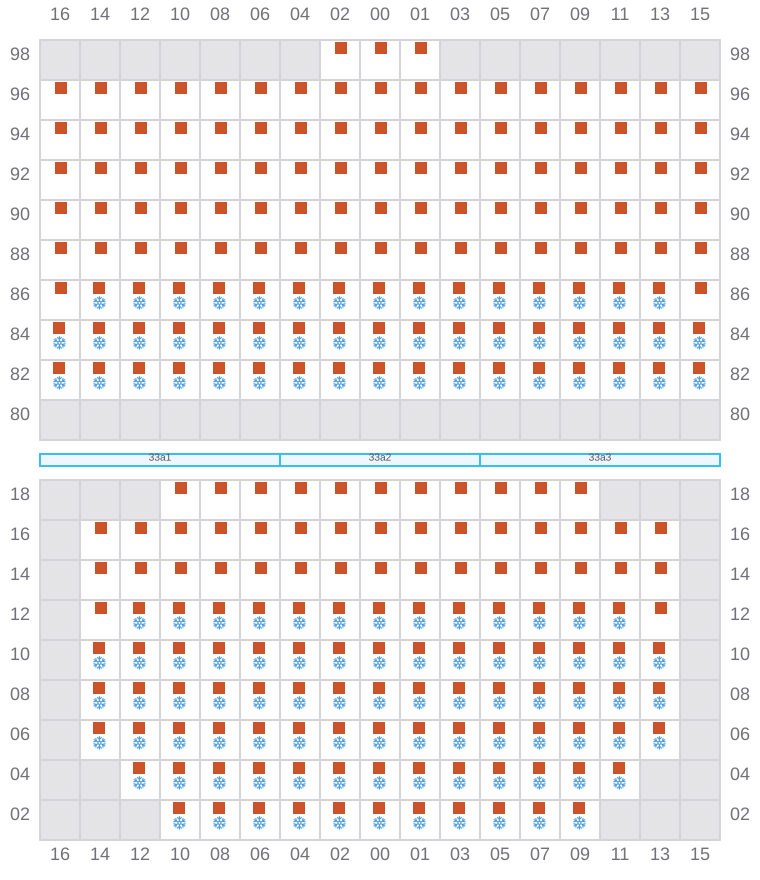

Bay 035 view and slots of AXEL MAERSK

037 (038)

  • →

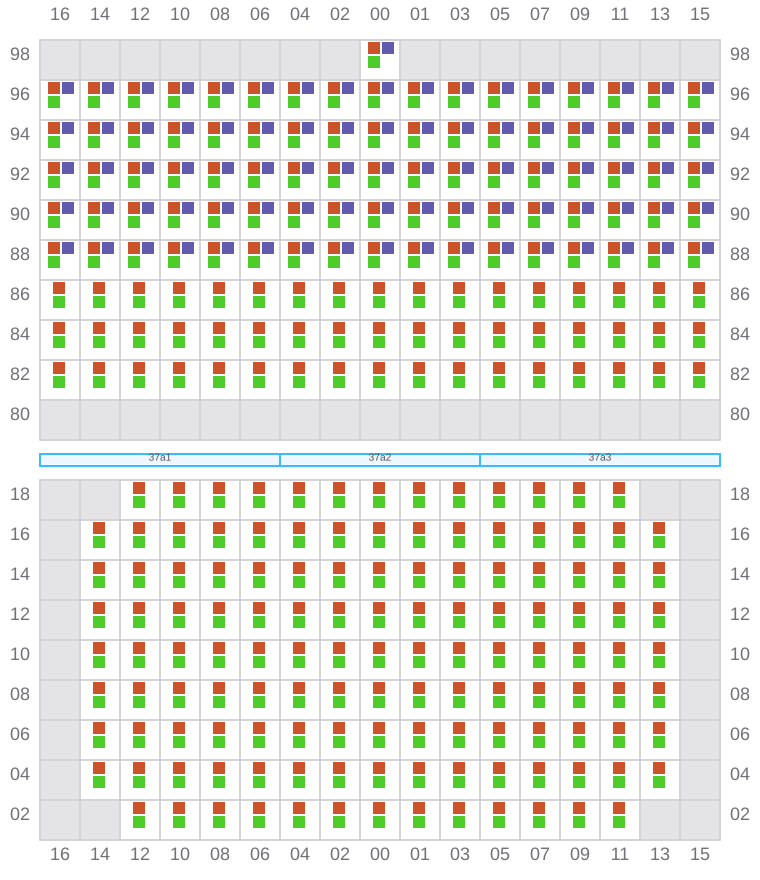

Bay 037 view and slots of AXEL MAERSK

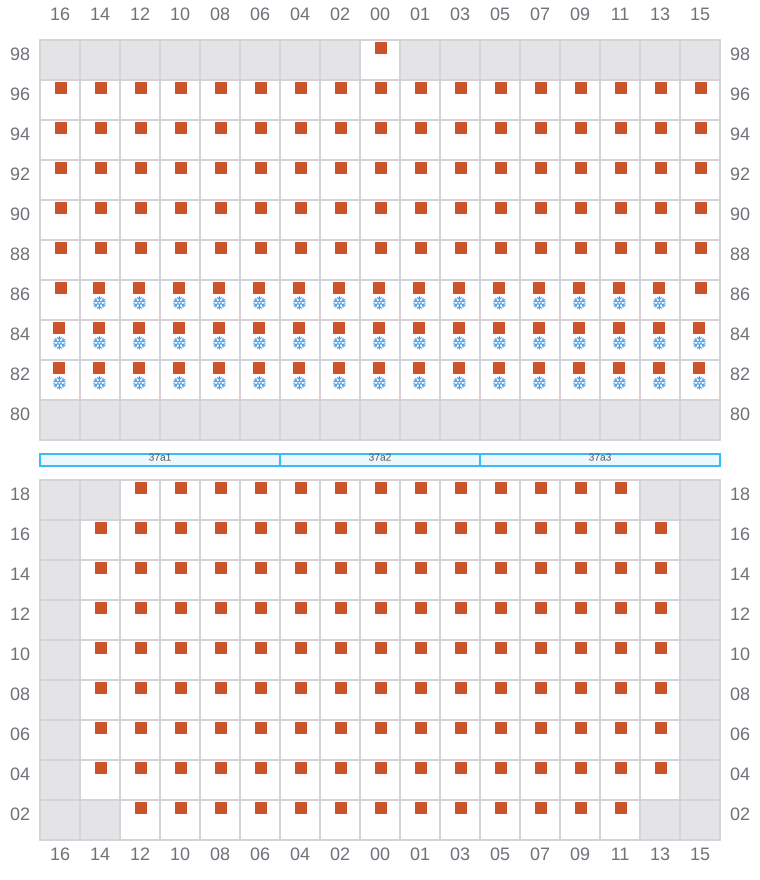

039

  • ←
  • → / ?
Bay 039 view and slots of AXEL MAERSK

041 (042)

  • →

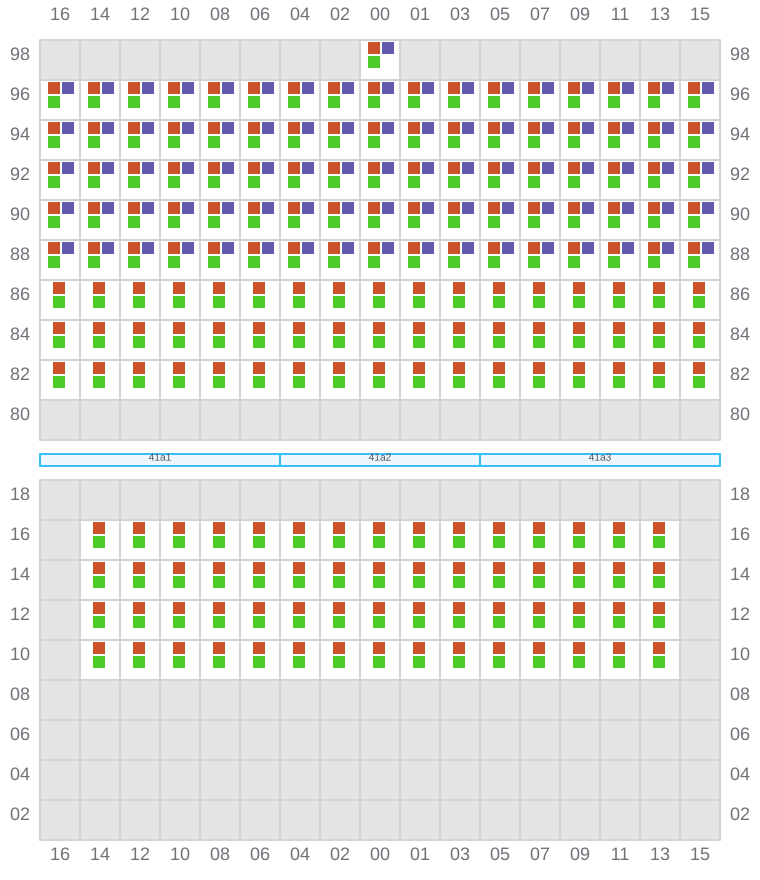

Bay 041 view and slots of AXEL MAERSK

043

  • ←
  • → / ?

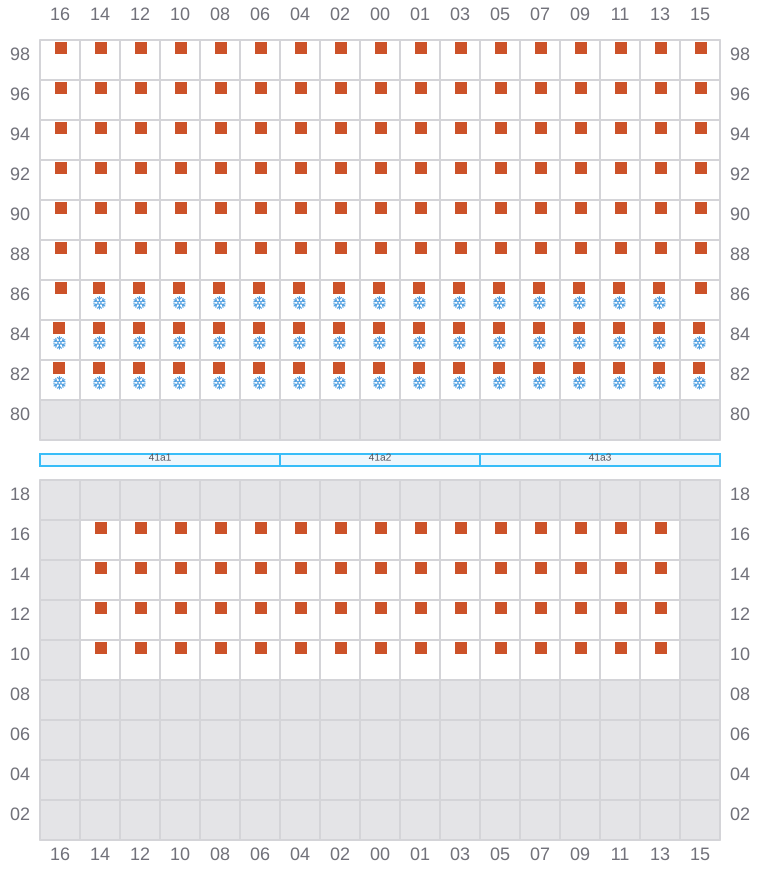

Bay 043 view and slots of AXEL MAERSK

045 (046)

  • →

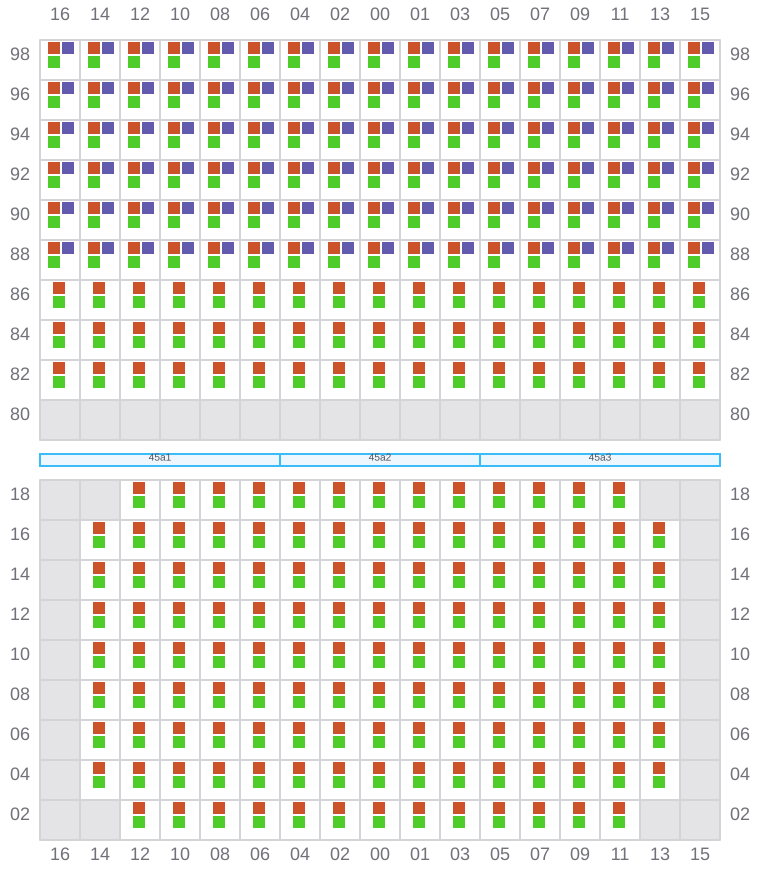

Bay 045 view and slots of AXEL MAERSK

047

  • ←
  • → / ?
Bay 047 view and slots of AXEL MAERSK

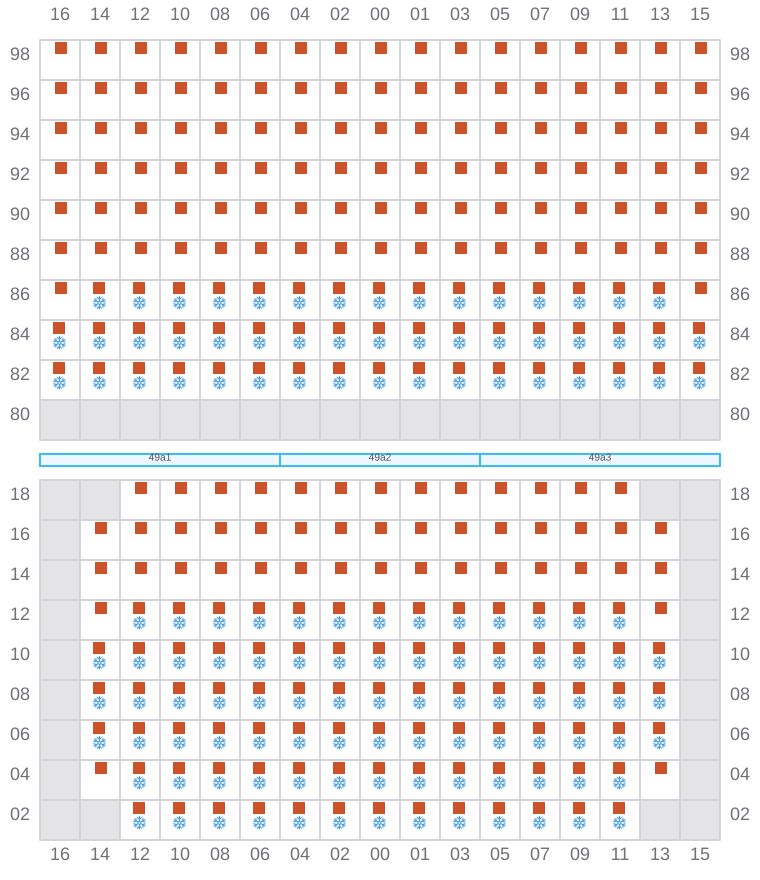

049 (050)

  • →
  • ? / →
Bay 049 view and slots of AXEL MAERSK

051

  • ←
  • →
Bay 051 view and slots of AXEL MAERSK

053 (054)

  • →
  • ? / →

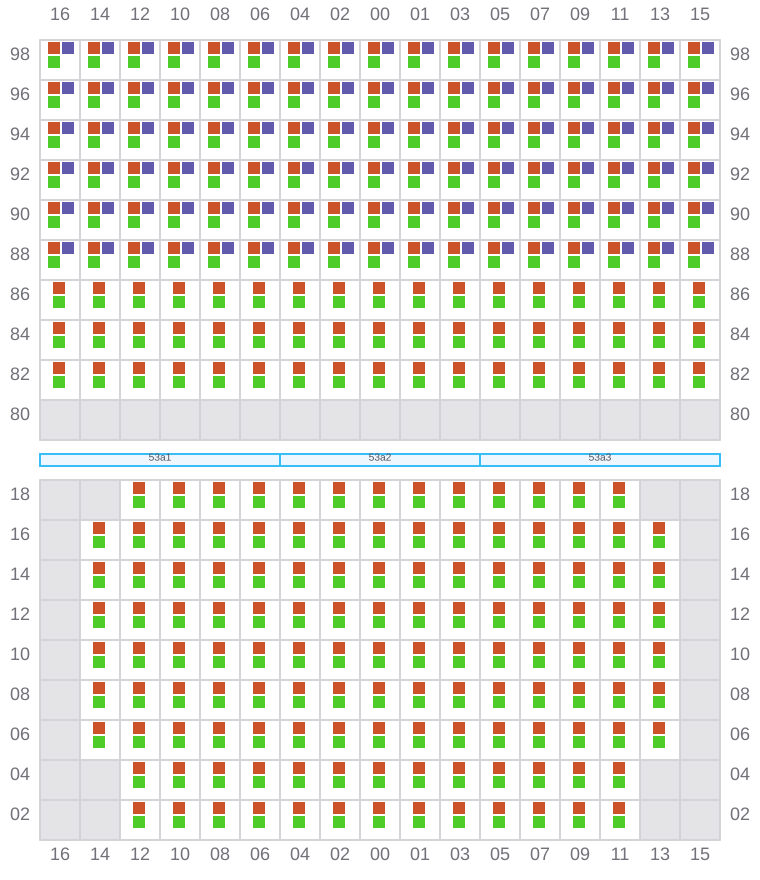

Bay 053 view and slots of AXEL MAERSK

055

  • ←
  • →

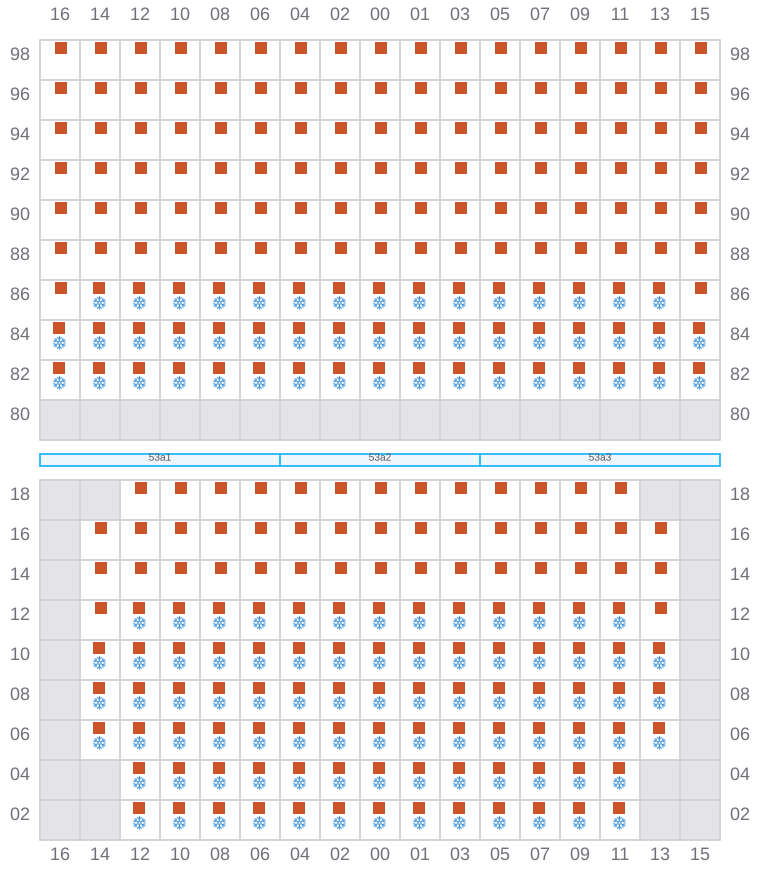

Bay 055 view and slots of AXEL MAERSK

057 (058)

  • →
Bay 057 view and slots of AXEL MAERSK

059

Bay 059 view and slots of AXEL MAERSK

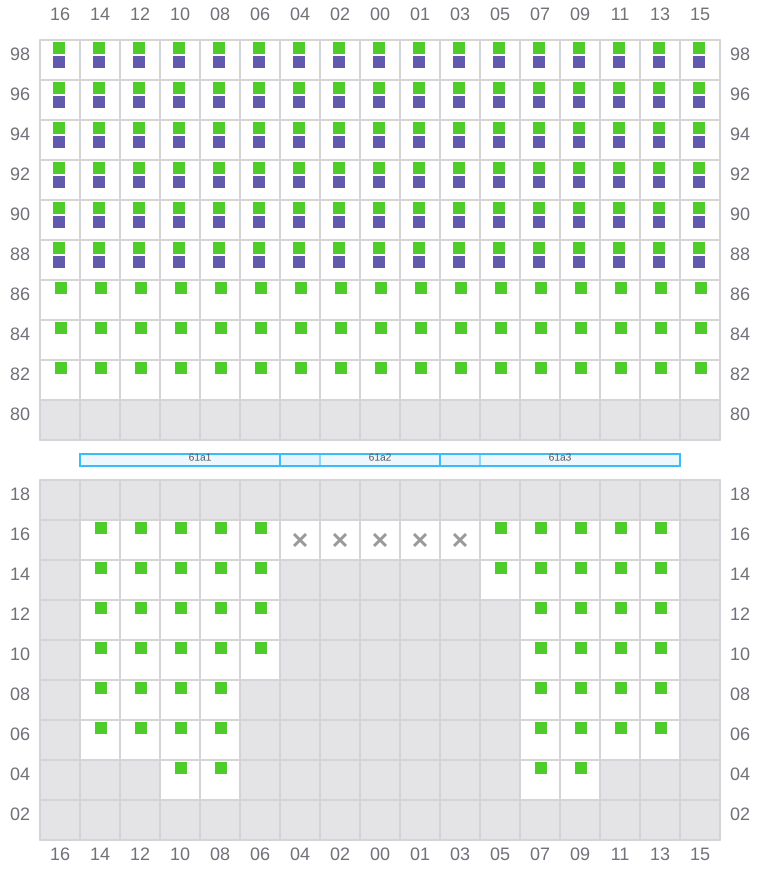

061 (062)

  • →
Bay 061 view and slots of AXEL MAERSK

063

Bay 063 view and slots of AXEL MAERSK

065 (066)

  • →
Bay 065 view and slots of AXEL MAERSK

067

  • ← / ?
  • →
Bay 067 view and slots of AXEL MAERSK

069 (070)

  • →
  • → / ?
Bay 069 view and slots of AXEL MAERSK

071

  • ←
  • → / ?

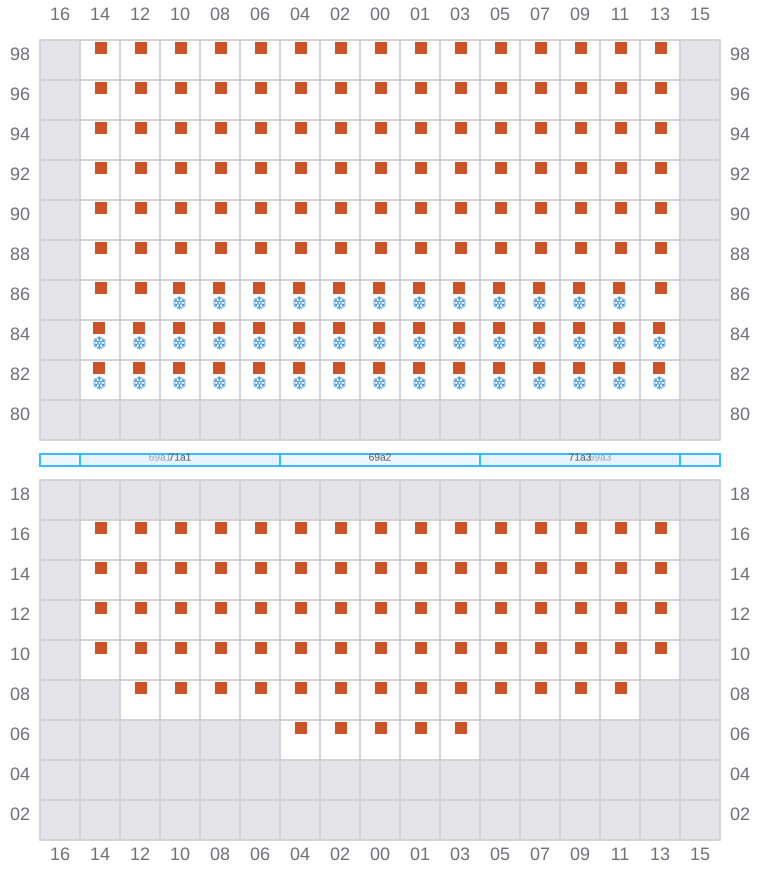

Bay 071 view and slots of AXEL MAERSK

073 (074)

  • →

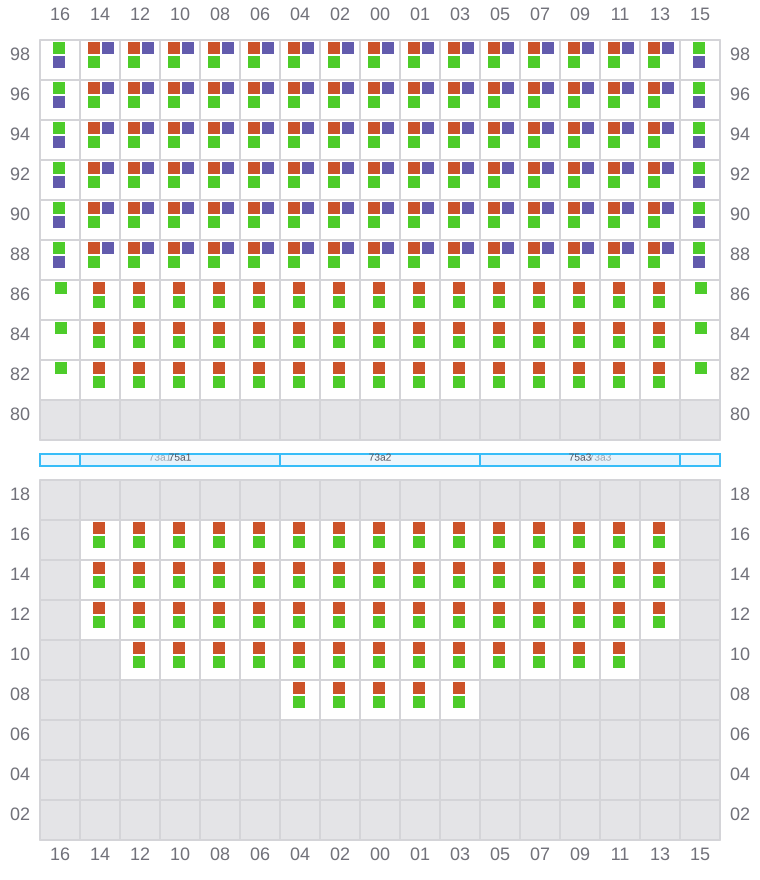

Bay 073 view and slots of AXEL MAERSK

075

  • ←
Bay 075 view and slots of AXEL MAERSK

077 (078)

  • →

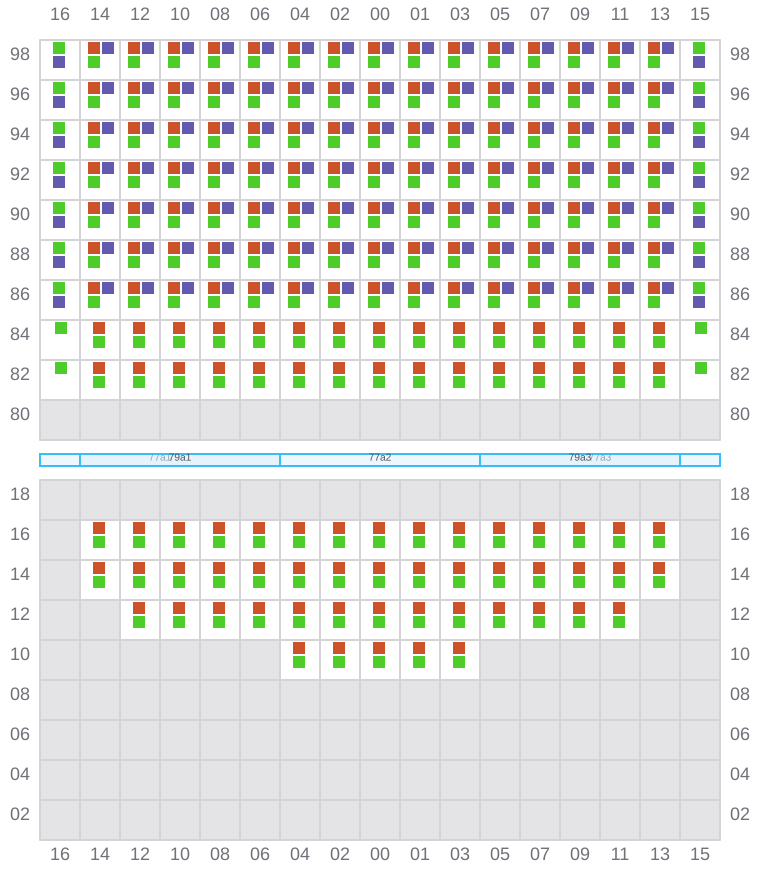

Bay 077 view and slots of AXEL MAERSK

079

  • ←

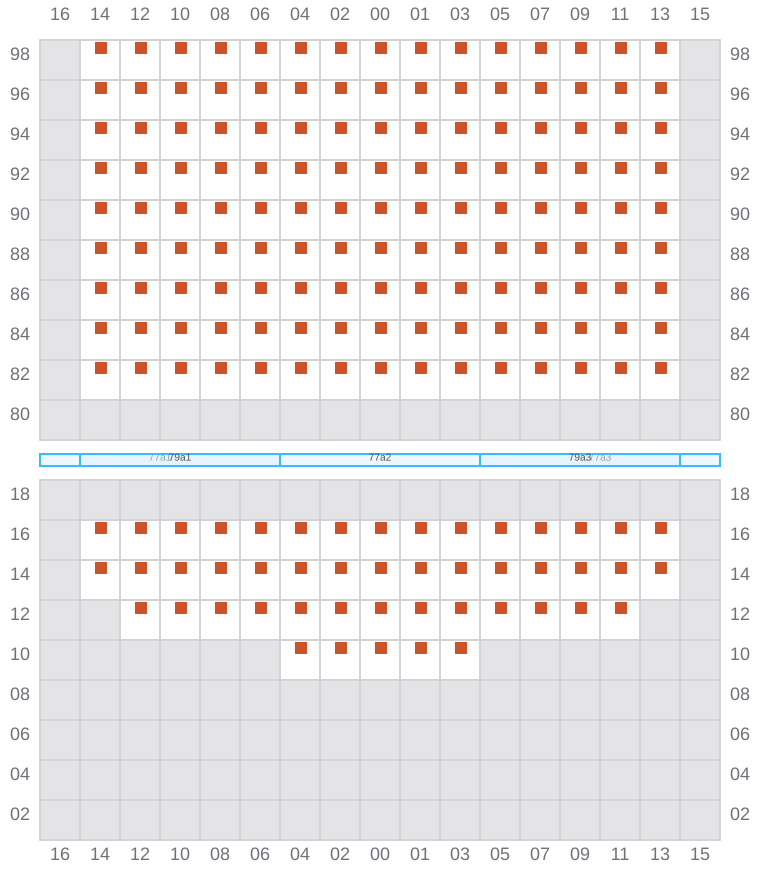

Bay 079 view and slots of AXEL MAERSK

081 (082)

  • → / ?

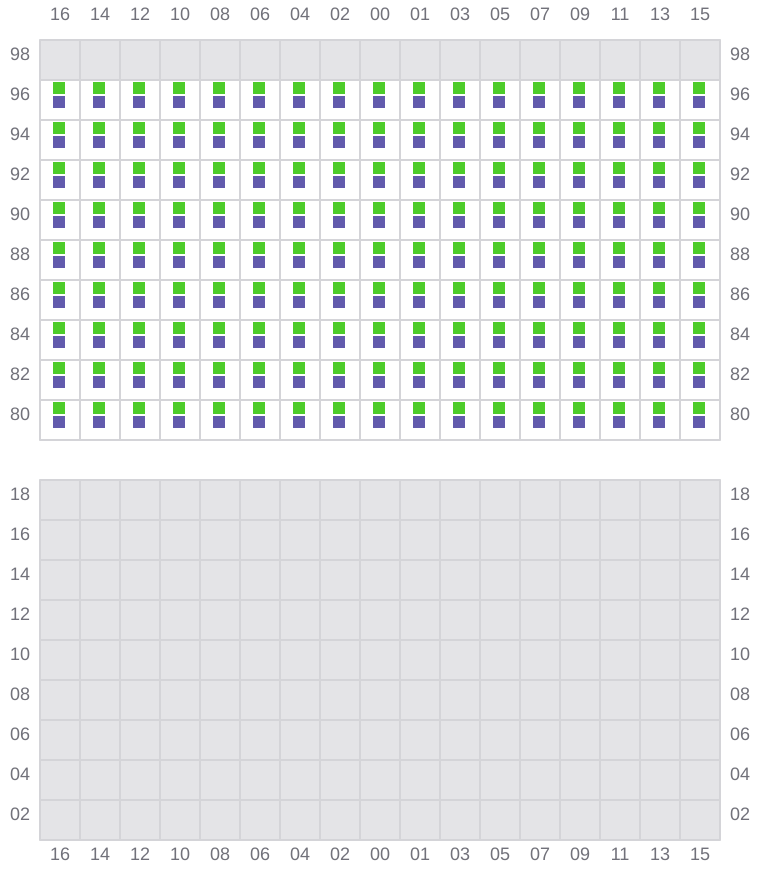

Bay 081 view and slots of AXEL MAERSK
