BAHAMAS
9395941 | A8UE7 | 9395941 by ********* Last update: Mon Apr 01 2024
General Info
Ship Name:BAHAMAS
IMO Code:9395941
Call Sign:A8UE7
Line Operator:9395941
Class Name for Sister Ships:APL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,343
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

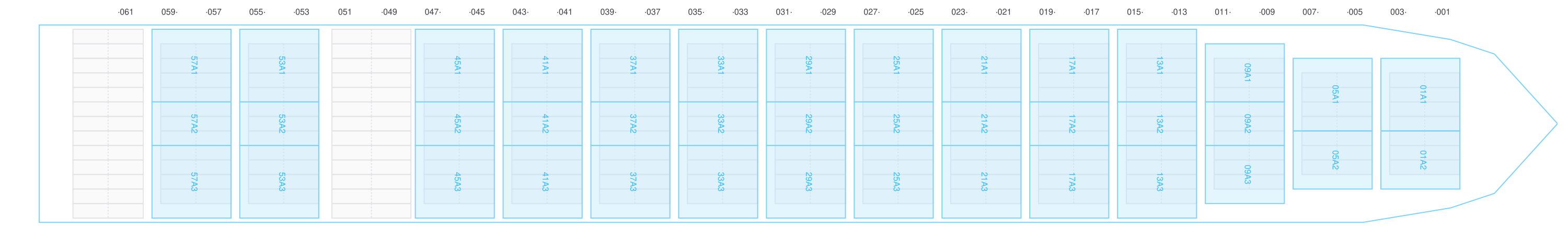

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

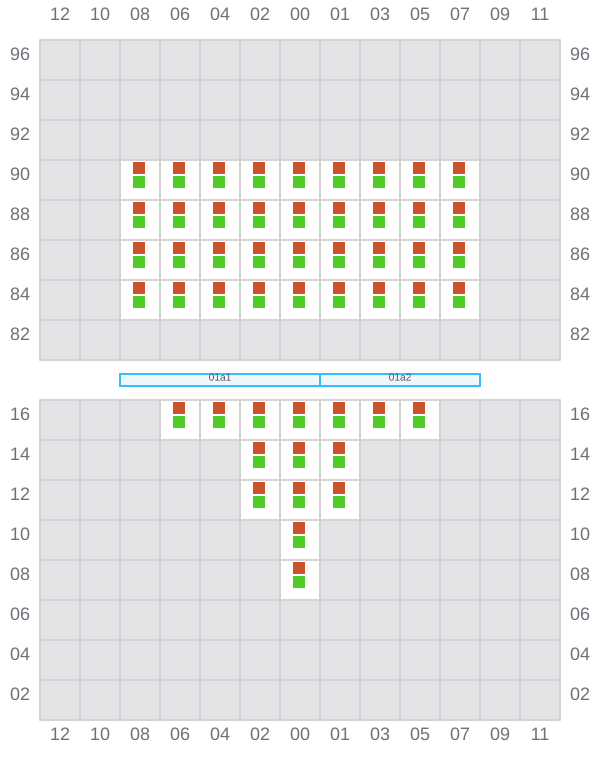

001 (002)
- →

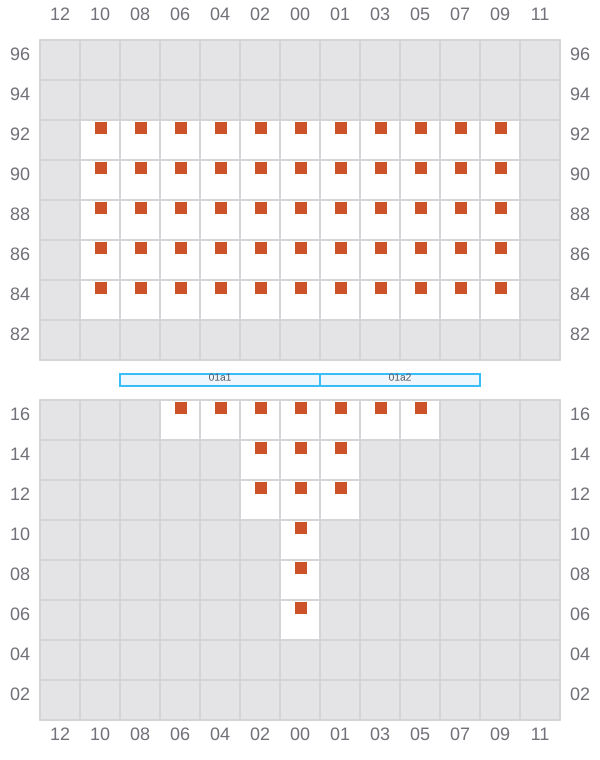

003
- ←

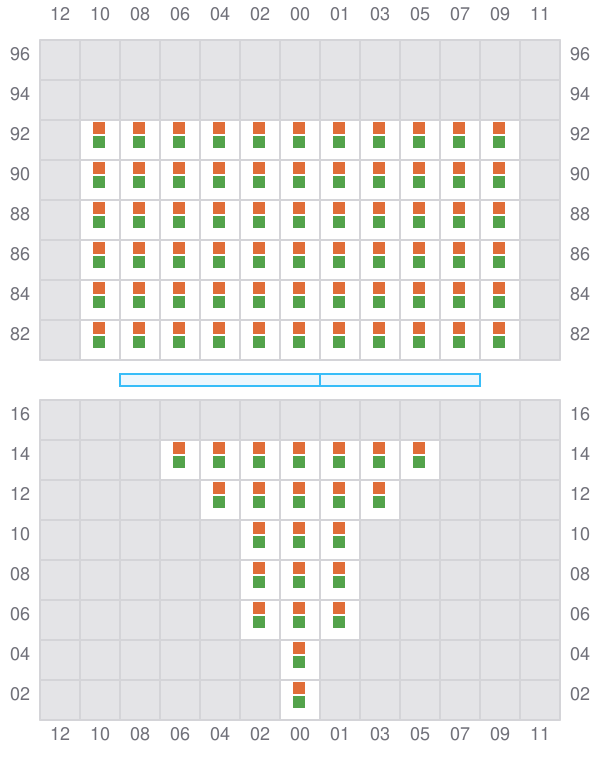

005 (006)
- →

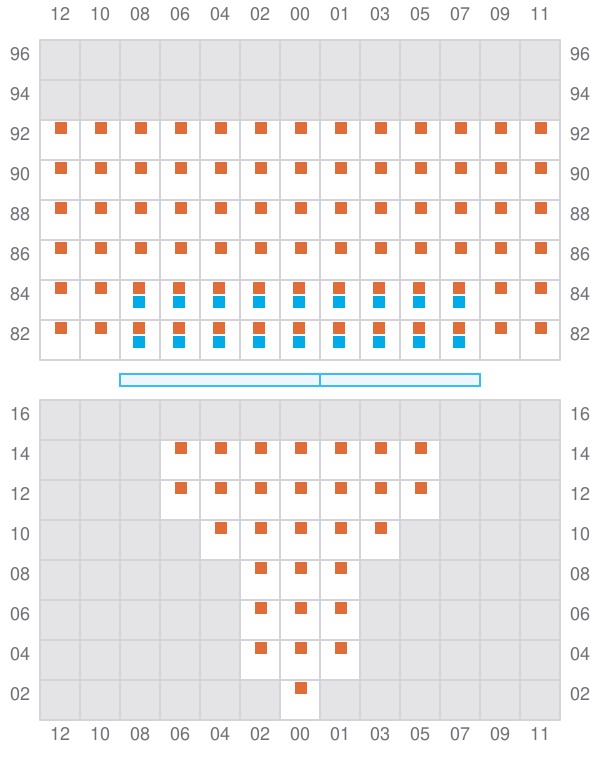

007
- ←

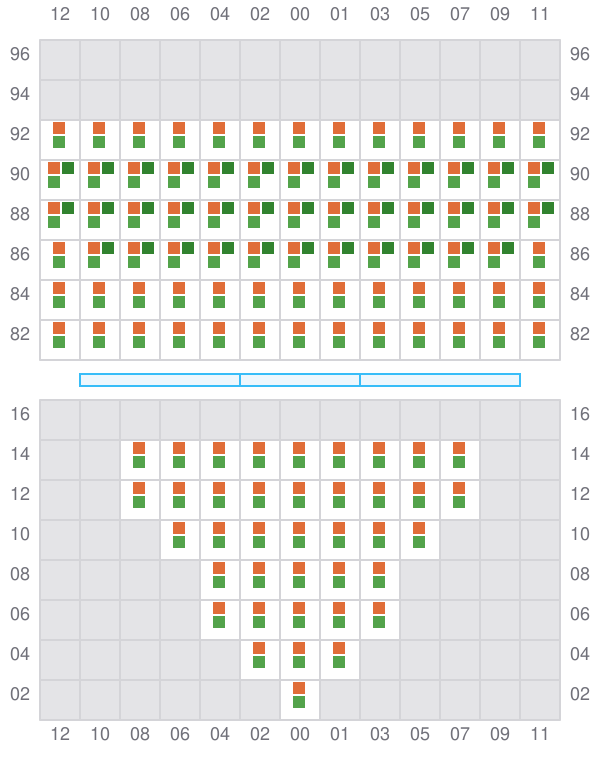

009 (010)
- →

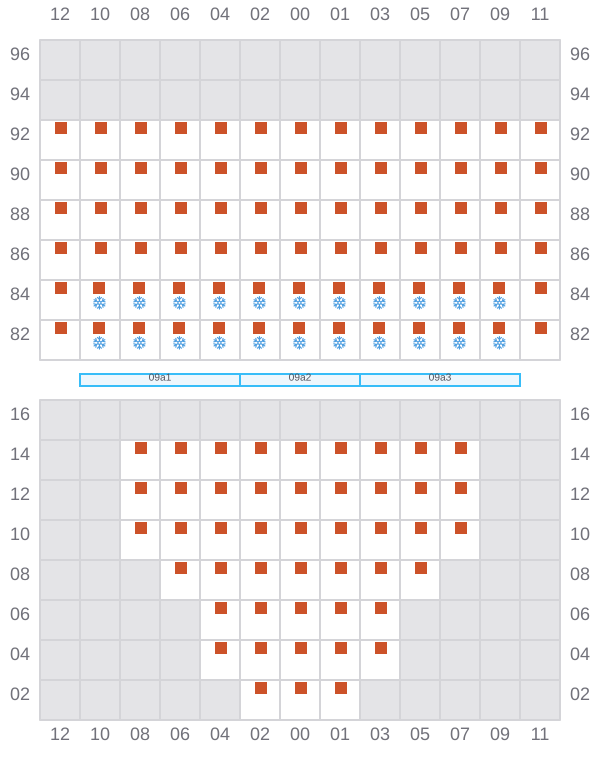

011
- ←

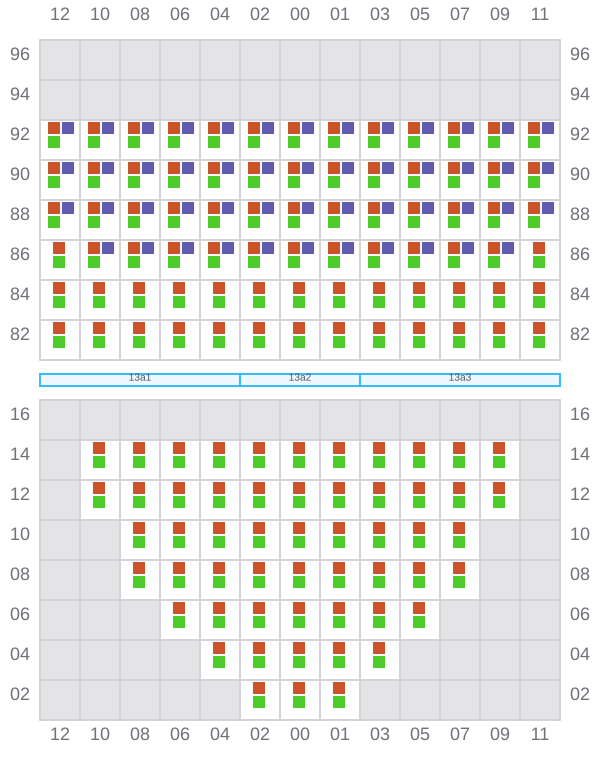

013 (014)
- →

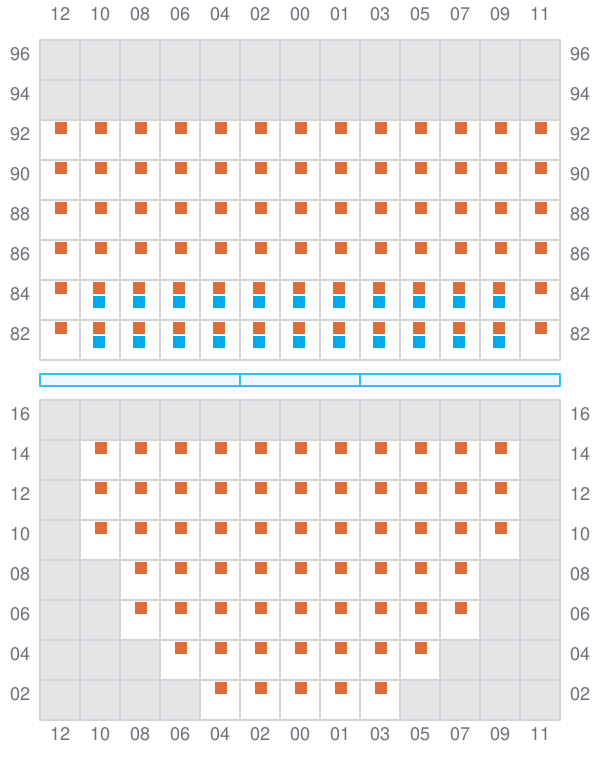

015
- ←

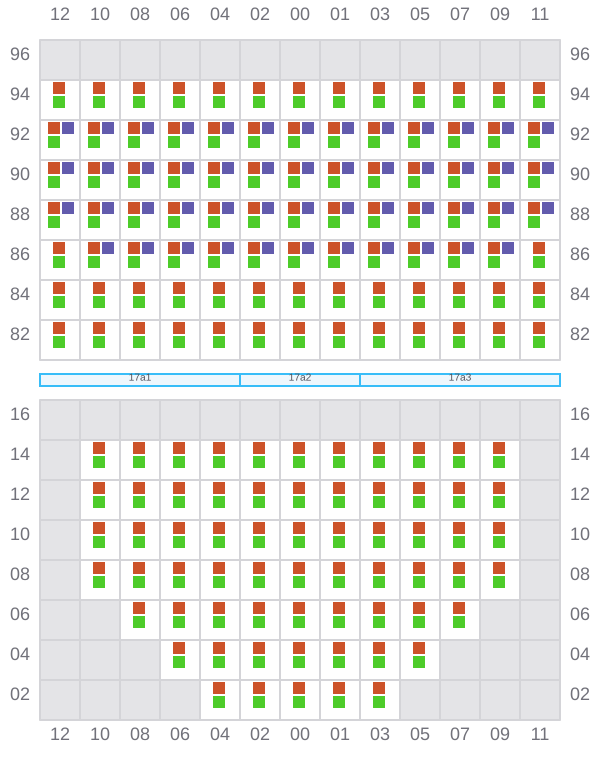

017 (018)
- →

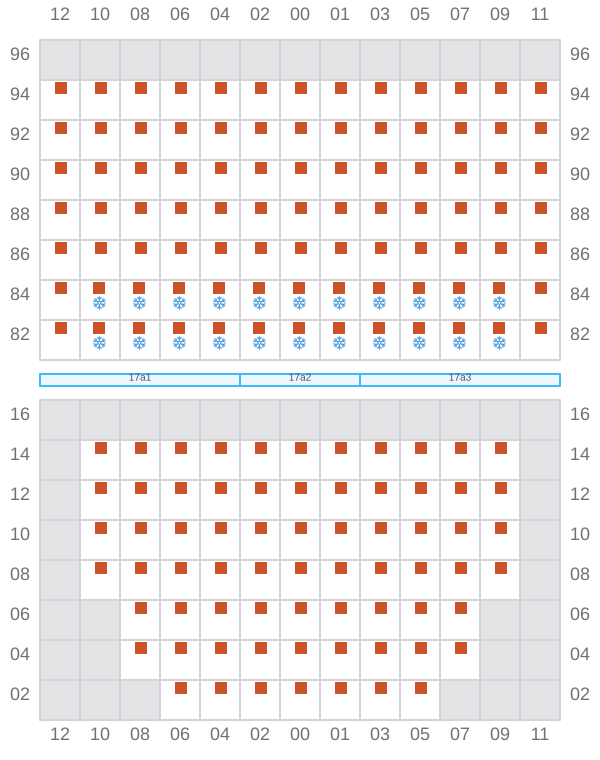

019
- ←

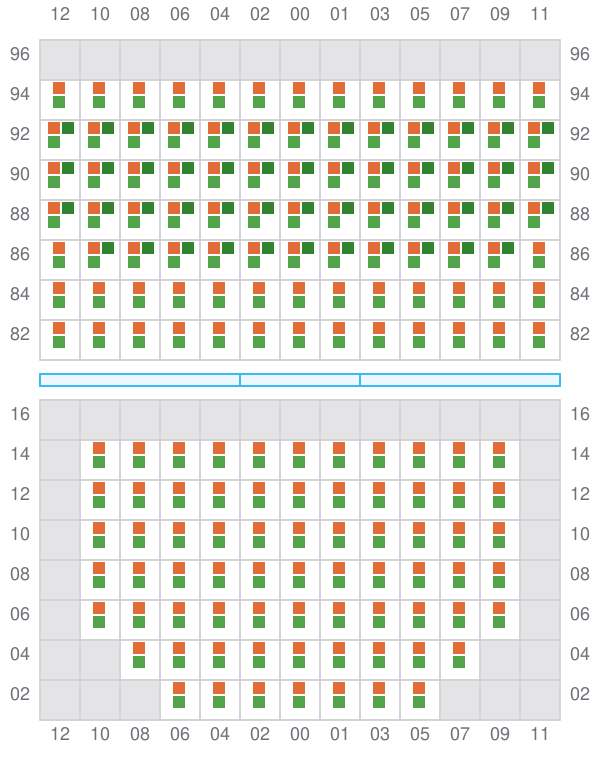

021 (022)
- →

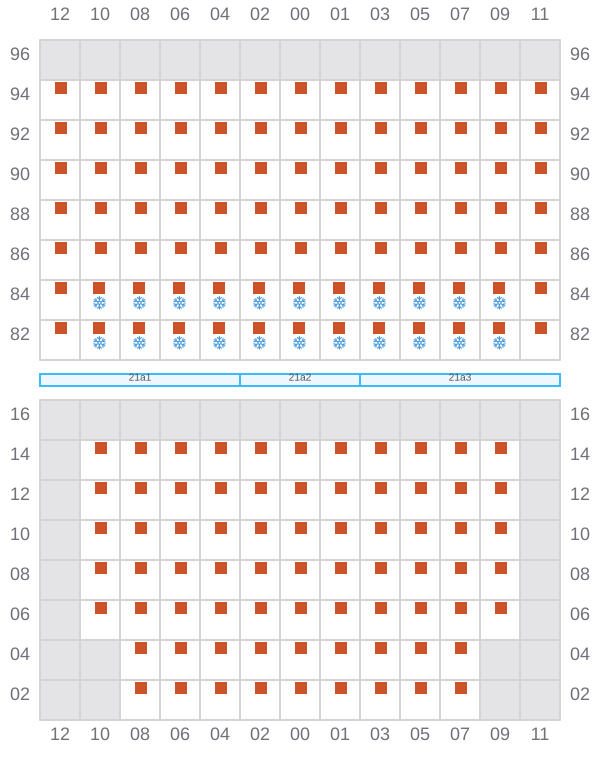

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →

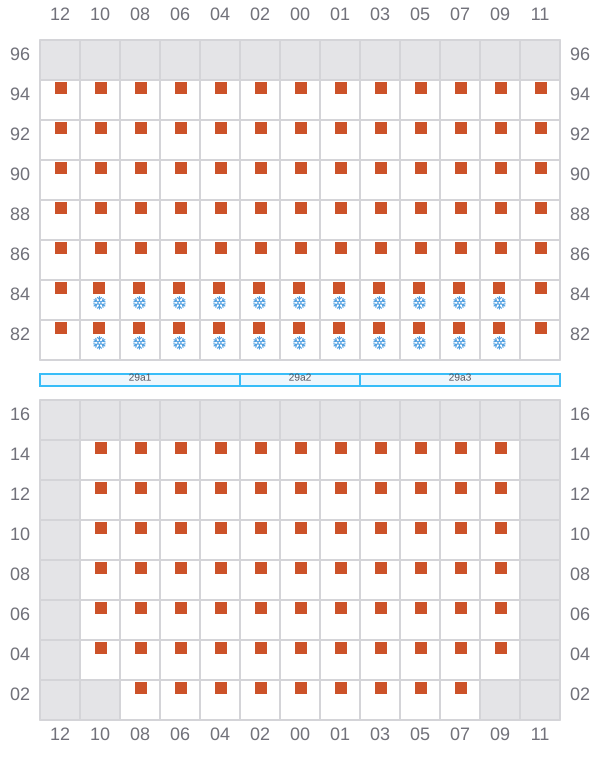

031
- ←

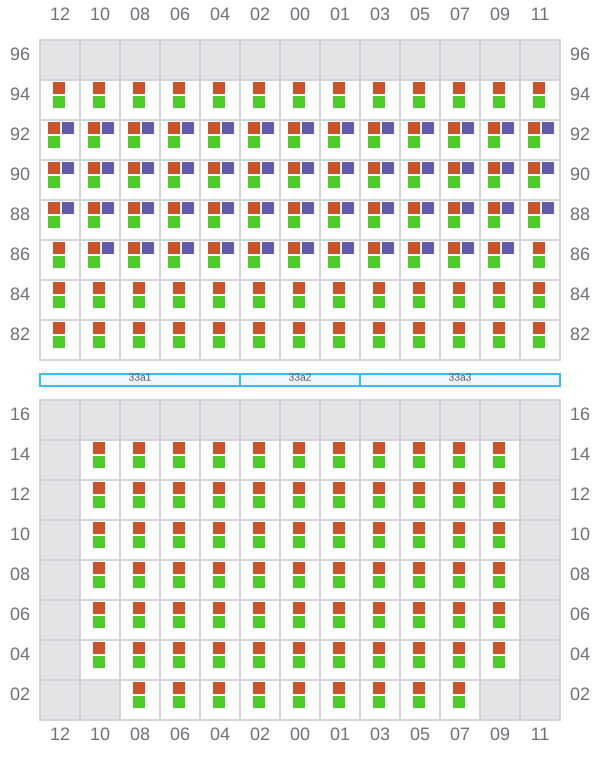

033 (034)
- →
035
- ←

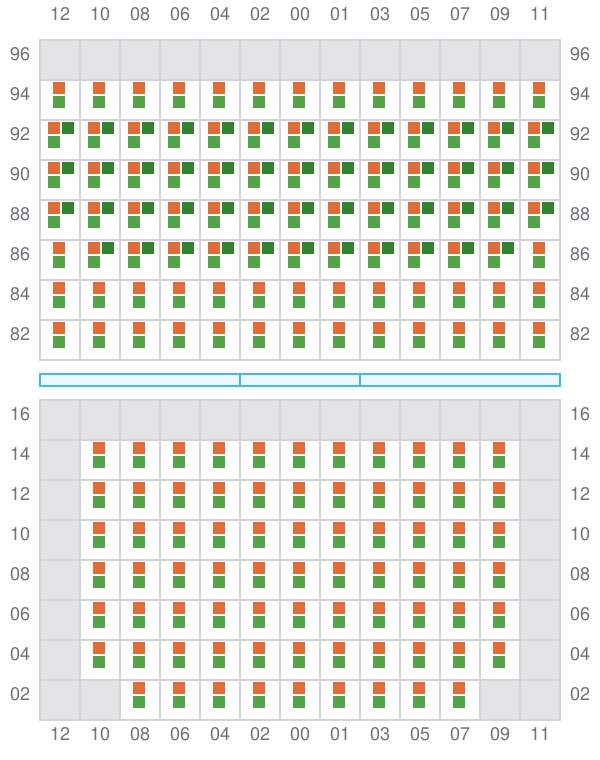

037 (038)
- →

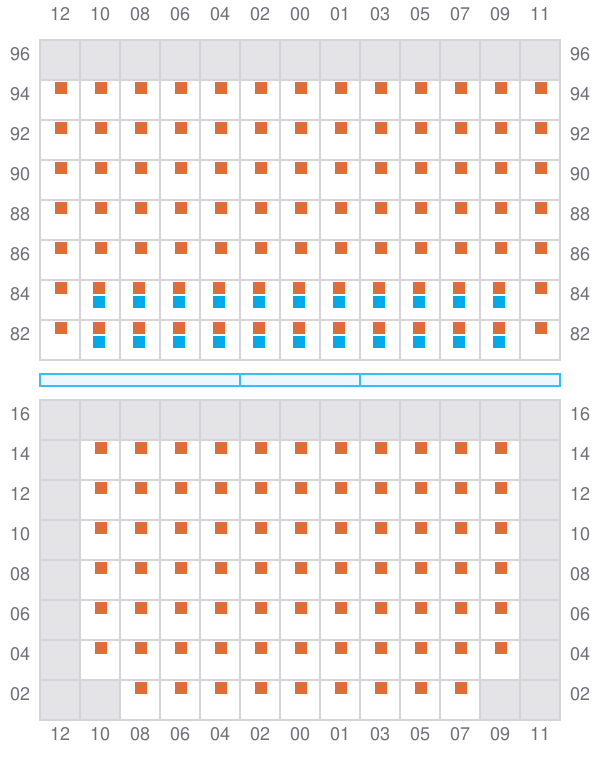

039
- ←
041 (042)
- →

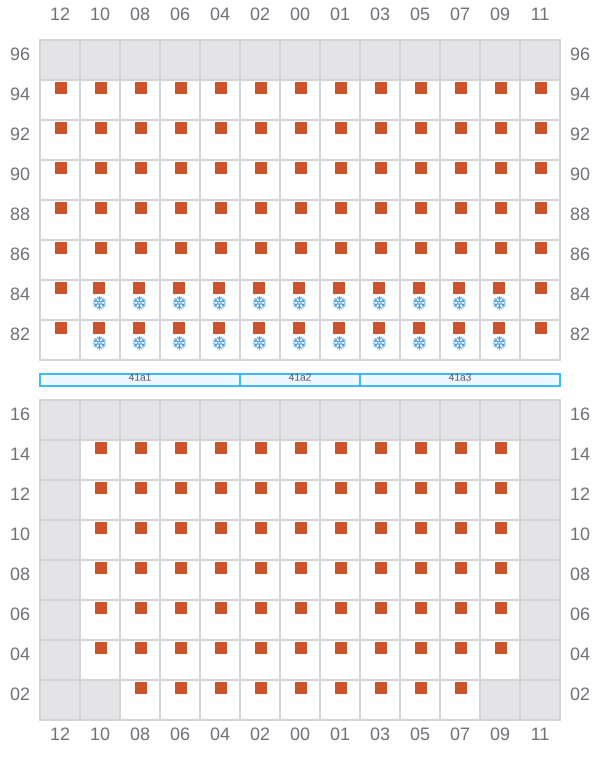

043
- ←

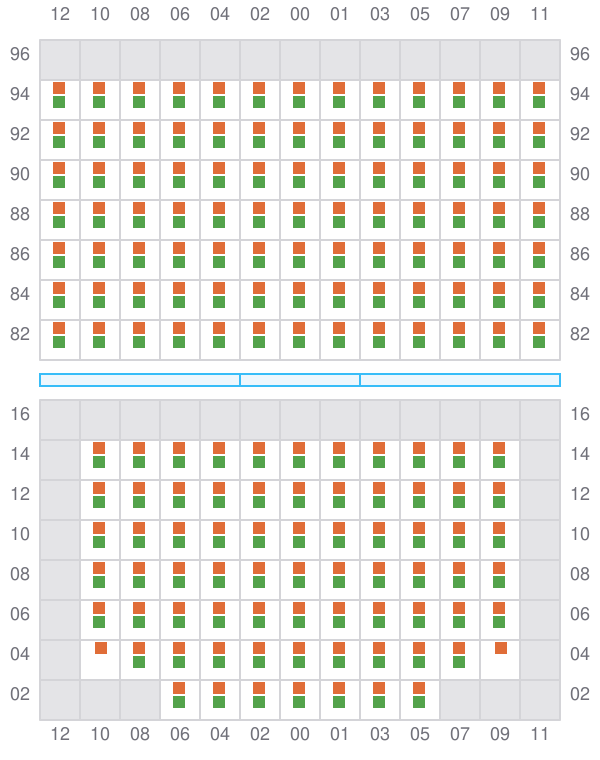

045 (046)
- →

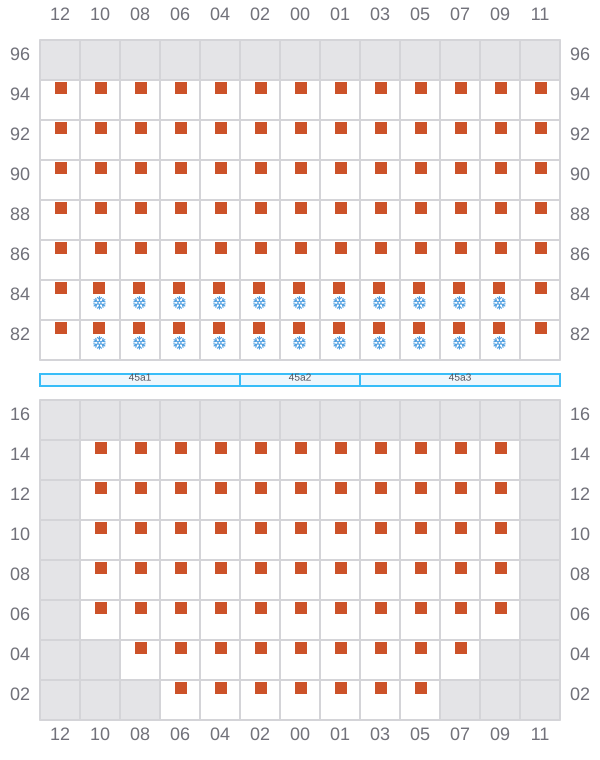

047
- ←

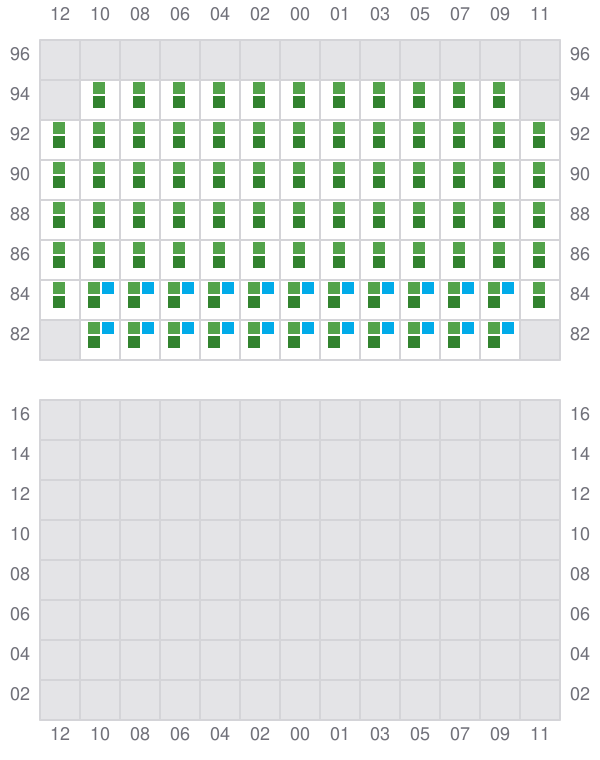

049 (050)
- → / ?

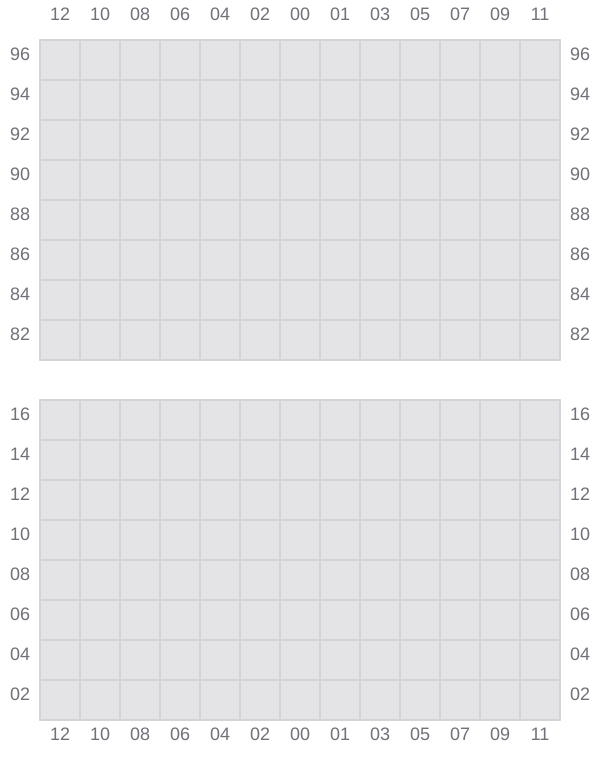

051

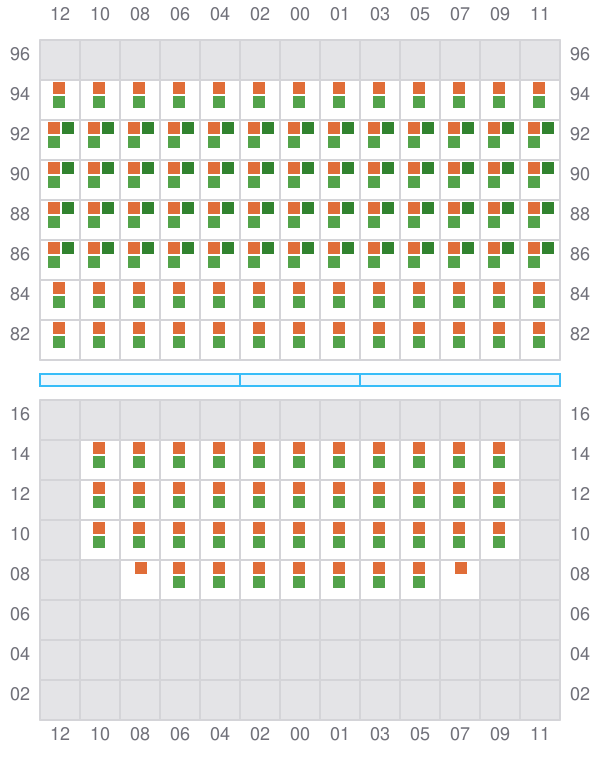

053 (054)
- →
055
- ←

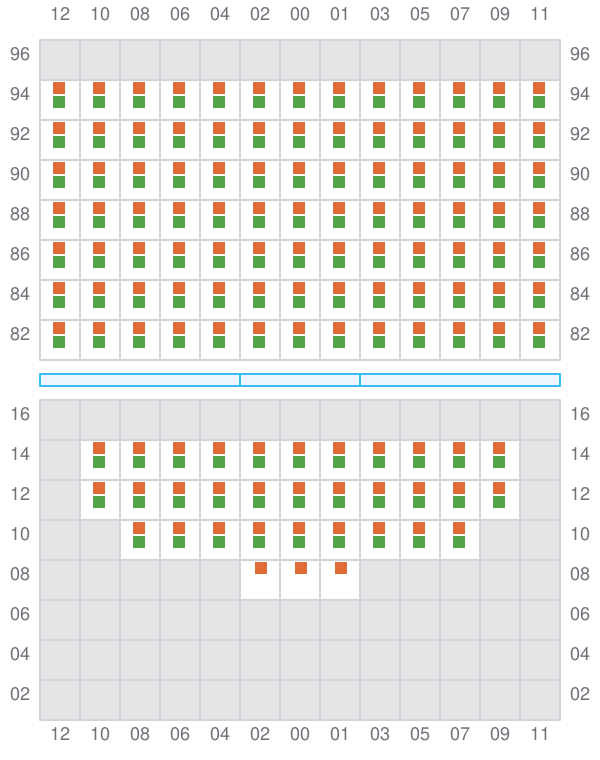

057 (058)
- →

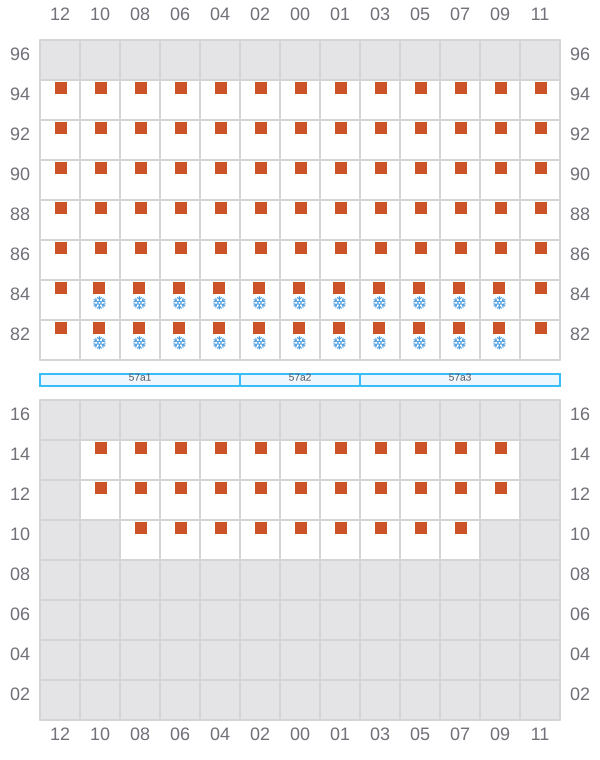

059
- ←

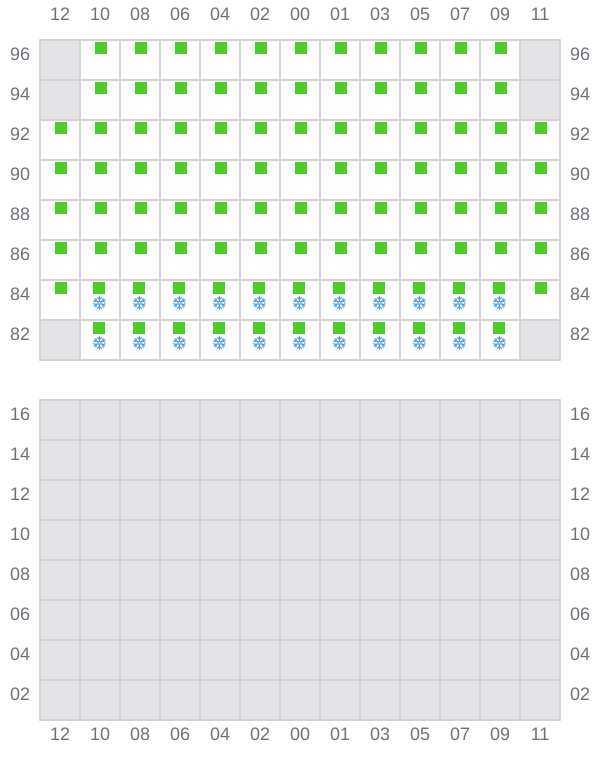

061 (062)
- → / ?
