BAKKAFOSS
9429194 | V2GK9 | 9429194 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:BAKKAFOSS
IMO Code:9429194
Call Sign:V2GK9
Line Operator:9429194
Class Name for Sister Ships:MCC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:889
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

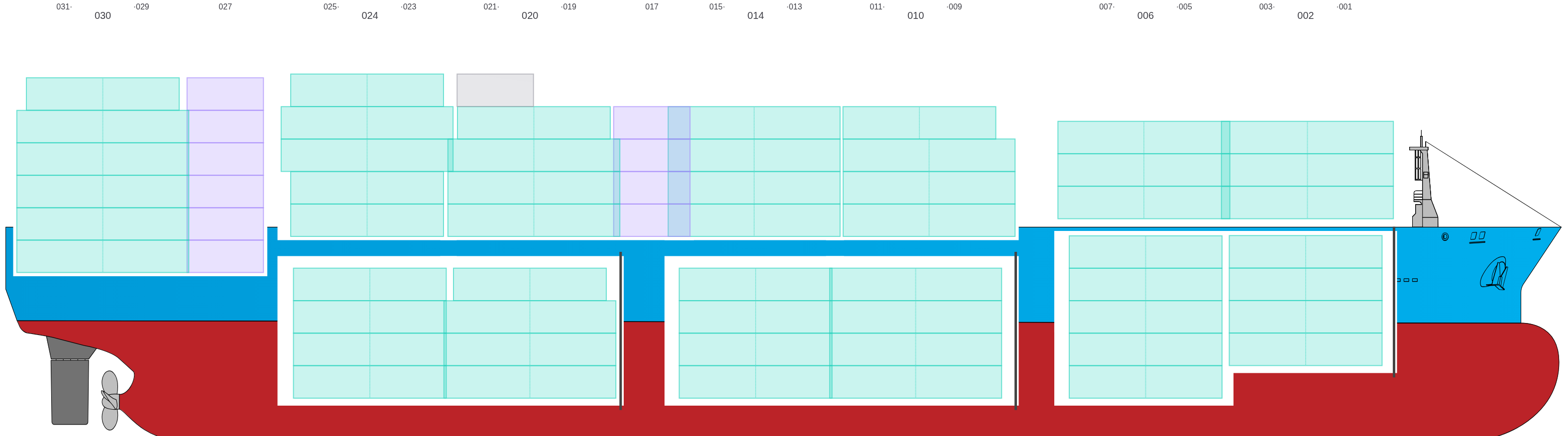

Side View

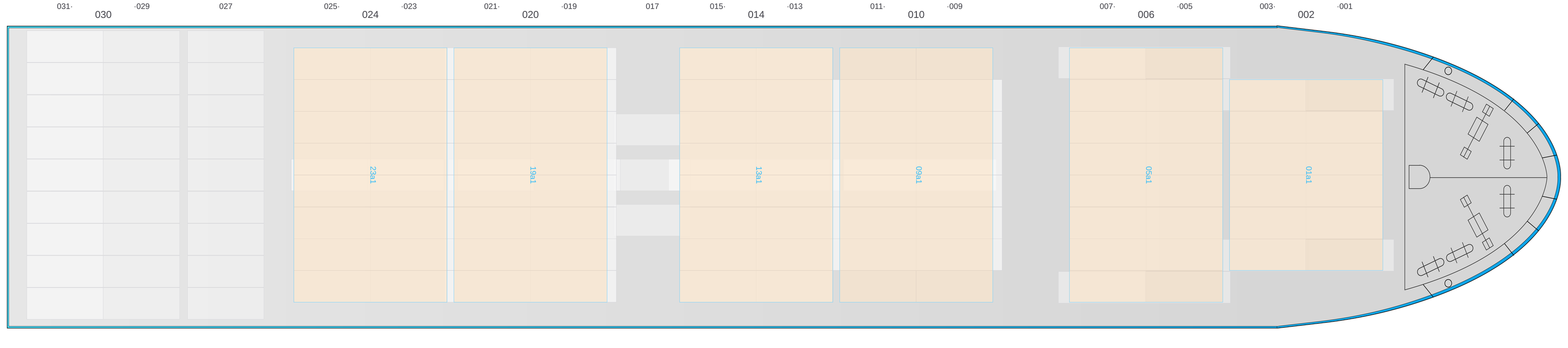

Hatch-Covers View

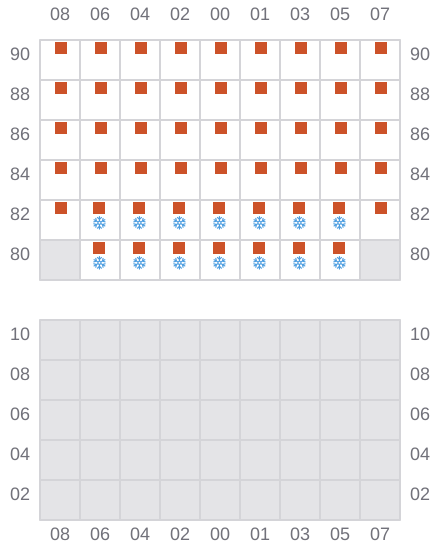

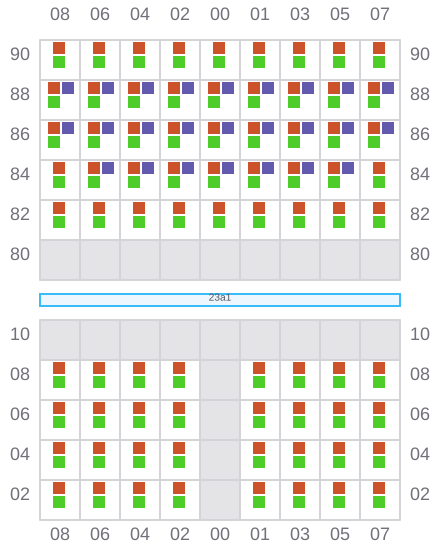

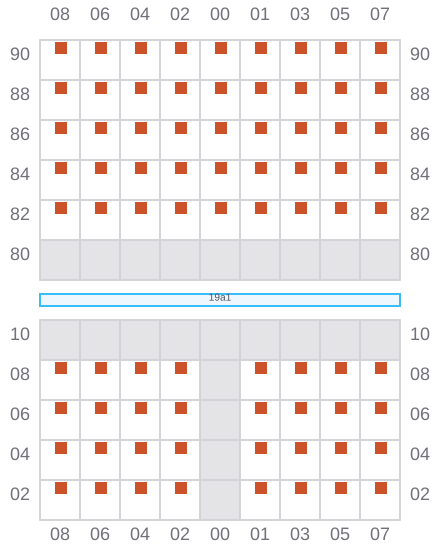

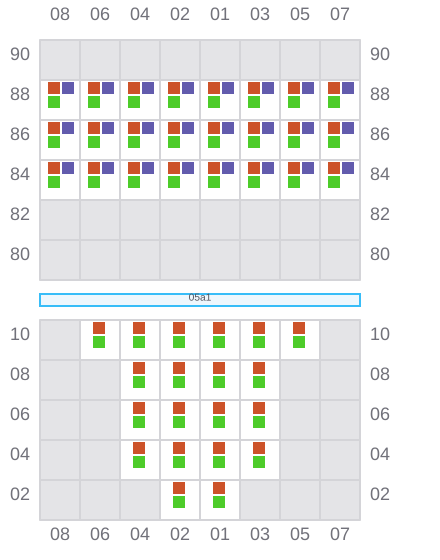

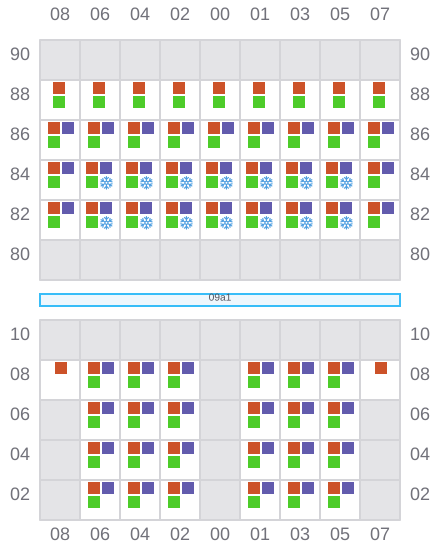

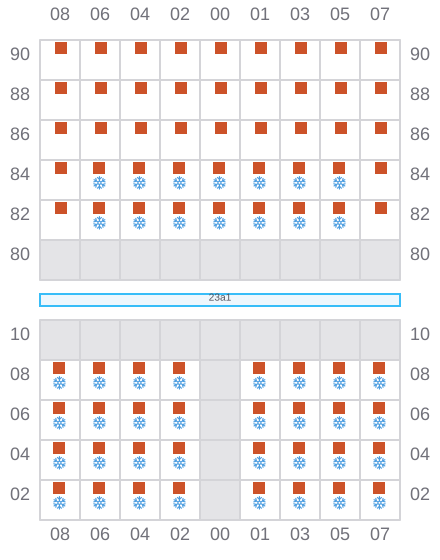

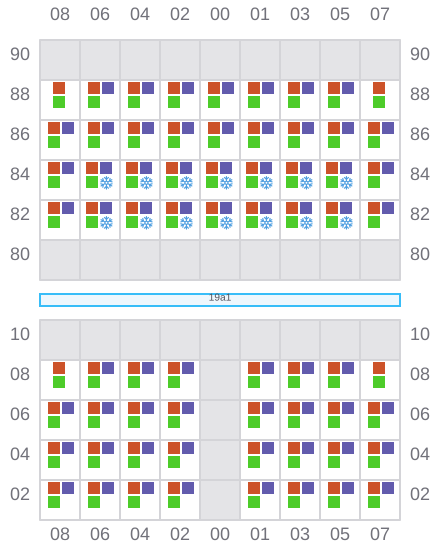

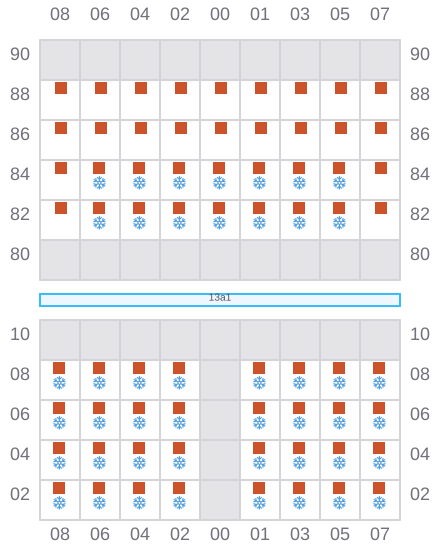

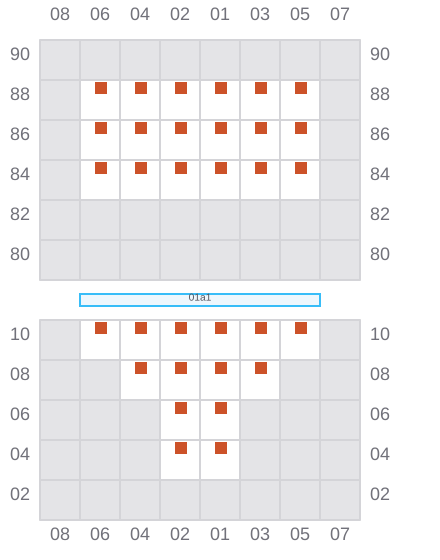

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

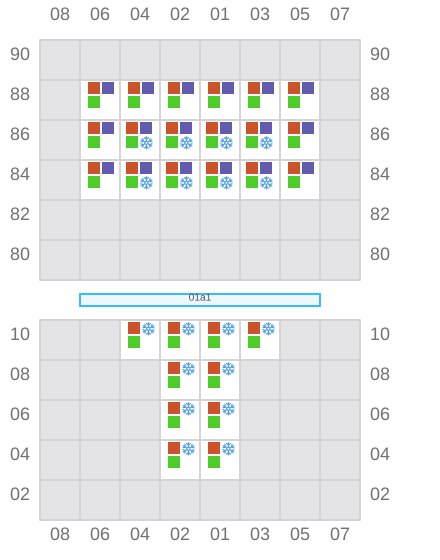

001 (002)
- →
- ← / ?
003
- ←
005 (006)
- →

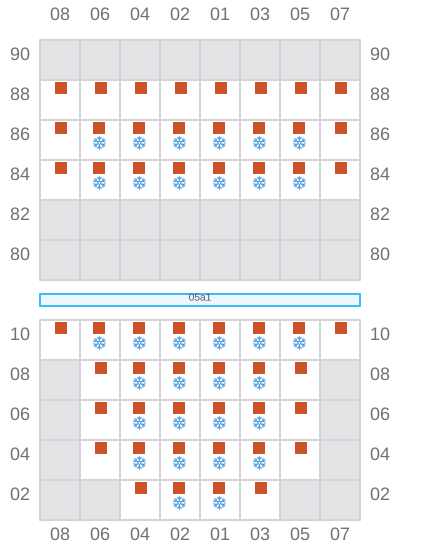

007
- ←
- ? / →
009 (010)
- →
- ← / ?

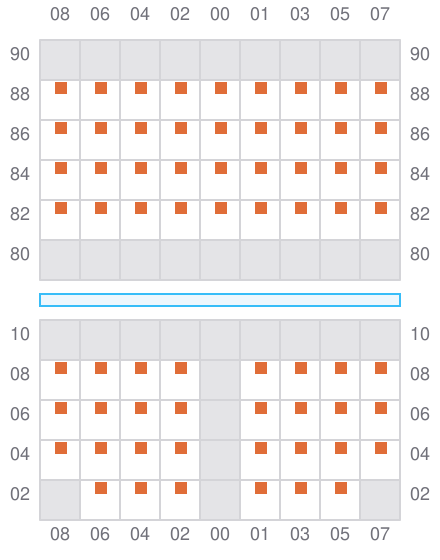

011
- ←

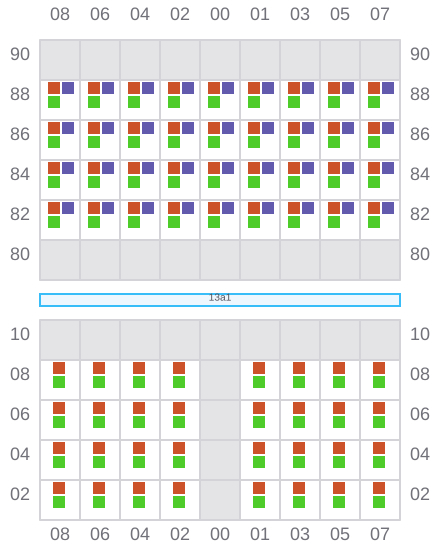

013 (014)
- →
015
- ←
- →

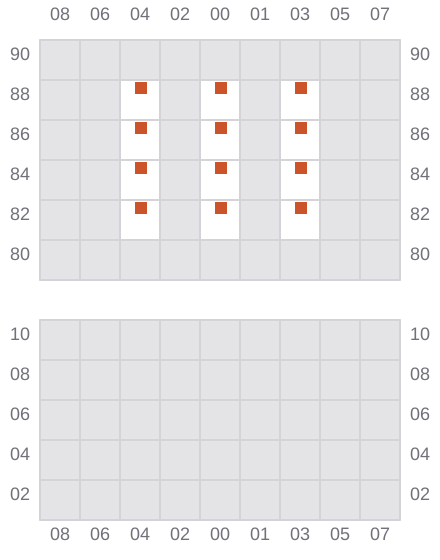

017
019 (020)
- →
- ← / ?
021
- ←
023 (024)
- →
025
- ←
- →
027
- ← / ?

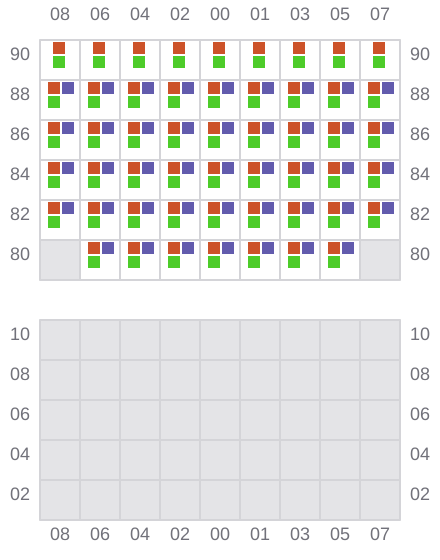

029 (030)
- → / ?

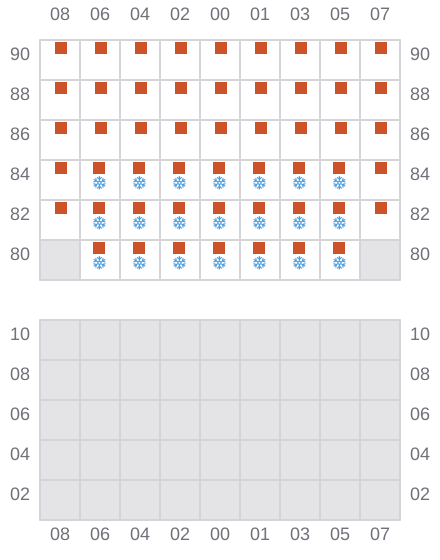

031
- ← / ?
- → / ?
