BAL PEACE
9249207 | H9VC | 9249207 by ********* Last update: Fri May 10 2024
General Info
Ship Name:BAL PEACE
IMO Code:9249207
Call Sign:H9VC
Line Operator:9249207
Class Name for Sister Ships:LT PEACE
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):170.00
LOA (Length Overall):181.76
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:91
Min Above ISO Tier:81
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:2,212
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

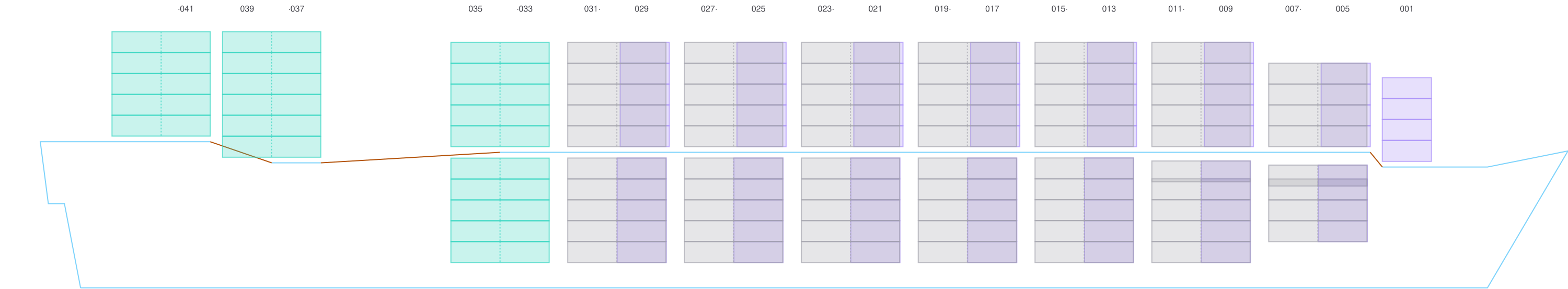

Side View

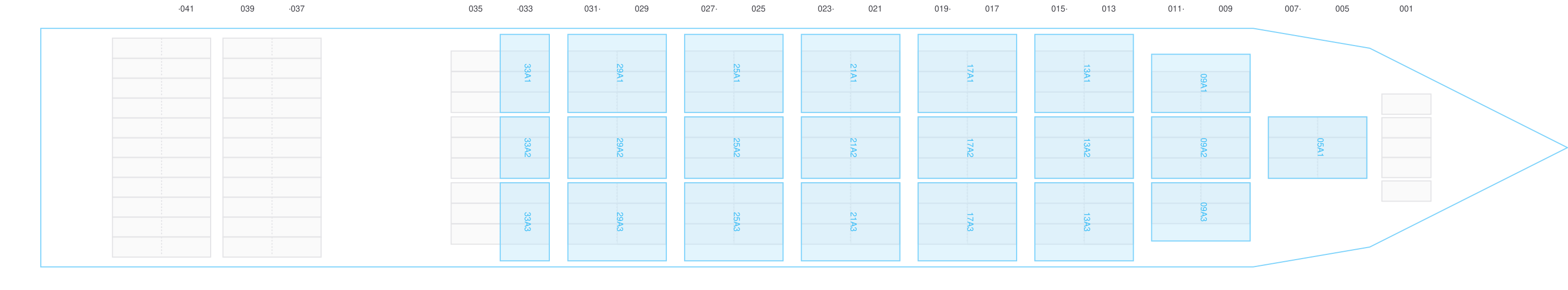

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?
003

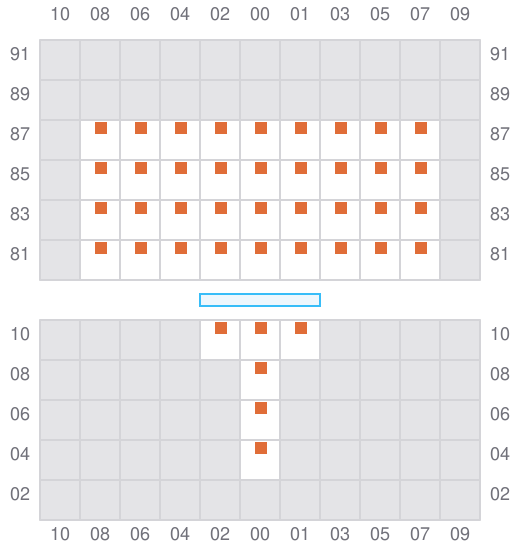

005
- →

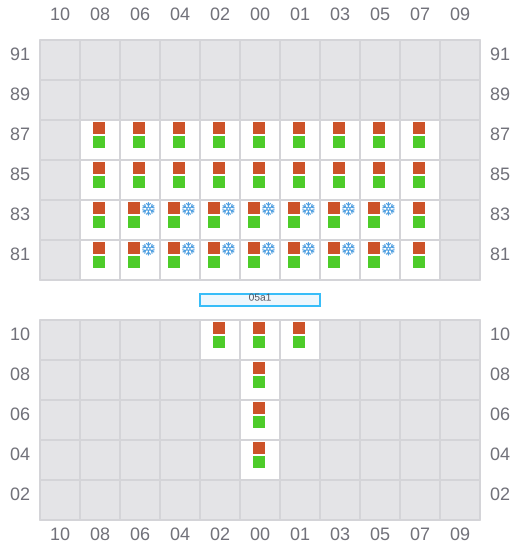

007 (006)
- ←
- → / ?
- →
009
- →

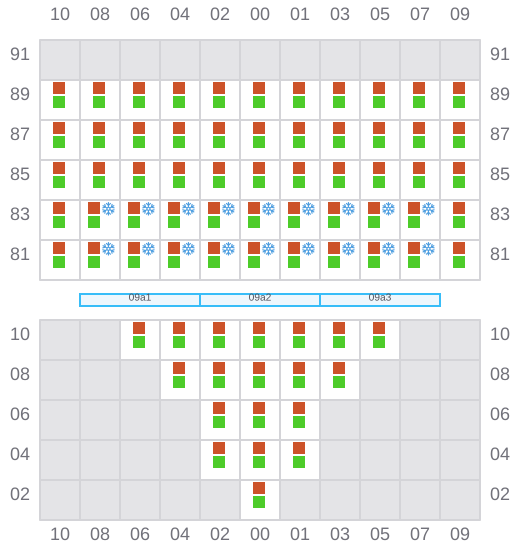

011 (010)
- ←
- → / ?
- →
013
- →

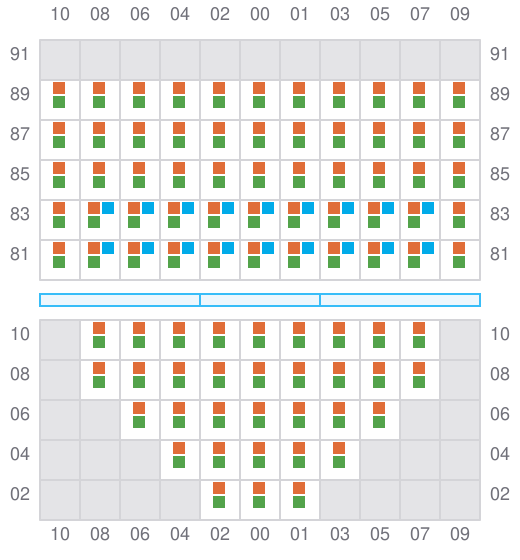

015 (014)
- ←
- → / ?
- →

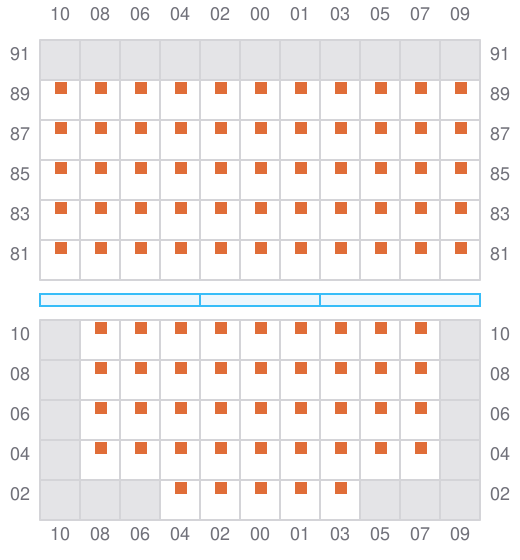

017
- →

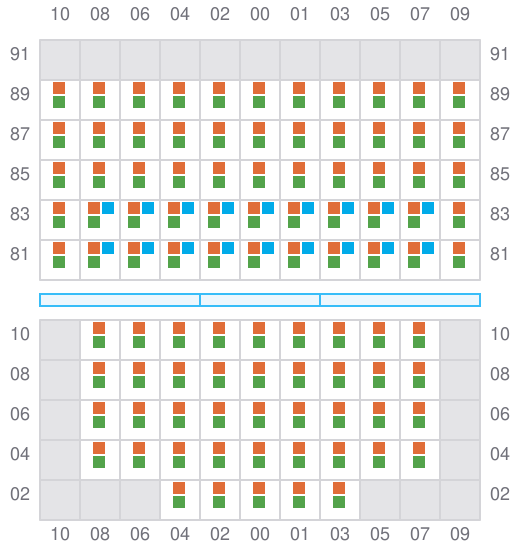

019 (018)
- ←
- → / ?
- →

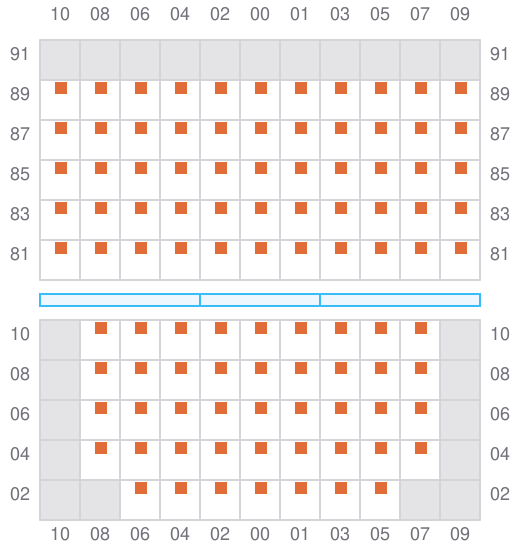

021
- →
023 (022)
- ←
- → / ?
- →
025
- →
027 (026)
- ←
- → / ?
- →

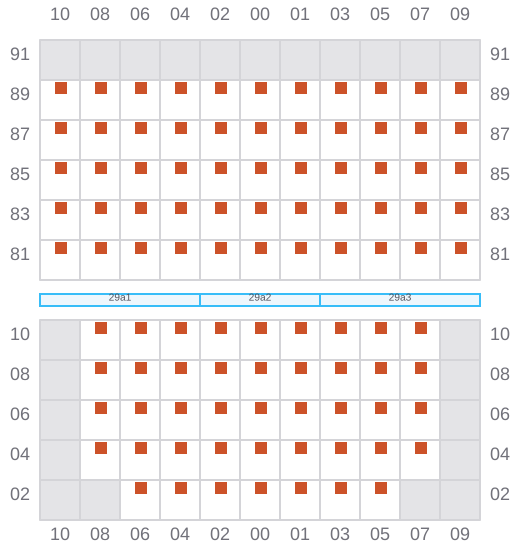

029
- →

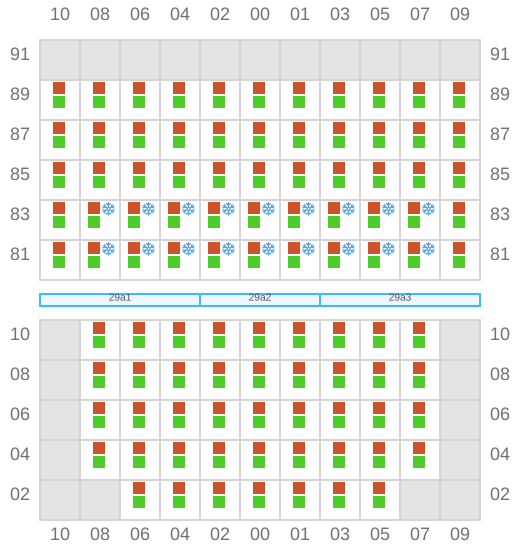

031 (030)
- ←
- → / ?
- →

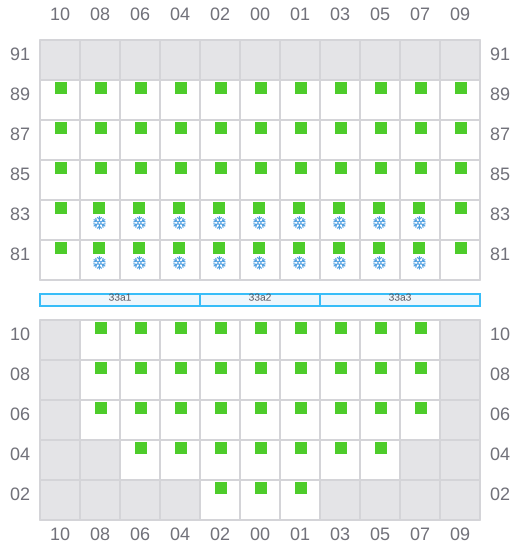

033 (034)
- →
- → / ?
- →
035

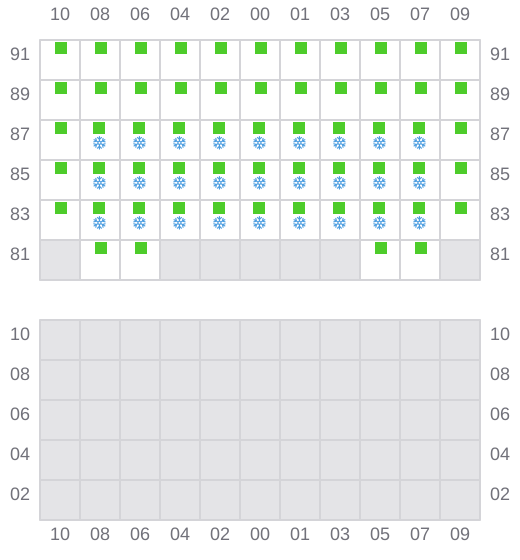

037 (038)
- → / ?
- → / ?
- → / ?
039

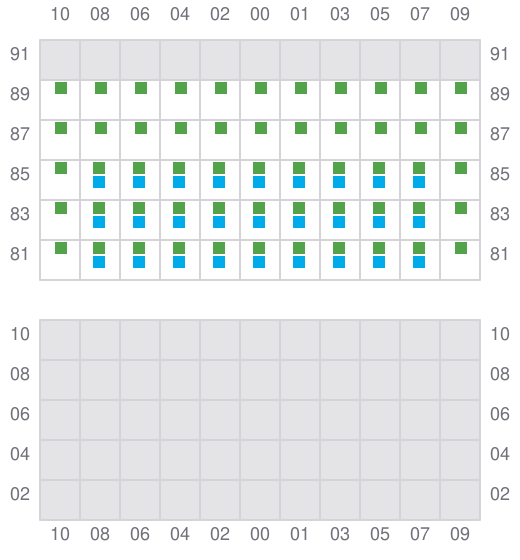

041 (042)
- → / ?
- → / ?
- → / ?
