BALDUR
9470894 | CQHH | 9470894 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:BALDUR
IMO Code:9470894
Call Sign:CQHH
Line Operator:9470894
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,404

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of BALDUR

Hatch-Covers View

Deck view of BALDUR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

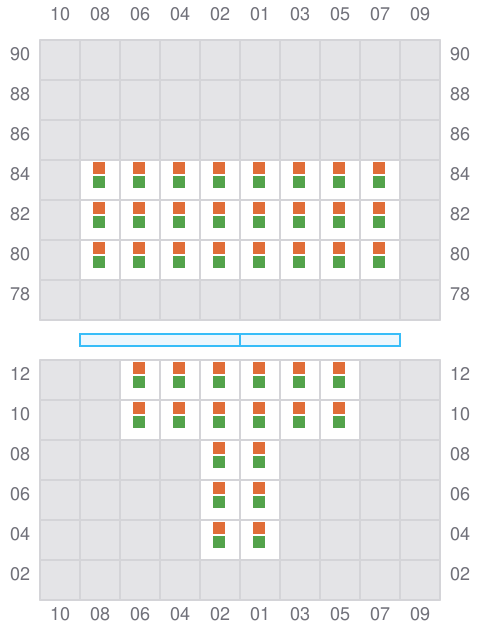

001 (002)

  • / ?
Bay 001 view and slots of BALDUR

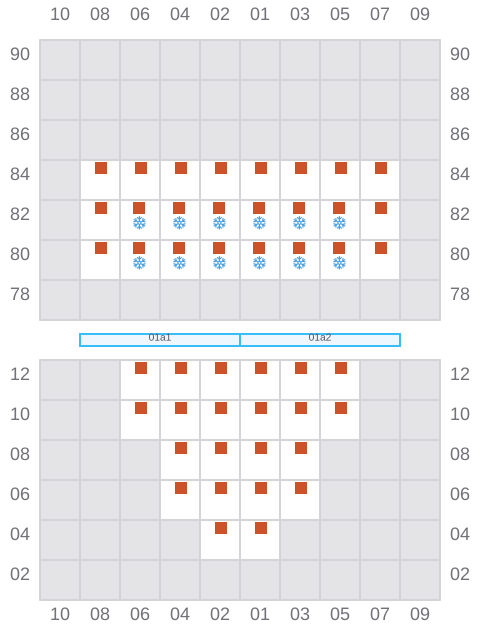

003

  • / ?
Bay 003 view and slots of BALDUR

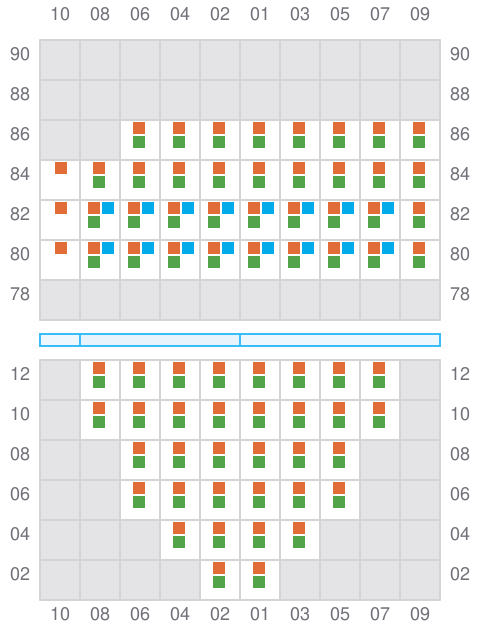

005 (006)

  • / ?
Bay 005 view and slots of BALDUR

007

  • / ?

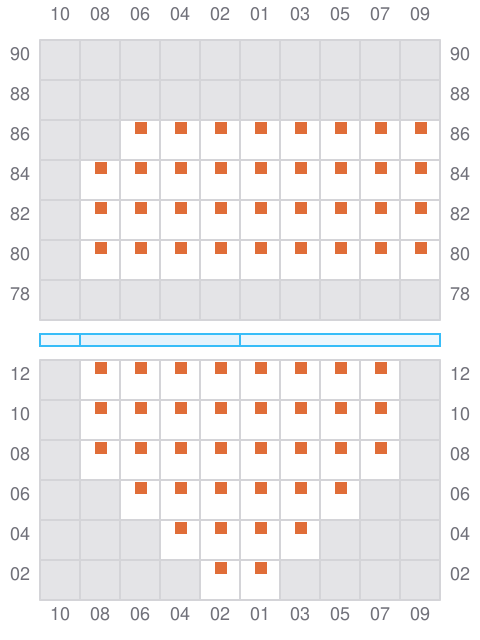

Bay 007 view and slots of BALDUR

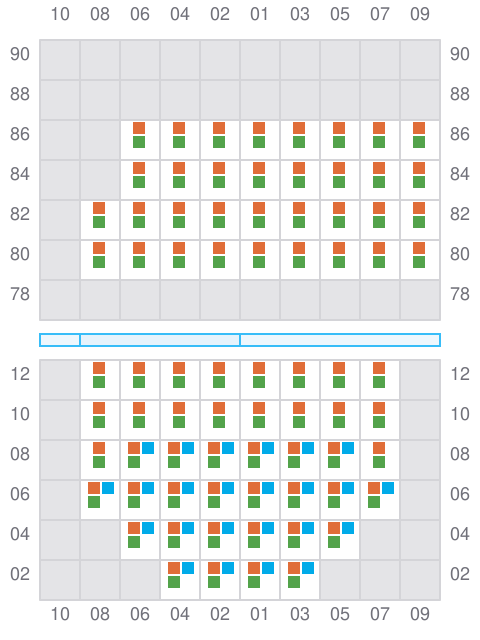

009 (010)

  • /
Bay 009 view and slots of BALDUR

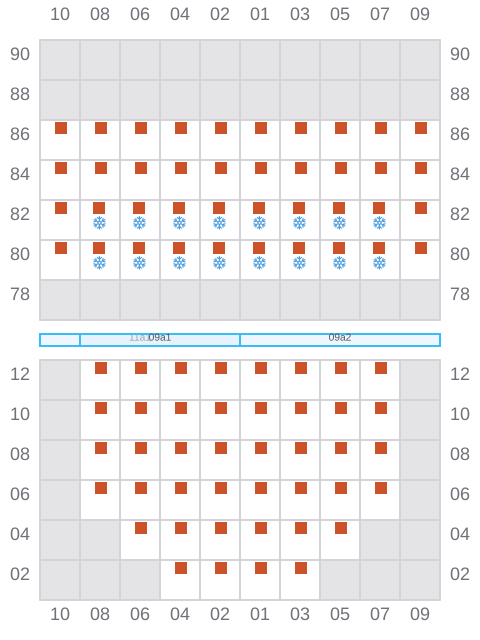

011

  • / ?
Bay 011 view and slots of BALDUR

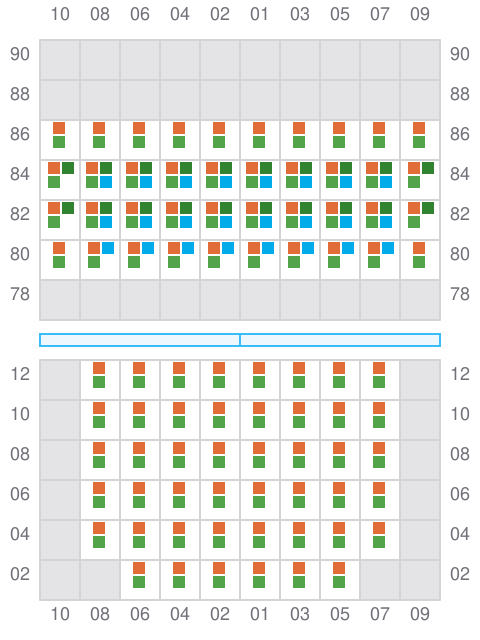

013 (014)

  • / ?
Bay 013 view and slots of BALDUR

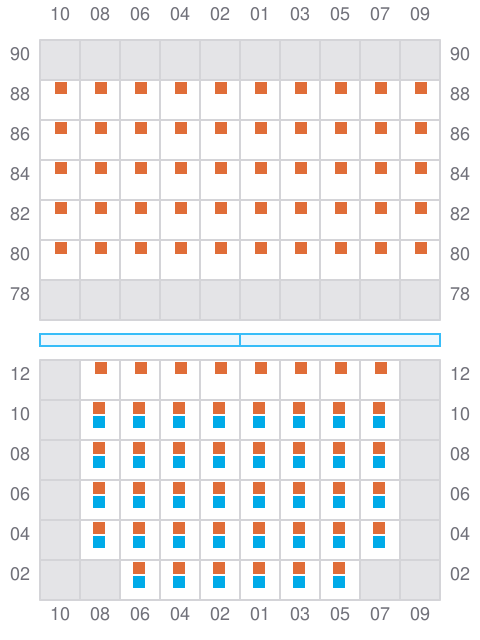

015

  • ? /
Bay 015 view and slots of BALDUR

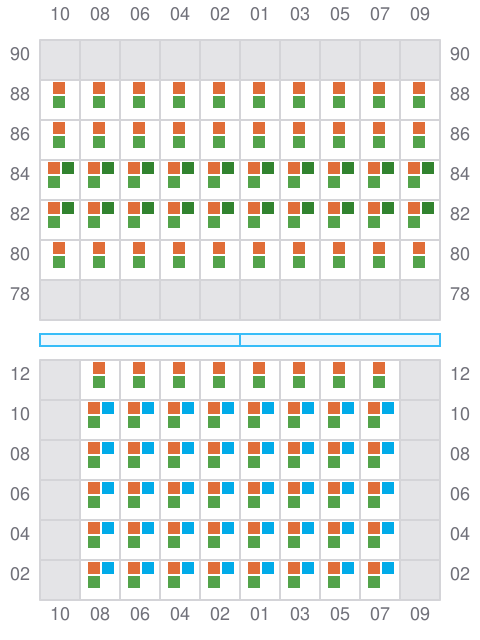

017 (018)

  • /
Bay 017 view and slots of BALDUR

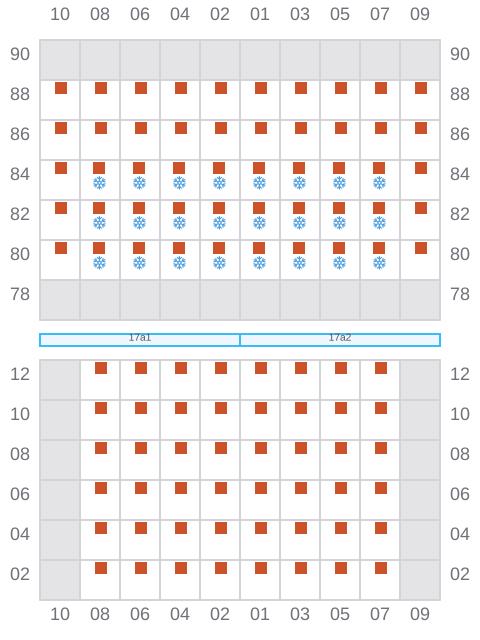

019

  • / ?
Bay 019 view and slots of BALDUR

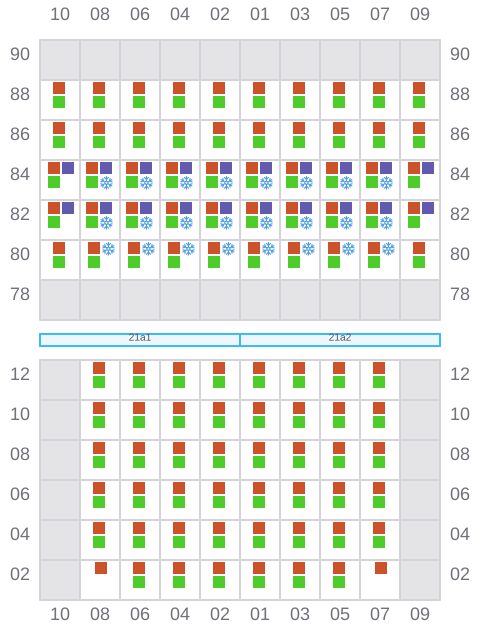

021 (022)

  • / ?
Bay 021 view and slots of BALDUR

023

  • ? /

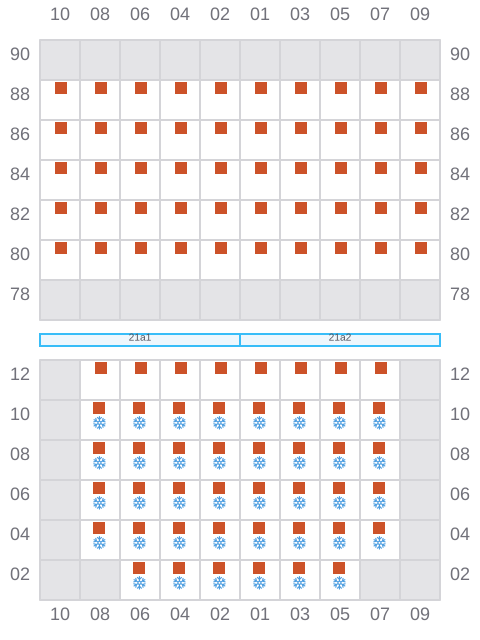

Bay 023 view and slots of BALDUR

025 (026)

  • /

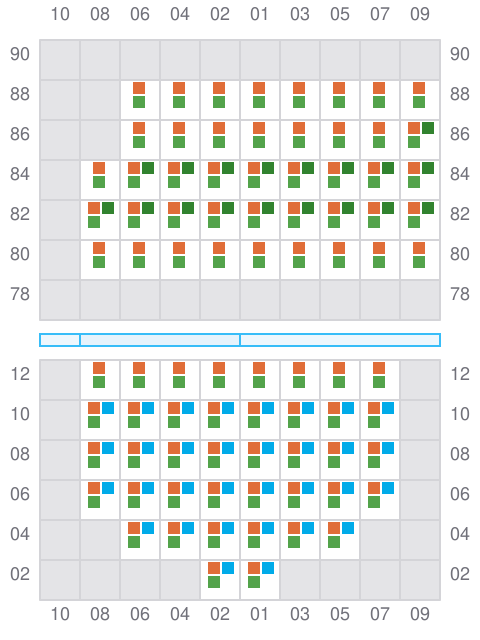

Bay 025 view and slots of BALDUR

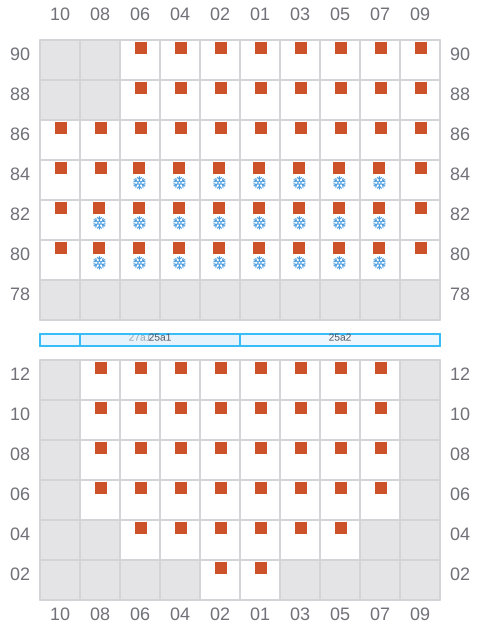

027

  • / ?
Bay 027 view and slots of BALDUR

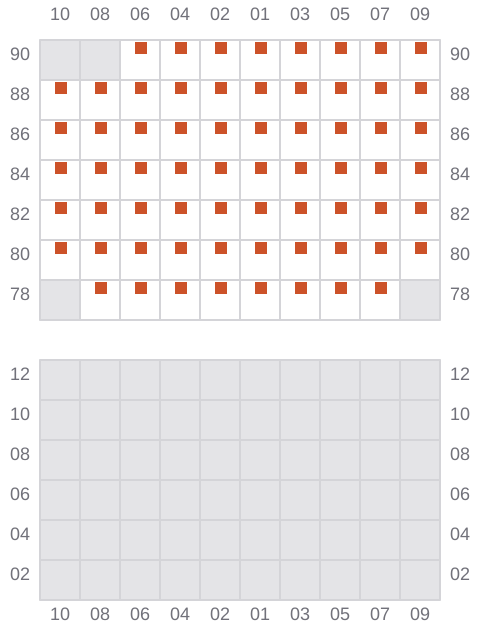

029

Bay 029 view and slots of BALDUR

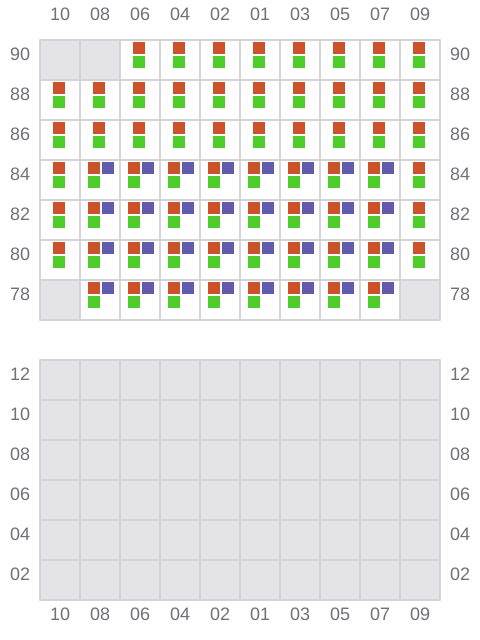

031 (032)

Bay 031 view and slots of BALDUR

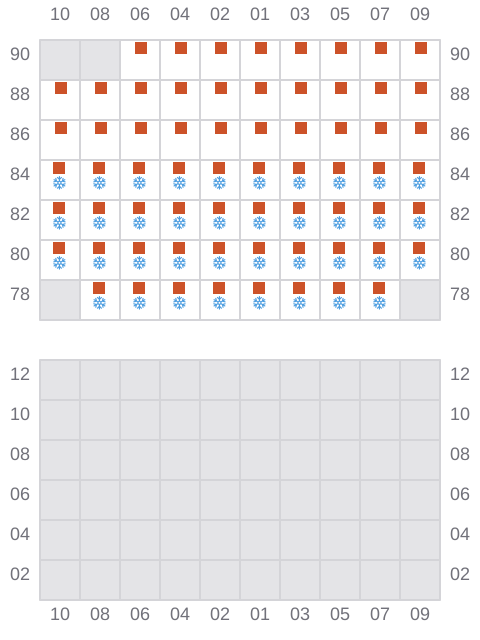

033

  • / ?
Bay 033 view and slots of BALDUR
