BANGKOK
9197349 | 3FAJ3 | 9197349 by ********* Last update: Fri Jun 14 2024

General Info

Ship Name:BANGKOK
IMO Code:9197349
Call Sign:3FAJ3
Line Operator:9197349
Class Name for Sister Ships:MCC
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):158.00
LOA (Length Overall):168.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,620

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of BANGKOK

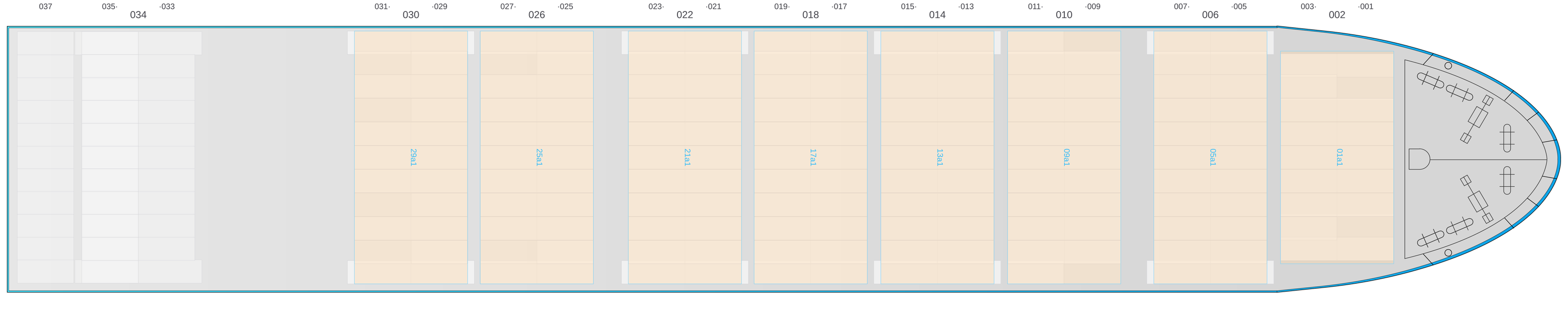

Hatch-Covers View

Deck view of BANGKOK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

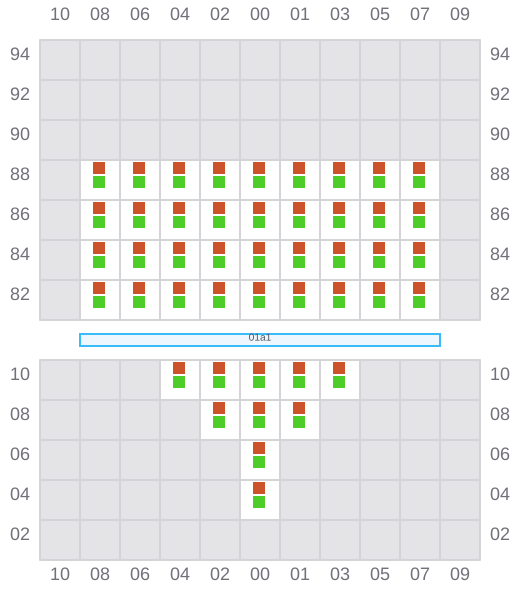

001 (002)

Bay 001 view and slots of BANGKOK

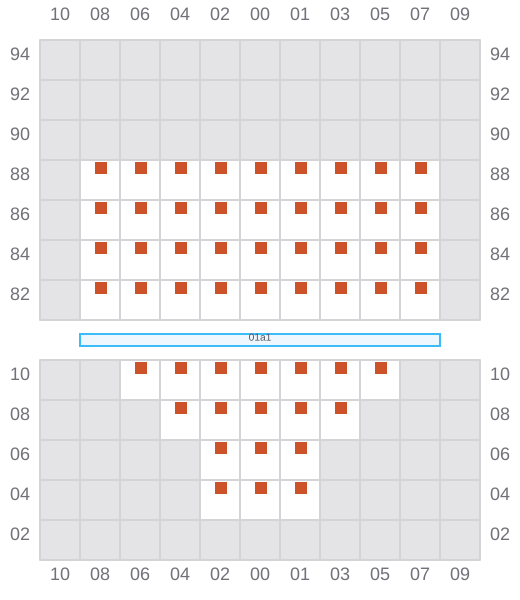

003

Bay 003 view and slots of BANGKOK

005 (006)

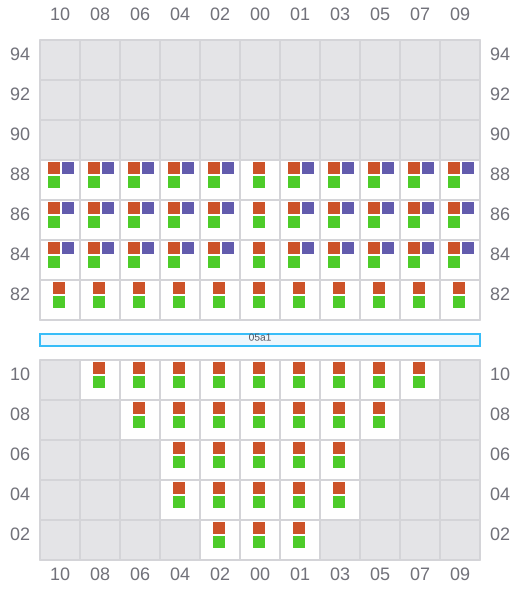

Bay 005 view and slots of BANGKOK

007

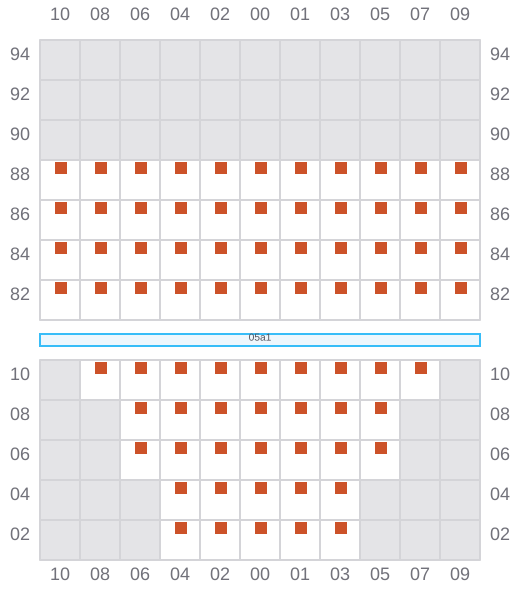

Bay 007 view and slots of BANGKOK

009 (010)

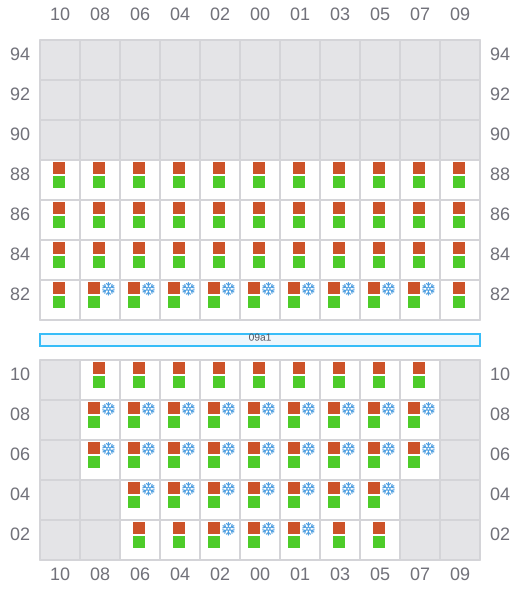

Bay 009 view and slots of BANGKOK

011

  • / ?

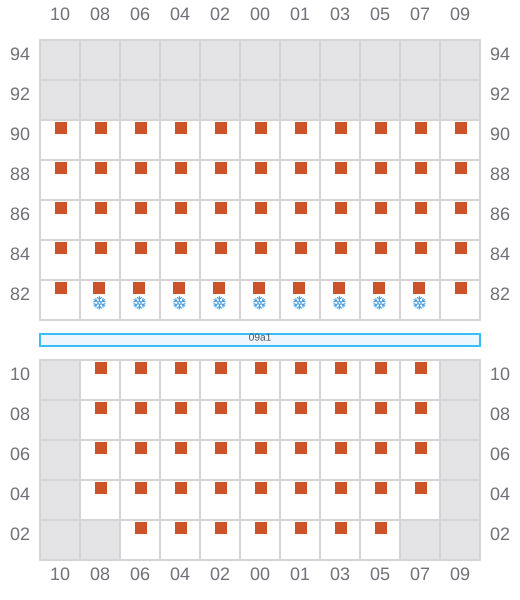

Bay 011 view and slots of BANGKOK

013 (014)

  • / ?

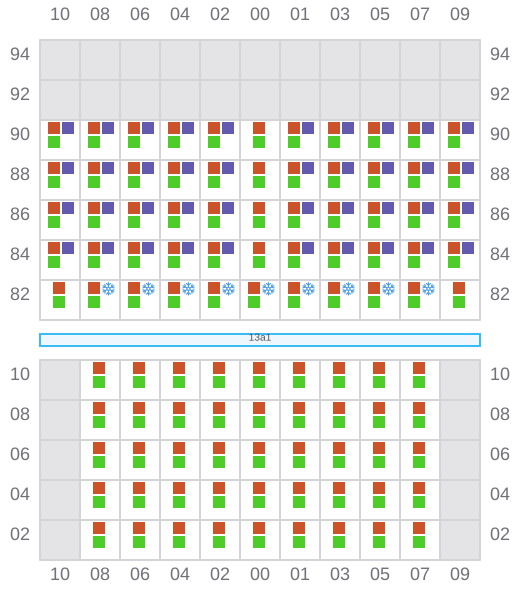

Bay 013 view and slots of BANGKOK

015

  • / ?

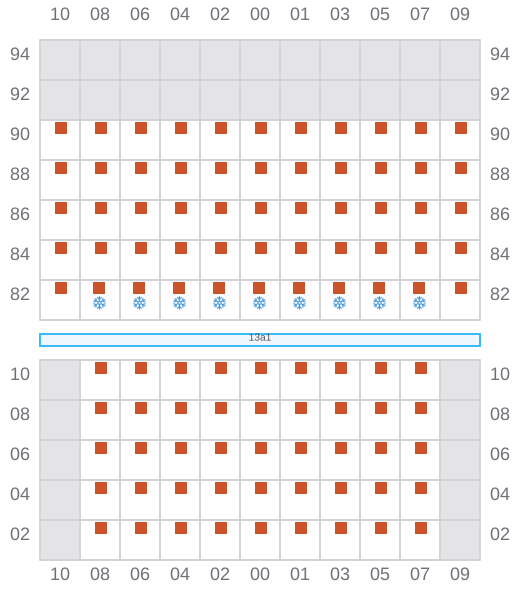

Bay 015 view and slots of BANGKOK

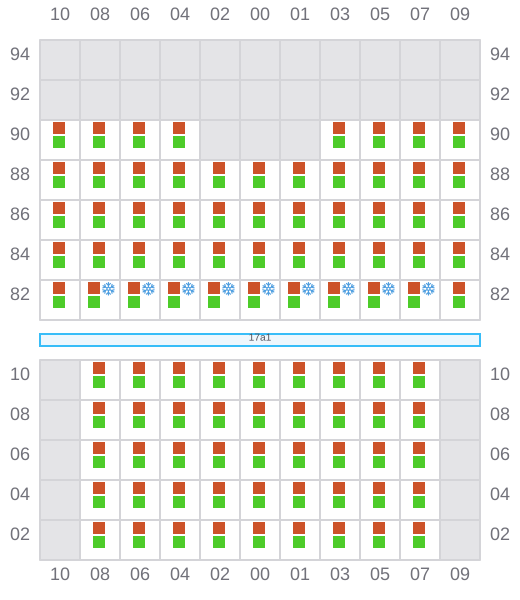

017 (018)

  • / ?
Bay 017 view and slots of BANGKOK

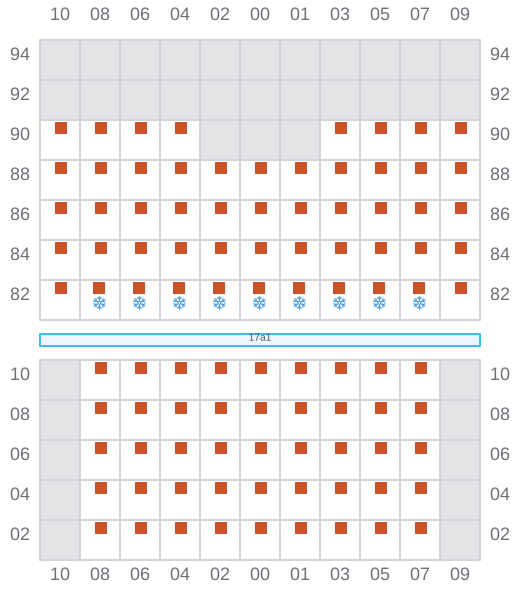

019

  • / ?
Bay 019 view and slots of BANGKOK

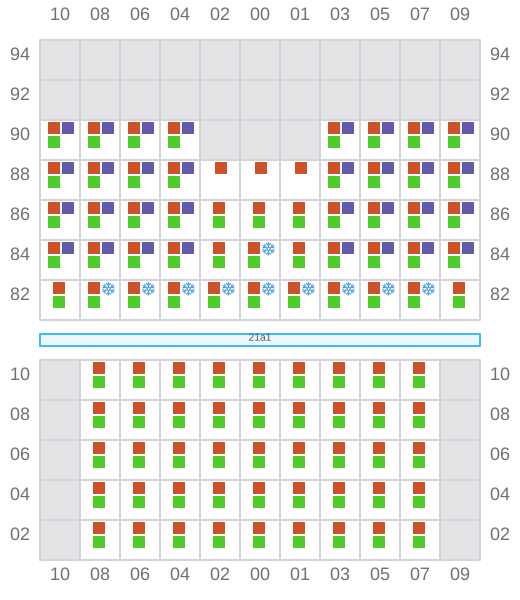

021 (022)

  • / ?
Bay 021 view and slots of BANGKOK

023

  • / ?

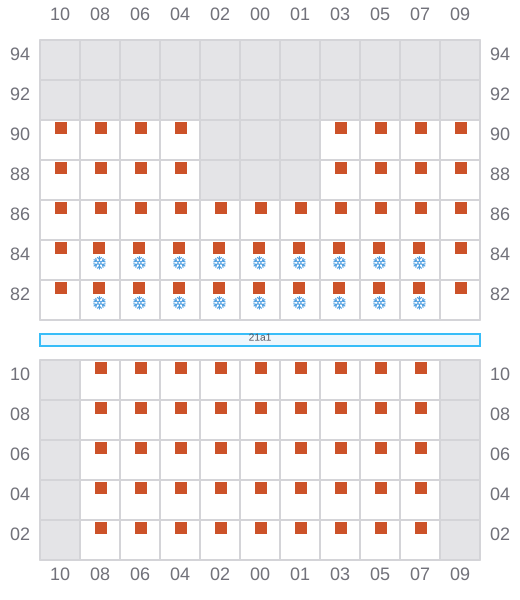

Bay 023 view and slots of BANGKOK

025 (026)

  • / ?

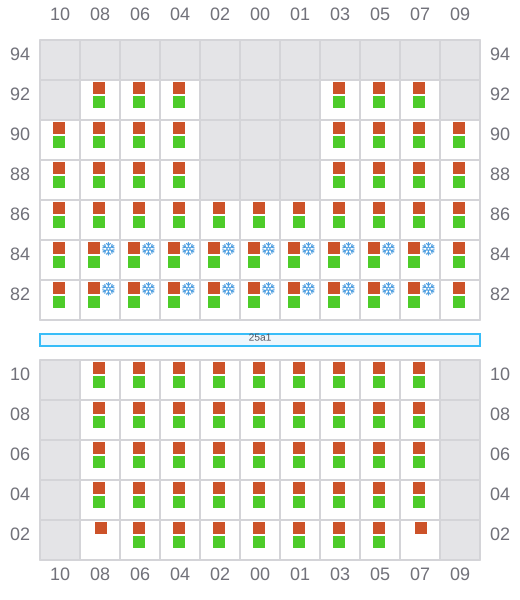

Bay 025 view and slots of BANGKOK

027

  • / ?

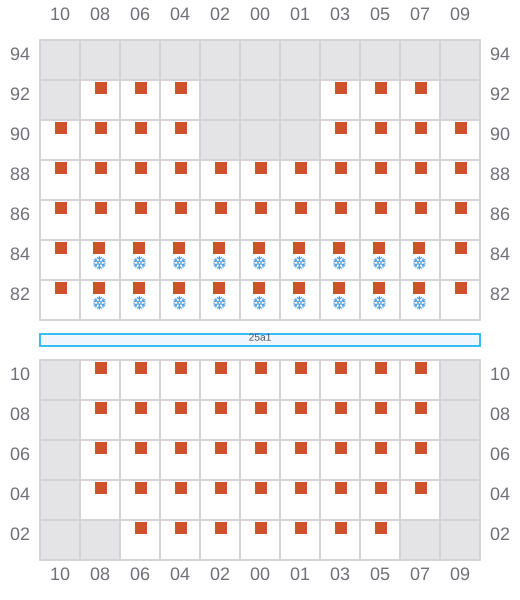

Bay 027 view and slots of BANGKOK

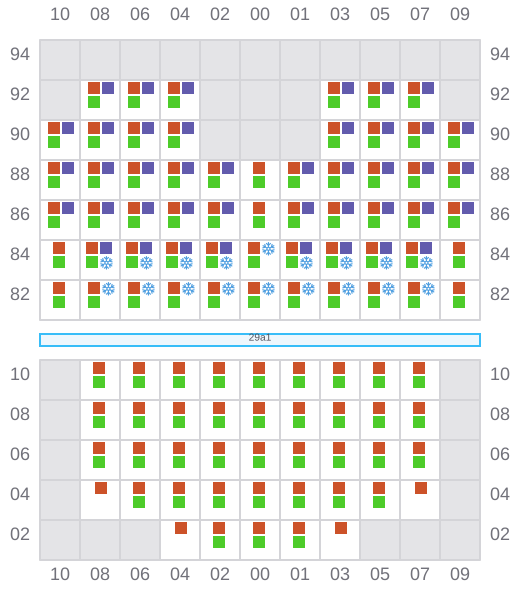

029 (030)

  • / ?
Bay 029 view and slots of BANGKOK

031

  • / ?
Bay 031 view and slots of BANGKOK

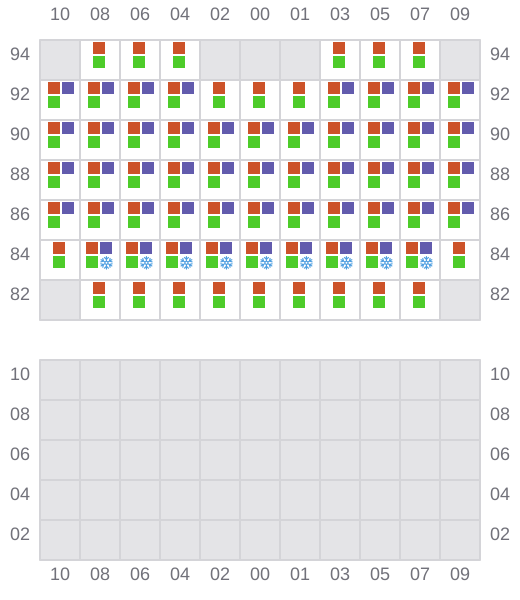

033 (034)

  • / ?
Bay 033 view and slots of BANGKOK

035

  • / ?

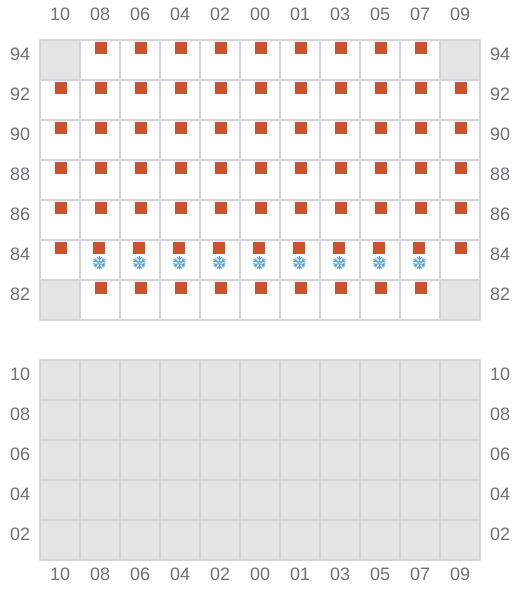

Bay 035 view and slots of BANGKOK

037

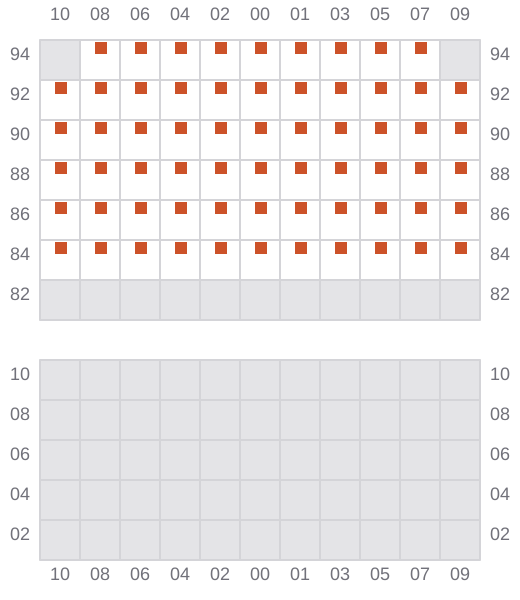

Bay 037 view and slots of BANGKOK
