BANGKOK
9197349 | 3FAJ3 | 9197349 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:BANGKOK
IMO Code:9197349
Call Sign:3FAJ3
Line Operator:9197349
Class Name for Sister Ships:88B
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):168.00
LOA (Length Overall):168.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,620
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

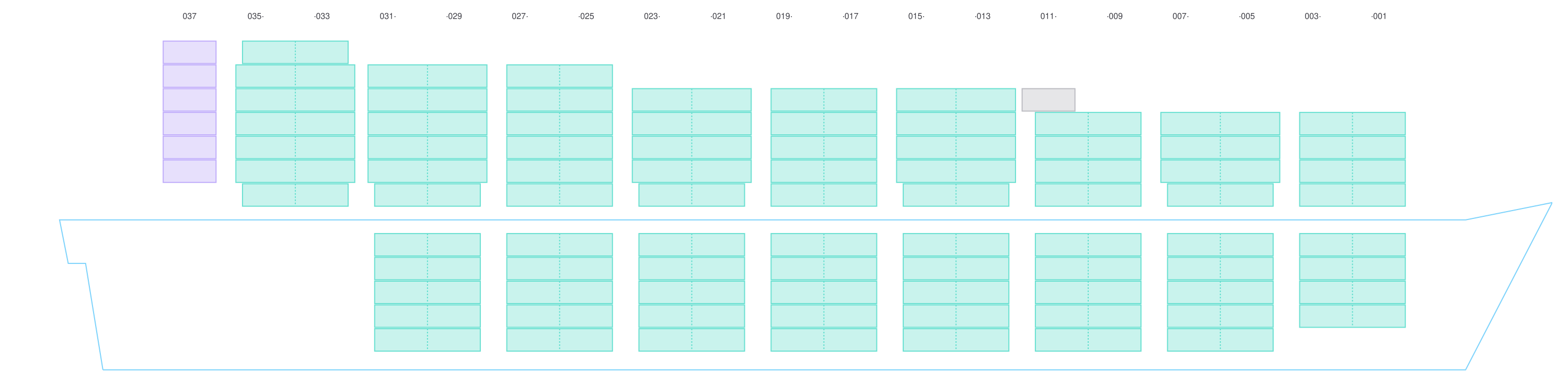

Side View
![Side view of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-sideView.png?v=1710787925135)

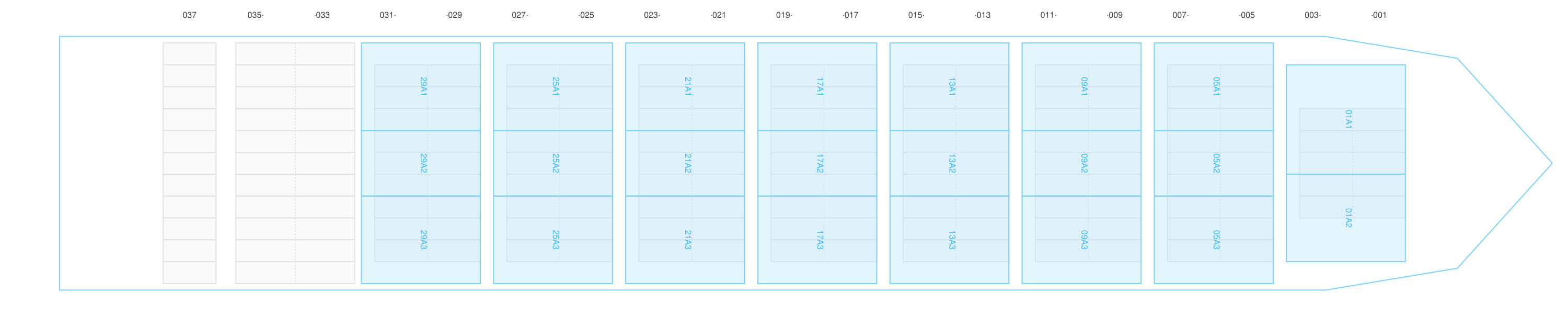

Hatch-Covers View
![Deck view of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-deckView.png?v=1710787925135)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

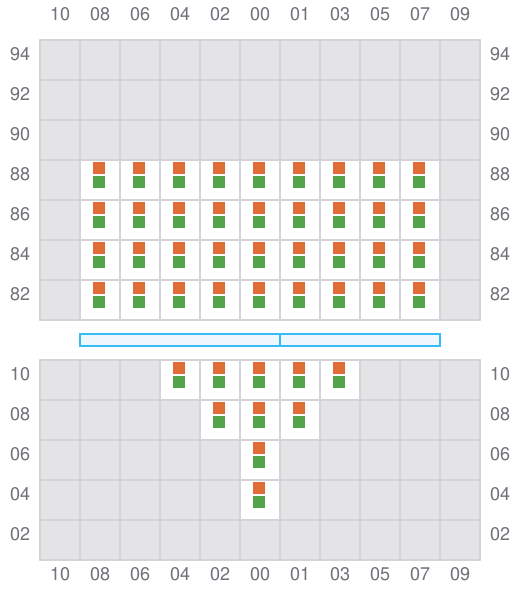

001 (002)
- →
![Bay 001 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b001.png?v=1710787925135)

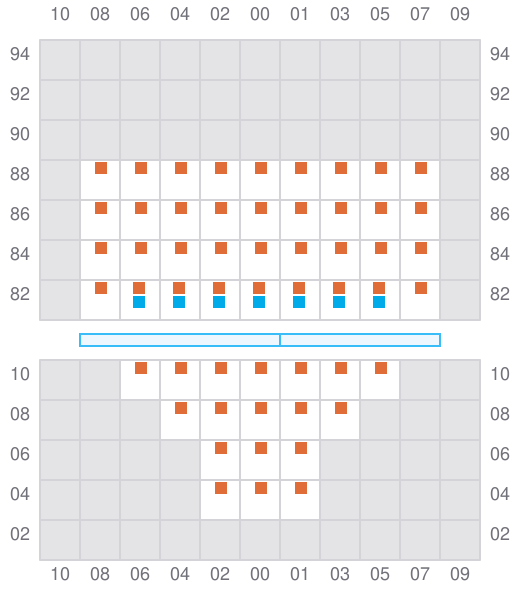

003
- ←
- → / ?
![Bay 003 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b003.png?v=1710787925135)

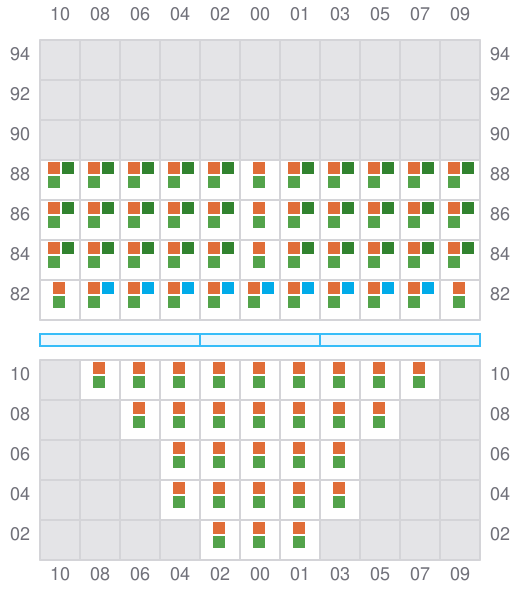

005 (006)
- →
- ← / ?
![Bay 005 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b005.png?v=1710787925135)

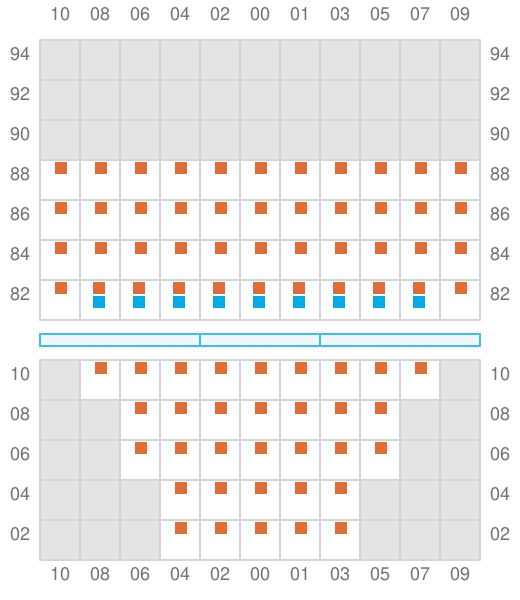

007
- ←
- → / ?
![Bay 007 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b007.png?v=1710787925135)

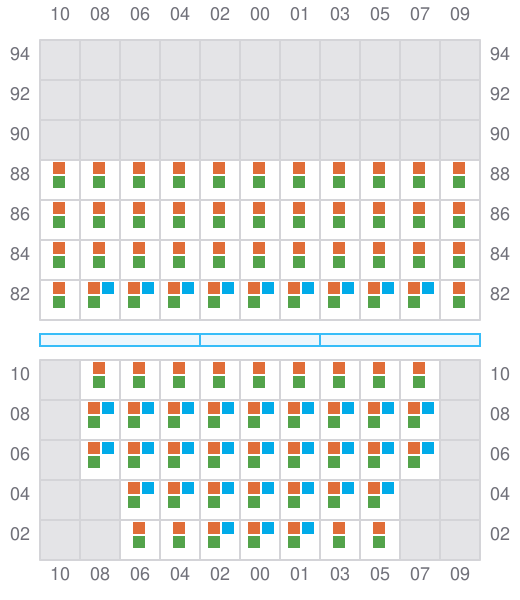

009 (010)
- →
- ←
![Bay 009 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b009.png?v=1710787925135)

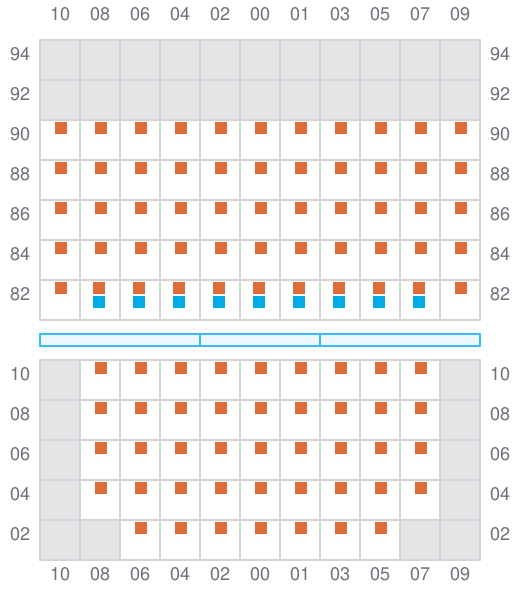

011
- ←
- → / ?
![Bay 011 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b011.png?v=1710787925135)

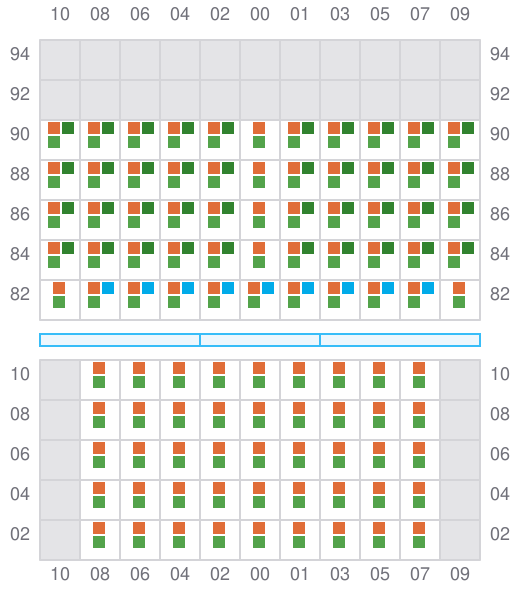

013 (014)
- →
- ← / ?
![Bay 013 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b013.png?v=1710787925135)

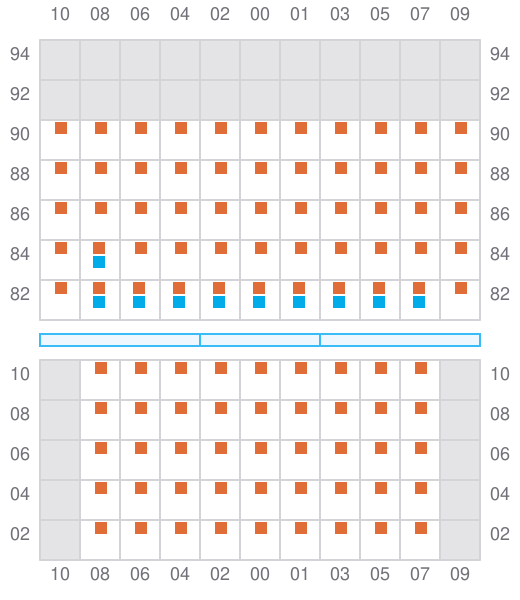

015
- ←
- → / ?
![Bay 015 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b015.png?v=1710787925135)

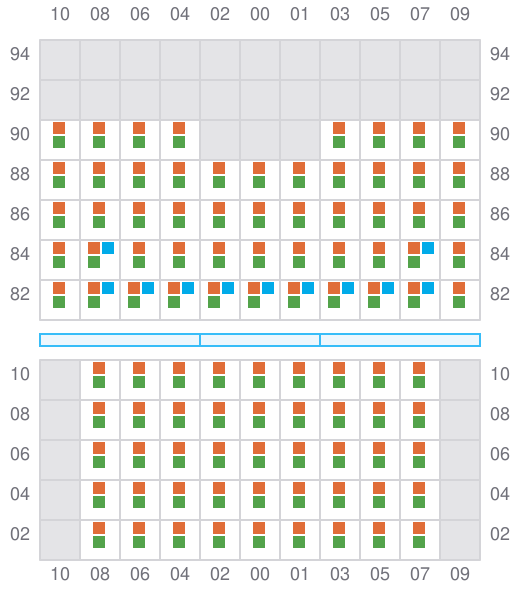

017 (018)
- →
- ← / ?
![Bay 017 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b017.png?v=1710787925135)

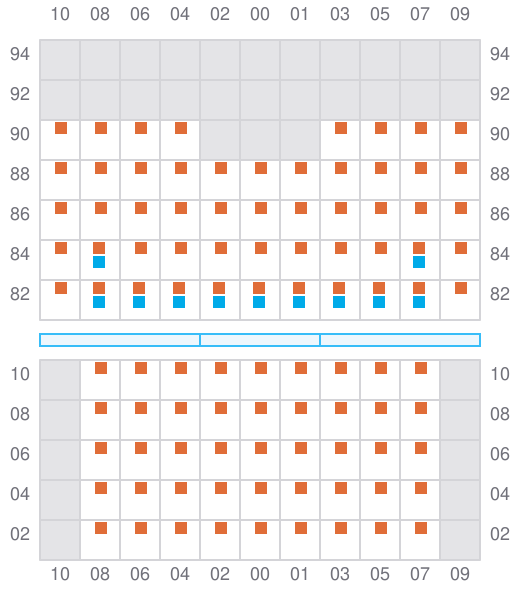

019
- ←
- → / ?
![Bay 019 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b019.png?v=1710787925135)

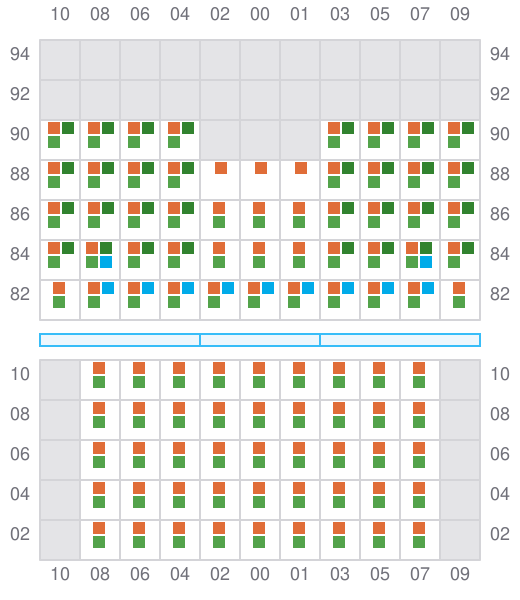

021 (022)
- →
- ← / ?
![Bay 021 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b021.png?v=1710787925135)

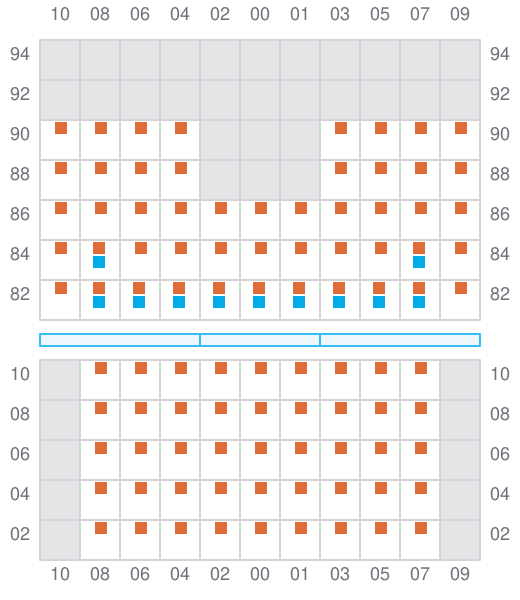

023
- ←
- → / ?
![Bay 023 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b023.png?v=1710787925135)

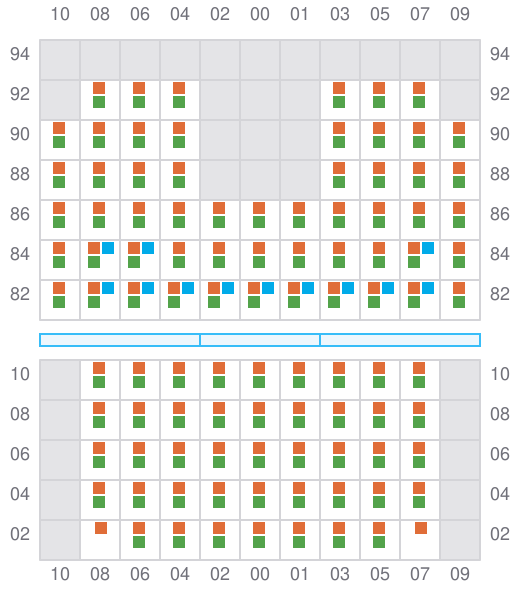

025 (026)
- →
- ← / ?
![Bay 025 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b025.png?v=1710787925135)

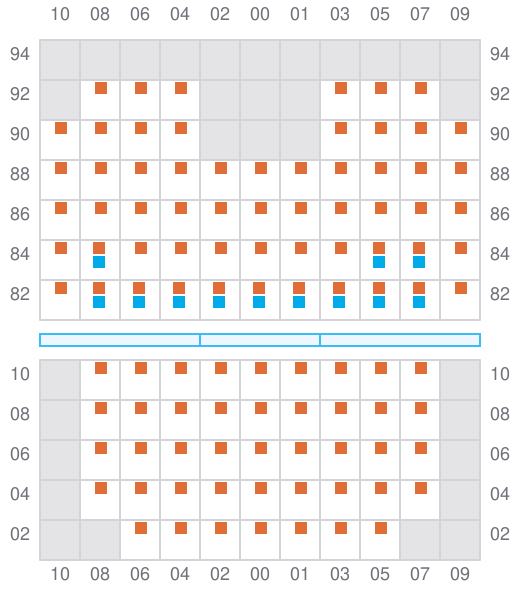

027
- ←
- → / ?
![Bay 027 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b027.png?v=1710787925135)

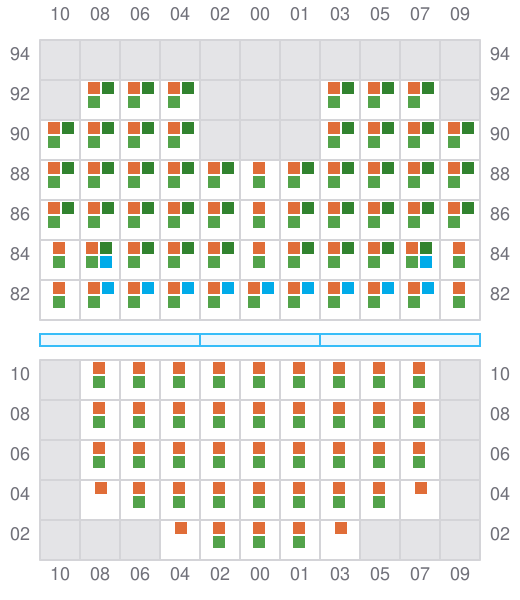

029 (030)
- →
- ← / ?
![Bay 029 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b029.png?v=1710787925135)

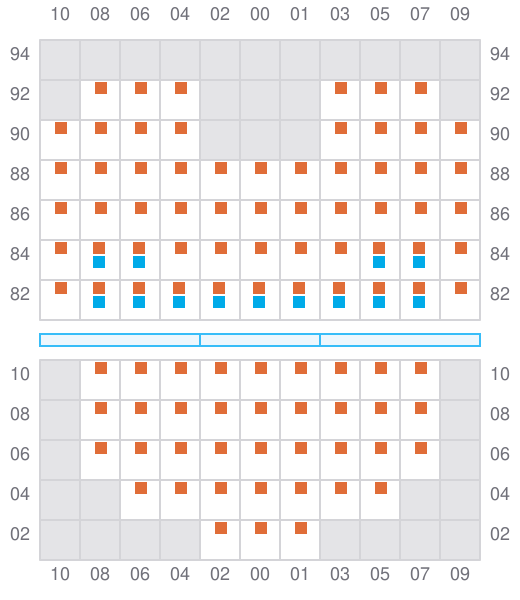

031
- ←
- → / ?
![Bay 031 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b031.png?v=1710787925135)

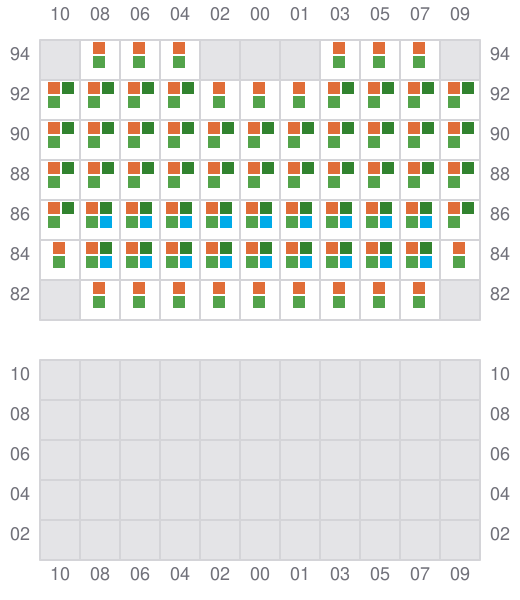

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b033.png?v=1710787925135)

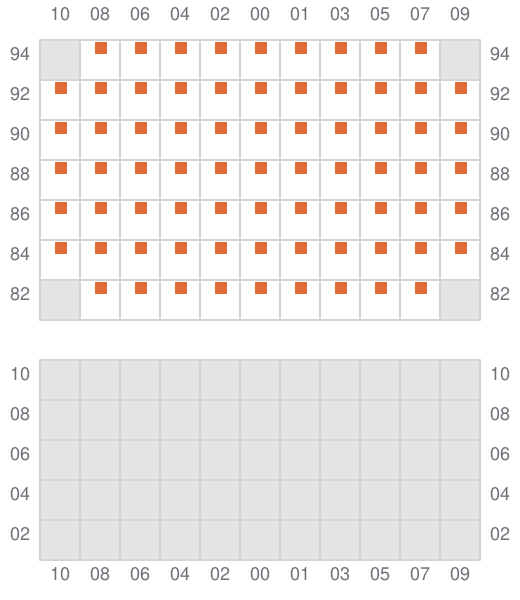

035
- ← / ?
- → / ?
![Bay 035 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b035.png?v=1710787925135)

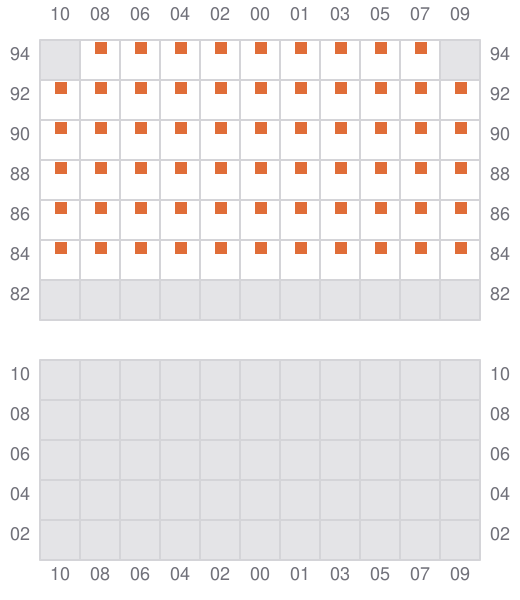

037
![Bay 037 view and slots of BANGKOK](/vessel-images/ccae039b-10cb-4b7d-af37-2f5374116be7-b037.png?v=1710787925135)
