BASLE EXPRESS
9501344 | DFGN2 | HLC by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:BASLE EXPRESS
IMO Code:9501344
Call Sign:DFGN2
Line Operator:HLC
Class Name for Sister Ships:BAEX
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):353.00
LOA (Length Overall):366.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,169

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of BASLE EXPRESS

Hatch-Covers View

Deck view of BASLE EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

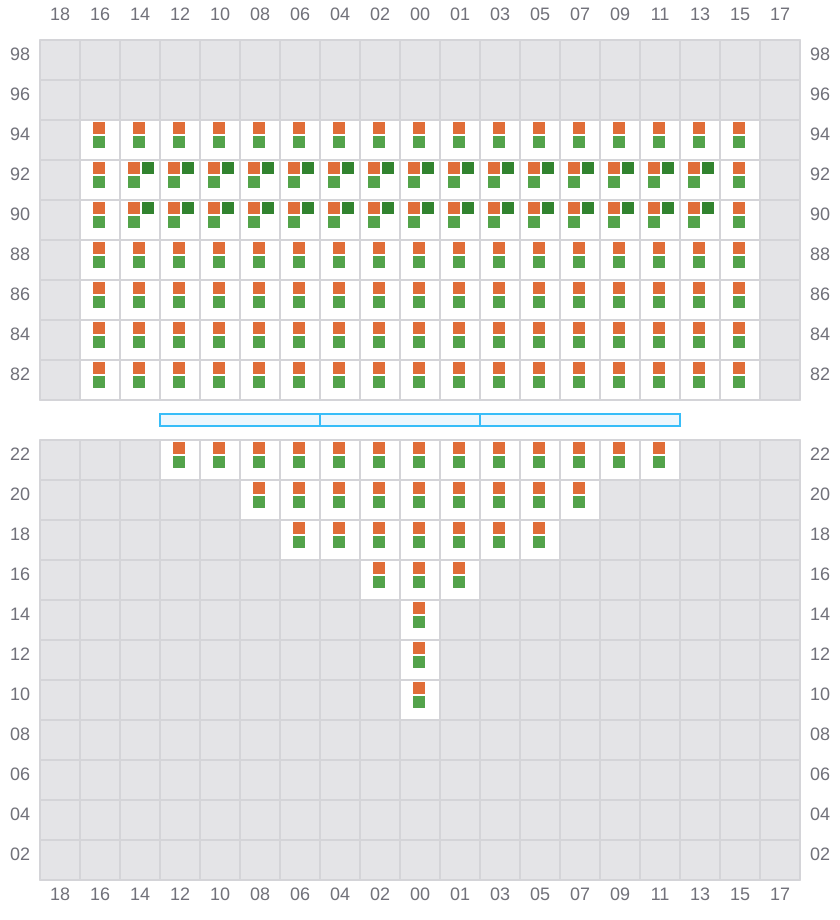

Bay 001 view and slots of BASLE EXPRESS

003

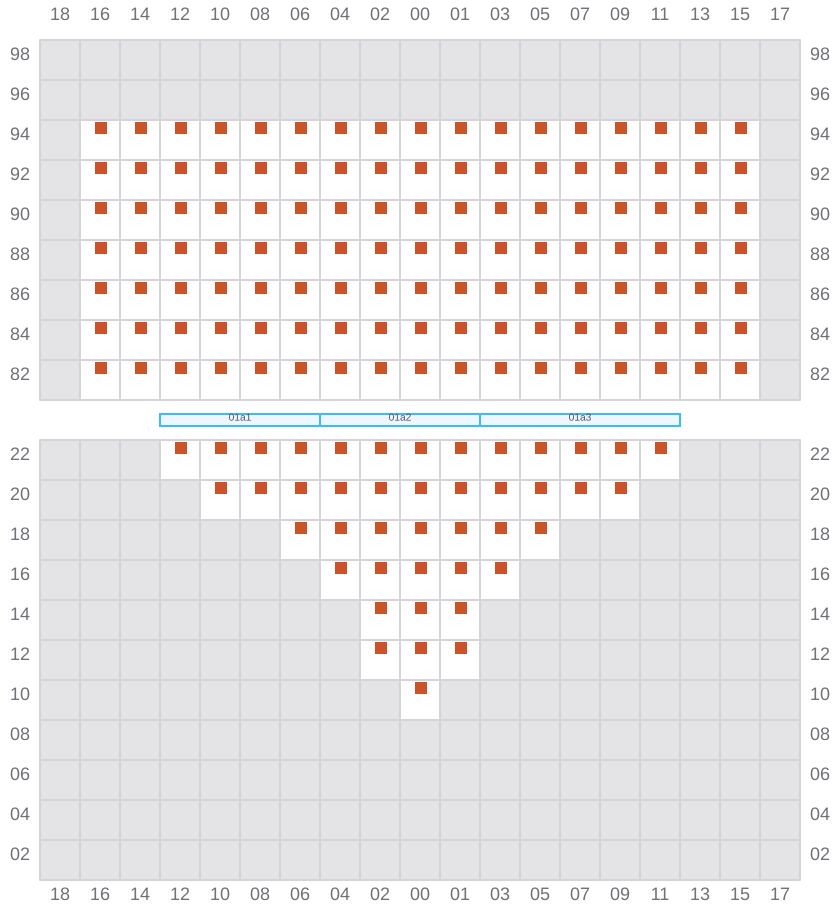

Bay 003 view and slots of BASLE EXPRESS

005 (006)

  • / ?

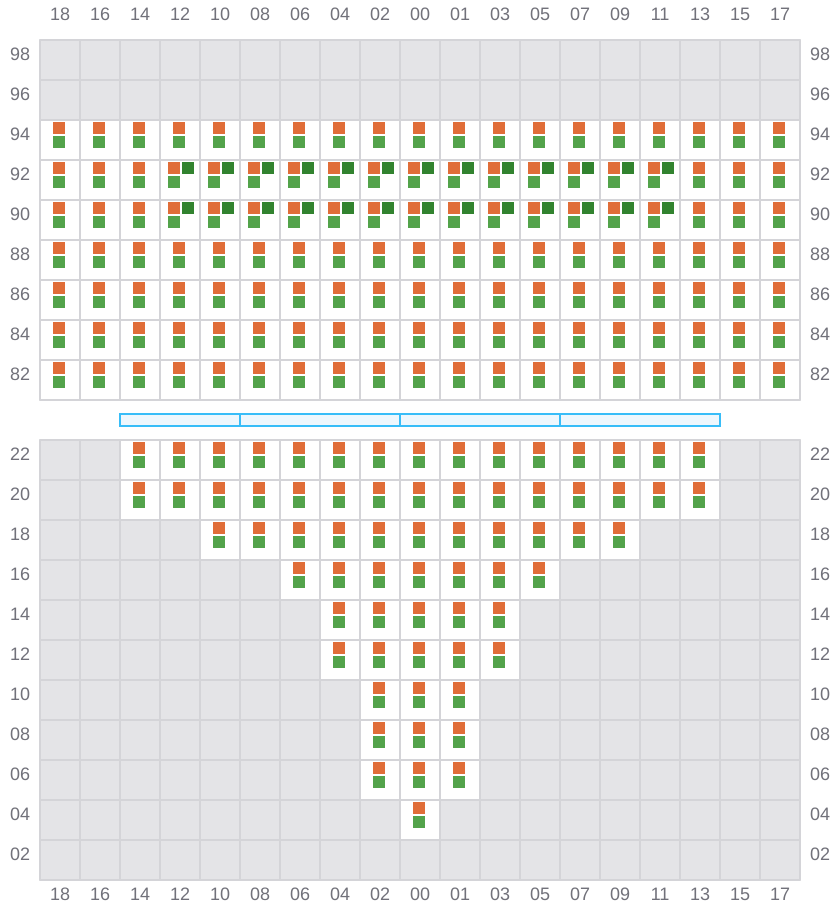

Bay 005 view and slots of BASLE EXPRESS

007

  • / ?

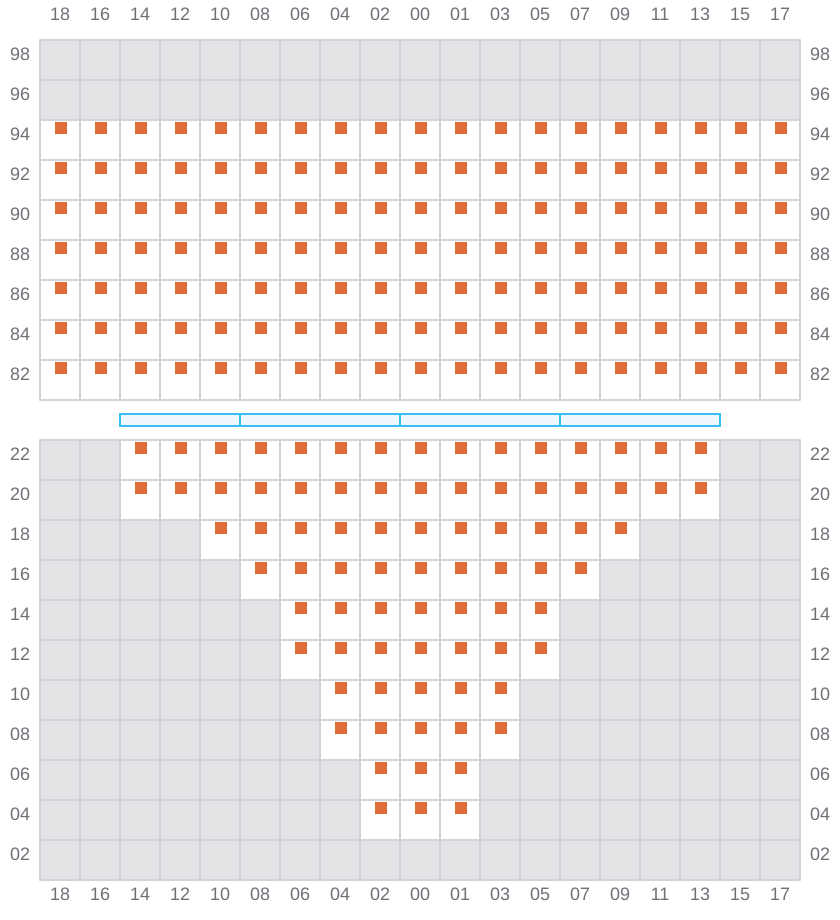

Bay 007 view and slots of BASLE EXPRESS

009 (010)

  • / ?

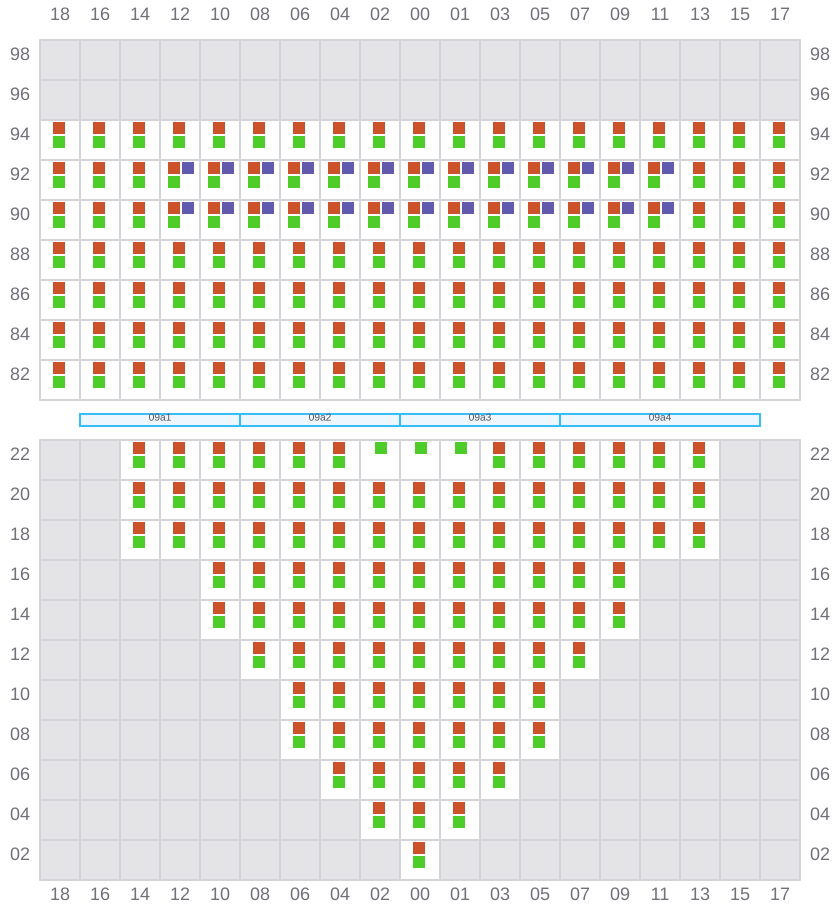

Bay 009 view and slots of BASLE EXPRESS

011

  • / ?

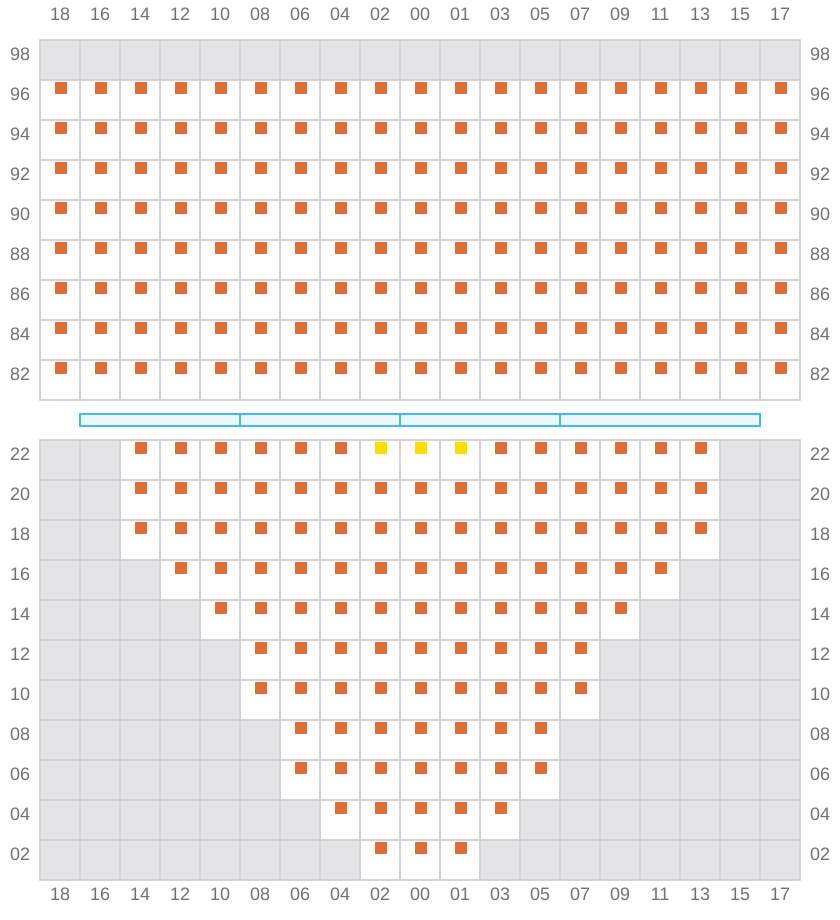

Bay 011 view and slots of BASLE EXPRESS

013 (014)

  • / ?

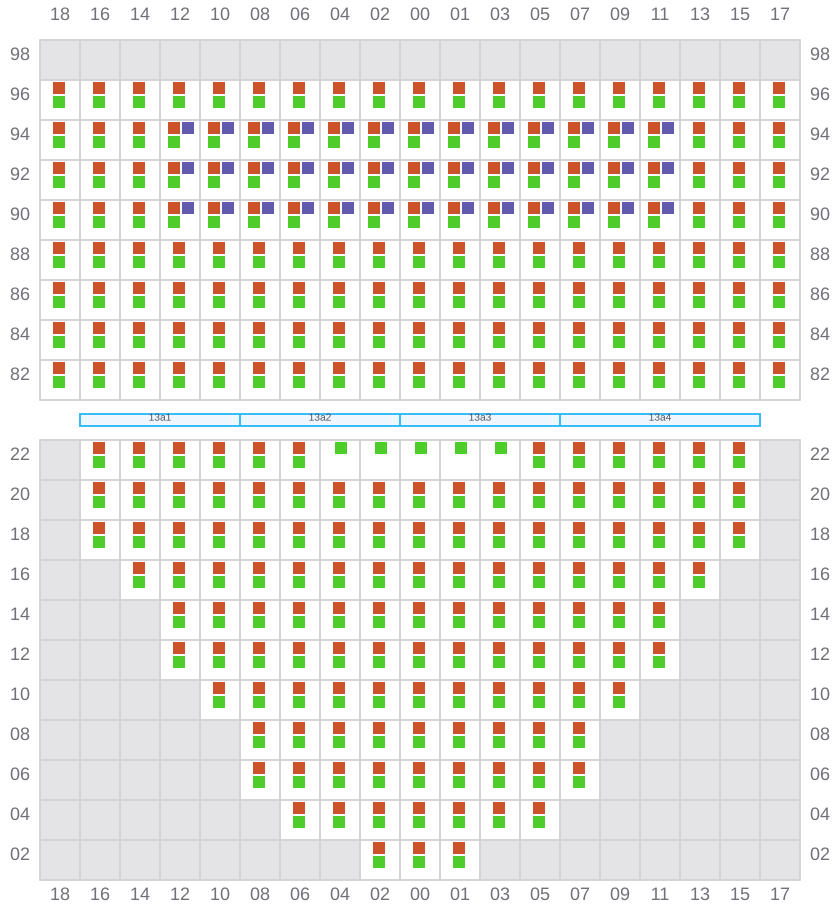

Bay 013 view and slots of BASLE EXPRESS

015

  • / ?

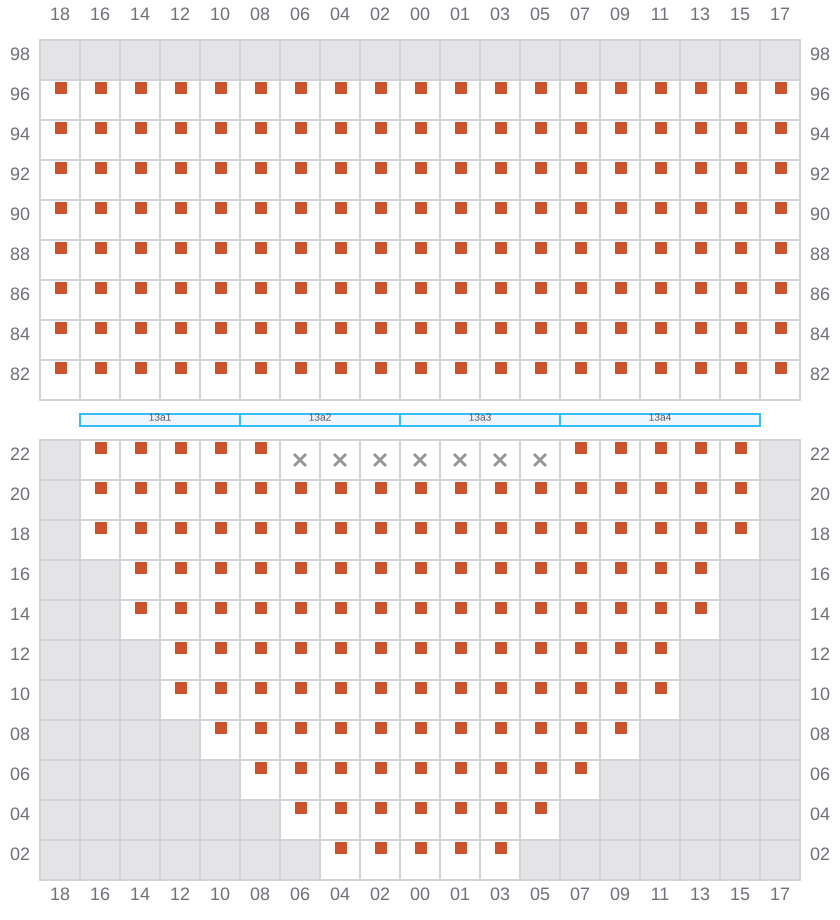

Bay 015 view and slots of BASLE EXPRESS

017 (018)

  • / ?

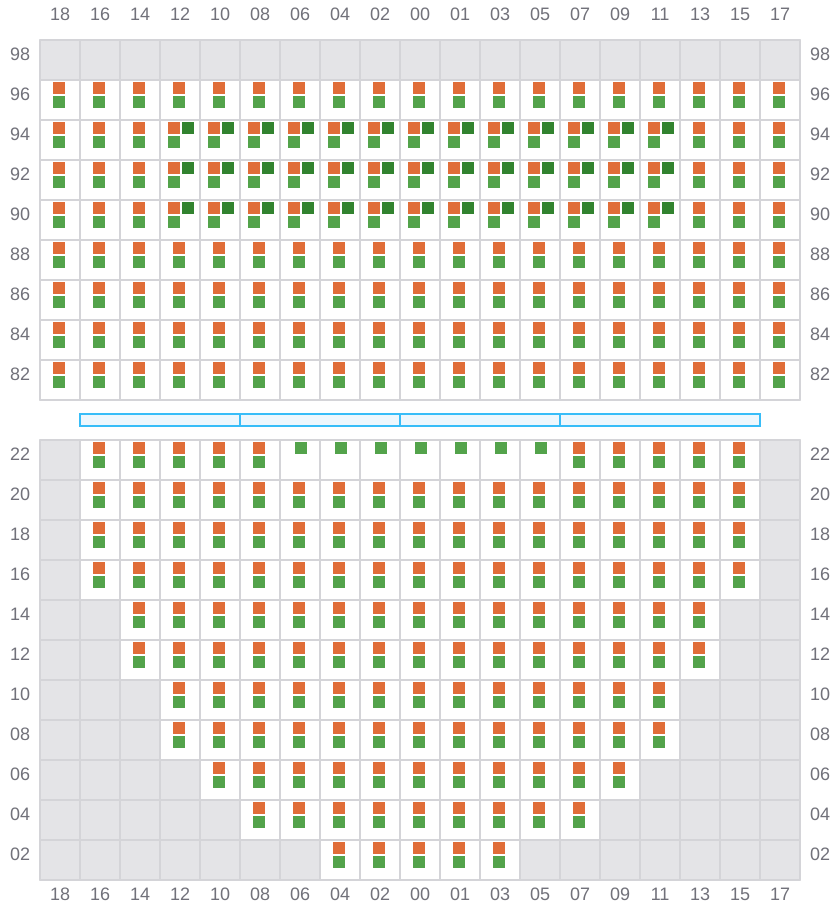

Bay 017 view and slots of BASLE EXPRESS

019

  • / ?

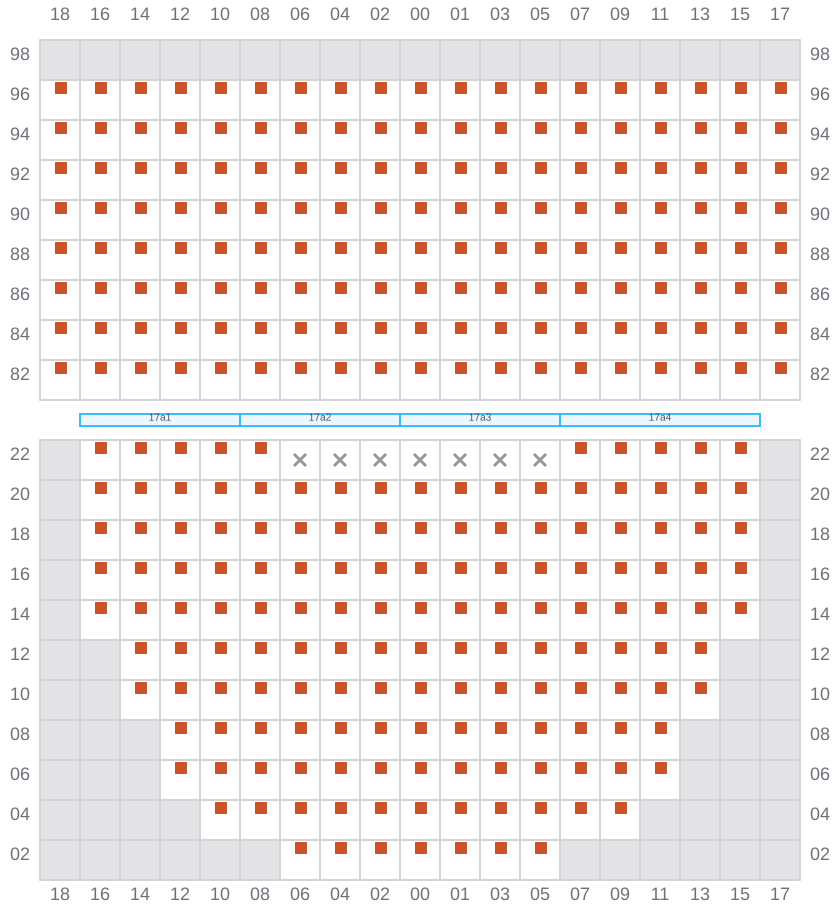

Bay 019 view and slots of BASLE EXPRESS

021 (022)

  • / ?
Bay 021 view and slots of BASLE EXPRESS

023

  • / ?

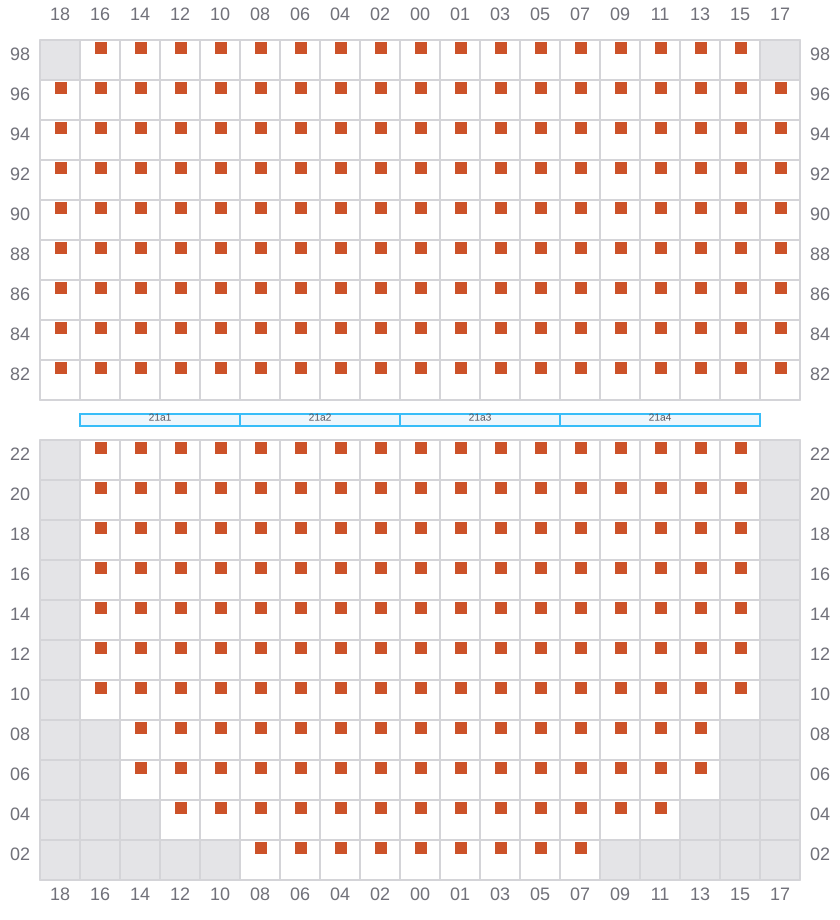

Bay 023 view and slots of BASLE EXPRESS

025 (026)

  • / ?

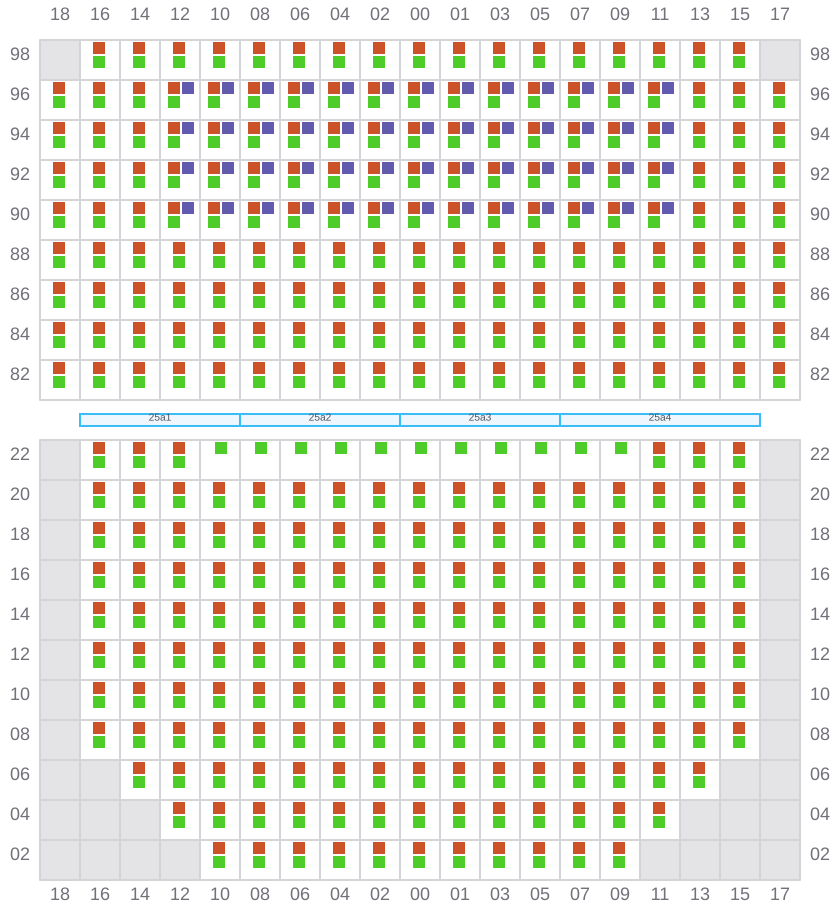

Bay 025 view and slots of BASLE EXPRESS

027

  • / ?

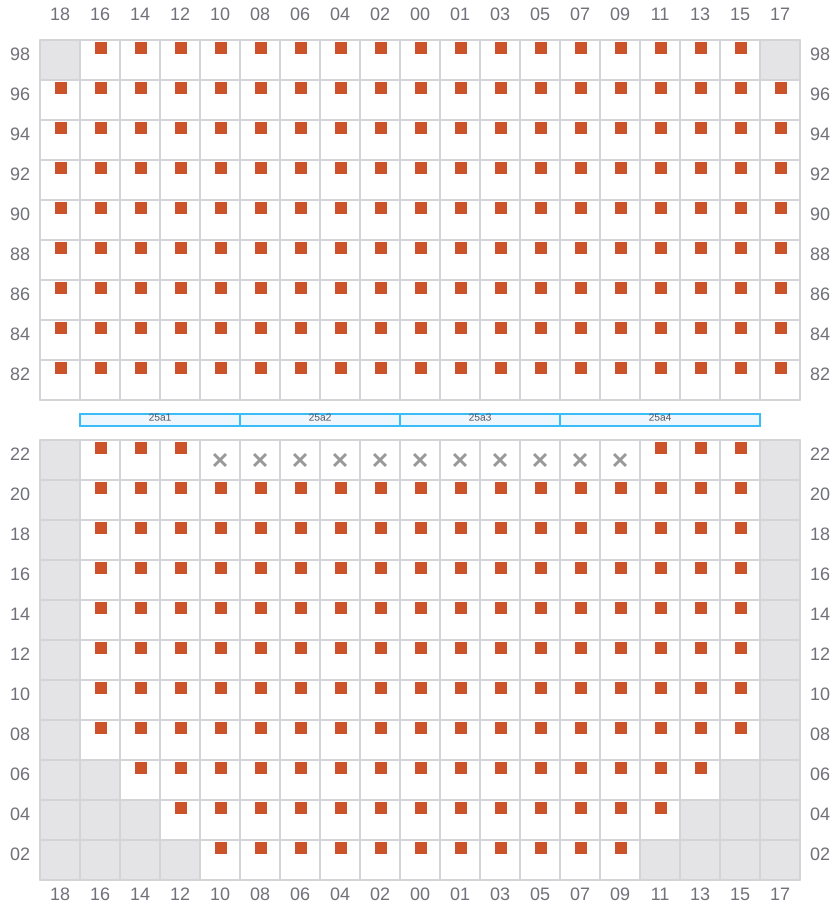

Bay 027 view and slots of BASLE EXPRESS

029 (030)

  • / ?

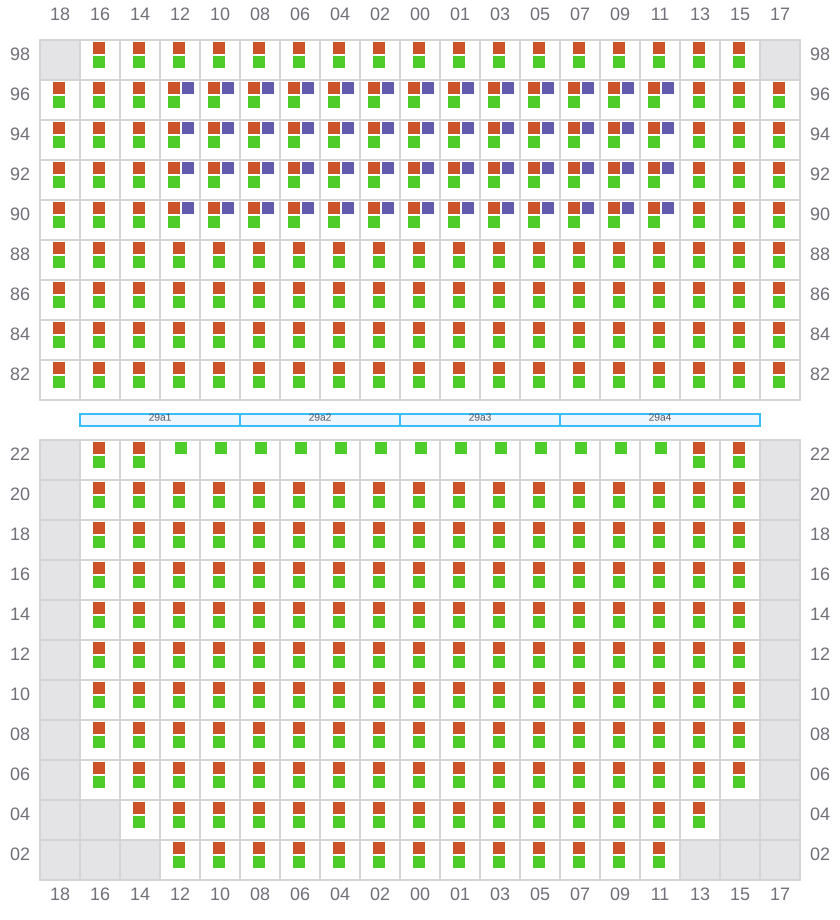

Bay 029 view and slots of BASLE EXPRESS

031

  • / ?

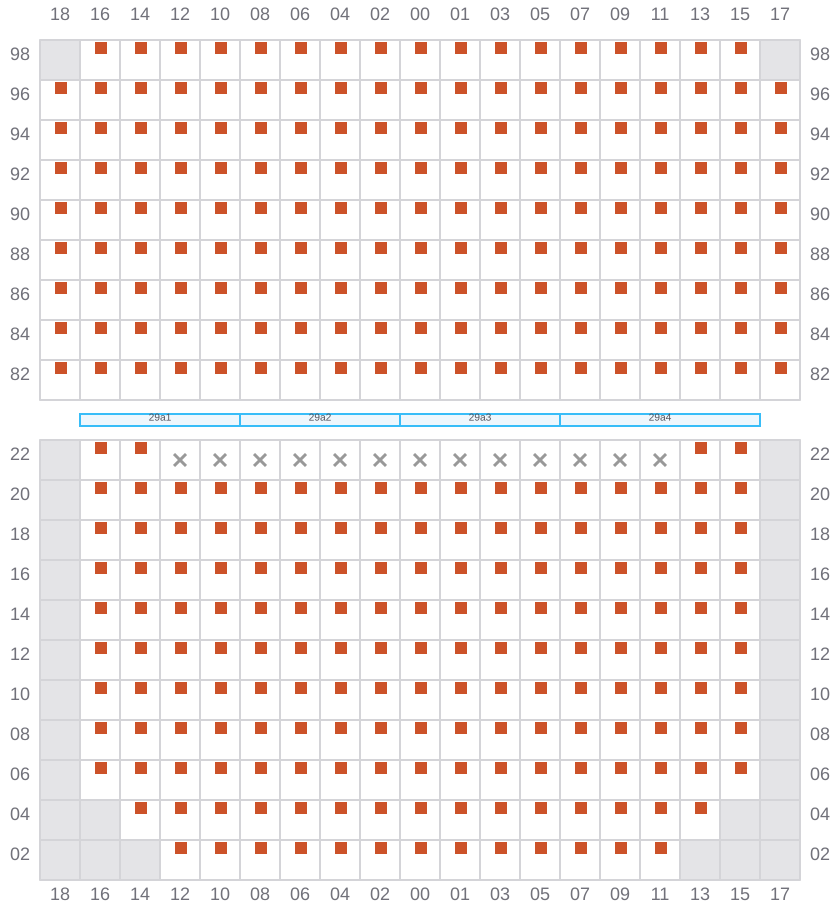

Bay 031 view and slots of BASLE EXPRESS

033 (034)

  • / ?
Bay 033 view and slots of BASLE EXPRESS

035

  • / ?

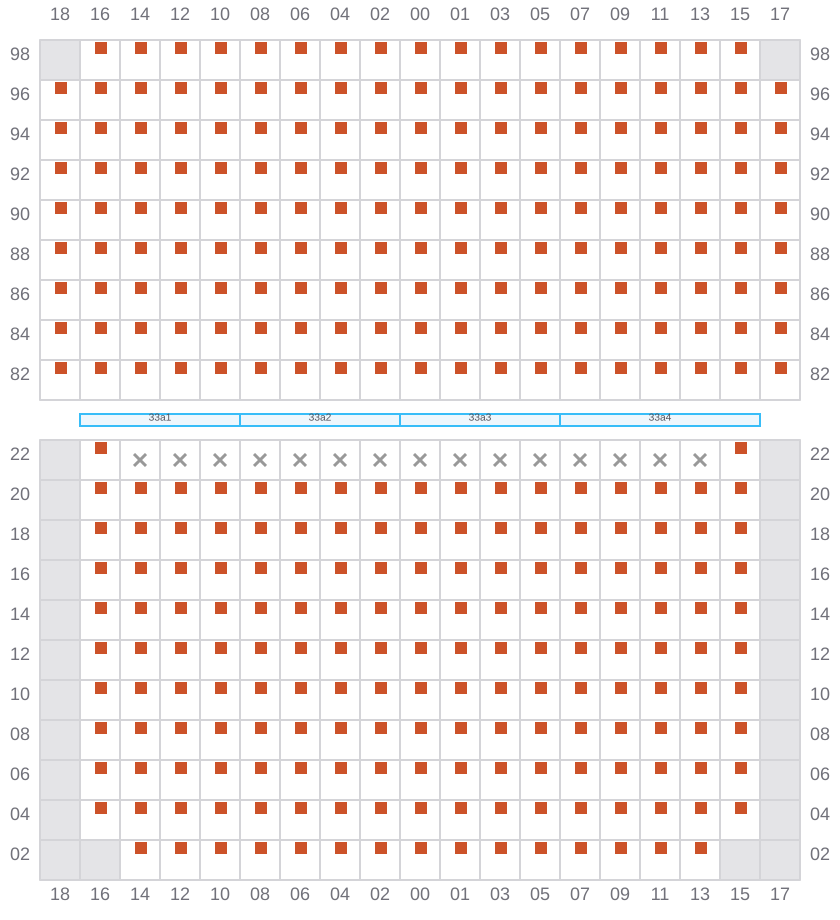

Bay 035 view and slots of BASLE EXPRESS

037 (038)

  • / ?

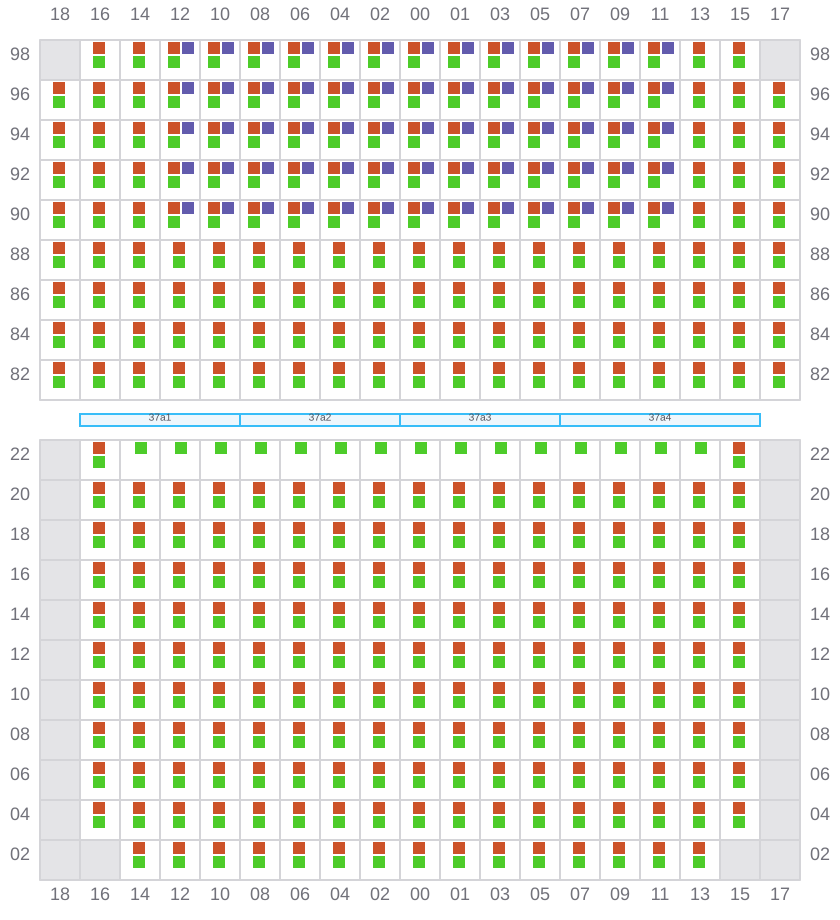

Bay 037 view and slots of BASLE EXPRESS

039

  • / ?

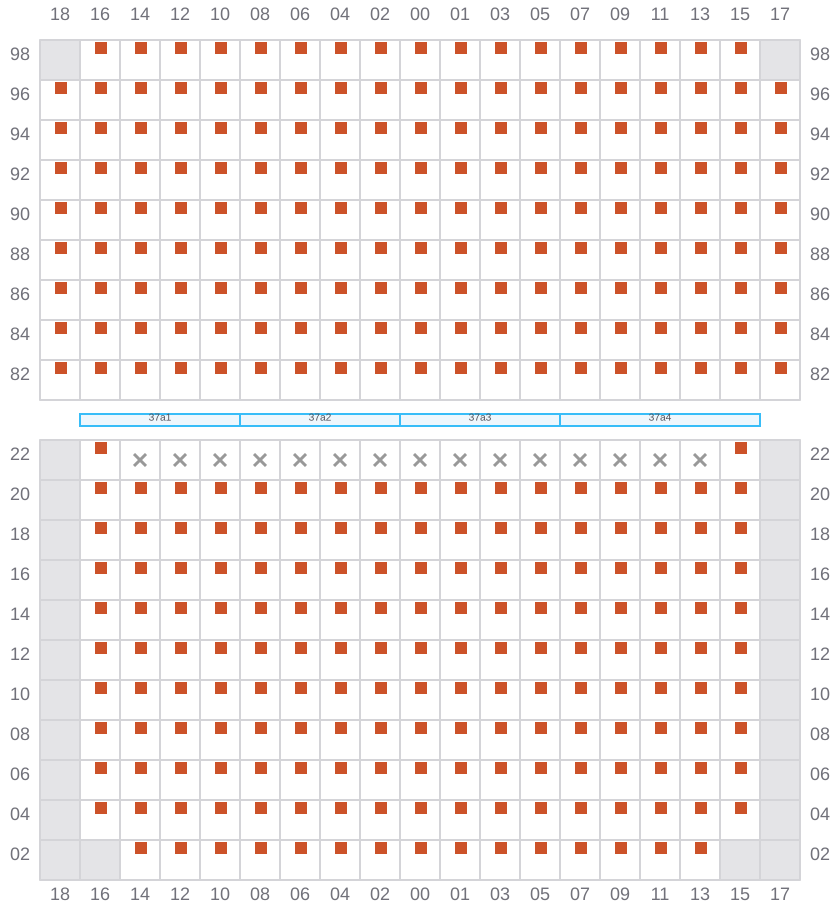

Bay 039 view and slots of BASLE EXPRESS

041 (042)

  • / ?
Bay 041 view and slots of BASLE EXPRESS

043

  • / ?

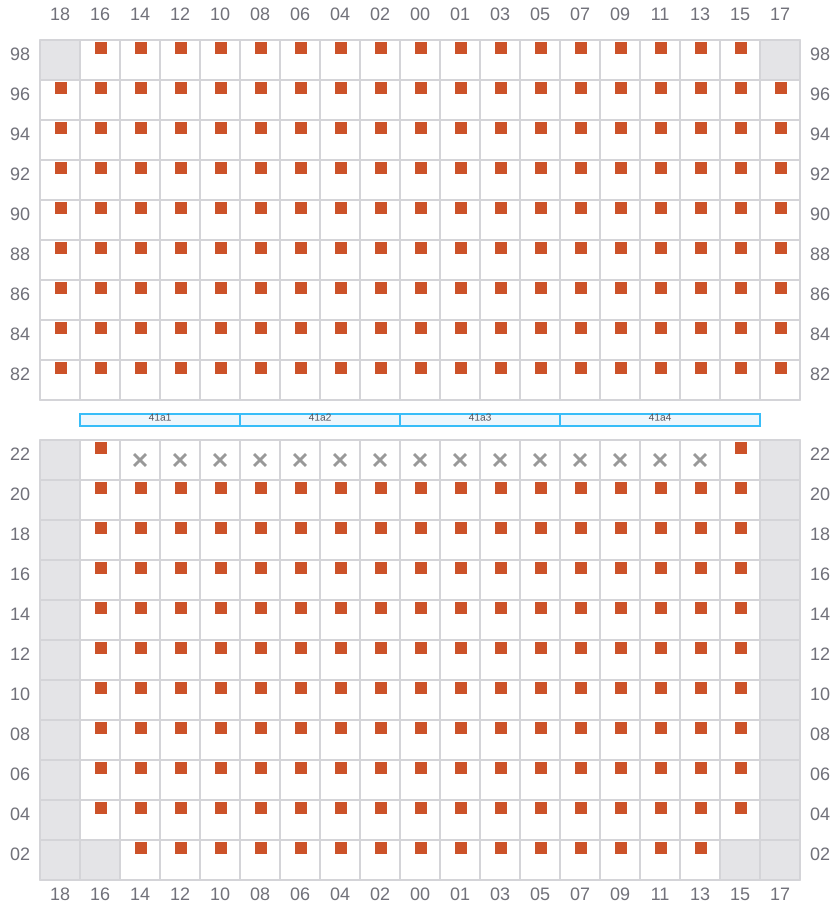

Bay 043 view and slots of BASLE EXPRESS

045 (046)

  • / ?
Bay 045 view and slots of BASLE EXPRESS

047

  • / ?

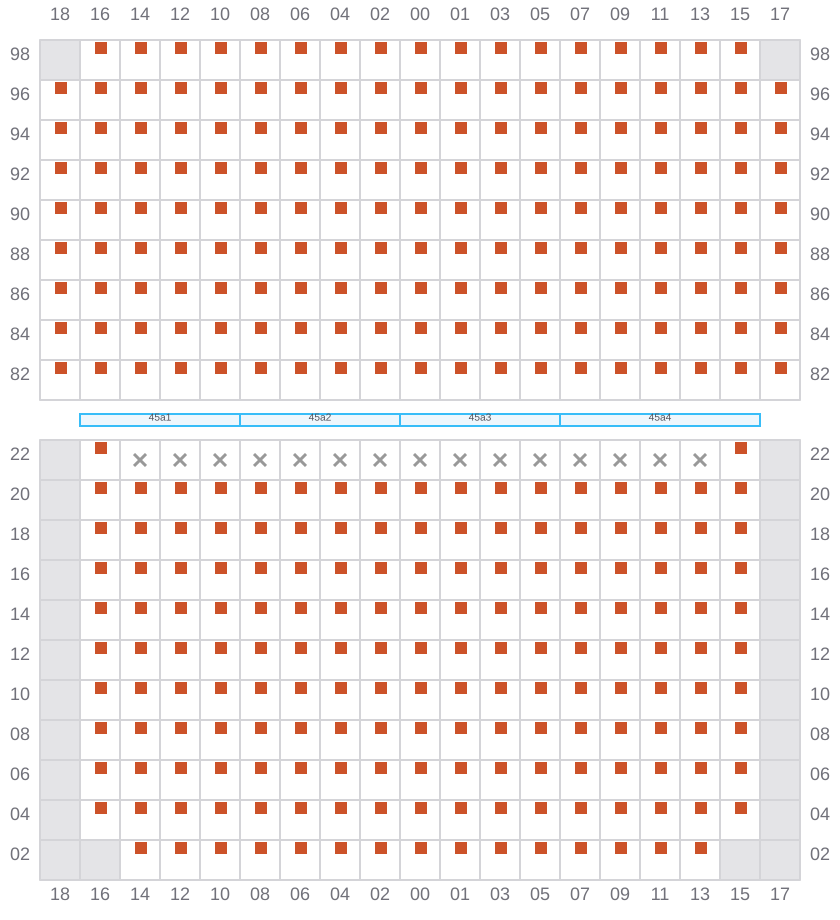

Bay 047 view and slots of BASLE EXPRESS

049 (050)

  • / ?

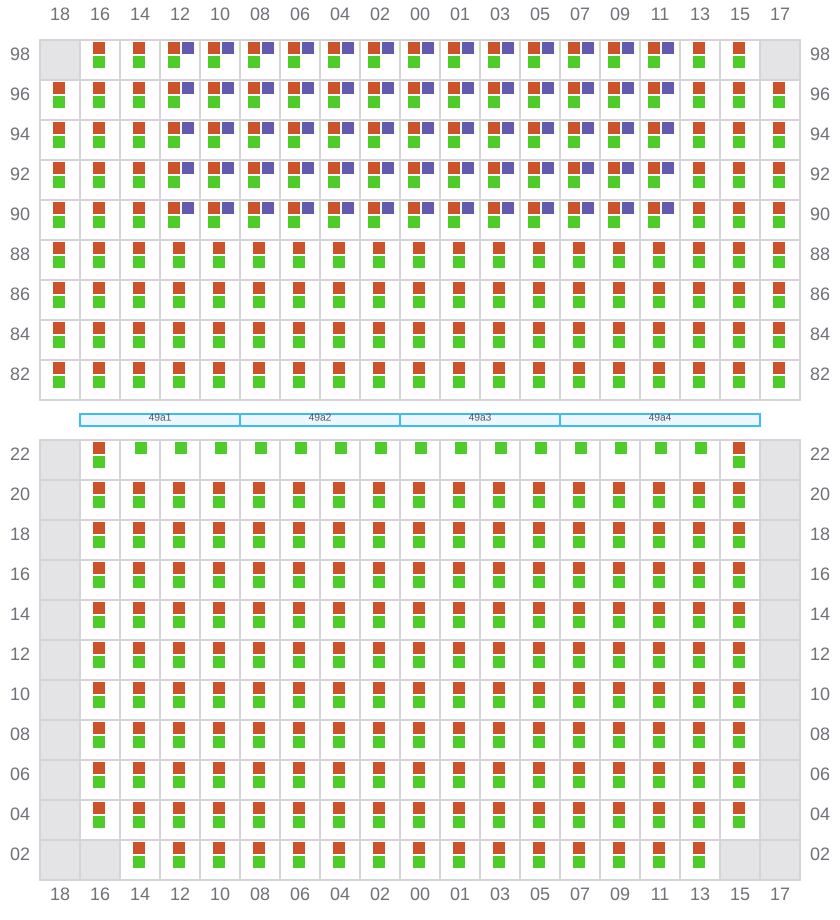

Bay 049 view and slots of BASLE EXPRESS

051

  • / ?
Bay 051 view and slots of BASLE EXPRESS

053 (054)

  • / ?
Bay 053 view and slots of BASLE EXPRESS

055

  • / ?
Bay 055 view and slots of BASLE EXPRESS

057 (058)

  • / ?
Bay 057 view and slots of BASLE EXPRESS

059

  • / ?

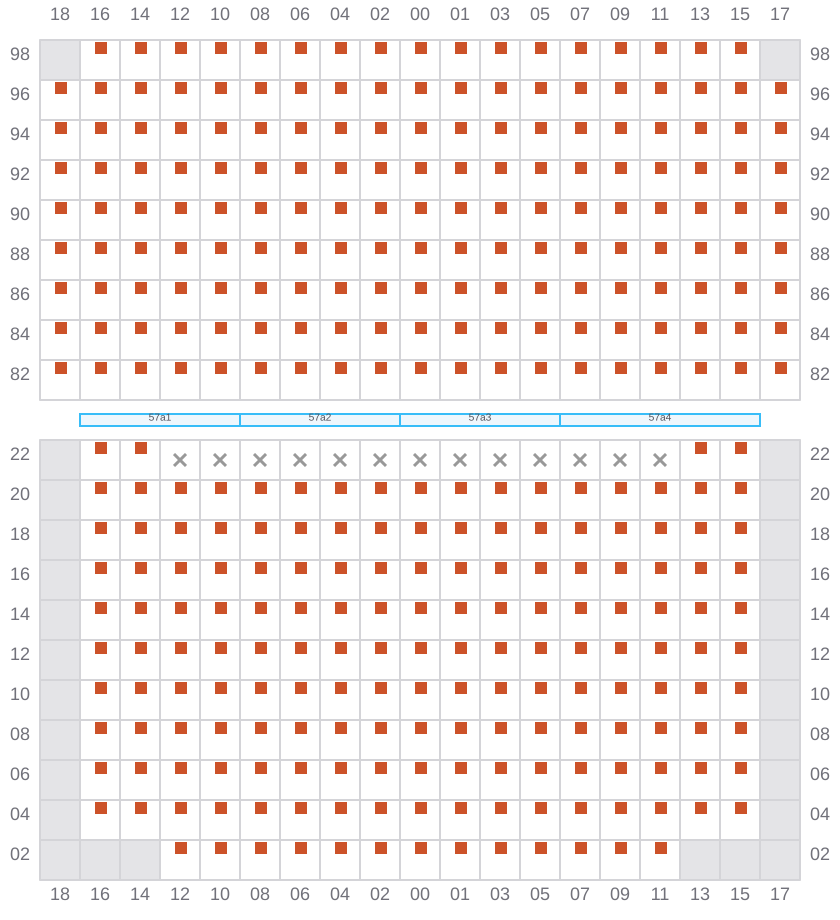

Bay 059 view and slots of BASLE EXPRESS

061 (062)

  • / ?

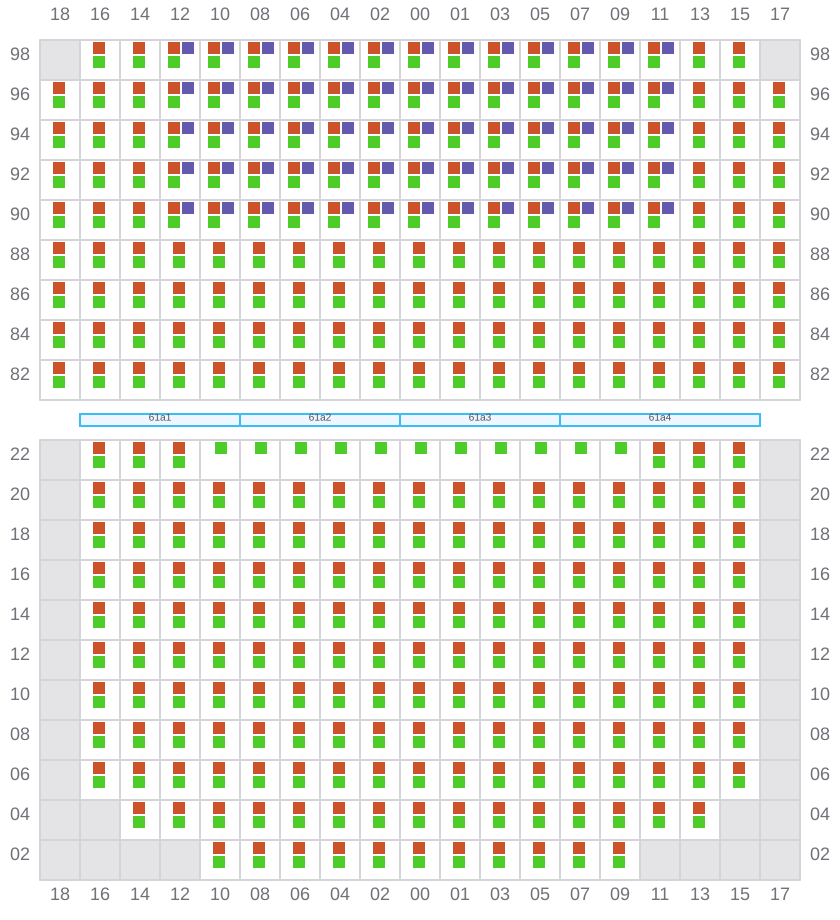

Bay 061 view and slots of BASLE EXPRESS

063

  • / ?

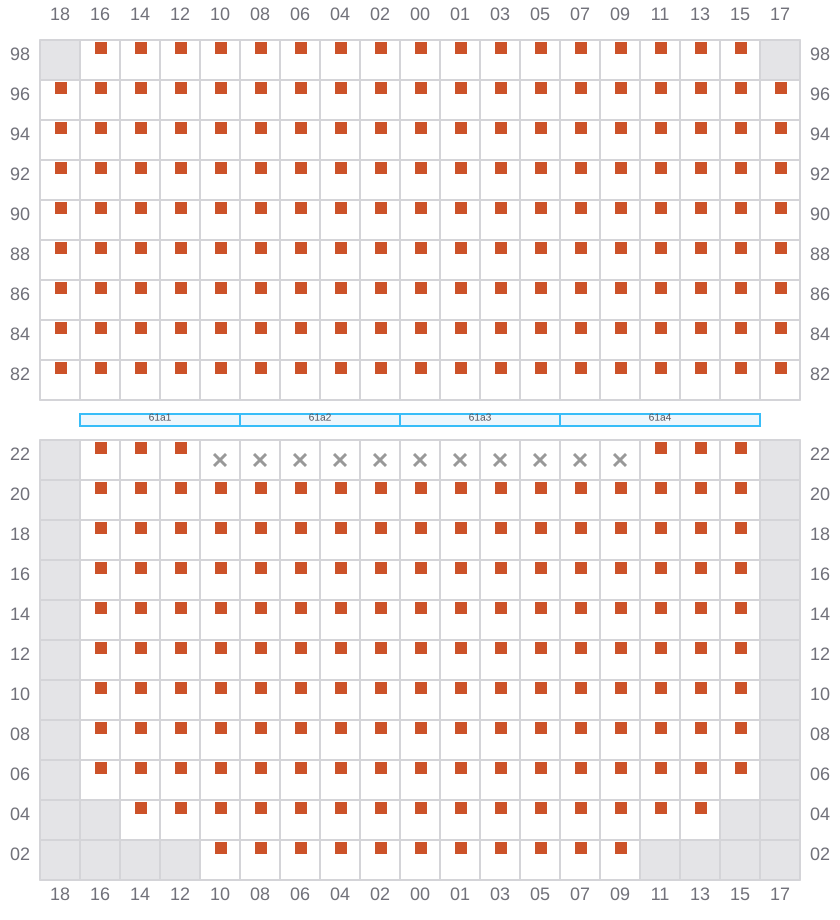

Bay 063 view and slots of BASLE EXPRESS

065 (066)

  • / ?

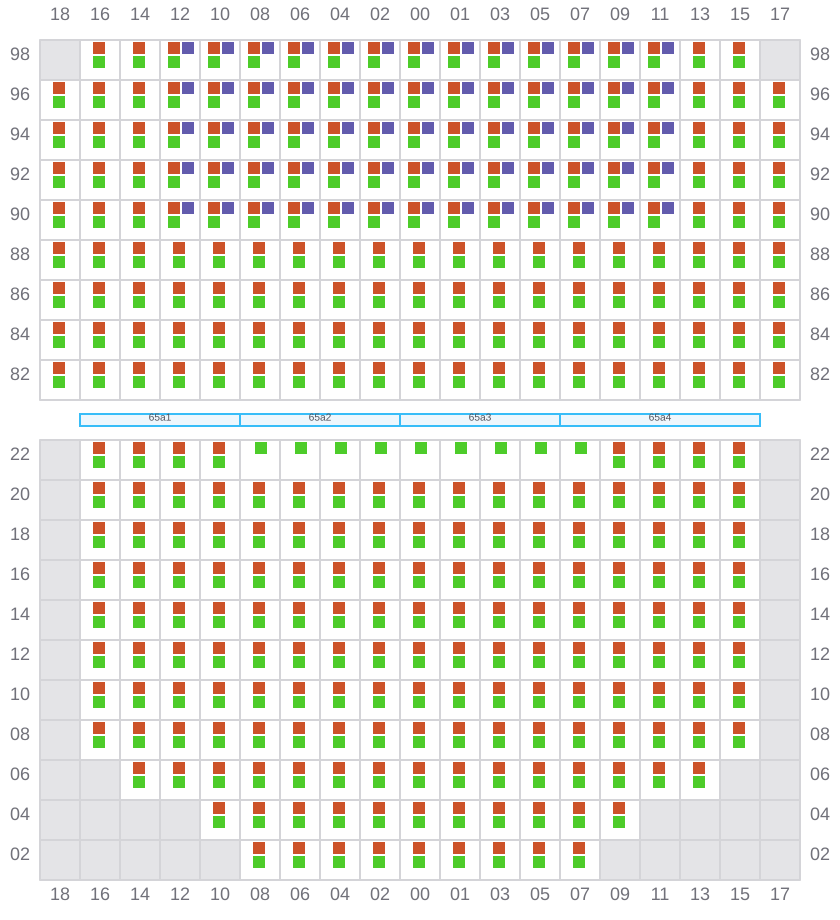

Bay 065 view and slots of BASLE EXPRESS

067

  • / ?

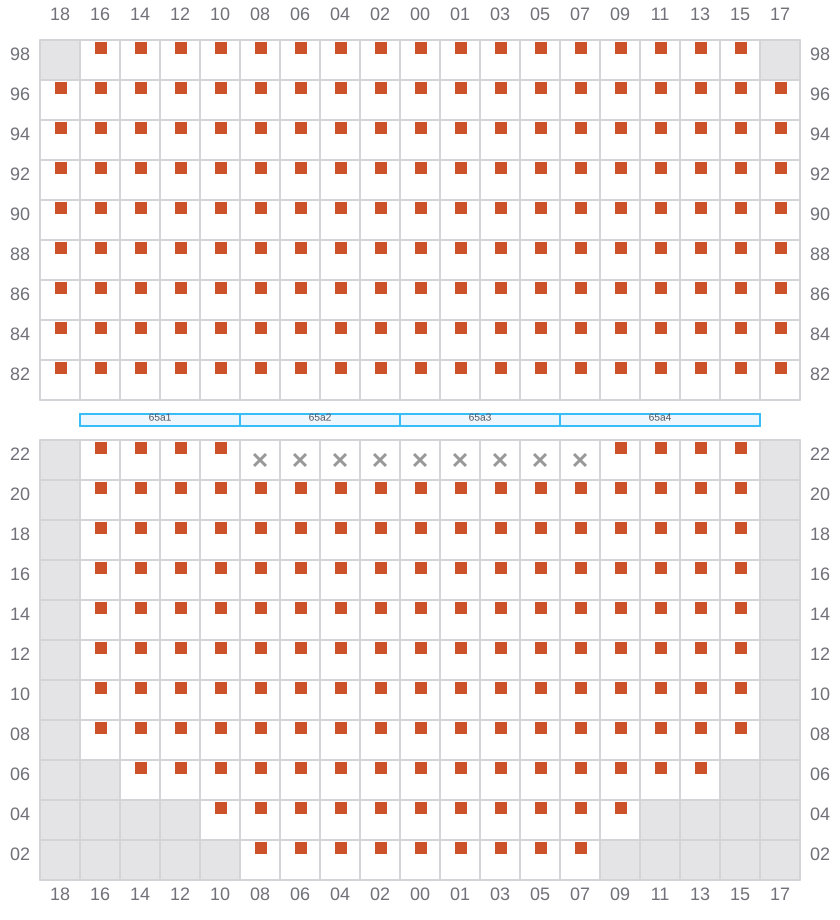

Bay 067 view and slots of BASLE EXPRESS

069 (070)

  • / ?

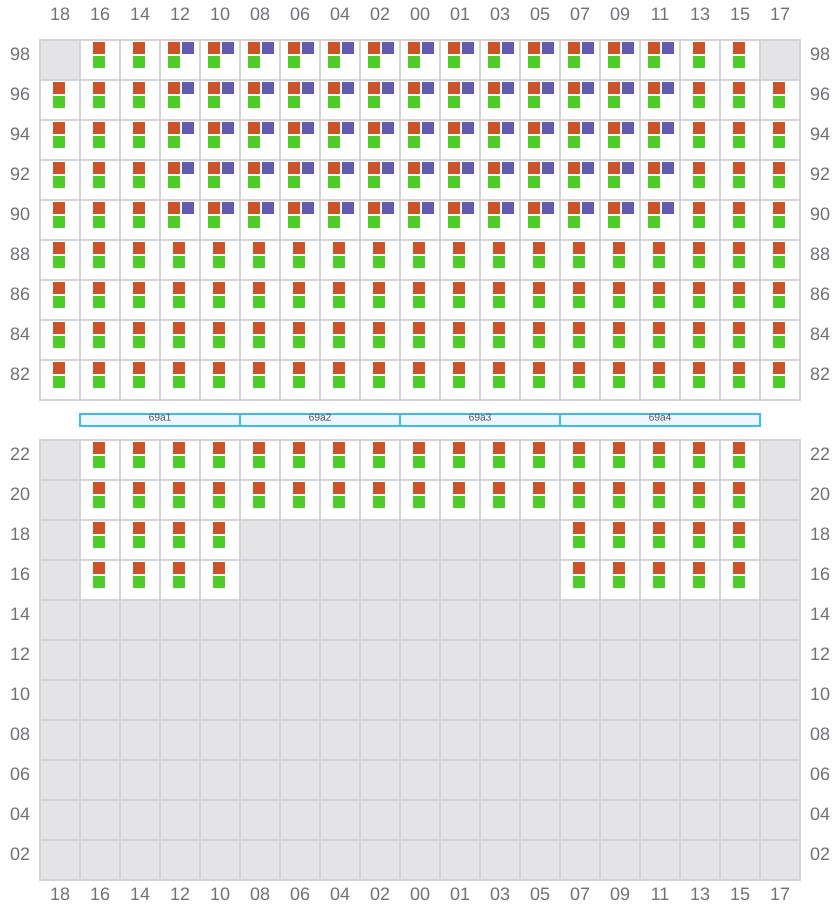

Bay 069 view and slots of BASLE EXPRESS

071

  • / ?

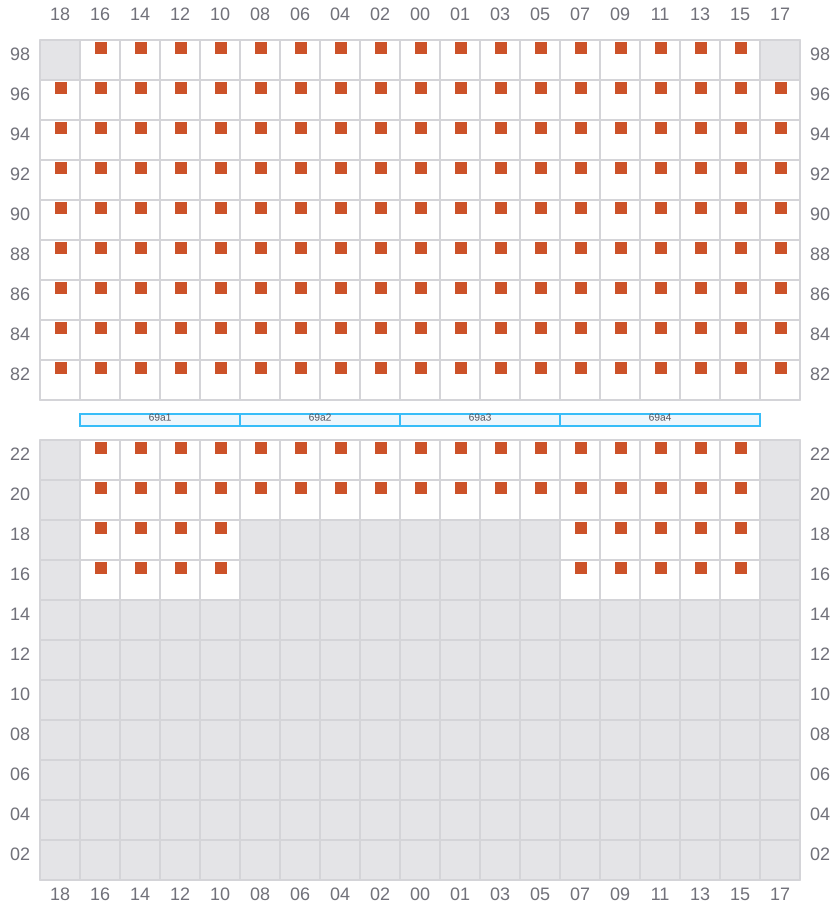

Bay 071 view and slots of BASLE EXPRESS

073 (074)

  • / ?

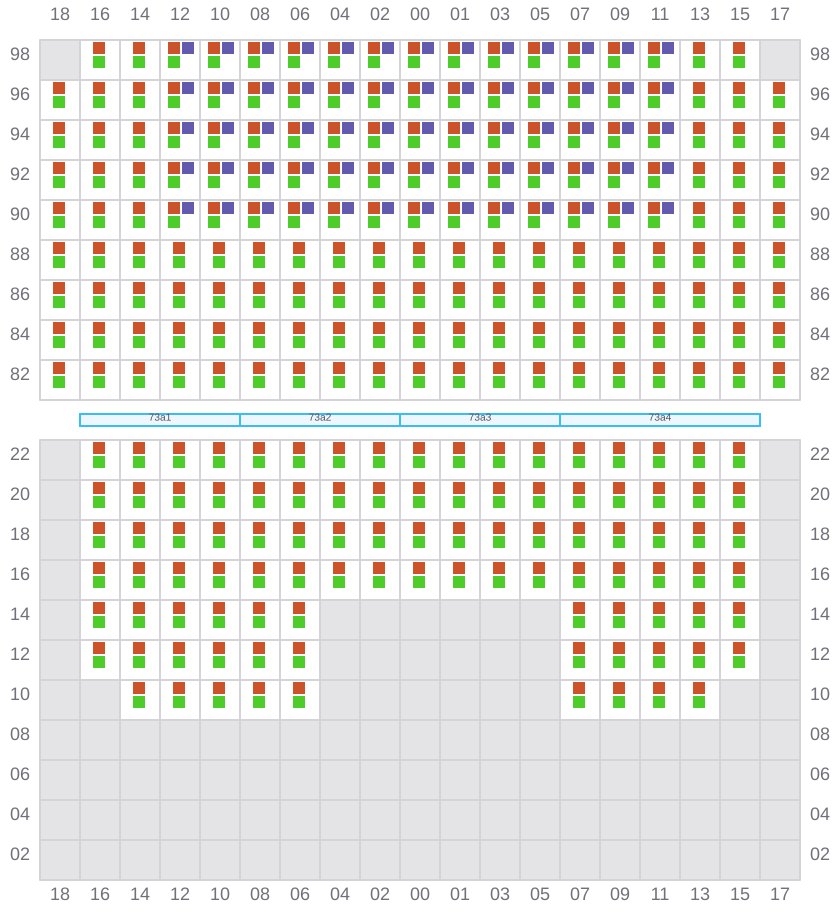

Bay 073 view and slots of BASLE EXPRESS

075

  • / ?

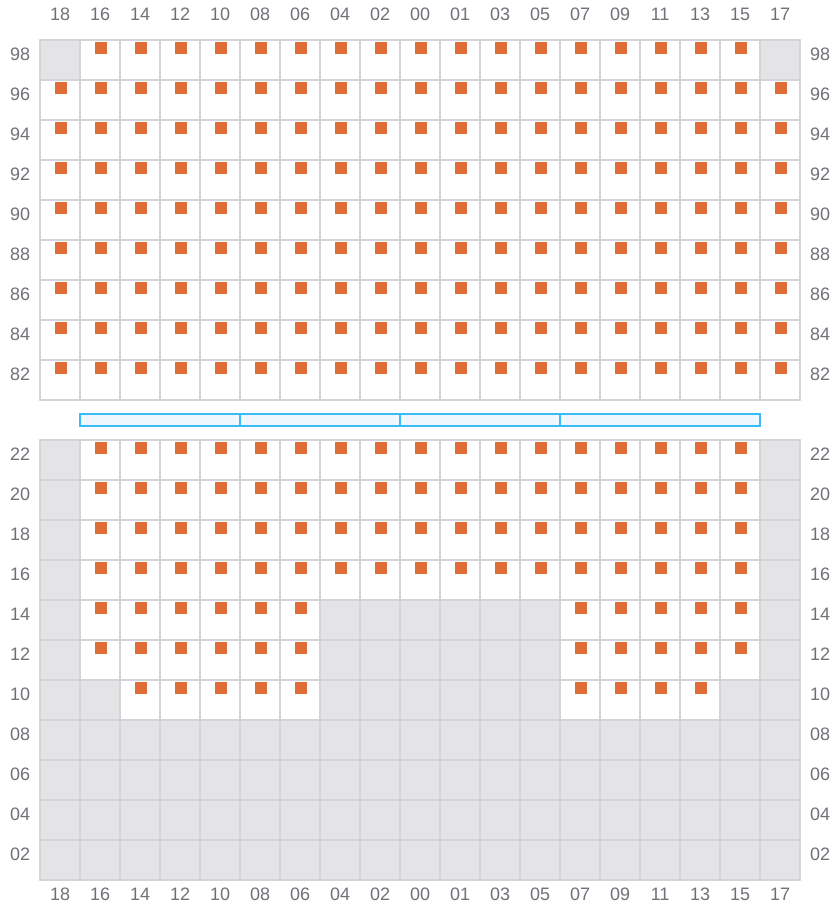

Bay 075 view and slots of BASLE EXPRESS

077 (078)

  • / ?

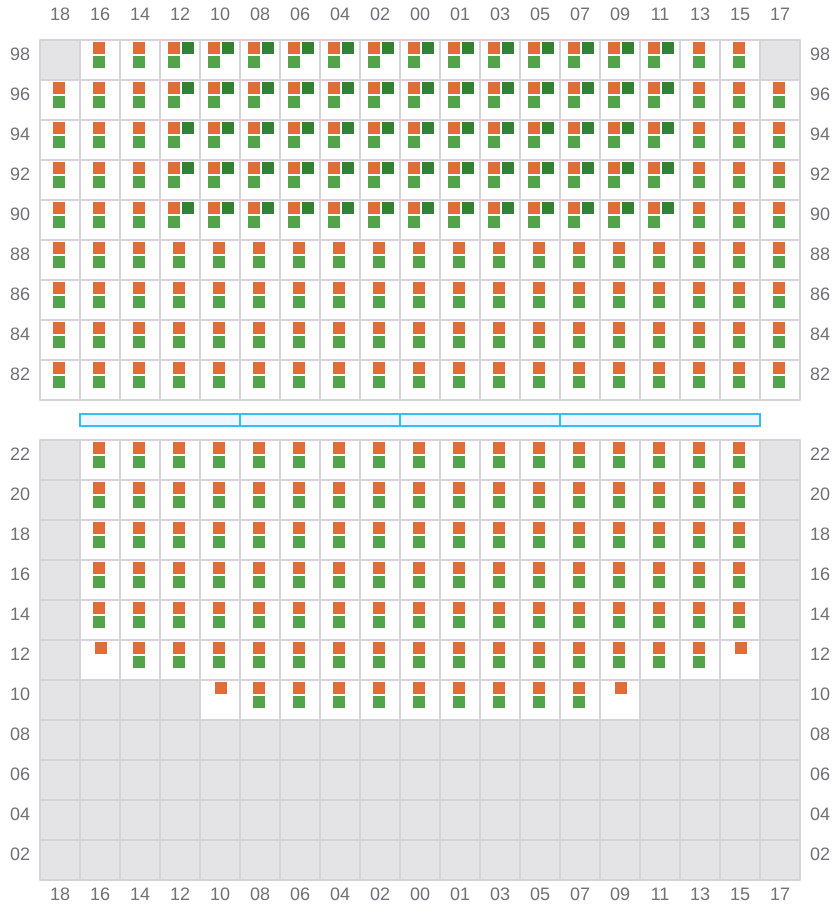

Bay 077 view and slots of BASLE EXPRESS

079

  • / ?

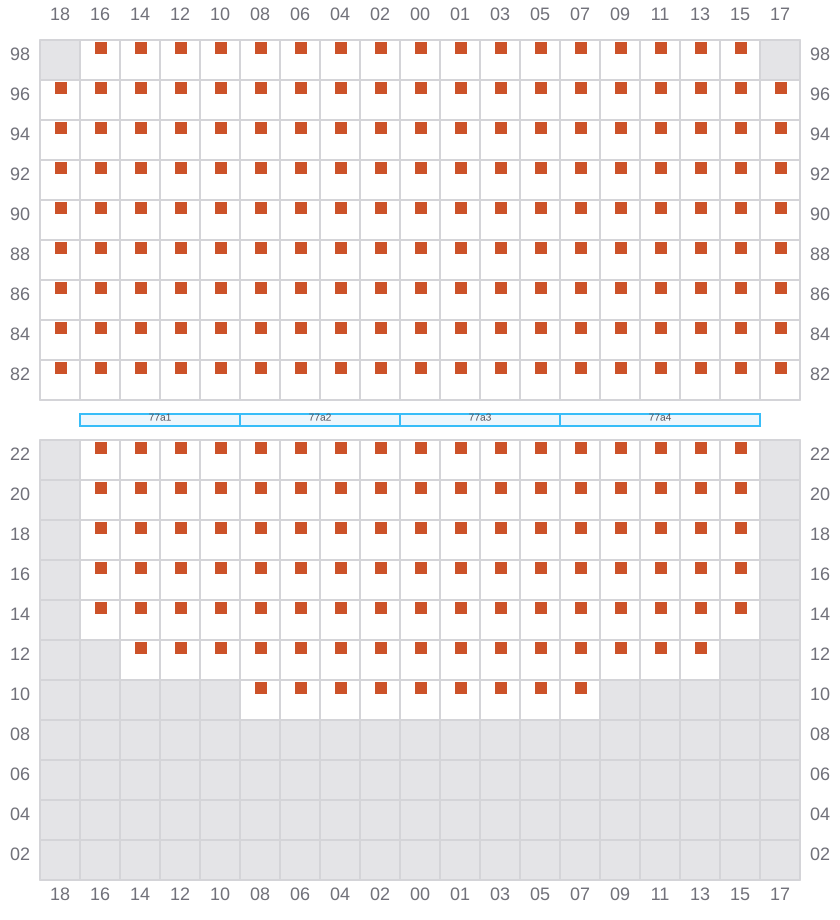

Bay 079 view and slots of BASLE EXPRESS

081 (082)

  • / ?

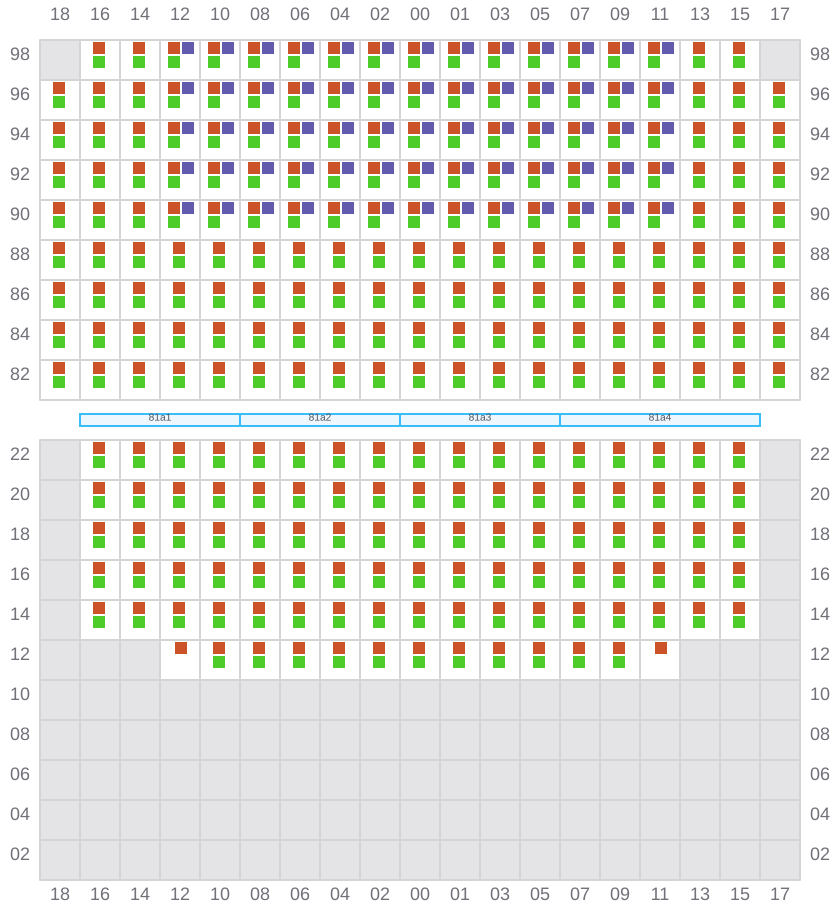

Bay 081 view and slots of BASLE EXPRESS

083

  • / ?

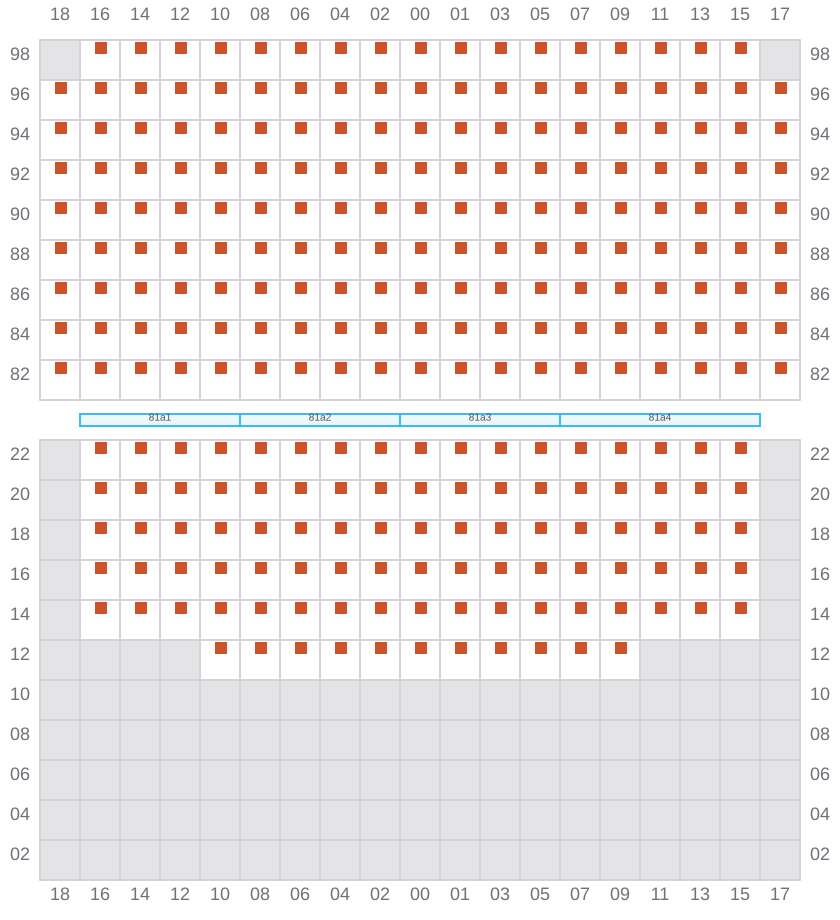

Bay 083 view and slots of BASLE EXPRESS

085 (086)

  • / ?

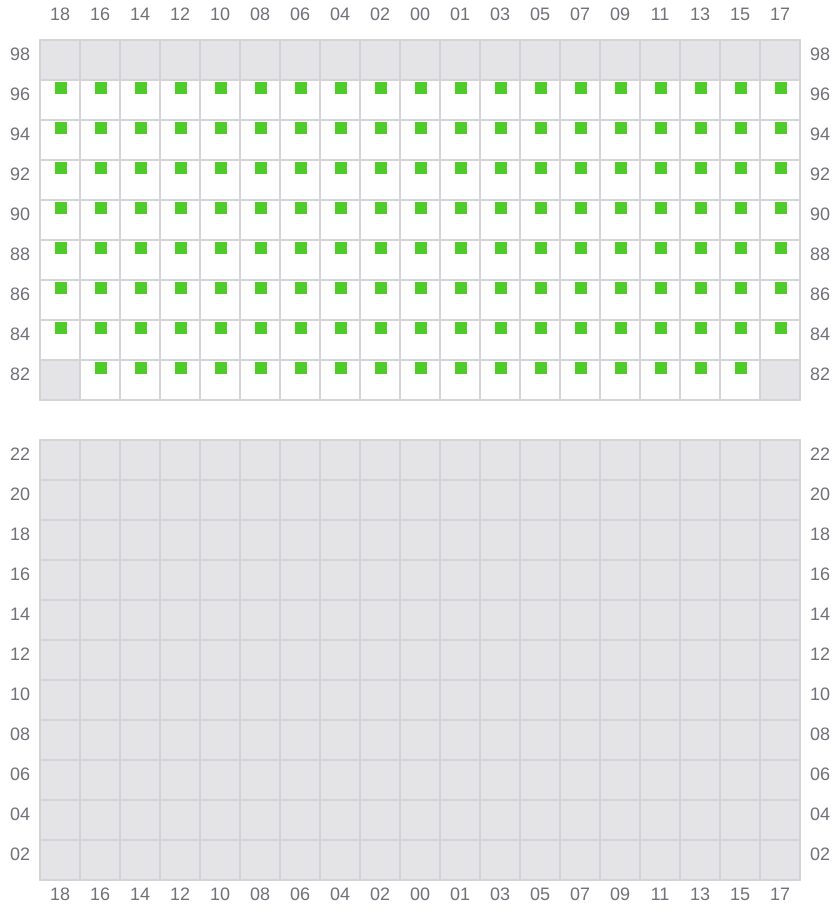

Bay 085 view and slots of BASLE EXPRESS
