BBC ALASKA
9453793 | A8VR8 | ARRC by ************************** Last update: Thu Jun 01 2023

General Info

Ship Name:BBC ALASKA
IMO Code:9453793
Call Sign:A8VR8
Line Operator:ARRC
Class Name for Sister Ships:CLI
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:031
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:08
Total TEU:784

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

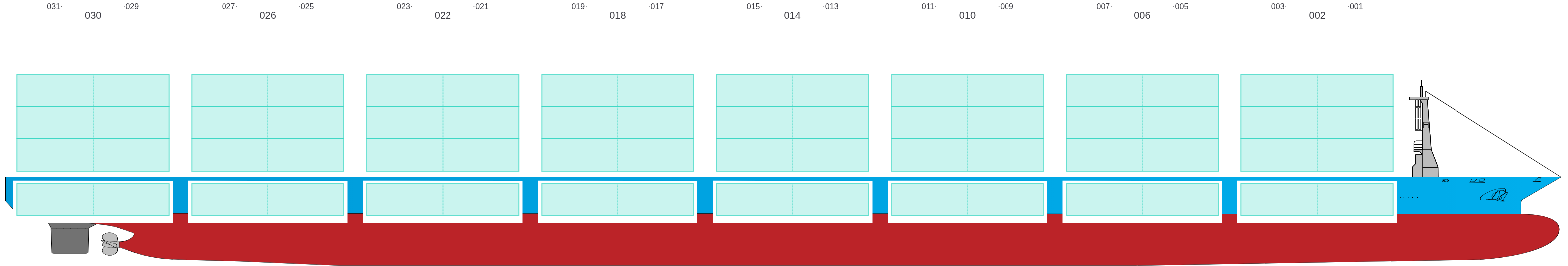

Side View

Side view of BBC ALASKA

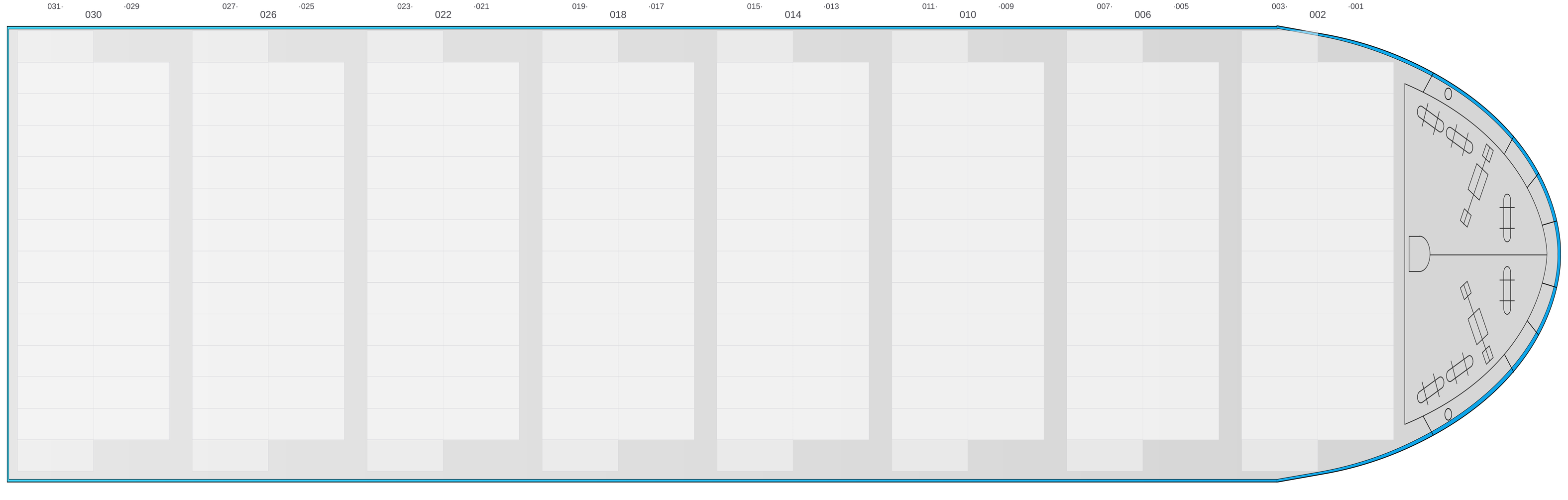

Hatch-Covers View

Deck view of BBC ALASKA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of BBC ALASKA

003

  • ←
Bay 003 view and slots of BBC ALASKA

005 (006)

  • →
Bay 005 view and slots of BBC ALASKA

007

  • ←
Bay 007 view and slots of BBC ALASKA

009 (010)

  • →
Bay 009 view and slots of BBC ALASKA

011

  • ←
Bay 011 view and slots of BBC ALASKA

013 (014)

  • →
Bay 013 view and slots of BBC ALASKA

015

  • ←
Bay 015 view and slots of BBC ALASKA

017 (018)

  • →
Bay 017 view and slots of BBC ALASKA

019

  • ←
Bay 019 view and slots of BBC ALASKA

021 (022)

  • →
Bay 021 view and slots of BBC ALASKA

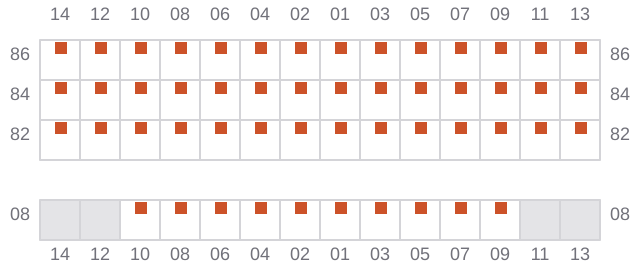

023

  • ←
Bay 023 view and slots of BBC ALASKA

025 (026)

  • →
Bay 025 view and slots of BBC ALASKA

027

  • ←
Bay 027 view and slots of BBC ALASKA

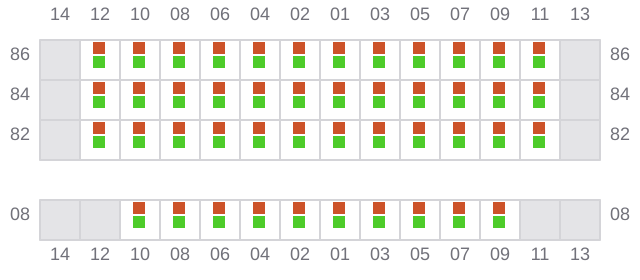

029 (030)

  • →
Bay 029 view and slots of BBC ALASKA

031

  • ←
Bay 031 view and slots of BBC ALASKA
