BBC RAISE
9538880 | V2HN5 | 9538880 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:BBC RAISE
IMO Code:9538880
Call Sign:V2HN5
Line Operator:9538880
Class Name for Sister Ships:SAFMARINE SAHARA
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,080
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

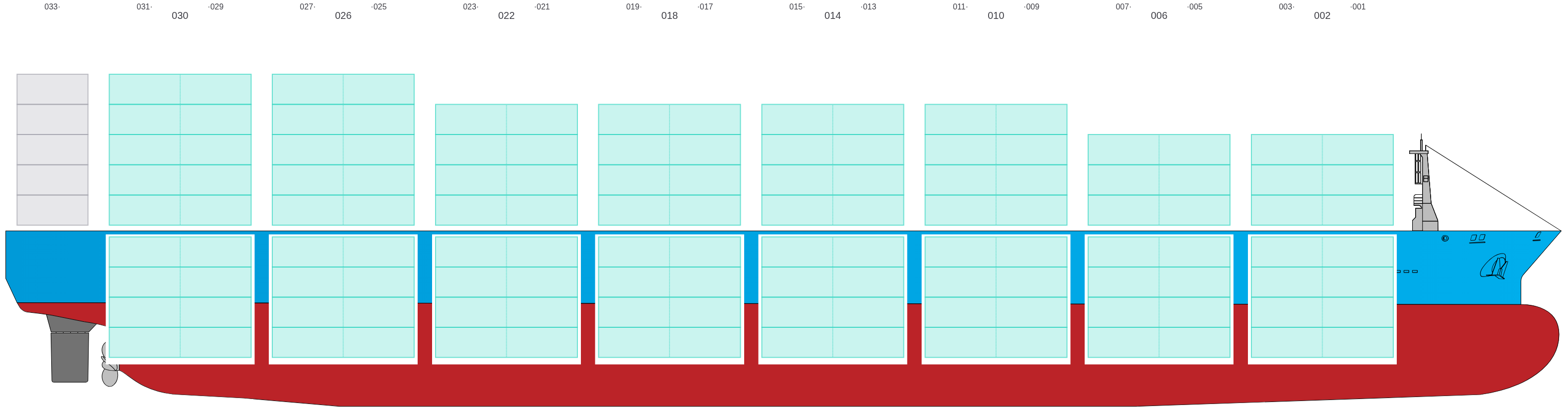

Side View
![Side view of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-sideView.png?v=1717697257017)

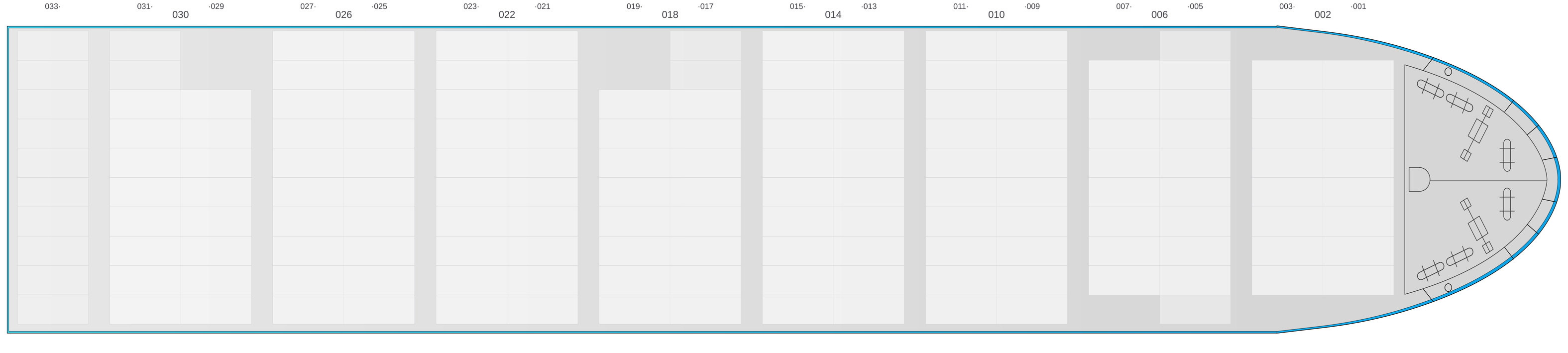

Hatch-Covers View
![Deck view of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-deckView.png?v=1717697257017)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

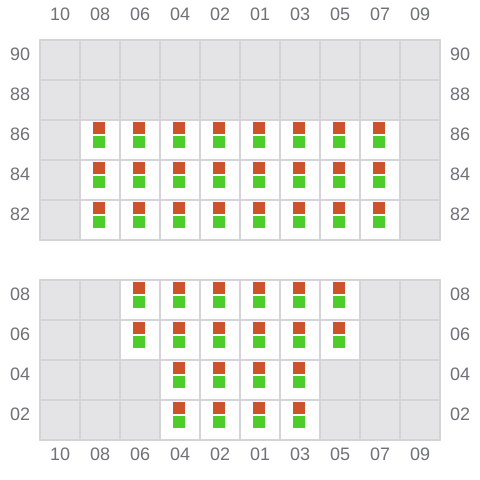

001 (002)
- →
![Bay 001 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b001.png?v=1717697257017)

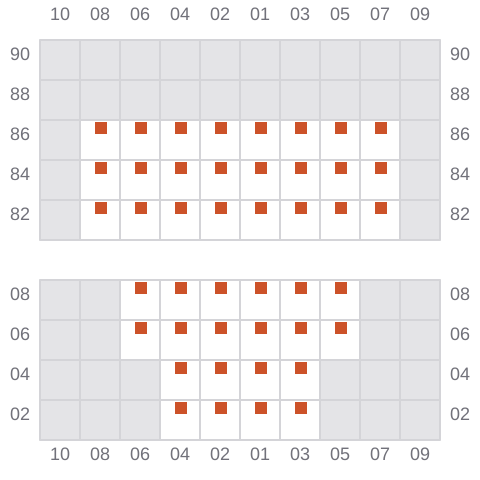

003
- ←
![Bay 003 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b003.png?v=1717697257017)

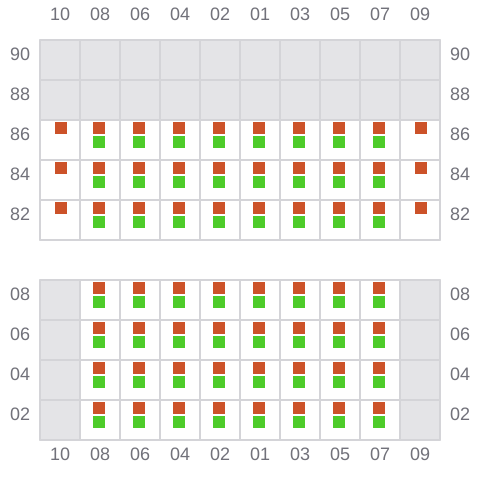

005 (006)
- →
![Bay 005 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b005.png?v=1717697257017)

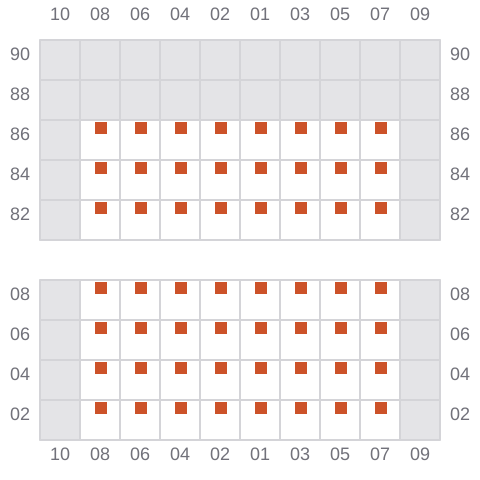

007
- ←
![Bay 007 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b007.png?v=1717697257017)
009 (010)
- →
![Bay 009 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b009.png?v=1717697257017)
011
- ←
![Bay 011 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b011.png?v=1717697257017)
013 (014)
- →
![Bay 013 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b013.png?v=1717697257017)

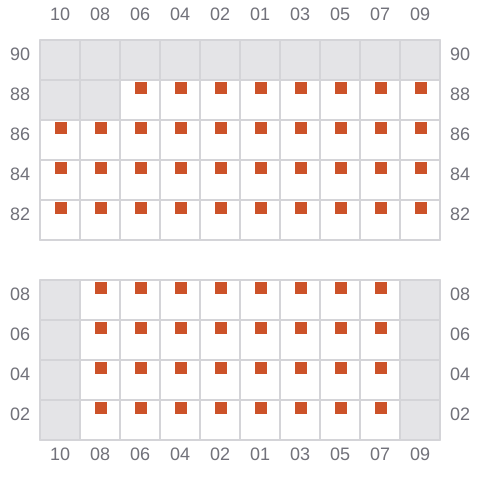

015
- ←
![Bay 015 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b015.png?v=1717697257017)

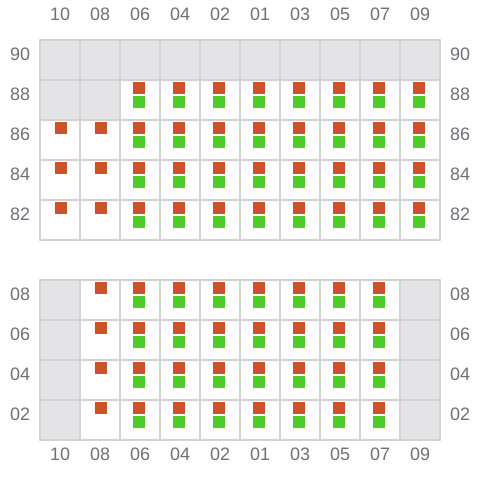

017 (018)
- →
![Bay 017 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b017.png?v=1717697257017)

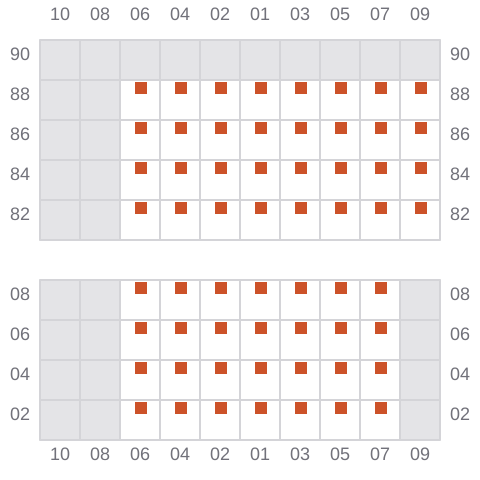

019
- ←
![Bay 019 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b019.png?v=1717697257017)

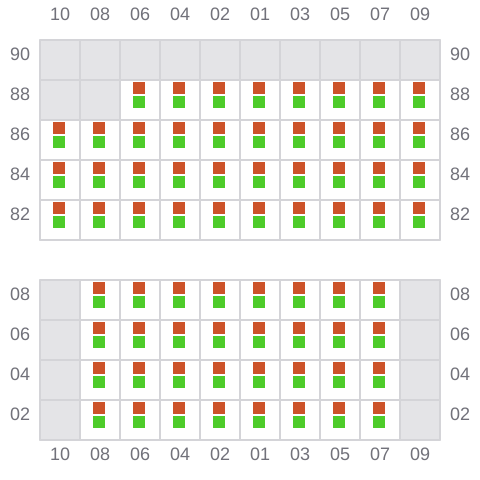

021 (022)
- →
![Bay 021 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b021.png?v=1717697257017)
023
- ←
![Bay 023 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b023.png?v=1717697257017)

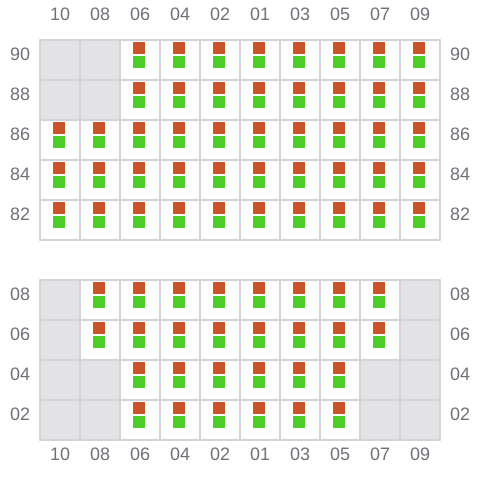

025 (026)
- →
![Bay 025 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b025.png?v=1717697257017)

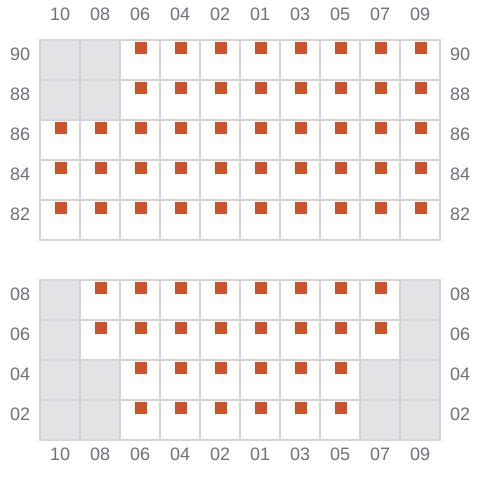

027
- ←
![Bay 027 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b027.png?v=1717697257017)

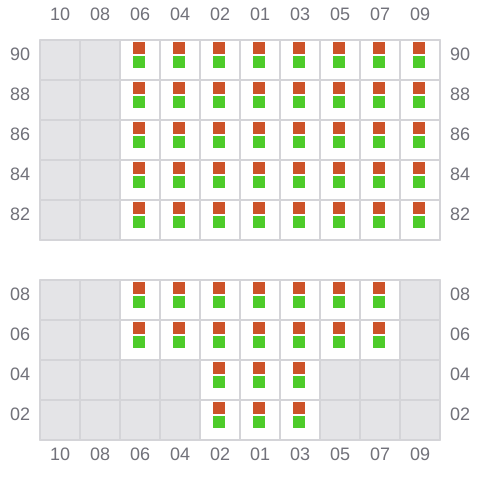

029 (030)
- →
![Bay 029 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b029.png?v=1717697257017)

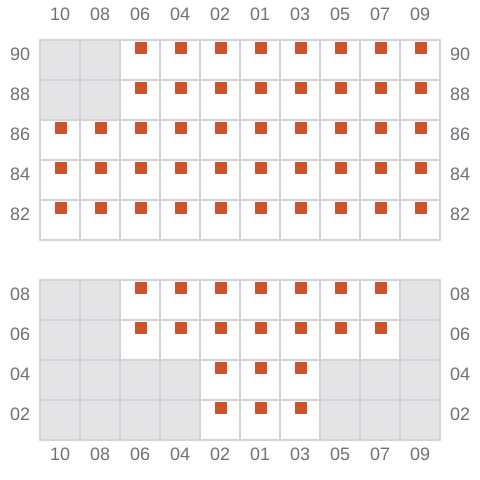

031
- ←
![Bay 031 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b031.png?v=1717697257017)

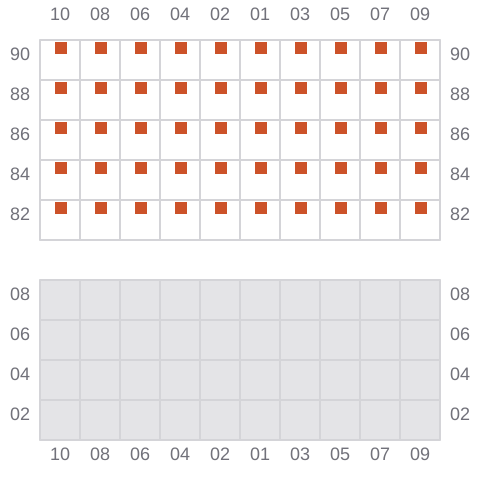

033
- ← / ?
![Bay 033 view and slots of BBC RAISE](/vessel-images/b444219d-739a-4f97-b0b7-2b8386f4bcc7-b033.png?v=1717697257017)
