BBC REEF
9539365 | 3E3489 | 9539365 by ********* Last update: Thu Jun 06 2024

General Info

Ship Name:BBC REEF
IMO Code:9539365
Call Sign:3E3489
Line Operator:9539365
Class Name for Sister Ships:SAFMARINE SAHEL
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,080

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of BBC REEF

Hatch-Covers View

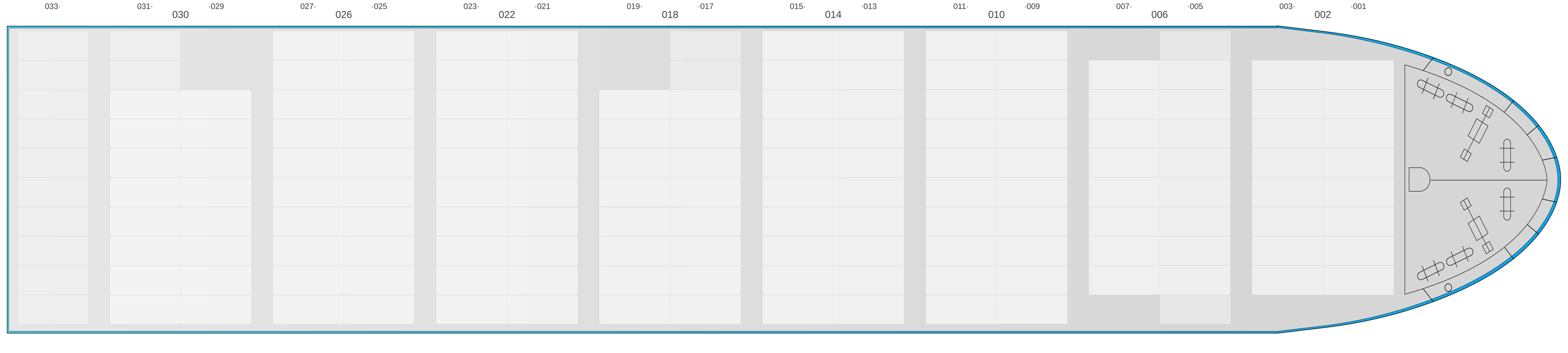

Deck view of BBC REEF

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

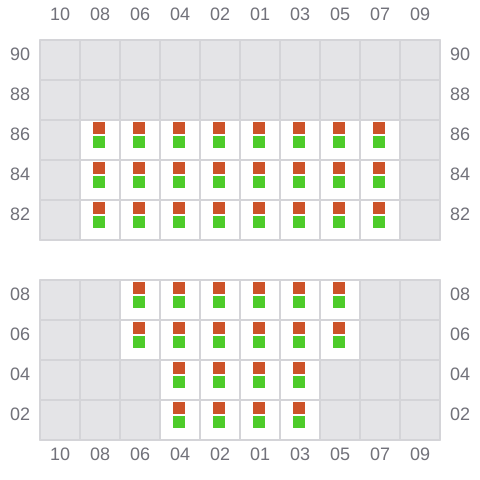

Bay 001 view and slots of BBC REEF

003

  • ←

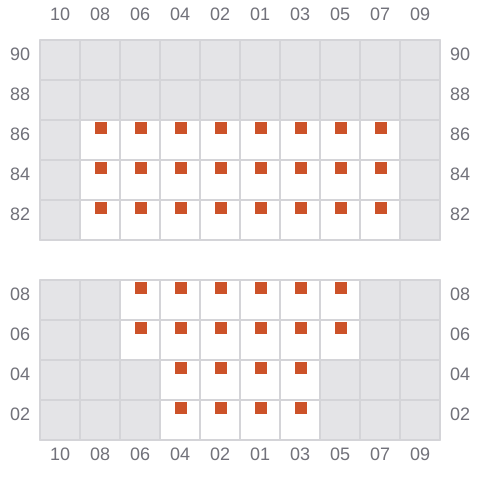

Bay 003 view and slots of BBC REEF

005 (006)

  • →

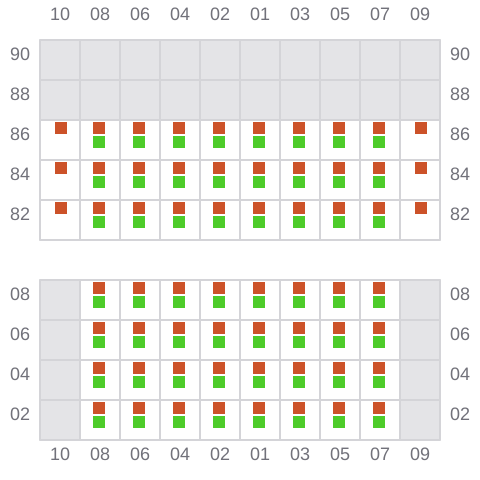

Bay 005 view and slots of BBC REEF

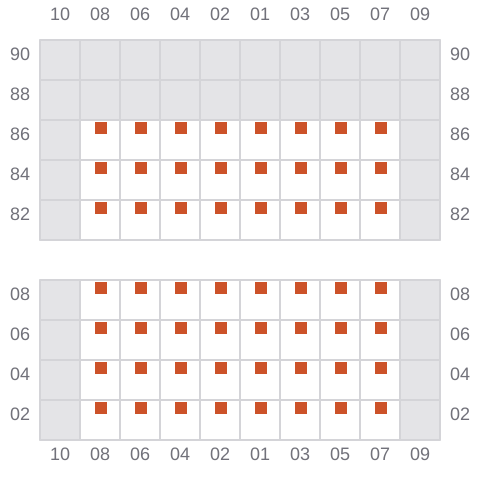

007

  • ←
Bay 007 view and slots of BBC REEF

009 (010)

  • →
Bay 009 view and slots of BBC REEF

011

  • ←
Bay 011 view and slots of BBC REEF

013 (014)

  • →
Bay 013 view and slots of BBC REEF

015

  • ←
Bay 015 view and slots of BBC REEF

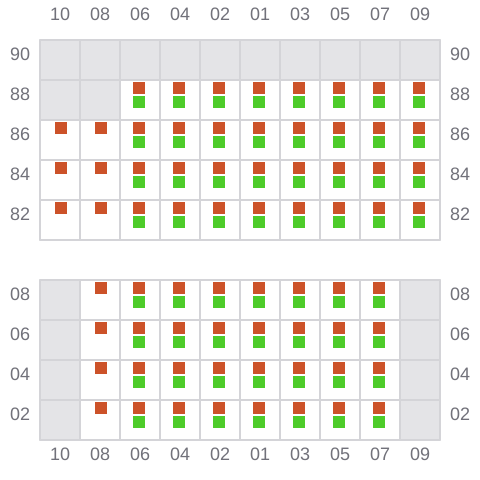

017 (018)

  • →
Bay 017 view and slots of BBC REEF

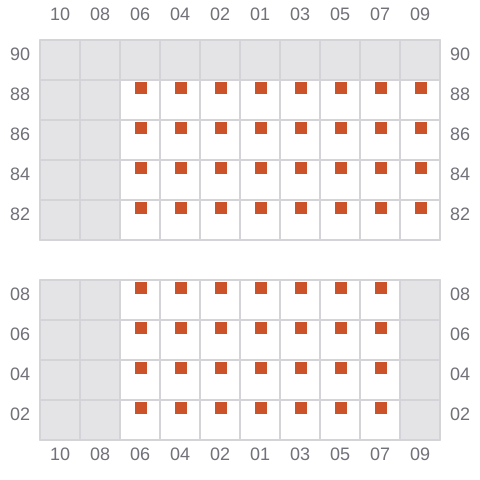

019

  • ←
Bay 019 view and slots of BBC REEF

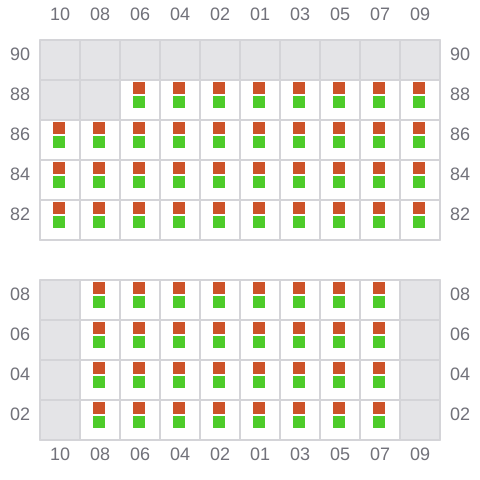

021 (022)

  • →
Bay 021 view and slots of BBC REEF

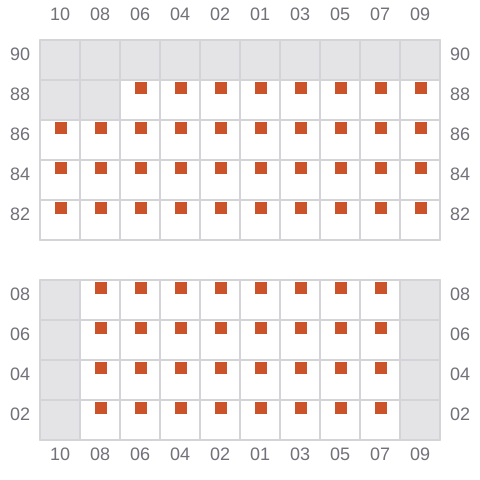

023

  • ←
Bay 023 view and slots of BBC REEF

025 (026)

  • →

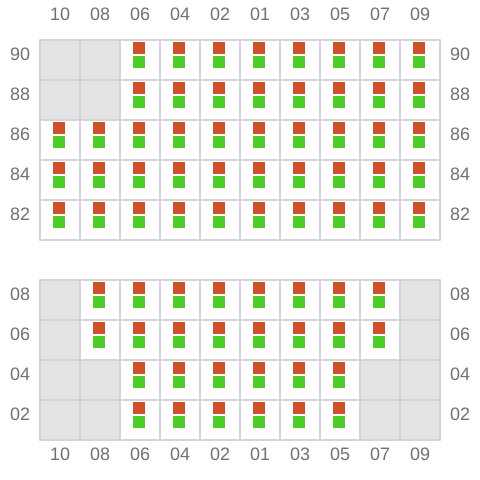

Bay 025 view and slots of BBC REEF

027

  • ←

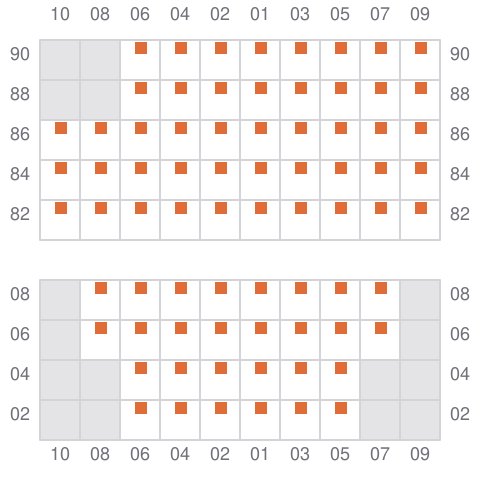

Bay 027 view and slots of BBC REEF

029 (030)

  • →

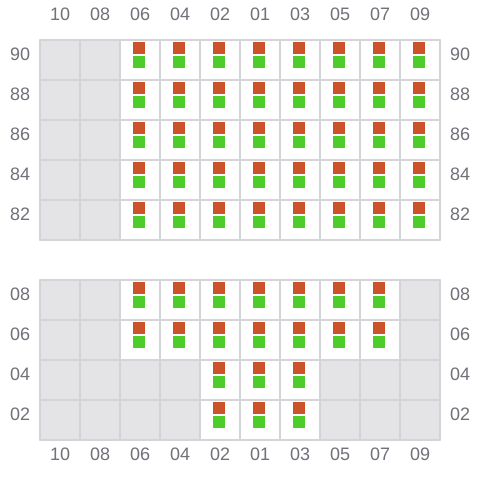

Bay 029 view and slots of BBC REEF

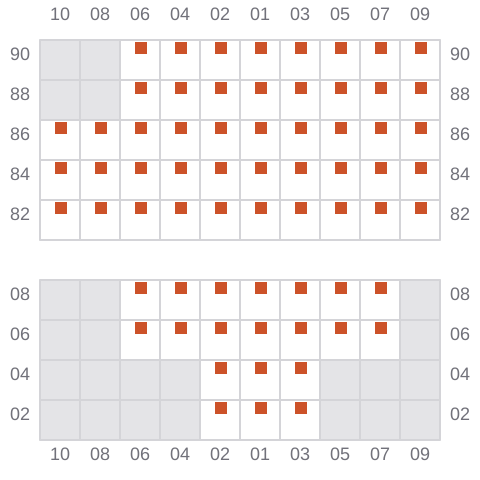

031

  • ←
Bay 031 view and slots of BBC REEF

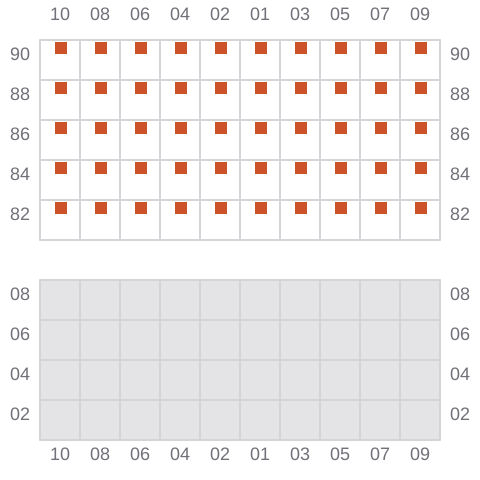

033

  • ← / ?
Bay 033 view and slots of BBC REEF
