BBC REGALIA
9539389 | V2HL9 | 9539389 by ********* Last update: Thu Jun 06 2024

General Info

Ship Name:BBC REGALIA
IMO Code:9539389
Call Sign:V2HL9
Line Operator:9539389
Class Name for Sister Ships:SAFMARINE SUGUTA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,080

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of BBC REGALIA

Hatch-Covers View

Deck view of BBC REGALIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

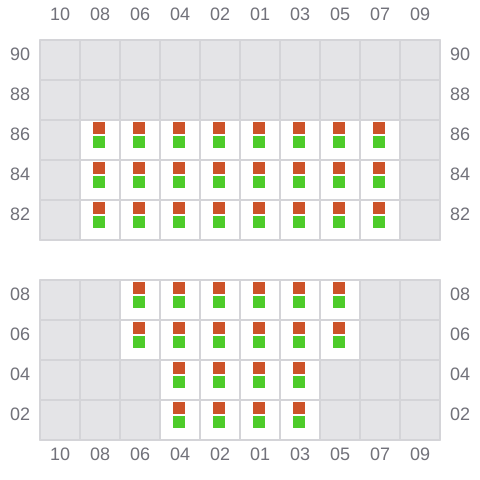

001 (002)

Bay 001 view and slots of BBC REGALIA

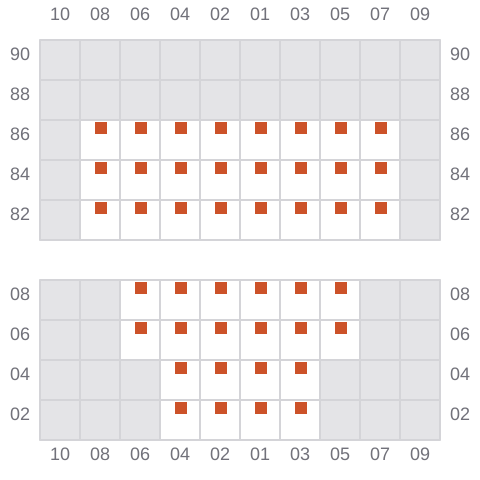

003

Bay 003 view and slots of BBC REGALIA

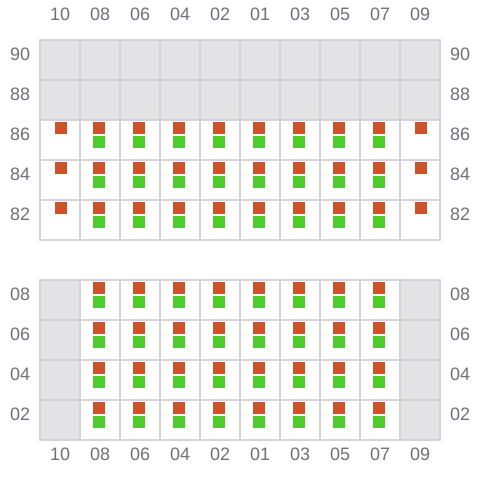

005 (006)

Bay 005 view and slots of BBC REGALIA

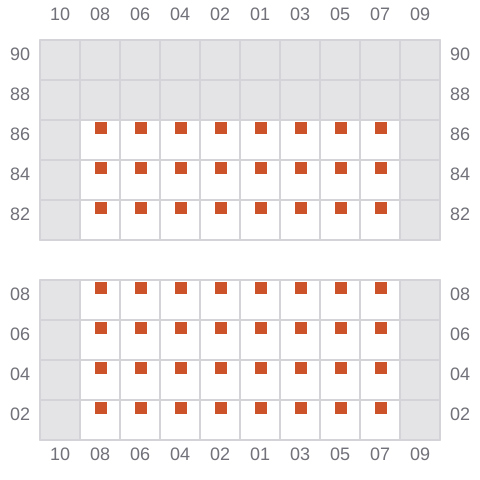

007

Bay 007 view and slots of BBC REGALIA

009 (010)

Bay 009 view and slots of BBC REGALIA

011

Bay 011 view and slots of BBC REGALIA

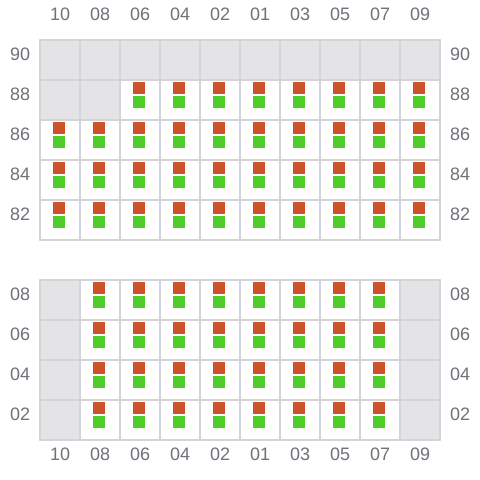

013 (014)

Bay 013 view and slots of BBC REGALIA

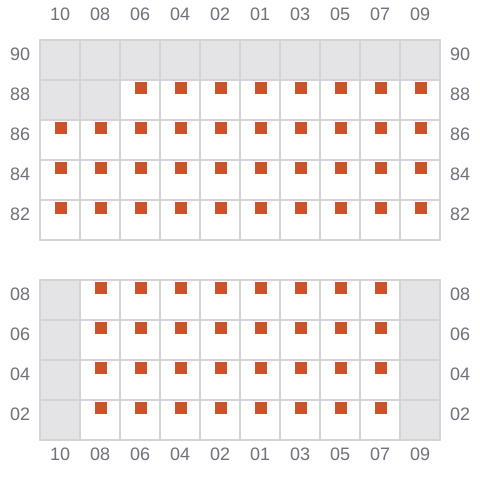

015

Bay 015 view and slots of BBC REGALIA

017 (018)

Bay 017 view and slots of BBC REGALIA

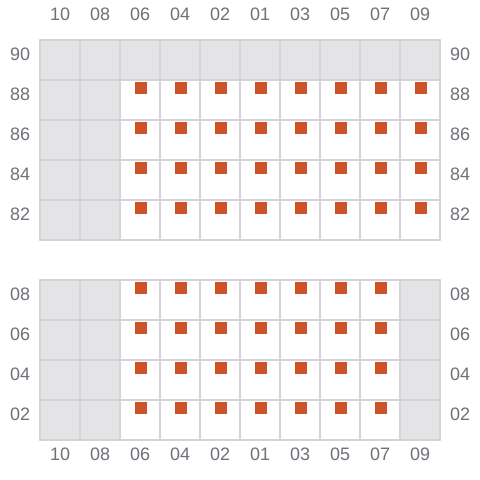

019

Bay 019 view and slots of BBC REGALIA

021 (022)

Bay 021 view and slots of BBC REGALIA

023

Bay 023 view and slots of BBC REGALIA

025 (026)

Bay 025 view and slots of BBC REGALIA

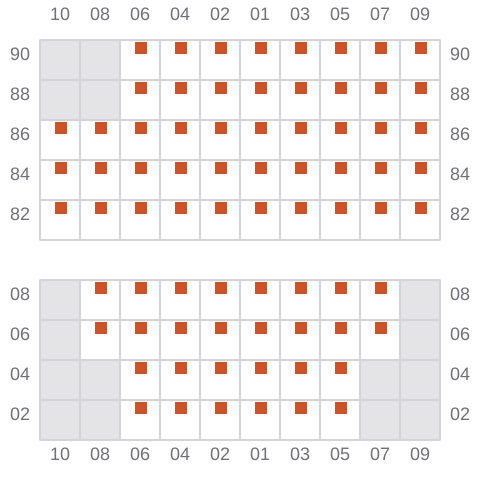

027

Bay 027 view and slots of BBC REGALIA

029 (030)

Bay 029 view and slots of BBC REGALIA

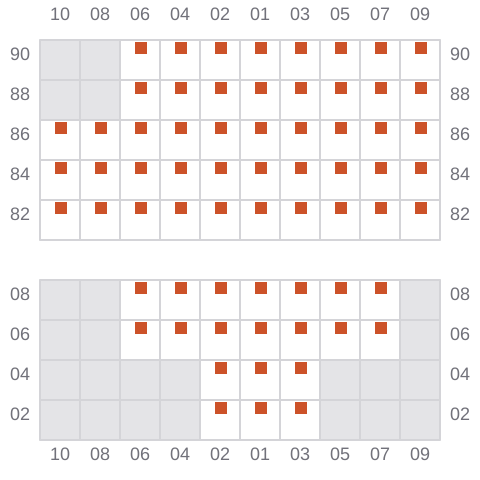

031

Bay 031 view and slots of BBC REGALIA

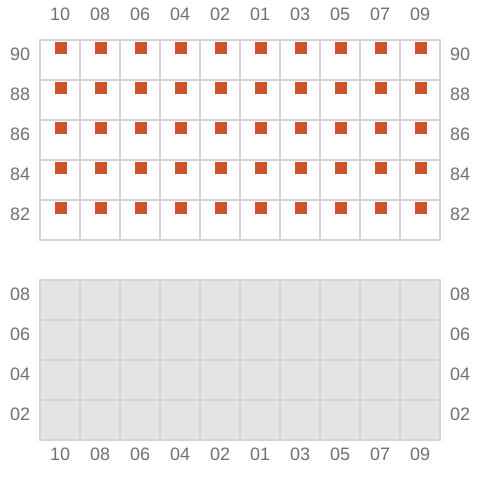

033

Bay 033 view and slots of BBC REGALIA
