BBC RIO
9430222 | V2HO8 | 9430222 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:BBC RIO
IMO Code:9430222
Call Sign:V2HO8
Line Operator:9430222
Class Name for Sister Ships:SAFMARINE SHABA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,051
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

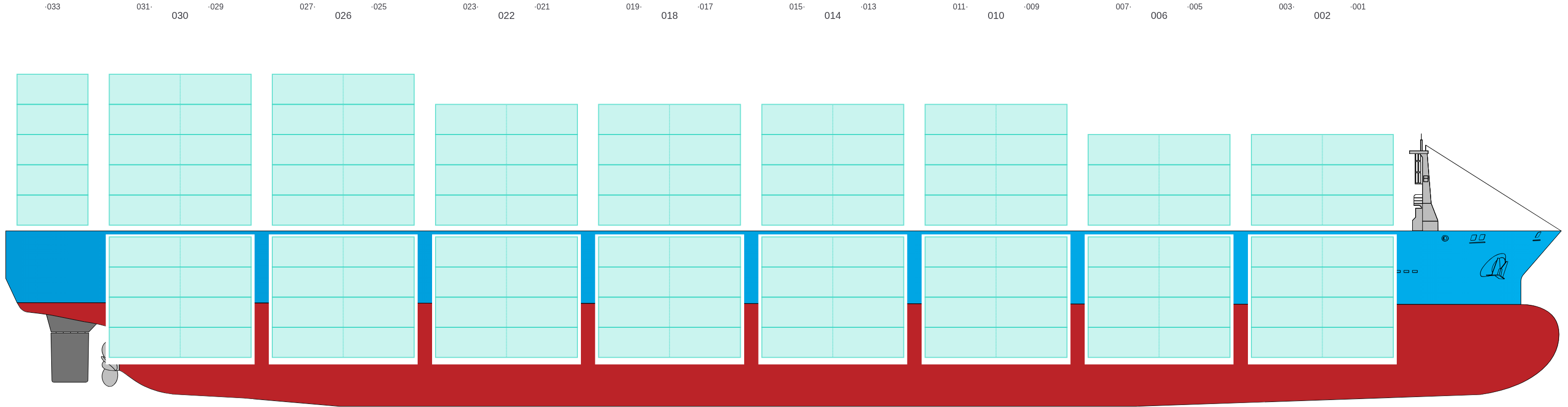

Side View
![Side view of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-sideView.png?v=1717697111924)

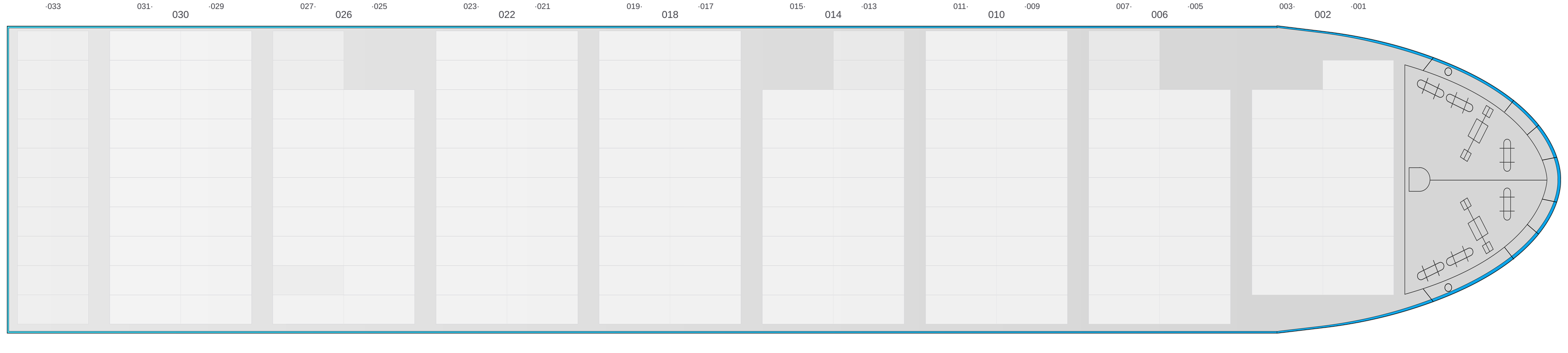

Hatch-Covers View
![Deck view of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-deckView.png?v=1717697111924)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

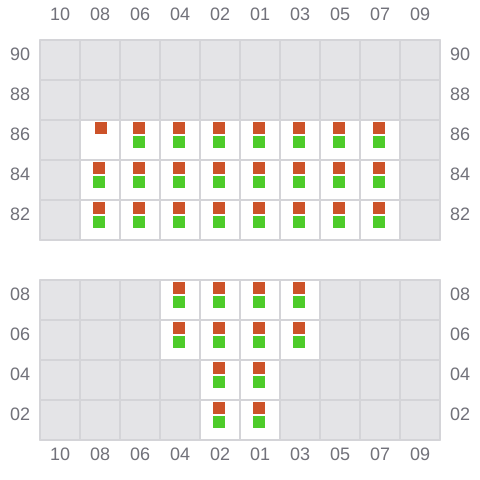

001 (002)
- →
![Bay 001 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b001.png?v=1717697111924)

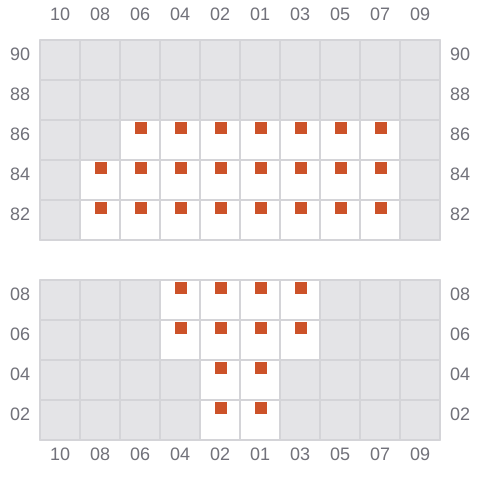

003
- ←
![Bay 003 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b003.png?v=1717697111924)

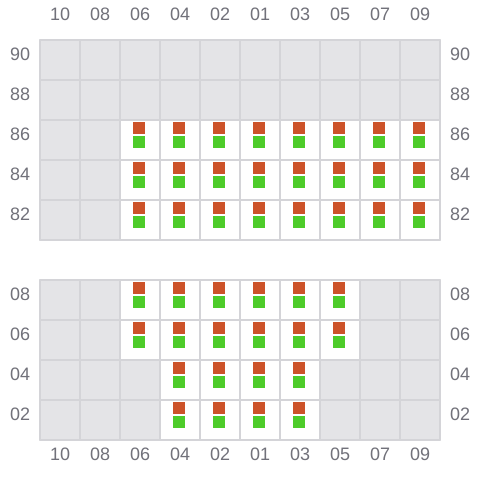

005 (006)
- →
![Bay 005 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b005.png?v=1717697111924)

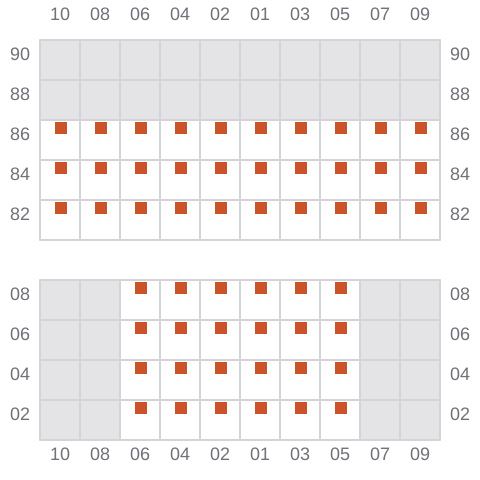

007
- ←
![Bay 007 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b007.png?v=1717697111924)
009 (010)
- →
![Bay 009 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b009.png?v=1717697111924)

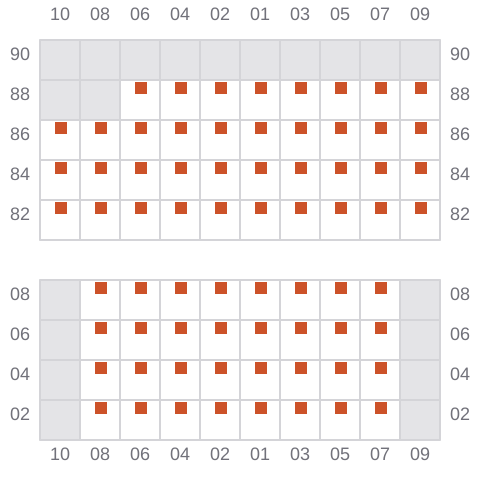

011
- ←
![Bay 011 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b011.png?v=1717697111924)

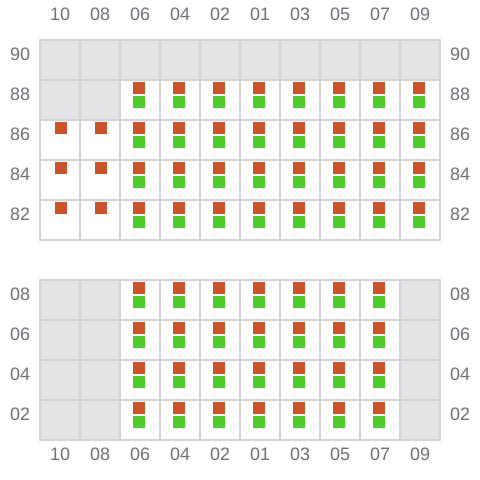

013 (014)
- →
![Bay 013 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b013.png?v=1717697111924)

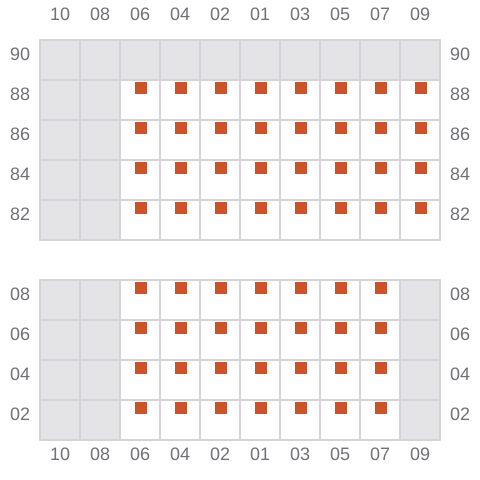

015
- ←
![Bay 015 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b015.png?v=1717697111924)

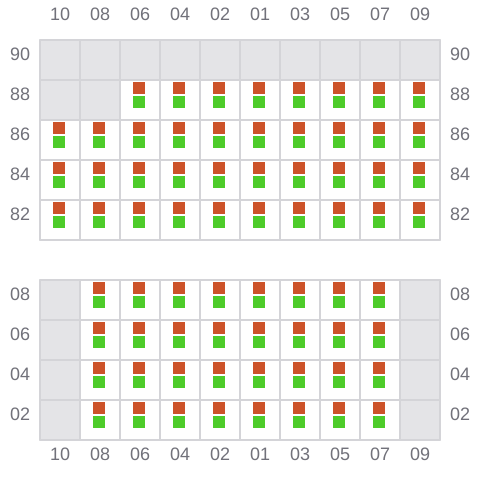

017 (018)
- →
![Bay 017 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b017.png?v=1717697111924)
019
- ←
![Bay 019 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b019.png?v=1717697111924)
021 (022)
- →
![Bay 021 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b021.png?v=1717697111924)
023
- ←
![Bay 023 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b023.png?v=1717697111924)

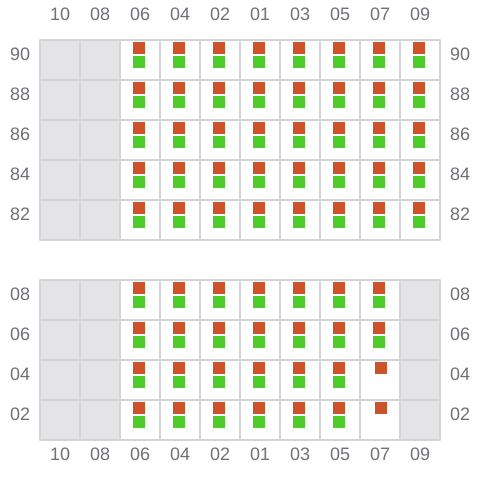

025 (026)
- →
![Bay 025 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b025.png?v=1717697111924)

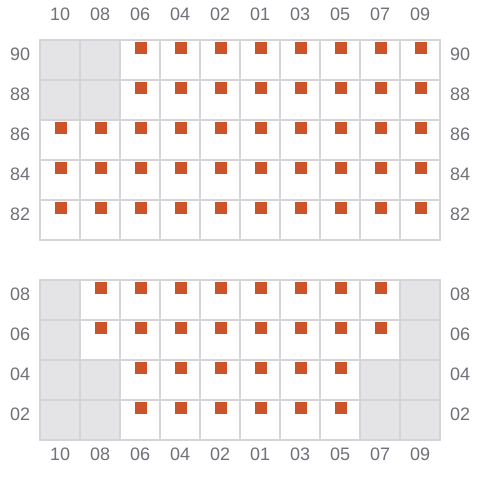

027
- ←
![Bay 027 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b027.png?v=1717697111924)

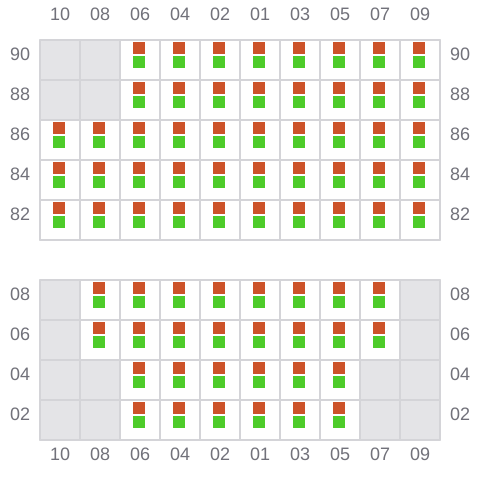

029 (030)
- →
![Bay 029 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b029.png?v=1717697111924)
031
- ←
![Bay 031 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b031.png?v=1717697111924)

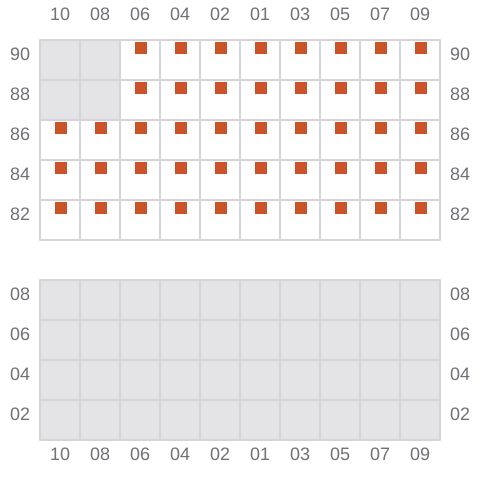

033
- → / ?
![Bay 033 view and slots of BBC RIO](/vessel-images/cd9b824b-093f-469b-ba5b-0e434e0c3311-b033.png?v=1717697111924)
