BEIJING BRIDGE
9292230 | D7IA | HMM by *********************** Last update: Fri Jan 17 2025

General Info

Ship Name:BEIJING BRIDGE
IMO Code:9292230
Call Sign:D7IA
Line Operator:HMM
Class Name for Sister Ships:HBEB
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,740

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

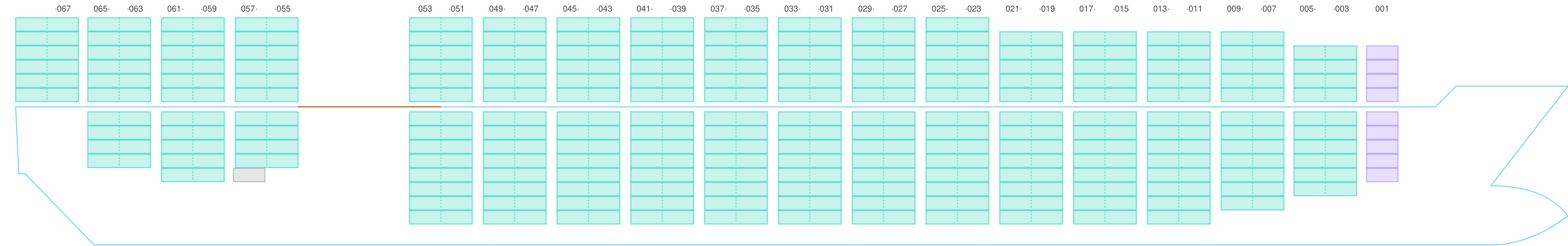

Side View

Side view of BEIJING BRIDGE

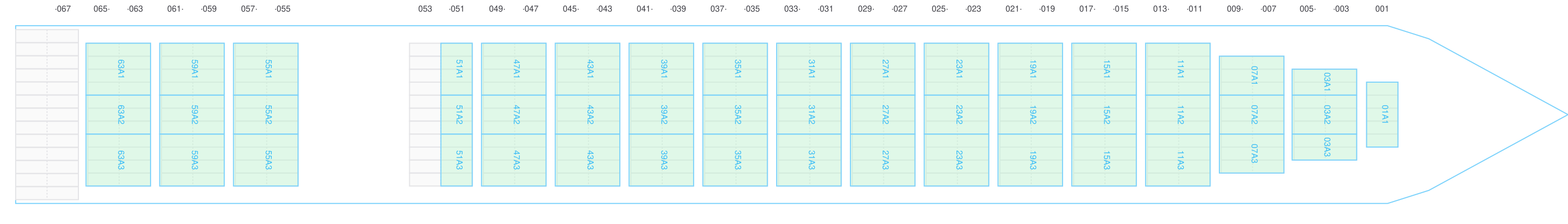

Hatch-Covers View

Deck view of BEIJING BRIDGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

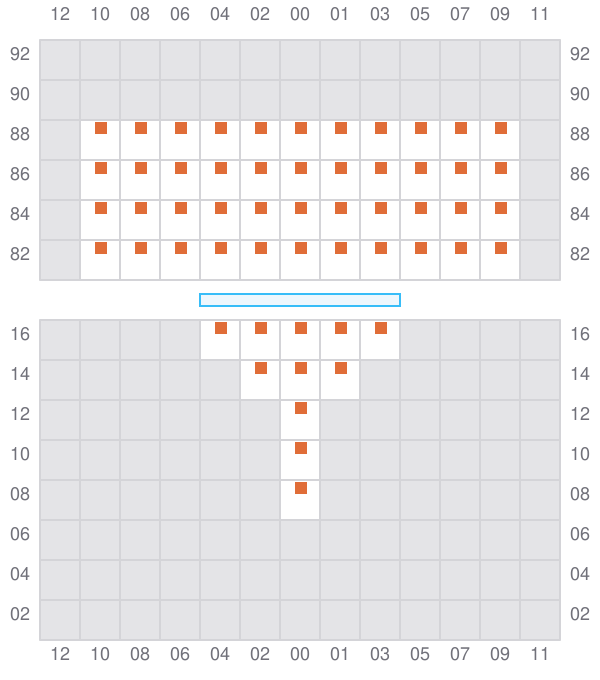

Bay 001 view and slots of BEIJING BRIDGE

003 (004)

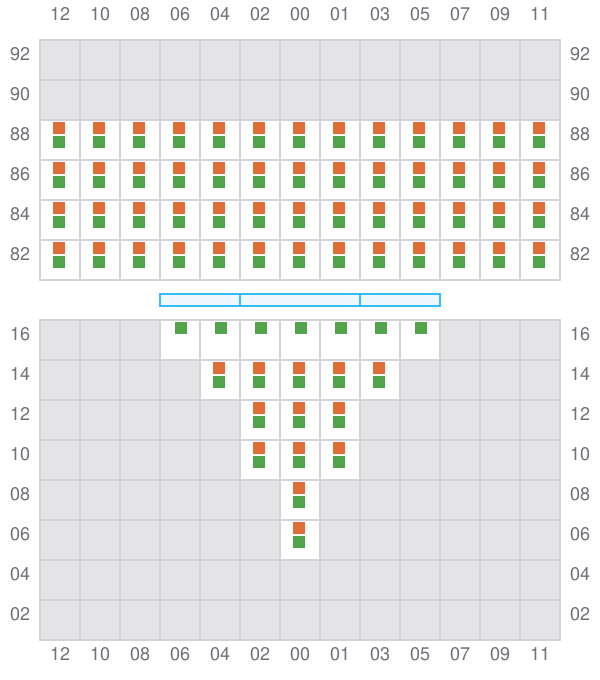

Bay 003 view and slots of BEIJING BRIDGE

005

Bay 005 view and slots of BEIJING BRIDGE

007 (008)

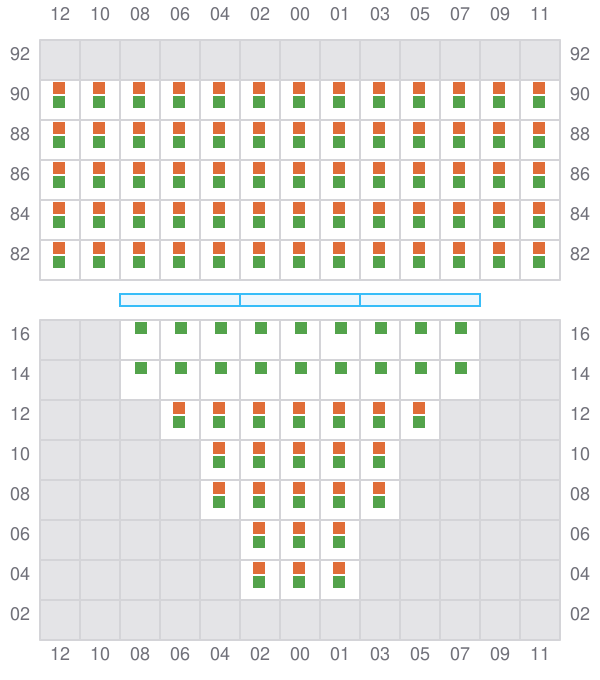

Bay 007 view and slots of BEIJING BRIDGE

009

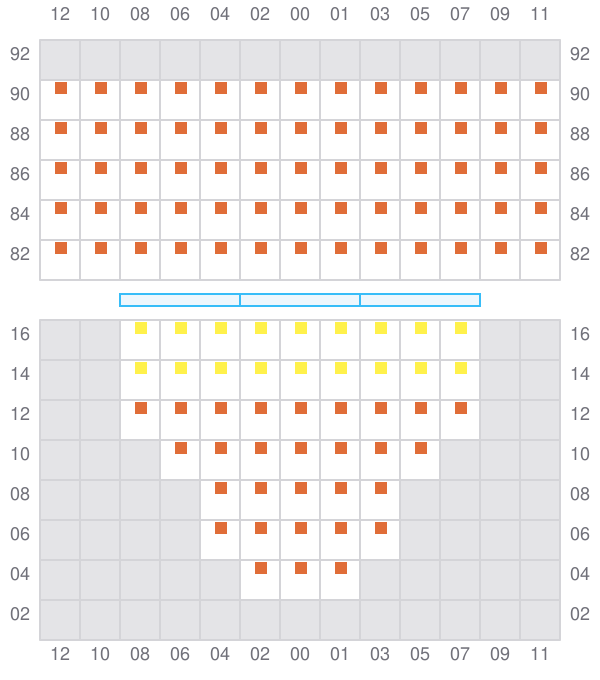

Bay 009 view and slots of BEIJING BRIDGE

011 (012)

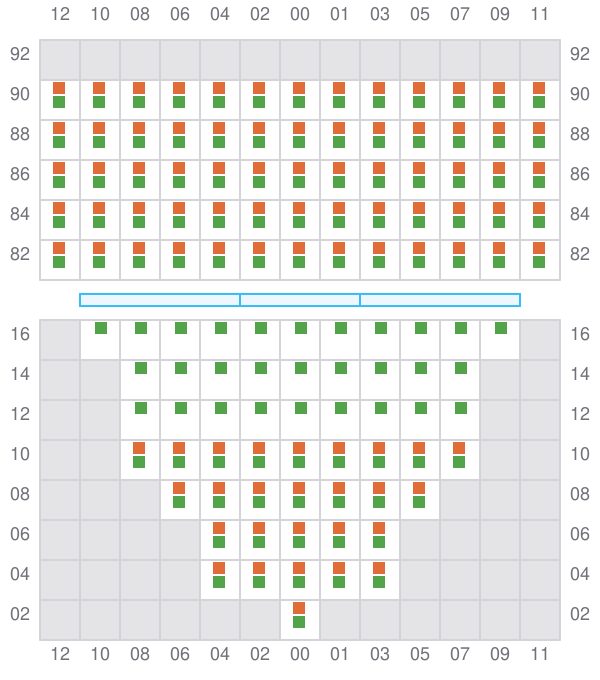

Bay 011 view and slots of BEIJING BRIDGE

013

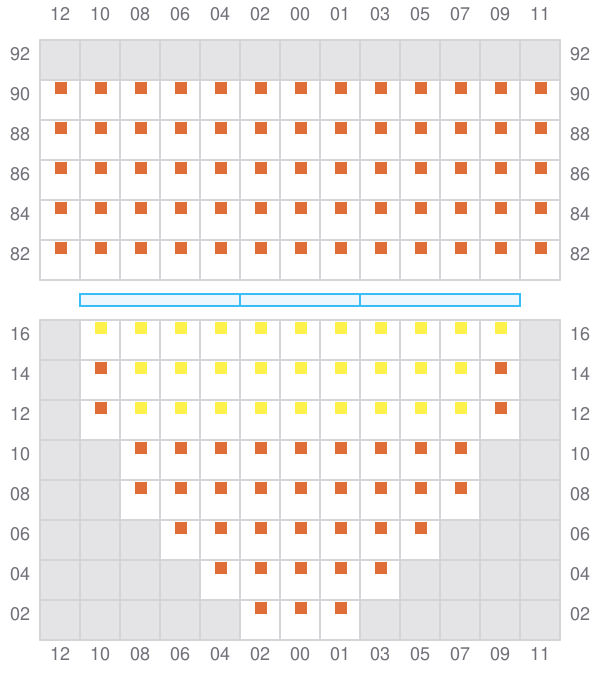

Bay 013 view and slots of BEIJING BRIDGE

015 (016)

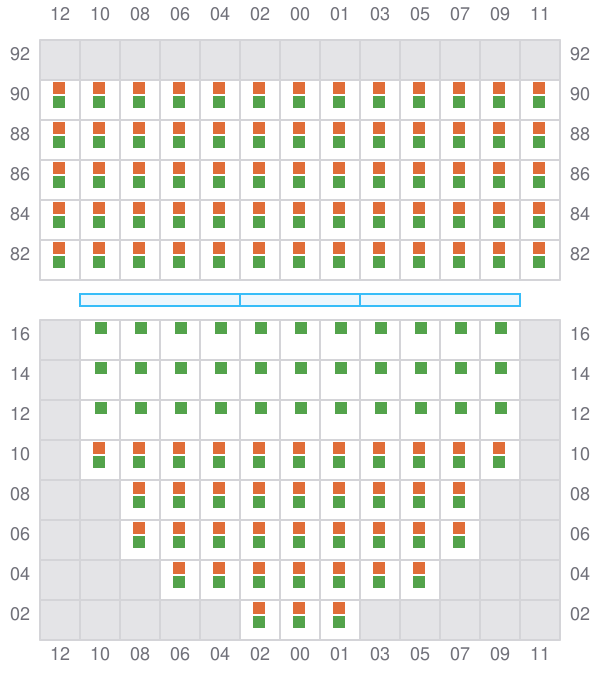

Bay 015 view and slots of BEIJING BRIDGE

017

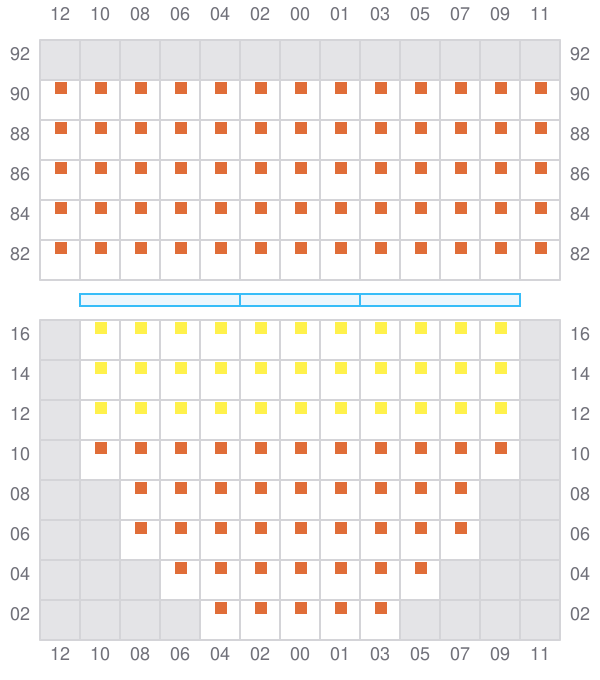

Bay 017 view and slots of BEIJING BRIDGE

019 (020)

Bay 019 view and slots of BEIJING BRIDGE

021

Bay 021 view and slots of BEIJING BRIDGE

023 (024)

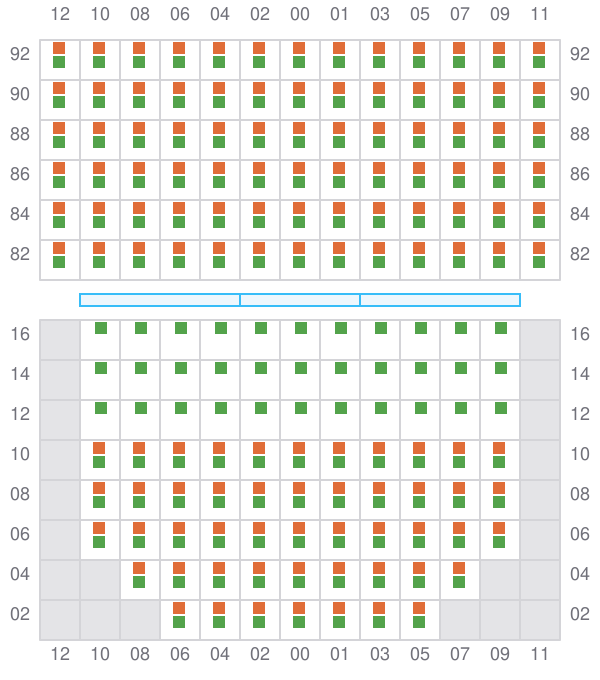

Bay 023 view and slots of BEIJING BRIDGE

025

Bay 025 view and slots of BEIJING BRIDGE

027 (028)

Bay 027 view and slots of BEIJING BRIDGE

029

Bay 029 view and slots of BEIJING BRIDGE

031 (032)

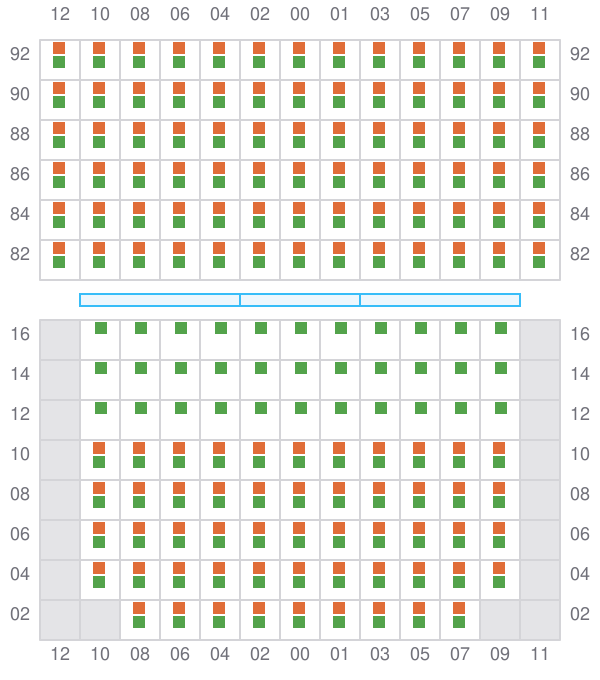

Bay 031 view and slots of BEIJING BRIDGE

033

Bay 033 view and slots of BEIJING BRIDGE

035 (036)

Bay 035 view and slots of BEIJING BRIDGE

037

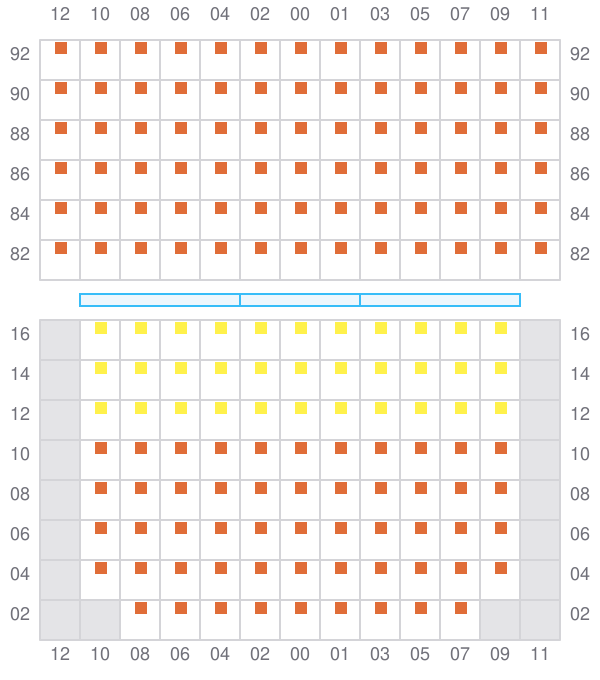

Bay 037 view and slots of BEIJING BRIDGE

039 (040)

Bay 039 view and slots of BEIJING BRIDGE

041

Bay 041 view and slots of BEIJING BRIDGE

043 (044)

Bay 043 view and slots of BEIJING BRIDGE

045

Bay 045 view and slots of BEIJING BRIDGE

047 (048)

Bay 047 view and slots of BEIJING BRIDGE

049

Bay 049 view and slots of BEIJING BRIDGE

051 (052)

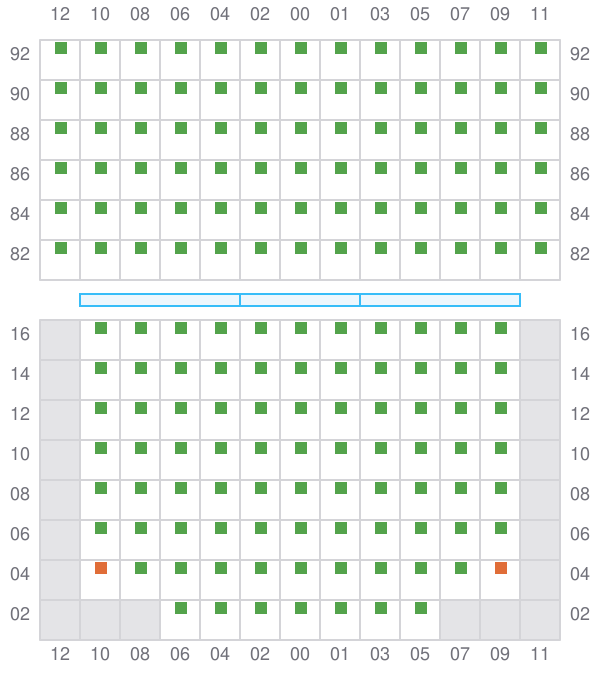

Bay 051 view and slots of BEIJING BRIDGE

053

Bay 053 view and slots of BEIJING BRIDGE

055 (056)

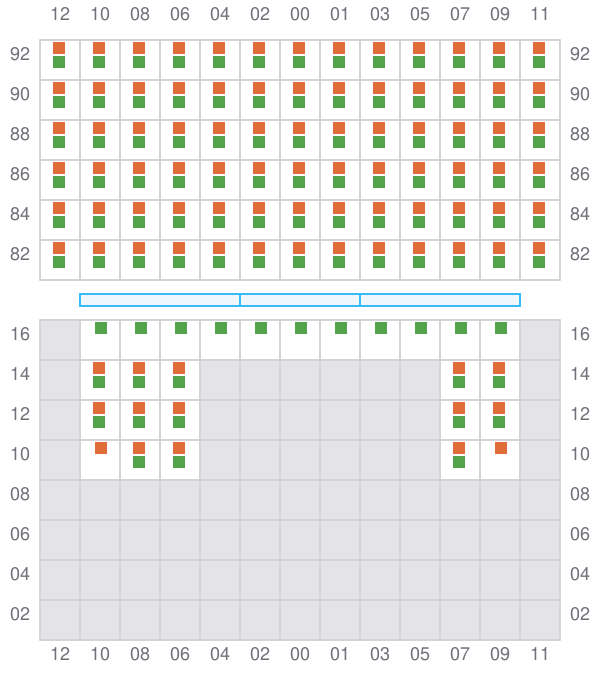

Bay 055 view and slots of BEIJING BRIDGE

057

Bay 057 view and slots of BEIJING BRIDGE

059 (060)

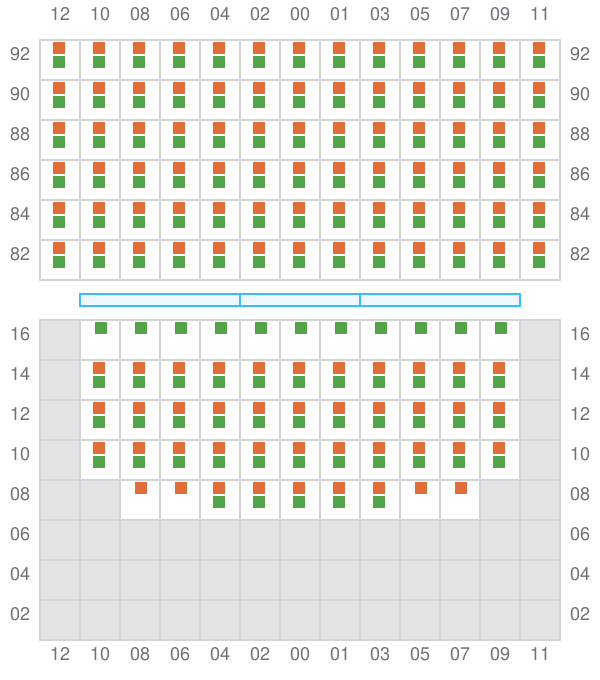

Bay 059 view and slots of BEIJING BRIDGE

061

Bay 061 view and slots of BEIJING BRIDGE

063 (064)

Bay 063 view and slots of BEIJING BRIDGE

065

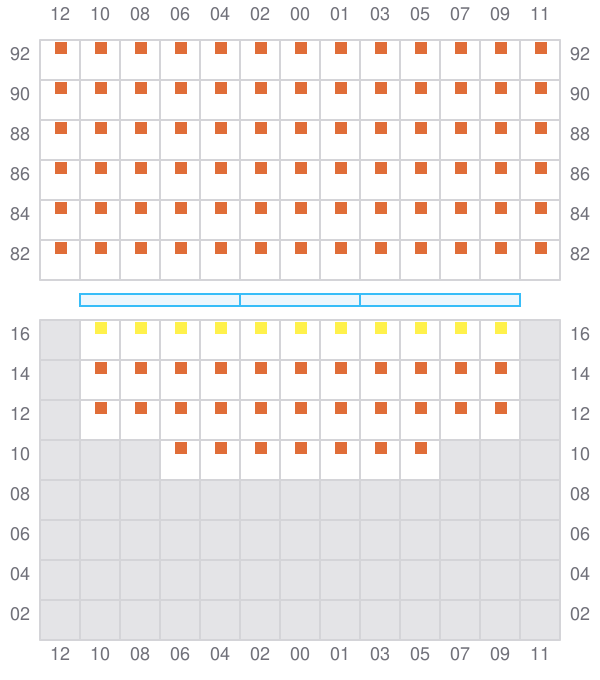

Bay 065 view and slots of BEIJING BRIDGE

067 (068)

  • / ?
Bay 067 view and slots of BEIJING BRIDGE
