BELAWAN
9412828 | VRCX3 | 9412828 by ********* Last update: Thu May 02 2024
General Info
Ship Name:BELAWAN
IMO Code:9412828
Call Sign:VRCX3
Line Operator:9412828
Class Name for Sister Ships:HANJIN BELAWAN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,576
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

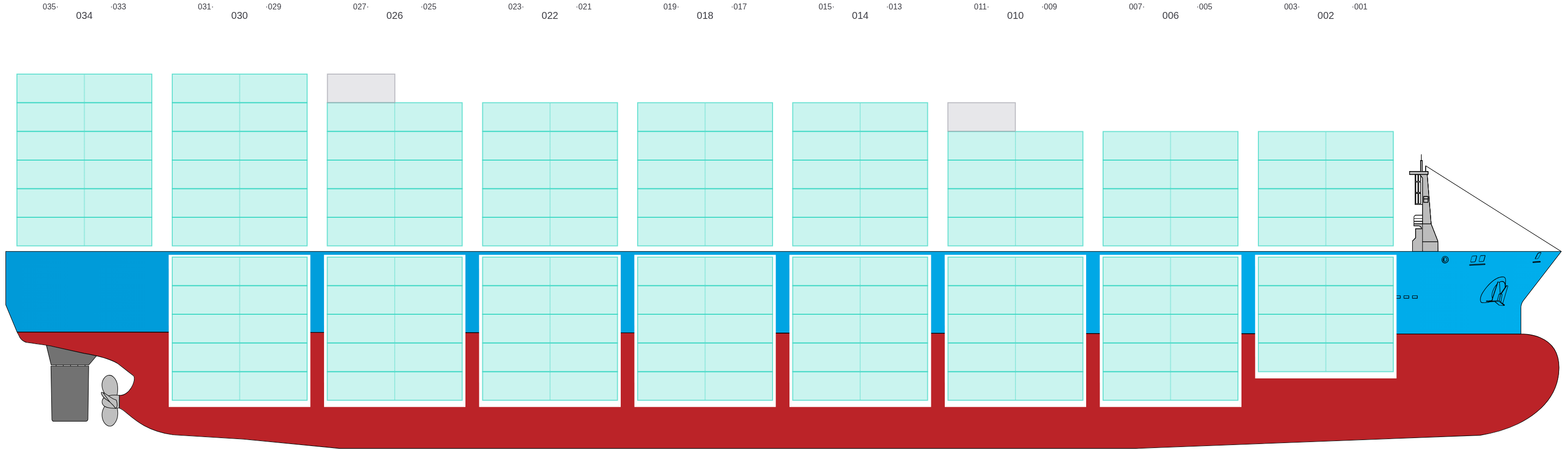

Side View
![Side view of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-sideView.png?v=1714690885453)

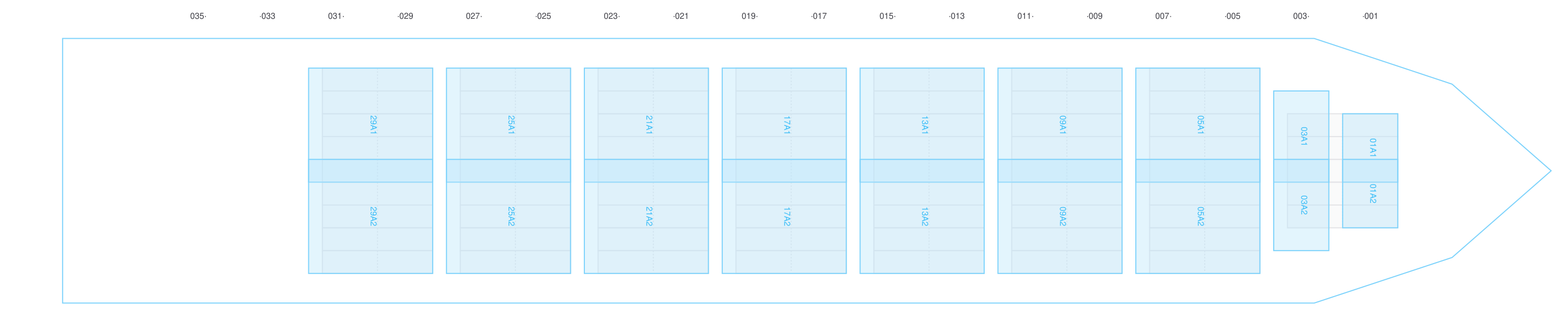

Hatch-Covers View
![Deck view of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-deckView.png?v=1714690885453)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

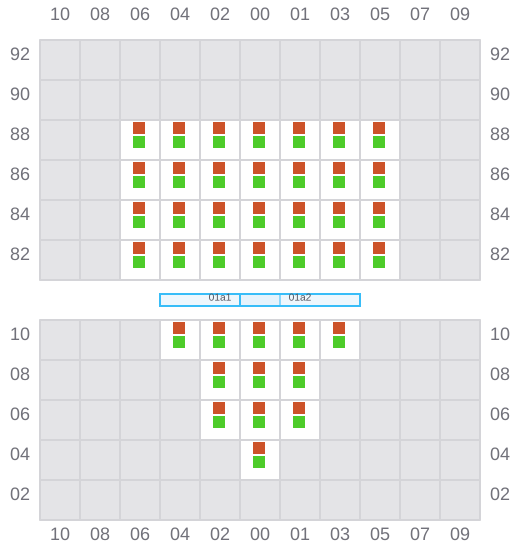

001 (002)
- →
![Bay 001 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b001.png?v=1714690885453)

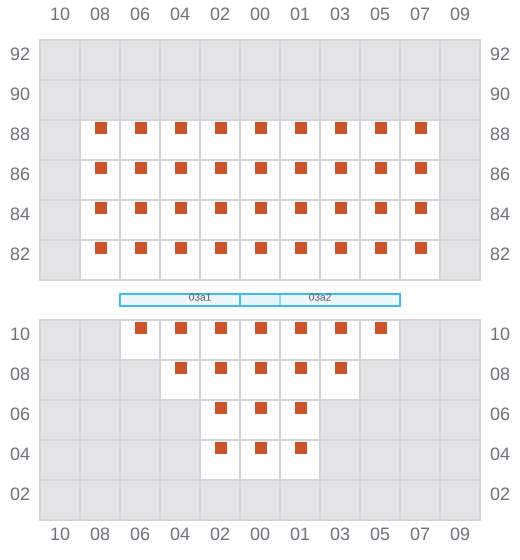

003
- ←
![Bay 003 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b003.png?v=1714690885453)

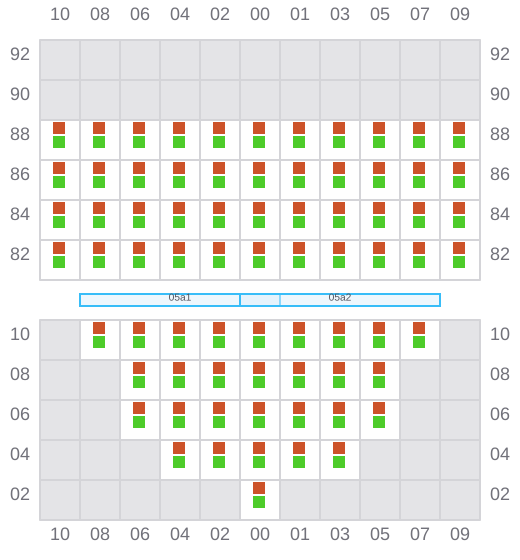

005 (006)
- →
![Bay 005 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b005.png?v=1714690885453)
007
- ←
![Bay 007 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b007.png?v=1714690885453)

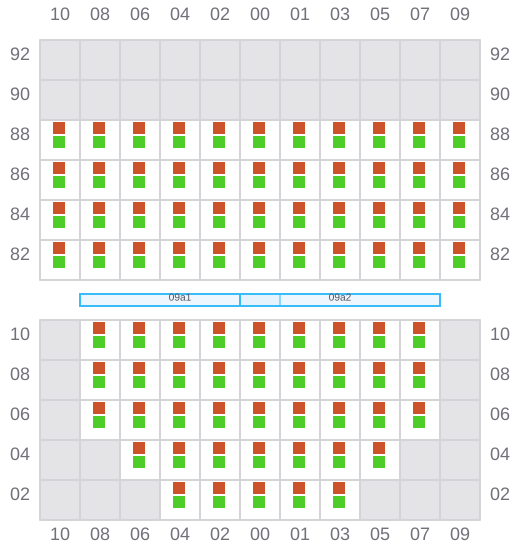

009 (010)
- →
![Bay 009 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b009.png?v=1714690885453)
011
- ←
![Bay 011 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b011.png?v=1714690885453)

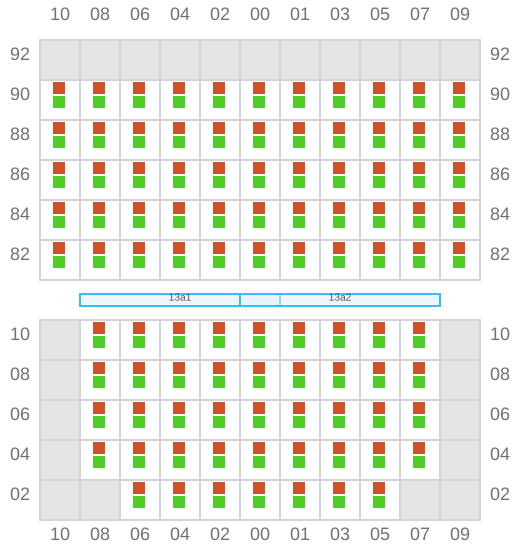

013 (014)
- →
![Bay 013 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b013.png?v=1714690885453)
015
- ←
![Bay 015 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b015.png?v=1714690885453)
017 (018)
- →
![Bay 017 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b017.png?v=1714690885453)

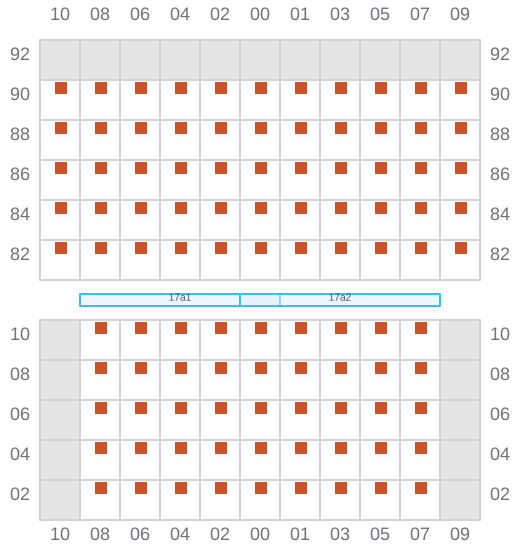

019
- ←
![Bay 019 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b019.png?v=1714690885453)

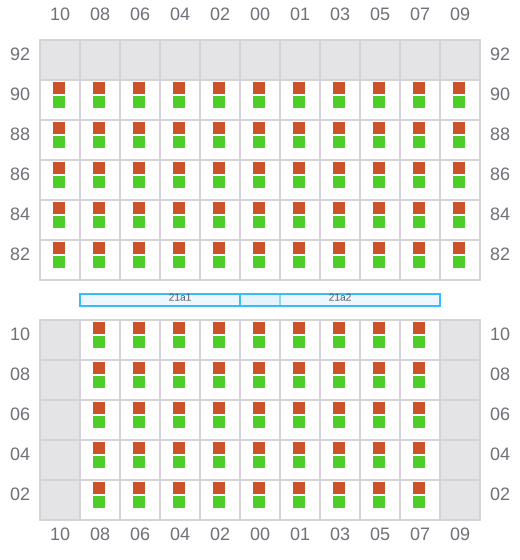

021 (022)
- →
![Bay 021 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b021.png?v=1714690885453)
023
- ←
![Bay 023 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b023.png?v=1714690885453)
025 (026)
- →
![Bay 025 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b025.png?v=1714690885453)

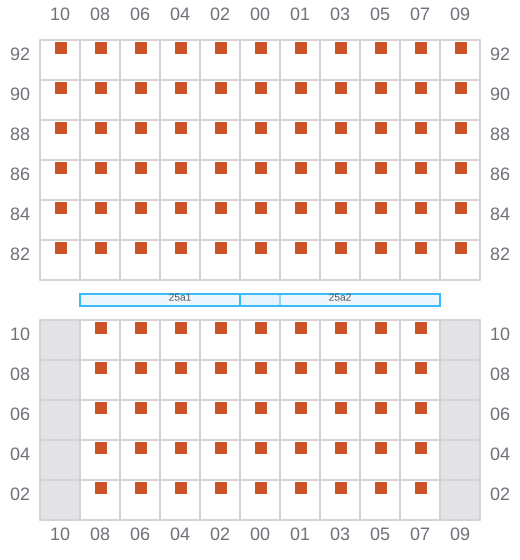

027
- ←
![Bay 027 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b027.png?v=1714690885453)

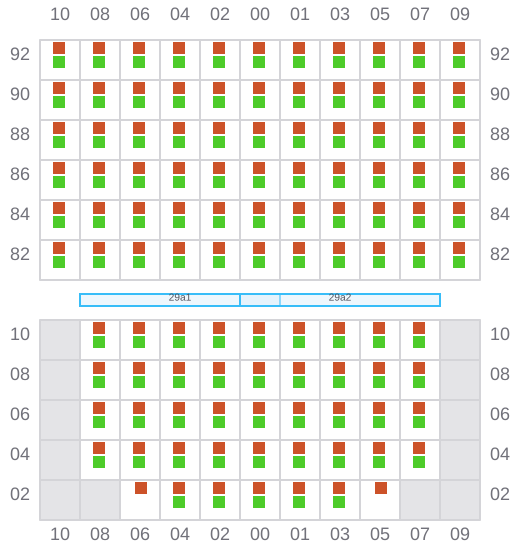

029 (030)
- →
![Bay 029 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b029.png?v=1714690885453)
031
- ←
![Bay 031 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b031.png?v=1714690885453)

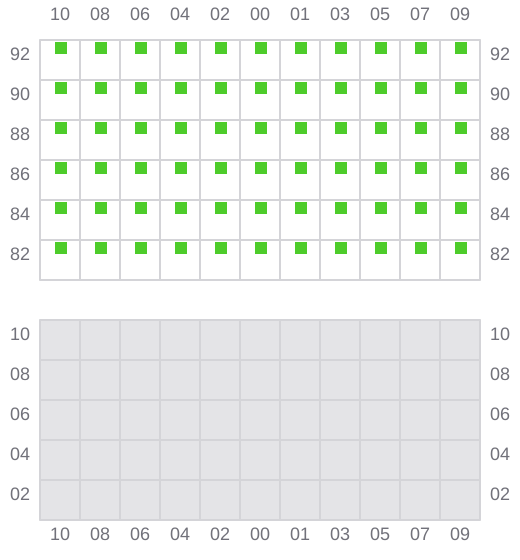

033 (034)
- → / ?
![Bay 033 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b033.png?v=1714690885453)

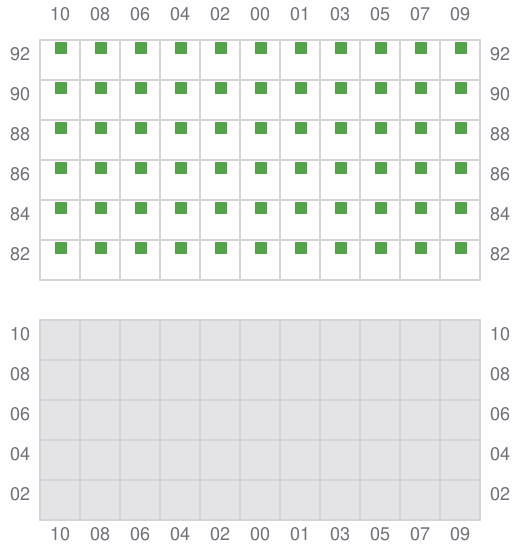

035 (034)
- ← / ?
![Bay 035 view and slots of BELAWAN](/vessel-images/fd8f82e9-5581-45ae-92ff-42666e52d3d2-b035.png?v=1714690885453)
