BELLAVIA
9290440 | D5OB9 | MSC by ************************** Last update: Thu Jun 15 2023

General Info

Ship Name:BELLAVIA
IMO Code:9290440
Call Sign:D5OB9
Line Operator:MSC
Class Name for Sister Ships:BLV
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,117

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

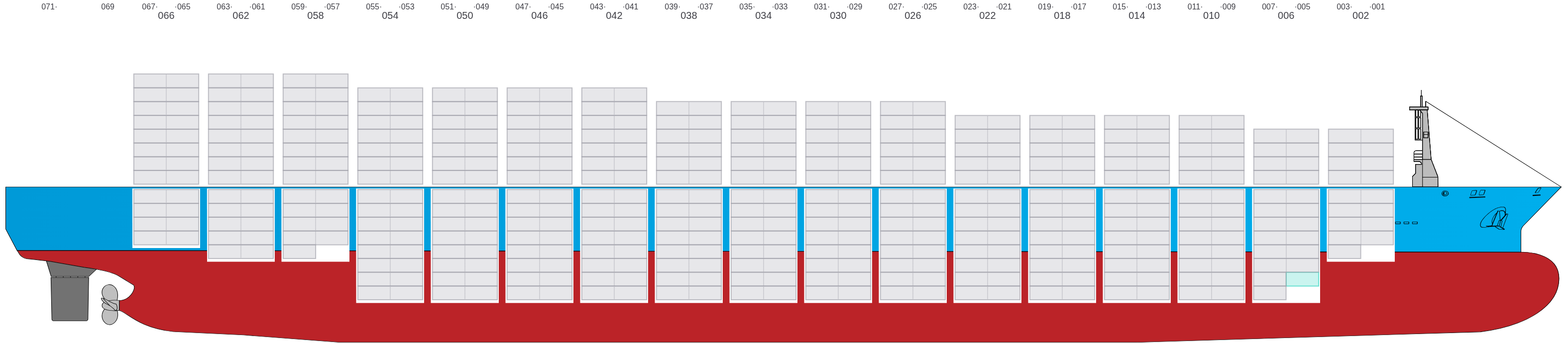

Side View

Side view of BELLAVIA

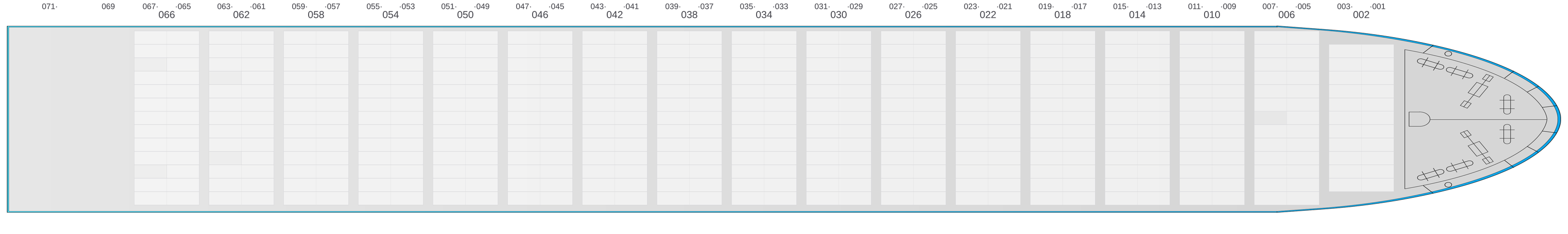

Hatch-Covers View

Deck view of BELLAVIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

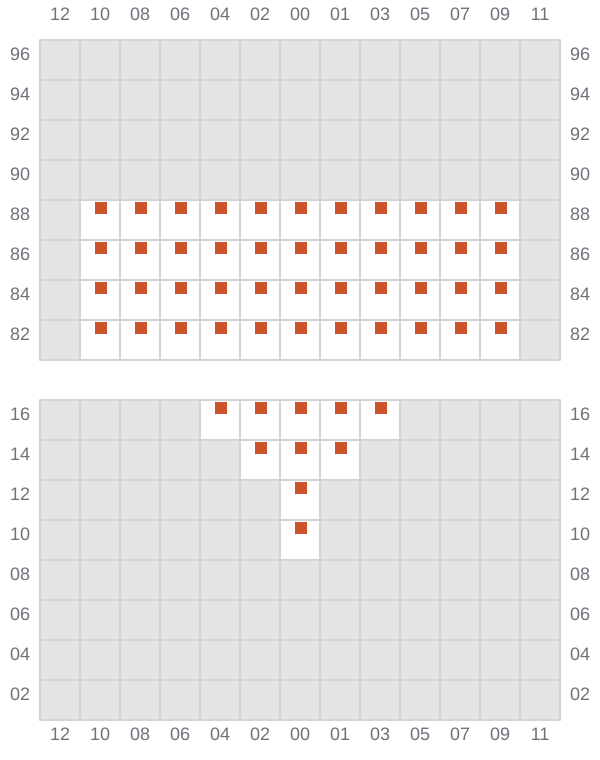

Bay 001 view and slots of BELLAVIA

003 (002)

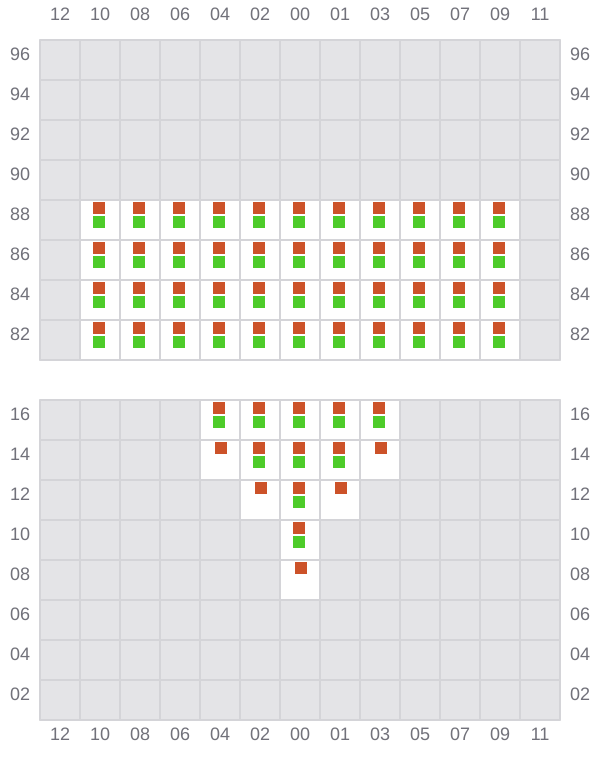

Bay 003 view and slots of BELLAVIA

005

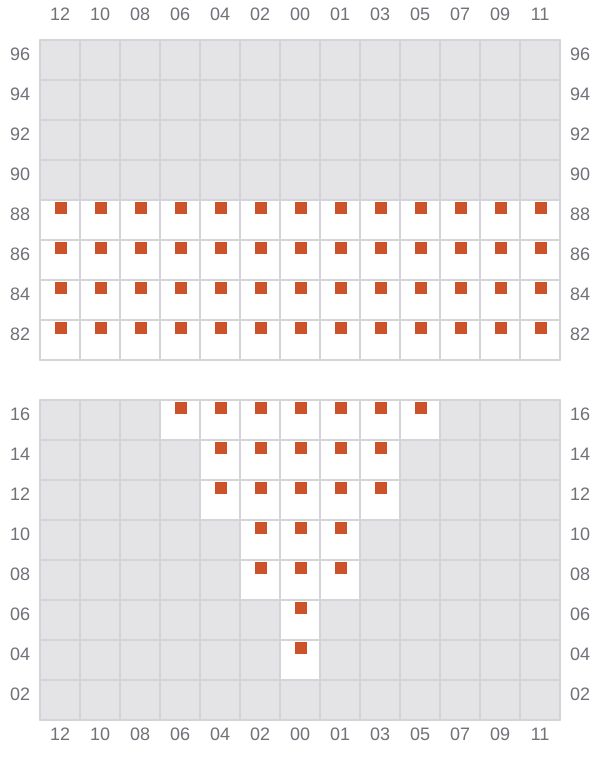

Bay 005 view and slots of BELLAVIA

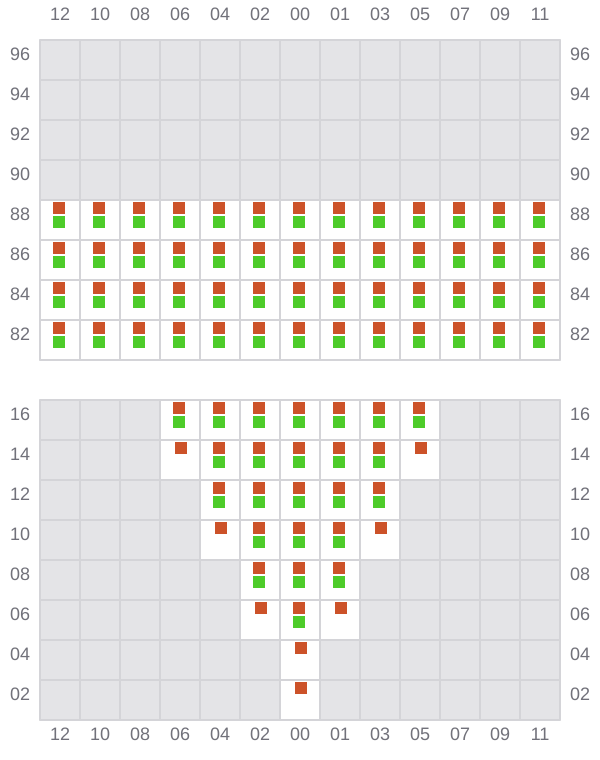

007 (006)

Bay 007 view and slots of BELLAVIA

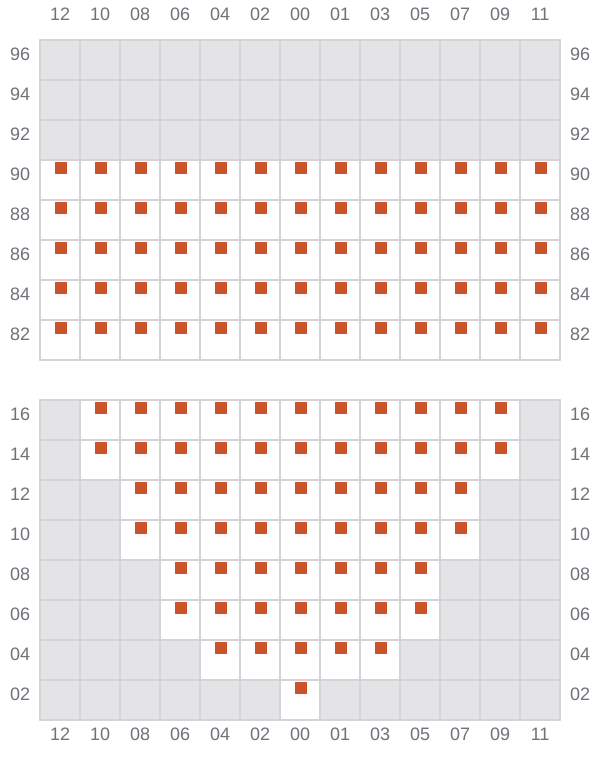

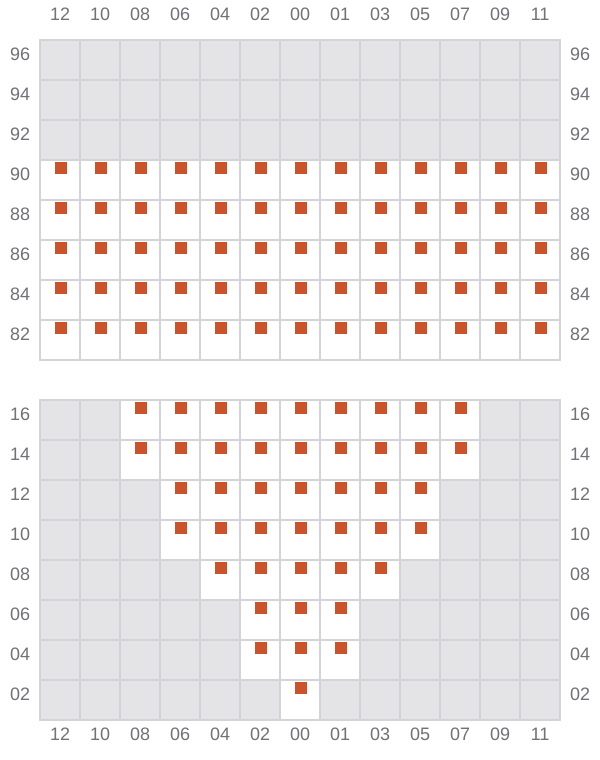

009

Bay 009 view and slots of BELLAVIA

011 (010)

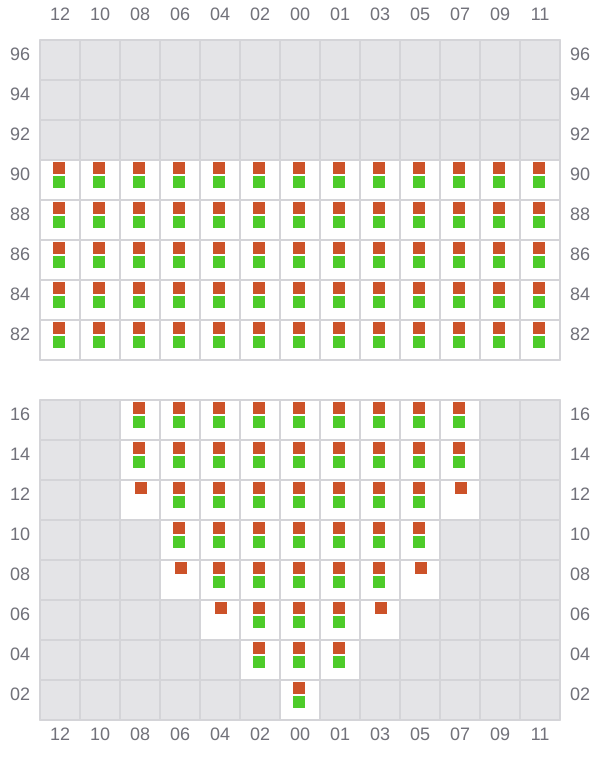

Bay 011 view and slots of BELLAVIA

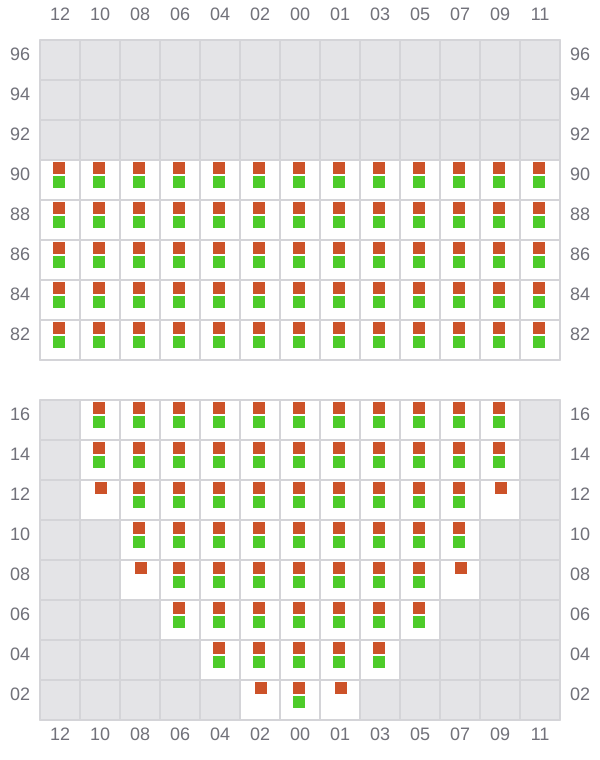

013

Bay 013 view and slots of BELLAVIA

015 (014)

Bay 015 view and slots of BELLAVIA

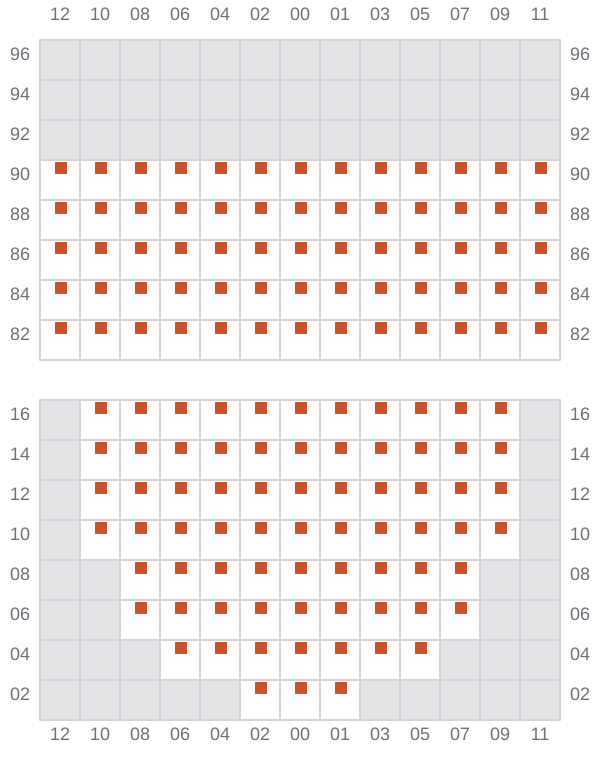

017

Bay 017 view and slots of BELLAVIA

019 (018)

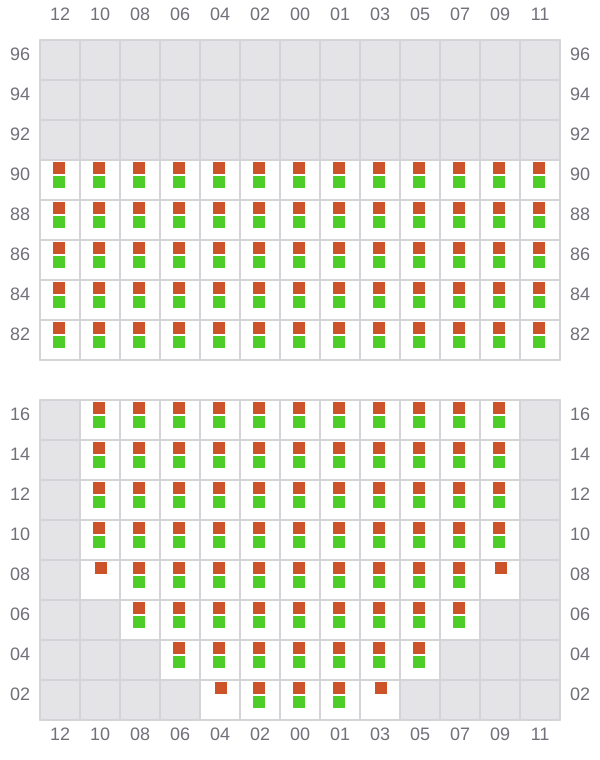

Bay 019 view and slots of BELLAVIA

021

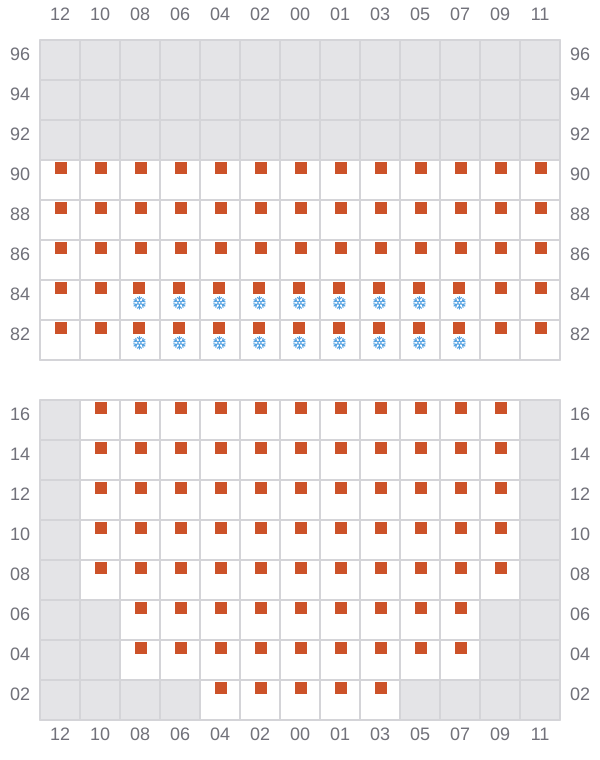

Bay 021 view and slots of BELLAVIA

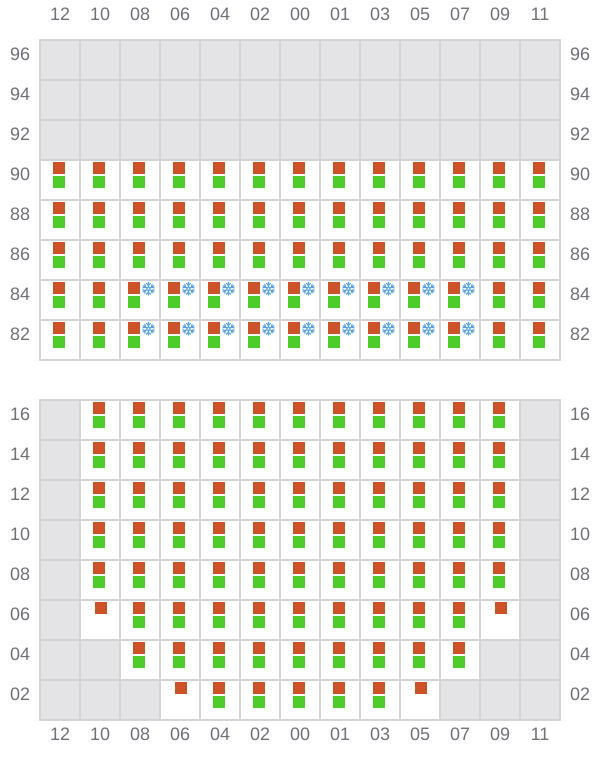

023 (022)

Bay 023 view and slots of BELLAVIA

025

Bay 025 view and slots of BELLAVIA

027 (026)

Bay 027 view and slots of BELLAVIA

029

Bay 029 view and slots of BELLAVIA

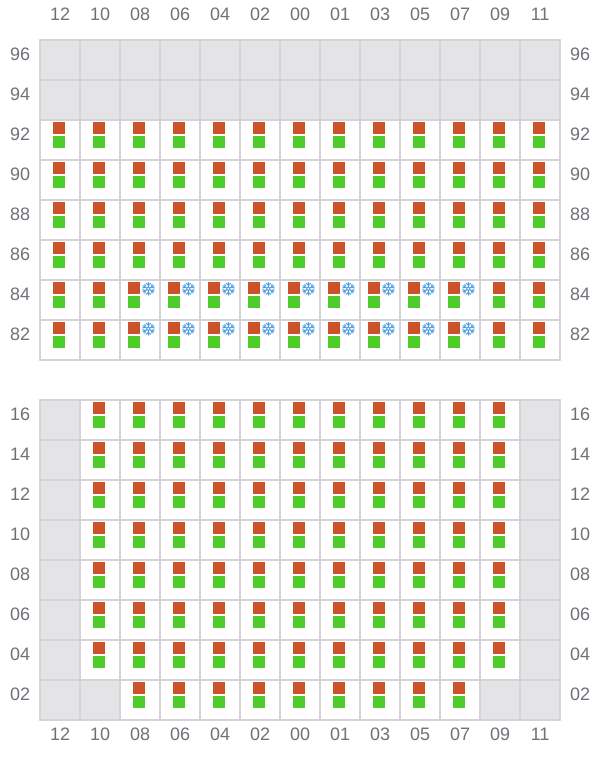

031 (030)

Bay 031 view and slots of BELLAVIA

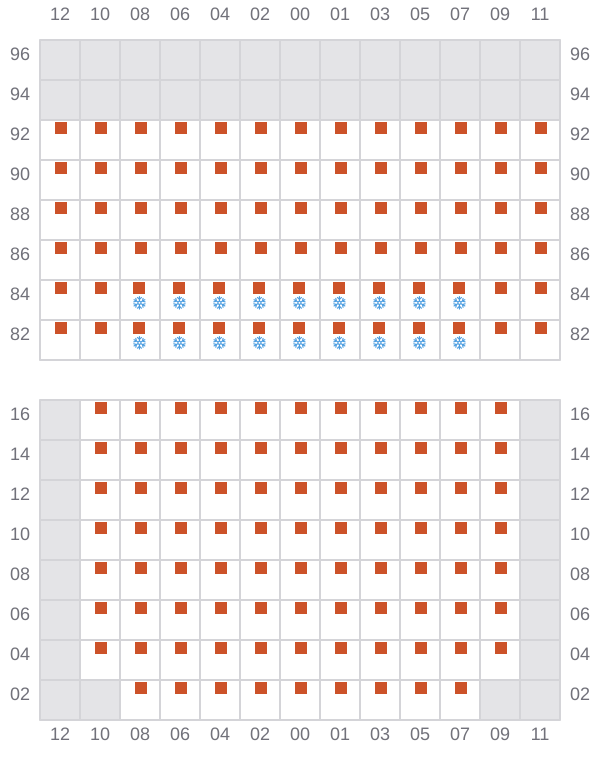

033

Bay 033 view and slots of BELLAVIA

035 (034)

Bay 035 view and slots of BELLAVIA

037

Bay 037 view and slots of BELLAVIA

039 (038)

Bay 039 view and slots of BELLAVIA

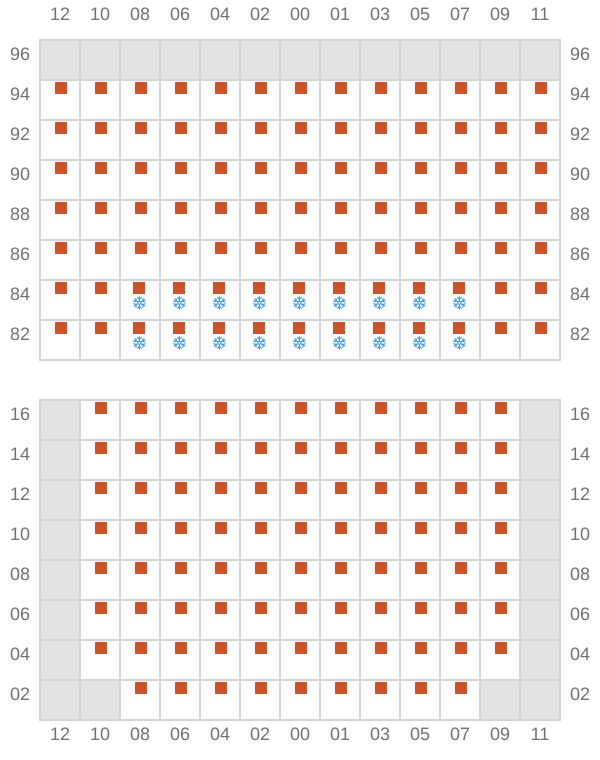

041

Bay 041 view and slots of BELLAVIA

043 (042)

Bay 043 view and slots of BELLAVIA

045

Bay 045 view and slots of BELLAVIA

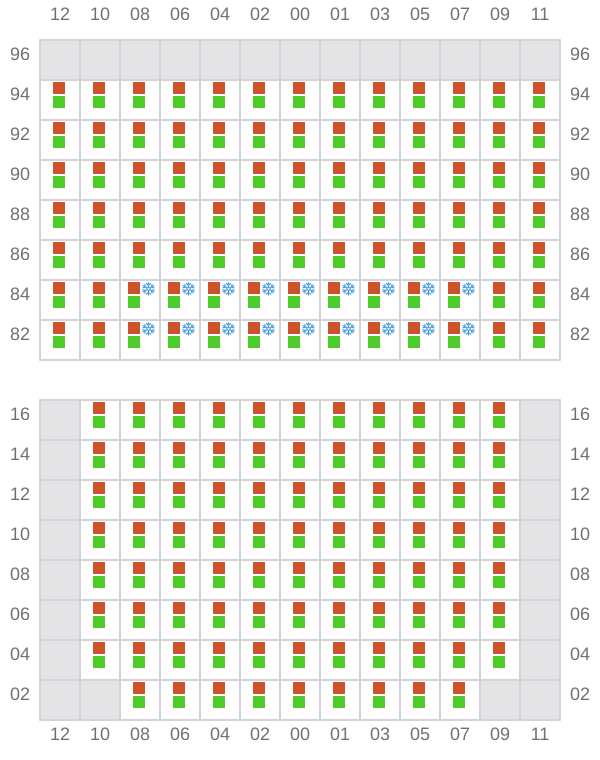

047 (046)

Bay 047 view and slots of BELLAVIA

049

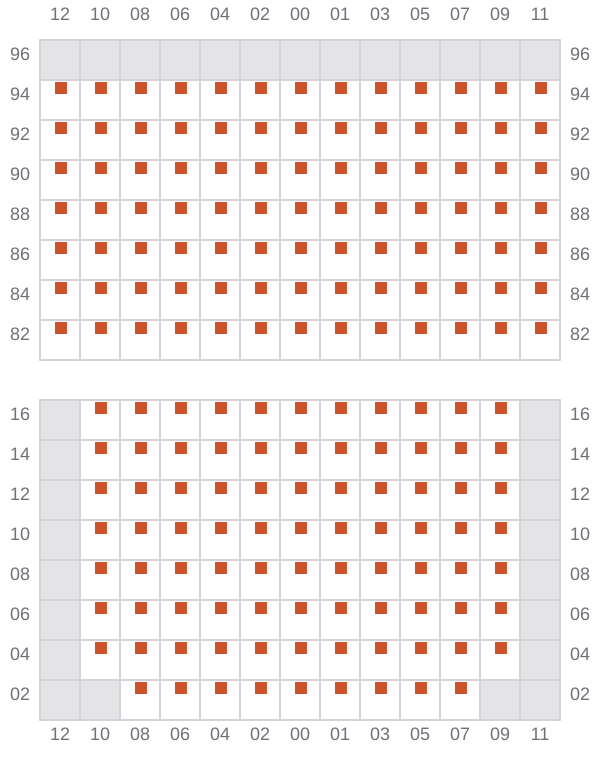

Bay 049 view and slots of BELLAVIA

051 (050)

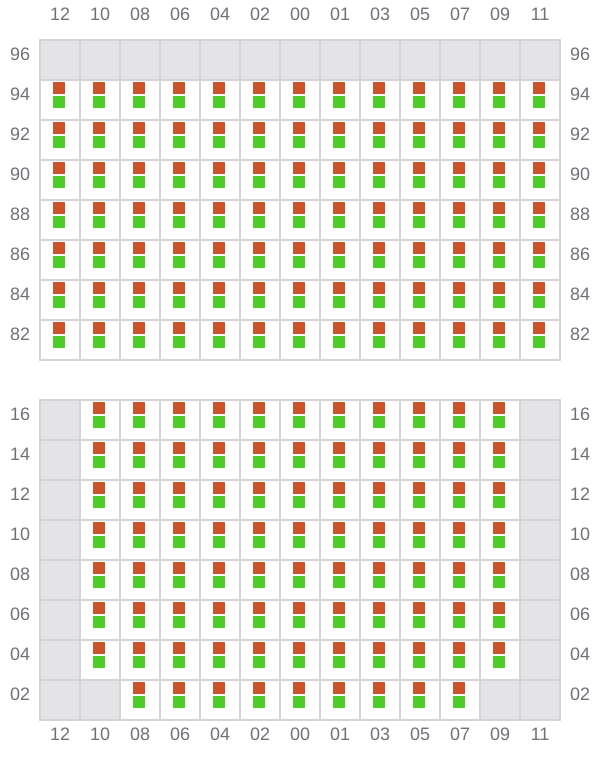

Bay 051 view and slots of BELLAVIA

053

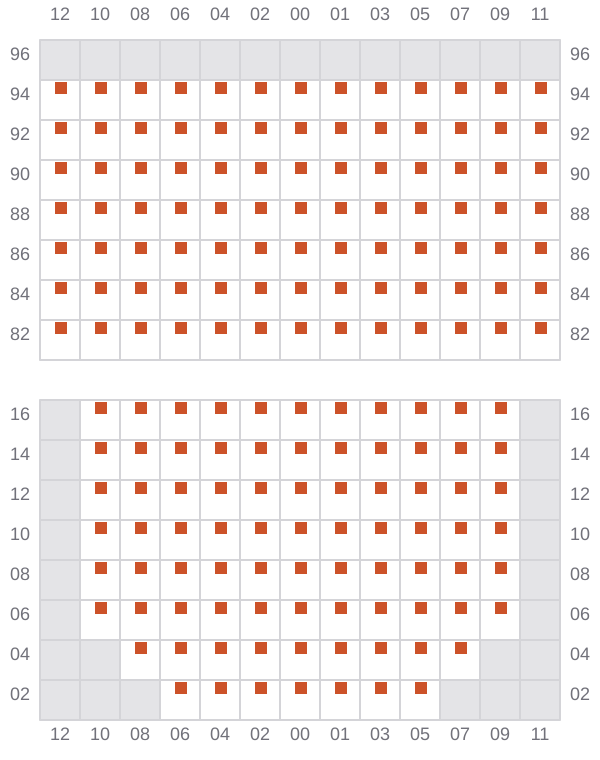

Bay 053 view and slots of BELLAVIA

055 (054)

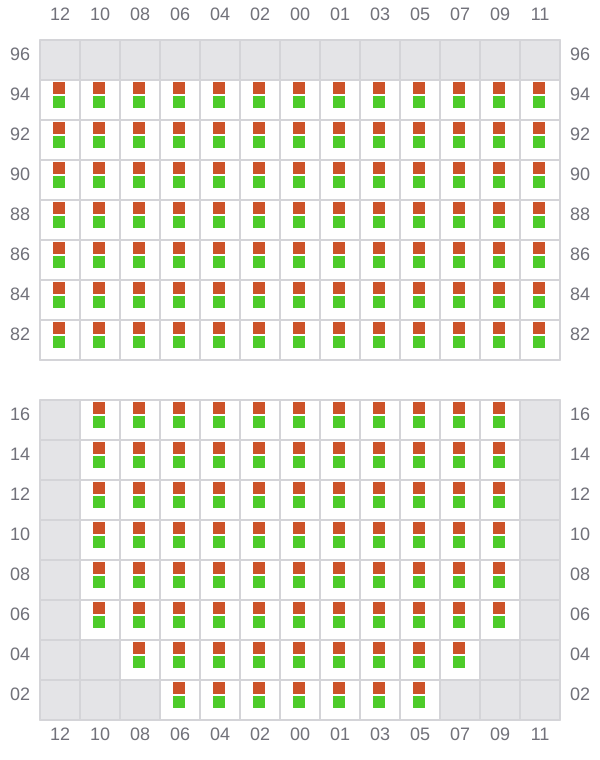

Bay 055 view and slots of BELLAVIA

057

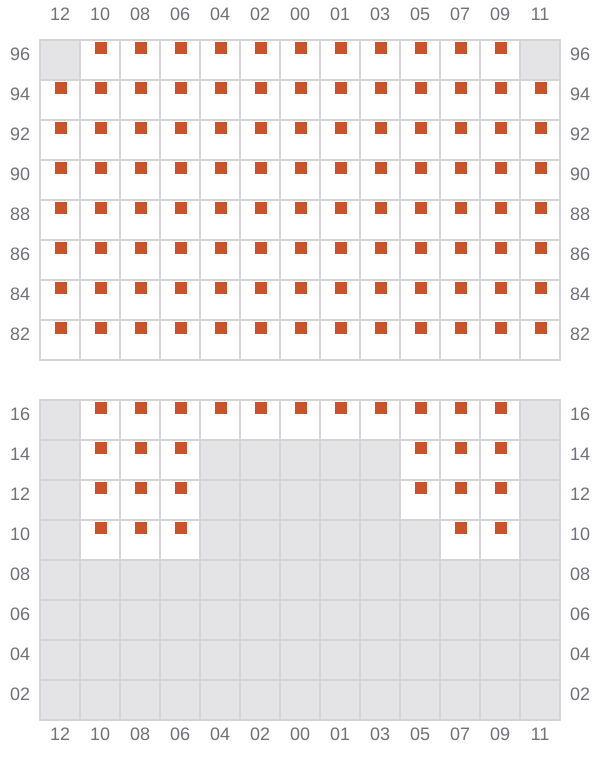

Bay 057 view and slots of BELLAVIA

059 (058)

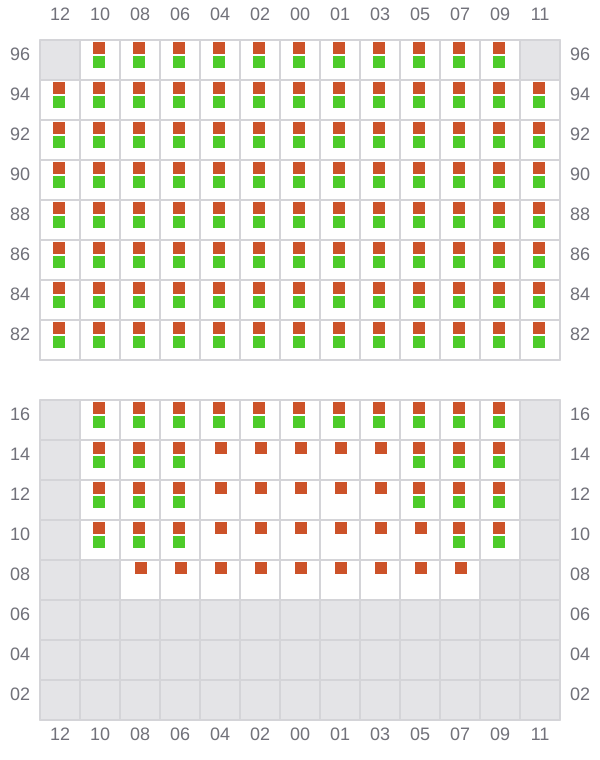

Bay 059 view and slots of BELLAVIA

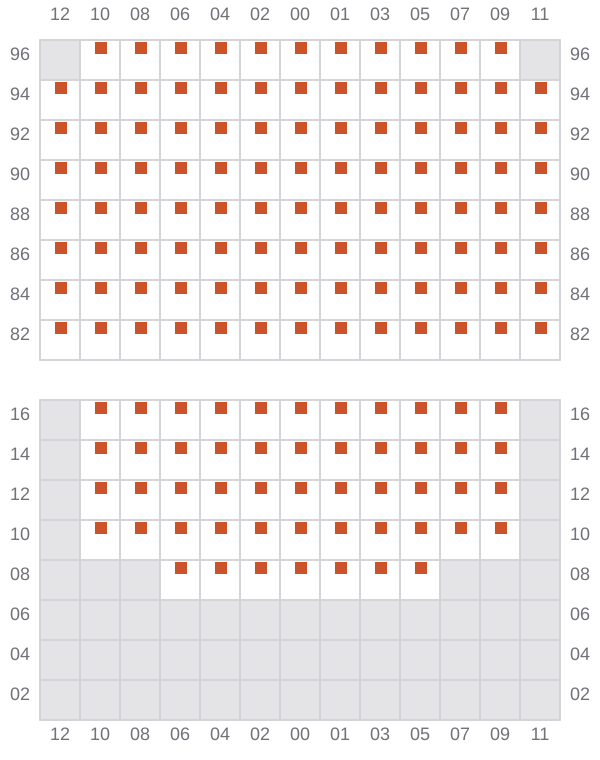

061

Bay 061 view and slots of BELLAVIA

063 (062)

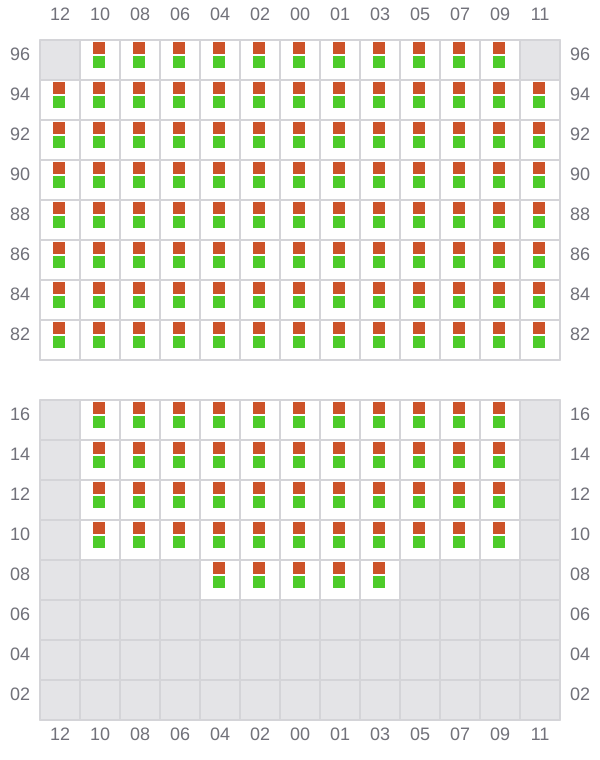

Bay 063 view and slots of BELLAVIA

065

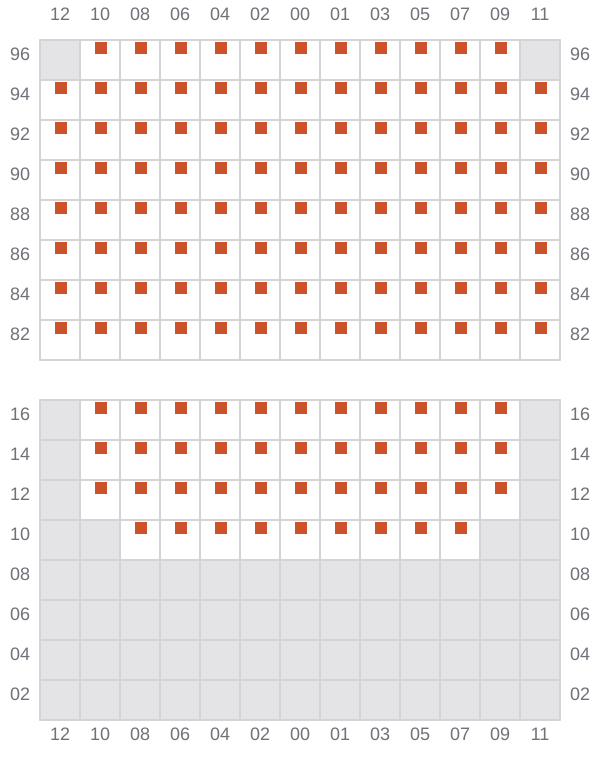

Bay 065 view and slots of BELLAVIA

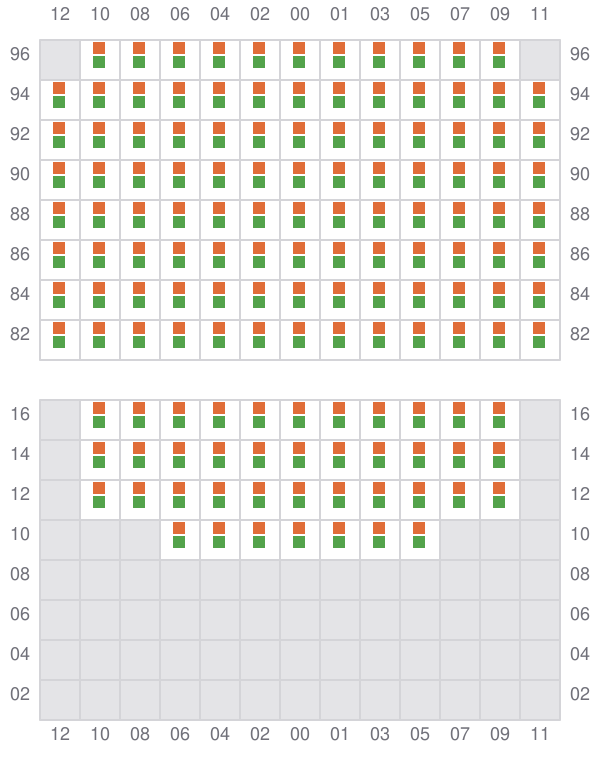

067 (066)

Bay 067 view and slots of BELLAVIA

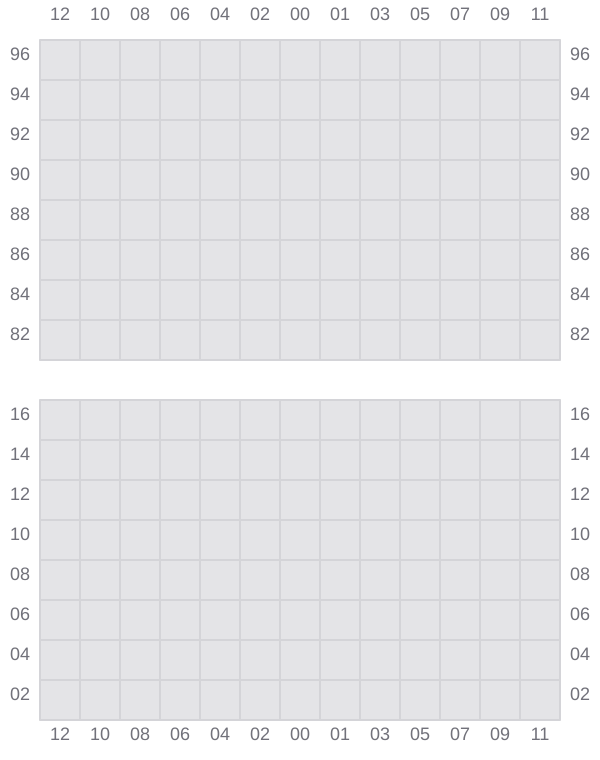

069

Bay 069 view and slots of BELLAVIA

071 (070)

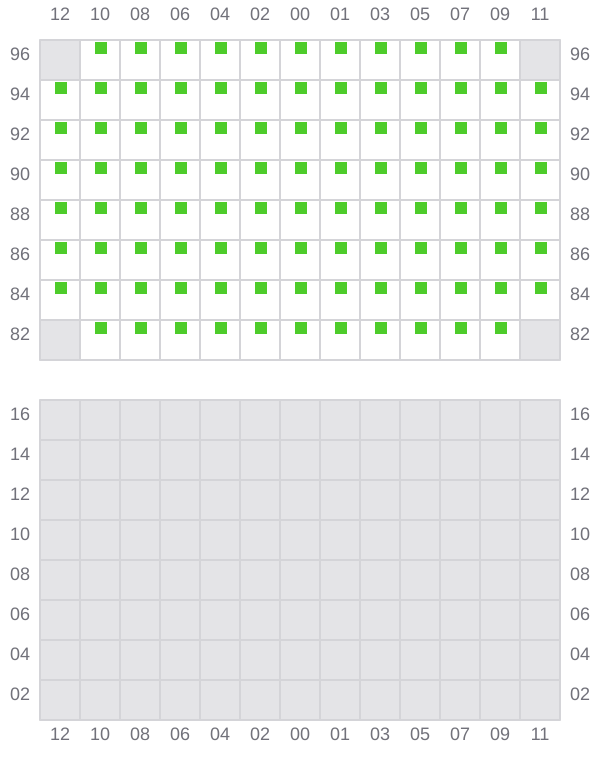

Bay 071 view and slots of BELLAVIA
