BERNARD A
9415959 | TCWN3 | 9415959 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:BERNARD A
IMO Code:9415959
Call Sign:TCWN3
Line Operator:9415959
Class Name for Sister Ships:28C
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,578
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

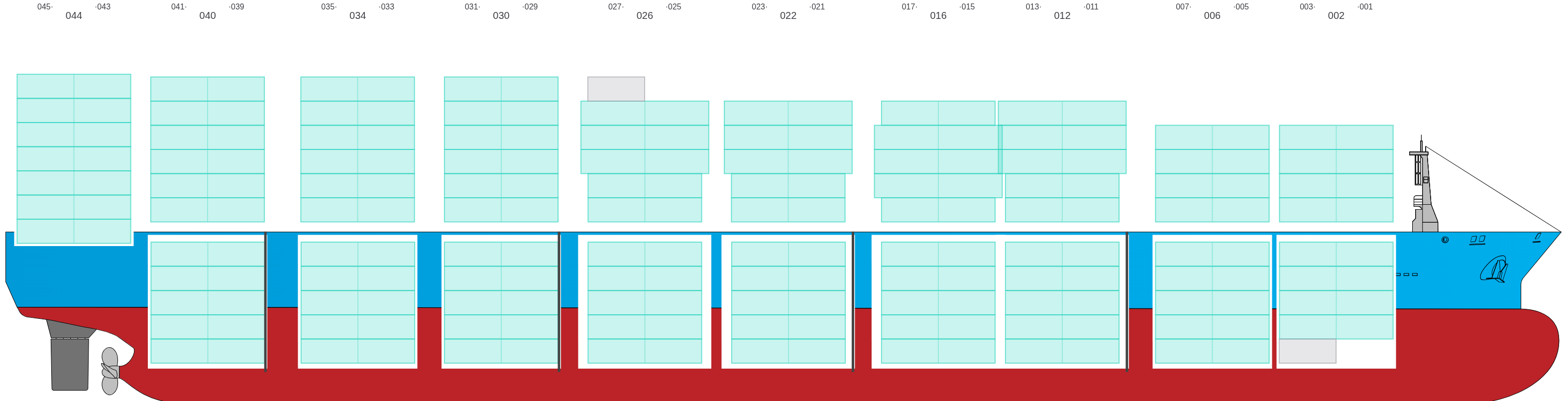

Side View
![Side view of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-sideView.png?v=1711391364245)
Hatch-Covers View
![Deck view of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-deckView.png?v=1711391364245)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

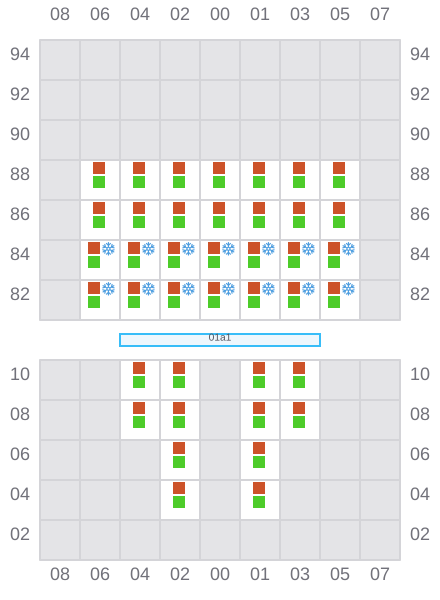

001 (002)
- →
- ← / ?
![Bay 001 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b001.png?v=1711391364245)

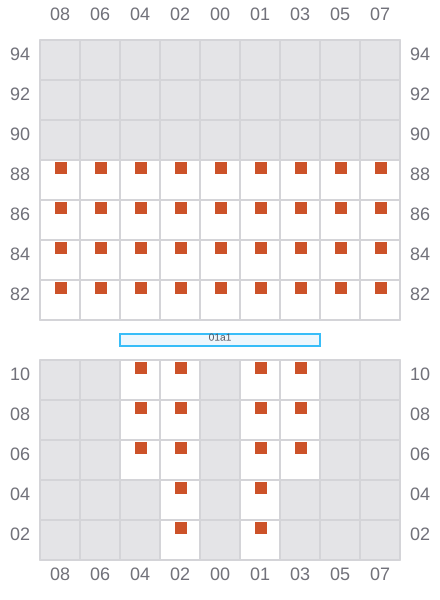

003
- ←
![Bay 003 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b003.png?v=1711391364245)

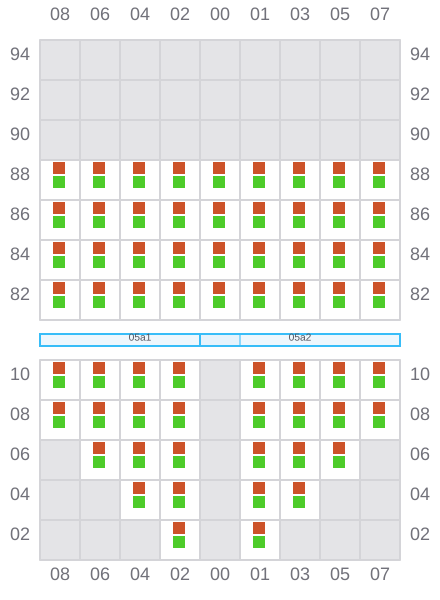

005 (006)
- →
![Bay 005 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b005.png?v=1711391364245)

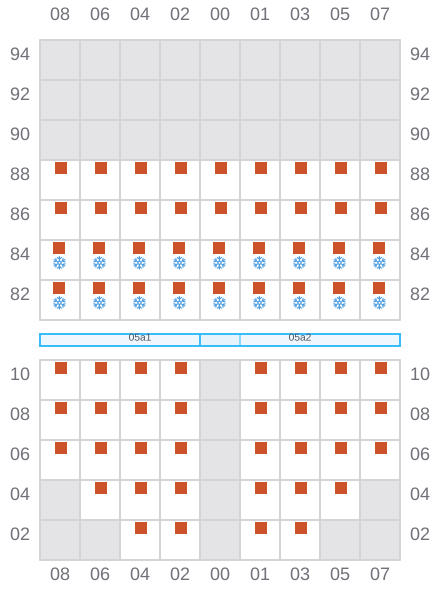

007
- ←
- → / ?
![Bay 007 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b007.png?v=1711391364245)

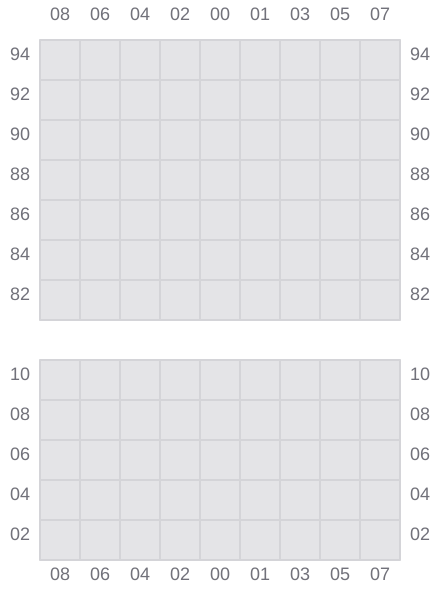

009
![Bay 009 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b009.png?v=1711391364245)

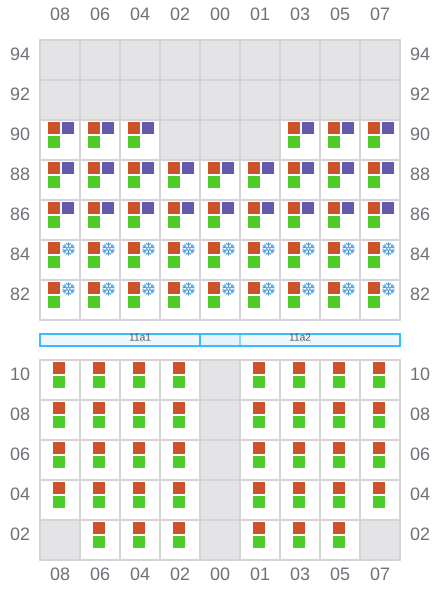

011 (012)
- →
- ← / ?
![Bay 011 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b011.png?v=1711391364245)

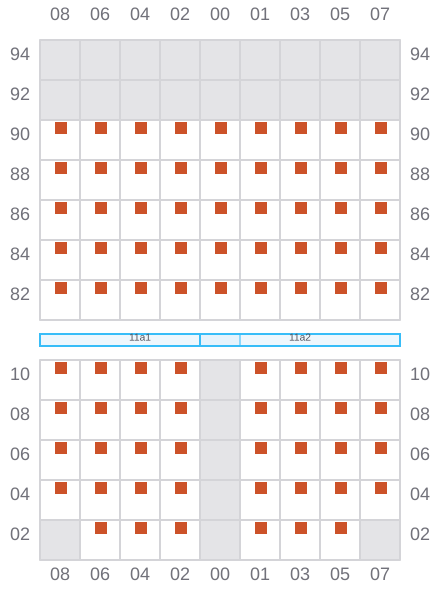

013
- ←
![Bay 013 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b013.png?v=1711391364245)

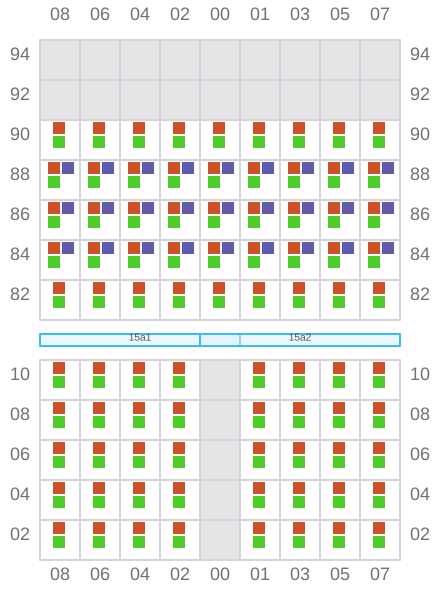

015 (016)
- →
![Bay 015 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b015.png?v=1711391364245)

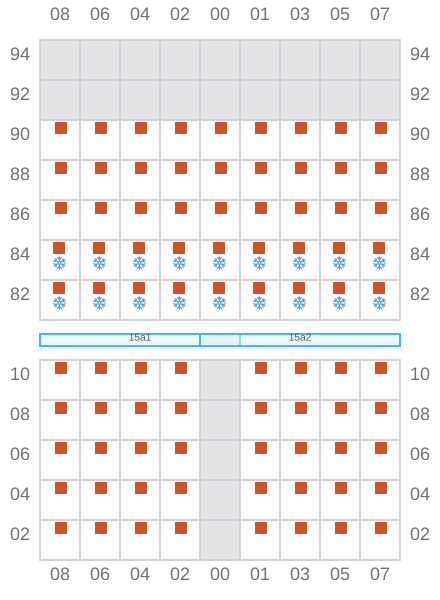

017
- ←
- → / ?
![Bay 017 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b017.png?v=1711391364245)
019
![Bay 019 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b019.png?v=1711391364245)

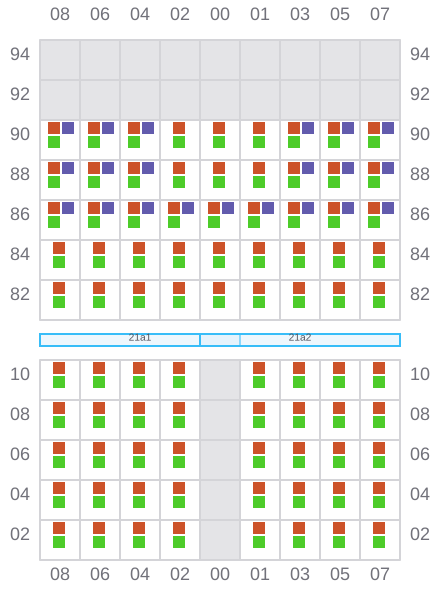

021 (022)
- →
![Bay 021 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b021.png?v=1711391364245)

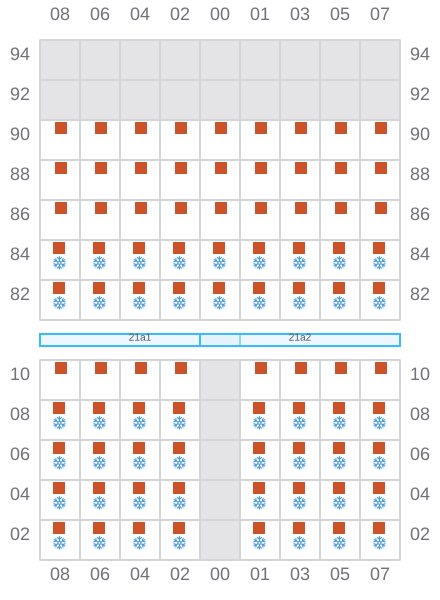

023
- ←
- →
![Bay 023 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b023.png?v=1711391364245)

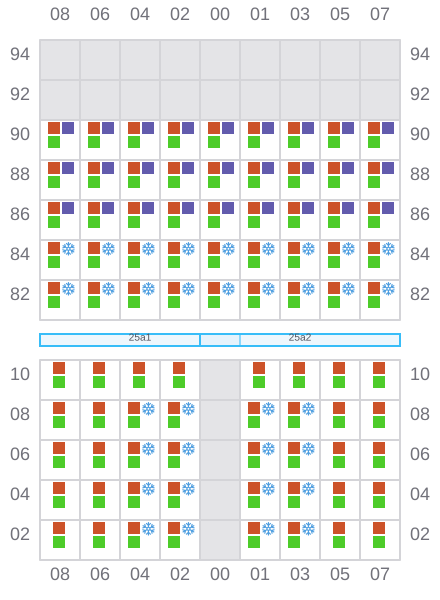

025 (026)
- →
- ←
![Bay 025 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b025.png?v=1711391364245)
027
- ←
![Bay 027 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b027.png?v=1711391364245)

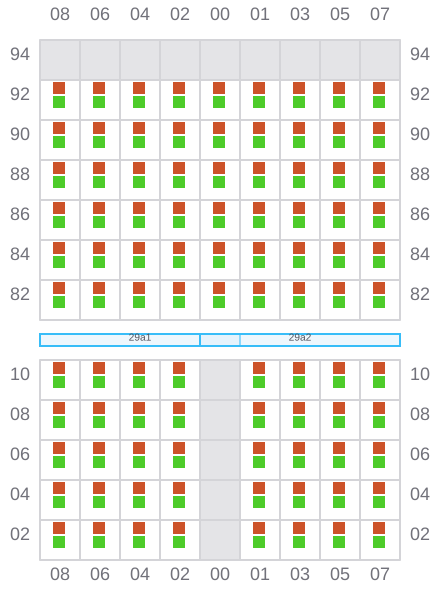

029 (030)
- →
![Bay 029 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b029.png?v=1711391364245)

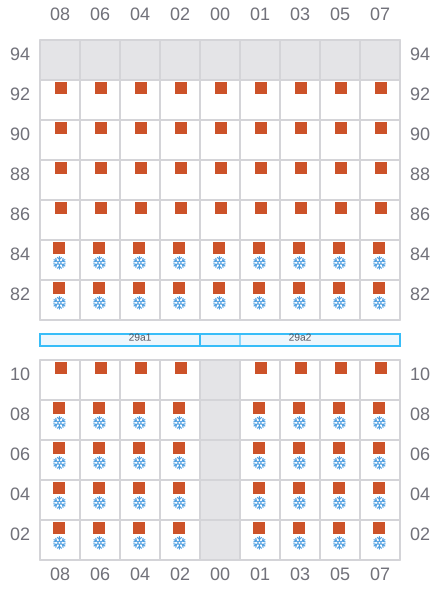

031
- ←
- →
![Bay 031 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b031.png?v=1711391364245)

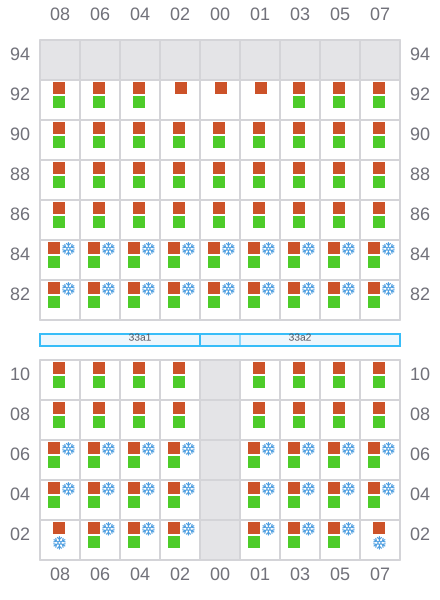

033 (034)
- →
- ← / ?
![Bay 033 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b033.png?v=1711391364245)
035
- ←
![Bay 035 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b035.png?v=1711391364245)
037
![Bay 037 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b037.png?v=1711391364245)

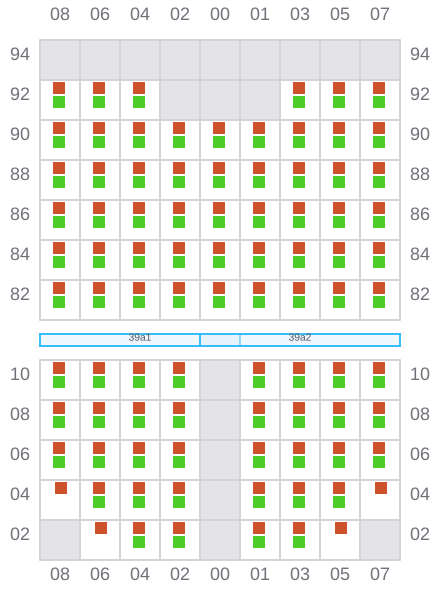

039 (040)
- →
![Bay 039 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b039.png?v=1711391364245)

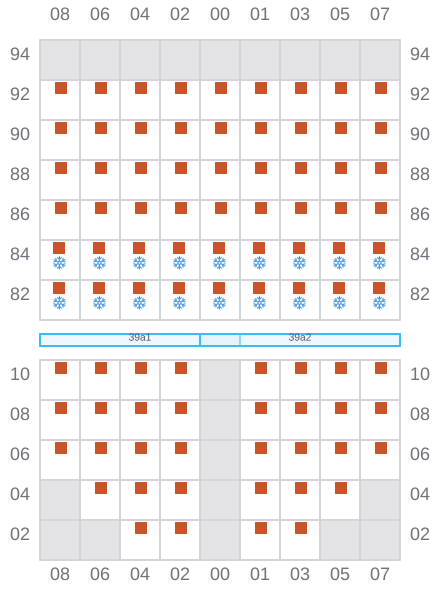

041
- ←
- → / ?
![Bay 041 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b041.png?v=1711391364245)

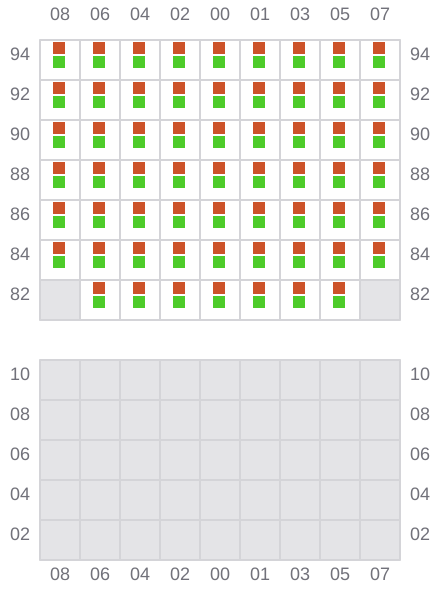

043 (044)
- → / ?
![Bay 043 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b043.png?v=1711391364245)

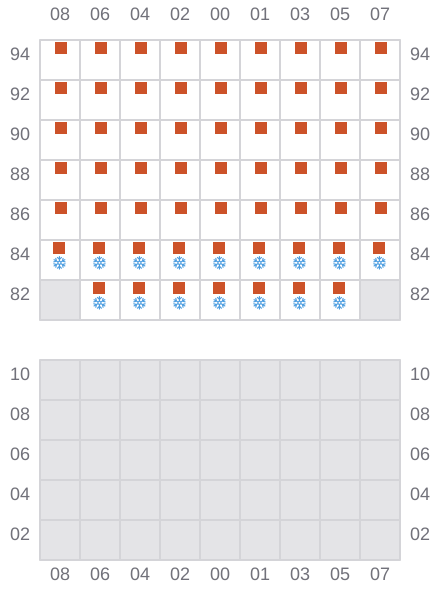

045
- ← / ?
- → / ?
![Bay 045 view and slots of BERNARD A](/vessel-images/72b78d07-e8a2-4863-ae28-5d22ac2b0954-b045.png?v=1711391364245)
