BERNHARD SCHULTE
9484546 | VRGA3 | CHI by ************************** Last update: Tue Jun 27 2023

General Info

Ship Name:BERNHARD SCHULTE
IMO Code:9484546
Call Sign:VRGA3
Line Operator:CHI
Class Name for Sister Ships:INE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,624

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

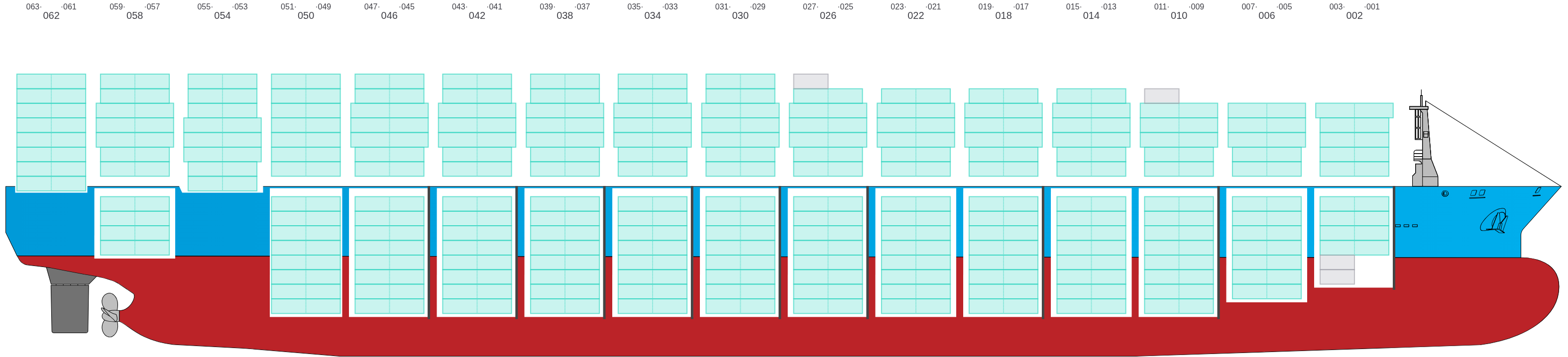

Side View

Side view of BERNHARD SCHULTE

Hatch-Covers View

Deck view of BERNHARD SCHULTE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

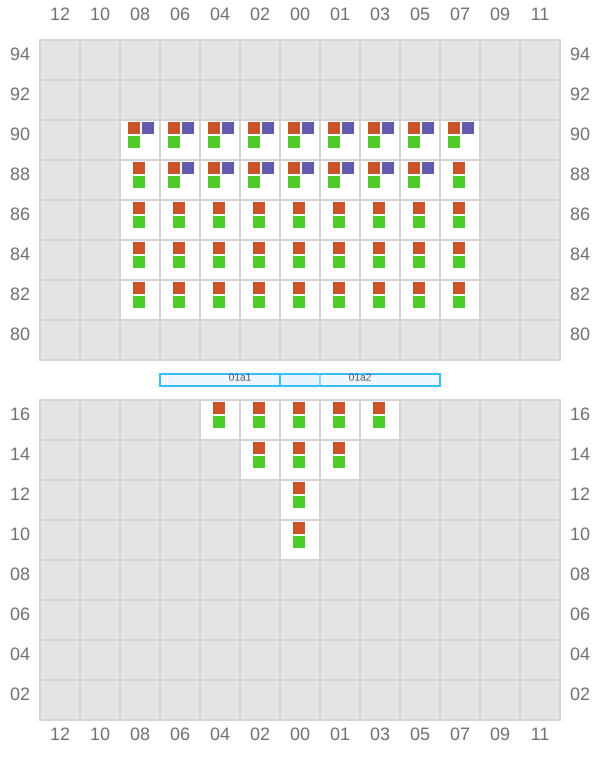

Bay 001 view and slots of BERNHARD SCHULTE

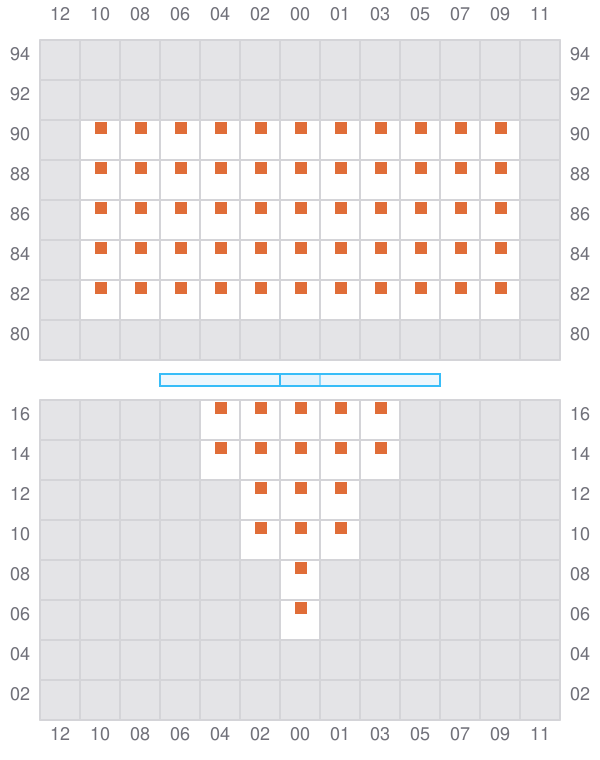

003

  • ←
Bay 003 view and slots of BERNHARD SCHULTE

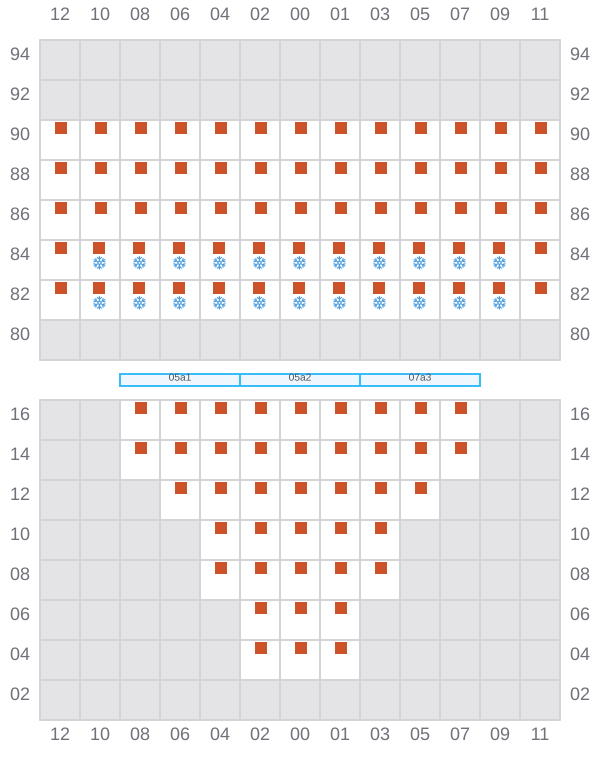

005 (006)

  • →

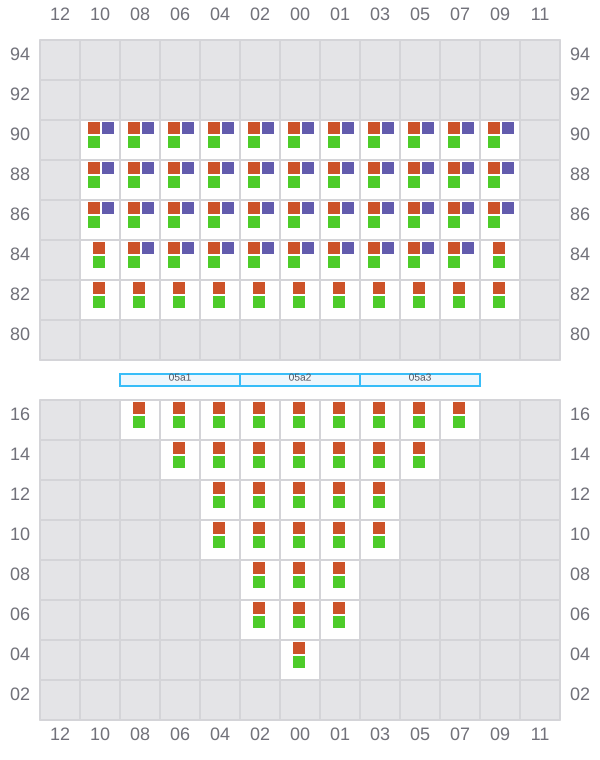

Bay 005 view and slots of BERNHARD SCHULTE

007

  • ←
  • → / ?
Bay 007 view and slots of BERNHARD SCHULTE

009 (010)

  • →

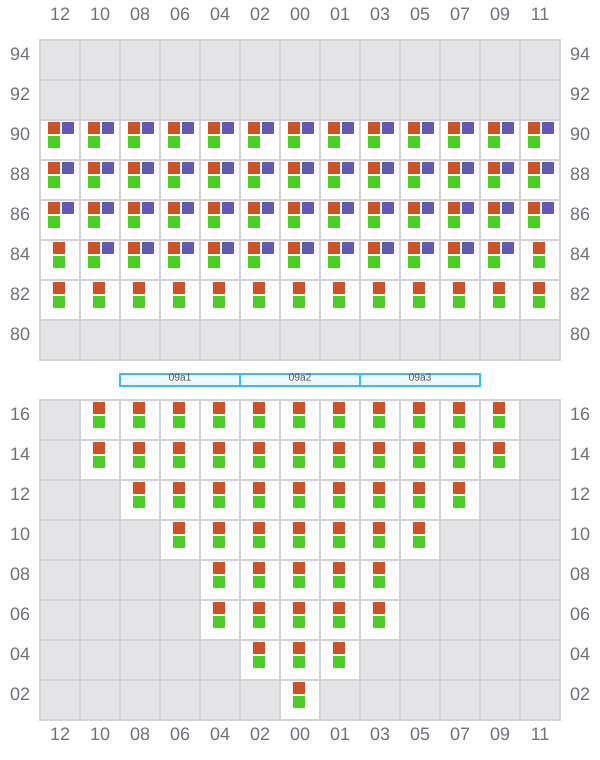

Bay 009 view and slots of BERNHARD SCHULTE

011

  • ←
  • → / ?

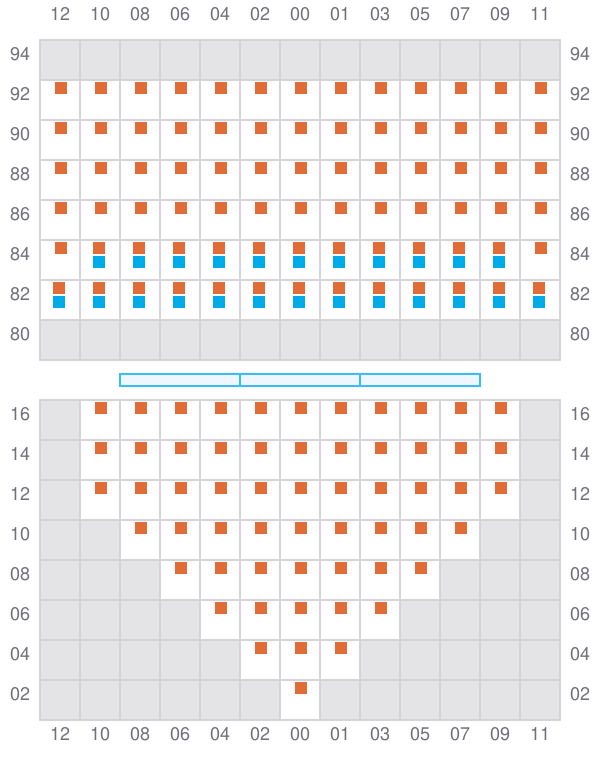

Bay 011 view and slots of BERNHARD SCHULTE

013 (014)

  • →

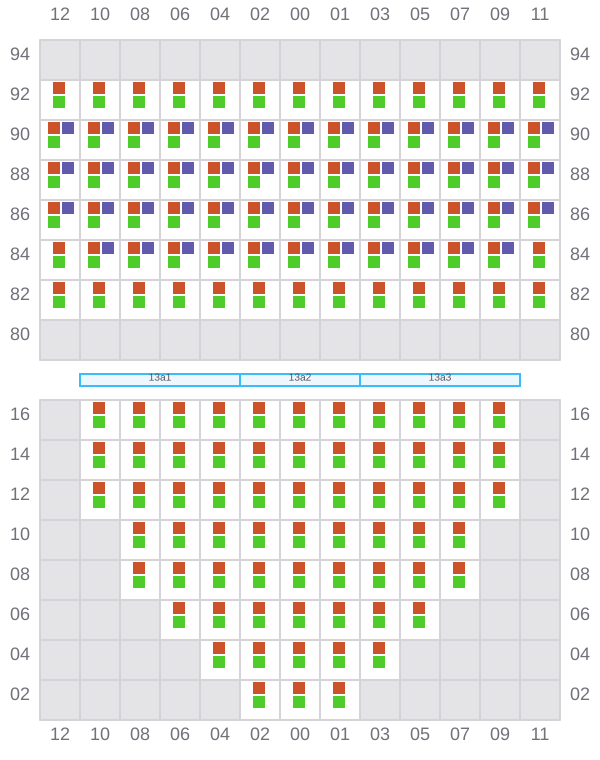

Bay 013 view and slots of BERNHARD SCHULTE

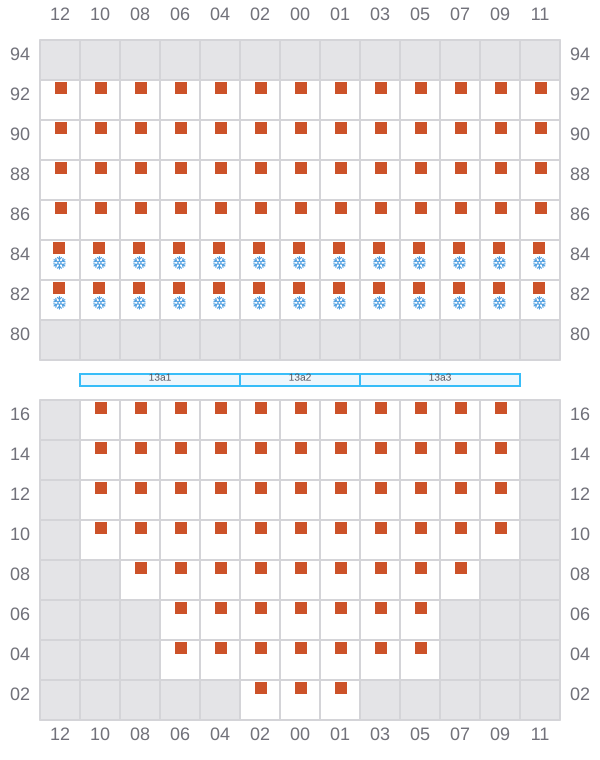

015

  • ←
  • → / ?
Bay 015 view and slots of BERNHARD SCHULTE

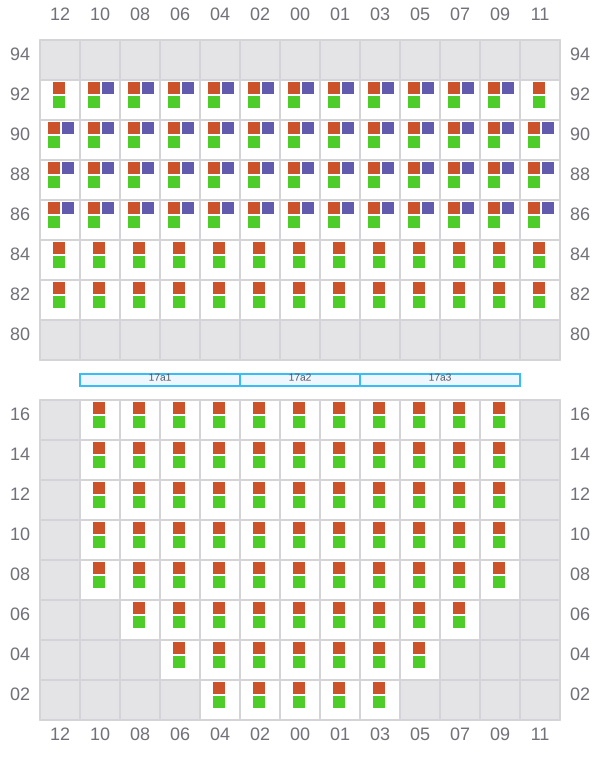

017 (018)

  • →

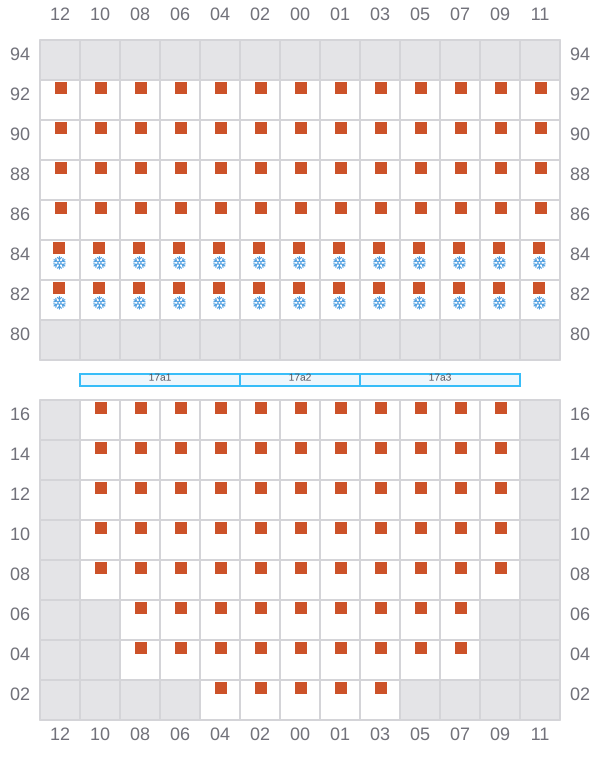

Bay 017 view and slots of BERNHARD SCHULTE

019

  • ←
  • → / ?
Bay 019 view and slots of BERNHARD SCHULTE

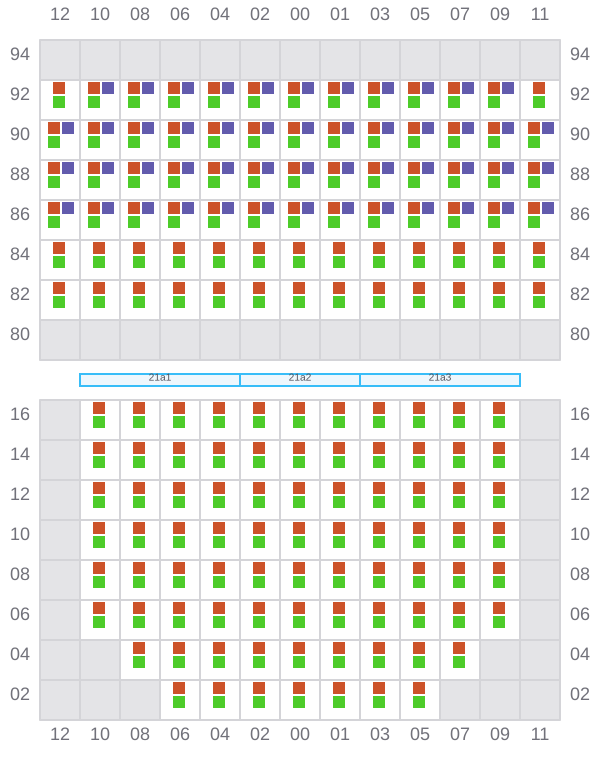

021 (022)

  • →

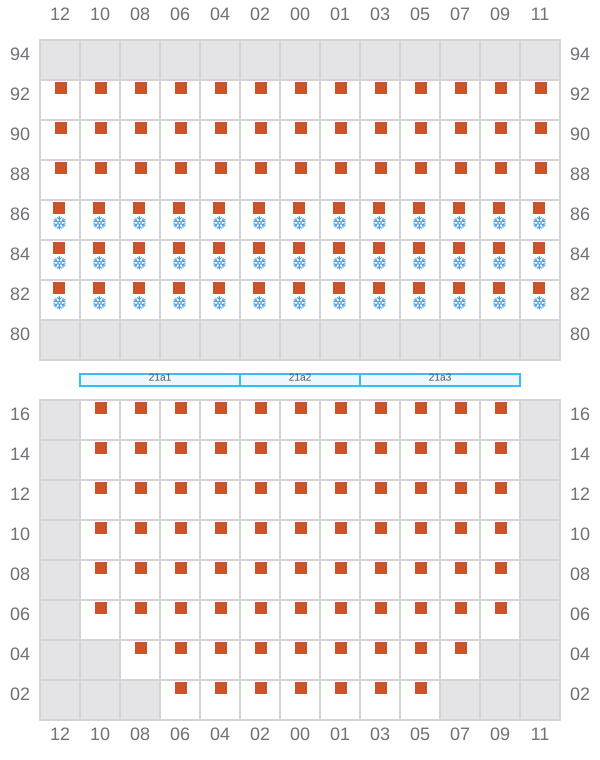

Bay 021 view and slots of BERNHARD SCHULTE

023

  • ←
  • → / ?
Bay 023 view and slots of BERNHARD SCHULTE

025 (026)

  • →

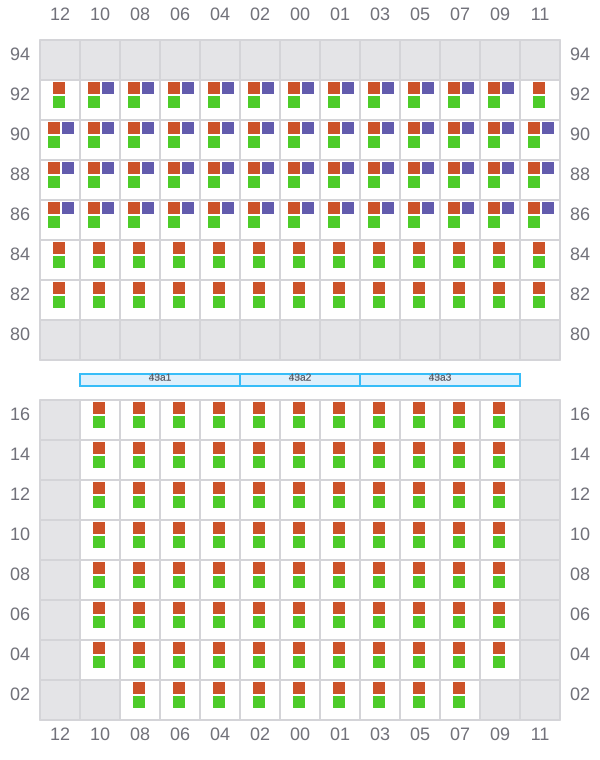

Bay 025 view and slots of BERNHARD SCHULTE

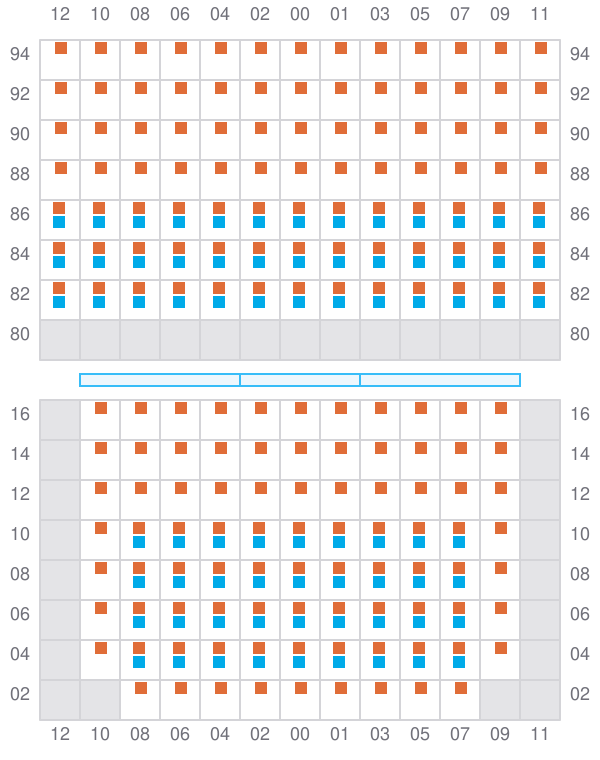

027

  • ←
  • ? / →
Bay 027 view and slots of BERNHARD SCHULTE

029 (030)

  • →

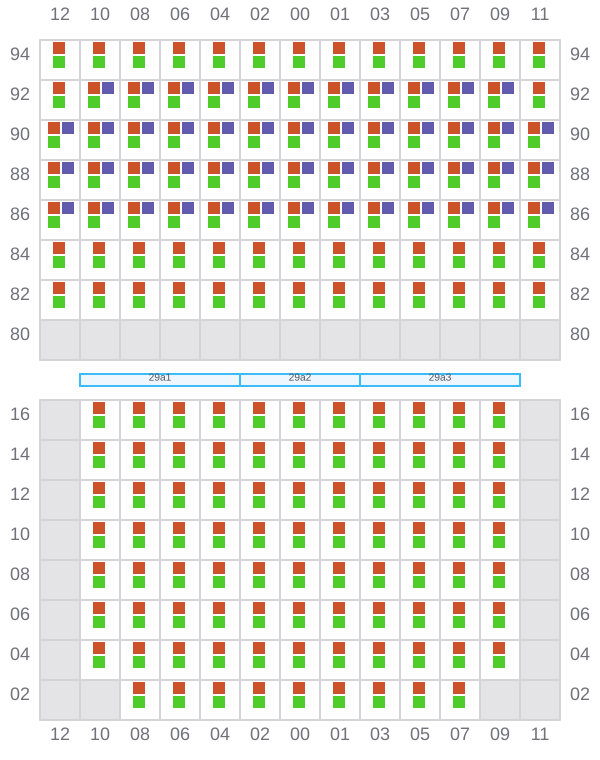

Bay 029 view and slots of BERNHARD SCHULTE

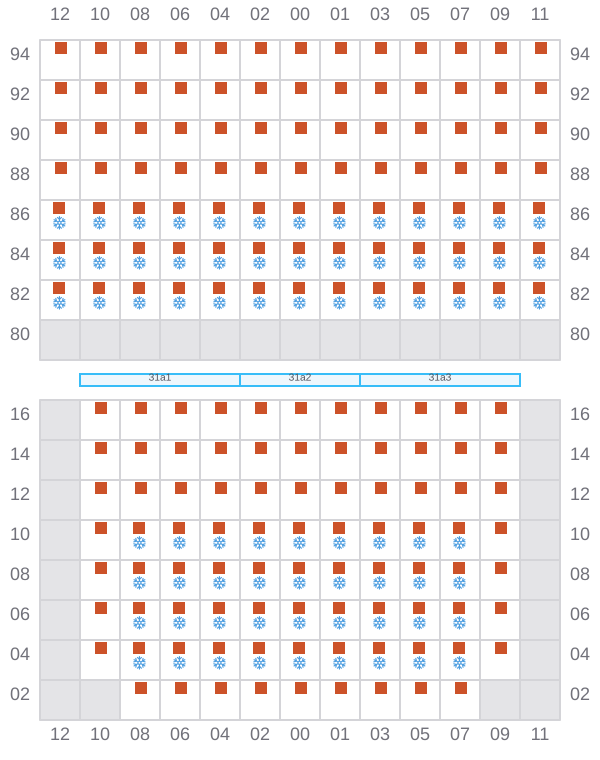

031

  • ←
  • →
Bay 031 view and slots of BERNHARD SCHULTE

033 (034)

  • →

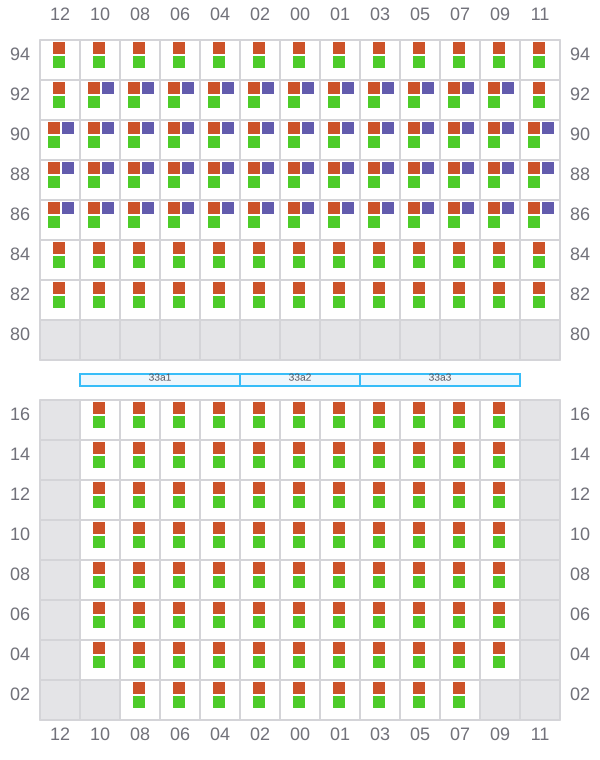

Bay 033 view and slots of BERNHARD SCHULTE

035

  • ←
  • →

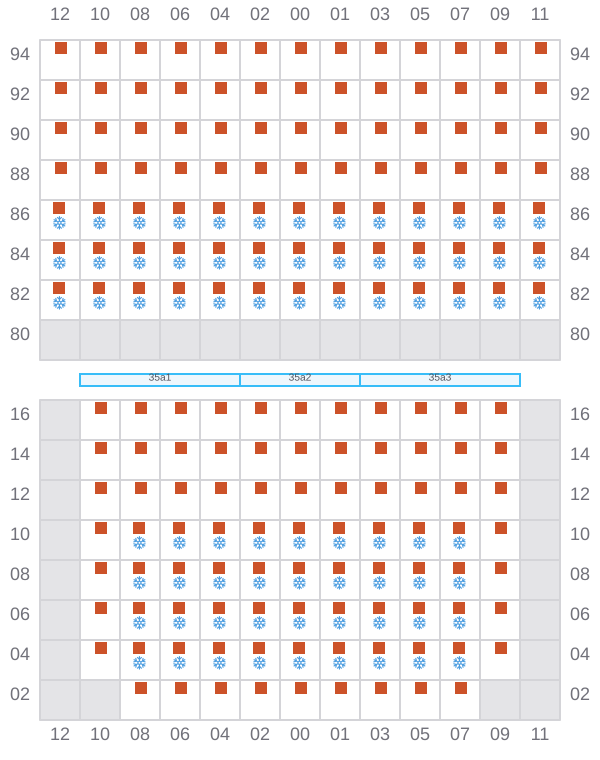

Bay 035 view and slots of BERNHARD SCHULTE

037 (038)

  • →

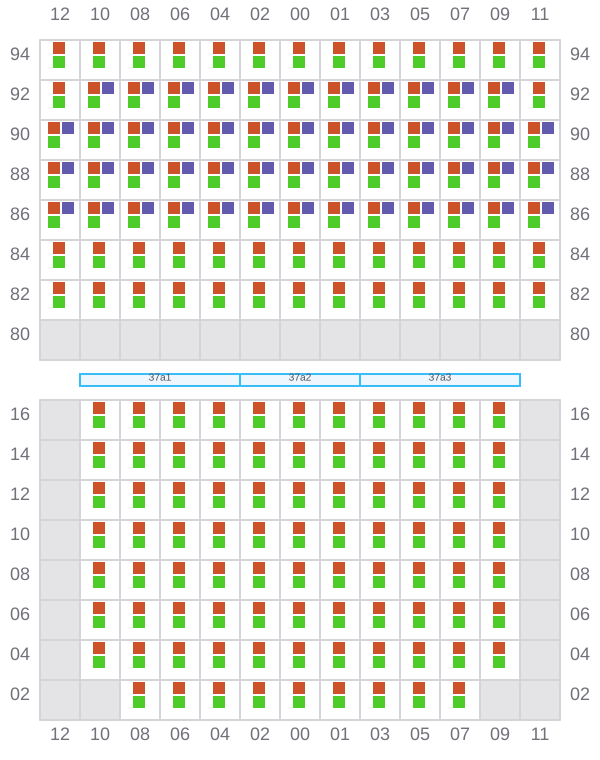

Bay 037 view and slots of BERNHARD SCHULTE

039

  • ←
  • →
Bay 039 view and slots of BERNHARD SCHULTE

041 (042)

  • →
Bay 041 view and slots of BERNHARD SCHULTE

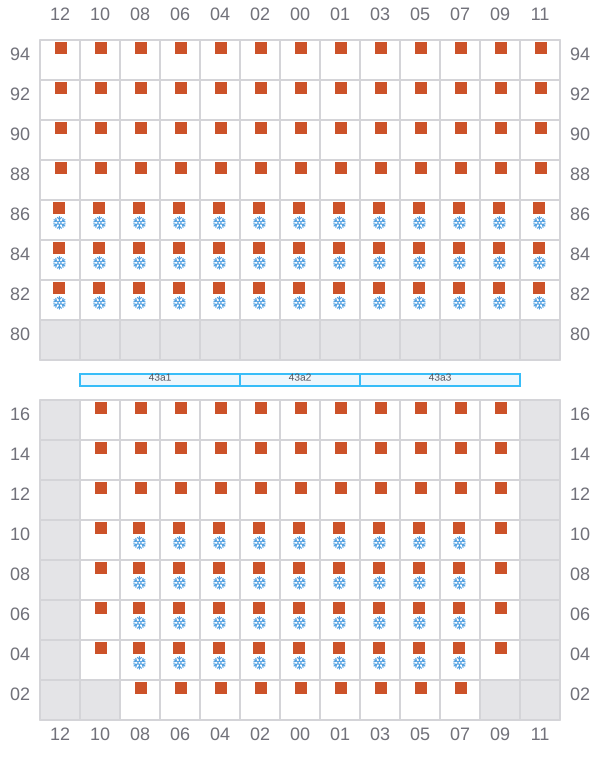

043

  • ←
  • →
Bay 043 view and slots of BERNHARD SCHULTE

045 (046)

  • →
Bay 045 view and slots of BERNHARD SCHULTE

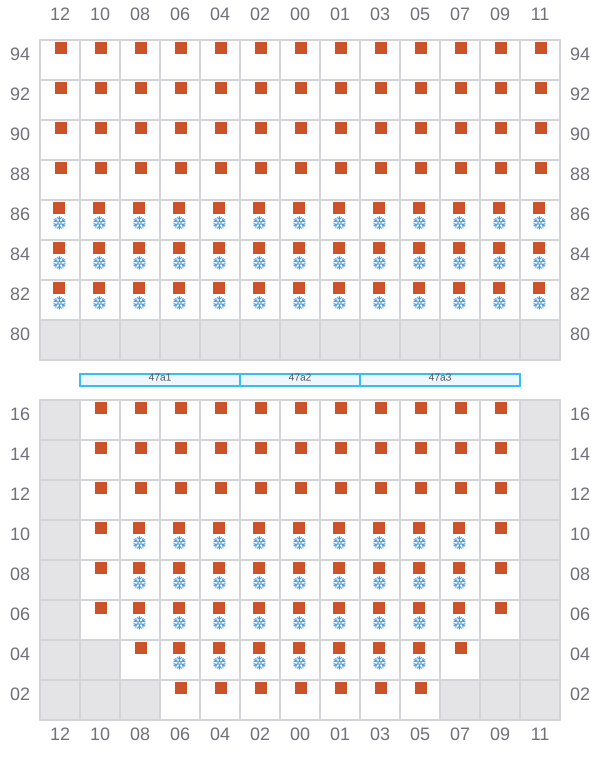

047

  • ←
  • →
Bay 047 view and slots of BERNHARD SCHULTE

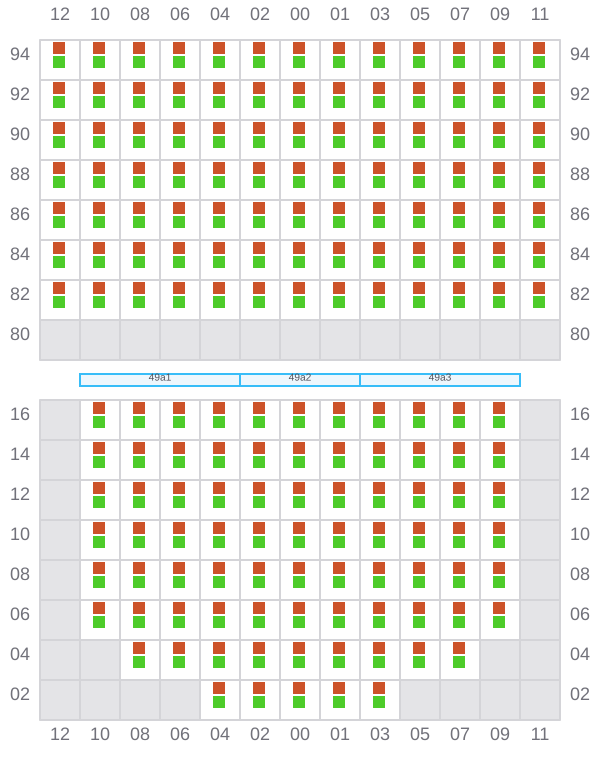

049 (050)

  • →
  • → / ?
Bay 049 view and slots of BERNHARD SCHULTE

051

  • ←

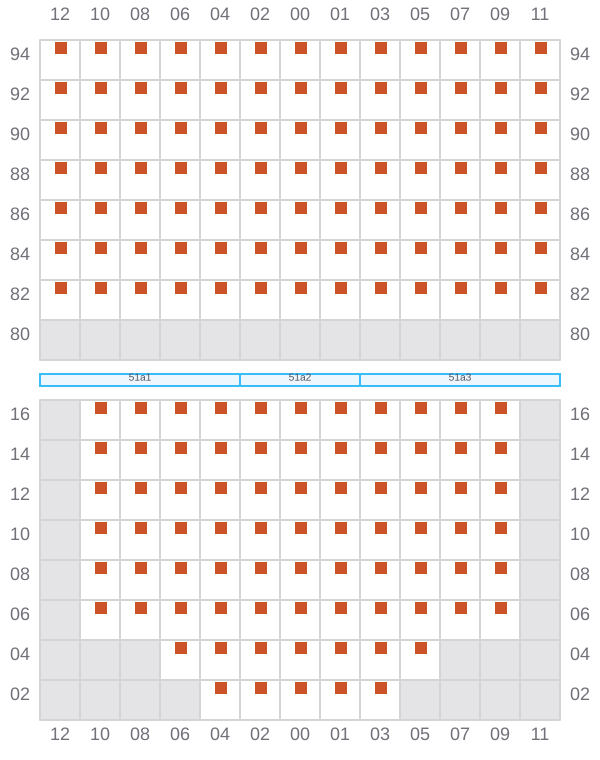

Bay 051 view and slots of BERNHARD SCHULTE

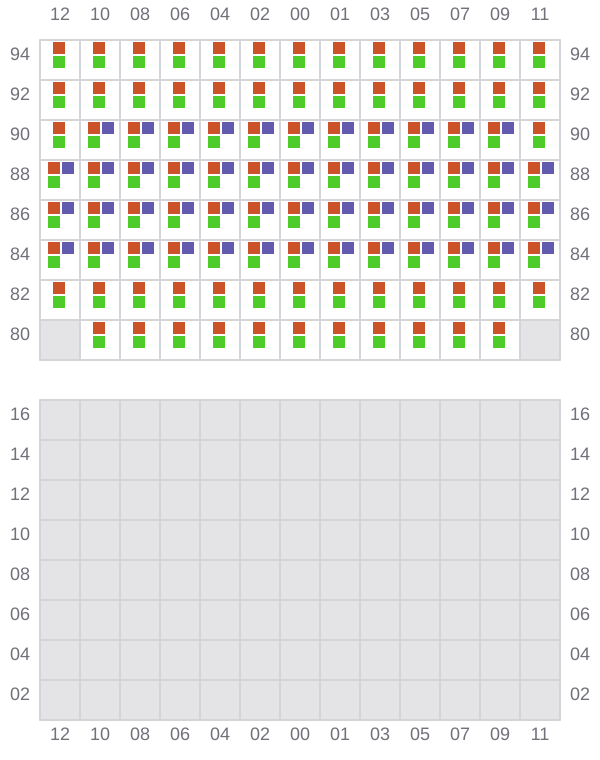

053 (054)

  • → / ?
Bay 053 view and slots of BERNHARD SCHULTE

055

  • ← / ?
  • → / ?

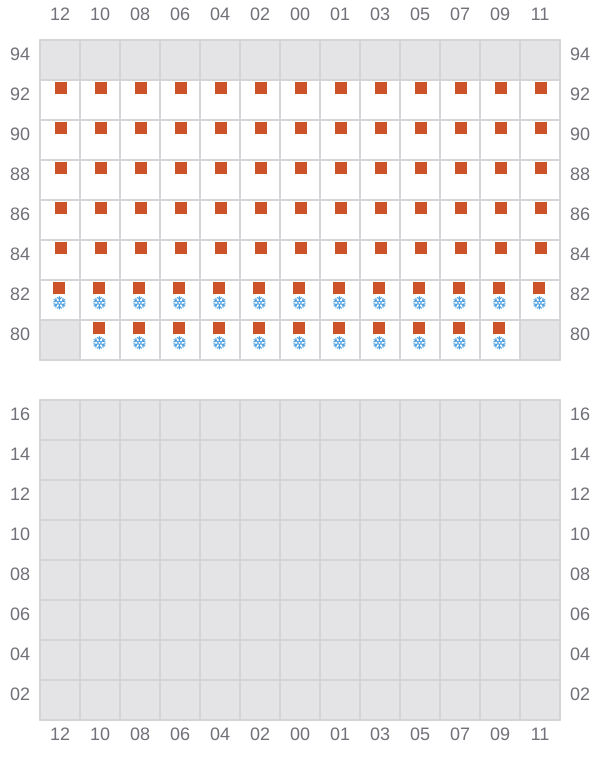

Bay 055 view and slots of BERNHARD SCHULTE

057 (058)

  • →

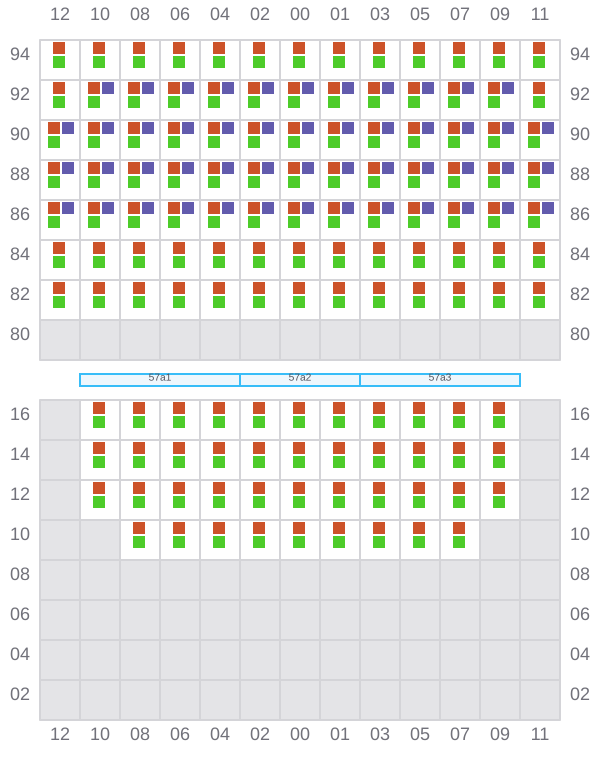

Bay 057 view and slots of BERNHARD SCHULTE

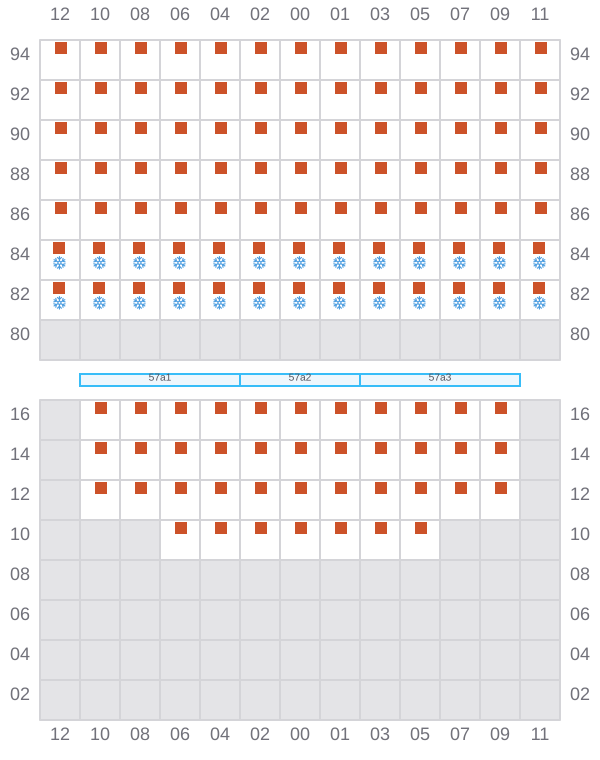

059

  • ←
  • → / ?
Bay 059 view and slots of BERNHARD SCHULTE

061 (062)

  • → / ?
  • → / ?

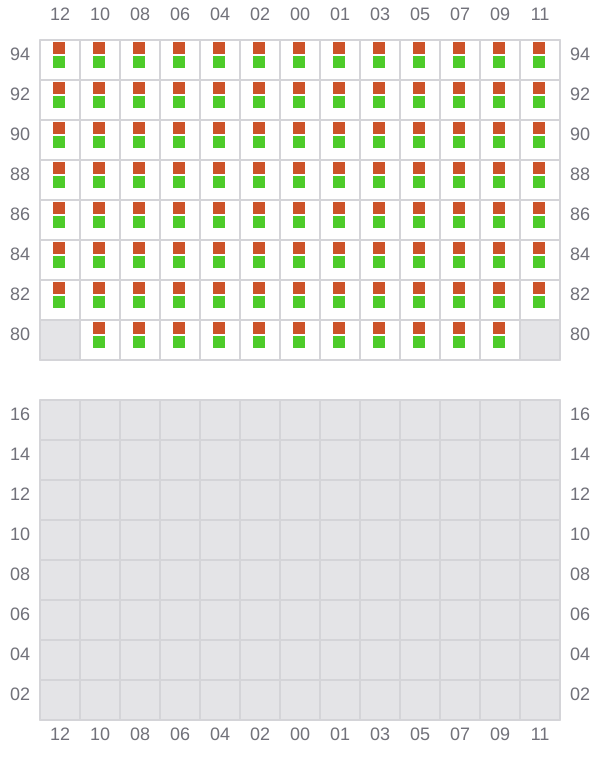

Bay 061 view and slots of BERNHARD SCHULTE

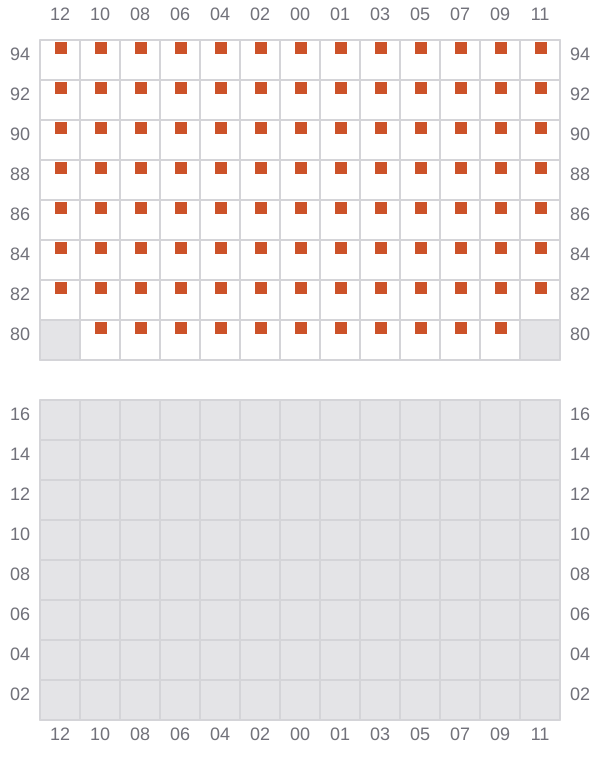

063

  • ← / ?
Bay 063 view and slots of BERNHARD SCHULTE
