BF TIGER
9303792 | V2HL7 | BENGAL TIGER LINE by ********* Last update: Mon Apr 29 2024
General Info
Ship Name:BF TIGER
IMO Code:9303792
Call Sign:V2HL7
Line Operator:BENGAL TIGER LINE
Class Name for Sister Ships:HORIZON TIGER
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):210.00
LOA (Length Overall):222.14
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:93
Min Above ISO Tier:79
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:92%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

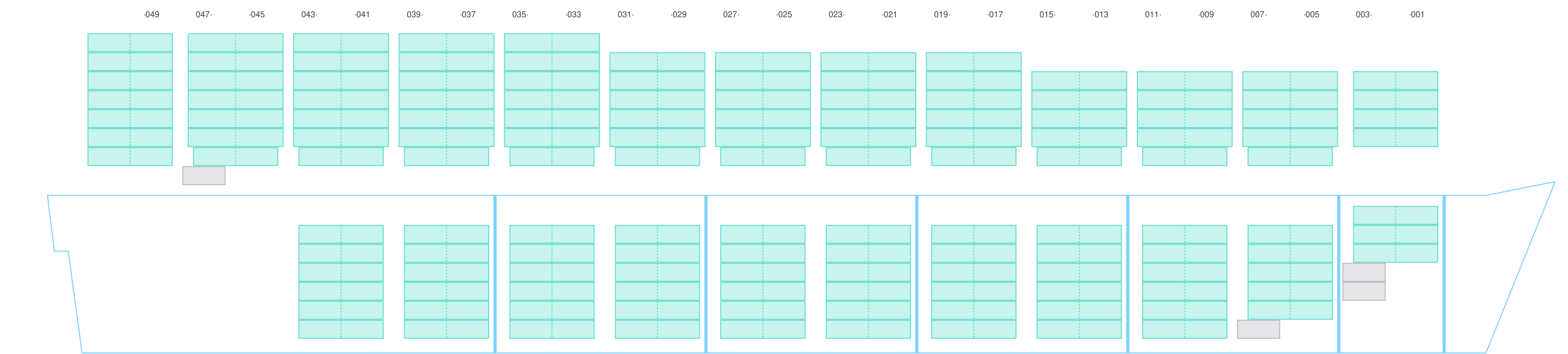

Side View
![Side view of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-sideView.png?v=1714409771957)

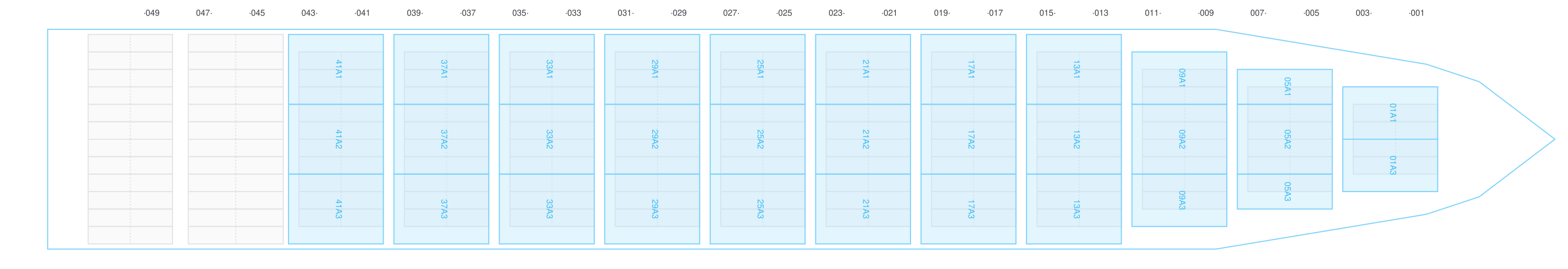

Hatch-Covers View
![Deck view of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-deckView.png?v=1714409771957)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

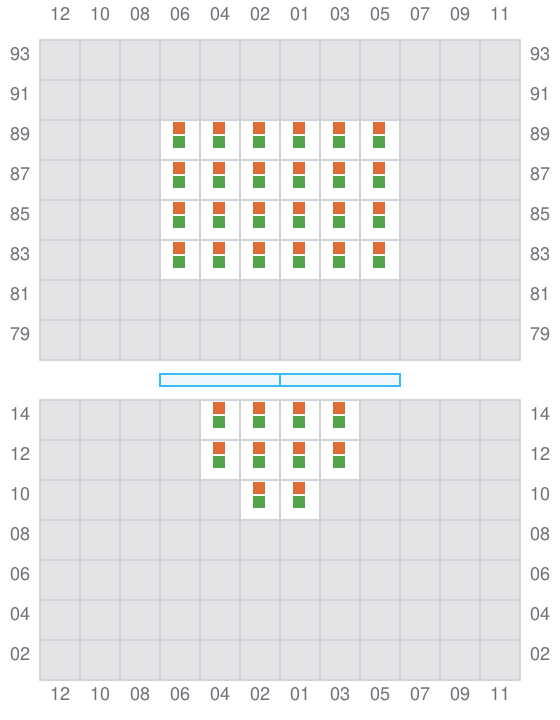

001 (002)
- →
![Bay 001 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b001.png?v=1714409771957)

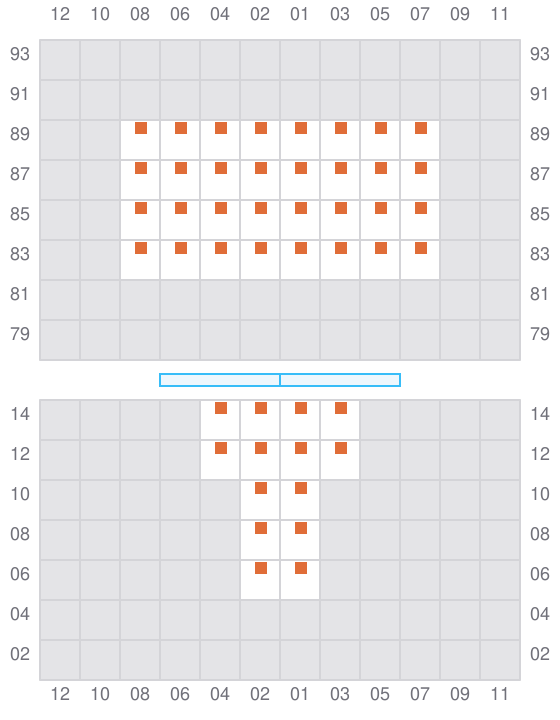

003
- ←
![Bay 003 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b003.png?v=1714409771957)

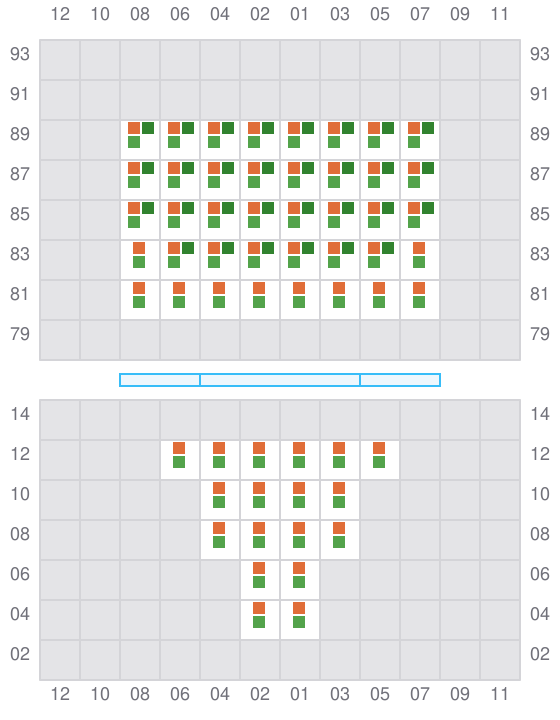

005 (006)
- →
- ← / ?
![Bay 005 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b005.png?v=1714409771957)

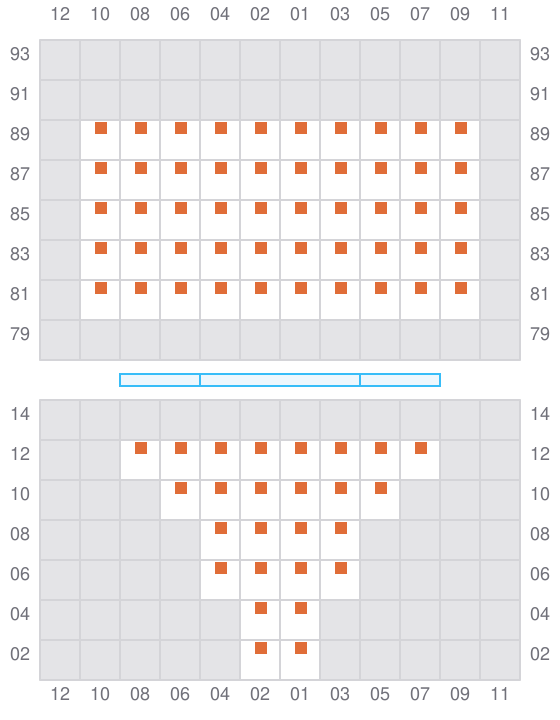

007
- ←
![Bay 007 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b007.png?v=1714409771957)

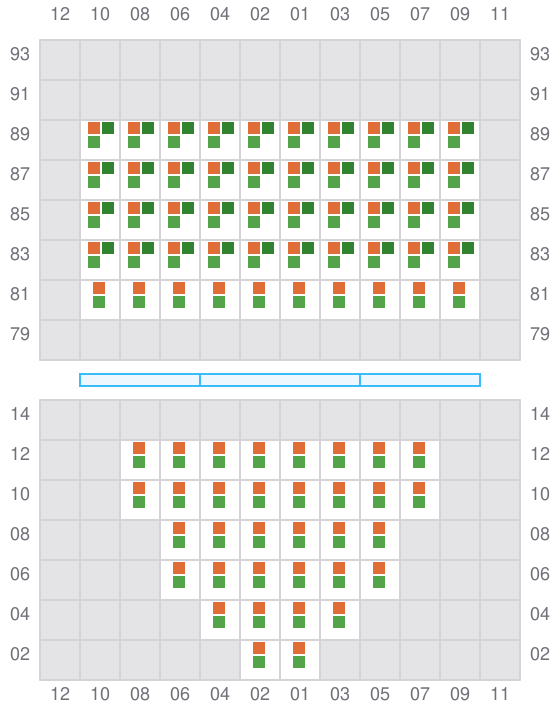

009 (010)
- →
- ← / ?
![Bay 009 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b009.png?v=1714409771957)

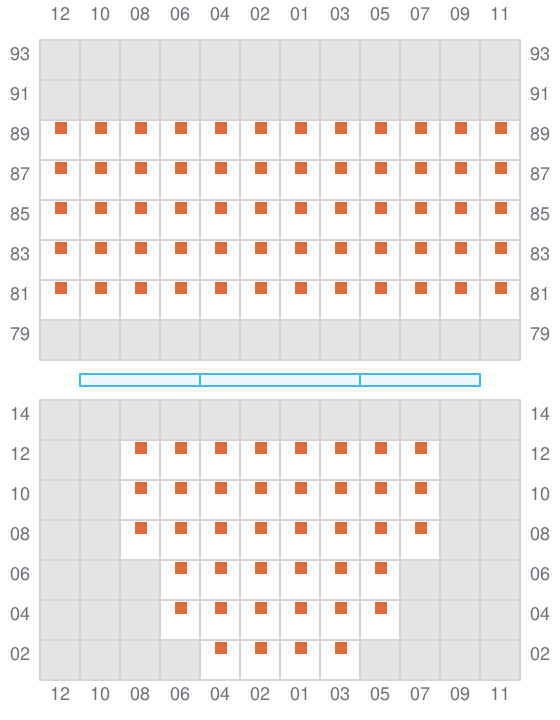

011
- ←
![Bay 011 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b011.png?v=1714409771957)

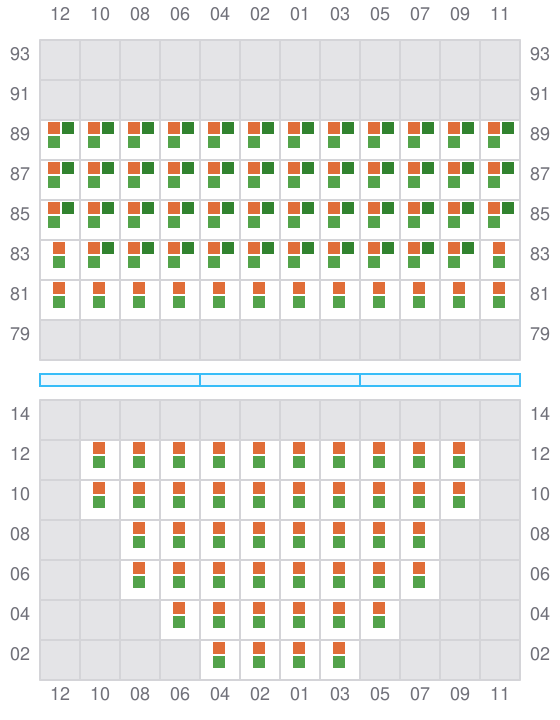

013 (014)
- →
- ←
![Bay 013 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b013.png?v=1714409771957)

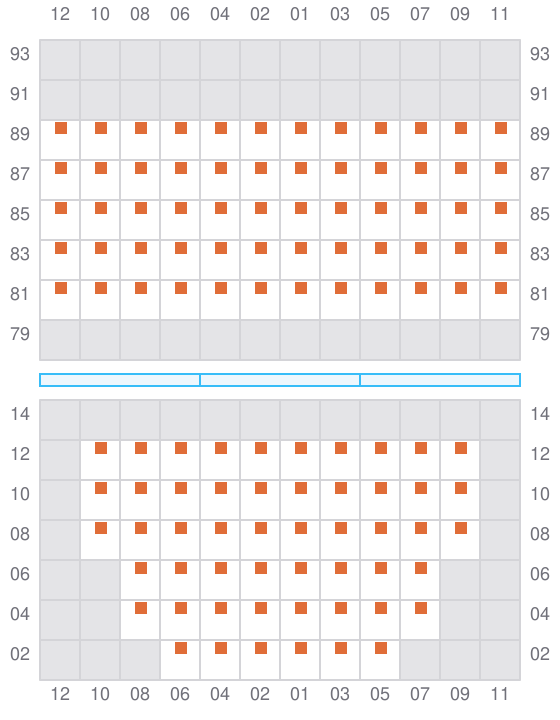

015
- ←
![Bay 015 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b015.png?v=1714409771957)

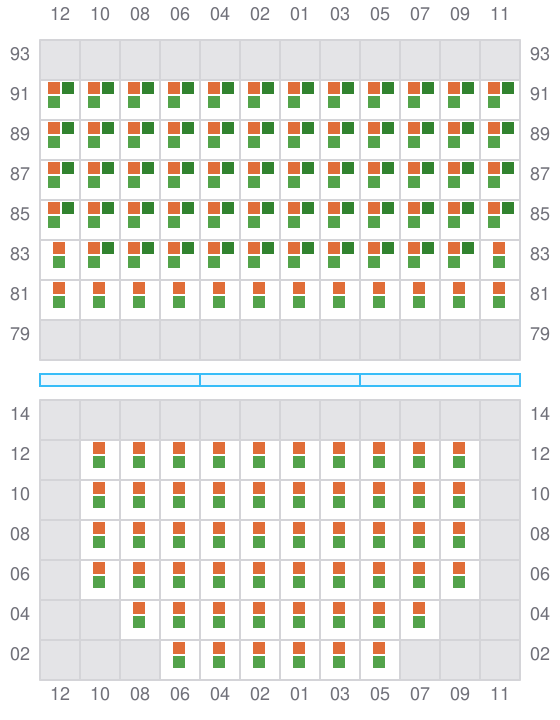

017 (018)
- →
- ←
![Bay 017 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b017.png?v=1714409771957)
019
- ←
![Bay 019 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b019.png?v=1714409771957)

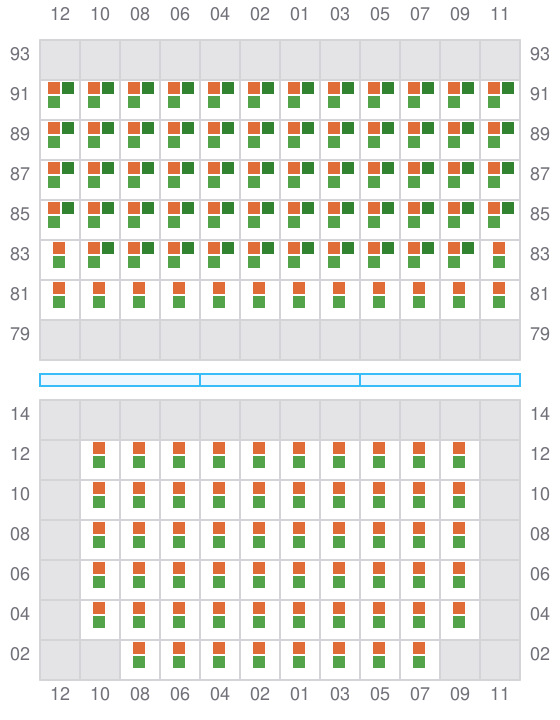

021 (022)
- →
- ←
![Bay 021 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b021.png?v=1714409771957)

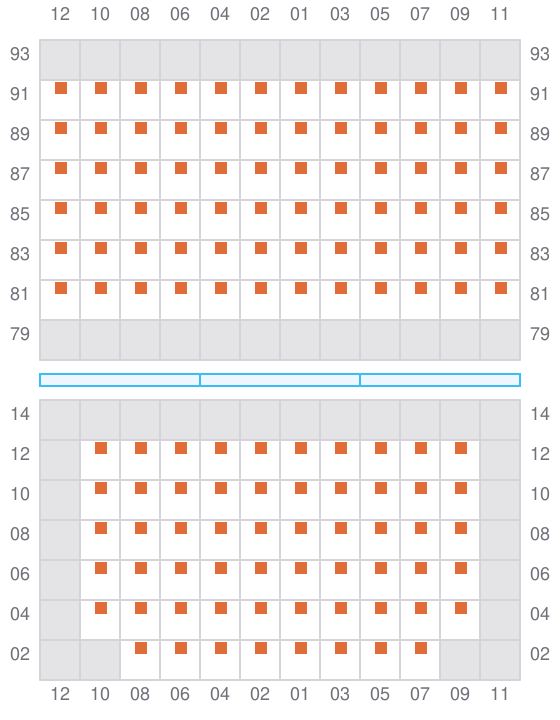

023
- ←
![Bay 023 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b023.png?v=1714409771957)
025 (026)
- →
- ←
![Bay 025 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b025.png?v=1714409771957)
027
- ←
![Bay 027 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b027.png?v=1714409771957)
029 (030)
- →
- ←
![Bay 029 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b029.png?v=1714409771957)
031
- ←
![Bay 031 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b031.png?v=1714409771957)

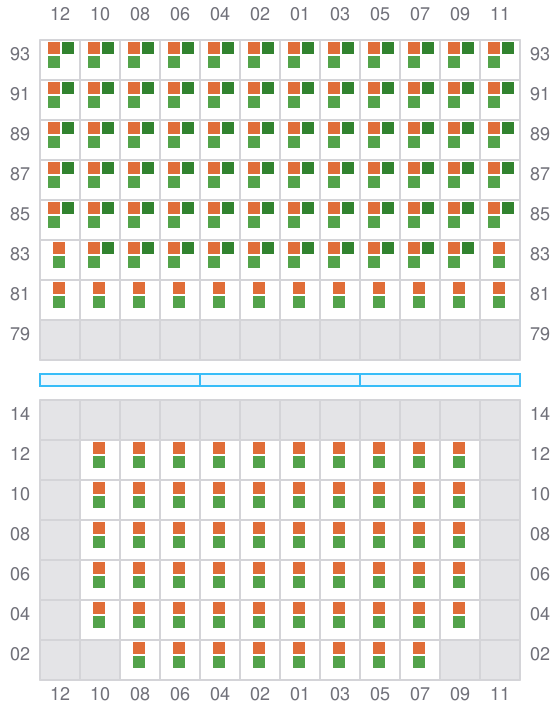

033 (034)
- →
- ←
![Bay 033 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b033.png?v=1714409771957)

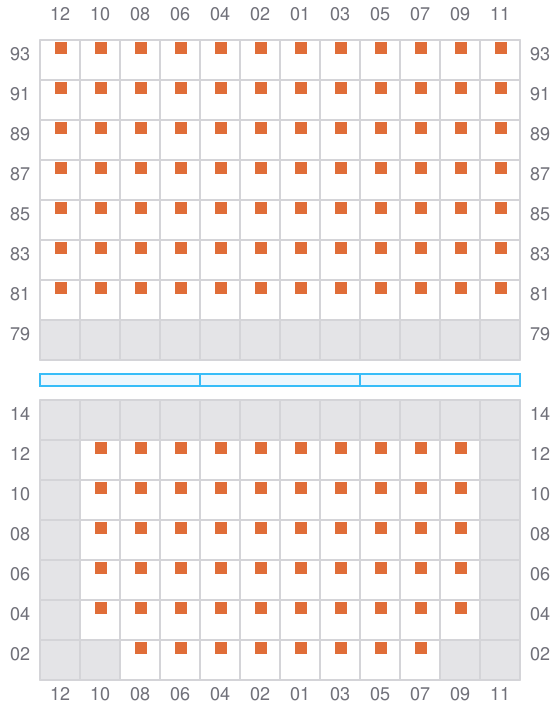

035
- ←
![Bay 035 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b035.png?v=1714409771957)

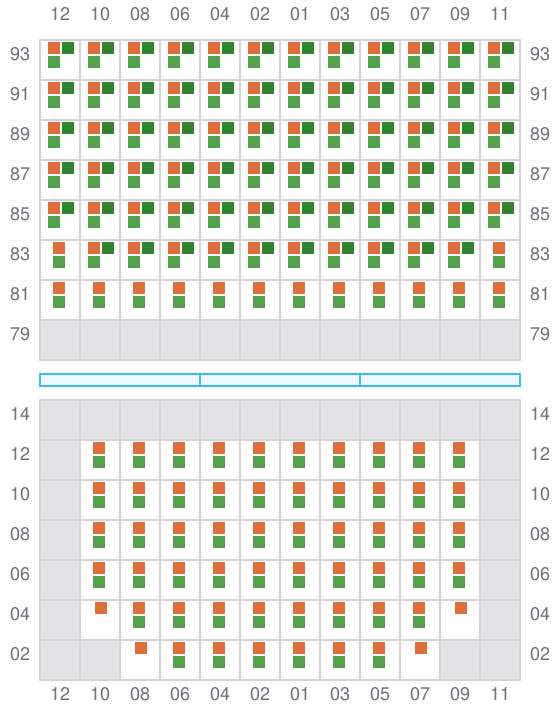

037 (038)
- →
- ←
![Bay 037 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b037.png?v=1714409771957)

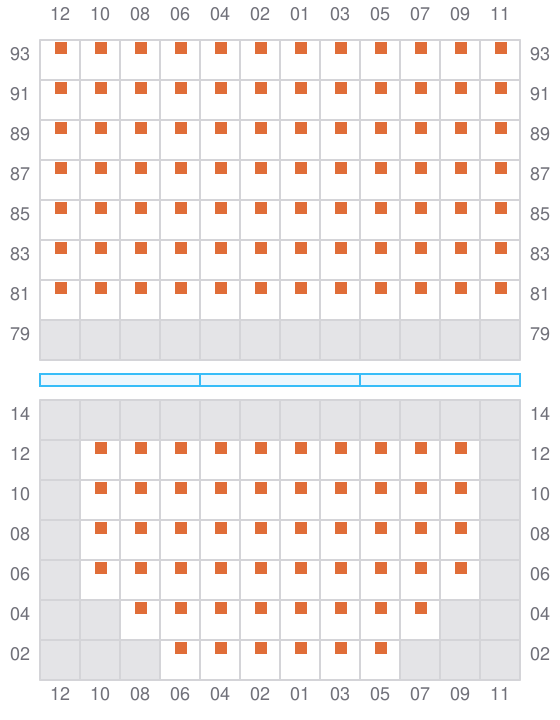

039
- ←
![Bay 039 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b039.png?v=1714409771957)

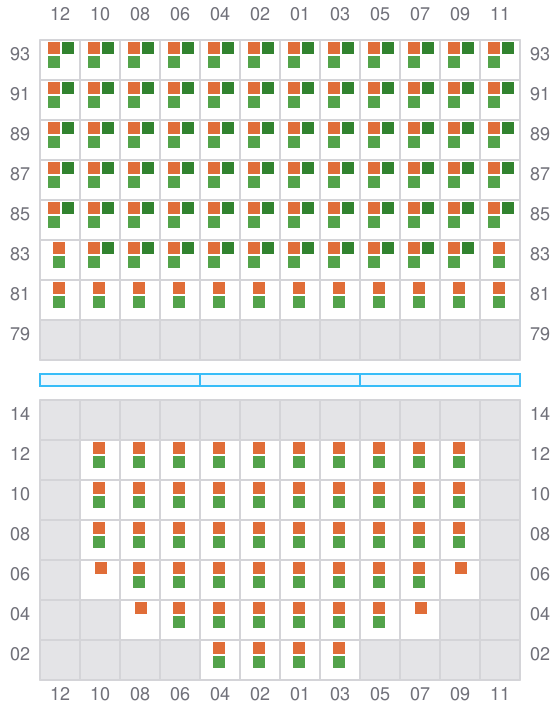

041 (042)
- →
- ←
![Bay 041 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b041.png?v=1714409771957)

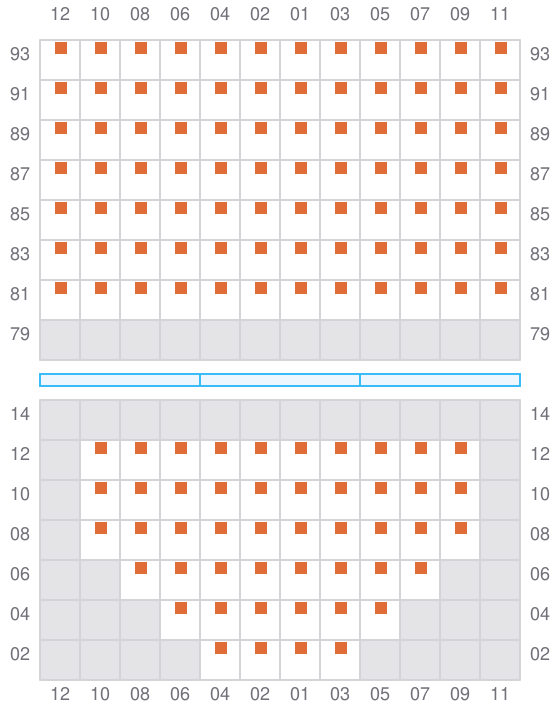

043
- ←
- → / ?
![Bay 043 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b043.png?v=1714409771957)

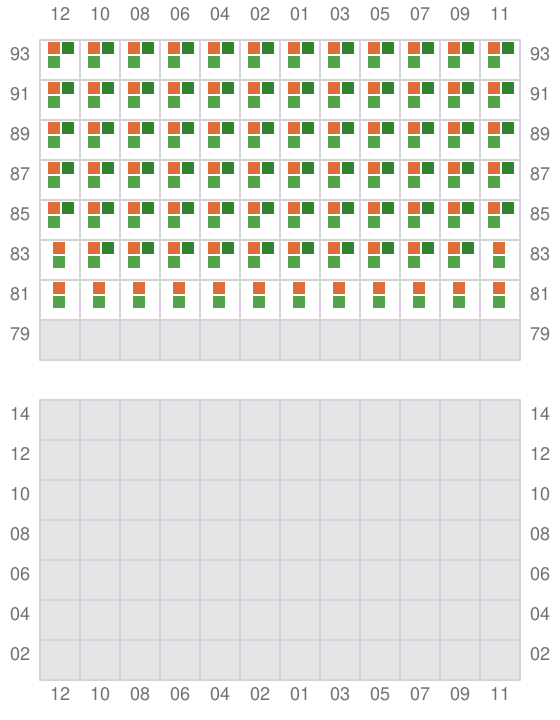

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b045.png?v=1714409771957)

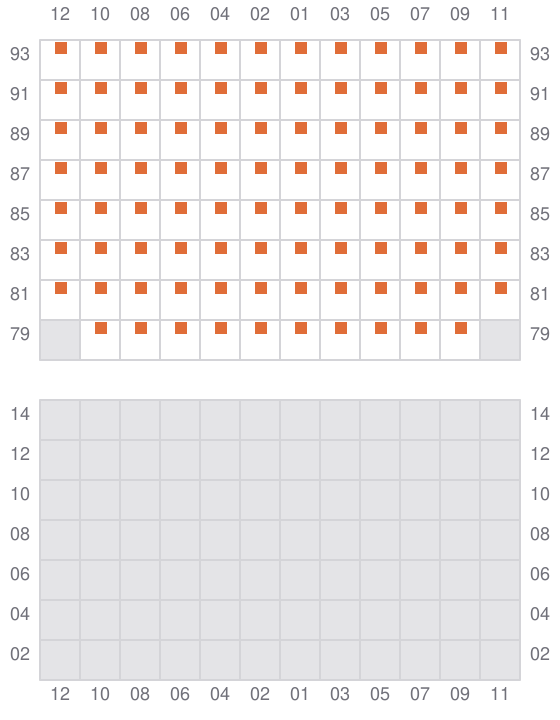

047
- ← / ?
- → / ?
![Bay 047 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b047.png?v=1714409771957)

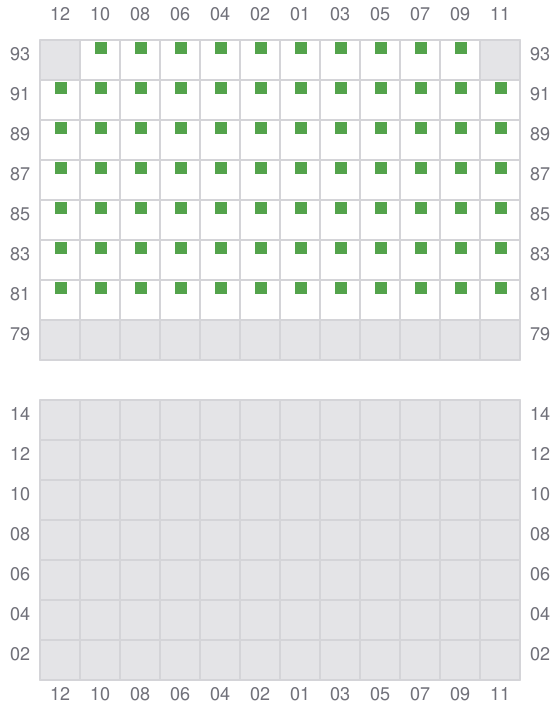

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of BF TIGER](/vessel-images/d0c364f8-3465-4456-bbe0-7bf08c0a3adf-b049.png?v=1714409771957)
