BF TROUT
9437232 | 5BFM4 | 9437232 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:BF TROUT
IMO Code:9437232
Call Sign:5BFM4
Line Operator:9437232
Class Name for Sister Ships:8W4
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,104
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

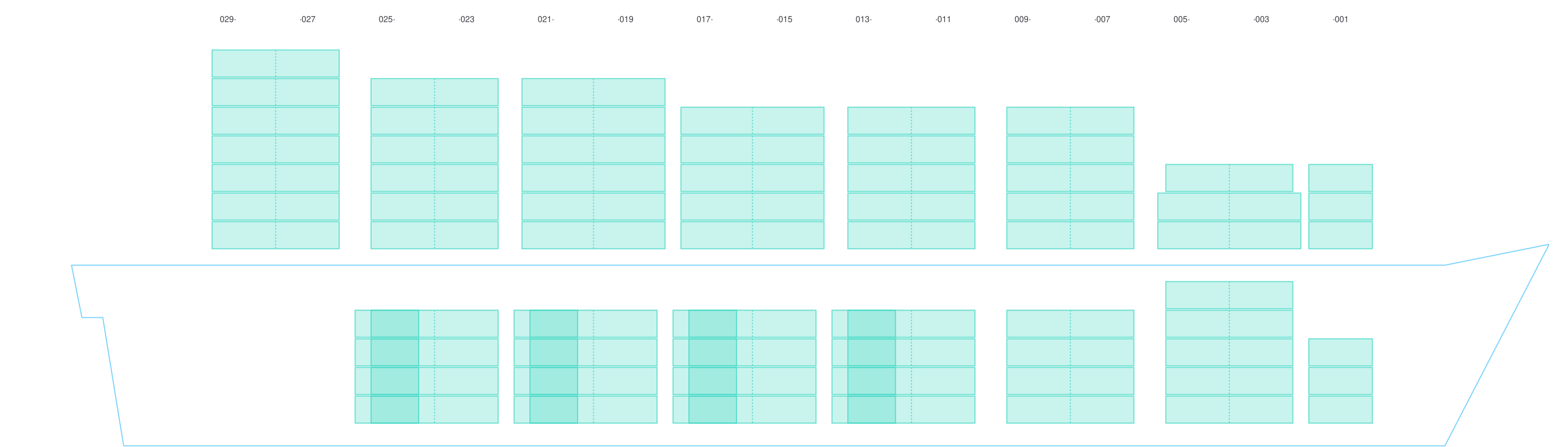

Side View
![Side view of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-sideView.png?v=1711307791587)

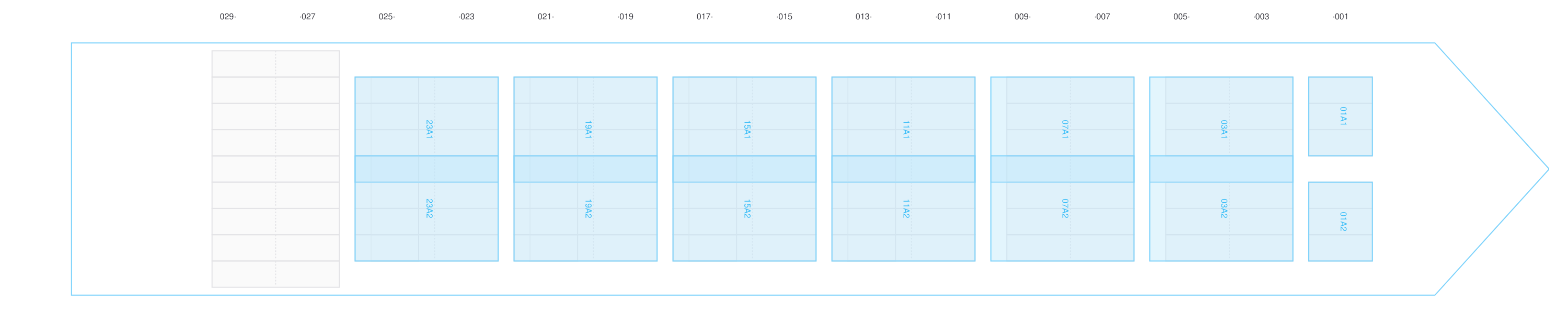

Hatch-Covers View
![Deck view of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-deckView.png?v=1711307791587)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

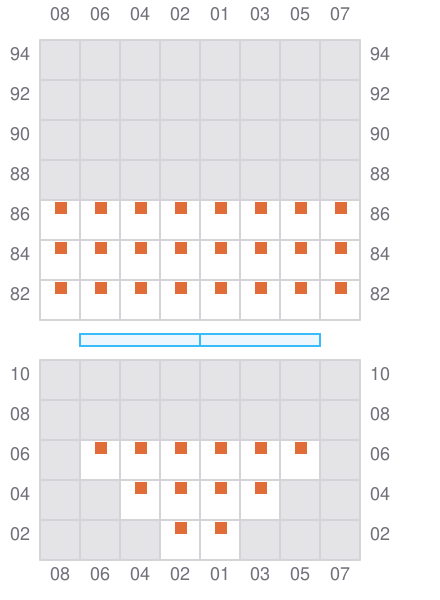

001
- →
![Bay 001 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b001.png?v=1711307791587)

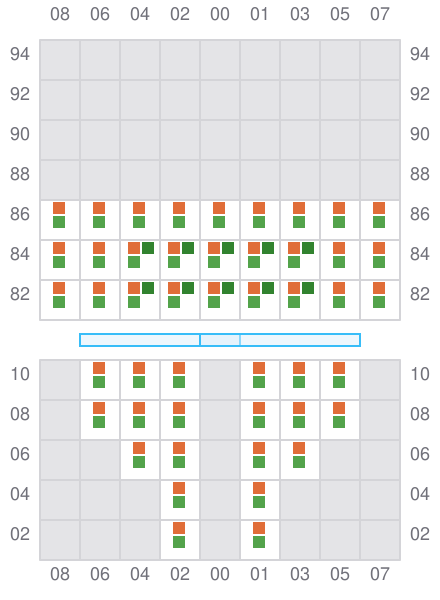

003 (004)
- →
![Bay 003 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b003.png?v=1711307791587)

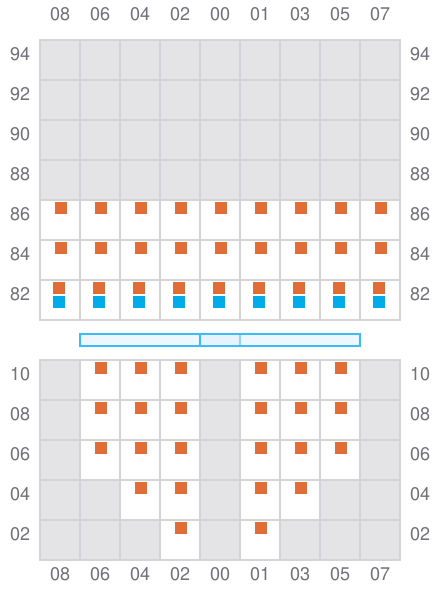

005
- ←
- → / ?
![Bay 005 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b005.png?v=1711307791587)

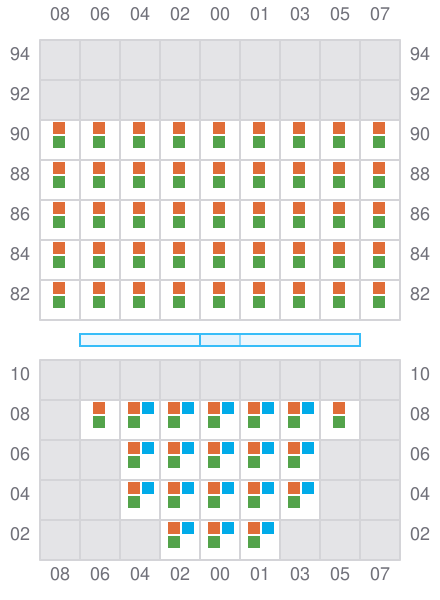

007 (008)
- →
- ? / ←
![Bay 007 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b007.png?v=1711307791587)

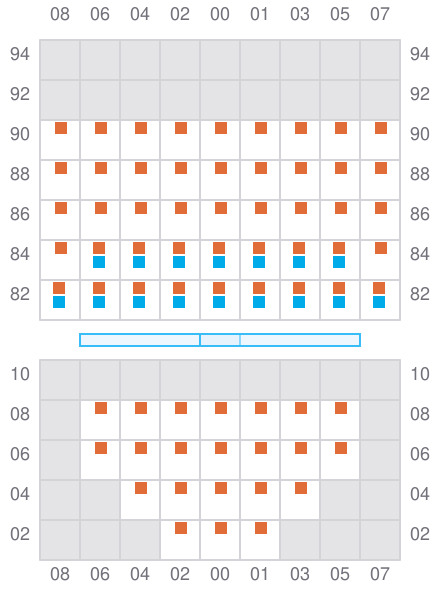

009
- ←
![Bay 009 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b009.png?v=1711307791587)

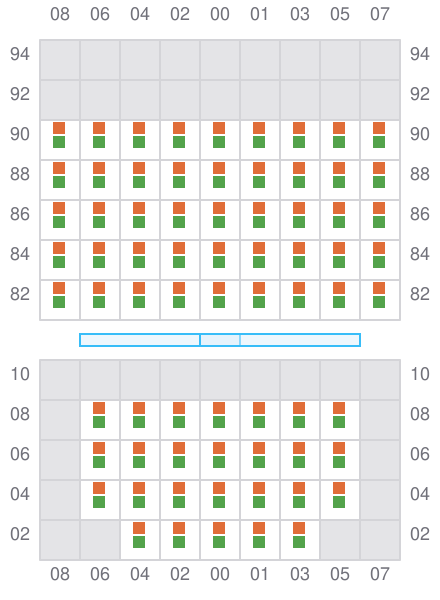

011 (012)
- →
![Bay 011 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b011.png?v=1711307791587)

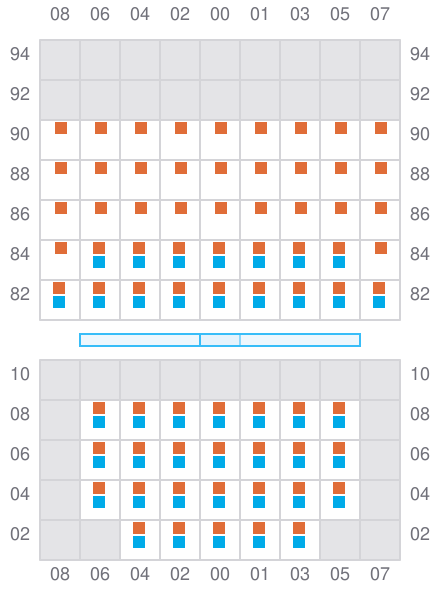

013
- ← / →
- →
![Bay 013 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b013.png?v=1711307791587)

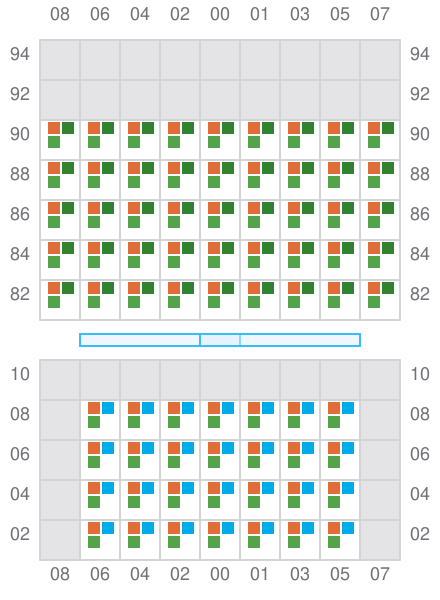

015 (016)
- →
- ? / ←
![Bay 015 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b015.png?v=1711307791587)

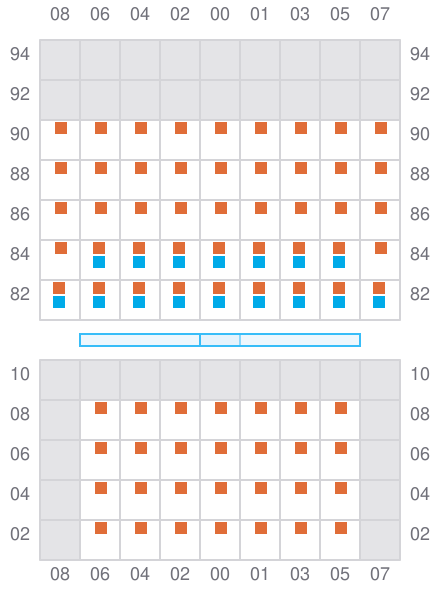

017
- ← / →
- → / ?
![Bay 017 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b017.png?v=1711307791587)

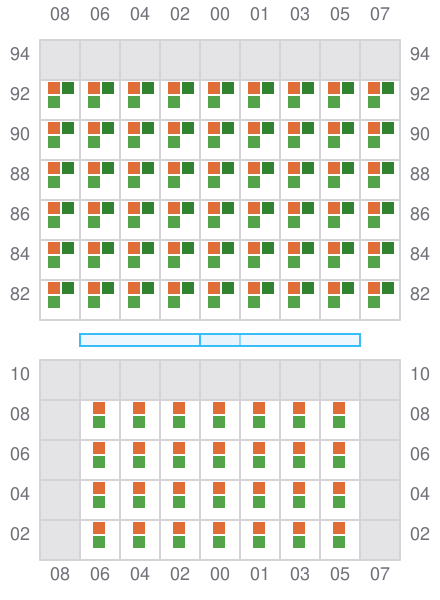

019 (020)
- →
![Bay 019 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b019.png?v=1711307791587)

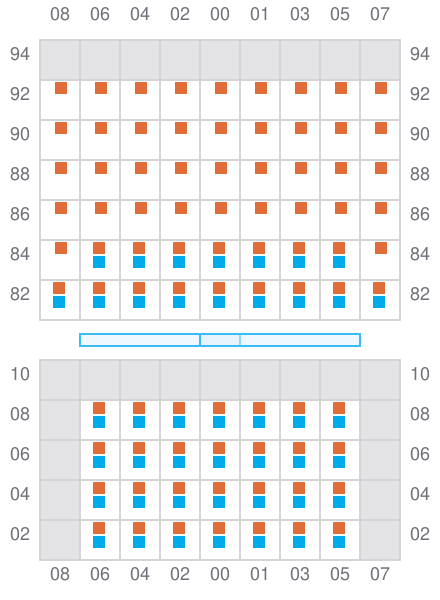

021
- ← / →
- →
![Bay 021 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b021.png?v=1711307791587)

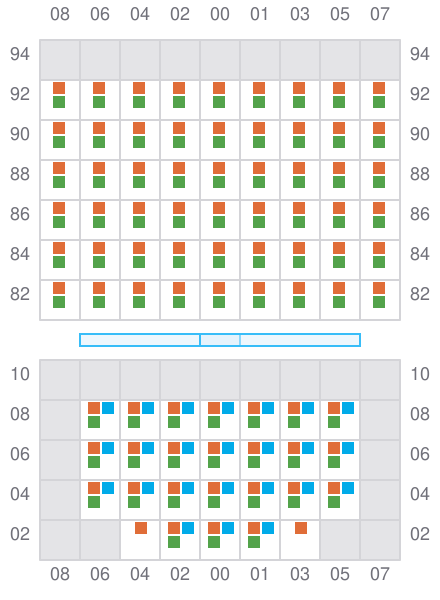

023 (024)
- →
- ? / ←
![Bay 023 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b023.png?v=1711307791587)

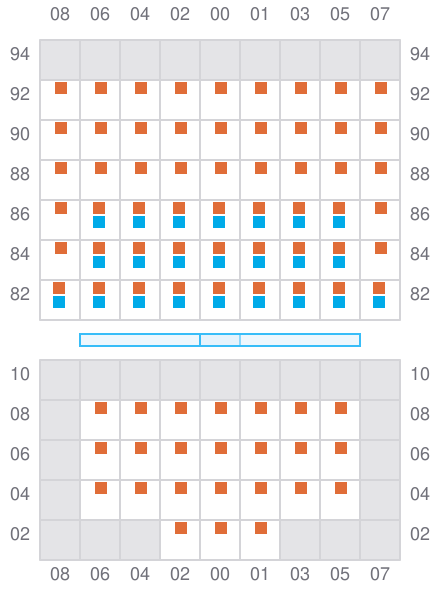

025
- ← / →
- → / ?
![Bay 025 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b025.png?v=1711307791587)

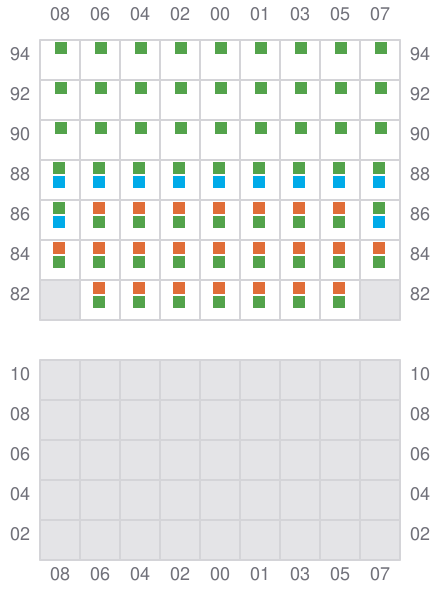

027 (028)
- → / ?
- → / ?
![Bay 027 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b027.png?v=1711307791587)

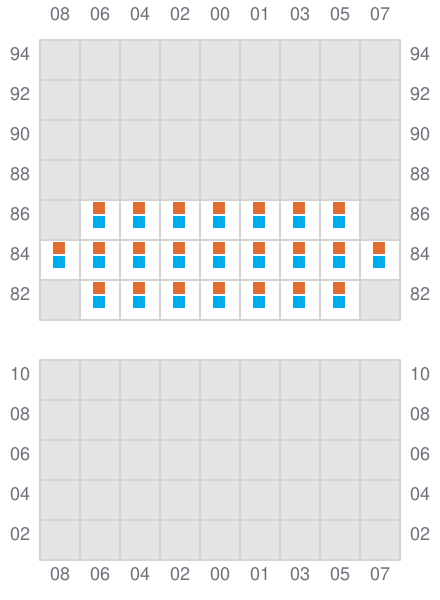

029
- ← / ?
- → / ?
![Bay 029 view and slots of BF TROUT](/vessel-images/62d44406-e7b0-437a-9ee9-9bd68924c42c-b029.png?v=1711307791587)
