BF TROUT
9437232 | 5BFM4 | 9437232 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:BF TROUT
IMO Code:9437232
Call Sign:5BFM4
Line Operator:9437232
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,096
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

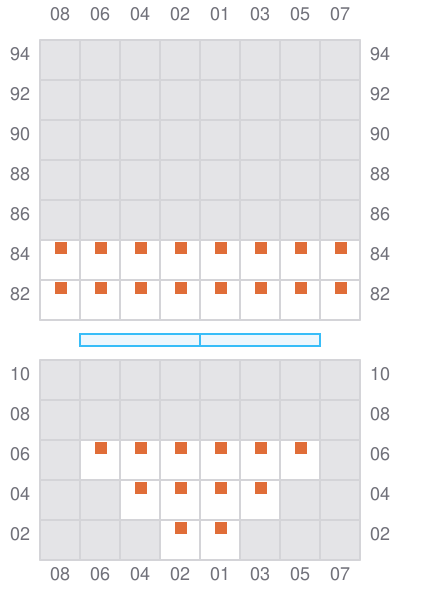

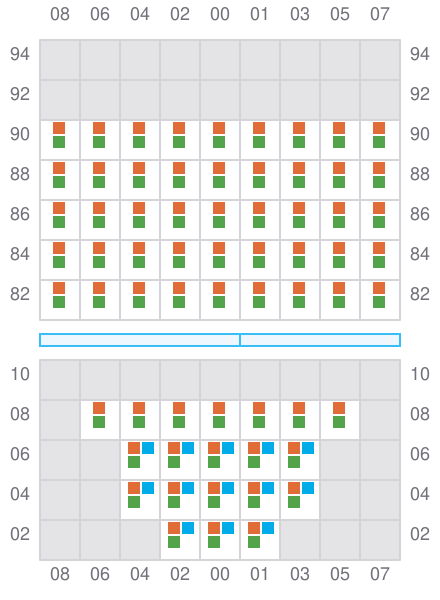

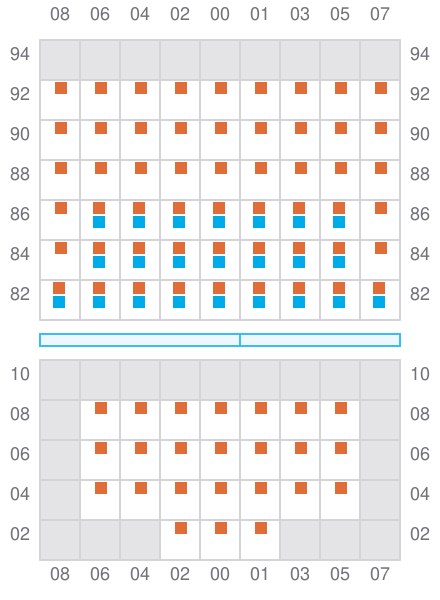

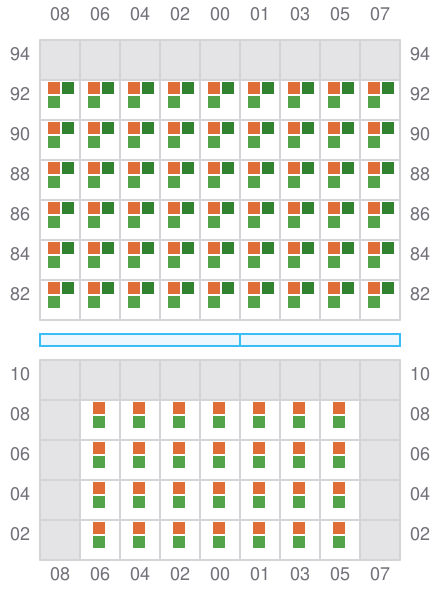

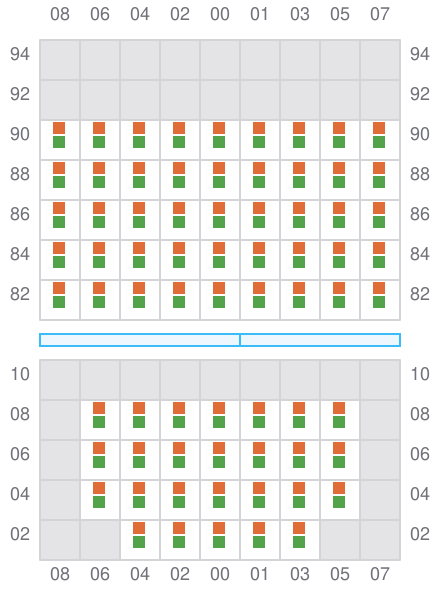

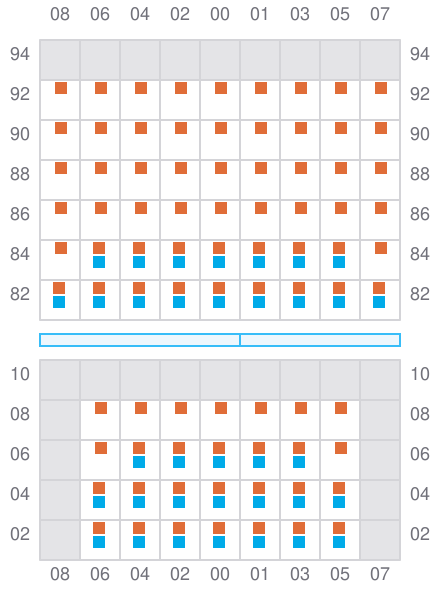

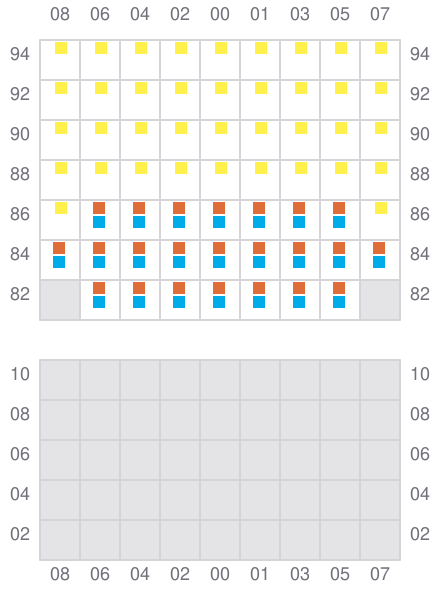

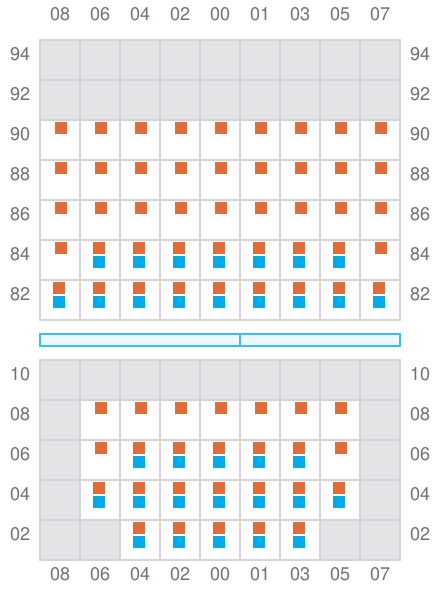

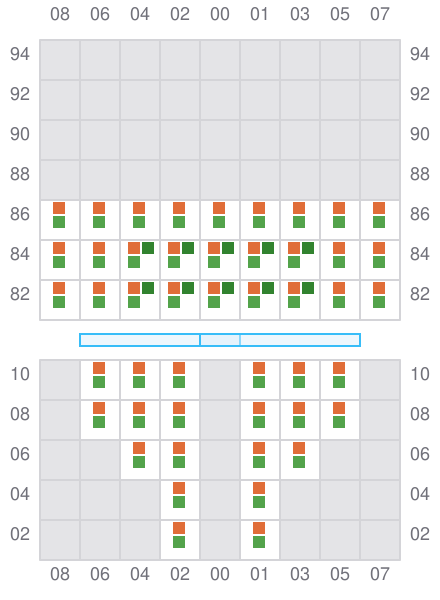

001
- →
003 (004)
- →

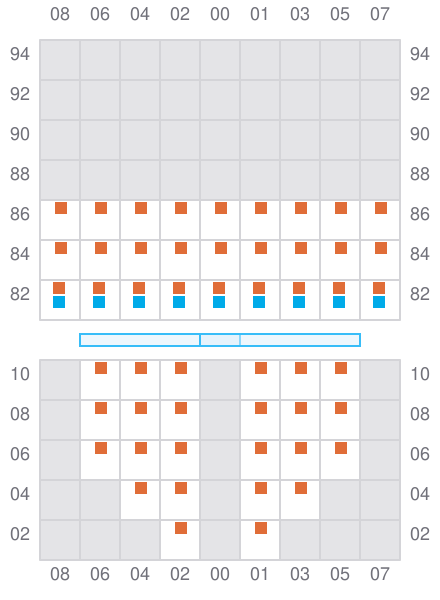

005
- ←
- → / ?
007 (008)
- →
- ? / ←

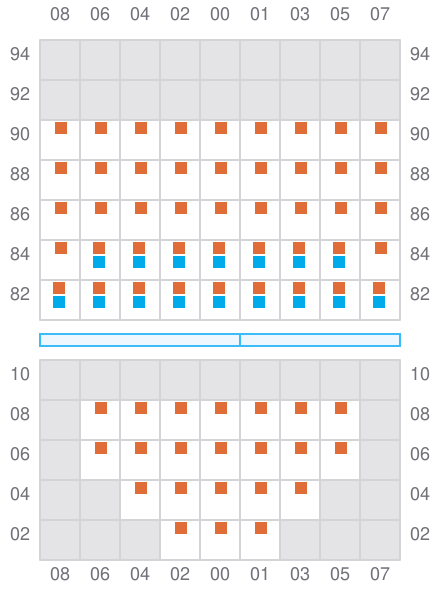

009
- ←
011 (012)
- →
013
- ← / →
- →
015 (016)
- →
- ? / ←

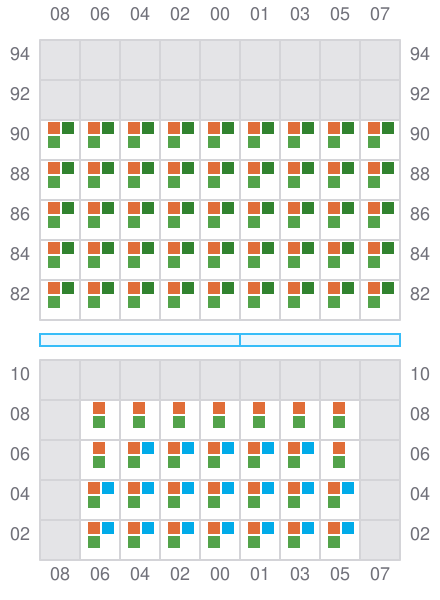

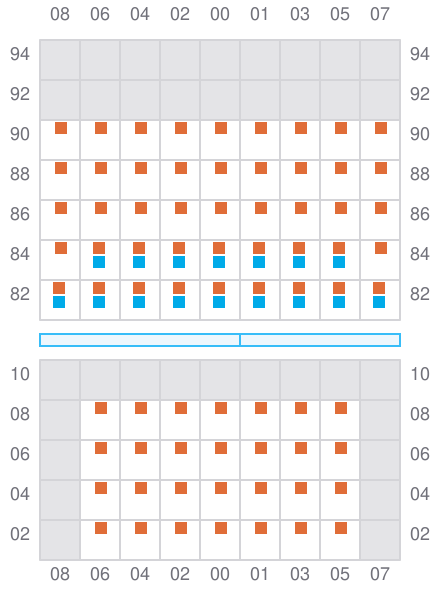

017
- ← / →
- → / ?
019 (020)
- →
021
- ← / →
- →

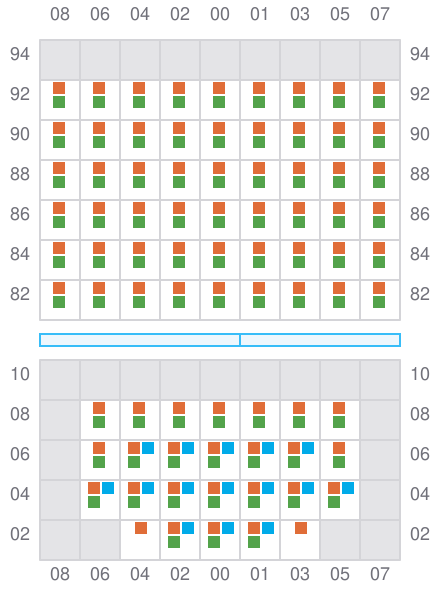

023 (024)
- →
- ? / ←
025
- ← / →
- → / ?

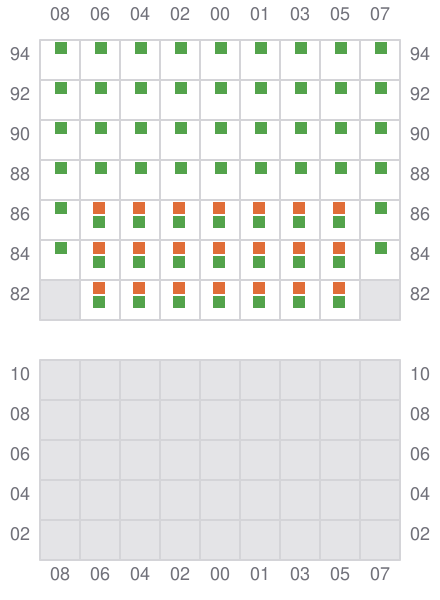

027 (028)
- → / ?
- → / ?
029
- ← / ?
- → / ?
