BHUDTHI BHUM
9403621 | 9V7365 | 9403621 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:BHUDTHI BHUM
IMO Code:9403621
Call Sign:9V7365
Line Operator:9403621
Class Name for Sister Ships:APL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45, 48
LPP (LBP):276.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,310
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

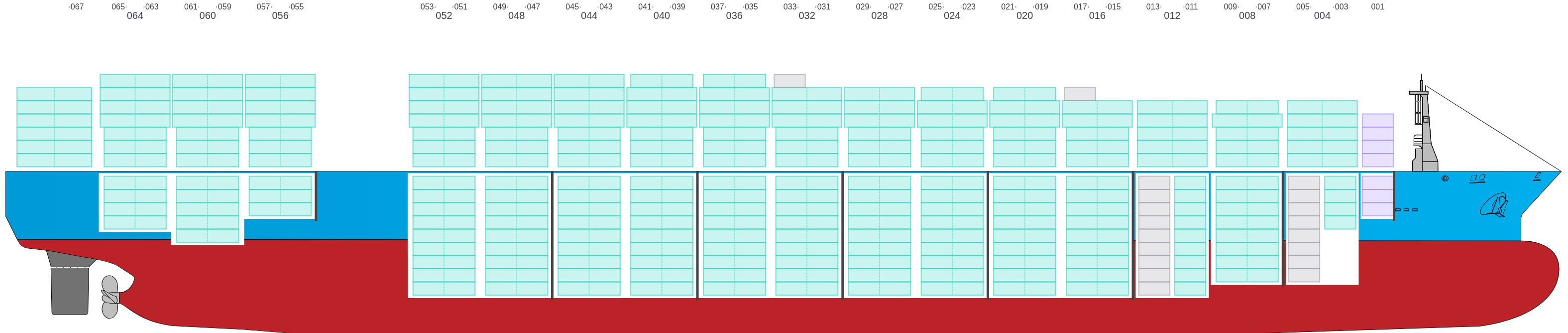

Side View
![Side view of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-sideView.png?v=1712258425068)
Hatch-Covers View
![Deck view of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-deckView.png?v=1712258425068)
ISO Bays
Legend
- 20'
- 40'
- 45'
- 48'
- Reefer
- Restricted slot

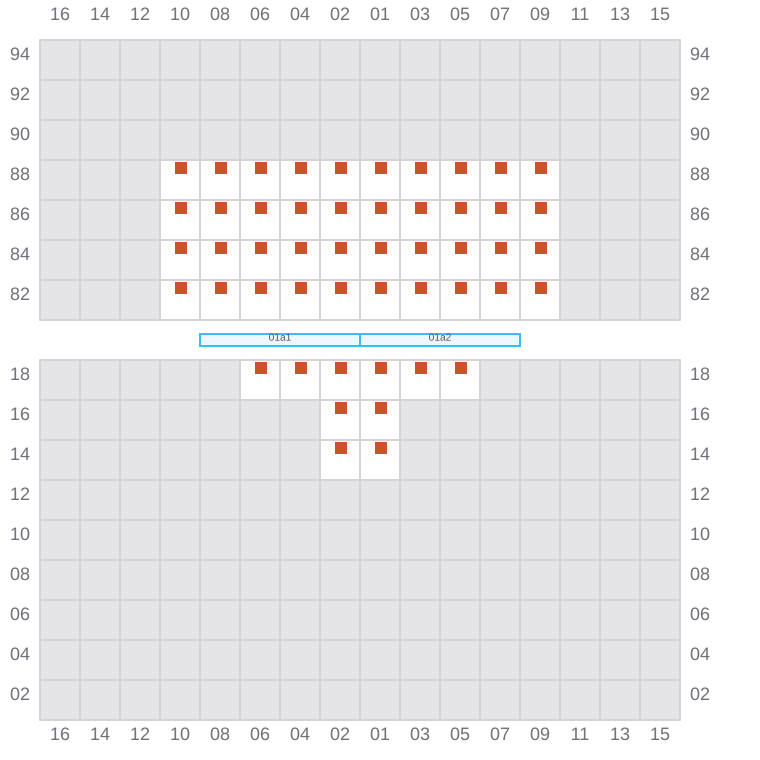

001
![Bay 001 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b001.png?v=1712258425068)

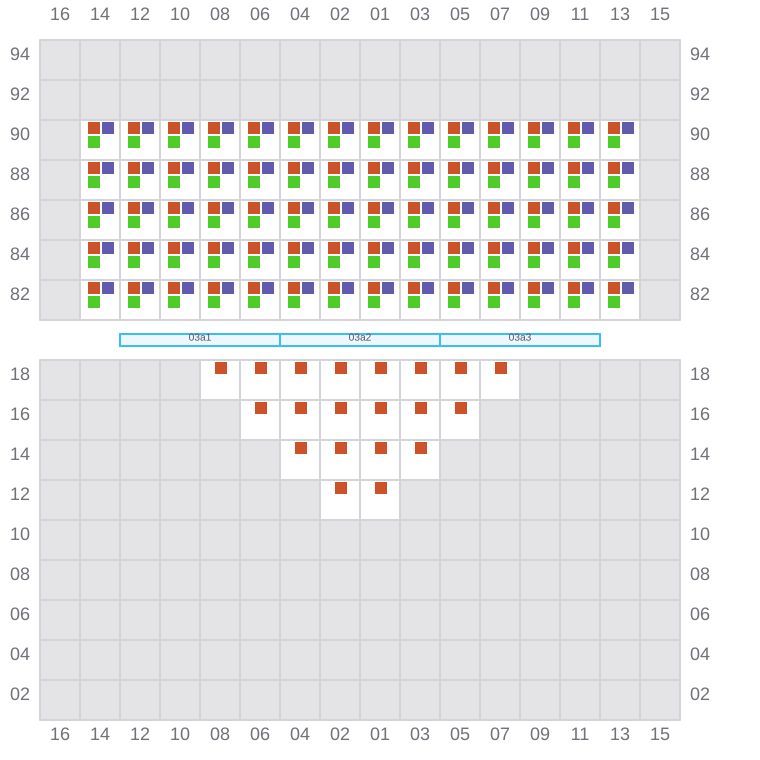

003 (004)
- →
![Bay 003 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b003.png?v=1712258425068)

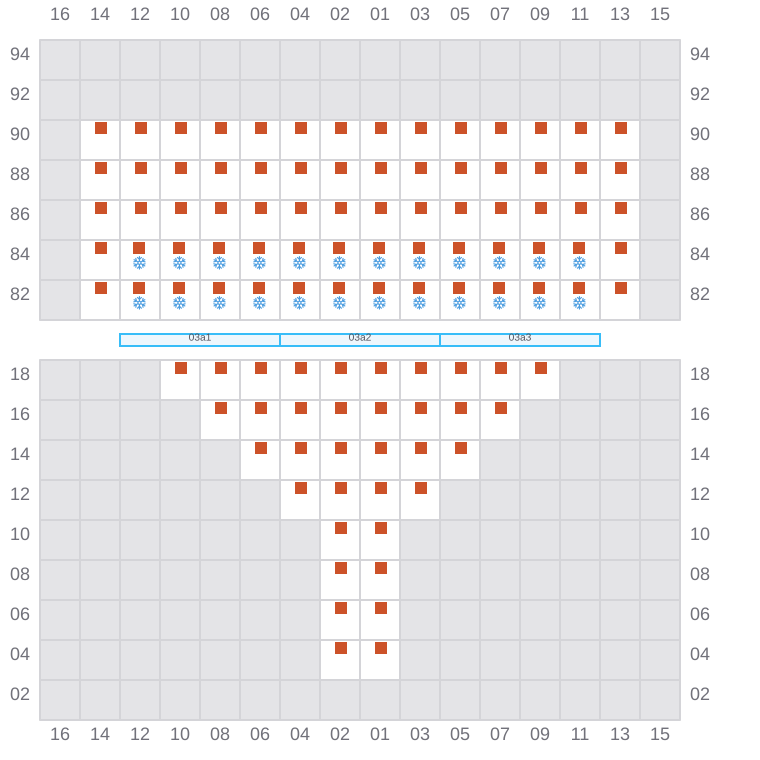

005
- ←
- → / ?
![Bay 005 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b005.png?v=1712258425068)

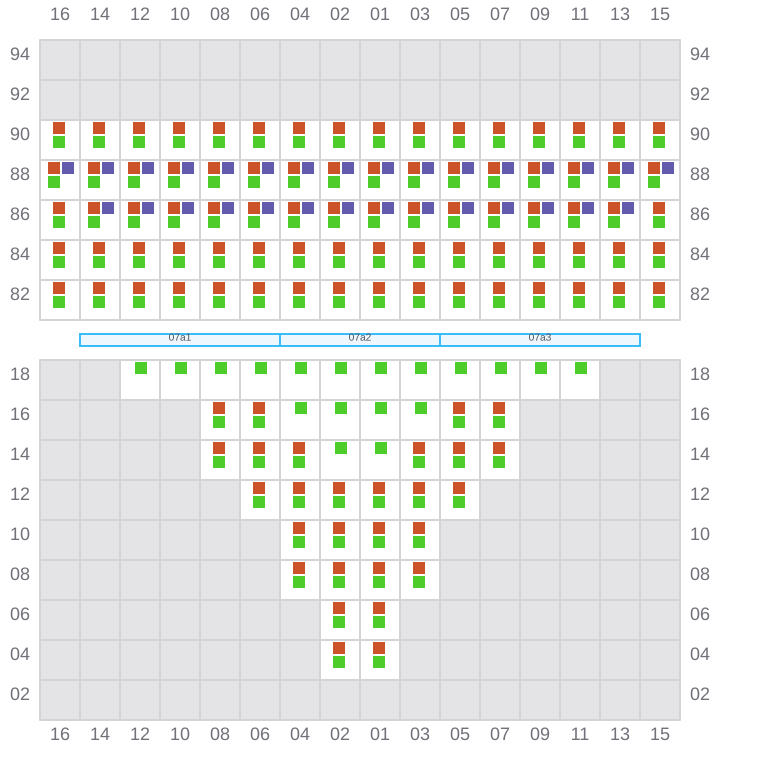

007 (008)
- →
![Bay 007 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b007.png?v=1712258425068)

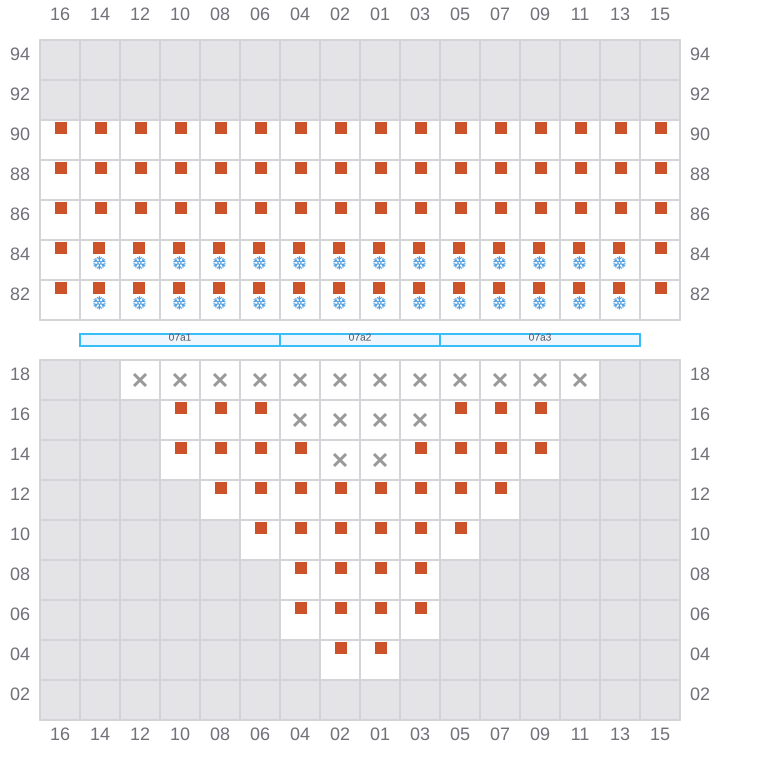

009
- ←
- → / ?
![Bay 009 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b009.png?v=1712258425068)

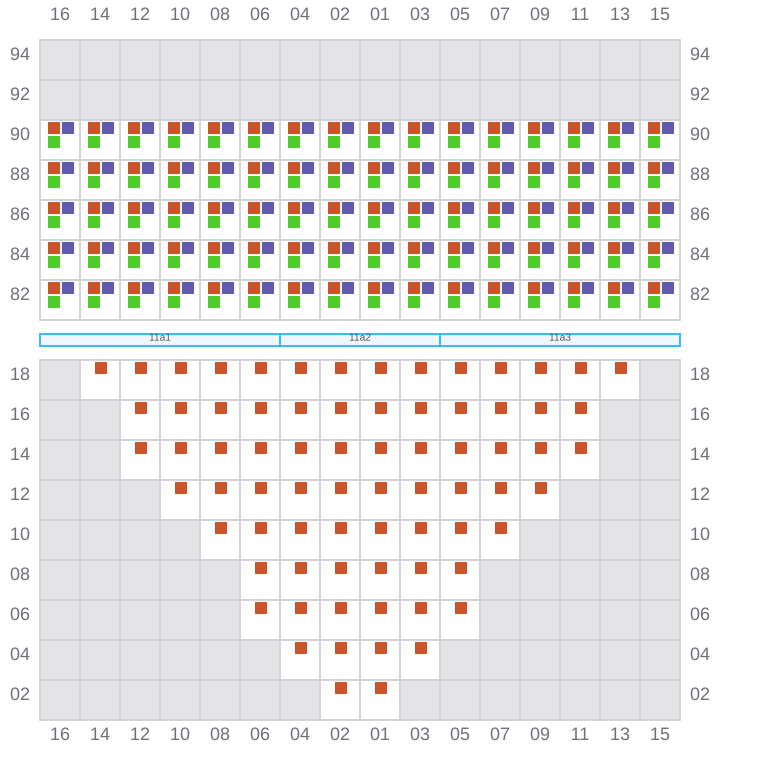

011 (012)
- →
![Bay 011 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b011.png?v=1712258425068)

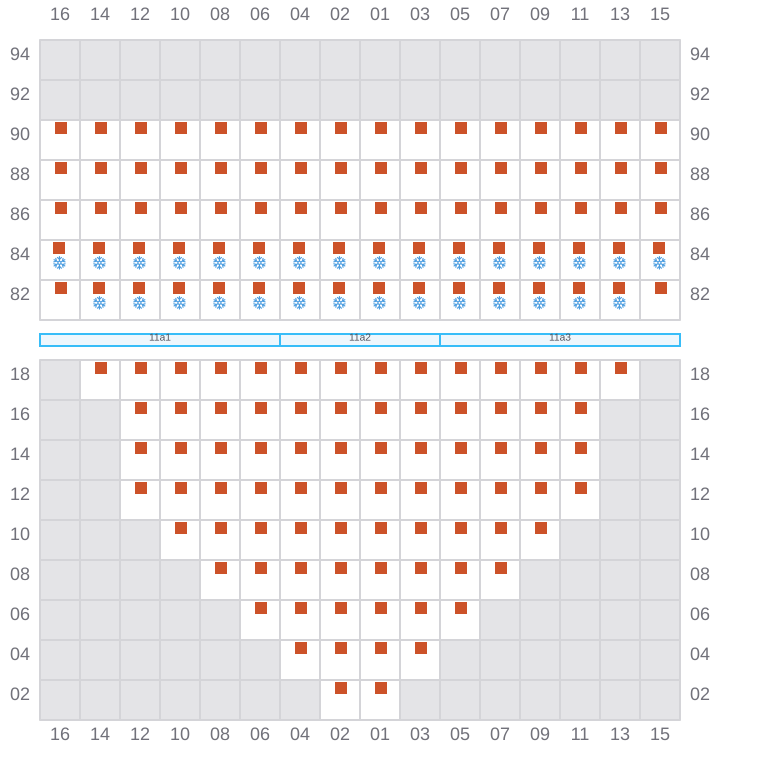

013
- ←
- → / ?
![Bay 013 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b013.png?v=1712258425068)
015 (016)
- →
![Bay 015 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b015.png?v=1712258425068)

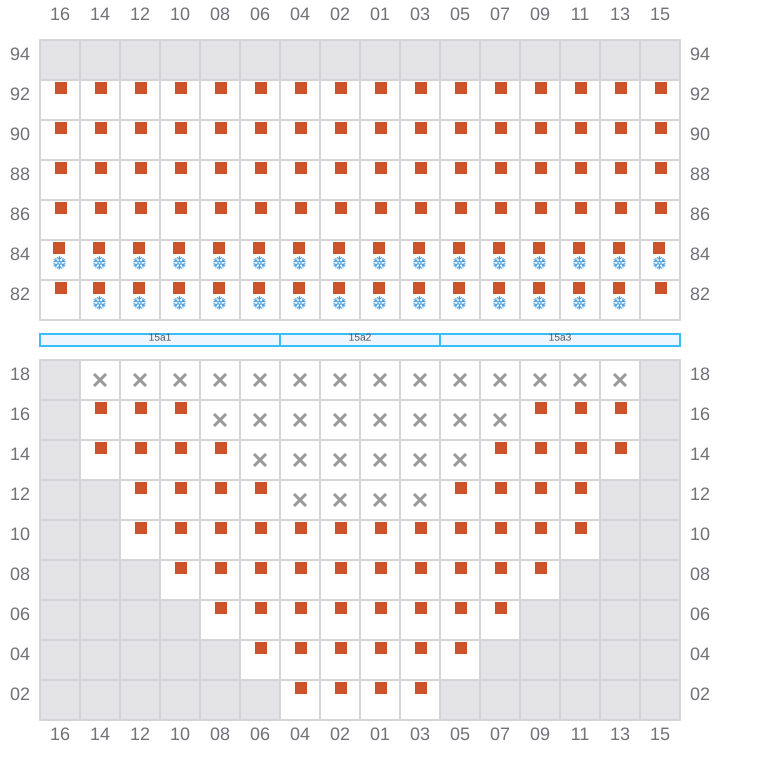

017
- ←
- → / ?
![Bay 017 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b017.png?v=1712258425068)

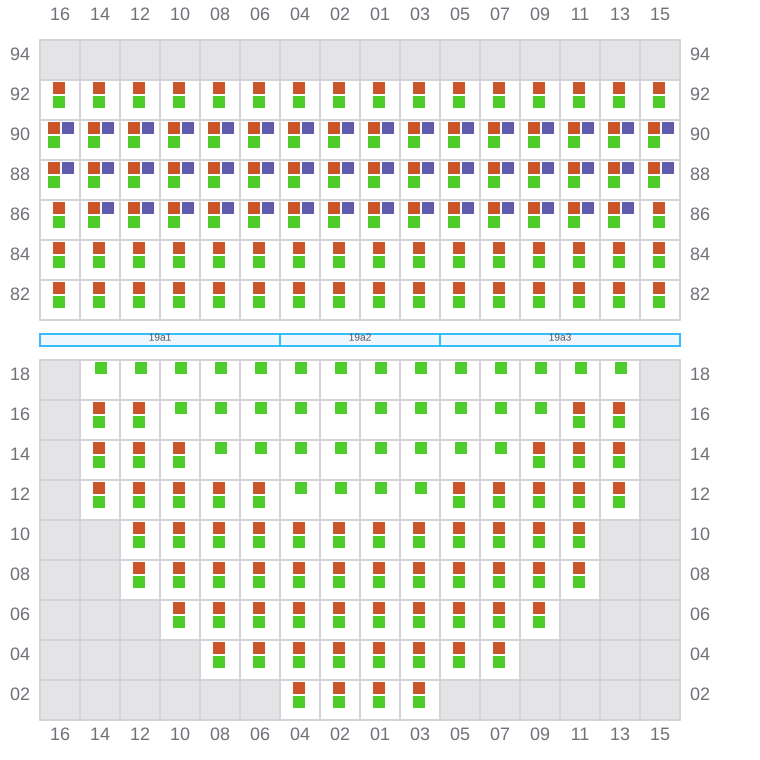

019 (020)
- →
![Bay 019 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b019.png?v=1712258425068)
021
- ←
- → / ?
![Bay 021 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b021.png?v=1712258425068)
023 (024)
- →
![Bay 023 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b023.png?v=1712258425068)
025
- ←
- → / ?
![Bay 025 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b025.png?v=1712258425068)
027 (028)
- →
![Bay 027 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b027.png?v=1712258425068)
029
- ←
- → / ?
![Bay 029 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b029.png?v=1712258425068)

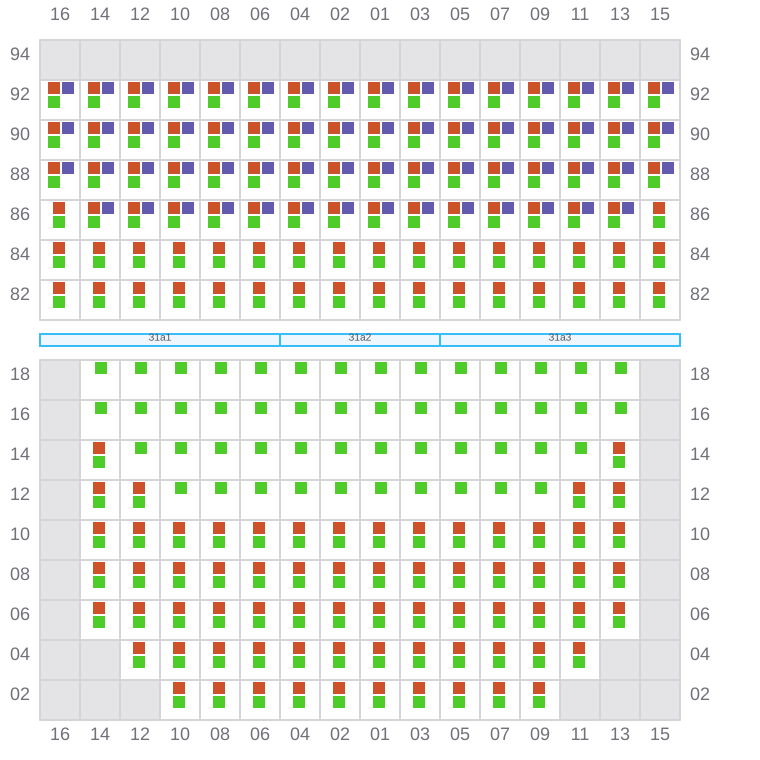

031 (032)
- →
![Bay 031 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b031.png?v=1712258425068)

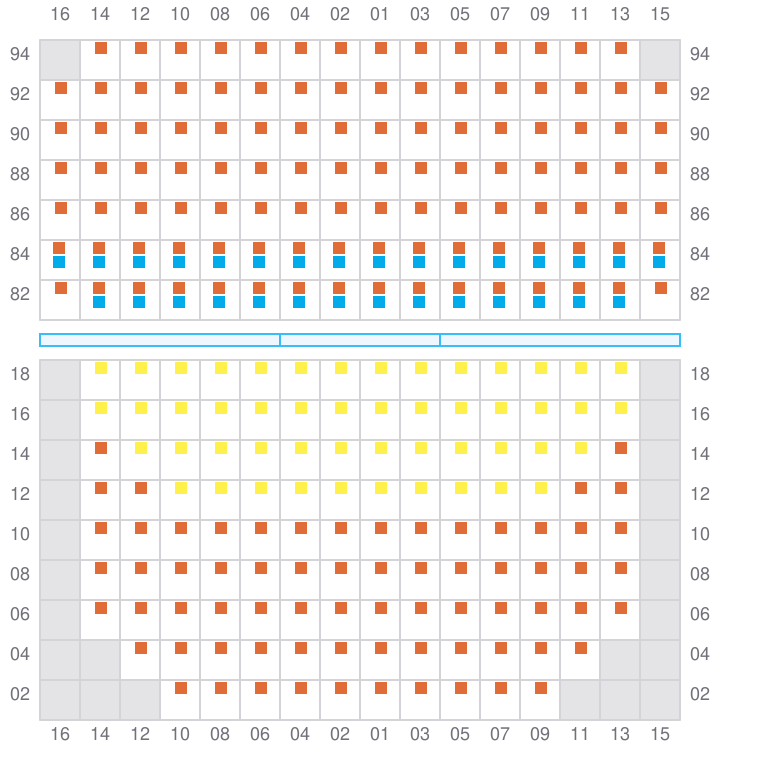

033
- ←
- → / ?
![Bay 033 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b033.png?v=1712258425068)
035 (036)
- →
![Bay 035 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b035.png?v=1712258425068)
037
- ←
- → / ?
![Bay 037 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b037.png?v=1712258425068)
039 (040)
- →
![Bay 039 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b039.png?v=1712258425068)
041
- ←
- → / ?
![Bay 041 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b041.png?v=1712258425068)
043 (044)
- →
![Bay 043 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b043.png?v=1712258425068)

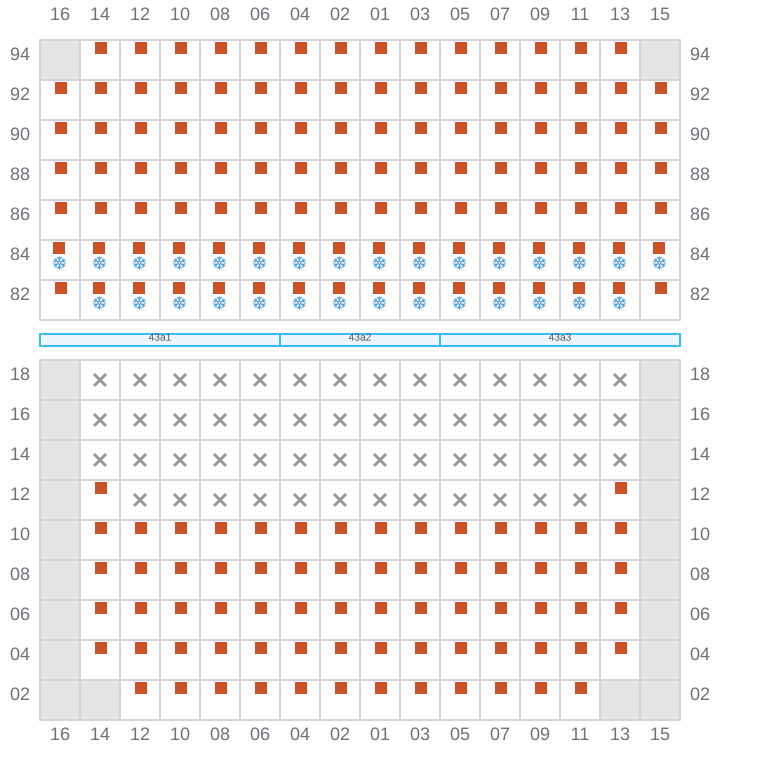

045
- ←
- → / ?
![Bay 045 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b045.png?v=1712258425068)
047 (048)
- →
![Bay 047 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b047.png?v=1712258425068)
049
- ←
- → / ?
![Bay 049 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b049.png?v=1712258425068)
051 (052)
- →
![Bay 051 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b051.png?v=1712258425068)

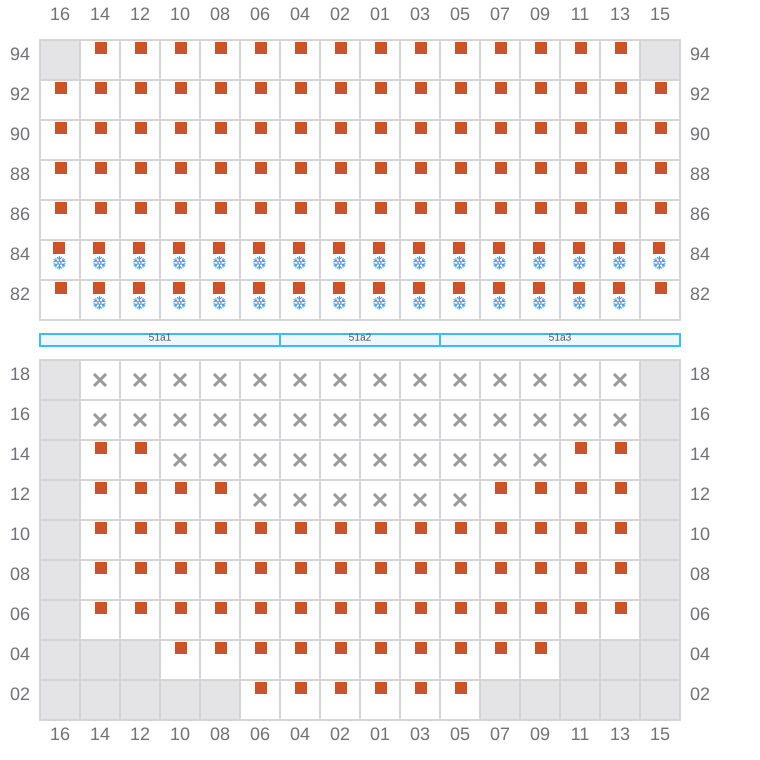

053
- ←
- → / ?
![Bay 053 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b053.png?v=1712258425068)
055 (056)
- →
![Bay 055 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b055.png?v=1712258425068)

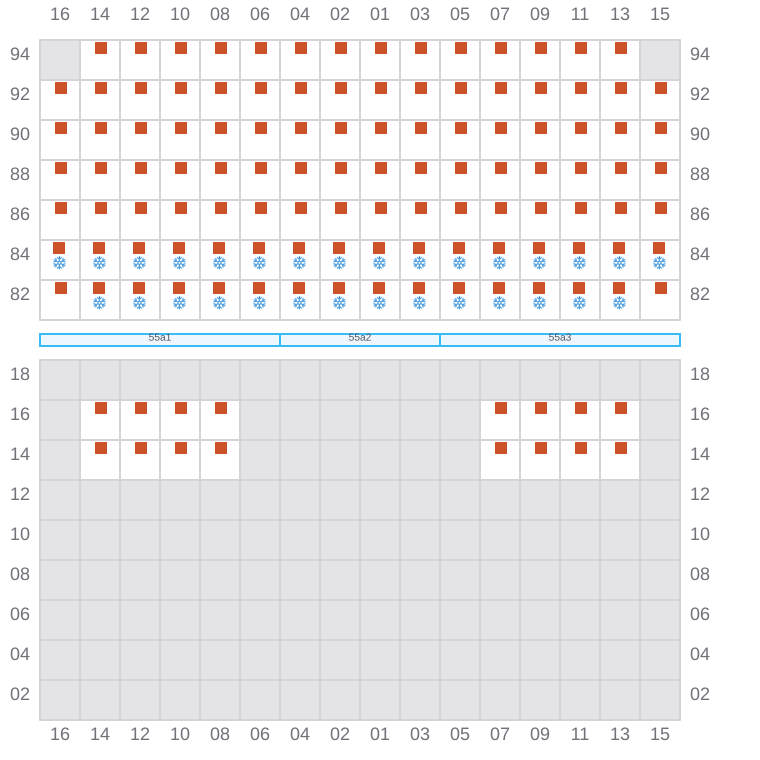

057
- ←
- → / ?
![Bay 057 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b057.png?v=1712258425068)

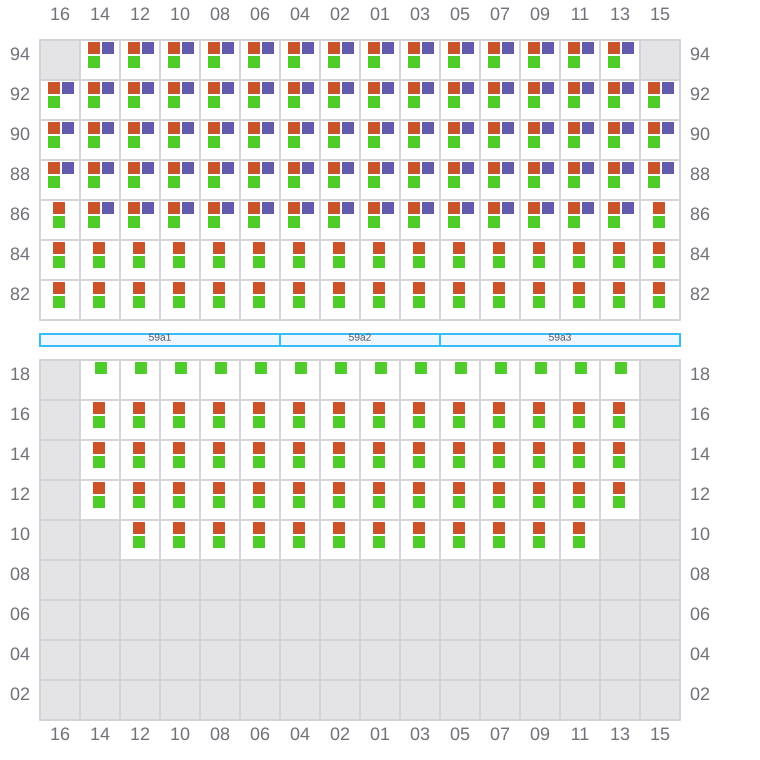

059 (060)
- →
![Bay 059 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b059.png?v=1712258425068)

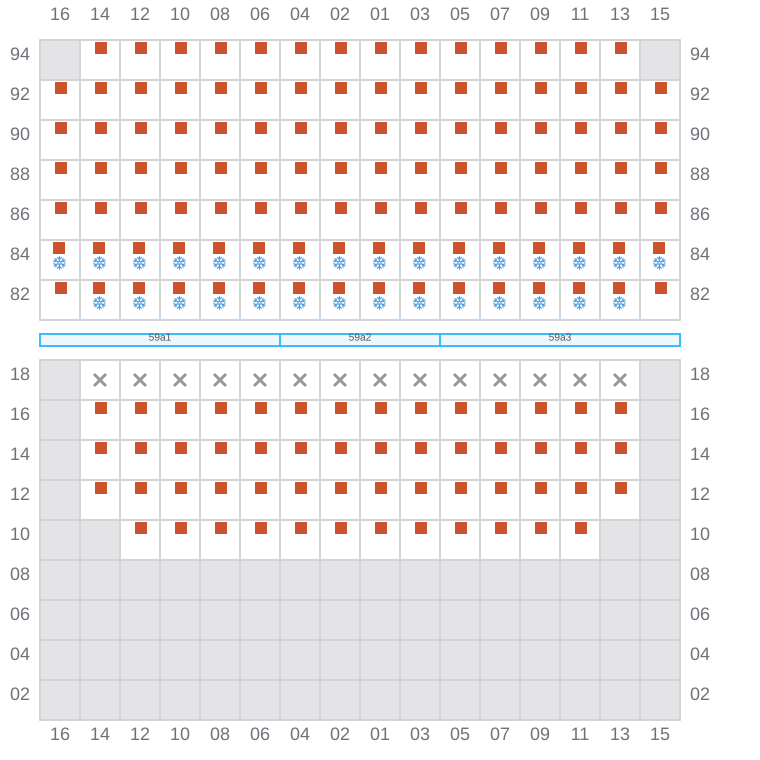

061
- ←
- → / ?
![Bay 061 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b061.png?v=1712258425068)
063 (064)
- →
![Bay 063 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b063.png?v=1712258425068)
065
- ←
- → / ?
![Bay 065 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b065.png?v=1712258425068)

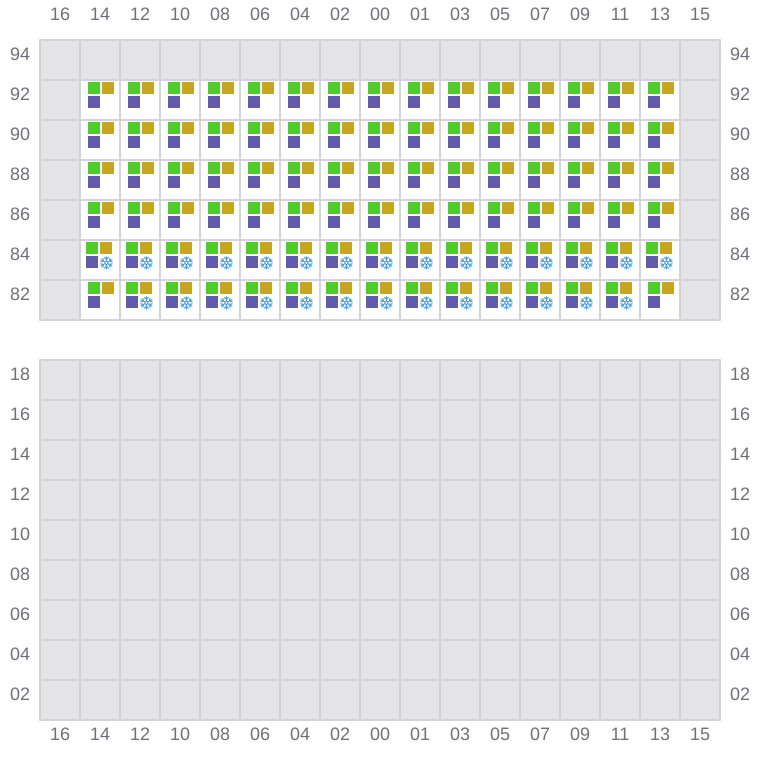

067 (068)
- → / ?
- ← / ?
![Bay 067 view and slots of BHUDTHI BHUM](/vessel-images/9711fb15-96d4-4993-93fc-2567a7da6a45-b067.png?v=1712258425068)
