BIEN DONG STAR
9228289 | 3WWN | 9228289 by ********* Last update: Fri Mar 15 2024

General Info

Ship Name:BIEN DONG STAR
IMO Code:9228289
Call Sign:3WWN
Line Operator:9228289
Class Name for Sister Ships:6U7
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):111.66
LOA (Length Overall):121.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:025
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:600

Centers of Gravity

LCG Values:Known
LCG Data:97%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

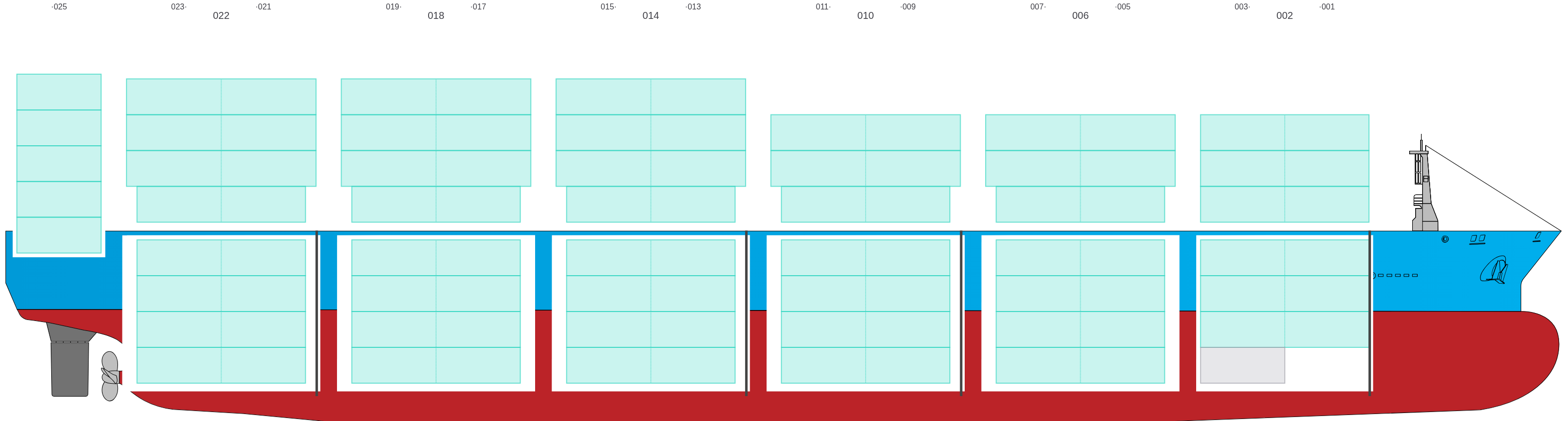

Side View

Side view of BIEN DONG STAR

Hatch-Covers View

Deck view of BIEN DONG STAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of BIEN DONG STAR

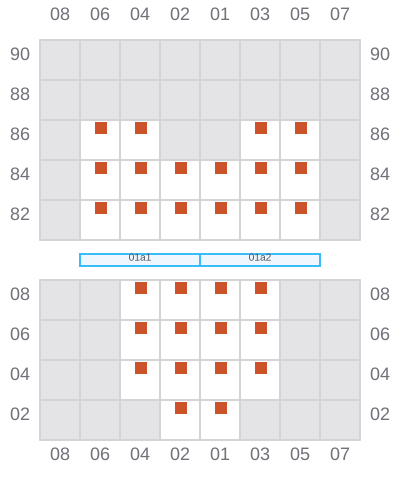

003

  • ←
Bay 003 view and slots of BIEN DONG STAR

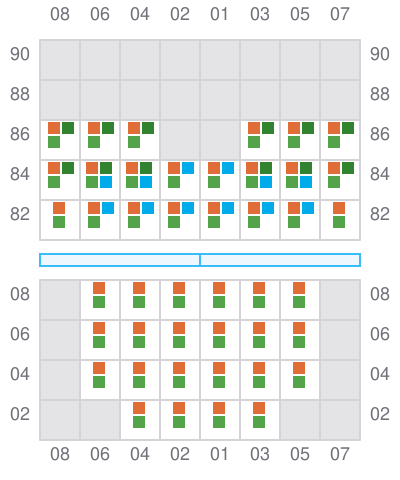

005 (006)

  • →
Bay 005 view and slots of BIEN DONG STAR

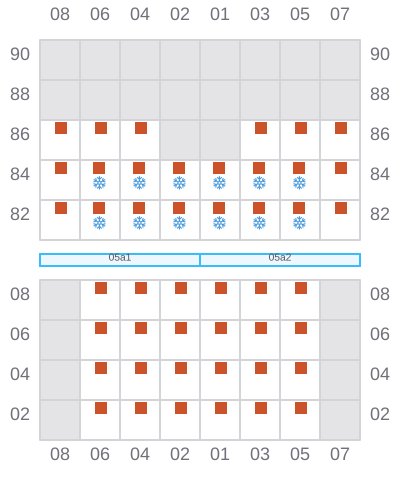

007

  • ←
  • → / ?
Bay 007 view and slots of BIEN DONG STAR

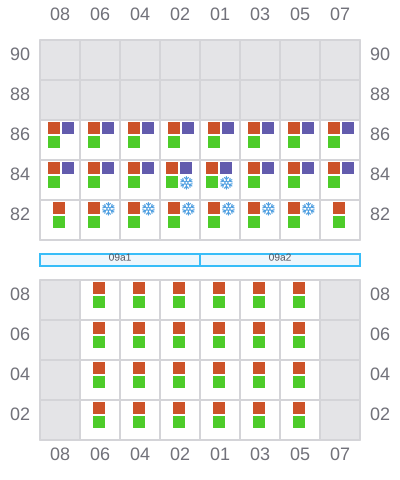

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of BIEN DONG STAR

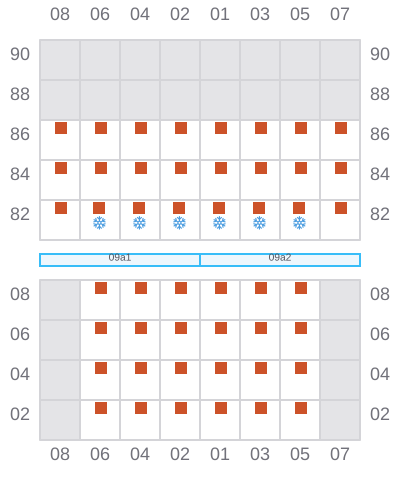

011

  • ←
  • → / ?
Bay 011 view and slots of BIEN DONG STAR

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of BIEN DONG STAR

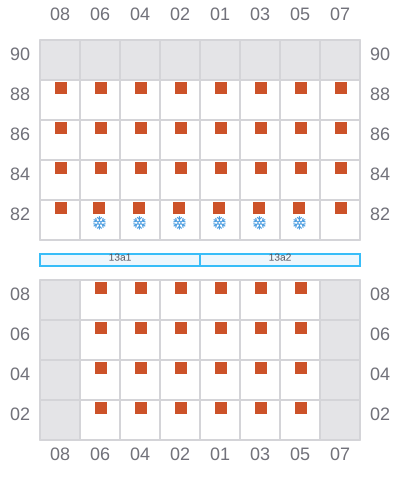

015

  • ←
  • → / ?
Bay 015 view and slots of BIEN DONG STAR

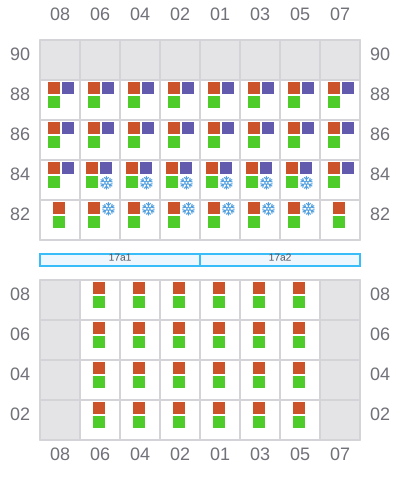

017 (018)

  • →
  • ← / ?
Bay 017 view and slots of BIEN DONG STAR

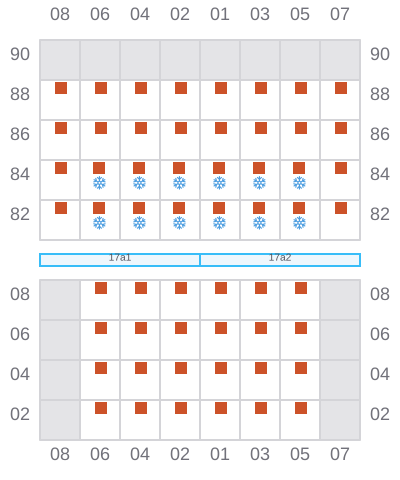

019

  • ←
  • → / ?
Bay 019 view and slots of BIEN DONG STAR

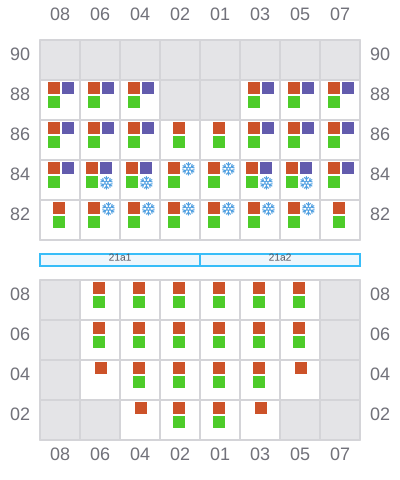

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of BIEN DONG STAR

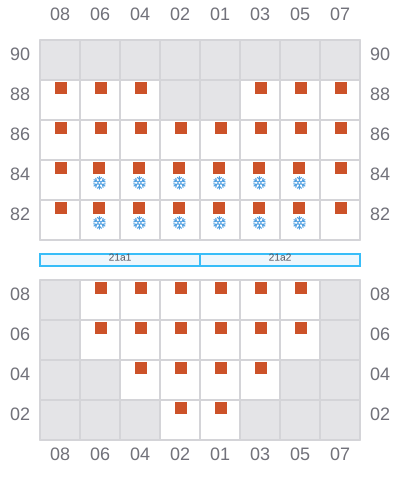

023

  • ←
  • → / ?
Bay 023 view and slots of BIEN DONG STAR

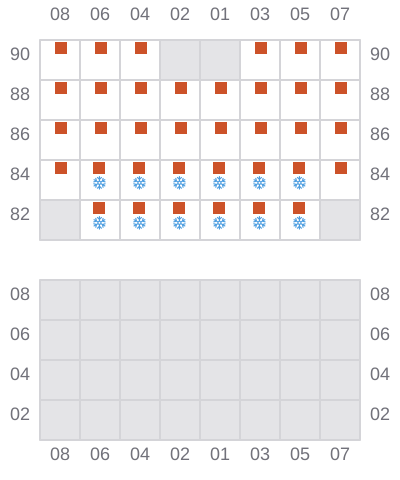

025

  • → / ?
  • ← / ?
Bay 025 view and slots of BIEN DONG STAR
