BIENDONG MARINER
9279214 | 3WKL | 9279214 by ********* Last update: Wed May 15 2024
General Info
Ship Name:BIENDONG MARINER
IMO Code:9279214
Call Sign:3WKL
Line Operator:9279214
Class Name for Sister Ships:VINASHIN MARINER
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,000
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

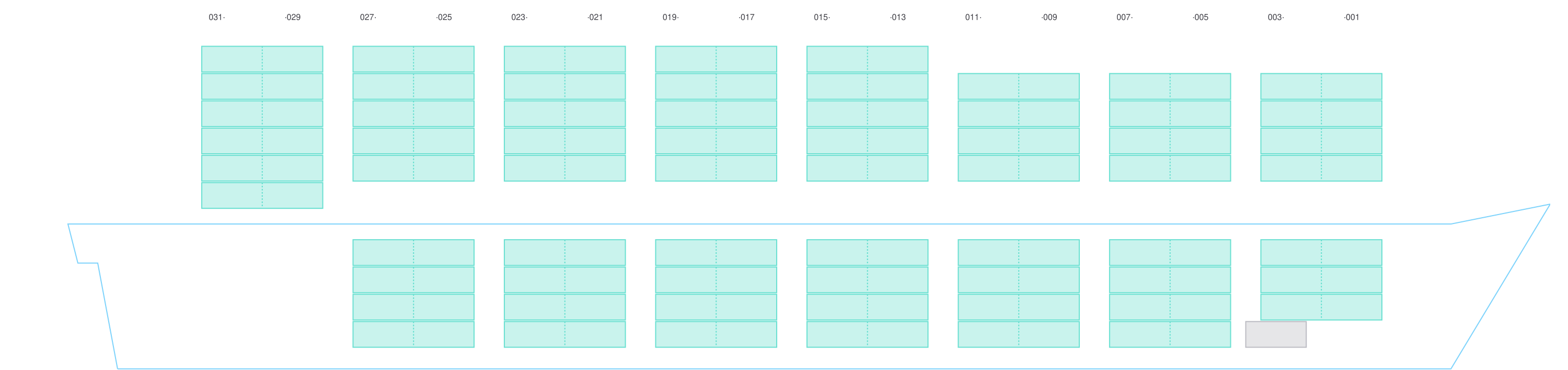

Side View
![Side view of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-sideView.png?v=1715792784388)
Hatch-Covers View
![Deck view of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-deckView.png?v=1715792784388)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

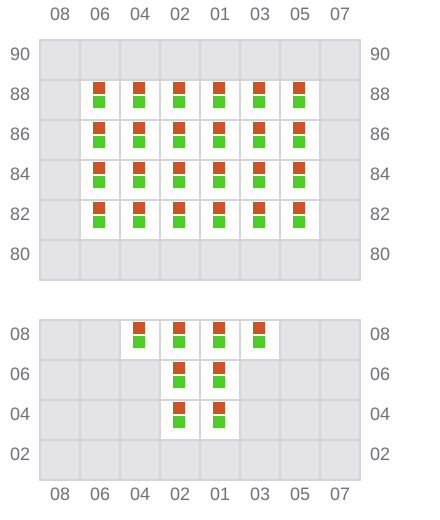

001 (002)
- →
![Bay 001 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b001.png?v=1715792784388)

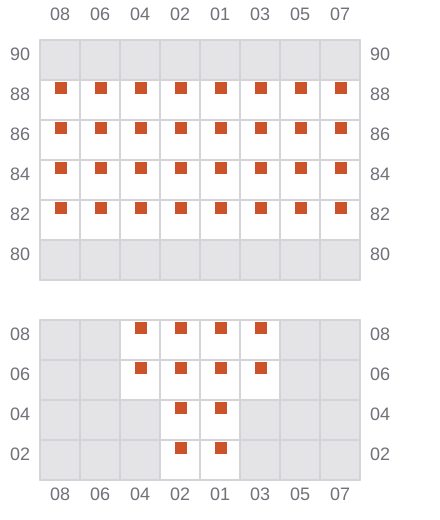

003
- ←
![Bay 003 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b003.png?v=1715792784388)

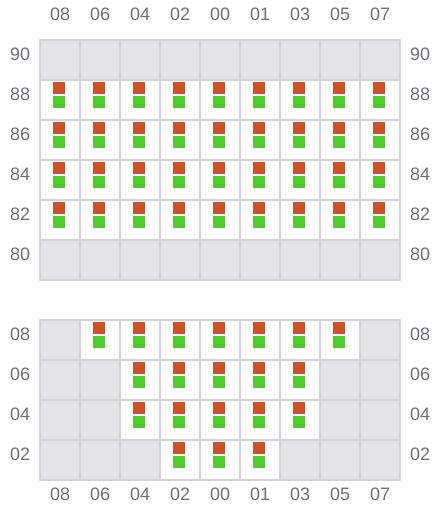

005 (006)
- →
![Bay 005 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b005.png?v=1715792784388)

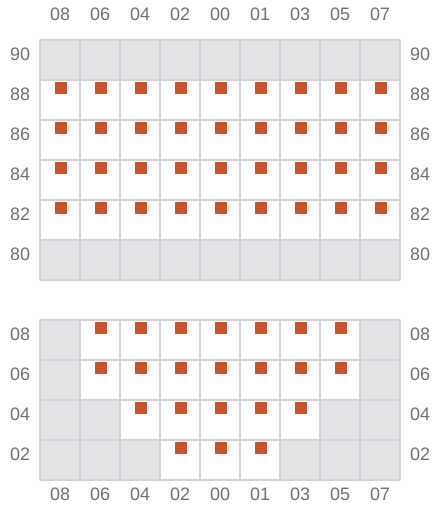

007
- ←
![Bay 007 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b007.png?v=1715792784388)

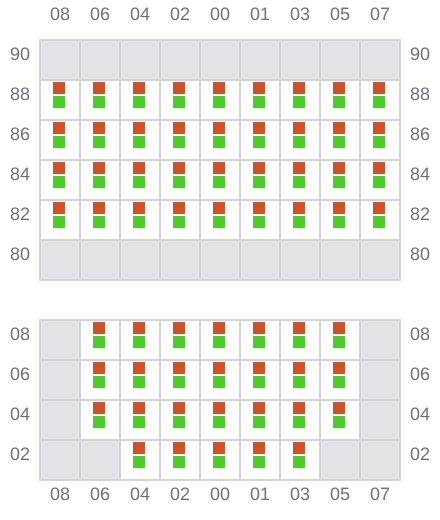

009 (010)
- →
![Bay 009 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b009.png?v=1715792784388)

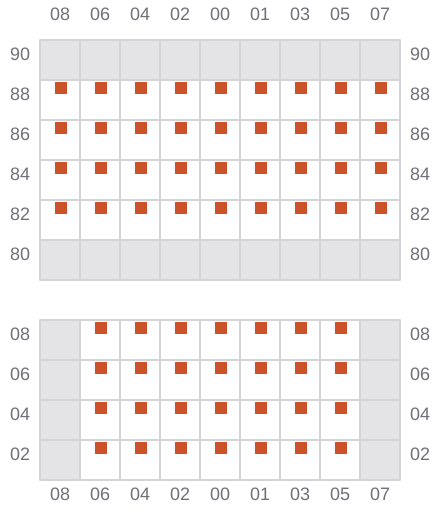

011
- ←
![Bay 011 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b011.png?v=1715792784388)

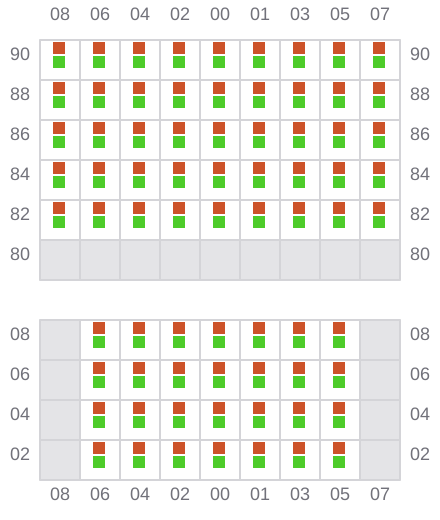

013 (014)
- →
![Bay 013 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b013.png?v=1715792784388)

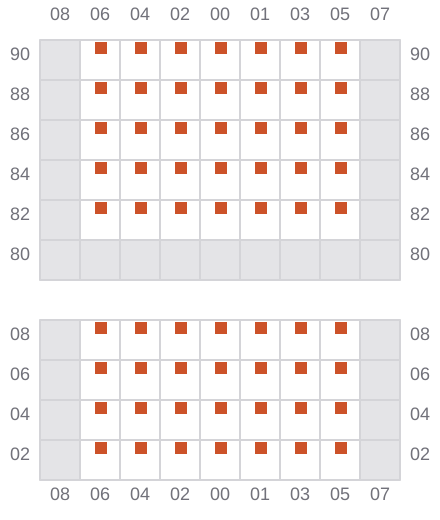

015
- ←
![Bay 015 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b015.png?v=1715792784388)
017 (018)
- →
![Bay 017 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b017.png?v=1715792784388)
019
- ←
![Bay 019 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b019.png?v=1715792784388)

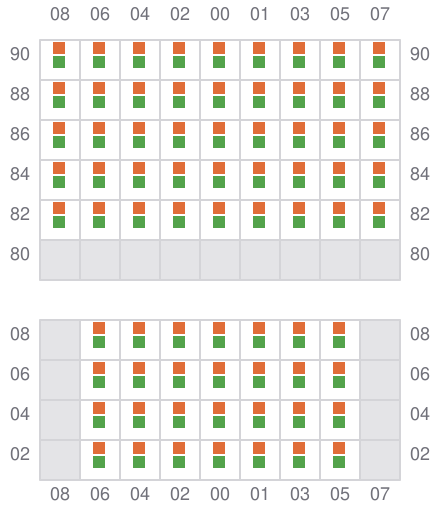

021 (022)
- →
![Bay 021 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b021.png?v=1715792784388)

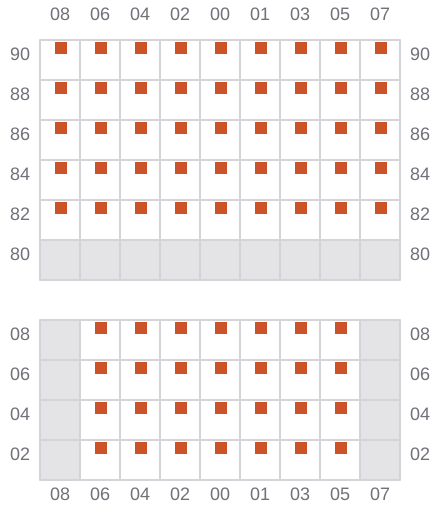

023
- ←
![Bay 023 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b023.png?v=1715792784388)

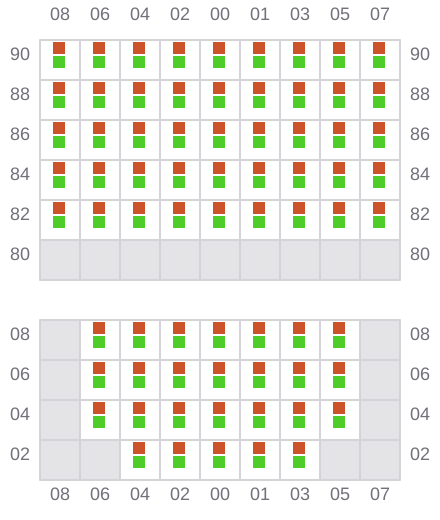

025 (026)
- →
![Bay 025 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b025.png?v=1715792784388)

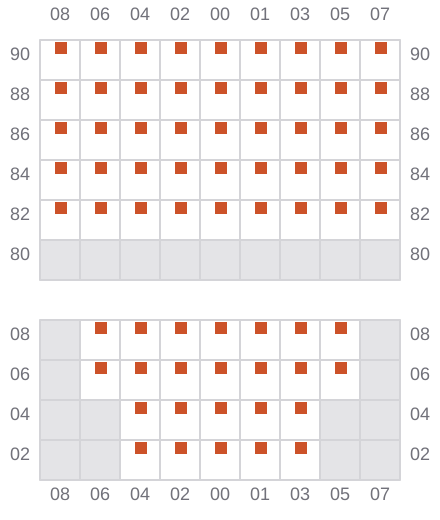

027
- ←
![Bay 027 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b027.png?v=1715792784388)

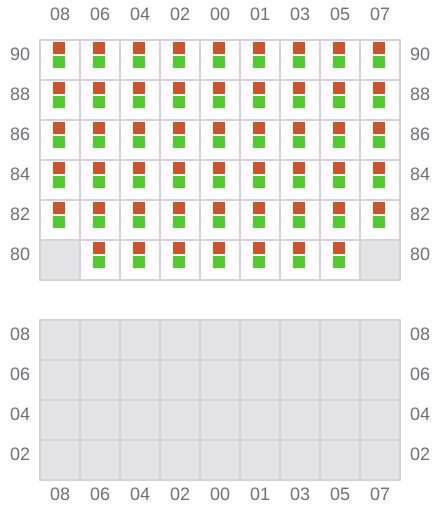

029 (030)
- → / ?
![Bay 029 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b029.png?v=1715792784388)

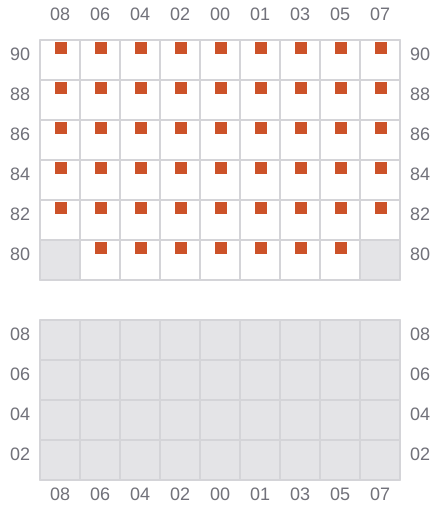

031
- ← / ?
![Bay 031 view and slots of BIENDONG MARINER](/vessel-images/84a09d7a-583c-4937-8098-8675f902ee30-b031.png?v=1715792784388)
