BIG DOG
9256377 | A8TL2 | 9256377 by ********* Last update: Fri Jun 07 2024
General Info
Ship Name:BIG DOG
IMO Code:9256377
Call Sign:A8TL2
Line Operator:9256377
Class Name for Sister Ships:MAERSK VOSHOD
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,740
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

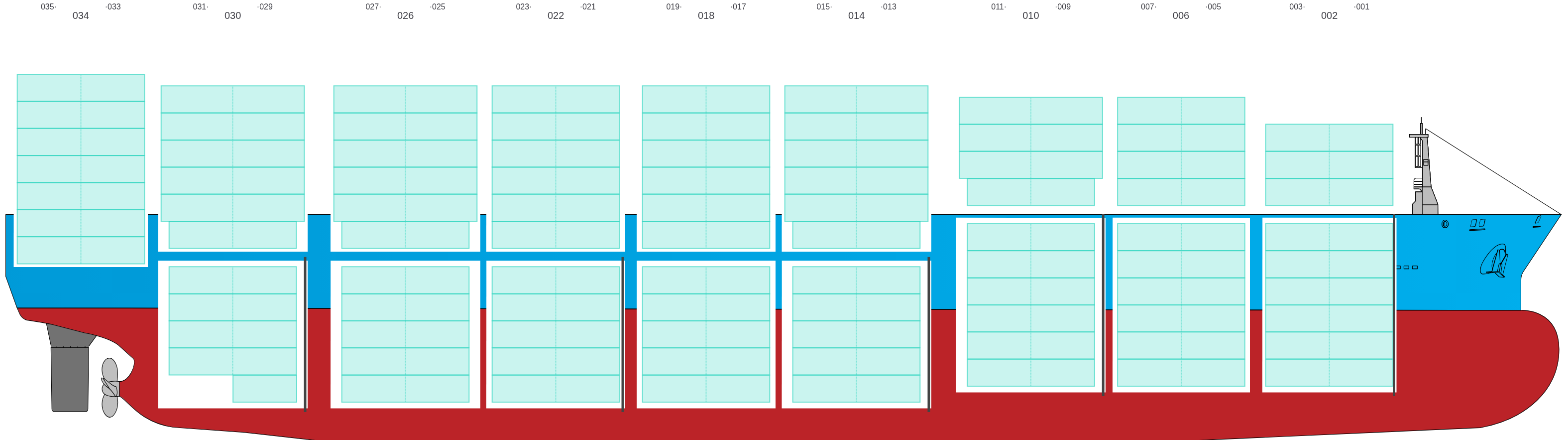

Side View
![Side view of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-sideView.png?v=1717785058495)

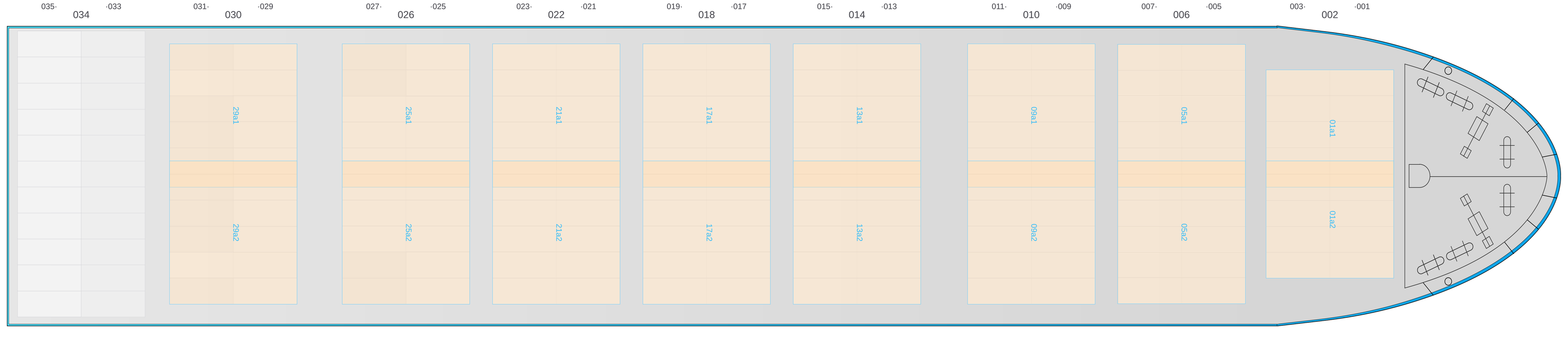

Hatch-Covers View
![Deck view of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-deckView.png?v=1717785058495)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

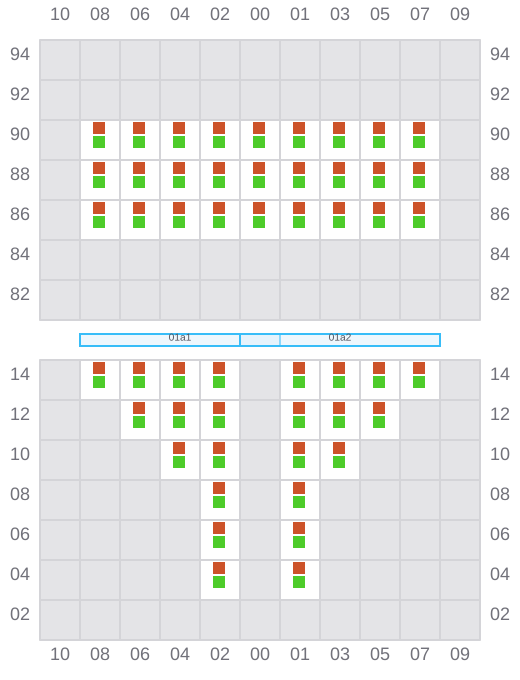

001 (002)
- →
![Bay 001 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b001.png?v=1717785058495)

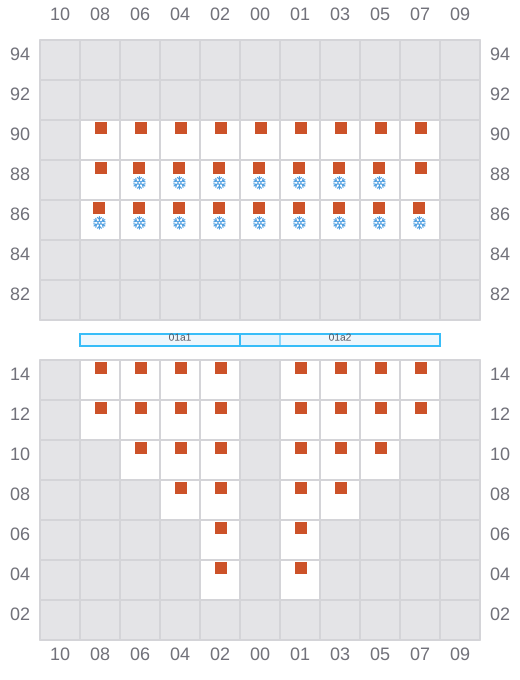

003
- ←
- → / ?
![Bay 003 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b003.png?v=1717785058495)

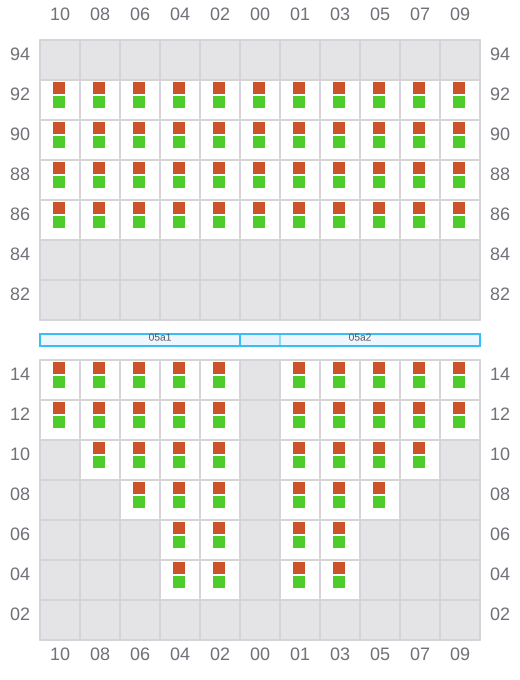

005 (006)
- →
![Bay 005 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b005.png?v=1717785058495)

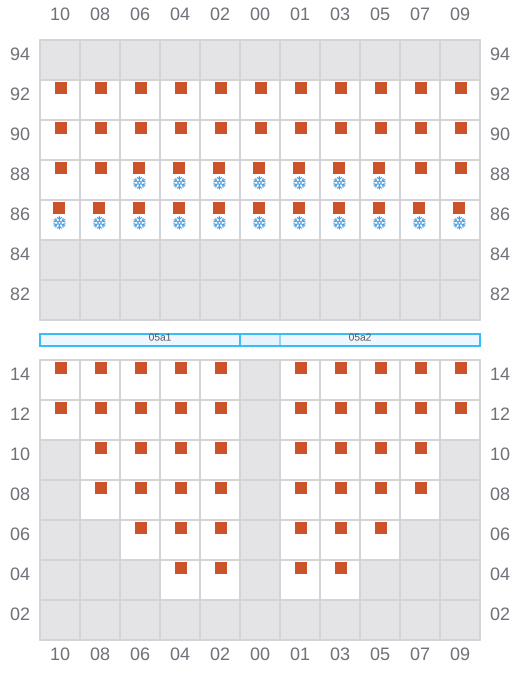

007
- ←
- → / ?
![Bay 007 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b007.png?v=1717785058495)

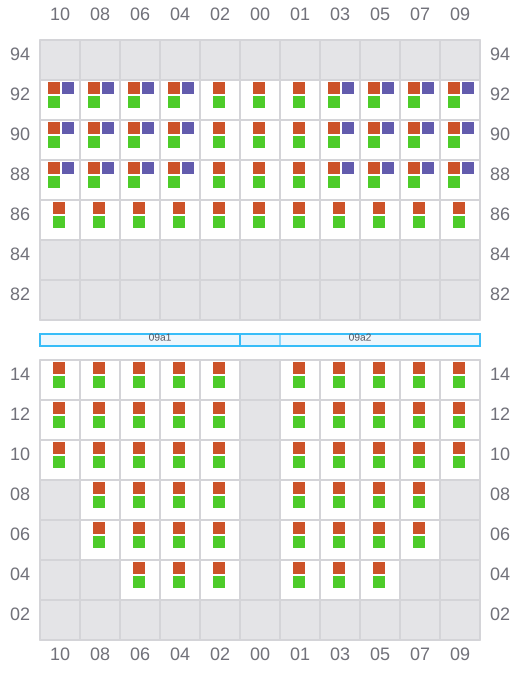

009 (010)
- →
![Bay 009 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b009.png?v=1717785058495)

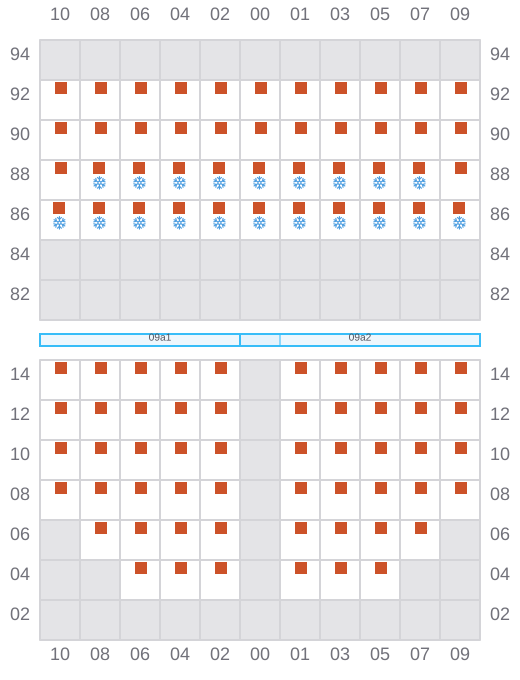

011
- ←
- → / ?
![Bay 011 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b011.png?v=1717785058495)

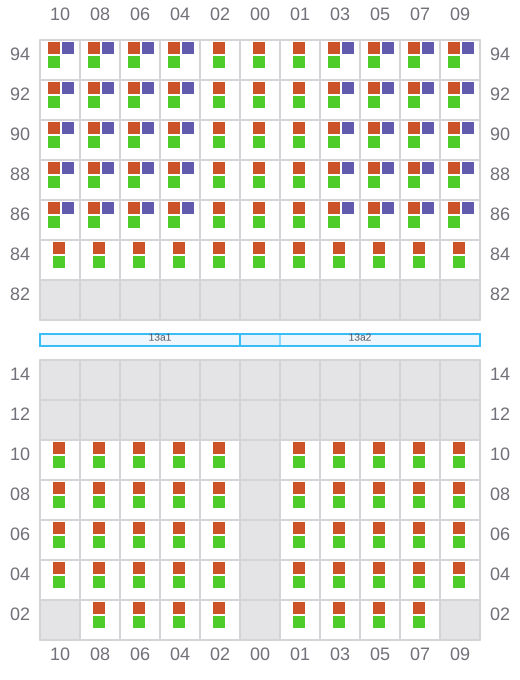

013 (014)
- →
![Bay 013 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b013.png?v=1717785058495)

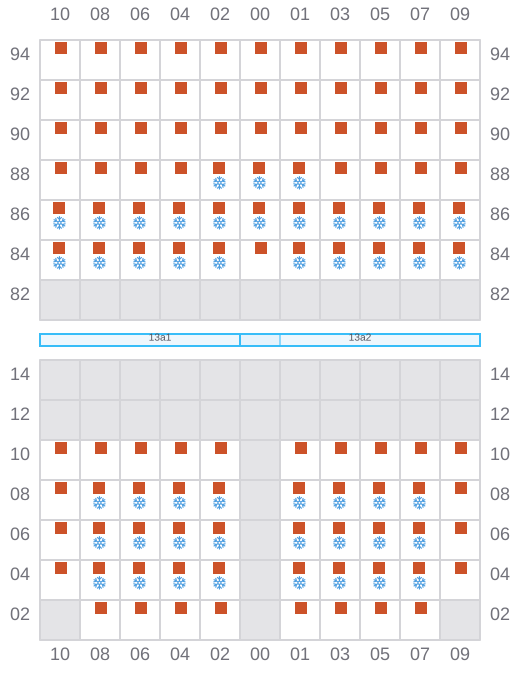

015
- ←
- →
![Bay 015 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b015.png?v=1717785058495)

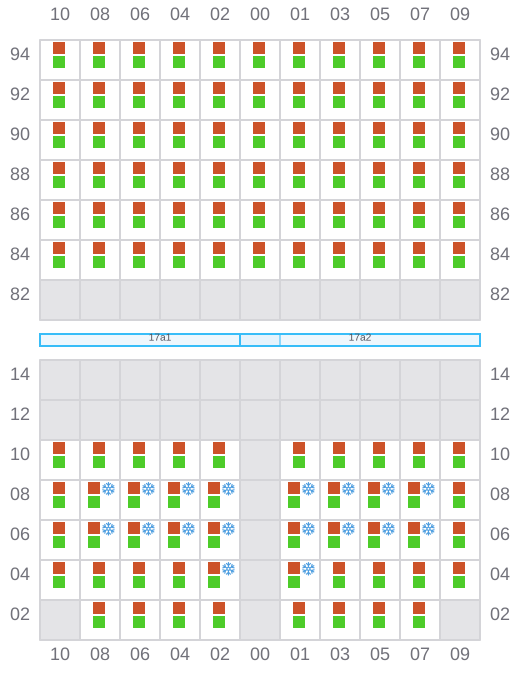

017 (018)
- →
- ? / ←
![Bay 017 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b017.png?v=1717785058495)

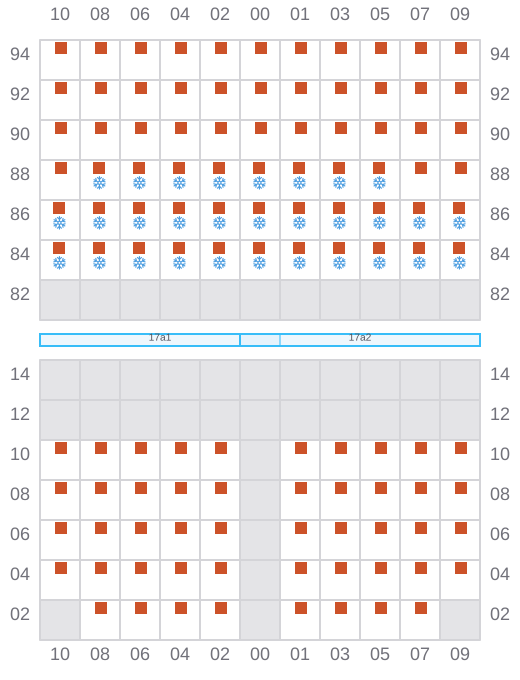

019
- ←
- →
![Bay 019 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b019.png?v=1717785058495)

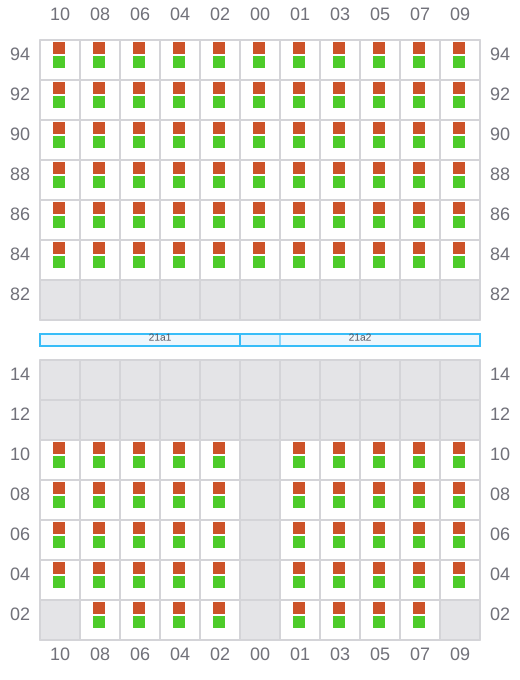

021 (022)
- →
![Bay 021 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b021.png?v=1717785058495)

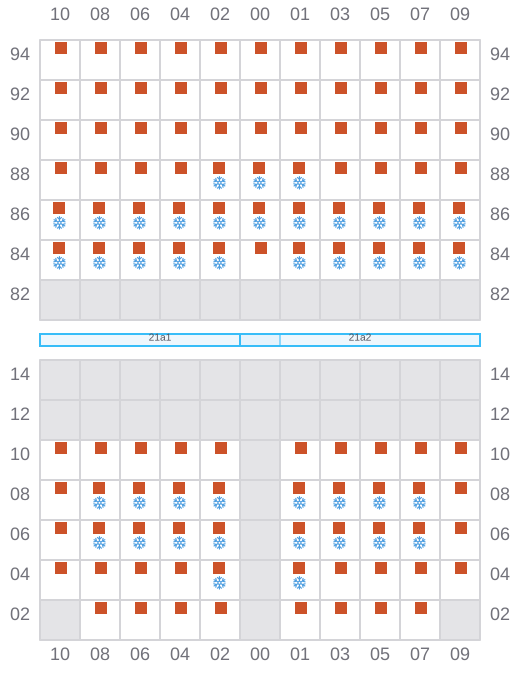

023
- ←
- →
![Bay 023 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b023.png?v=1717785058495)

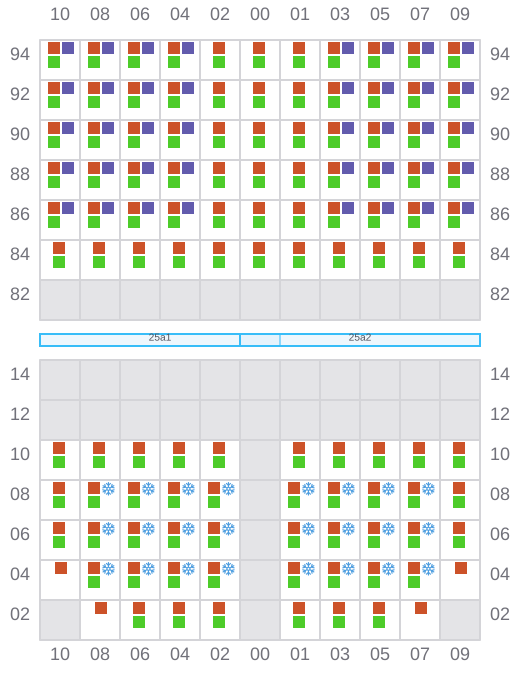

025 (026)
- →
- ? / ←
![Bay 025 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b025.png?v=1717785058495)

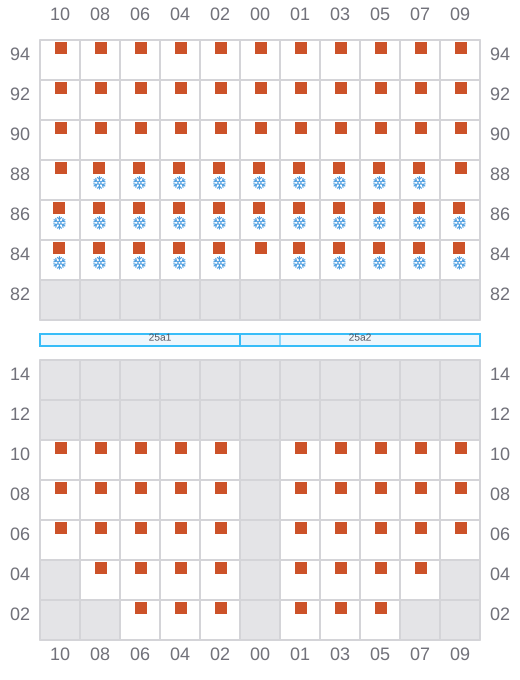

027
- ←
- →
![Bay 027 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b027.png?v=1717785058495)

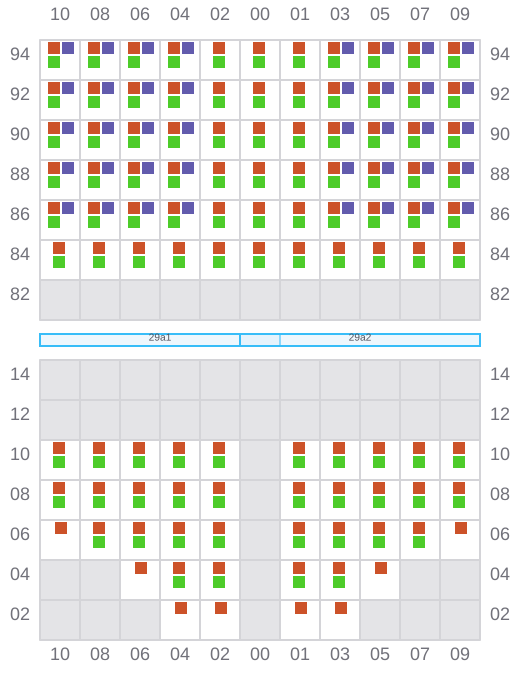

029 (030)
- →
![Bay 029 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b029.png?v=1717785058495)
031
- ←
- → / ?
![Bay 031 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b031.png?v=1717785058495)

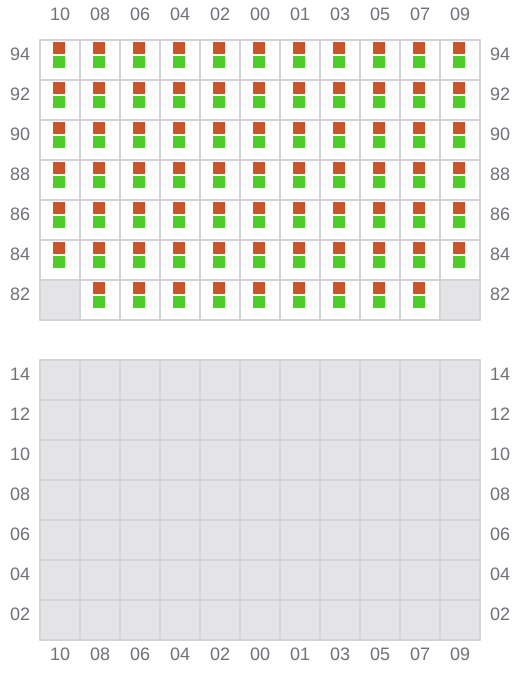

033 (034)
- → / ?
![Bay 033 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b033.png?v=1717785058495)

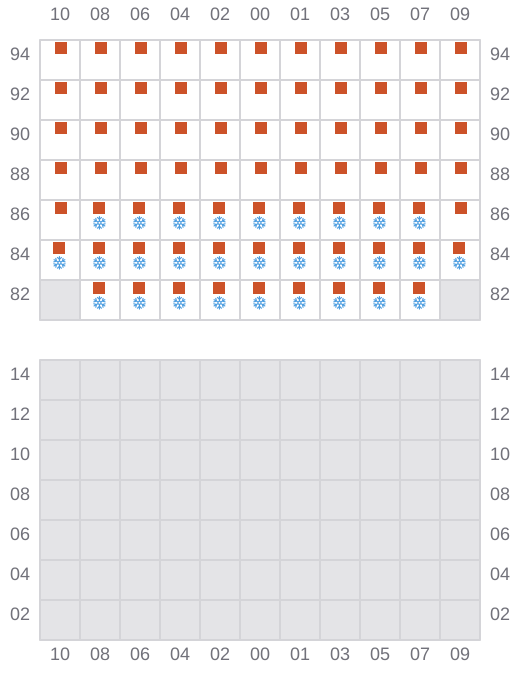

035
- ← / ?
- → / ?
![Bay 035 view and slots of BIG DOG](/vessel-images/b08d5797-0b1e-4672-9952-aefcb4ba330e-b035.png?v=1717785058495)
