BIG LILLY
9150406 | V7A5382 | 9150406 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:BIG LILLY
IMO Code:9150406
Call Sign:V7A5382
Line Operator:9150406
Class Name for Sister Ships:80N
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.94
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-sideView.png?v=1709927074773)
Hatch-Covers View
![Deck view of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-deckView.png?v=1709927074773)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

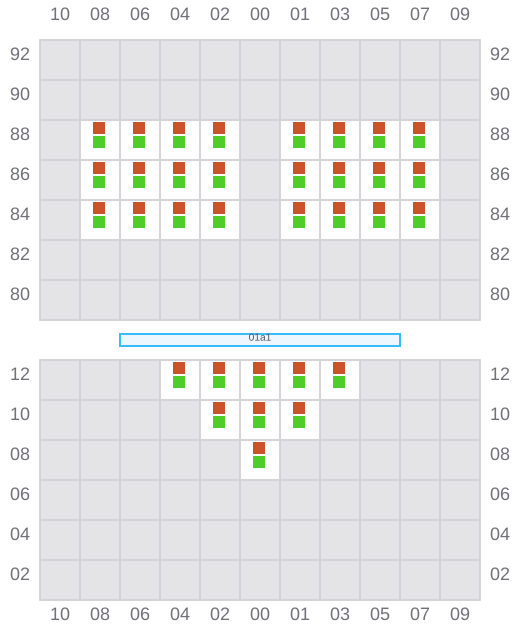

001 (002)
- →
- ? / →
![Bay 001 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b001.png?v=1709927074773)

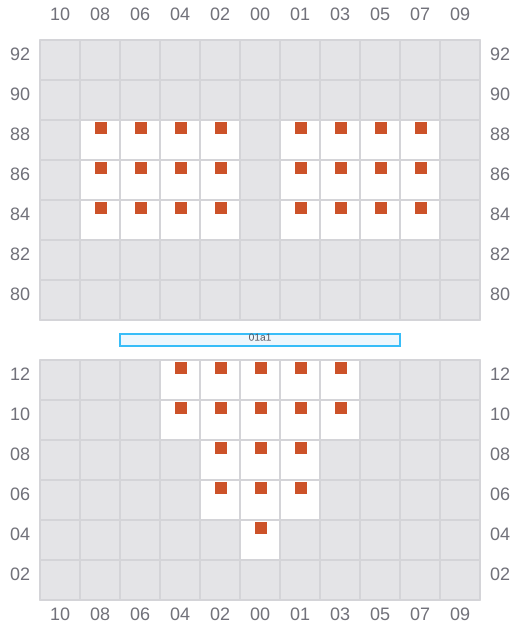

003
- ←
- → / ?
- →
![Bay 003 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b003.png?v=1709927074773)
005 (006)
- →
- ← / ?
- ? / →
![Bay 005 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b005.png?v=1709927074773)
007
- ←
- → / ?
- →
![Bay 007 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b007.png?v=1709927074773)

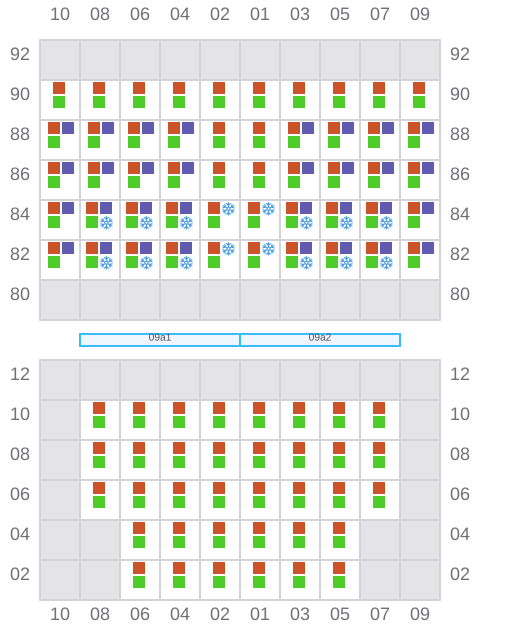

009 (010)
- →
- ← / ?
- ? / →
![Bay 009 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b009.png?v=1709927074773)

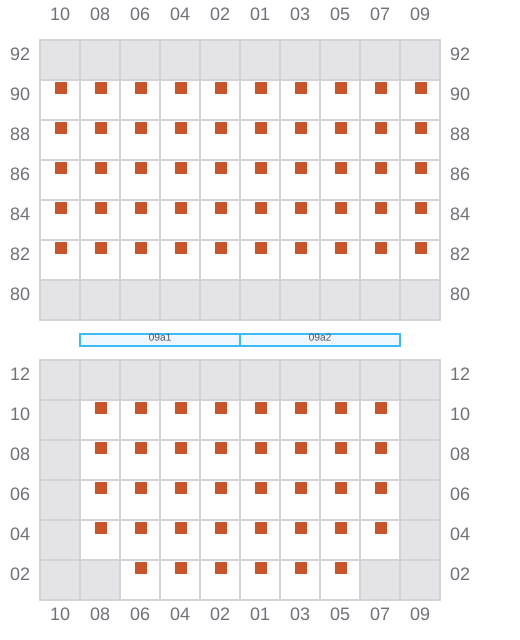

011
- ←
- → / ?
- →
![Bay 011 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b011.png?v=1709927074773)

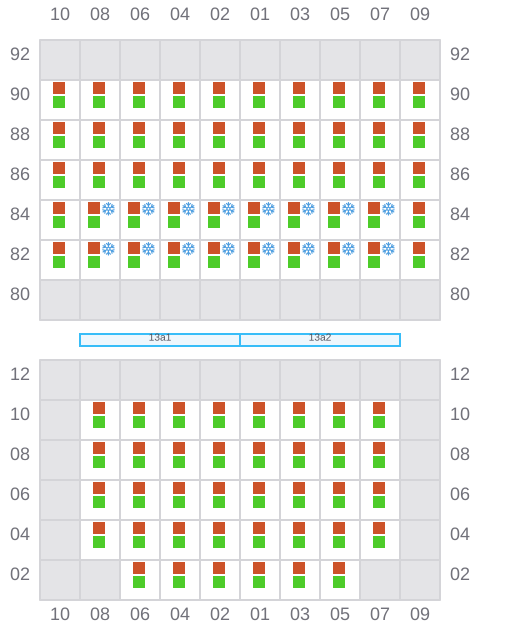

013 (014)
- →
- ← / ?
- ? / →
![Bay 013 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b013.png?v=1709927074773)
015
- ←
- → / ?
- →
![Bay 015 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b015.png?v=1709927074773)
017 (018)
- →
- ← / ?
- ? / →
![Bay 017 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b017.png?v=1709927074773)

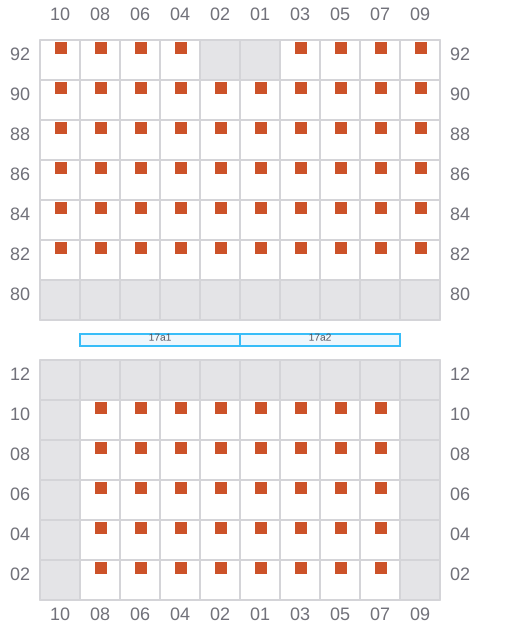

019
- ←
- → / ?
- →
![Bay 019 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b019.png?v=1709927074773)

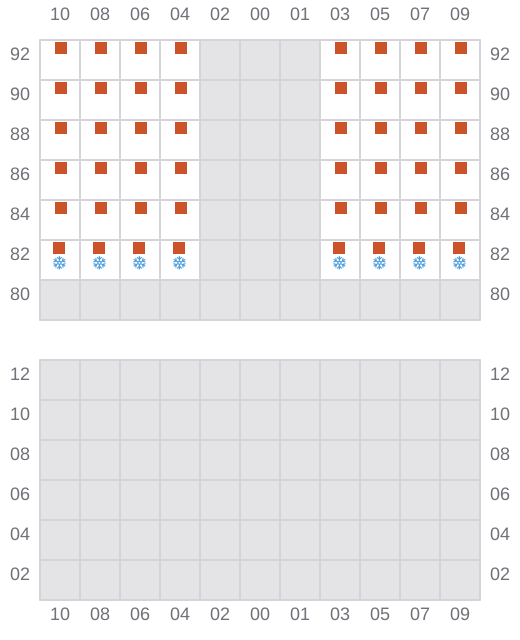

021
- → / ?
- → / ?
![Bay 021 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b021.png?v=1709927074773)

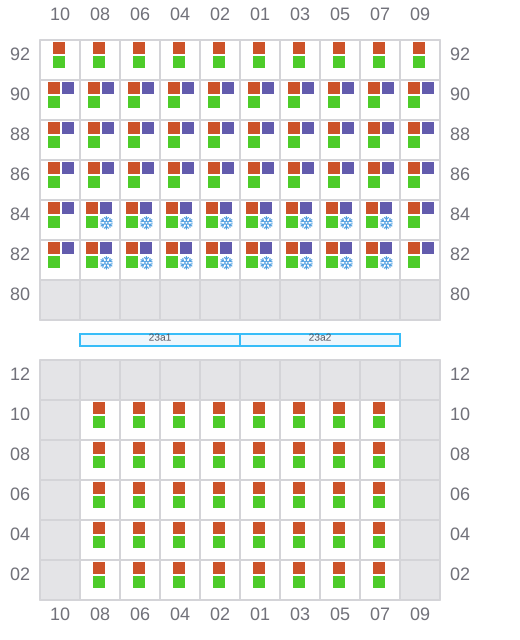

023 (024)
- →
- ← / ?
- ? / →
![Bay 023 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b023.png?v=1709927074773)
025
- ←
- → / ?
- →
![Bay 025 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b025.png?v=1709927074773)

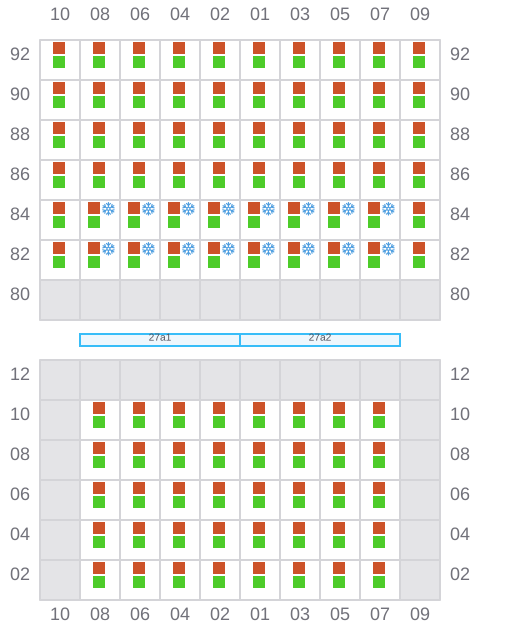

027 (028)
- →
- ← / ?
- ? / →
![Bay 027 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b027.png?v=1709927074773)
029
- ←
- → / ?
- →
![Bay 029 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b029.png?v=1709927074773)
031 (032)
- →
- ← / ?
- ? / →
![Bay 031 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b031.png?v=1709927074773)
033
- ←
- → / ?
- →
![Bay 033 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b033.png?v=1709927074773)
035 (036)
- →
- ← / ?
- ? / →
![Bay 035 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b035.png?v=1709927074773)
037
- ←
- → / ?
- →
![Bay 037 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b037.png?v=1709927074773)

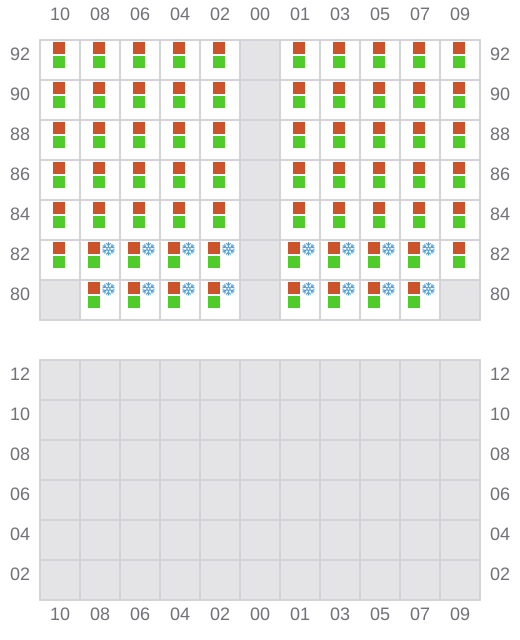

039 (040)
- → / ?
- ← / ?
![Bay 039 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b039.png?v=1709927074773)

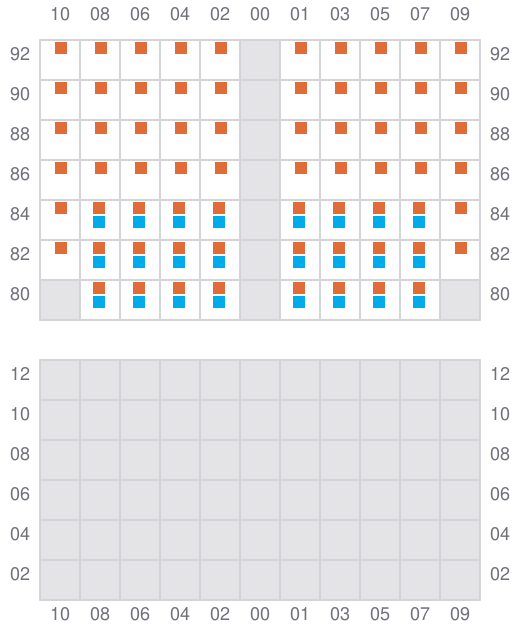

041
- ← / ?
- → / ?
- → / ?
![Bay 041 view and slots of BIG LILLY](/vessel-images/e78a6237-0977-46ca-87ad-4d6072145fbc-b041.png?v=1709927074773)
