BLACK PEARL
9193513 | D5YH4 | 9193513 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:BLACK PEARL
IMO Code:9193513
Call Sign:D5YH4
Line Operator:9193513
Class Name for Sister Ships:38Q
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:910
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

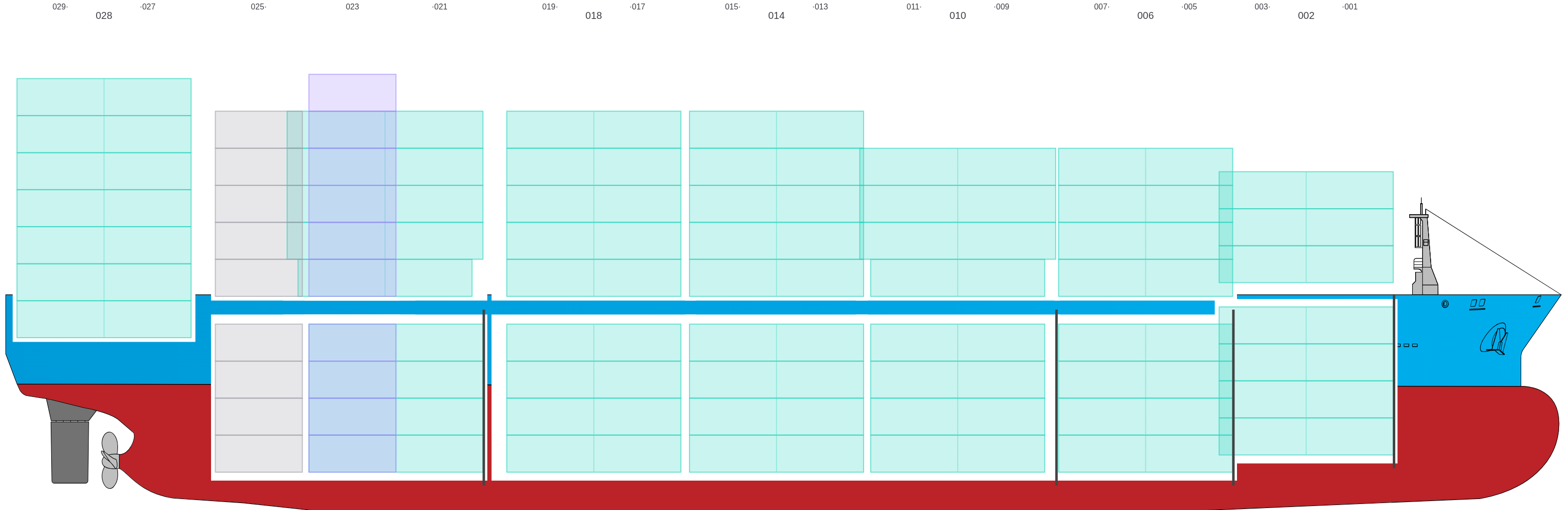

Side View
![Side view of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-sideView.png?v=1710180547411)

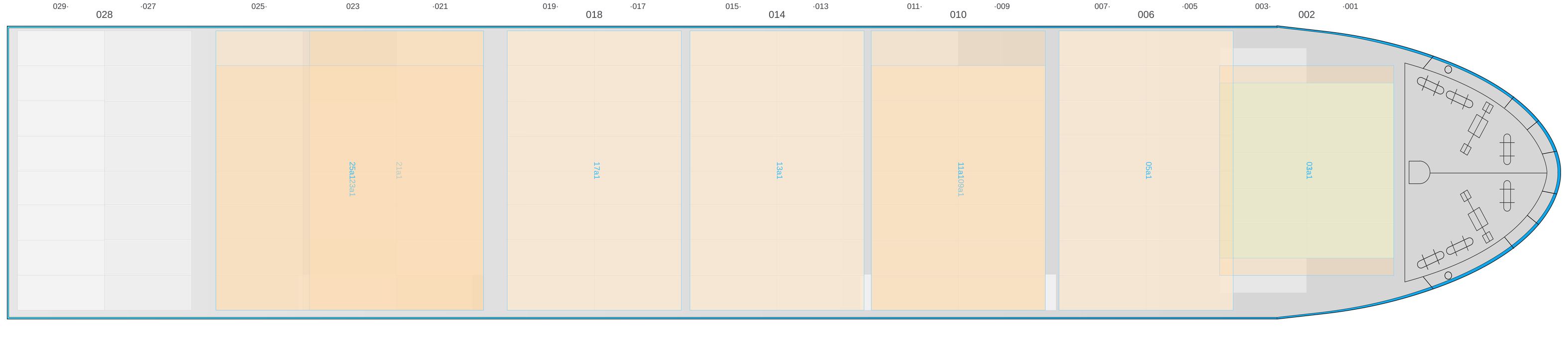

Hatch-Covers View
![Deck view of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-deckView.png?v=1710180547411)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

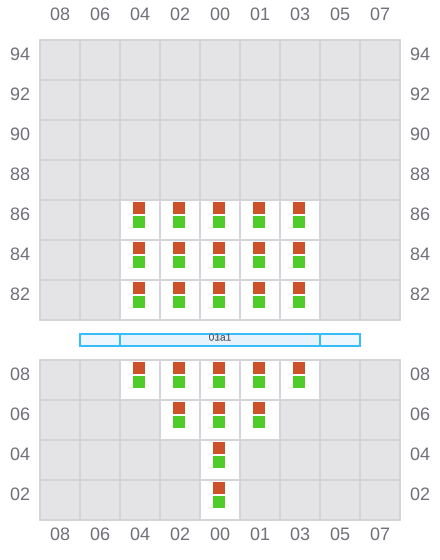

001 (002)
- →
![Bay 001 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b001.png?v=1710180547411)

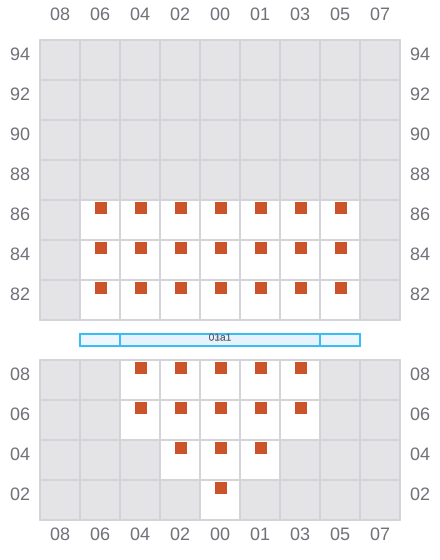

003
- ←
![Bay 003 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b003.png?v=1710180547411)
005 (006)
- →
![Bay 005 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b005.png?v=1710180547411)

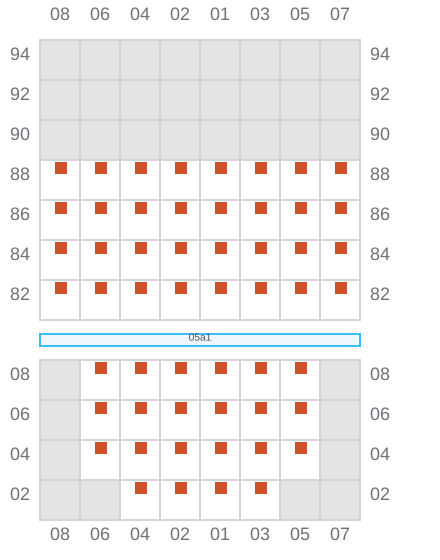

007
- ←
![Bay 007 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b007.png?v=1710180547411)

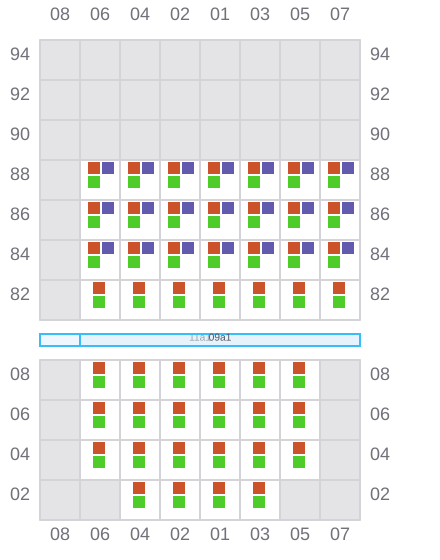

009 (010)
- →
![Bay 009 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b009.png?v=1710180547411)
011
- ←
![Bay 011 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b011.png?v=1710180547411)
013 (014)
- →
![Bay 013 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b013.png?v=1710180547411)
015
- ←
![Bay 015 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b015.png?v=1710180547411)

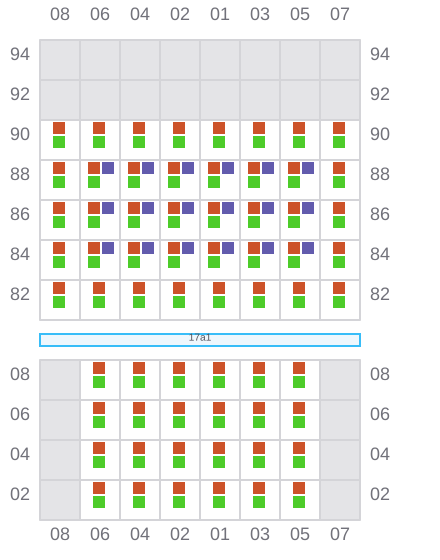

017 (018)
- →
![Bay 017 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b017.png?v=1710180547411)
019
- ←
- ? / →
![Bay 019 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b019.png?v=1710180547411)
021 (022)
- →
- ? / ←
![Bay 021 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b021.png?v=1710180547411)
023
- → / ?
![Bay 023 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b023.png?v=1710180547411)

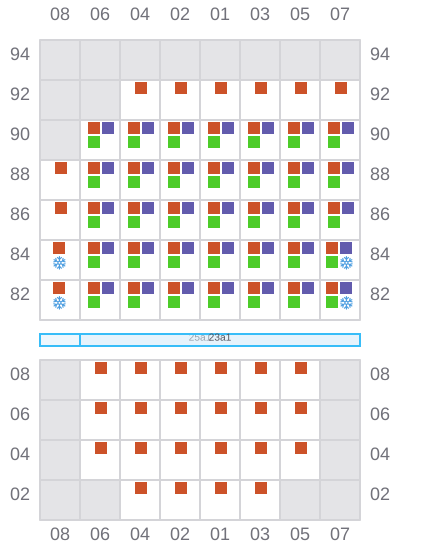

025 (024)
- ←
- → / ?
![Bay 025 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b025.png?v=1710180547411)
027 (028)
- → / ?
- ← / ?
![Bay 027 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b027.png?v=1710180547411)

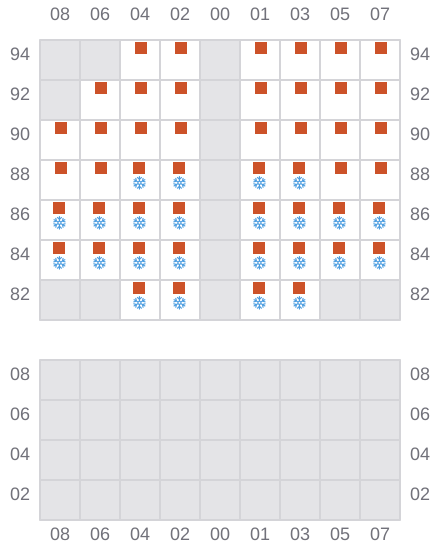

029
- ← / ?
- → / ?
![Bay 029 view and slots of BLACK PEARL](/vessel-images/142f5b89-730c-4bad-9086-4ba50c6eb8d4-b029.png?v=1710180547411)
