BLACK RHINO
9148790 | 5BCX5 | 9148790 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:BLACK RHINO
IMO Code:9148790
Call Sign:5BCX5
Line Operator:9148790
Class Name for Sister Ships:1PT
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):94.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:364
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

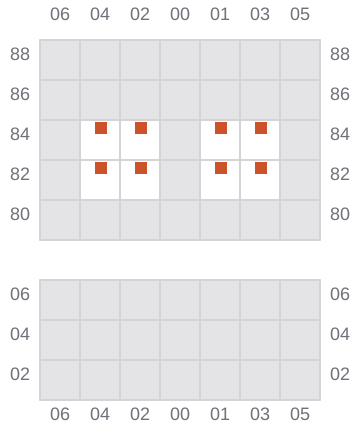

001

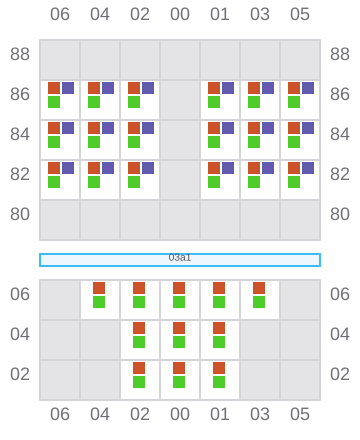

003 (004)
- →
005
- ←

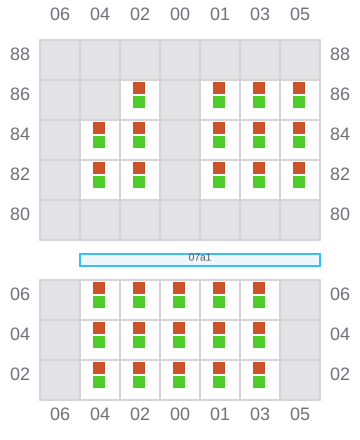

007 (008)
- →

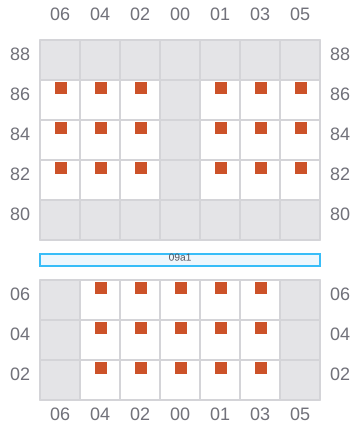

009
- ←

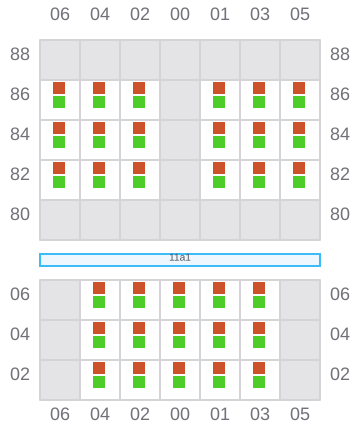

011 (012)
- →

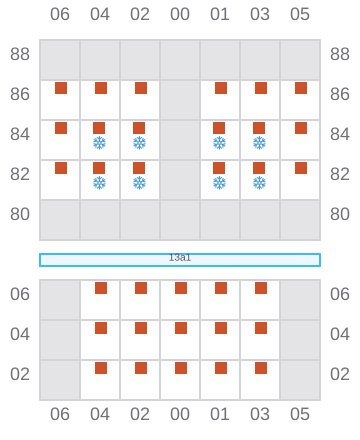

013
- ←
- → / ?

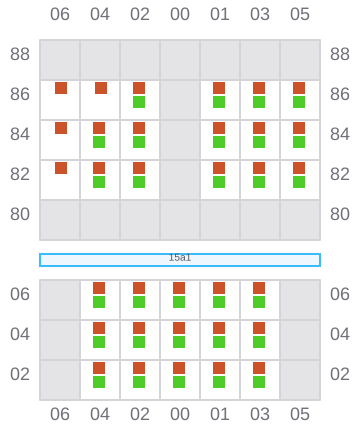

015 (016)
- →

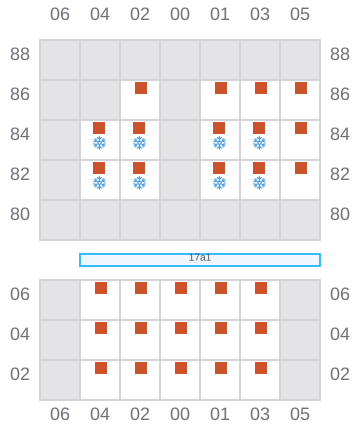

017
- ←
- → / ?

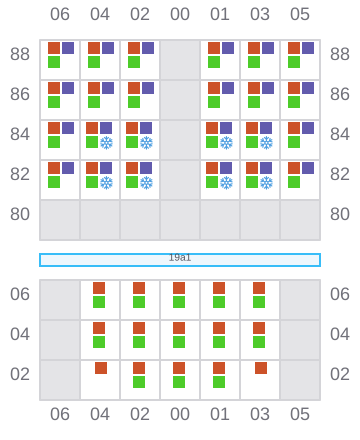

019 (020)
- →
- ← / ?

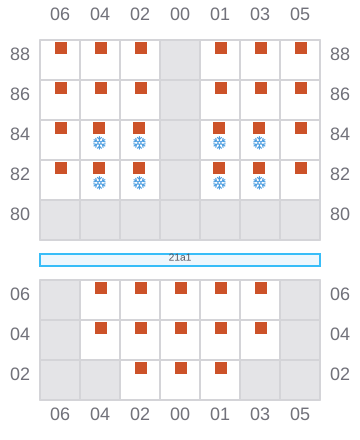

021
- ←
- → / ?

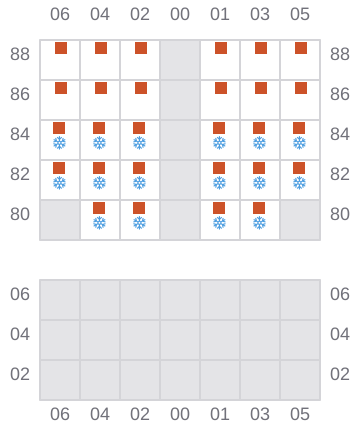

023
- → / ?
