BLPL TRUST
9119660 | 3EPK4 | 9119660 by ********* Last update: Thu Mar 07 2024

General Info

Ship Name:BLPL TRUST
IMO Code:9119660
Call Sign:3EPK4
Line Operator:9119660
Class Name for Sister Ships:81Q
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,511

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

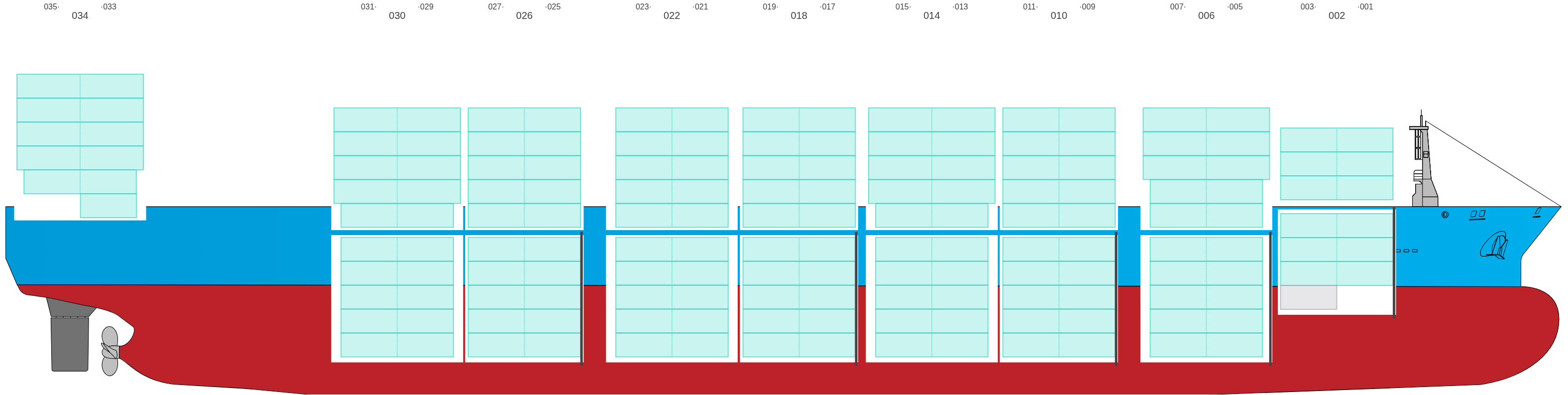

Side View

Side view of BLPL TRUST

Hatch-Covers View

Deck view of BLPL TRUST

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

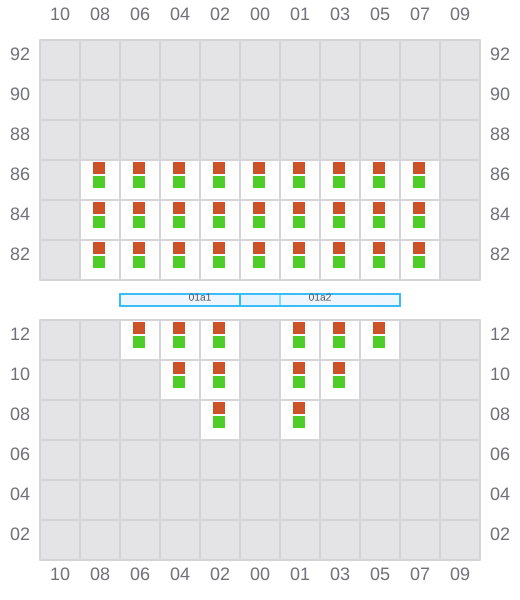

001 (002)

Bay 001 view and slots of BLPL TRUST

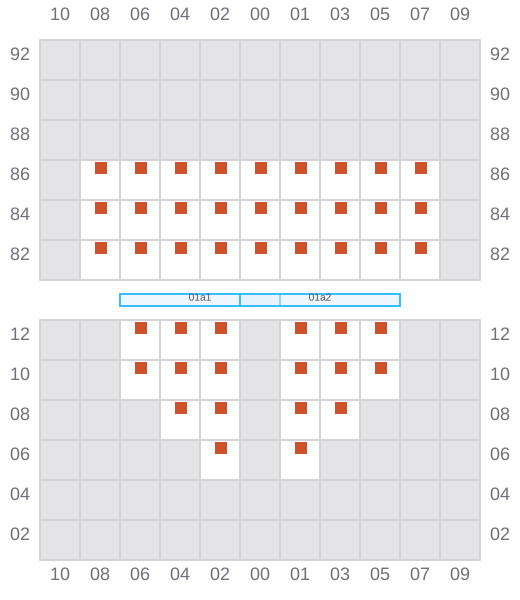

003

Bay 003 view and slots of BLPL TRUST

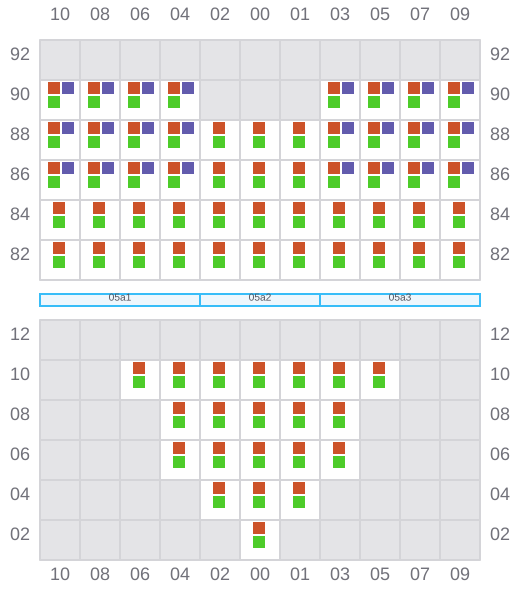

005 (006)

Bay 005 view and slots of BLPL TRUST

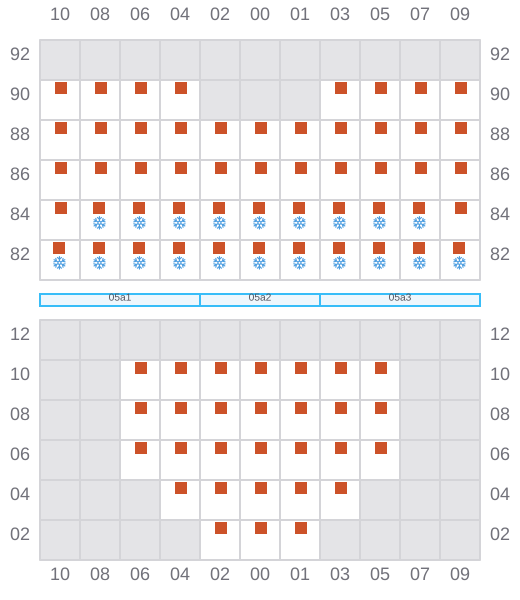

007

Bay 007 view and slots of BLPL TRUST

009 (010)

Bay 009 view and slots of BLPL TRUST

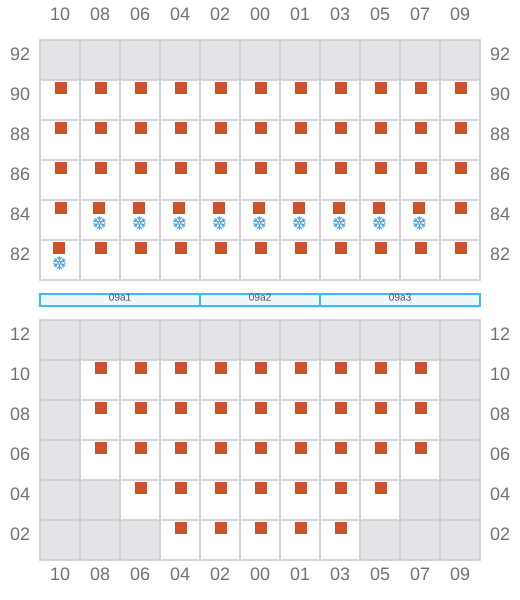

011

Bay 011 view and slots of BLPL TRUST

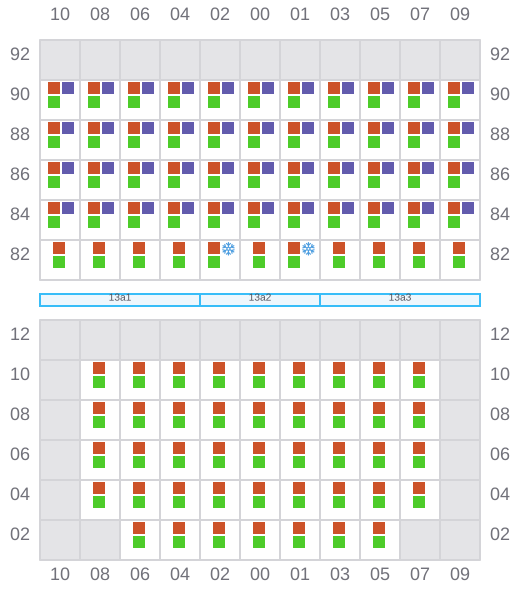

013 (014)

Bay 013 view and slots of BLPL TRUST

015

Bay 015 view and slots of BLPL TRUST

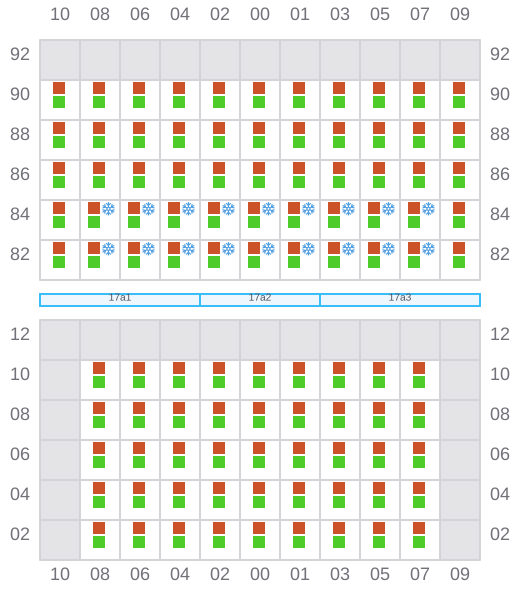

017 (018)

  • / ?
Bay 017 view and slots of BLPL TRUST

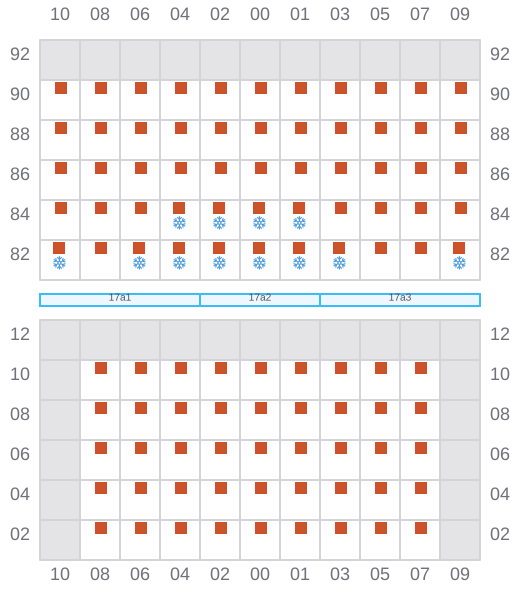

019

  • / ?
Bay 019 view and slots of BLPL TRUST

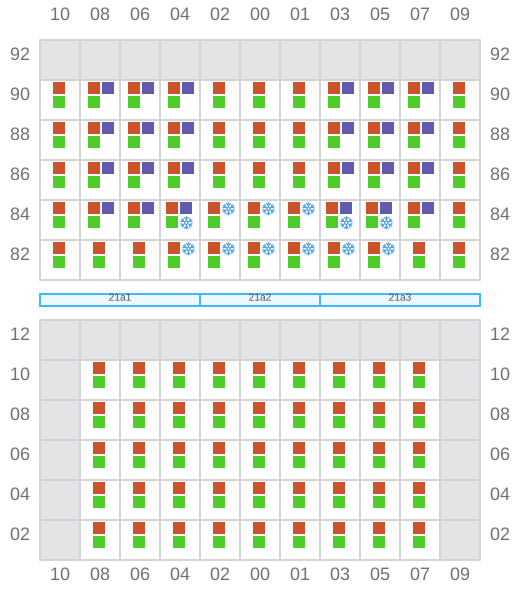

021 (022)

  • / ?
Bay 021 view and slots of BLPL TRUST

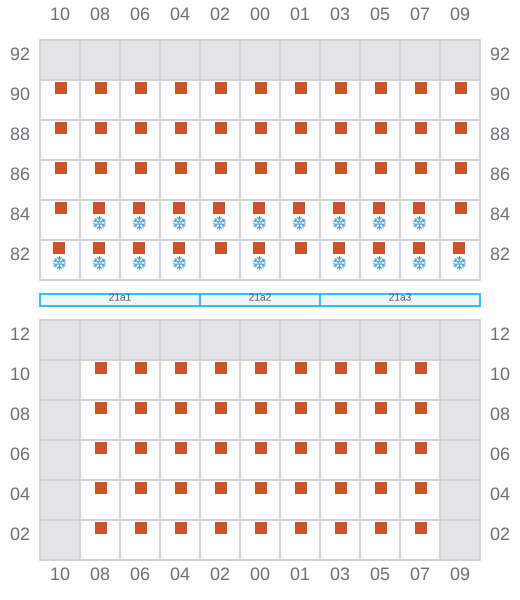

023

  • / ?
Bay 023 view and slots of BLPL TRUST

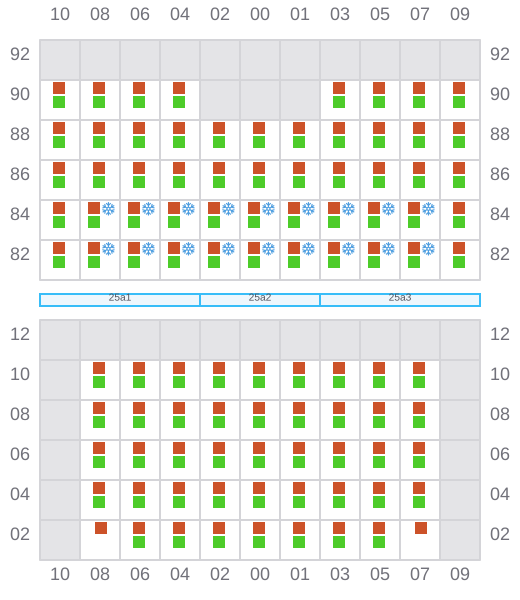

025 (026)

  • / ?
Bay 025 view and slots of BLPL TRUST

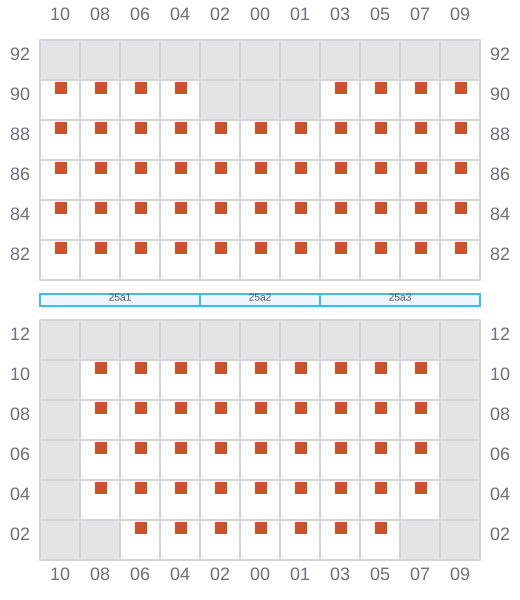

027

Bay 027 view and slots of BLPL TRUST

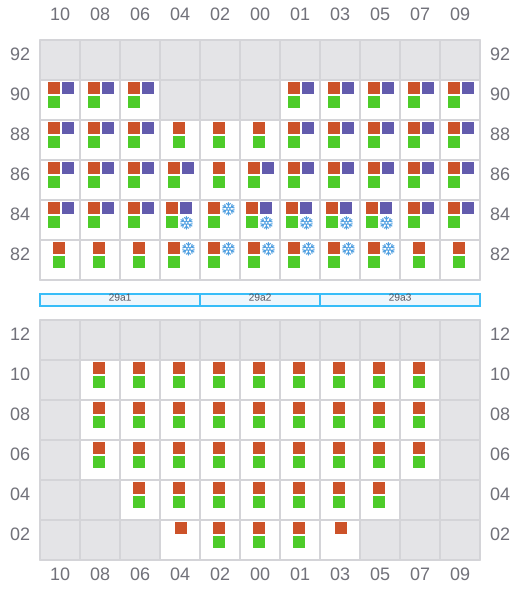

029 (030)

  • / ?
Bay 029 view and slots of BLPL TRUST

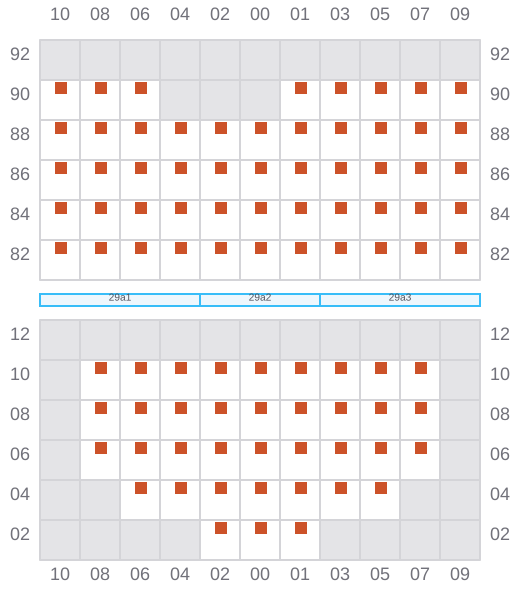

031

Bay 031 view and slots of BLPL TRUST

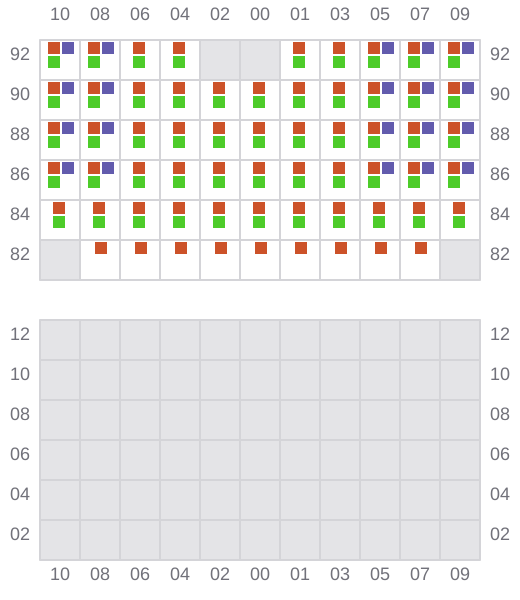

033 (034)

Bay 033 view and slots of BLPL TRUST

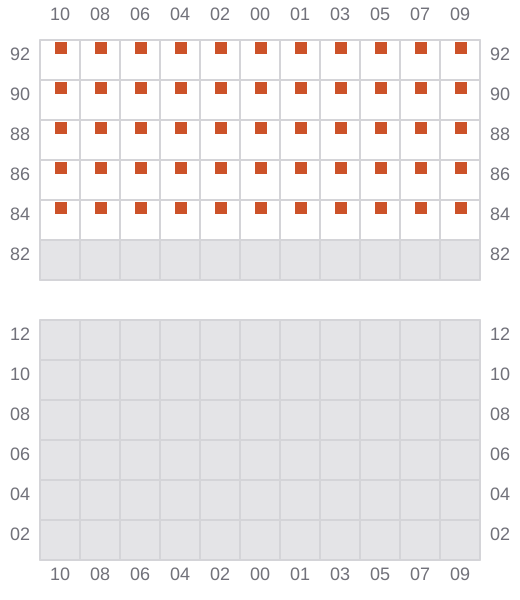

035

Bay 035 view and slots of BLPL TRUST
