BMI EAGLE
9200093 | 5LLQ3 | 9200093 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:BMI EAGLE
IMO Code:9200093
Call Sign:5LLQ3
Line Operator:9200093
Class Name for Sister Ships:56Q
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:451
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

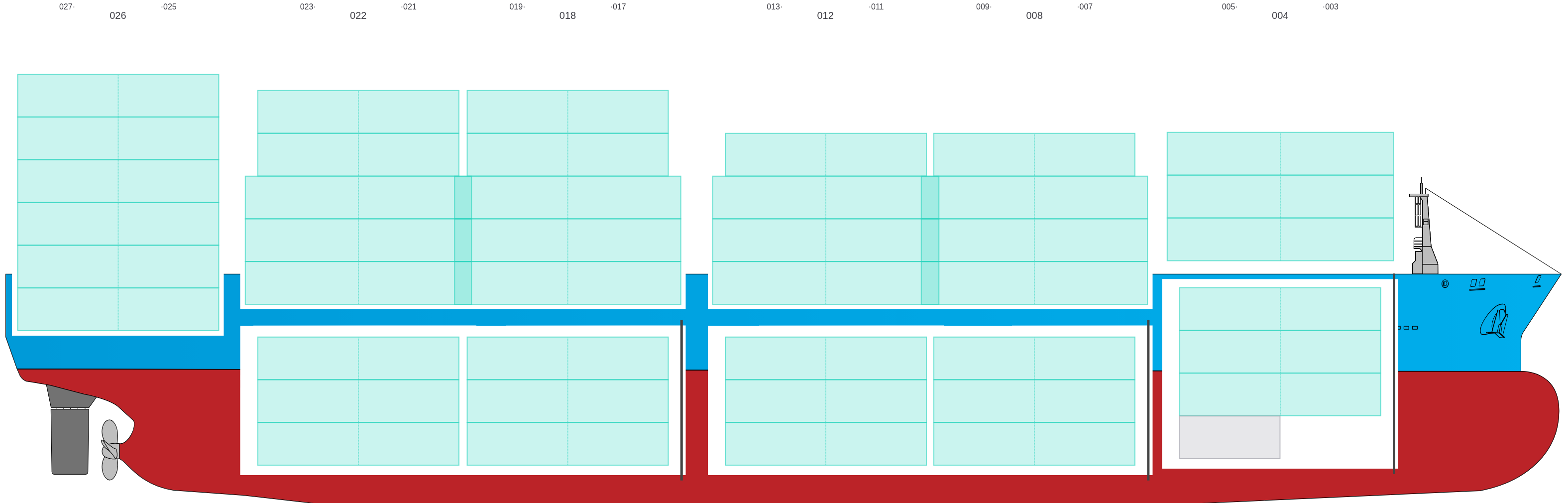

Side View
![Side view of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-sideView.png?v=1710182426271)
Hatch-Covers View
![Deck view of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-deckView.png?v=1710182426271)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

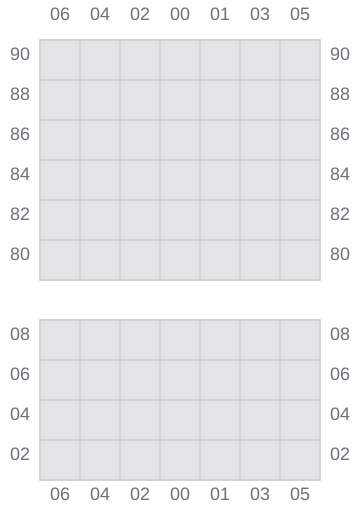

001
![Bay 001 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b001.png?v=1710182426271)

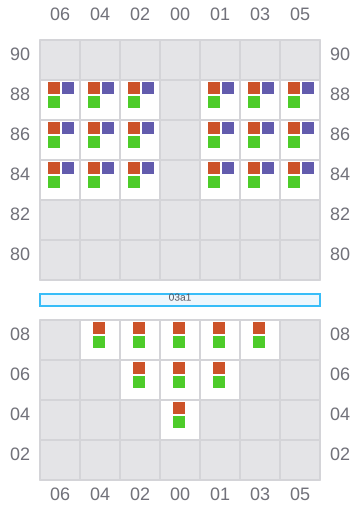

003 (004)
- →
![Bay 003 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b003.png?v=1710182426271)

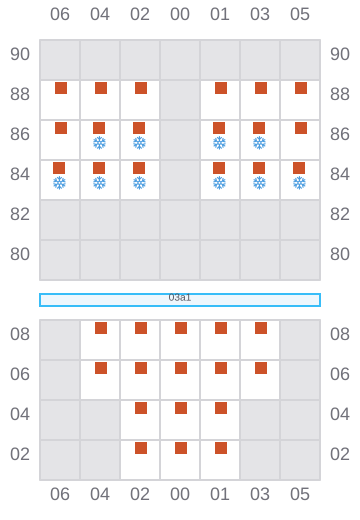

005
- ←
- → / ?
![Bay 005 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b005.png?v=1710182426271)

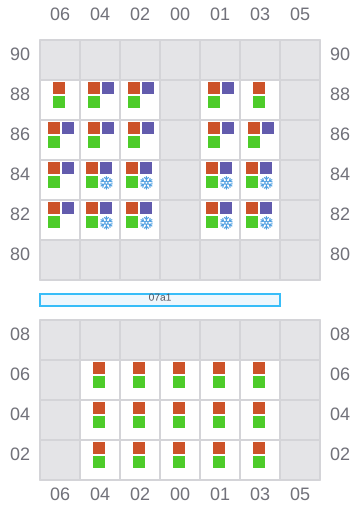

007 (008)
- →
- ← / ?
![Bay 007 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b007.png?v=1710182426271)

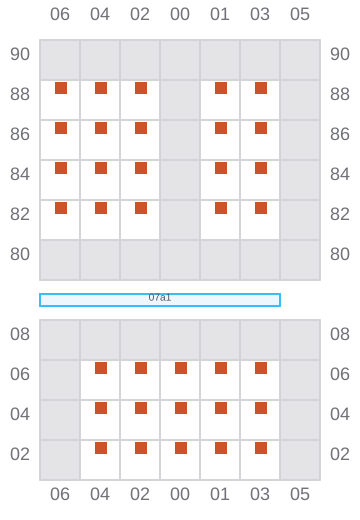

009
- ←
![Bay 009 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b009.png?v=1710182426271)

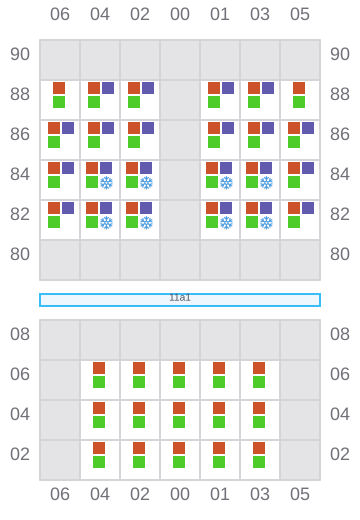

011 (012)
- →
- ← / ?
![Bay 011 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b011.png?v=1710182426271)

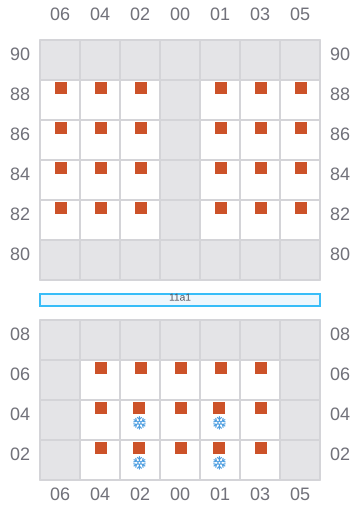

013
- ←
- ? / →
![Bay 013 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b013.png?v=1710182426271)
015
![Bay 015 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b015.png?v=1710182426271)

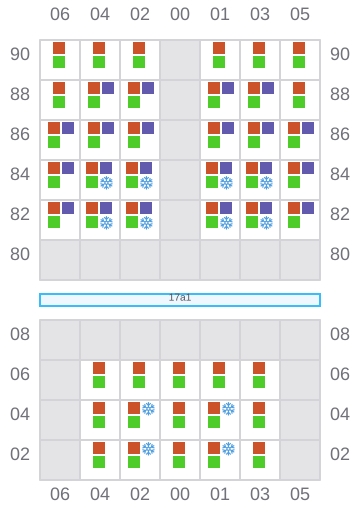

017 (018)
- →
- ←
![Bay 017 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b017.png?v=1710182426271)

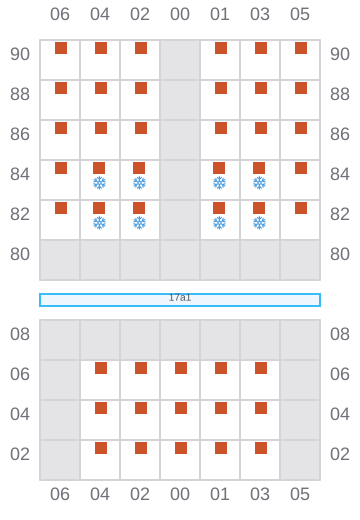

019
- ←
- → / ?
![Bay 019 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b019.png?v=1710182426271)

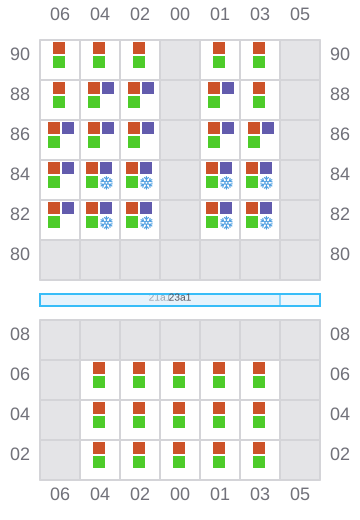

021 (022)
- →
- ← / ?
![Bay 021 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b021.png?v=1710182426271)
023
- ←
- → / ?
![Bay 023 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b023.png?v=1710182426271)

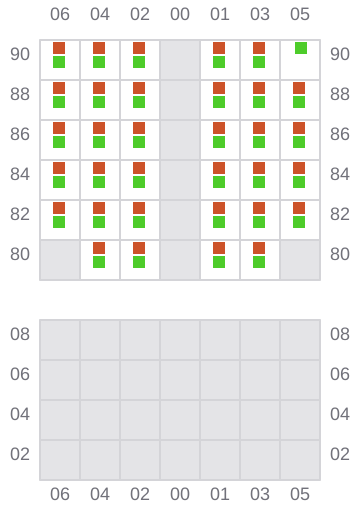

025 (026)
- → / ?
![Bay 025 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b025.png?v=1710182426271)

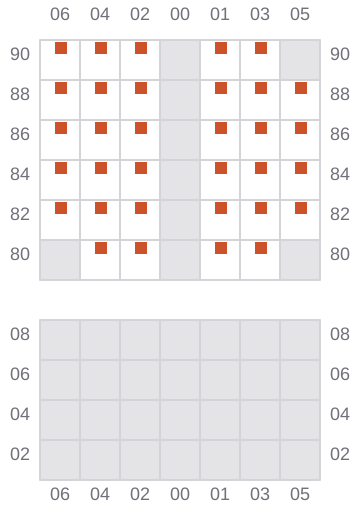

027
- ← / ?
![Bay 027 view and slots of BMI EAGLE](/vessel-images/8be037ac-e57b-47b3-92cf-547c497d2081-b027.png?v=1710182426271)
