BOMAR CALAIS
9301445 | 5LGT9 | 9301445 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:BOMAR CALAIS
IMO Code:9301445
Call Sign:5LGT9
Line Operator:9301445
Class Name for Sister Ships:21C
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

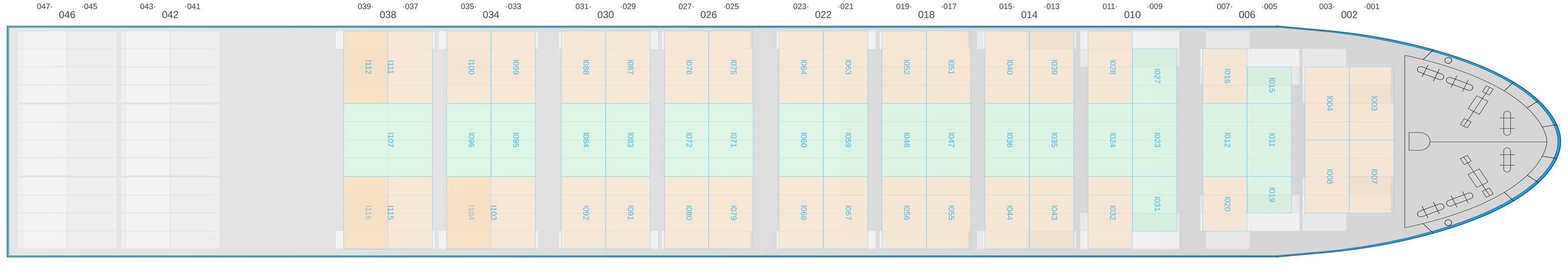

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

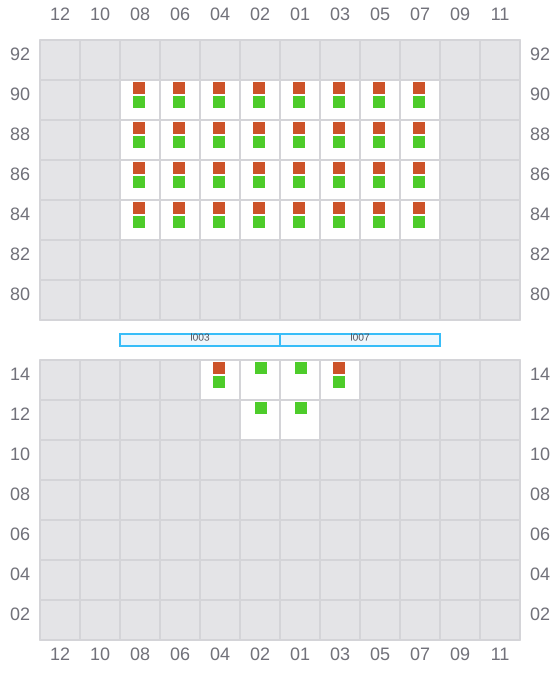

001 (002)
- →

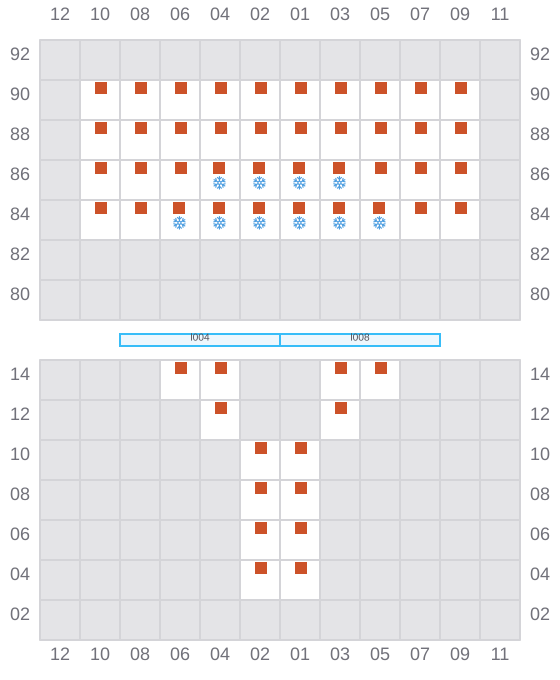

003
- ←
- → / ?

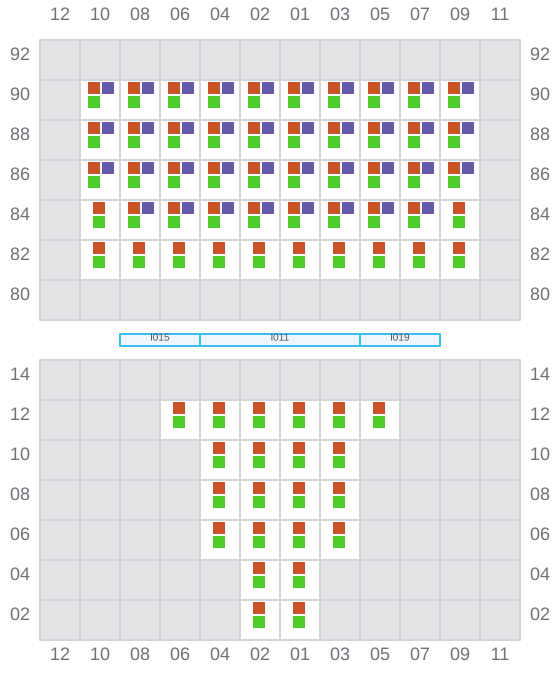

005 (006)
- →

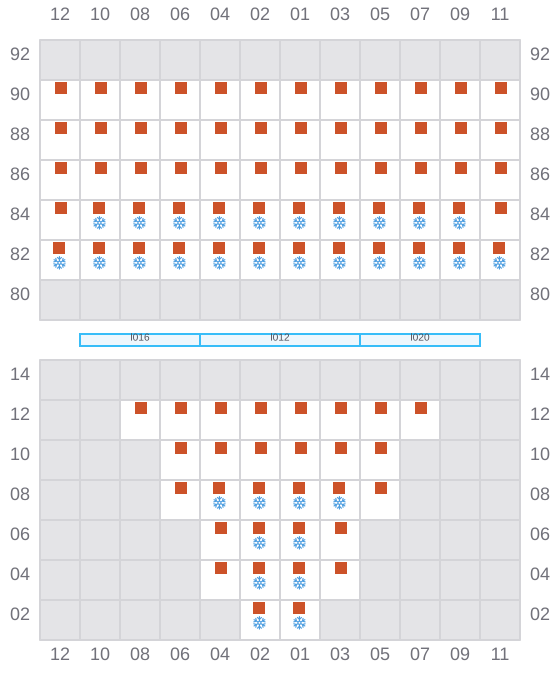

007
- ←
- →

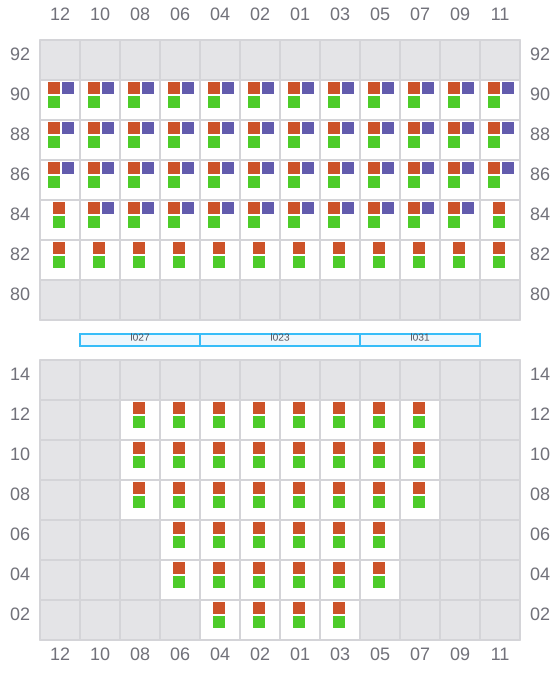

009 (010)
- →

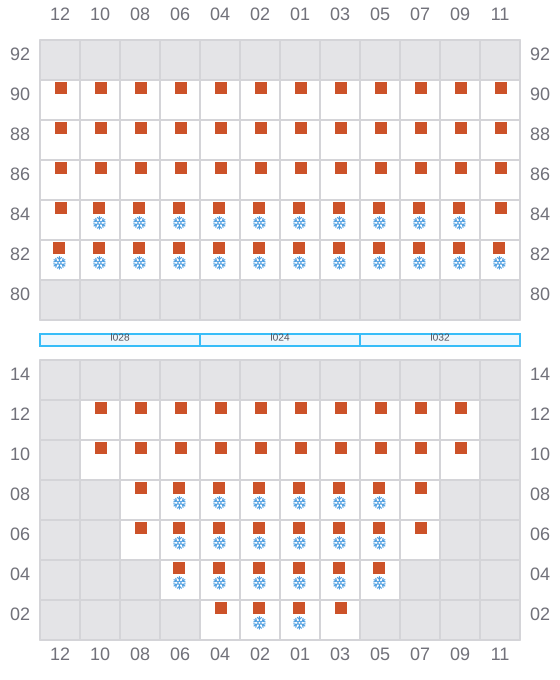

011
- ←
- →

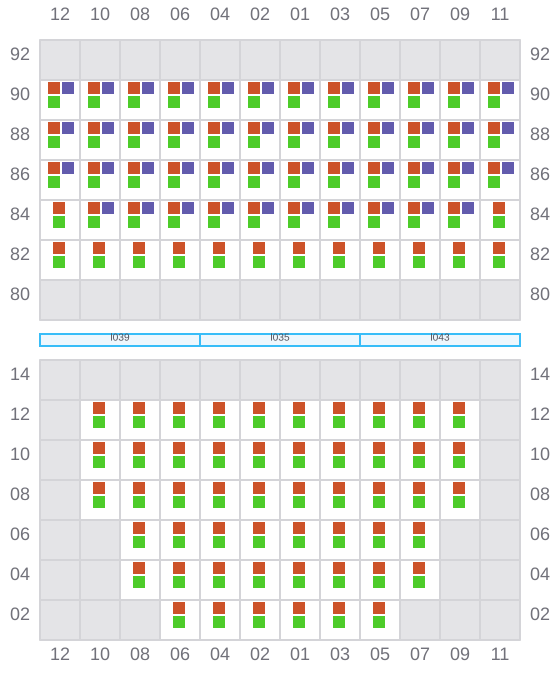

013 (014)
- →

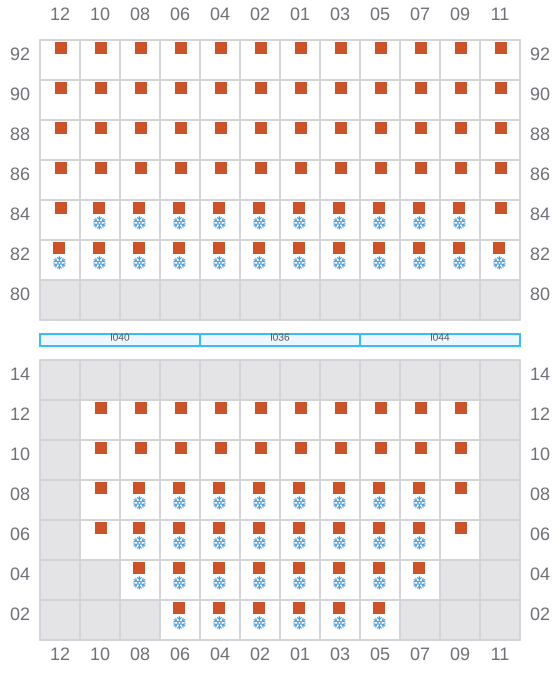

015
- ←
- →

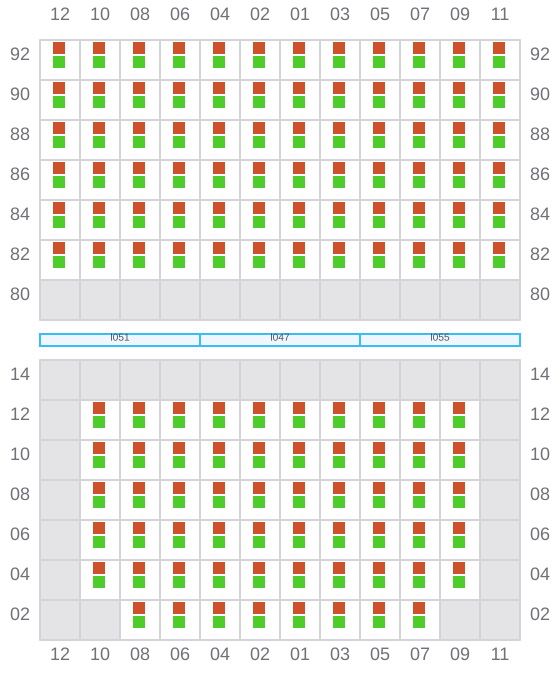

017 (018)
- →

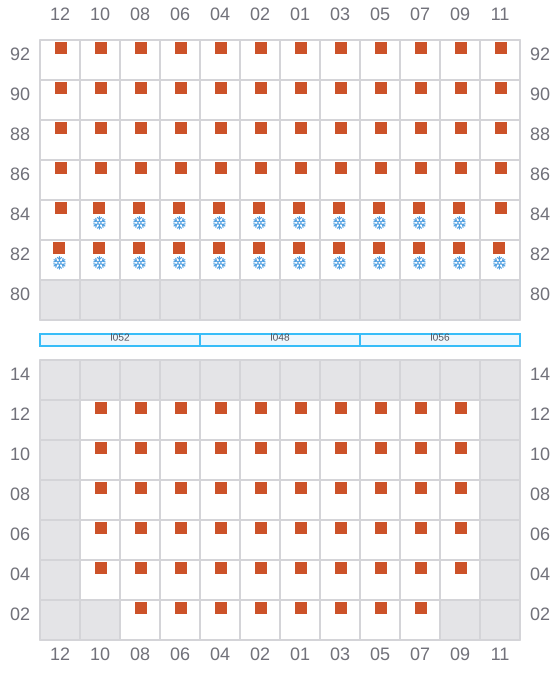

019
- ←
- →

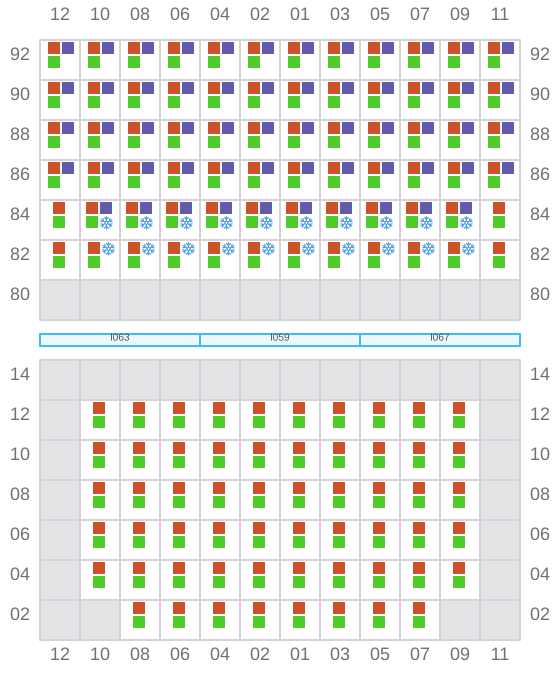

021 (022)
- →
- ← / ?

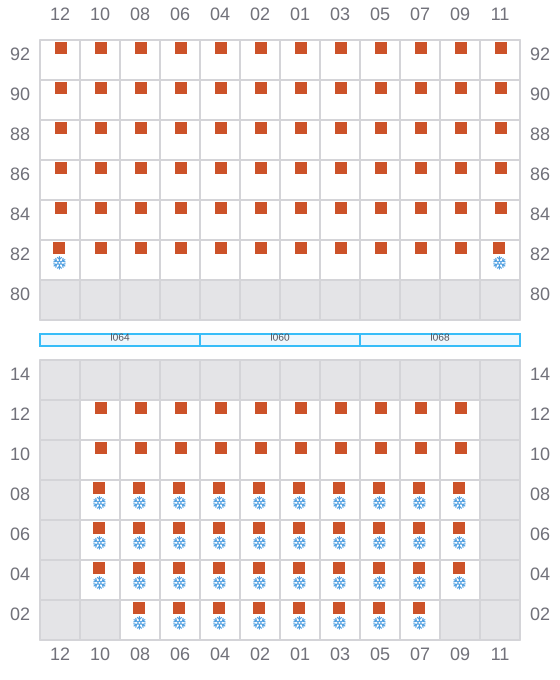

023
- ←
- →

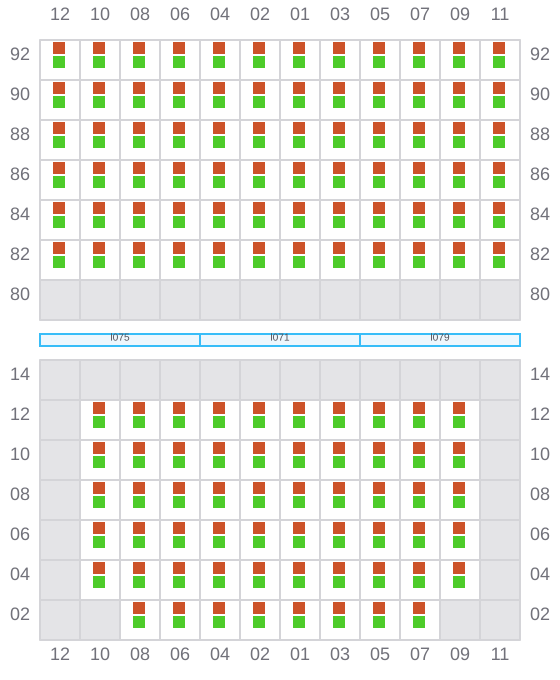

025 (026)
- →

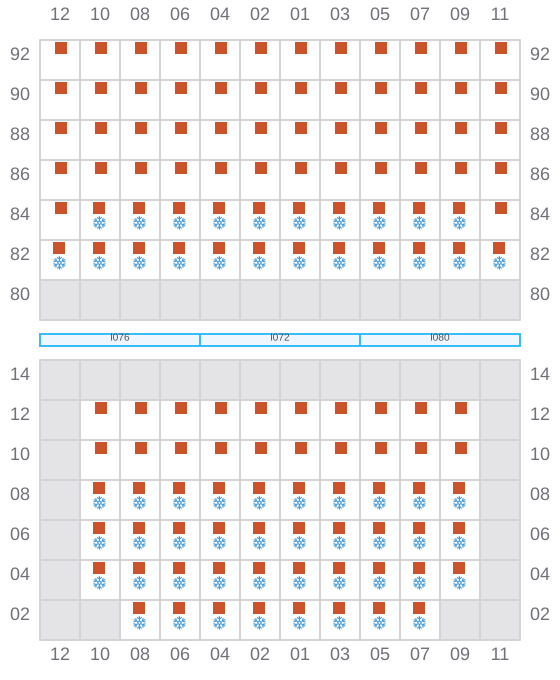

027
- ←
- →
029 (030)
- →
- ← / ?

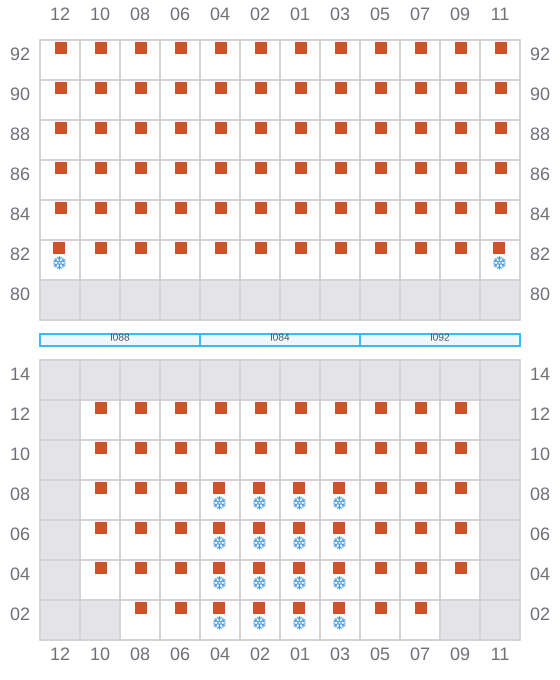

031
- ←
- →

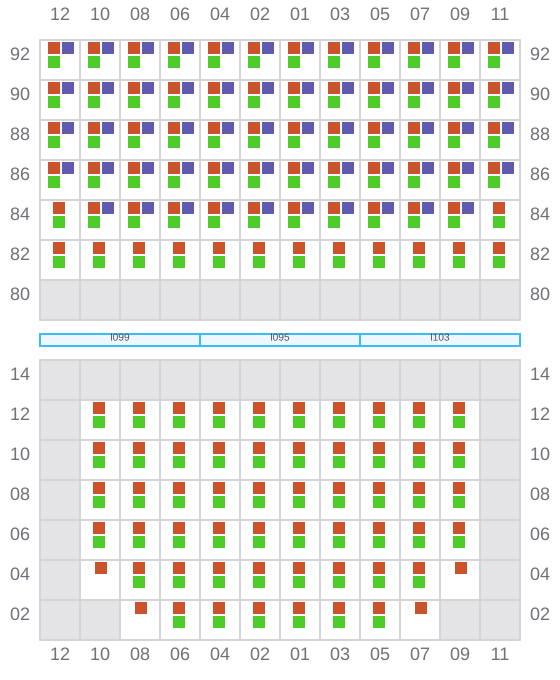

033 (034)
- →

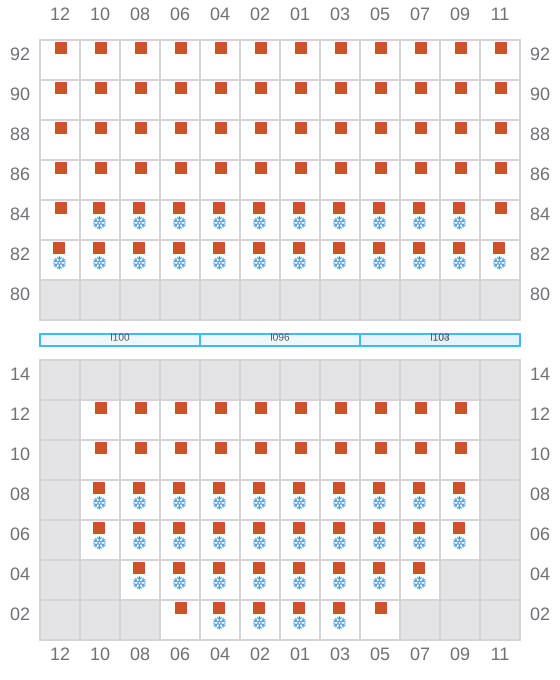

035
- ←
- →
037 (038)
- →
- ← / ?

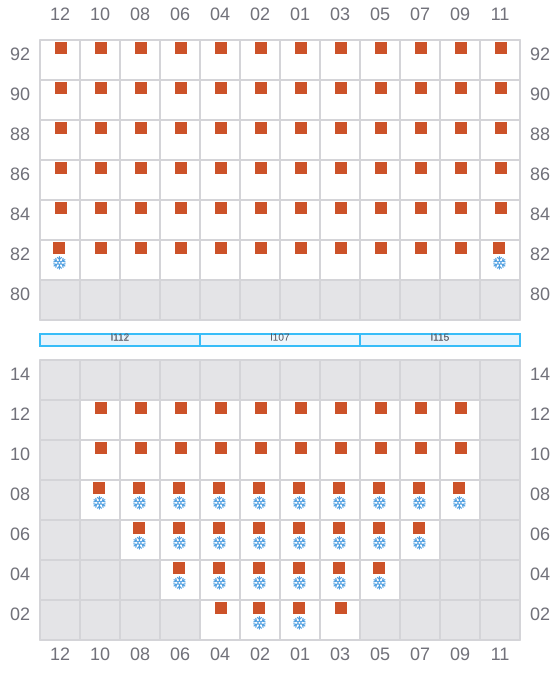

039
- ←
- →

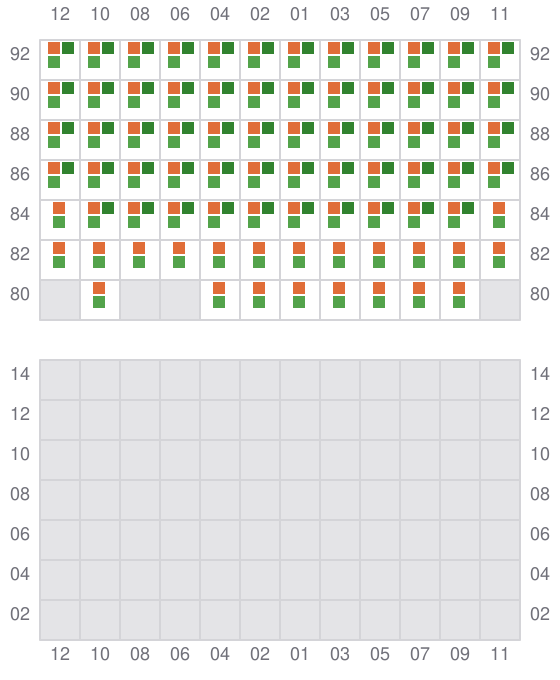

041 (042)
- → / ?

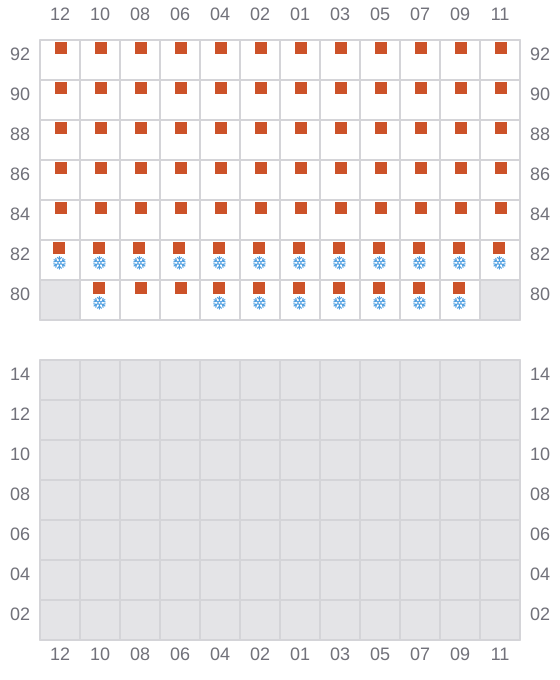

043
- ← / ?
- → / ?

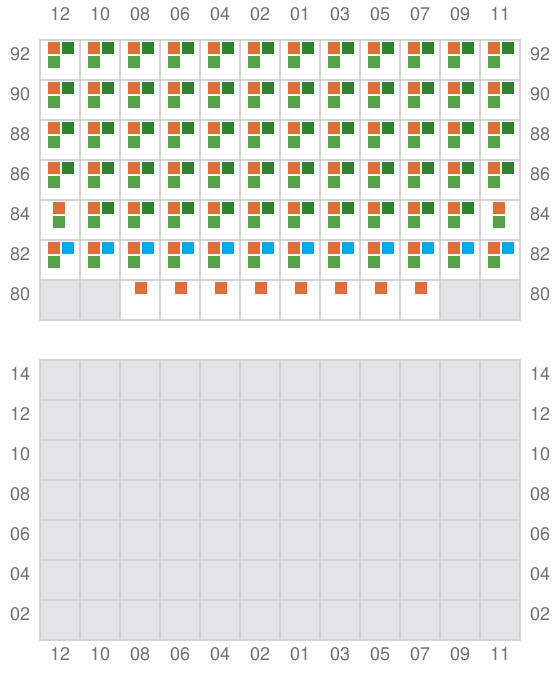

045 (046)
- → / ?
- ← / ?

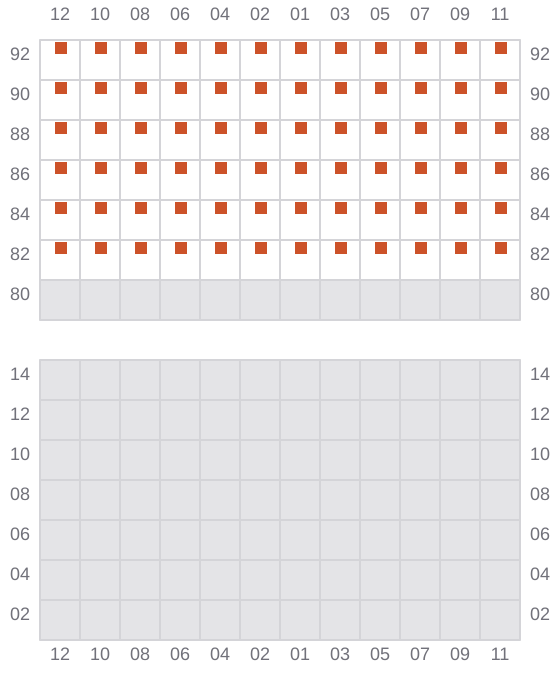

047
- ← / ?
