BOMAR CALAIS
9301445 | 5LGT9 | MSC by ************************** Last update: Sat Jun 17 2023
General Info
Ship Name:BOMAR CALAIS
IMO Code:9301445
Call Sign:5LGT9
Line Operator:MSC
Class Name for Sister Ships:ERC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,616
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

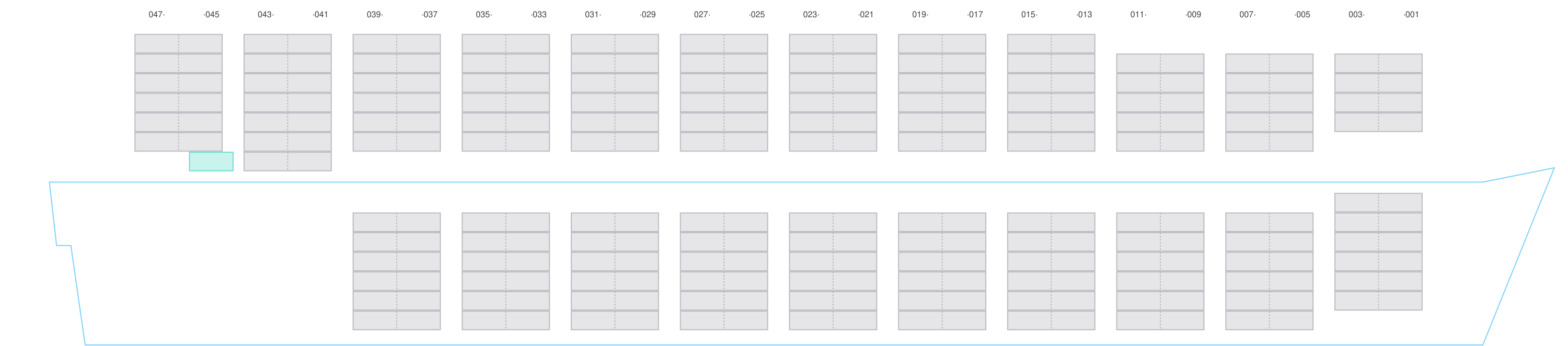

Side View
![Side view of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-sideView.png?v=1687024311532)

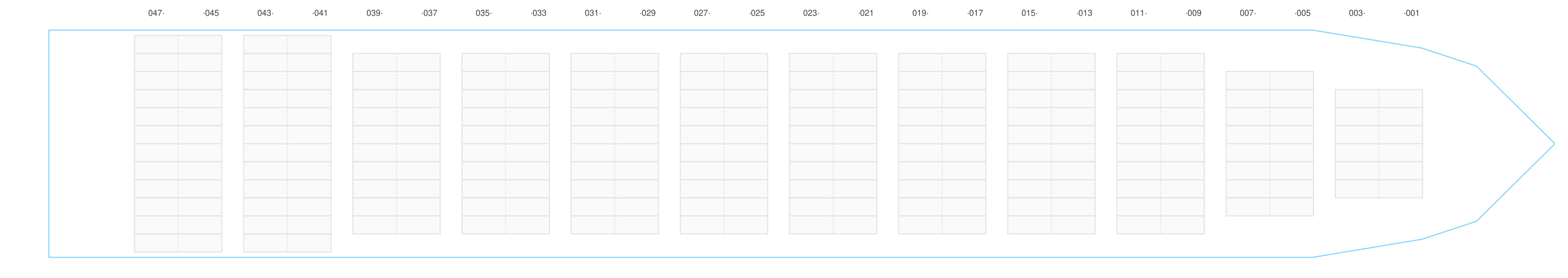

Hatch-Covers View
![Deck view of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-deckView.png?v=1687024311532)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

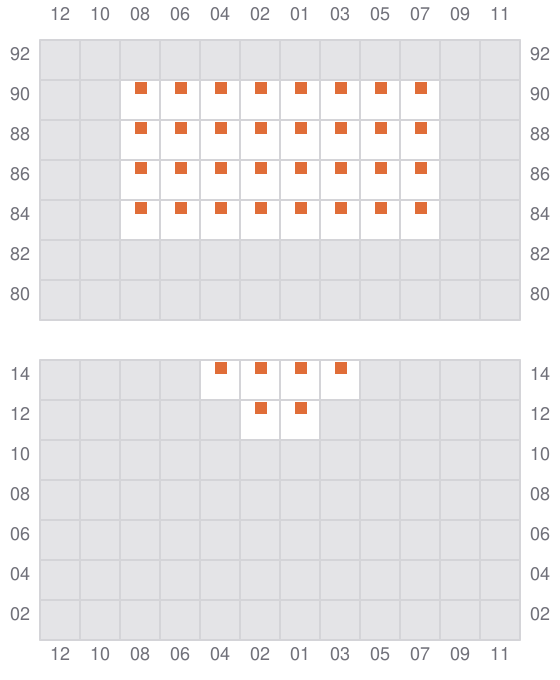

001
- →
![Bay 001 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b001.png?v=1687024311532)

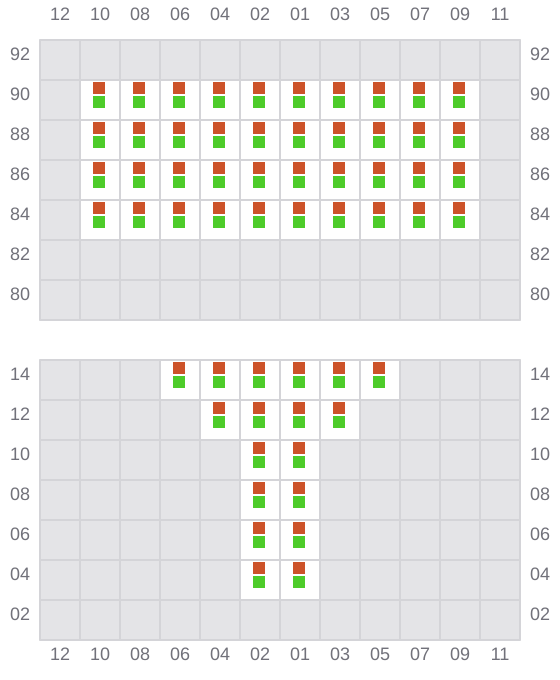

003 (002)
- ←
![Bay 003 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b003.png?v=1687024311532)

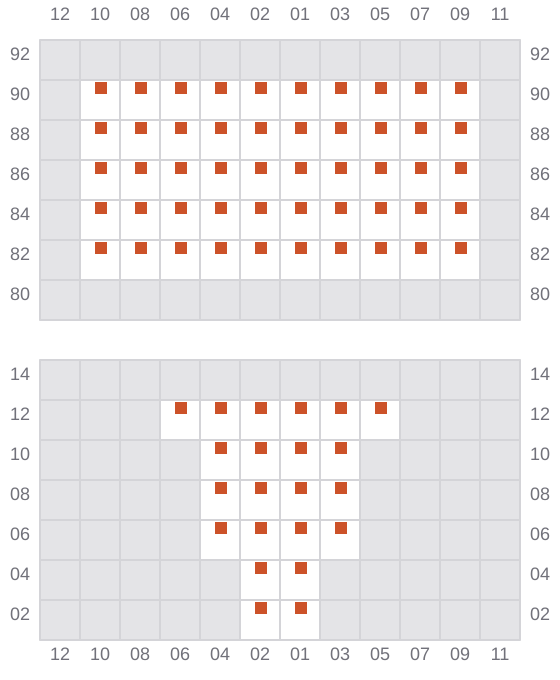

005
- →
![Bay 005 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b005.png?v=1687024311532)

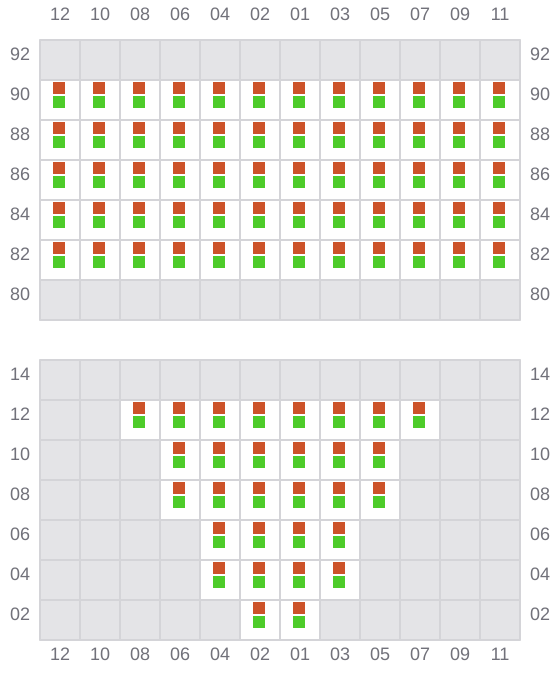

007 (006)
- ←
![Bay 007 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b007.png?v=1687024311532)

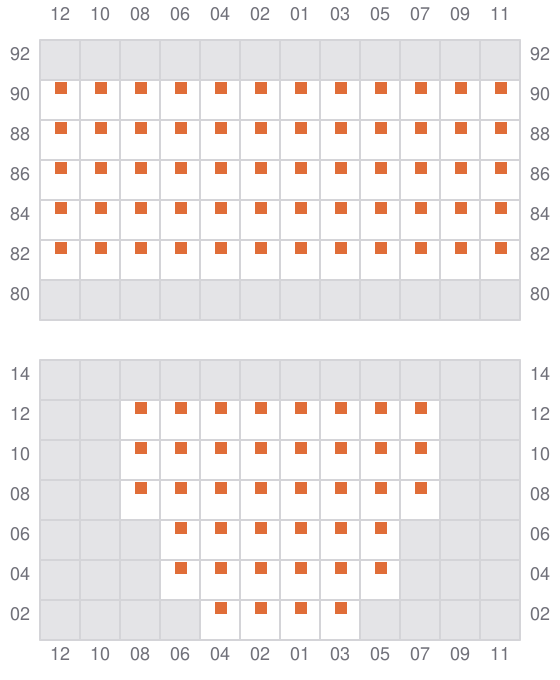

009
- →
![Bay 009 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b009.png?v=1687024311532)

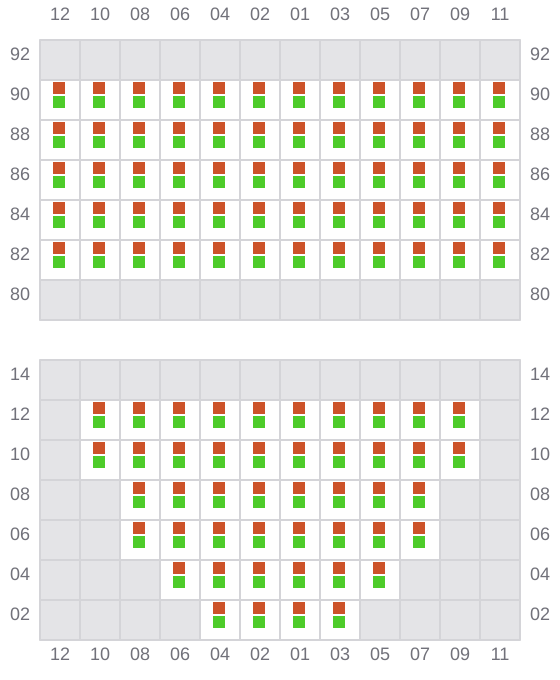

011 (010)
- ←
![Bay 011 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b011.png?v=1687024311532)

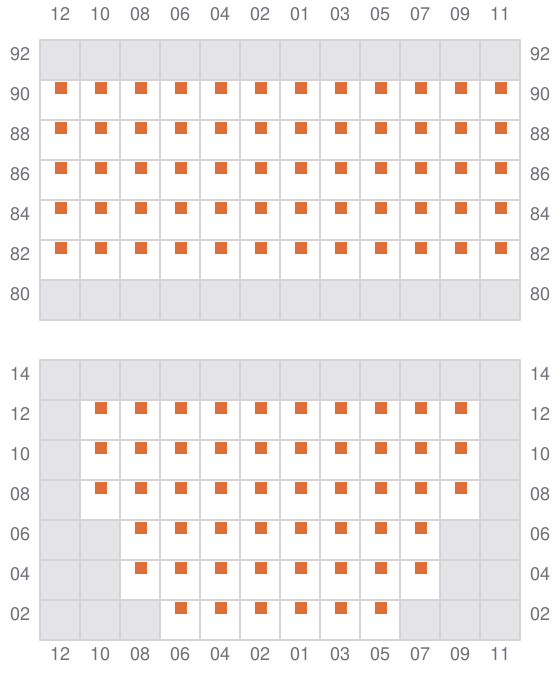

013
- →
![Bay 013 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b013.png?v=1687024311532)

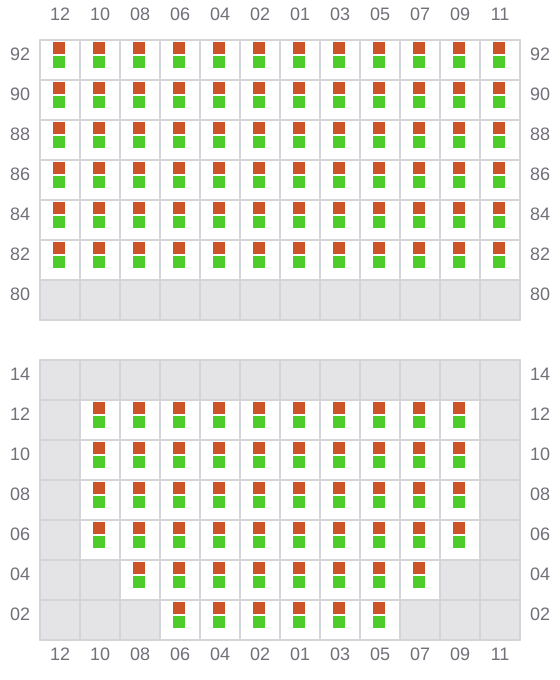

015 (014)
- ←
![Bay 015 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b015.png?v=1687024311532)

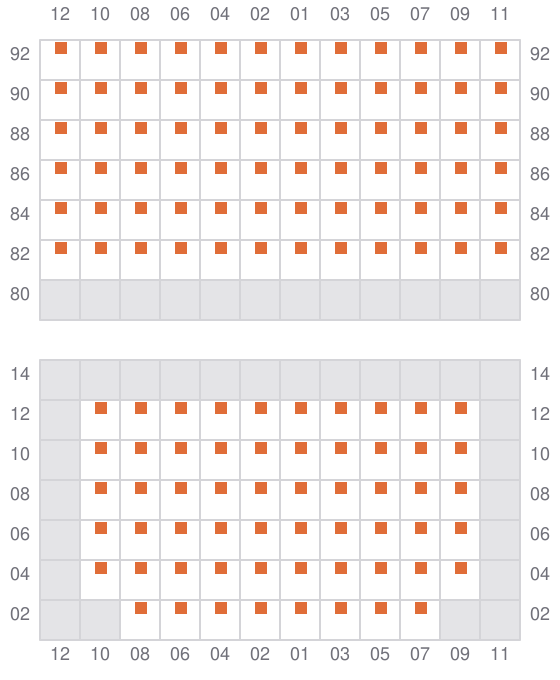

017
- →
![Bay 017 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b017.png?v=1687024311532)
019 (018)
- ←
![Bay 019 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b019.png?v=1687024311532)
021
- →
![Bay 021 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b021.png?v=1687024311532)
023 (022)
- ←
![Bay 023 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b023.png?v=1687024311532)
025
- →
![Bay 025 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b025.png?v=1687024311532)

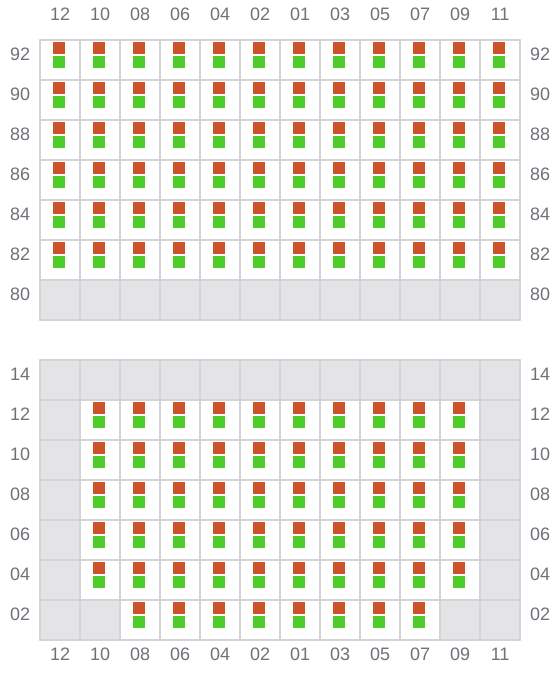

027 (026)
- ←
![Bay 027 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b027.png?v=1687024311532)
029
- →
![Bay 029 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b029.png?v=1687024311532)
031 (030)
- ←
![Bay 031 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b031.png?v=1687024311532)

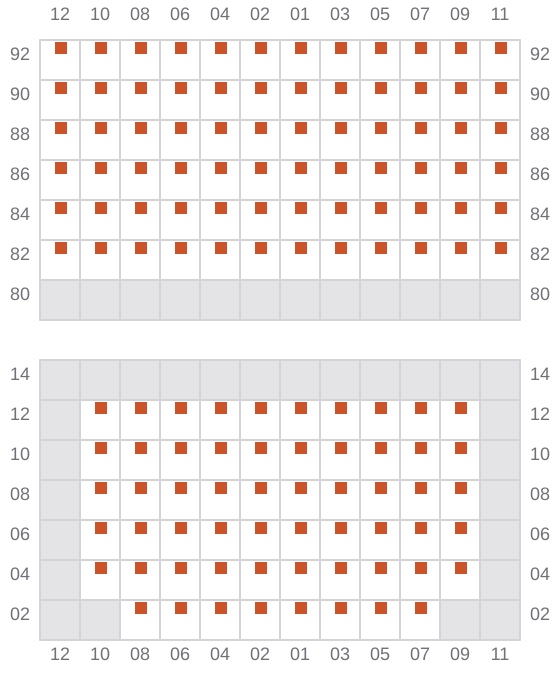

033
- →
![Bay 033 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b033.png?v=1687024311532)
035 (034)
- ←
![Bay 035 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b035.png?v=1687024311532)

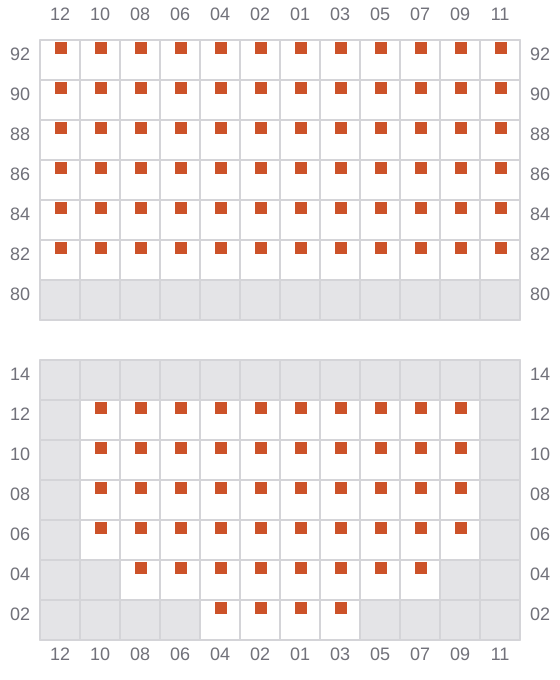

037
- →
![Bay 037 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b037.png?v=1687024311532)

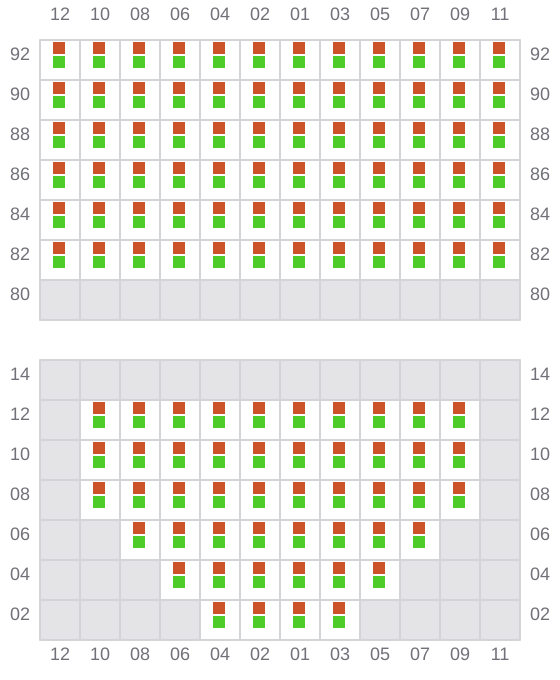

039 (038)
- ←
![Bay 039 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b039.png?v=1687024311532)

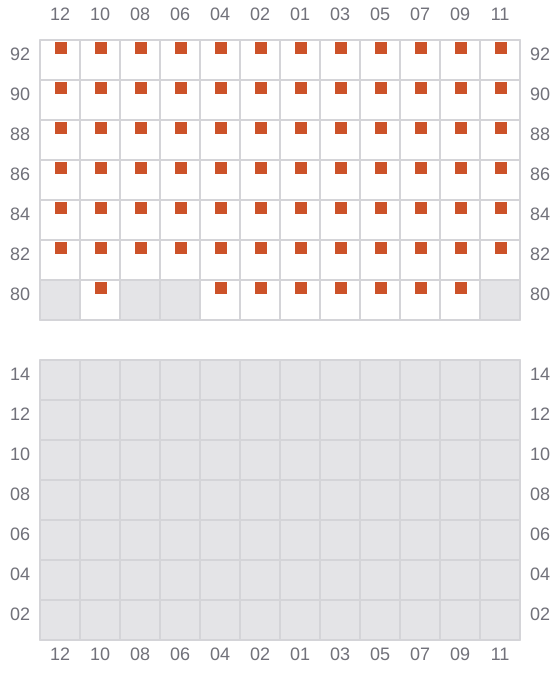

041
- → / ?
![Bay 041 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b041.png?v=1687024311532)

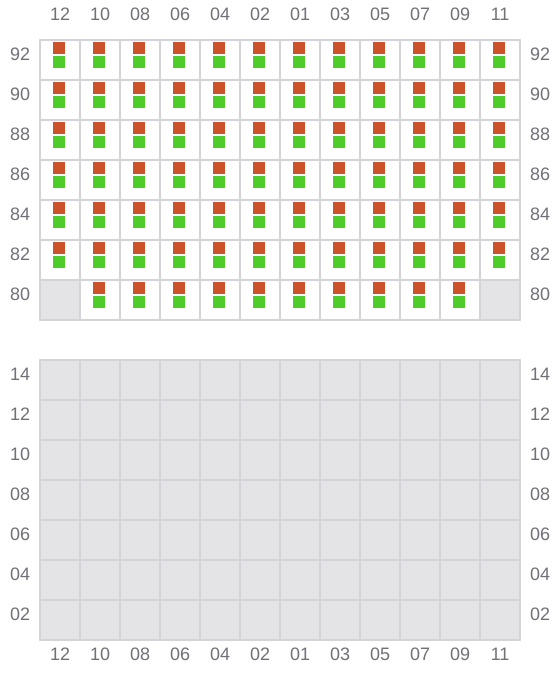

043 (042)
- ← / ?
![Bay 043 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b043.png?v=1687024311532)

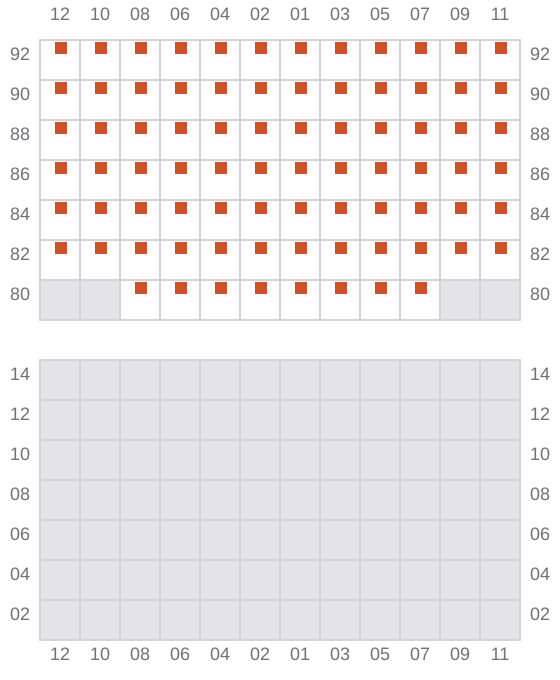

045
- → / ?
![Bay 045 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b045.png?v=1687024311532)

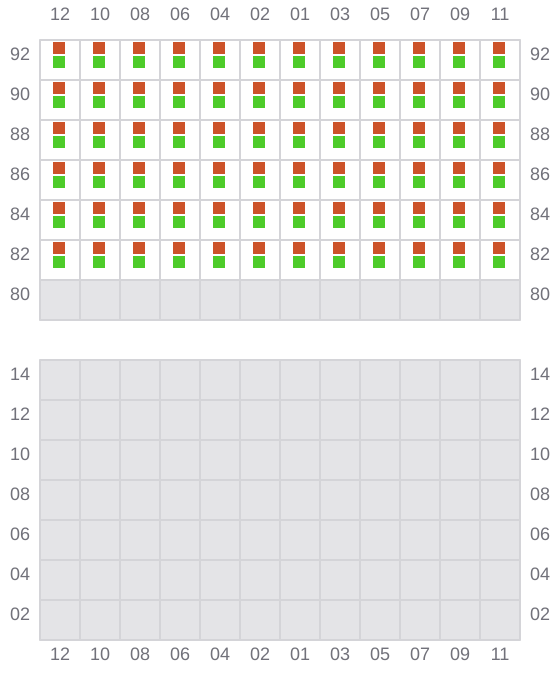

047 (046)
- ← / ?
![Bay 047 view and slots of BOMAR CALAIS](/vessel-images/cbbc8514-c683-4d2b-b2d0-fc3623c77976-b047.png?v=1687024311532)
