BOMAR PRAIA
9419773 | A8TT4 | 9419773 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:BOMAR PRAIA
IMO Code:9419773
Call Sign:A8TT4
Line Operator:9419773
Class Name for Sister Ships:2PN
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

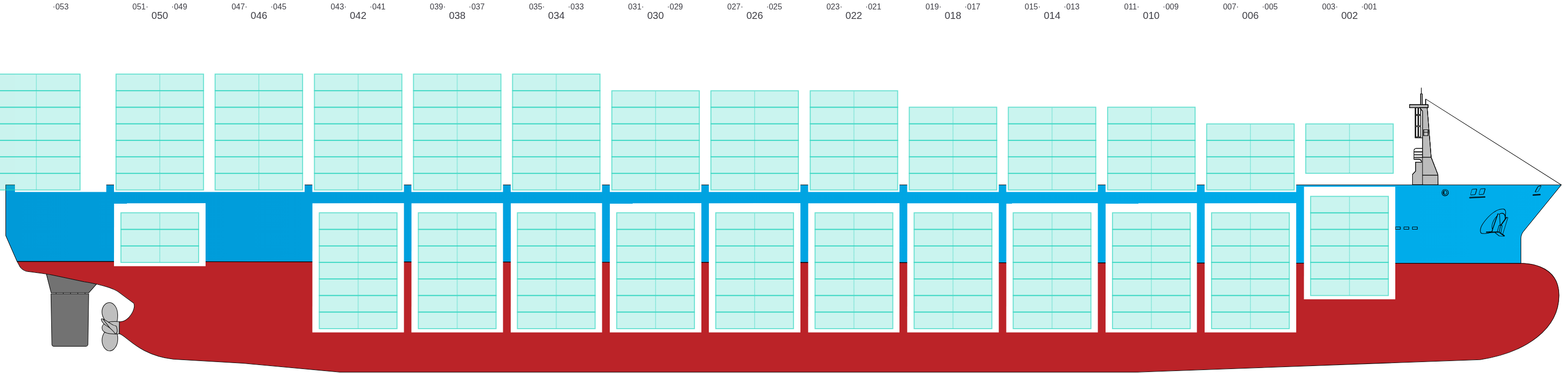

Side View
![Side view of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-sideView.png?v=1711391397651)
Hatch-Covers View
![Deck view of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-deckView.png?v=1711391397651)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

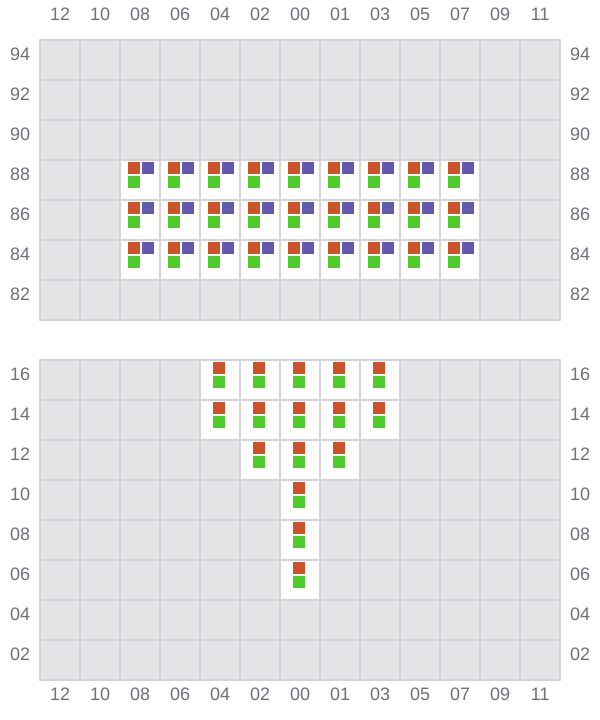

001 (002)
- →
![Bay 001 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b001.png?v=1711391397651)

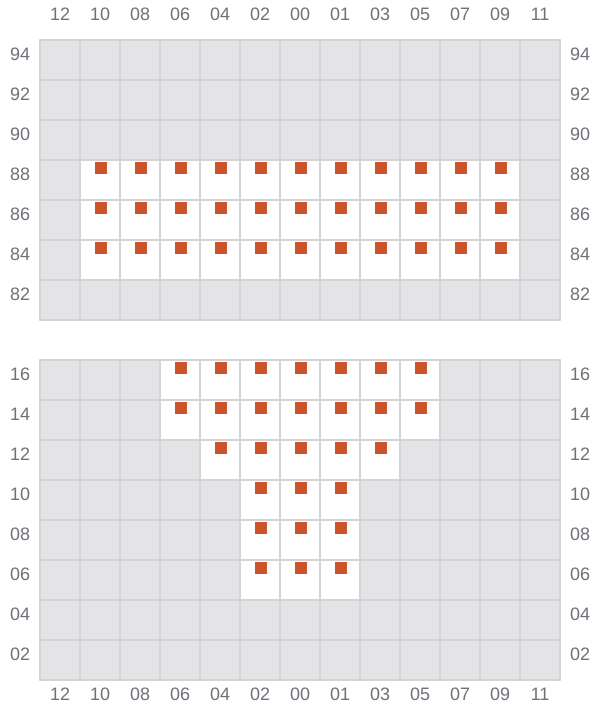

003
- ←
![Bay 003 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b003.png?v=1711391397651)

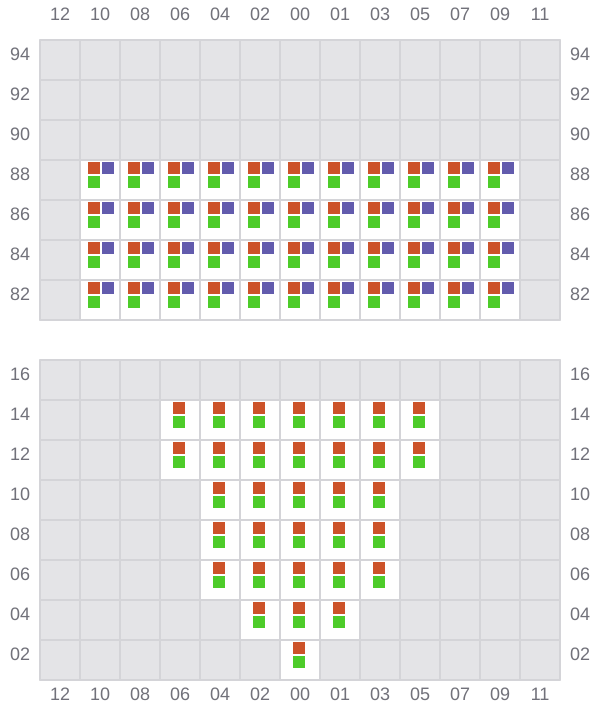

005 (006)
- →
![Bay 005 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b005.png?v=1711391397651)

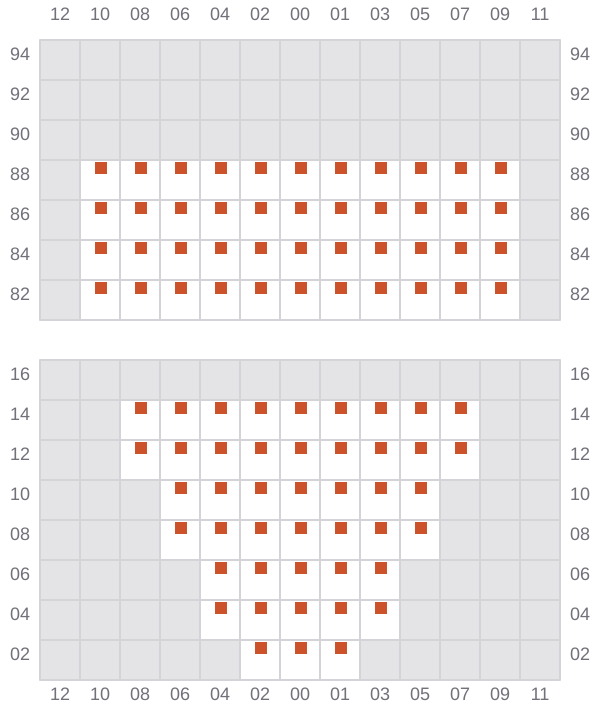

007
- ←
![Bay 007 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b007.png?v=1711391397651)

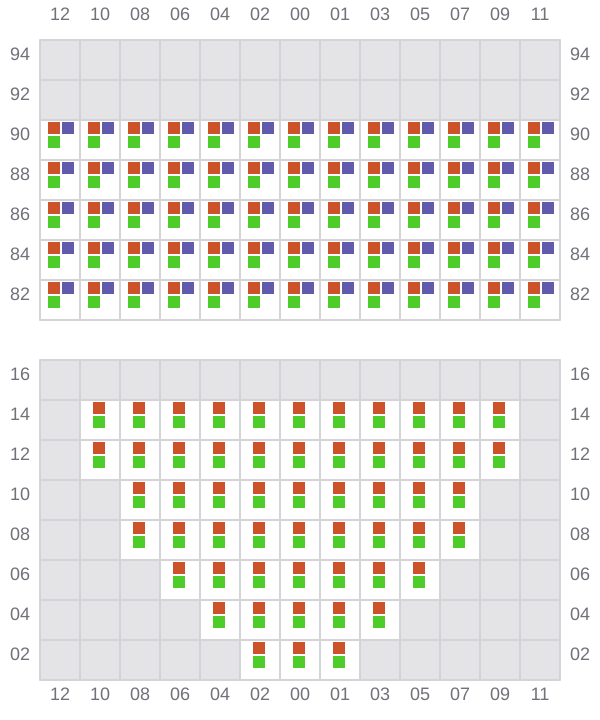

009 (010)
- →
![Bay 009 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b009.png?v=1711391397651)

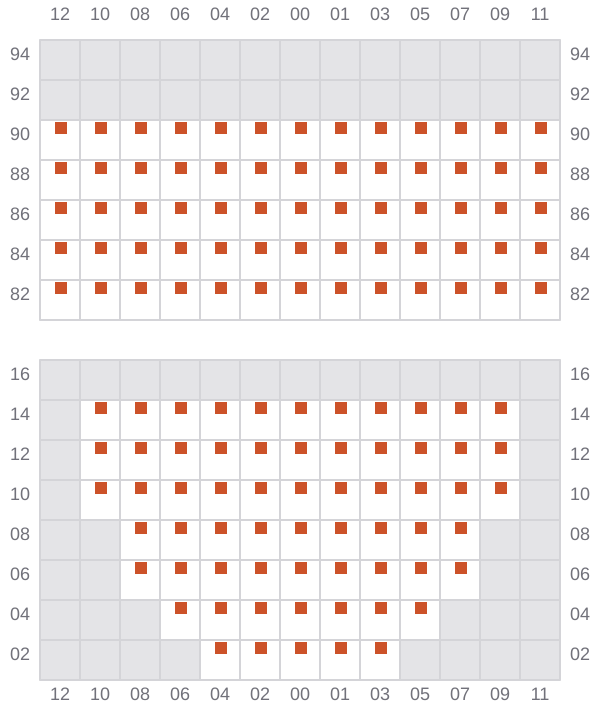

011
- ←
![Bay 011 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b011.png?v=1711391397651)

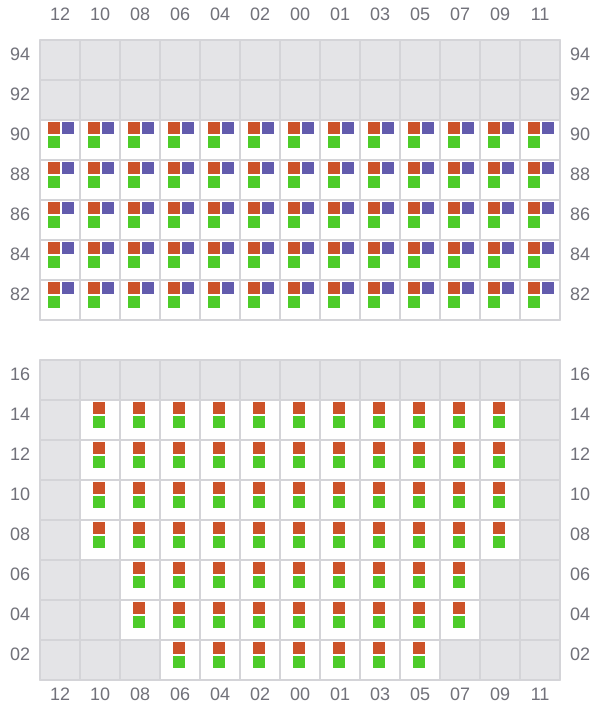

013 (014)
- →
![Bay 013 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b013.png?v=1711391397651)

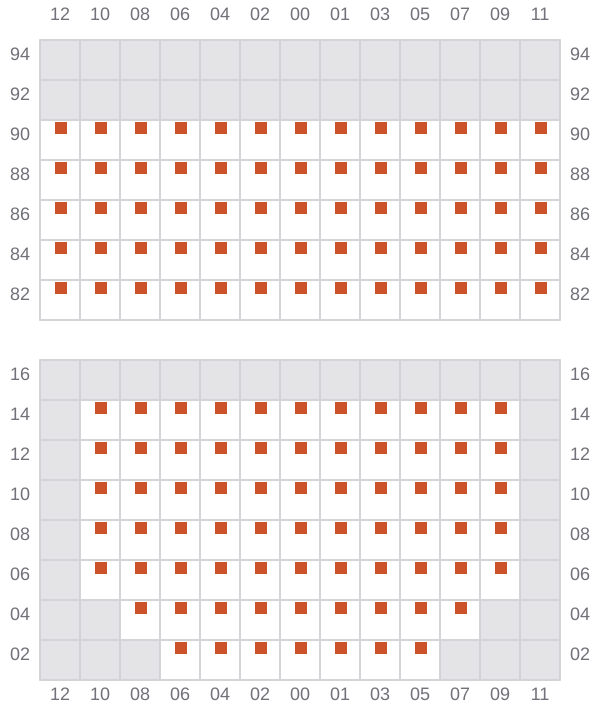

015
- ←
![Bay 015 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b015.png?v=1711391397651)

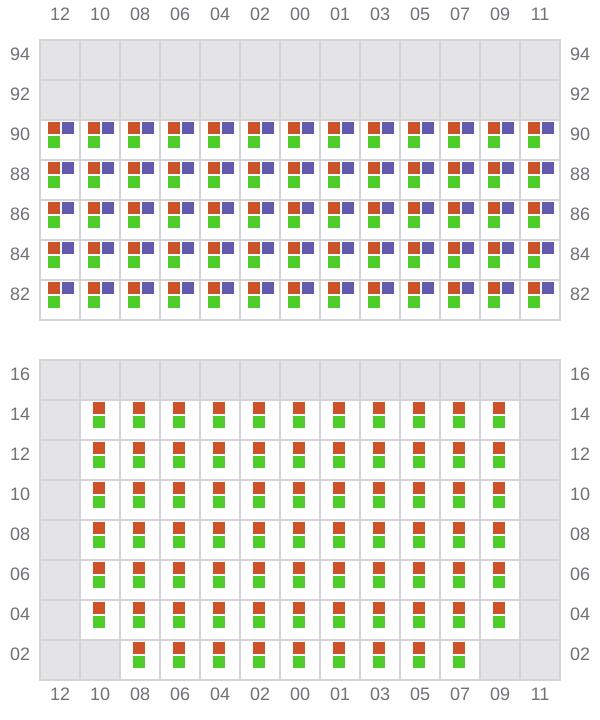

017 (018)
- →
![Bay 017 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b017.png?v=1711391397651)

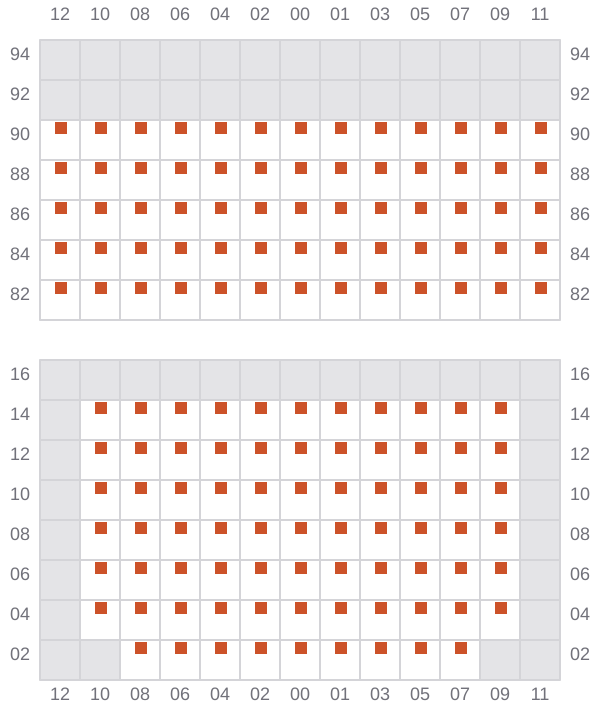

019
- ←
![Bay 019 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b019.png?v=1711391397651)
021 (022)
- →
![Bay 021 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b021.png?v=1711391397651)
023
- ←
![Bay 023 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b023.png?v=1711391397651)
025 (026)
- →
![Bay 025 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b025.png?v=1711391397651)

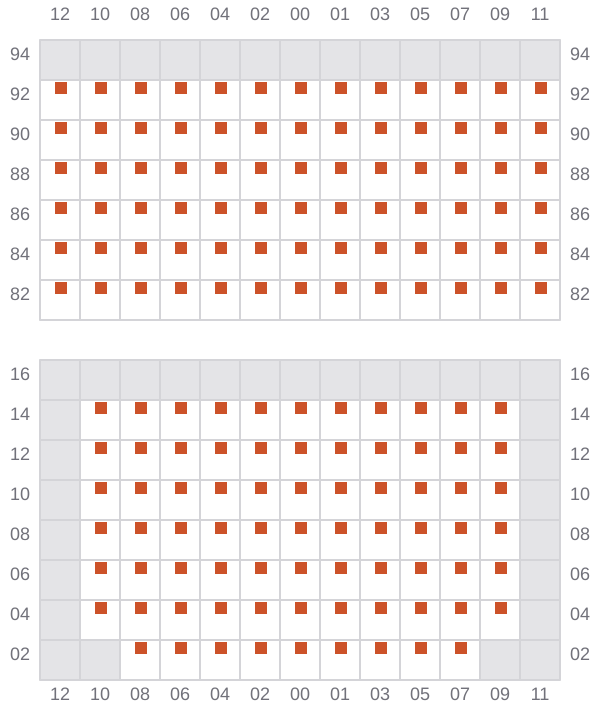

027
- ←
![Bay 027 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b027.png?v=1711391397651)

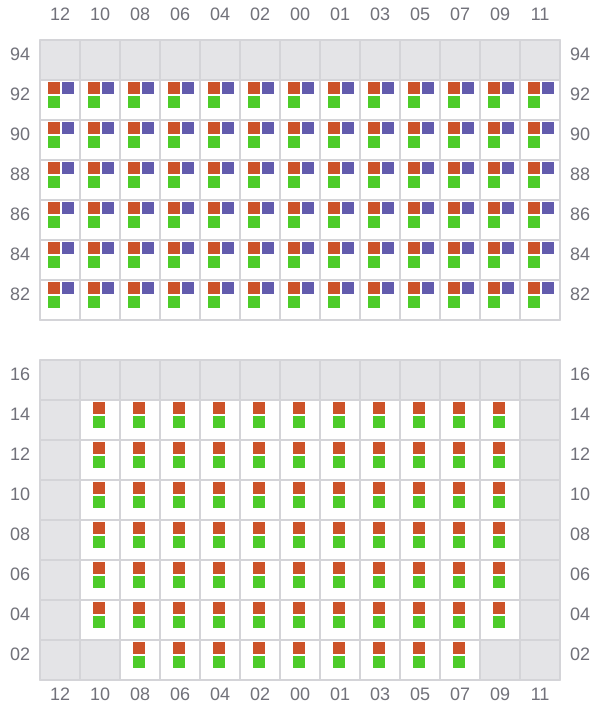

029 (030)
- →
![Bay 029 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b029.png?v=1711391397651)
031
- ←
![Bay 031 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b031.png?v=1711391397651)

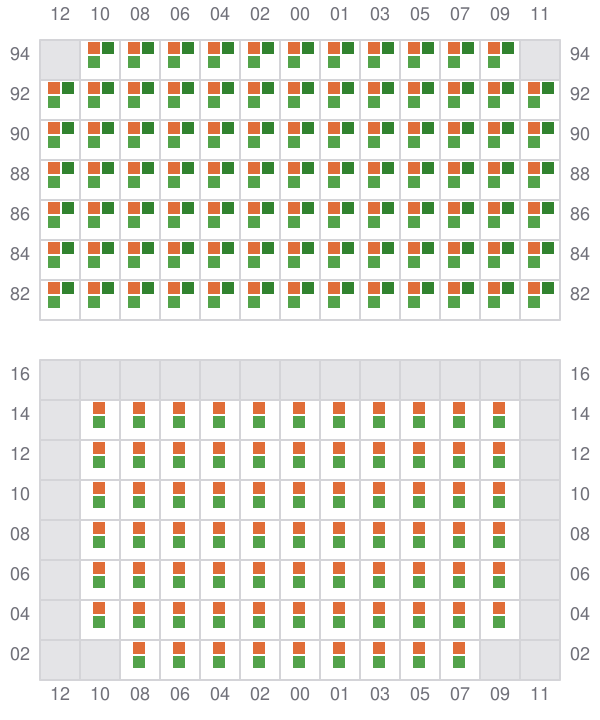

033 (034)
- →
![Bay 033 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b033.png?v=1711391397651)
035
- ←
![Bay 035 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b035.png?v=1711391397651)

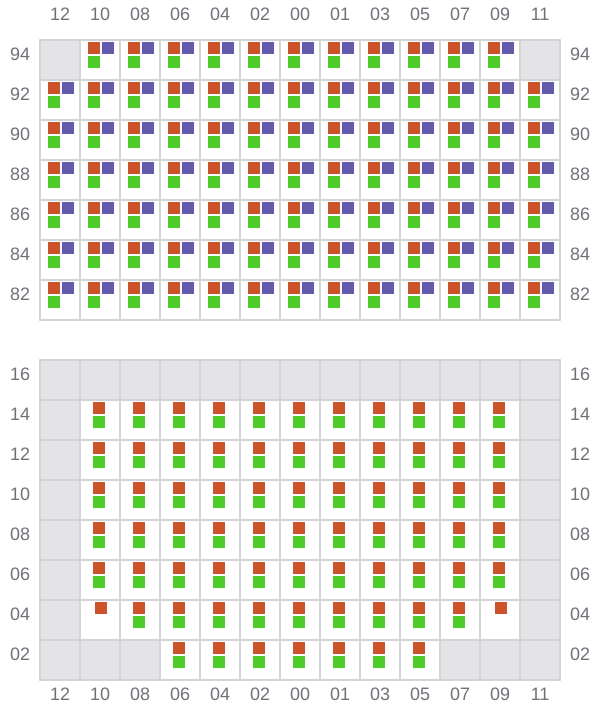

037 (038)
- →
![Bay 037 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b037.png?v=1711391397651)

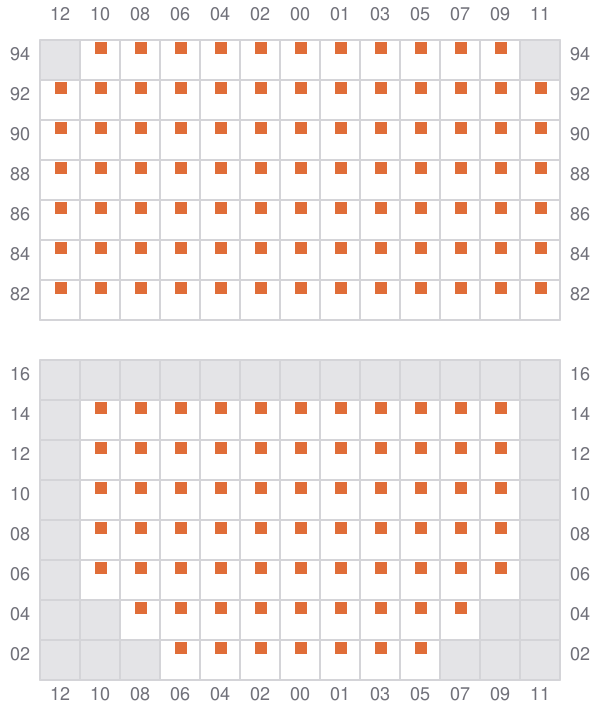

039
- ←
![Bay 039 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b039.png?v=1711391397651)

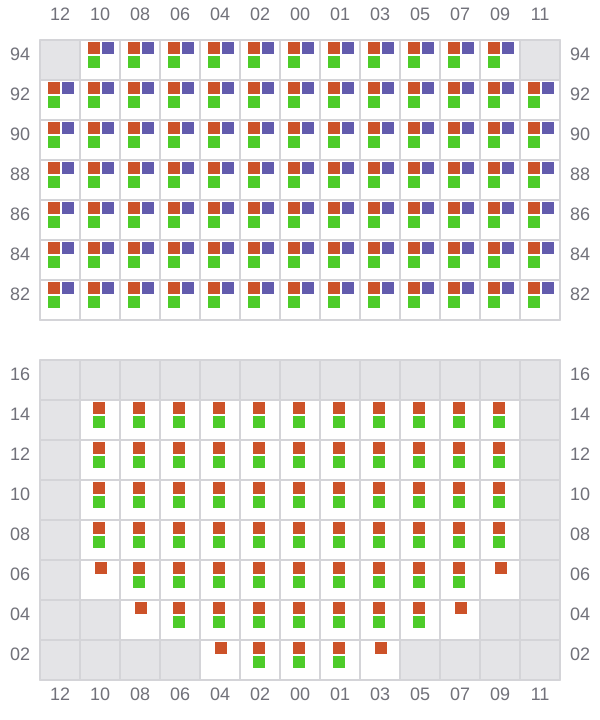

041 (042)
- →
![Bay 041 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b041.png?v=1711391397651)

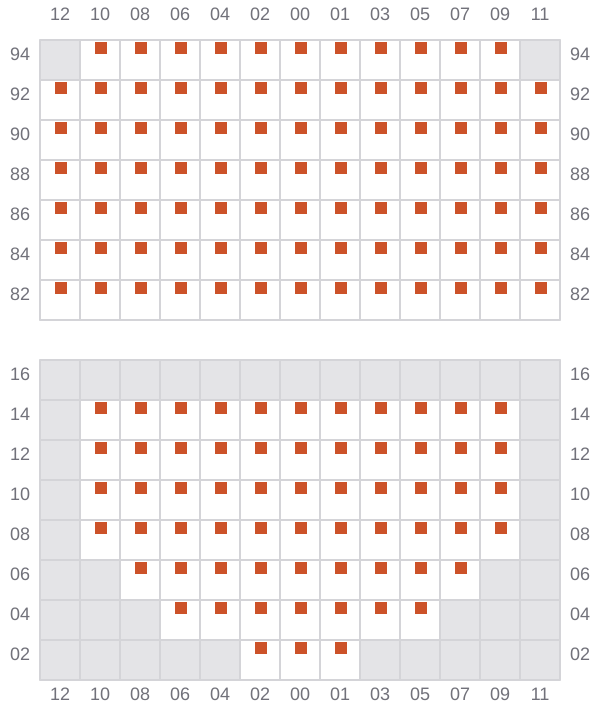

043
- ←
![Bay 043 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b043.png?v=1711391397651)

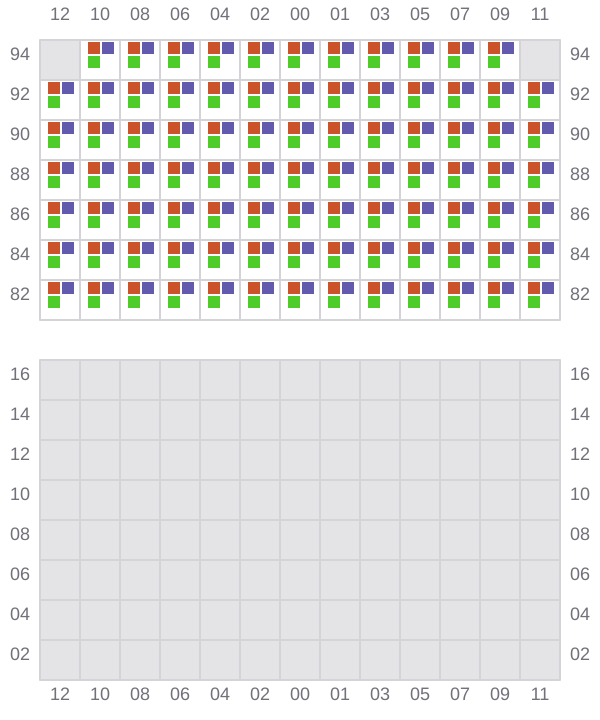

045 (046)
- → / ?
![Bay 045 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b045.png?v=1711391397651)

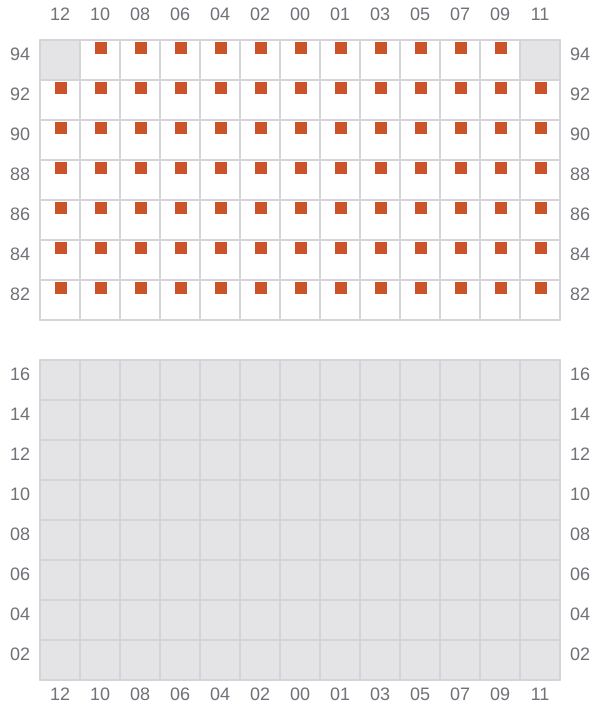

047
- ← / ?
![Bay 047 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b047.png?v=1711391397651)

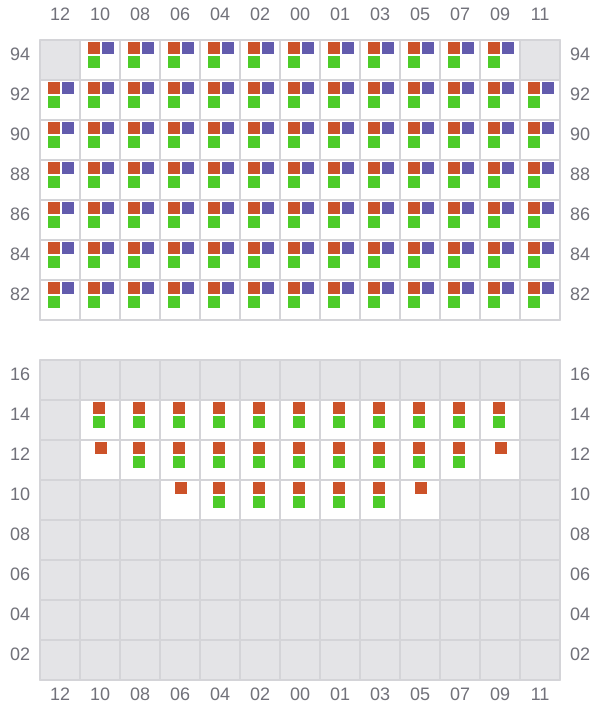

049 (050)
- →
![Bay 049 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b049.png?v=1711391397651)

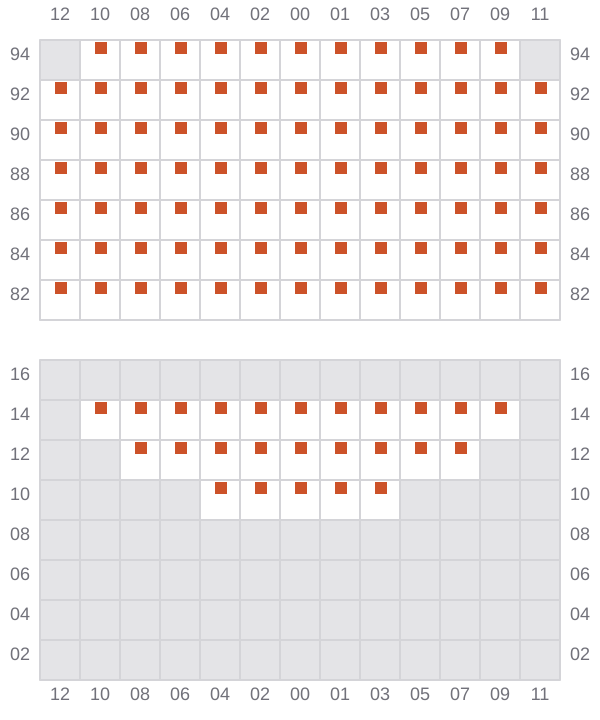

051
- ←
![Bay 051 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b051.png?v=1711391397651)

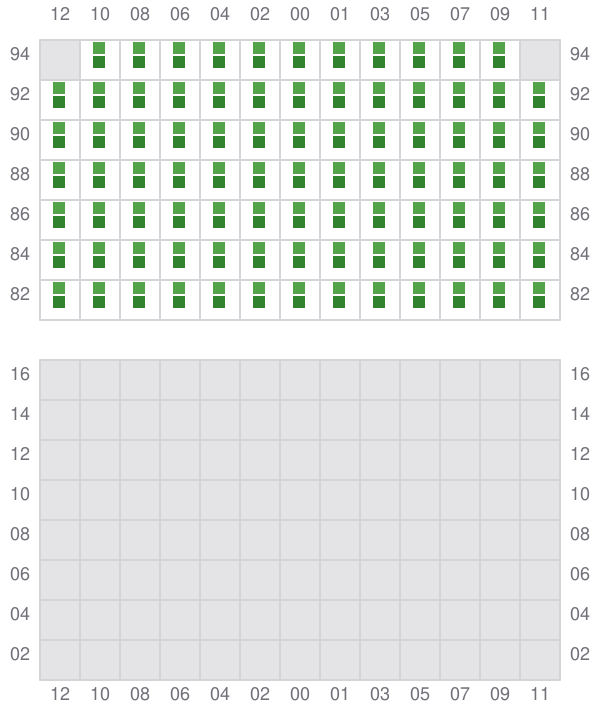

053 (054)
- → / ?
![Bay 053 view and slots of BOMAR PRAIA](/vessel-images/249ae5cd-e8ec-462b-b9cf-a7fdf2ee2553-b053.png?v=1711391397651)
