BOMAR RENAISSANCE
9358436 | A8JU3 | 9358436 by ********* Last update: Sat Mar 23 2024

General Info

Ship Name:BOMAR RENAISSANCE
IMO Code:9358436
Call Sign:A8JU3
Line Operator:9358436
Class Name for Sister Ships:43E
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):223.00
LOA (Length Overall):223.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

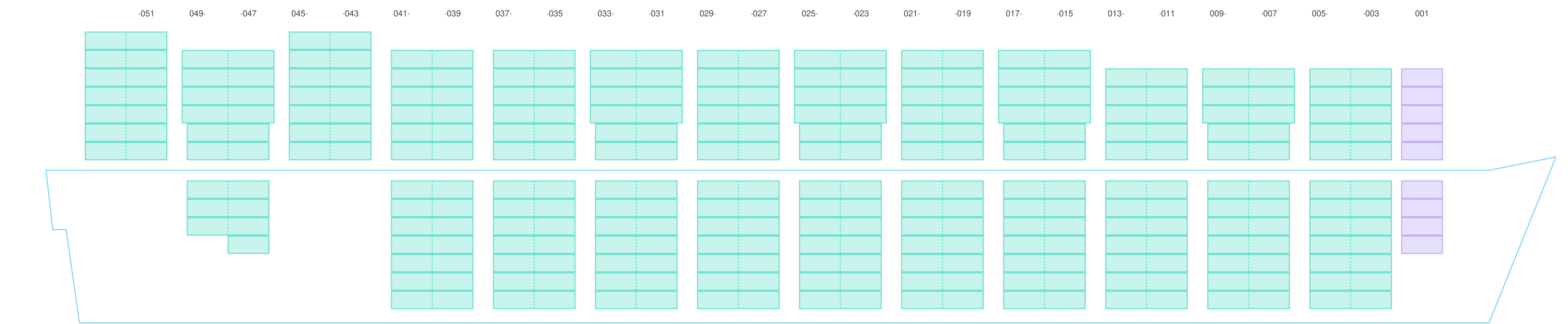

Side view of BOMAR RENAISSANCE

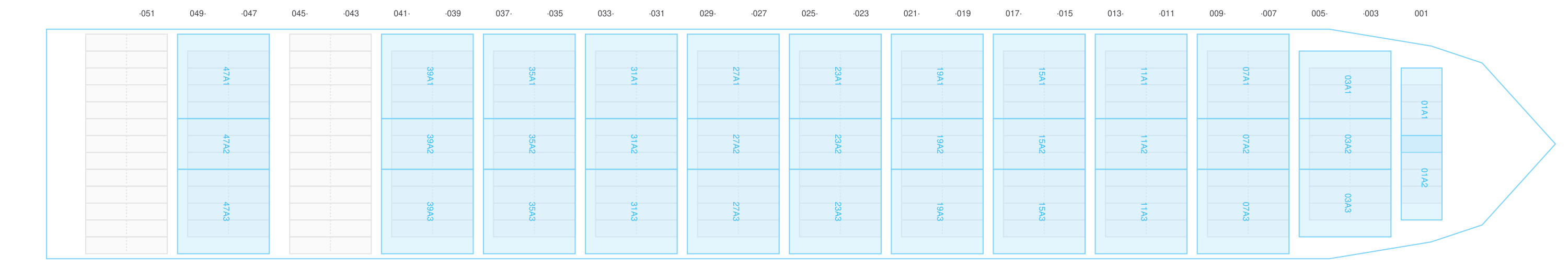

Hatch-Covers View

Deck view of BOMAR RENAISSANCE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

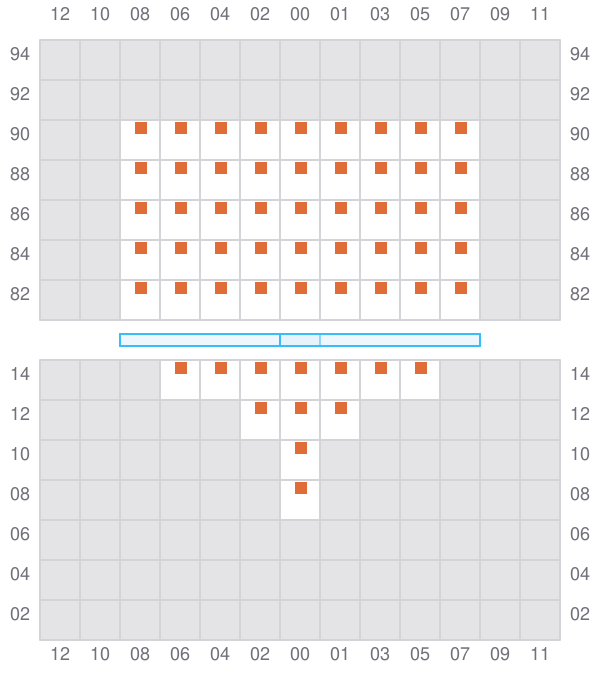

Bay 001 view and slots of BOMAR RENAISSANCE

003 (004)

  • →

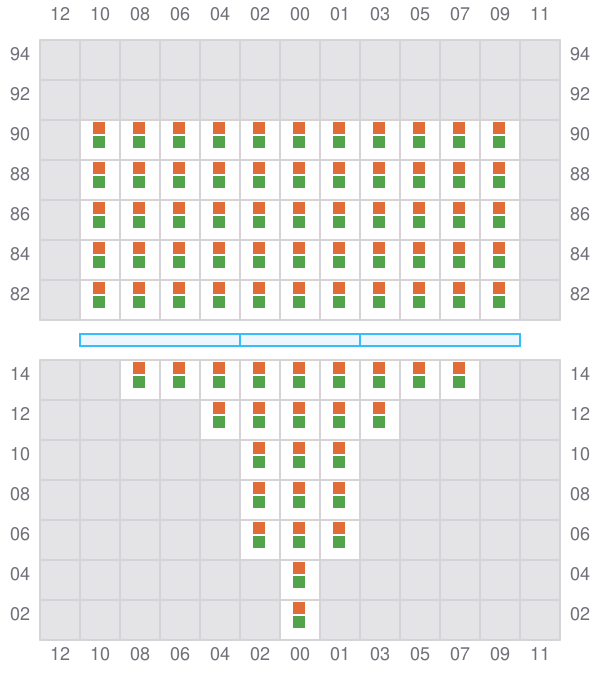

Bay 003 view and slots of BOMAR RENAISSANCE

005

  • ←
  • → / ?
Bay 005 view and slots of BOMAR RENAISSANCE

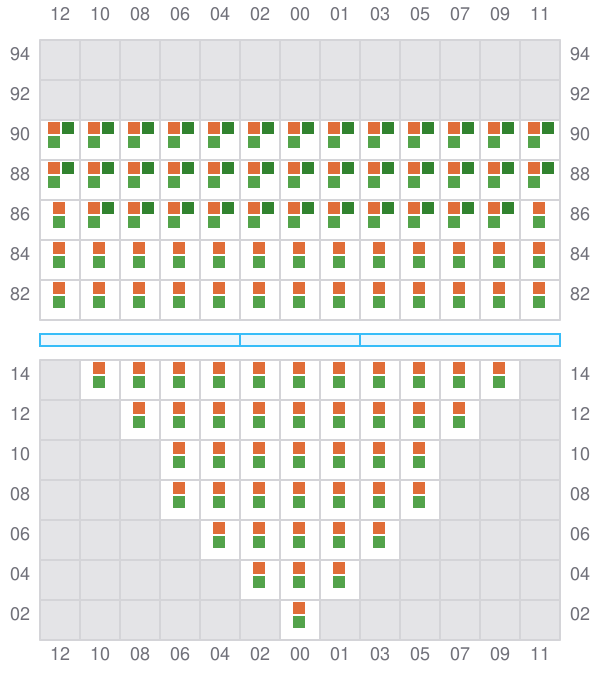

007 (008)

  • →
Bay 007 view and slots of BOMAR RENAISSANCE

009

  • ←
  • → / ?
Bay 009 view and slots of BOMAR RENAISSANCE

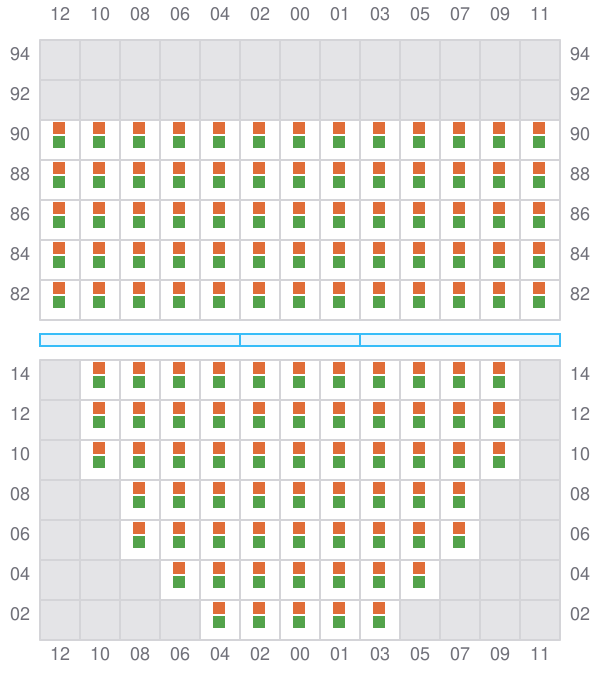

011 (012)

  • →
Bay 011 view and slots of BOMAR RENAISSANCE

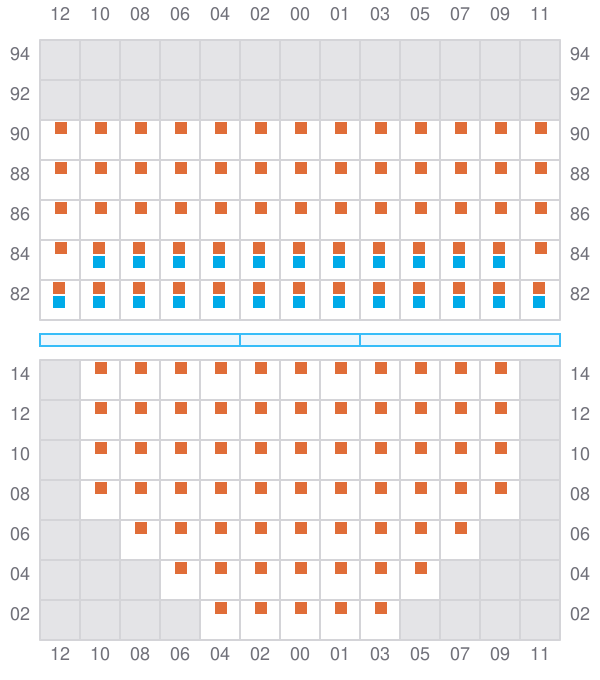

013

  • ←
  • → / ?
Bay 013 view and slots of BOMAR RENAISSANCE

015 (016)

  • →

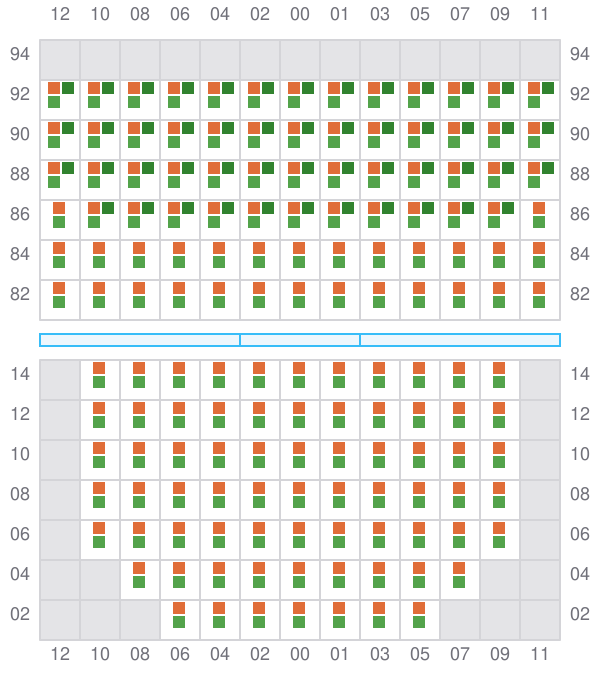

Bay 015 view and slots of BOMAR RENAISSANCE

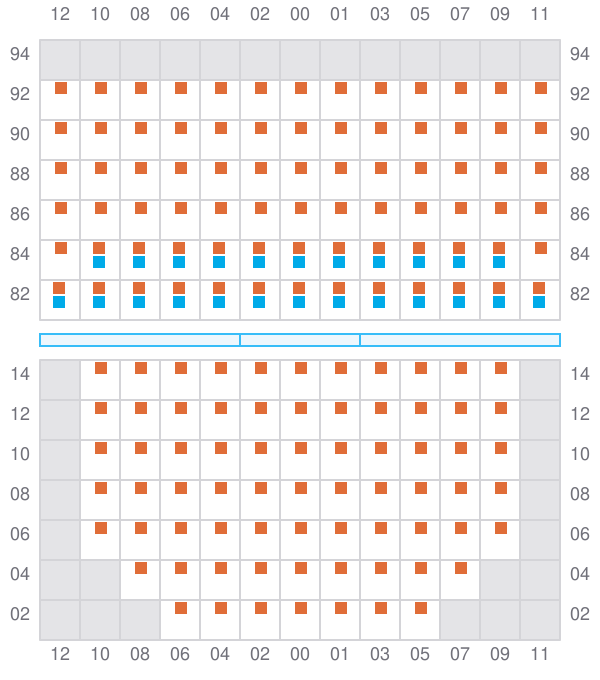

017

  • ←
  • → / ?
Bay 017 view and slots of BOMAR RENAISSANCE

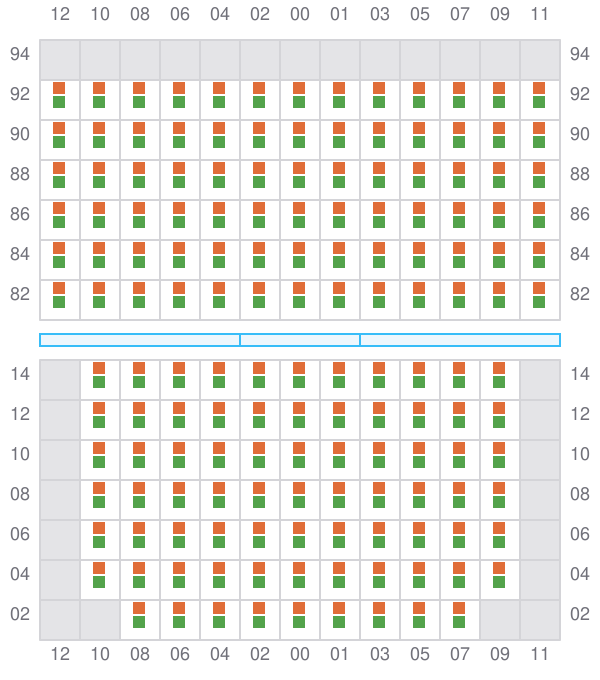

019 (020)

  • →
Bay 019 view and slots of BOMAR RENAISSANCE

021

  • ←
  • → / ?
Bay 021 view and slots of BOMAR RENAISSANCE

023 (024)

  • →
Bay 023 view and slots of BOMAR RENAISSANCE

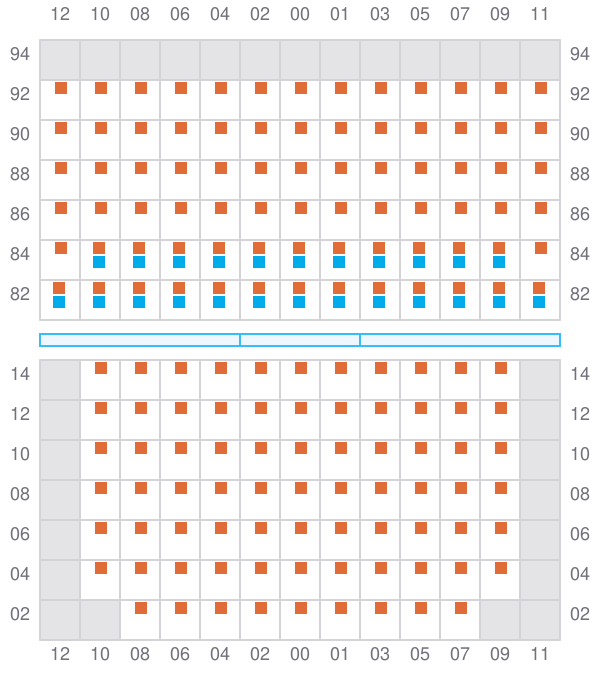

025

  • ←
  • → / ?
Bay 025 view and slots of BOMAR RENAISSANCE

027 (028)

  • →
Bay 027 view and slots of BOMAR RENAISSANCE

029

  • ←
  • → / ?
Bay 029 view and slots of BOMAR RENAISSANCE

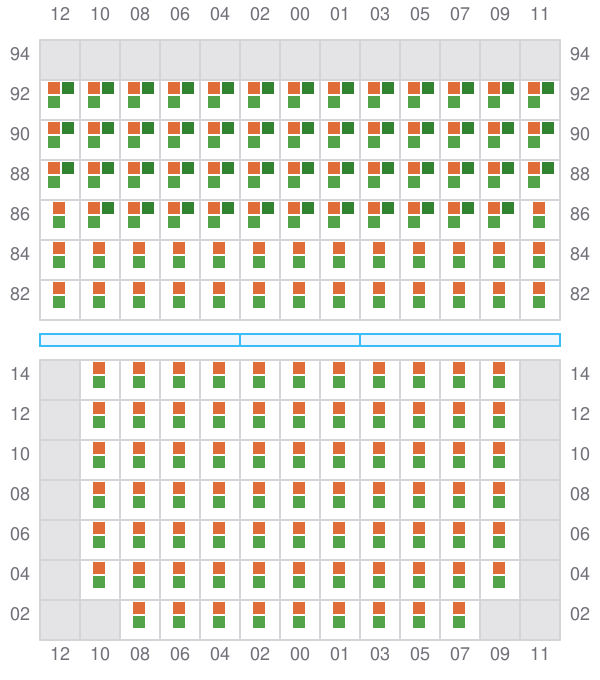

031 (032)

  • →
Bay 031 view and slots of BOMAR RENAISSANCE

033

  • ←
  • → / ?
Bay 033 view and slots of BOMAR RENAISSANCE

035 (036)

  • →
Bay 035 view and slots of BOMAR RENAISSANCE

037

  • ←
  • → / ?
Bay 037 view and slots of BOMAR RENAISSANCE

039 (040)

  • →

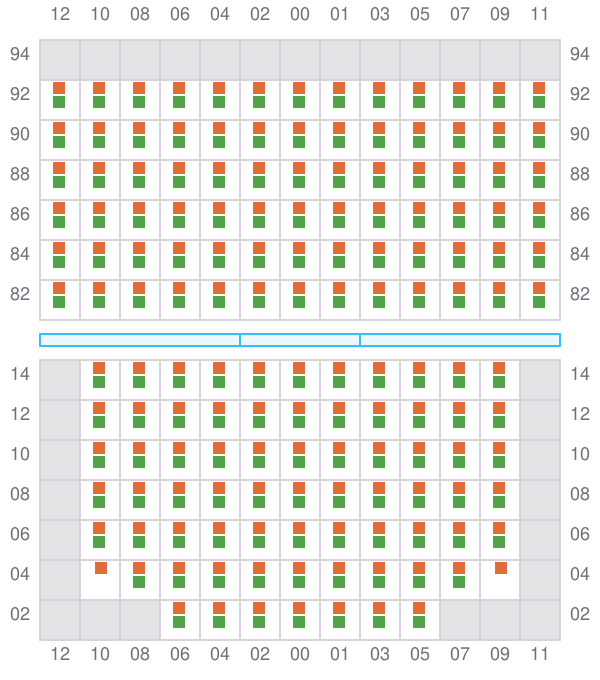

Bay 039 view and slots of BOMAR RENAISSANCE

041

  • ←
  • → / ?
Bay 041 view and slots of BOMAR RENAISSANCE

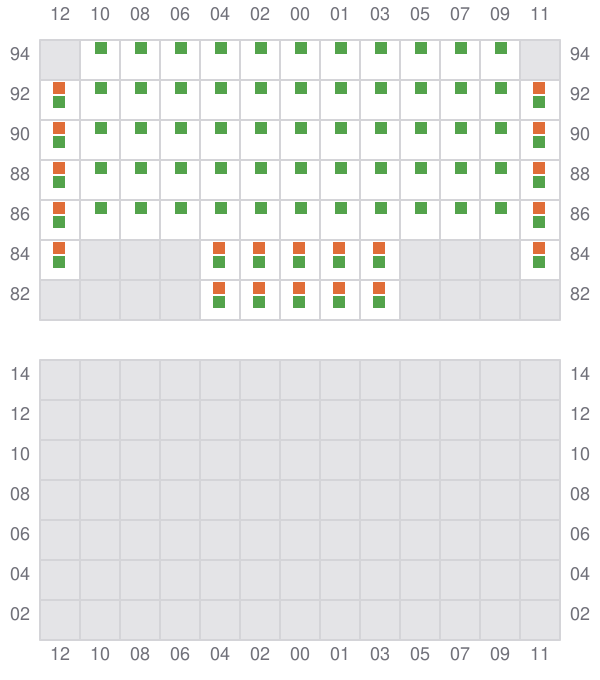

043 (044)

  • → / ?
Bay 043 view and slots of BOMAR RENAISSANCE

045

  • ← / ?
  • → / ?

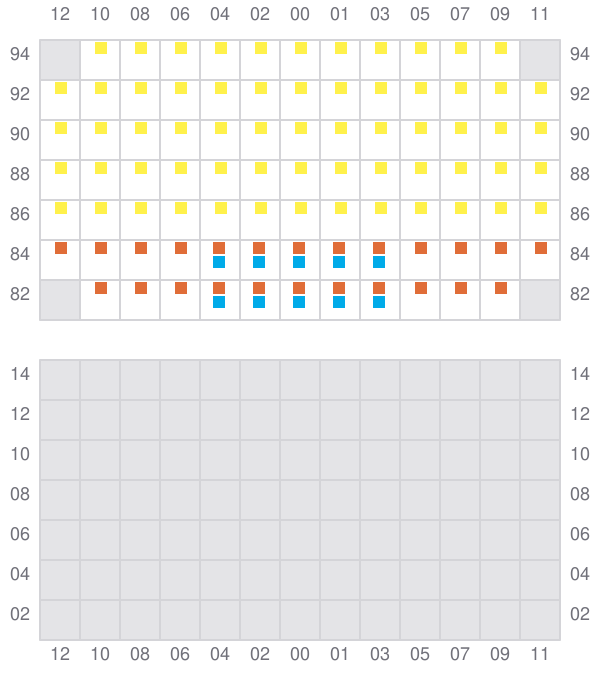

Bay 045 view and slots of BOMAR RENAISSANCE

047 (048)

  • →

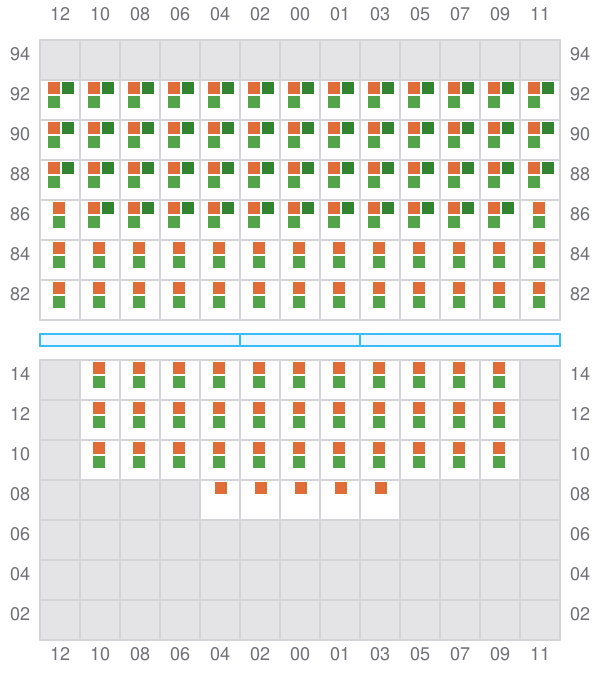

Bay 047 view and slots of BOMAR RENAISSANCE

049

  • ←
  • → / ?

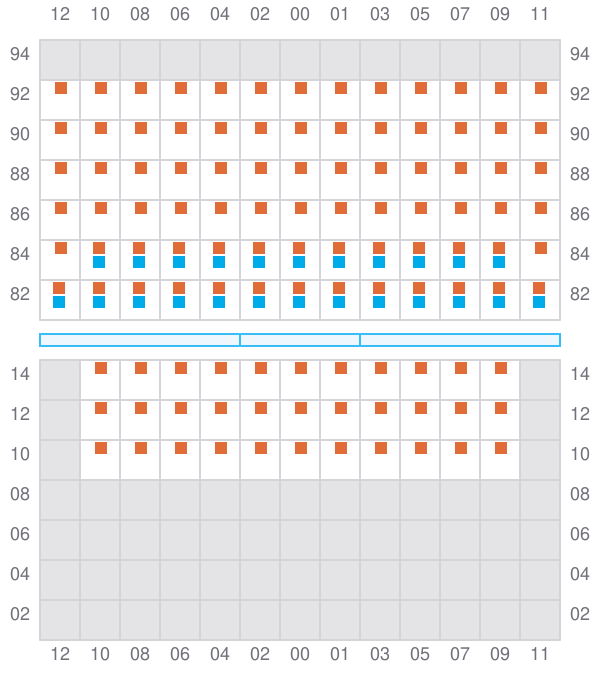

Bay 049 view and slots of BOMAR RENAISSANCE

051 (052)

  • → / ?
  • → / ?

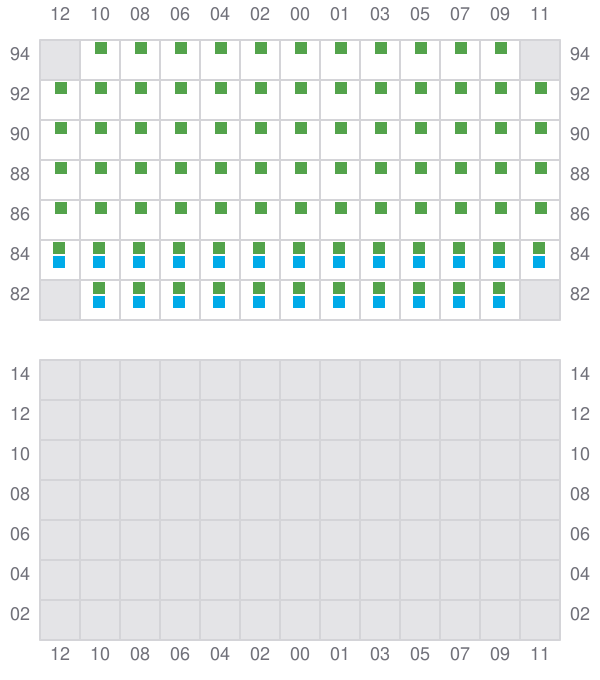

Bay 051 view and slots of BOMAR RENAISSANCE
