BONNY
9228514 | 5VEO7 | 9228514 by ********* Last update: Fri Jul 19 2024
General Info
Ship Name:BONNY
IMO Code:9228514
Call Sign:5VEO7
Line Operator:9228514
Class Name for Sister Ships:CMA
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,765
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

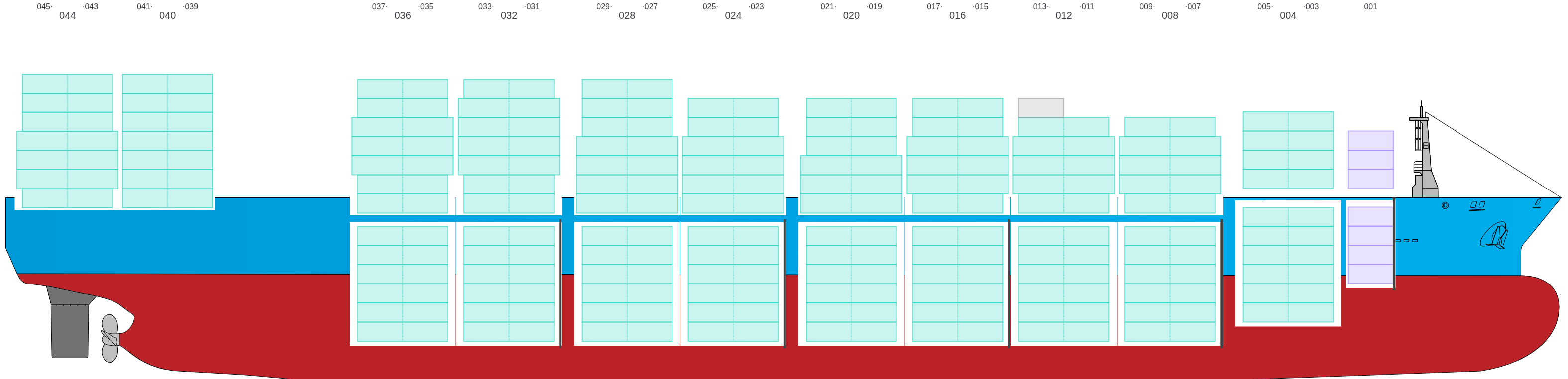

Side View
![Side view of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-sideView.png?v=1721414508479)

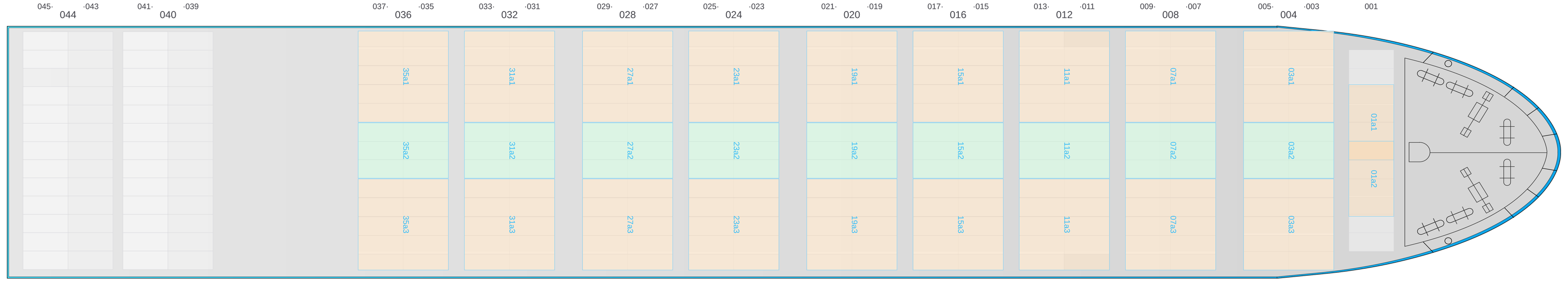

Hatch-Covers View
![Deck view of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-deckView.png?v=1721414508479)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

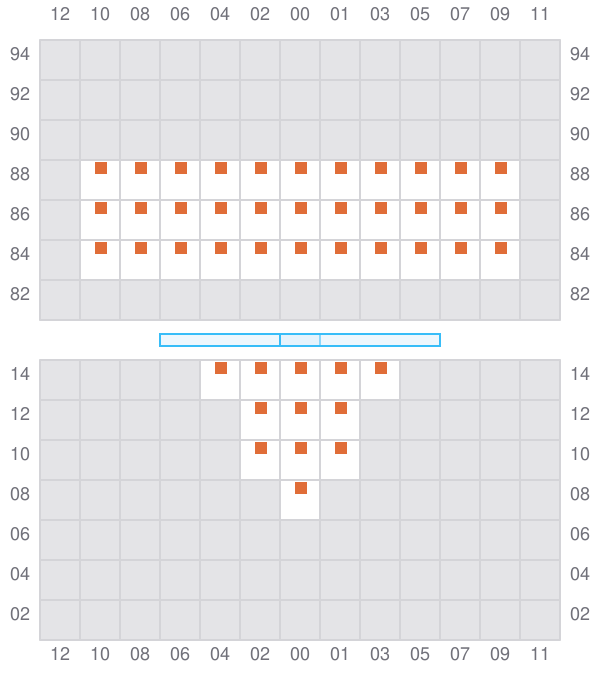

001
![Bay 001 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b001.png?v=1721414508479)
003 (004)
- →
![Bay 003 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b003.png?v=1721414508479)

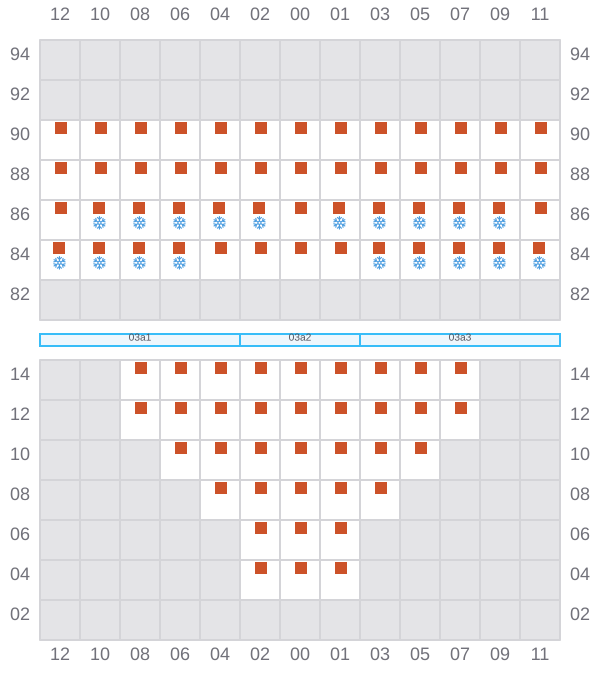

005
- ←
- → / ?
![Bay 005 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b005.png?v=1721414508479)

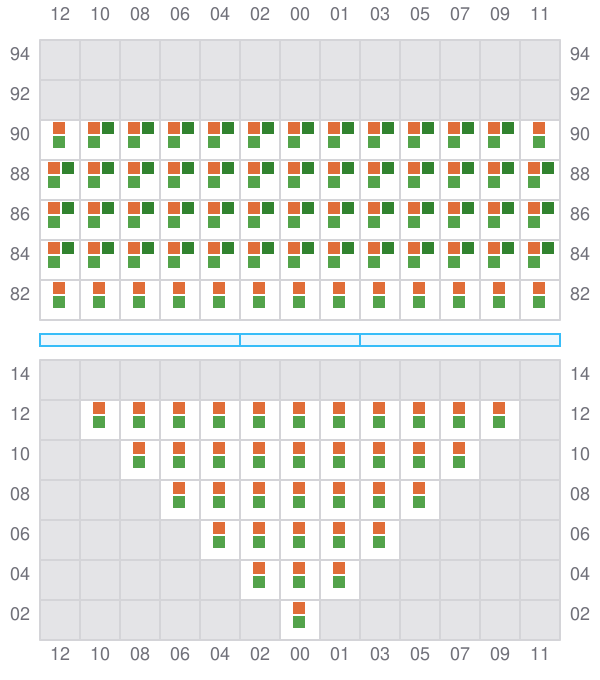

007 (008)
- →
![Bay 007 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b007.png?v=1721414508479)

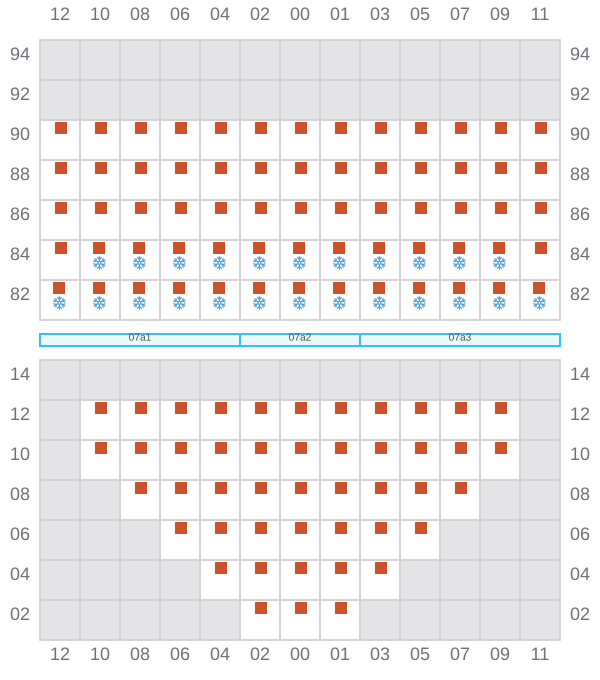

009
- ←
- → / ?
![Bay 009 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b009.png?v=1721414508479)

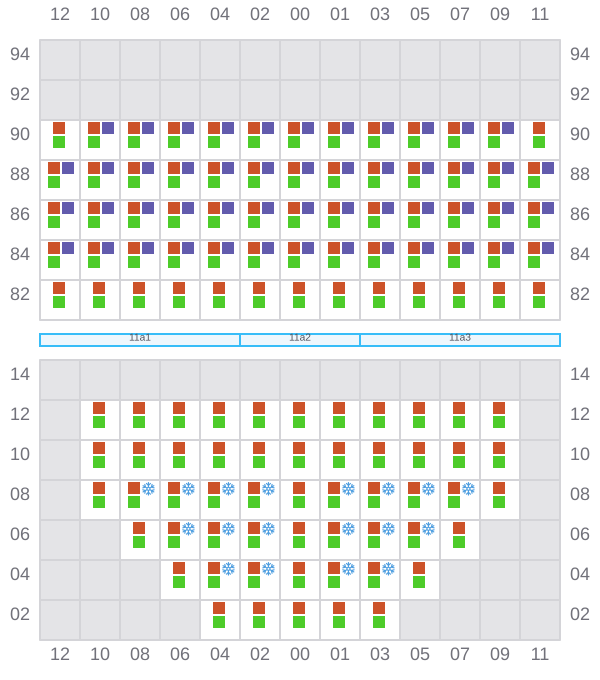

011 (012)
- →
- ? / ←
![Bay 011 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b011.png?v=1721414508479)

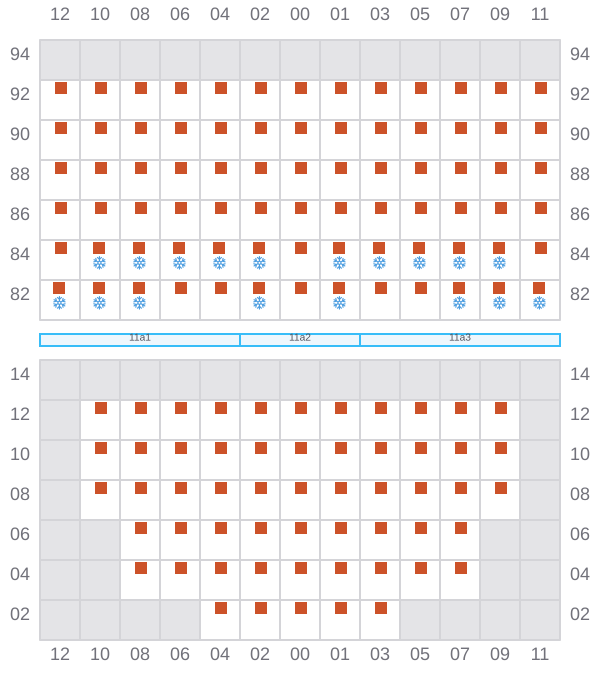

013
- ←
- → / ?
![Bay 013 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b013.png?v=1721414508479)

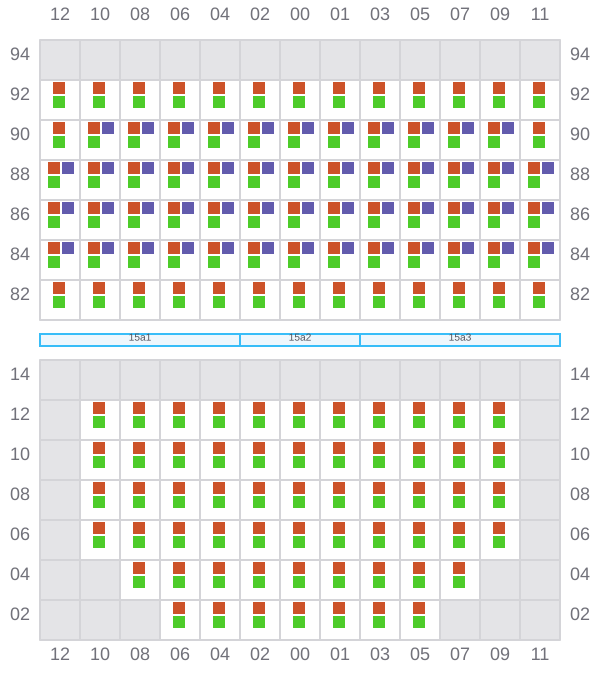

015 (016)
- →
![Bay 015 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b015.png?v=1721414508479)

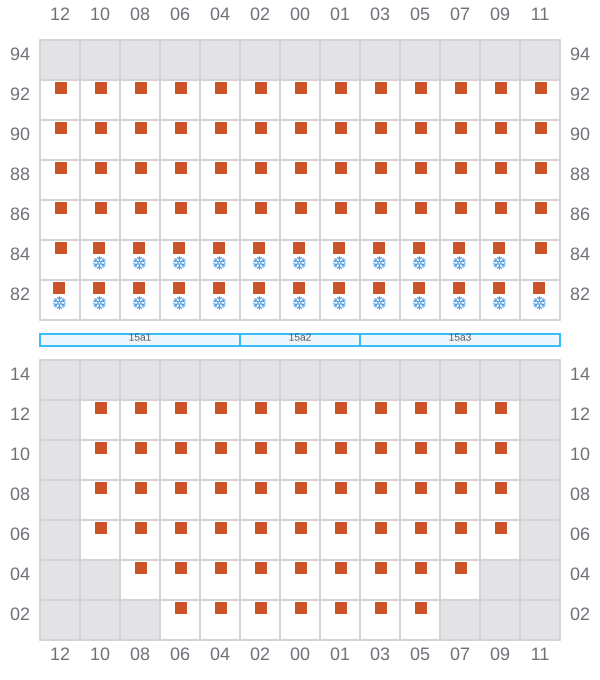

017
- ←
- → / ?
![Bay 017 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b017.png?v=1721414508479)
019 (020)
- →
- ? / ←
![Bay 019 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b019.png?v=1721414508479)

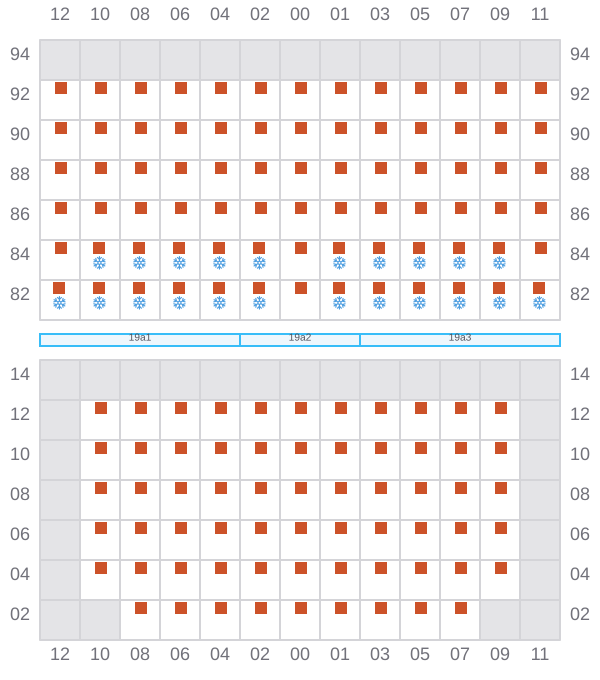

021
- ←
- → / ?
![Bay 021 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b021.png?v=1721414508479)
023 (024)
- →
![Bay 023 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b023.png?v=1721414508479)

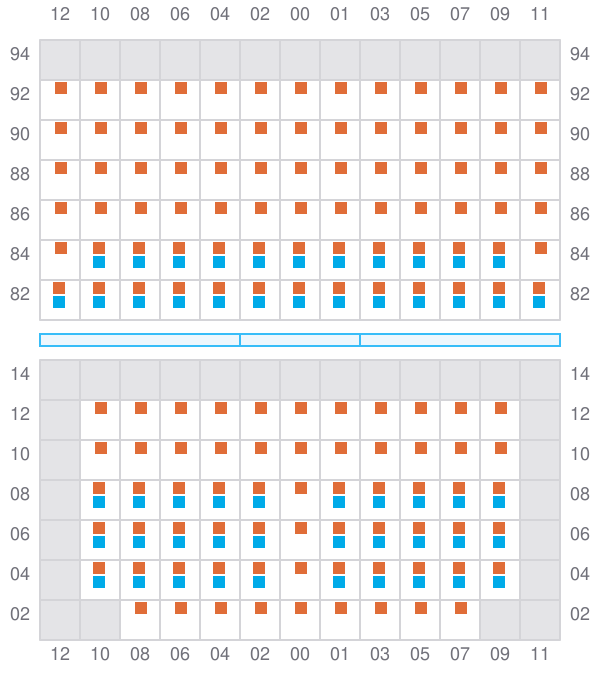

025
- ←
- →
![Bay 025 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b025.png?v=1721414508479)
027 (028)
- →
![Bay 027 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b027.png?v=1721414508479)

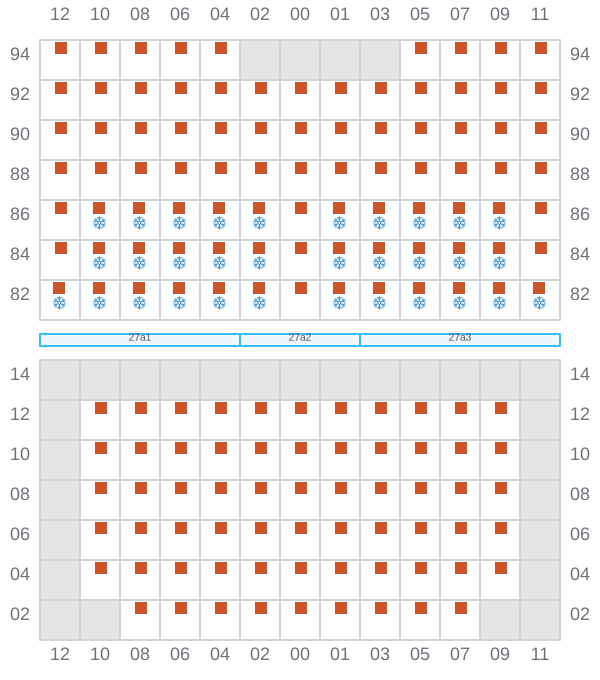

029
- ←
- → / ?
![Bay 029 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b029.png?v=1721414508479)

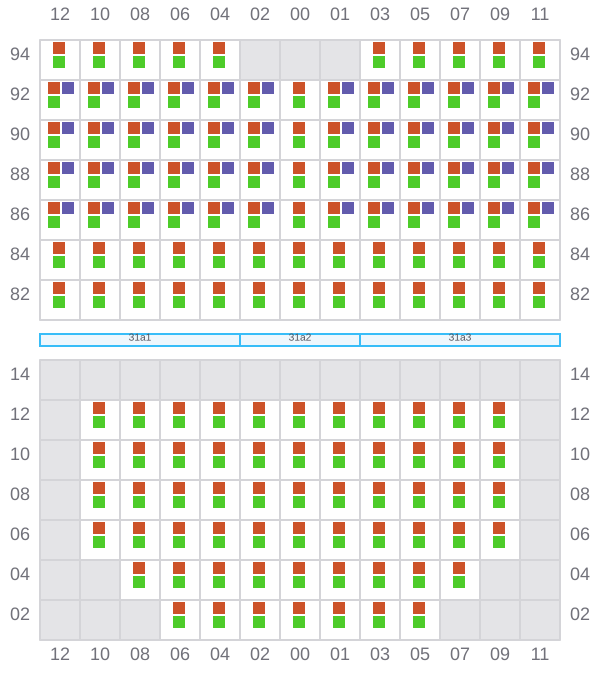

031 (032)
- →
![Bay 031 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b031.png?v=1721414508479)

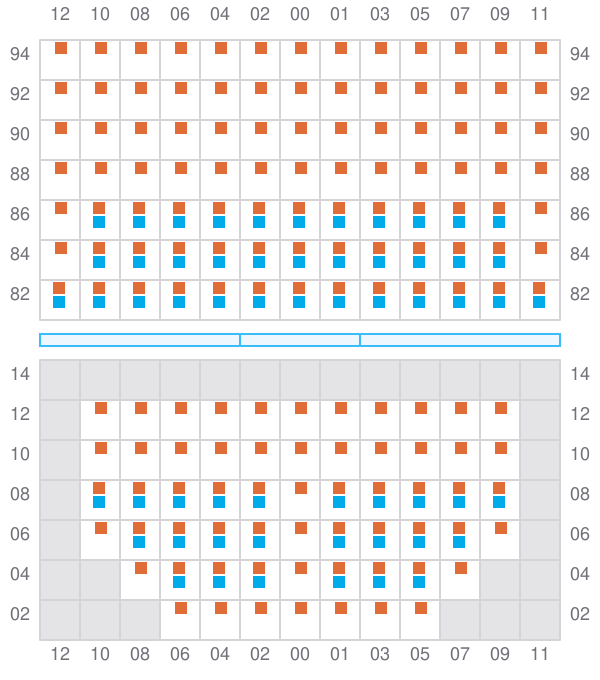

033
- ←
- →
![Bay 033 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b033.png?v=1721414508479)

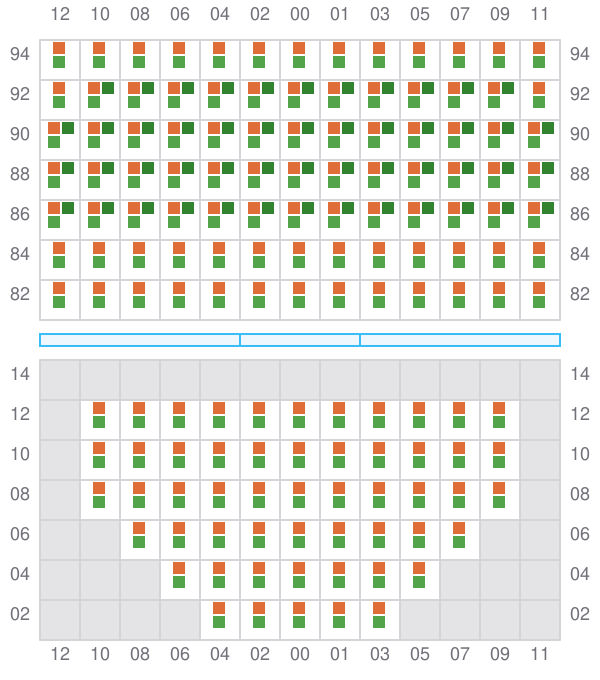

035 (036)
- →
![Bay 035 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b035.png?v=1721414508479)

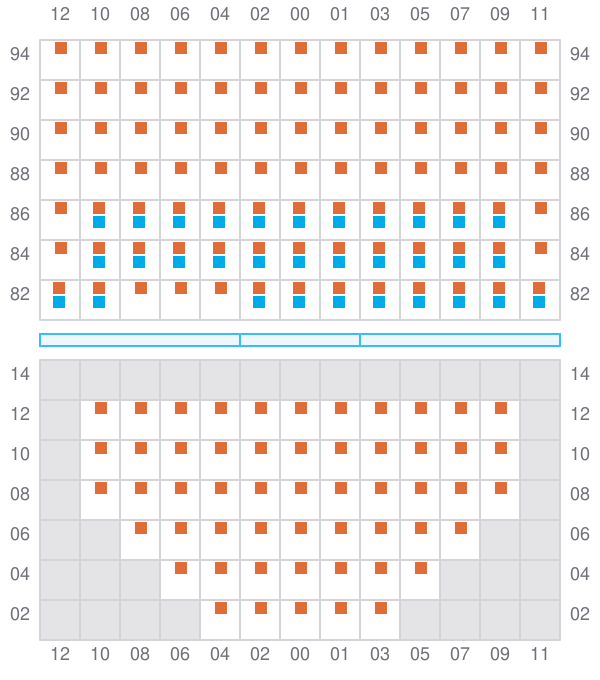

037
- ←
- → / ?
![Bay 037 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b037.png?v=1721414508479)

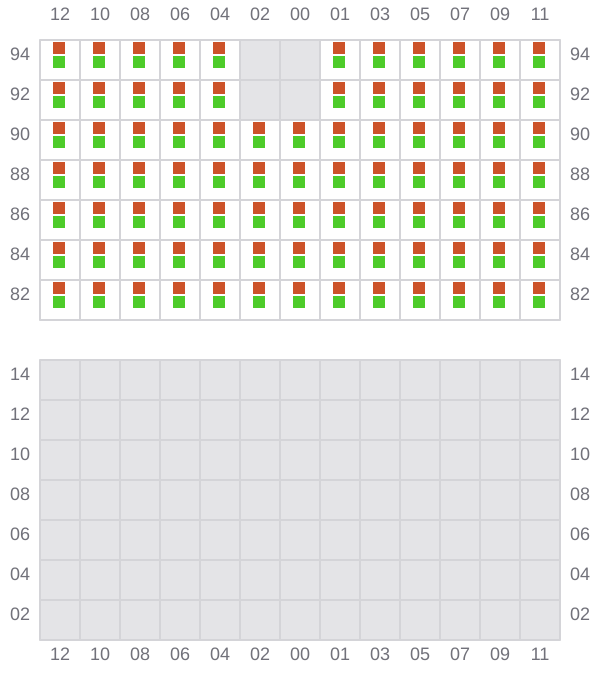

039 (040)
- → / ?
![Bay 039 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b039.png?v=1721414508479)

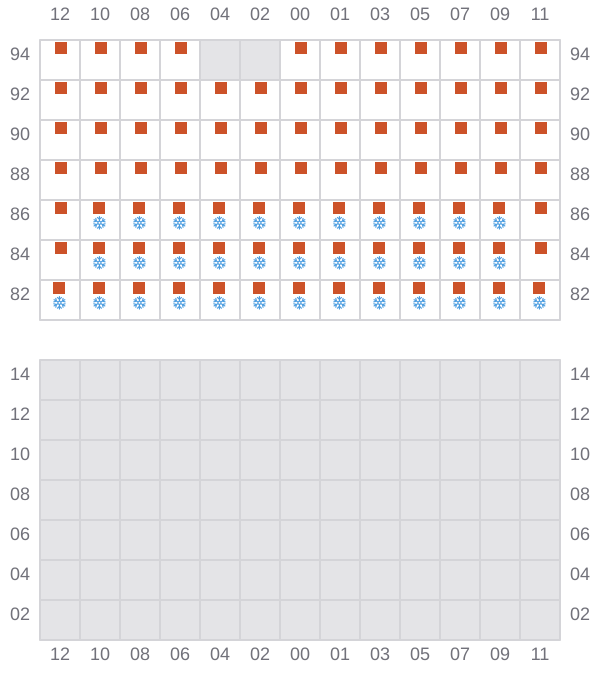

041
- ← / ?
- → / ?
![Bay 041 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b041.png?v=1721414508479)
043 (044)
- → / ?
- ← / ?
![Bay 043 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b043.png?v=1721414508479)

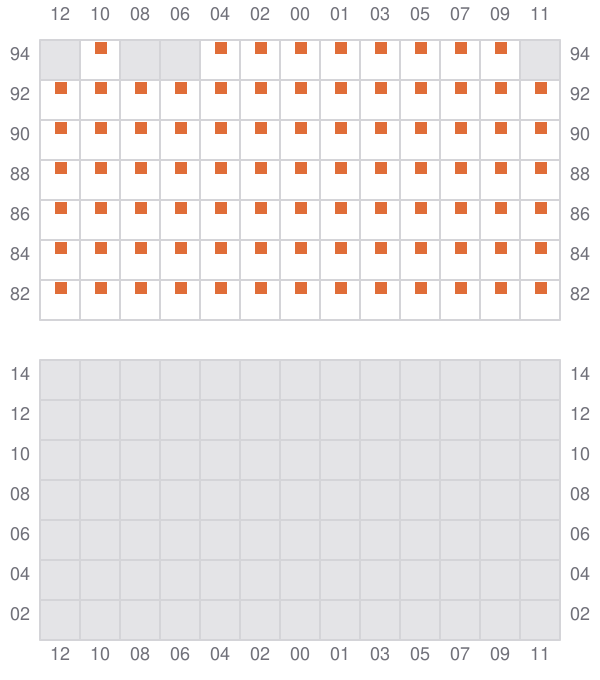

045
- ← / ?
![Bay 045 view and slots of BONNY](/vessel-images/b71742f5-70a6-486e-b701-6b2ecc3c6fd9-b045.png?v=1721414508479)
