BOX ENDURANCE
9733820 | D5GM5 | 973382 by ********* Last update: Thu Aug 01 2024
General Info
Ship Name:BOX ENDURANCE
IMO Code:9733820
Call Sign:D5GM5
Line Operator:973382
Class Name for Sister Ships:MCC
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,710
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

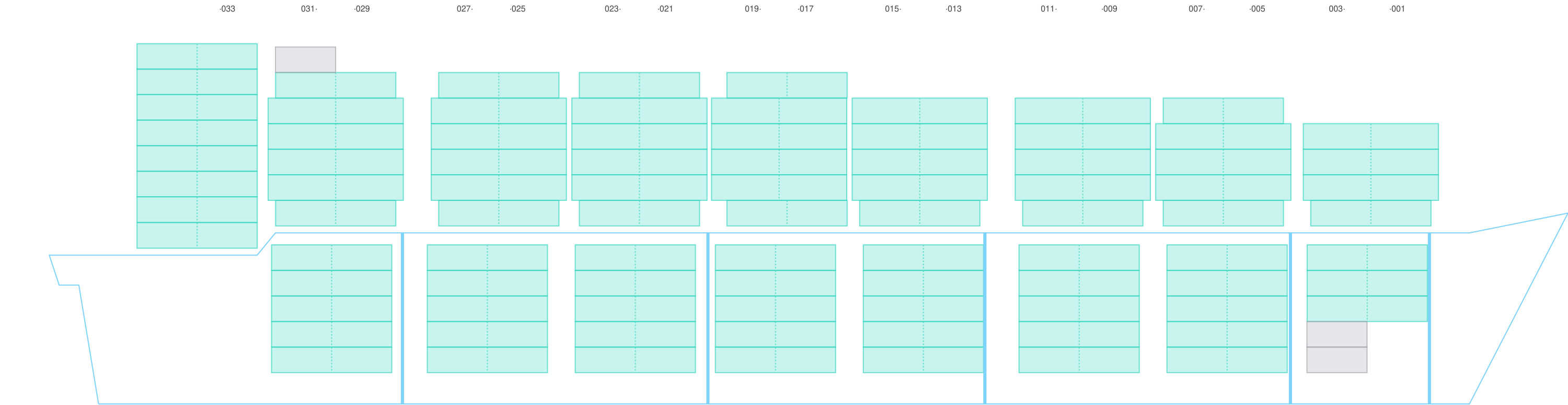

Side View

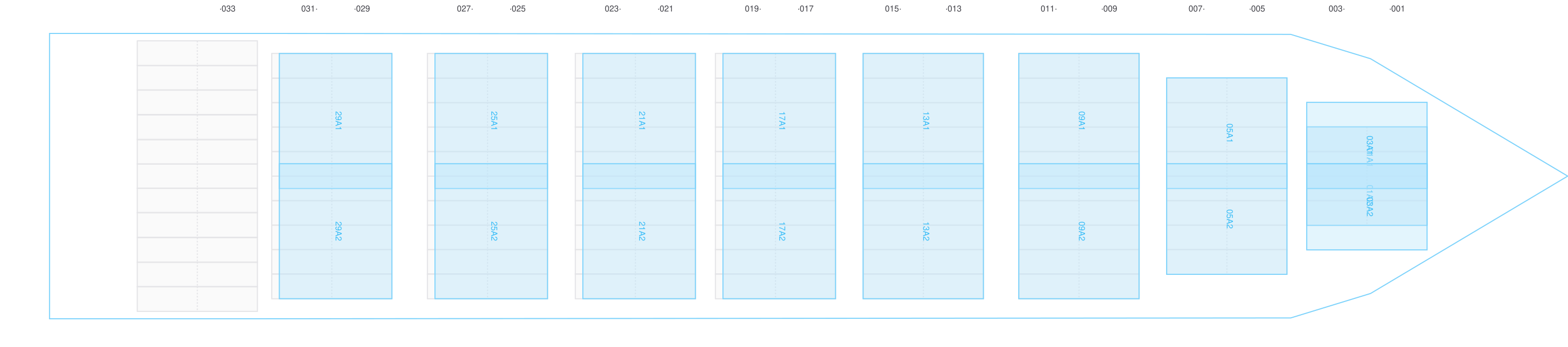

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

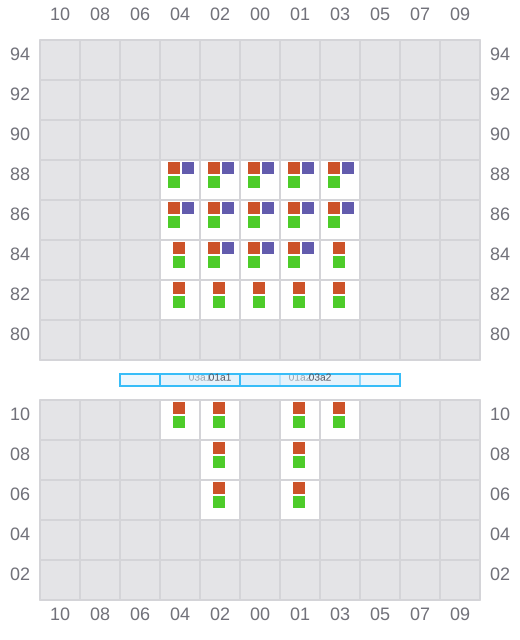

001 (002)
- →

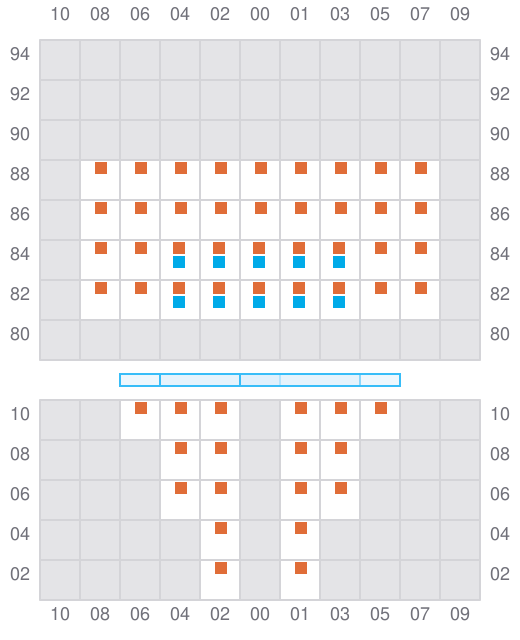

003
- ←
- → / ?

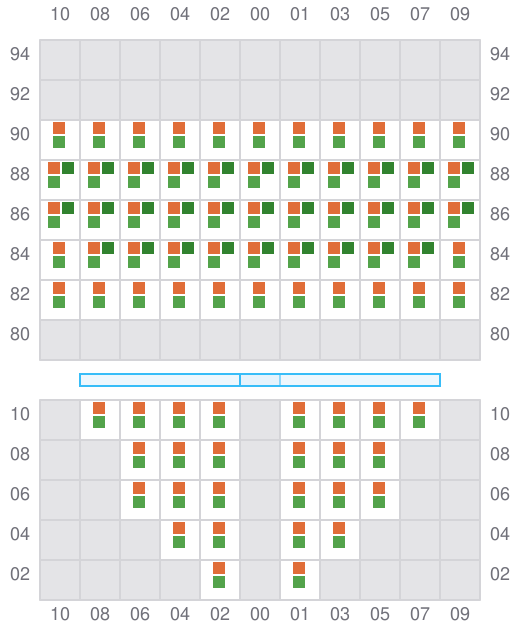

005 (006)
- →

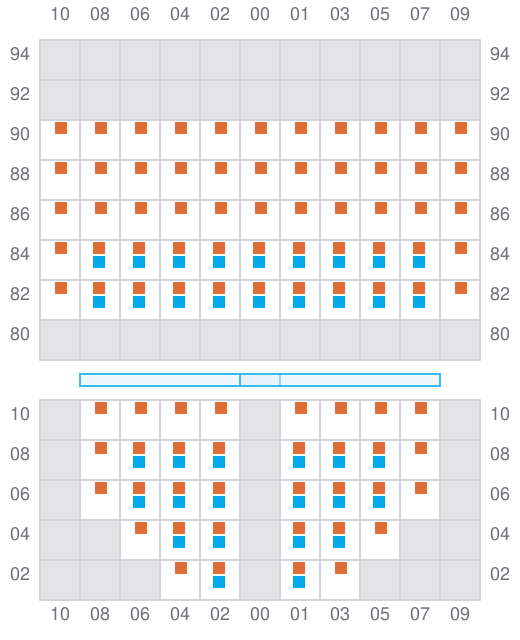

007
- ←
- →

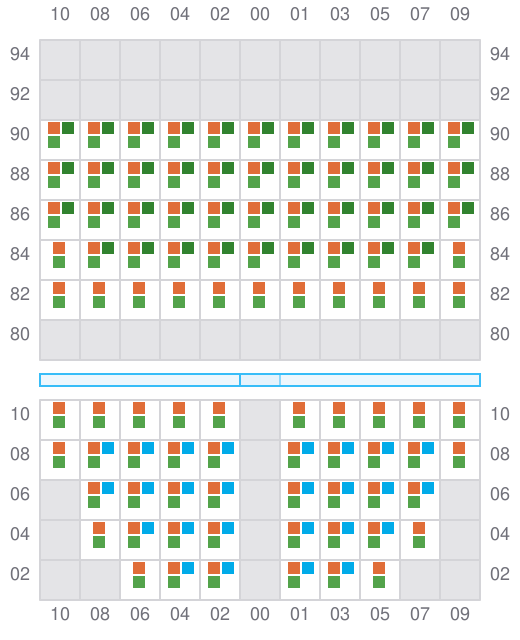

009 (010)
- →
- ? / ←

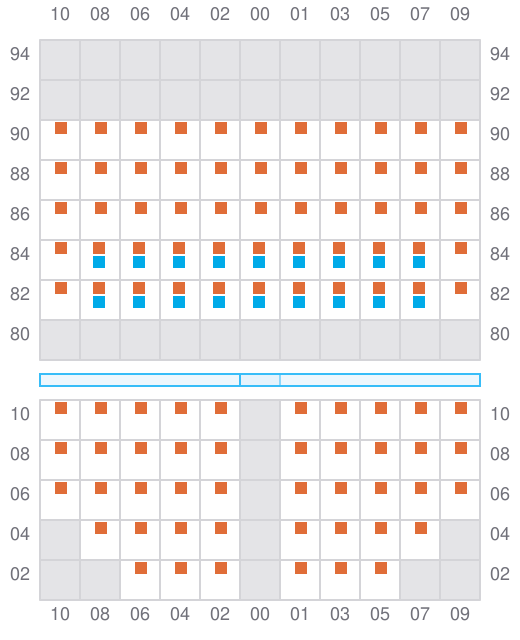

011
- ←
- → / ?

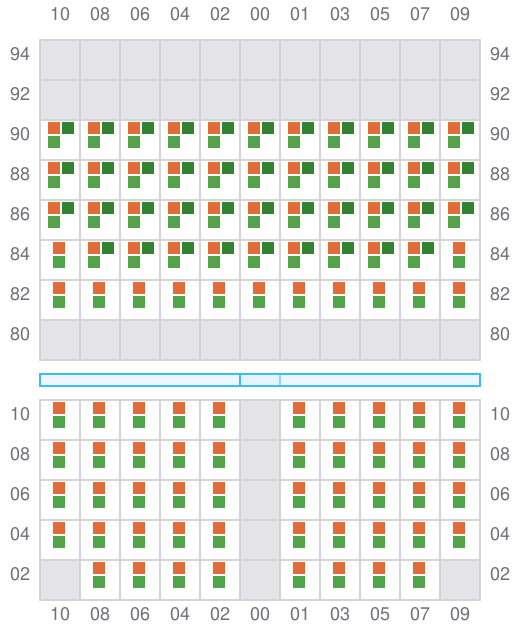

013 (014)
- →
015
- ←
- →
017 (018)
- →
- ? / ←

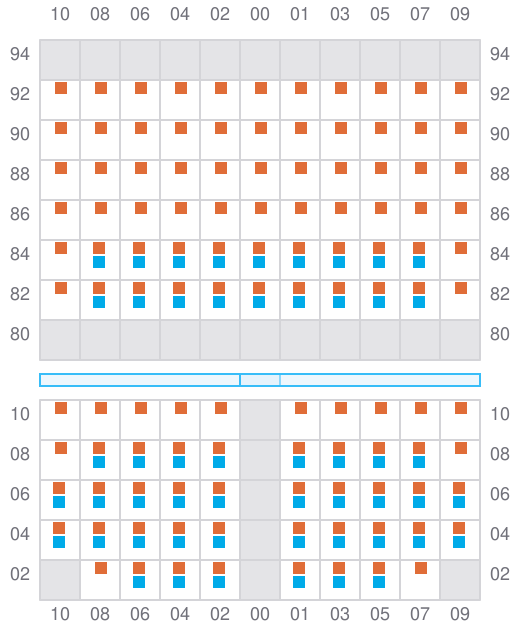

019
- ←
- → / ?

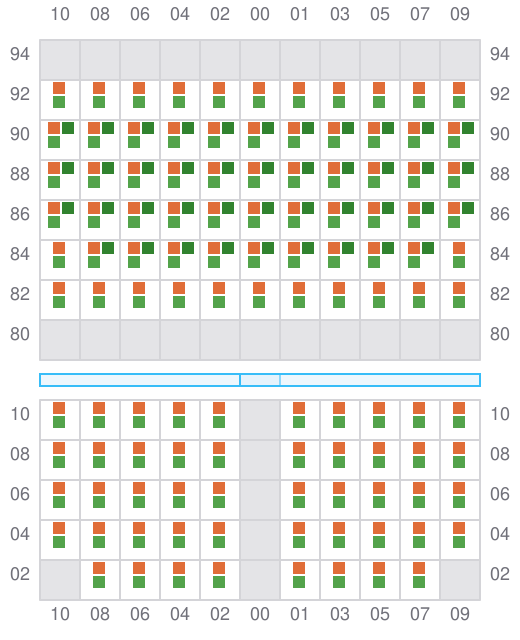

021 (022)
- →
023
- ←
- →

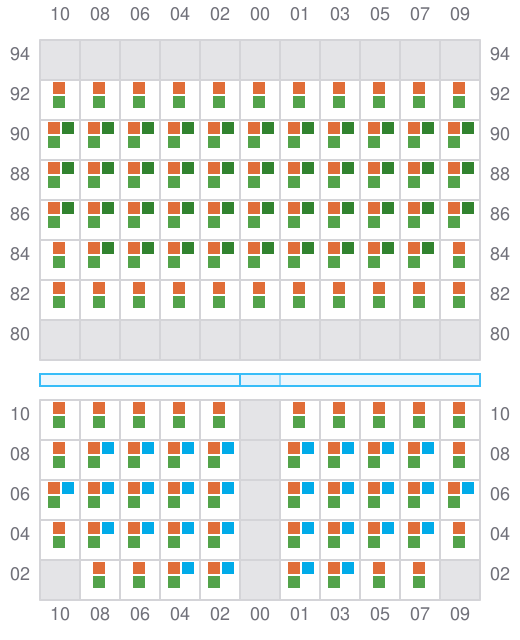

025 (026)
- →
- ? / ←

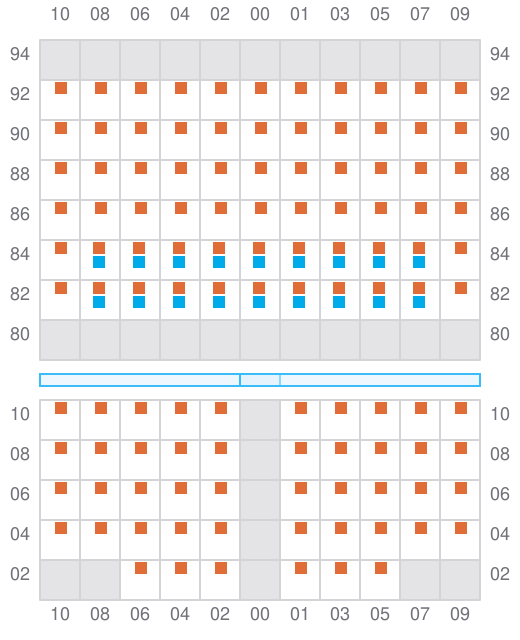

027
- ←
- → / ?

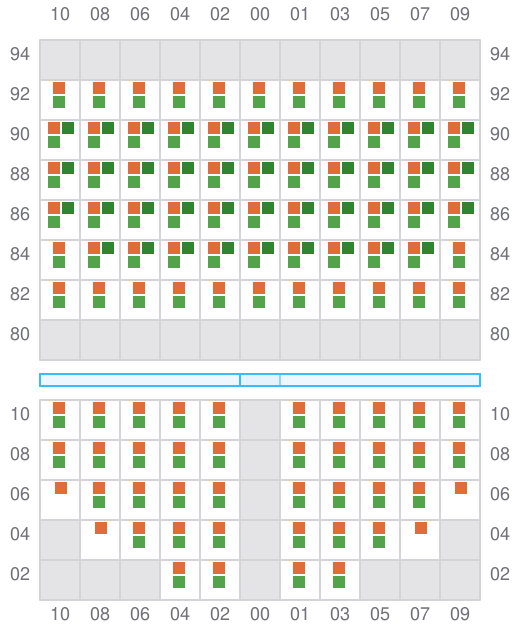

029 (030)
- →

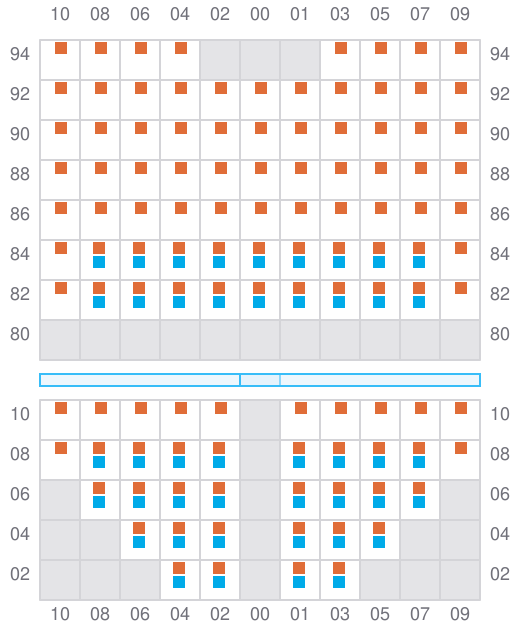

031
- ←
- →

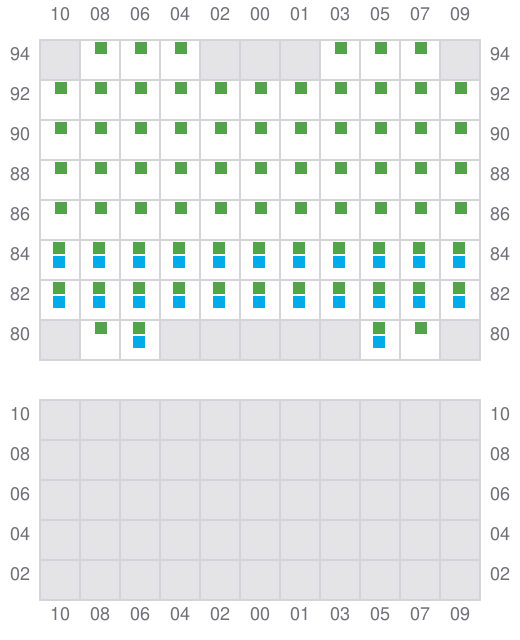

033 (034)
- → / ?
- → / ?
