BREMEN BELLE
9367188 | 9V7212 | CGM by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:BREMEN BELLE
IMO Code:9367188
Call Sign:9V7212
Line Operator:CGM
Class Name for Sister Ships:CGBB
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):262.00
LOA (Length Overall):280.54
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,914

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of BREMEN BELLE

Hatch-Covers View

Deck view of BREMEN BELLE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

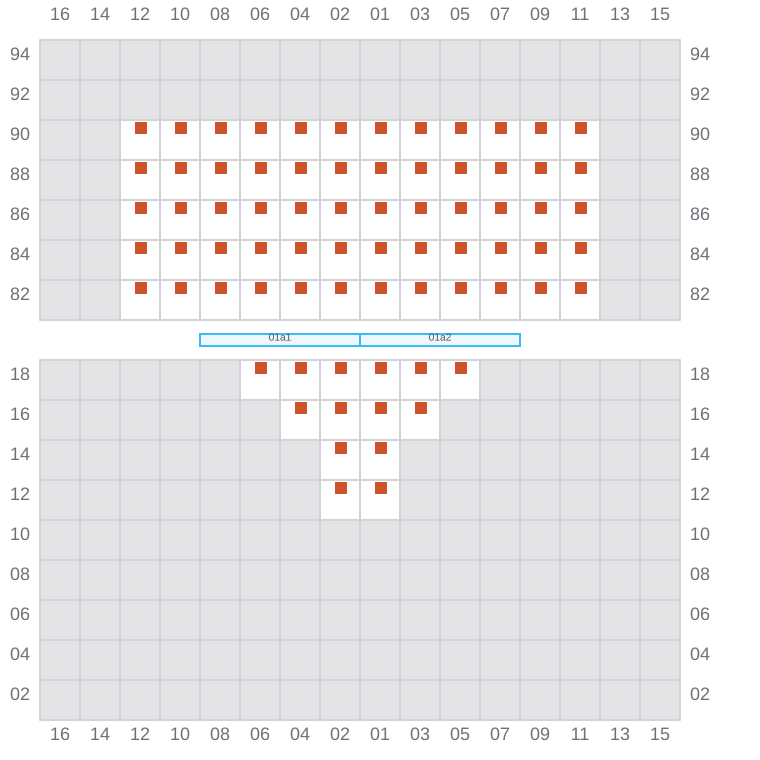

Bay 001 view and slots of BREMEN BELLE

003 (004)

  • →
  • →

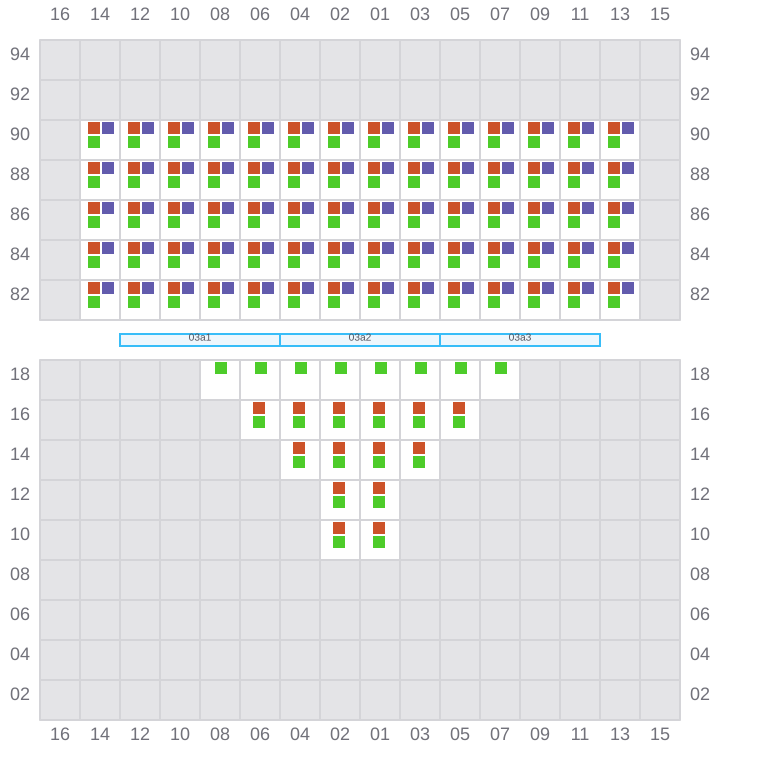

Bay 003 view and slots of BREMEN BELLE

005

  • ←
  • → / ?
  • →
Bay 005 view and slots of BREMEN BELLE

007 (008)

  • →
  • →
Bay 007 view and slots of BREMEN BELLE

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of BREMEN BELLE

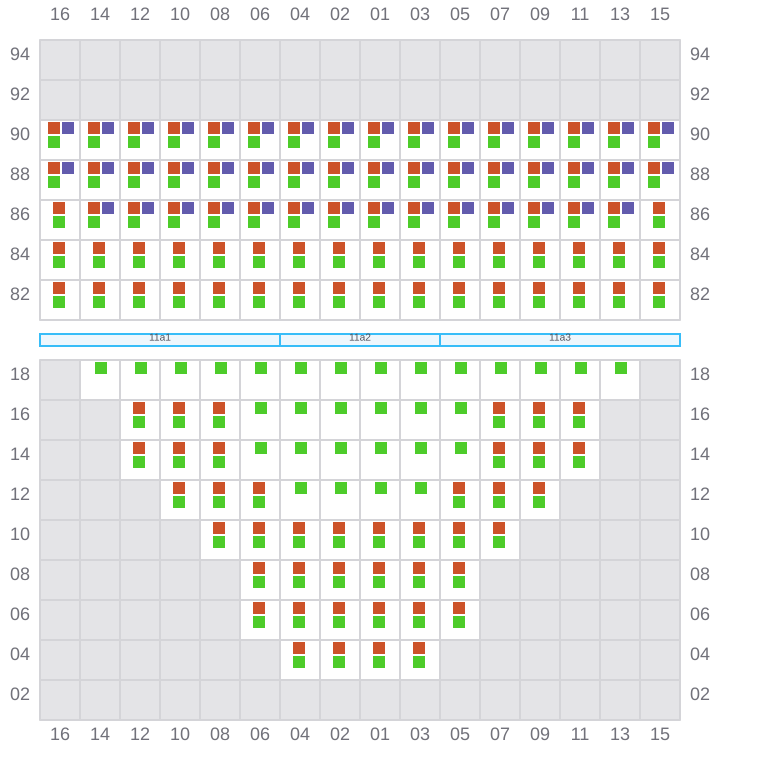

011 (012)

  • →
  • →
Bay 011 view and slots of BREMEN BELLE

013

  • ←
  • → / ?
  • →

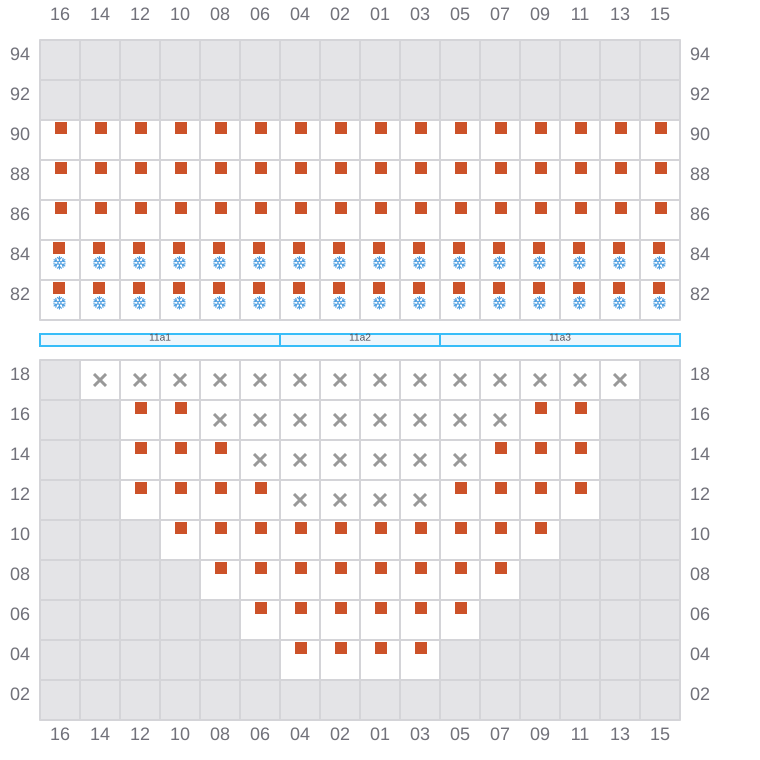

Bay 013 view and slots of BREMEN BELLE

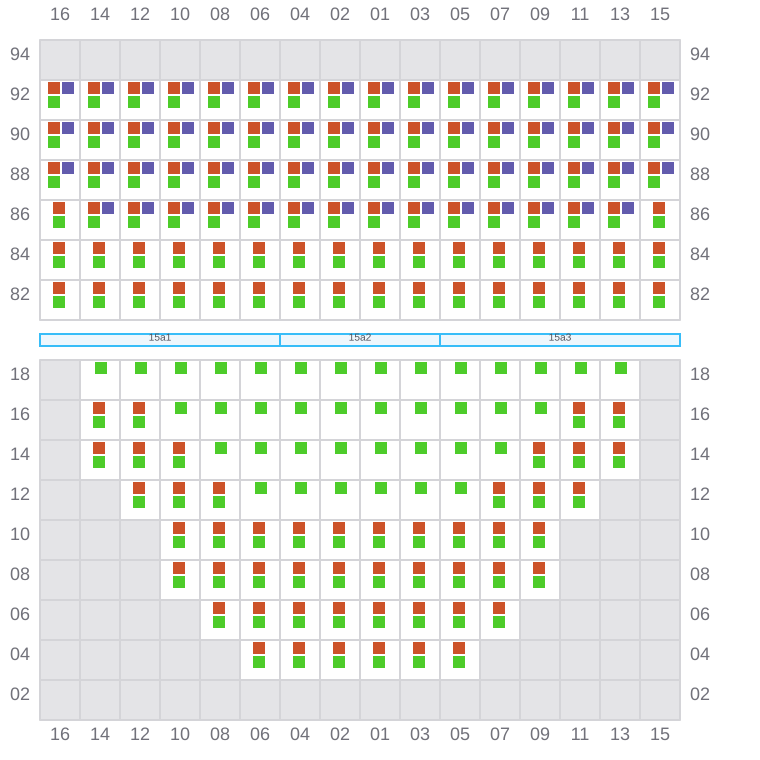

015 (016)

  • →
  • →
Bay 015 view and slots of BREMEN BELLE

017

  • ←
  • → / ?
  • →

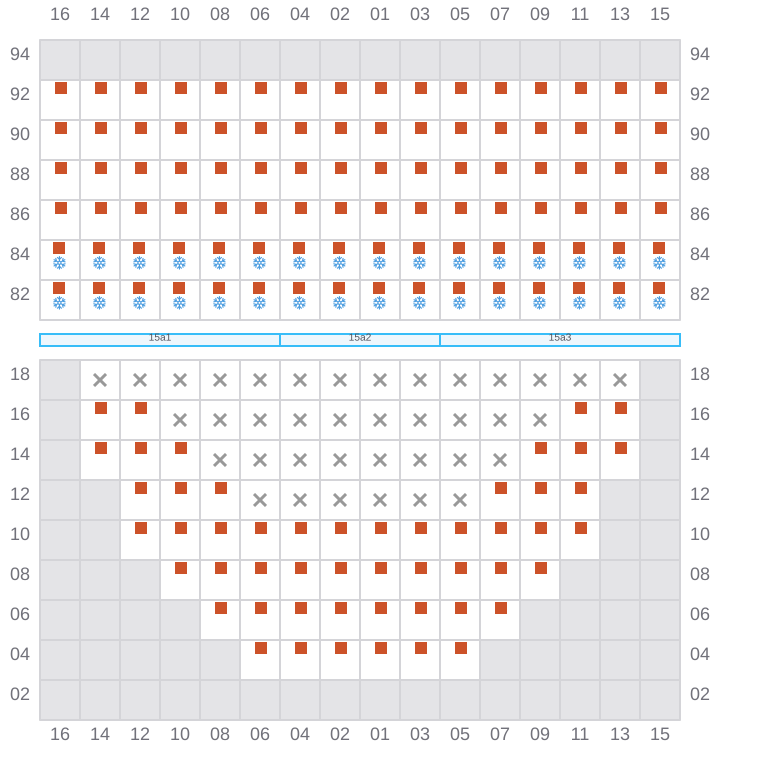

Bay 017 view and slots of BREMEN BELLE

019 (020)

  • →
  • →
Bay 019 view and slots of BREMEN BELLE

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of BREMEN BELLE

023 (024)

  • →
  • →

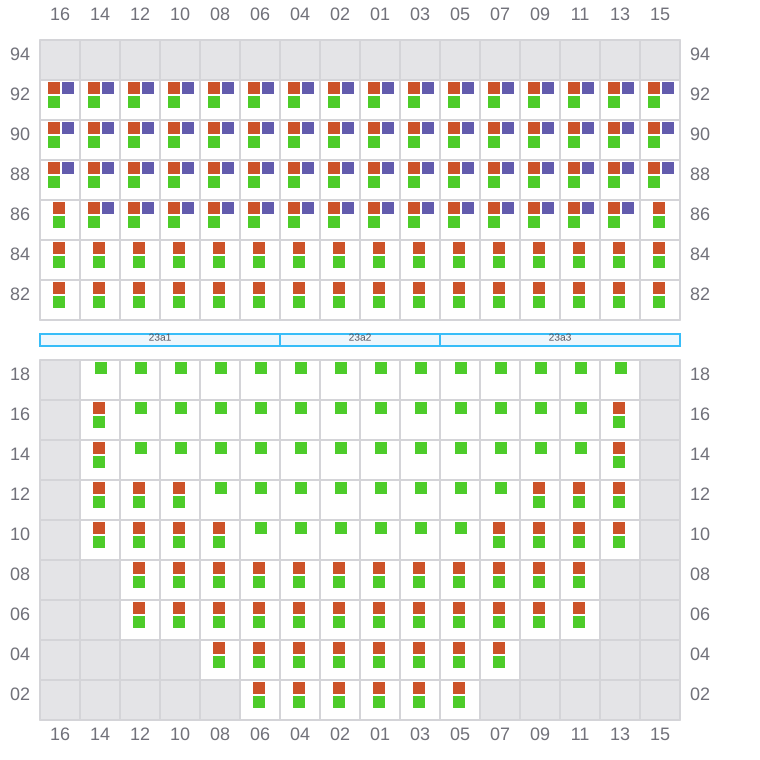

Bay 023 view and slots of BREMEN BELLE

025

  • ←
  • → / ?
  • →

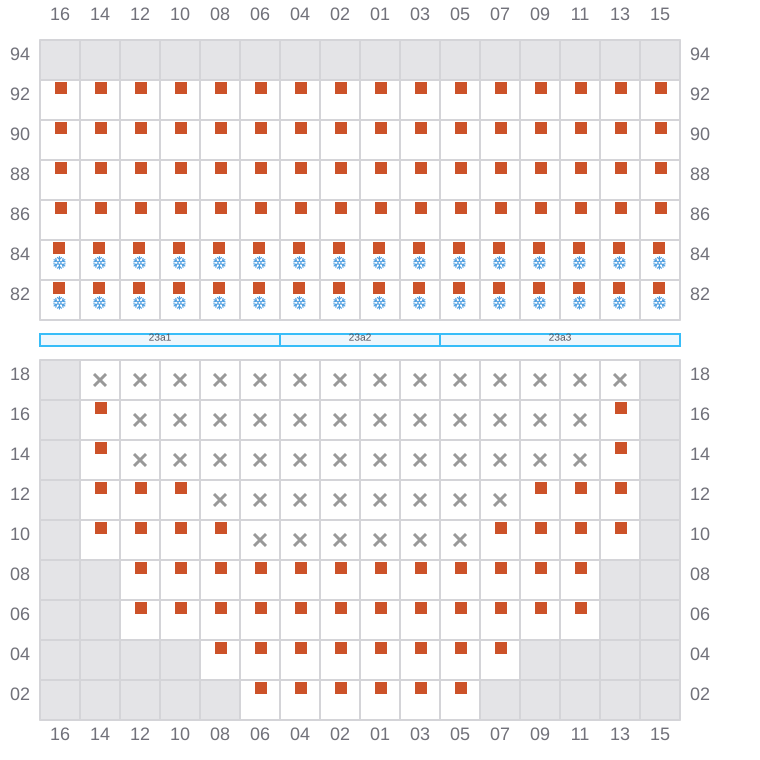

Bay 025 view and slots of BREMEN BELLE

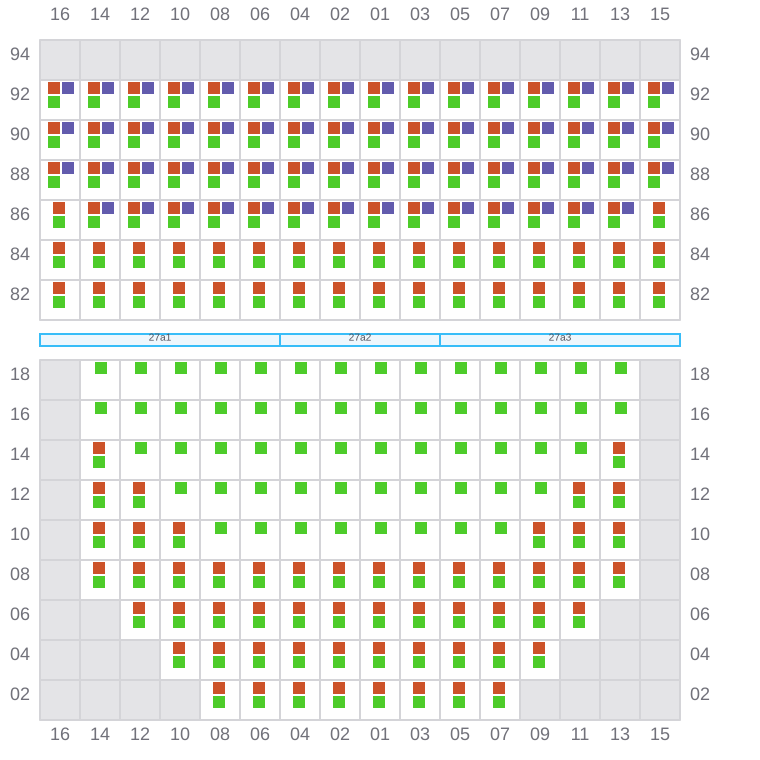

027 (028)

  • →
  • →
Bay 027 view and slots of BREMEN BELLE

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of BREMEN BELLE

031 (032)

  • →
  • →
Bay 031 view and slots of BREMEN BELLE

033

  • ←
  • → / ?
  • →
Bay 033 view and slots of BREMEN BELLE

035 (036)

  • →
  • →
Bay 035 view and slots of BREMEN BELLE

037

  • ←
  • → / ?
  • →
Bay 037 view and slots of BREMEN BELLE

039 (040)

  • →
  • →
Bay 039 view and slots of BREMEN BELLE

041

  • ←
  • → / ?
  • →
Bay 041 view and slots of BREMEN BELLE

043 (044)

  • →
  • →
Bay 043 view and slots of BREMEN BELLE

045

  • ←
  • → / ?
  • →
Bay 045 view and slots of BREMEN BELLE

047 (048)

  • →
  • →
Bay 047 view and slots of BREMEN BELLE

049

  • ←
  • →
  • →
Bay 049 view and slots of BREMEN BELLE

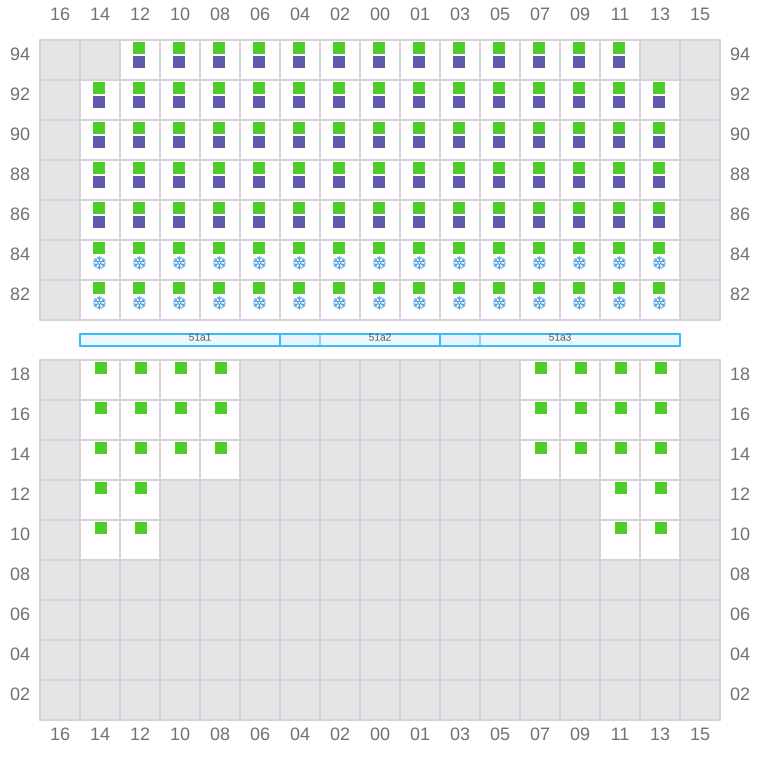

051 (052)

  • →
  • → / ?
  • →
Bay 051 view and slots of BREMEN BELLE

053

Bay 053 view and slots of BREMEN BELLE

055 (056)

  • →
  • →
Bay 055 view and slots of BREMEN BELLE

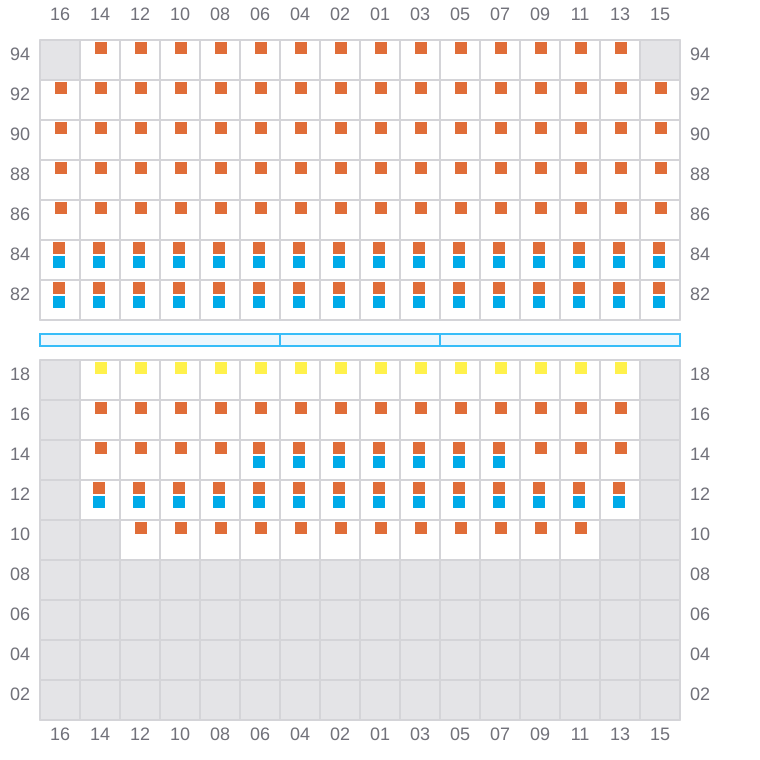

057

  • ←
  • →
  • →
Bay 057 view and slots of BREMEN BELLE

059 (060)

  • →
  • →
Bay 059 view and slots of BREMEN BELLE

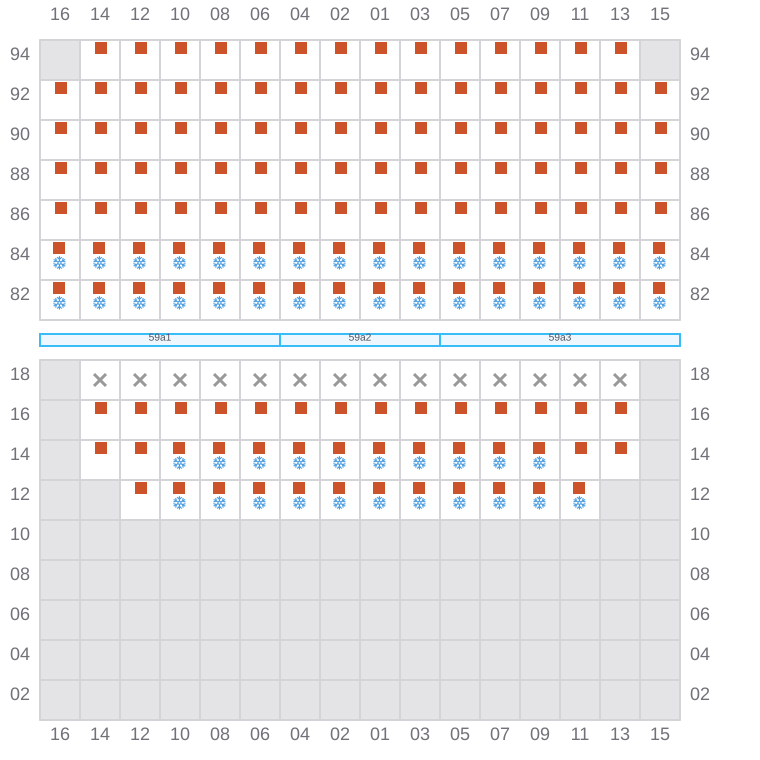

061

  • ←
  • →
  • →
Bay 061 view and slots of BREMEN BELLE

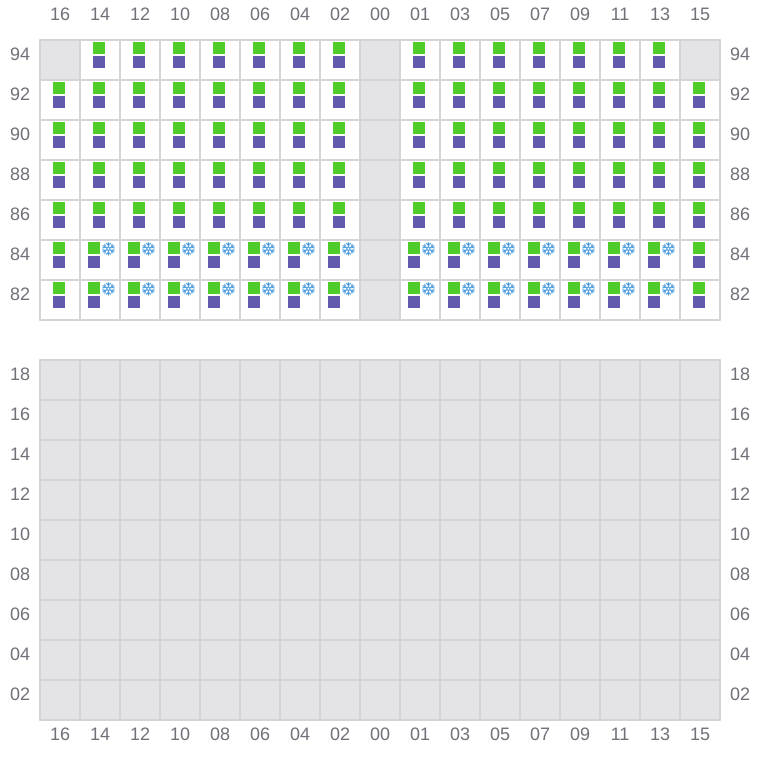

063 (064)

  • → / ?
  • ← / ?
  • → / ?
Bay 063 view and slots of BREMEN BELLE
