BREMEN BELLE
9367188 | 9V7212 | 9367188 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:BREMEN BELLE
IMO Code:9367188
Call Sign:9V7212
Line Operator:9367188
Class Name for Sister Ships:D6H
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):281.00
LOA (Length Overall):281.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,914
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

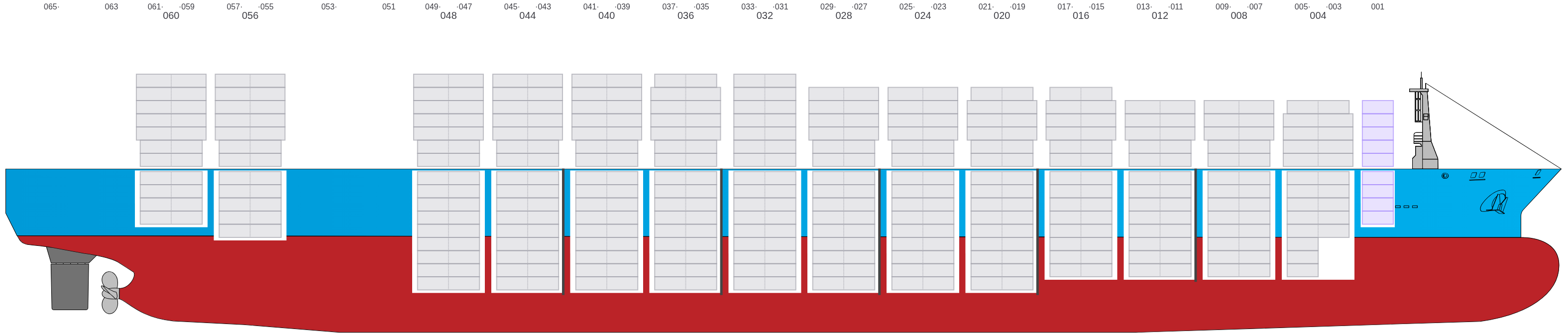

Side View
![Side view of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-sideView.png?v=1711218635529)

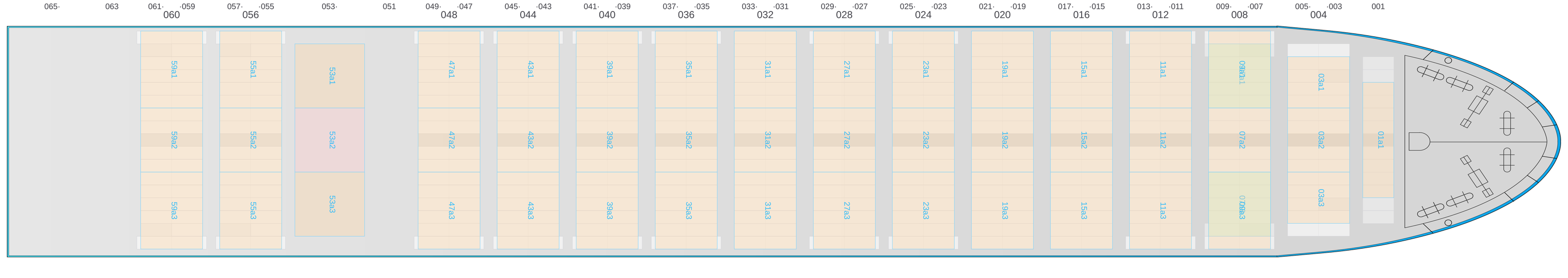

Hatch-Covers View
![Deck view of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-deckView.png?v=1711218635529)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

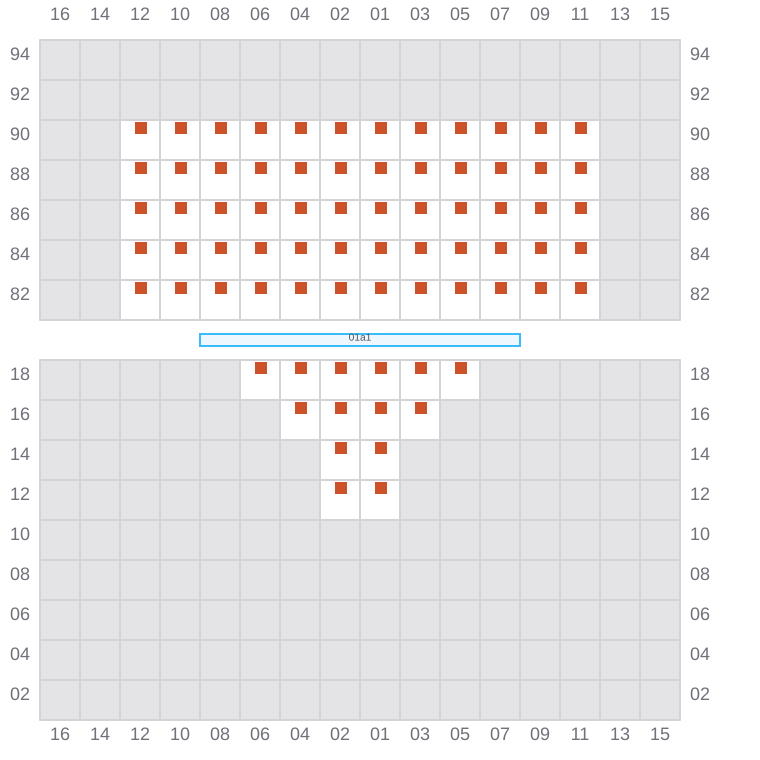

001
![Bay 001 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b001.png?v=1711218635529)
003
- →
![Bay 003 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b003.png?v=1711218635529)

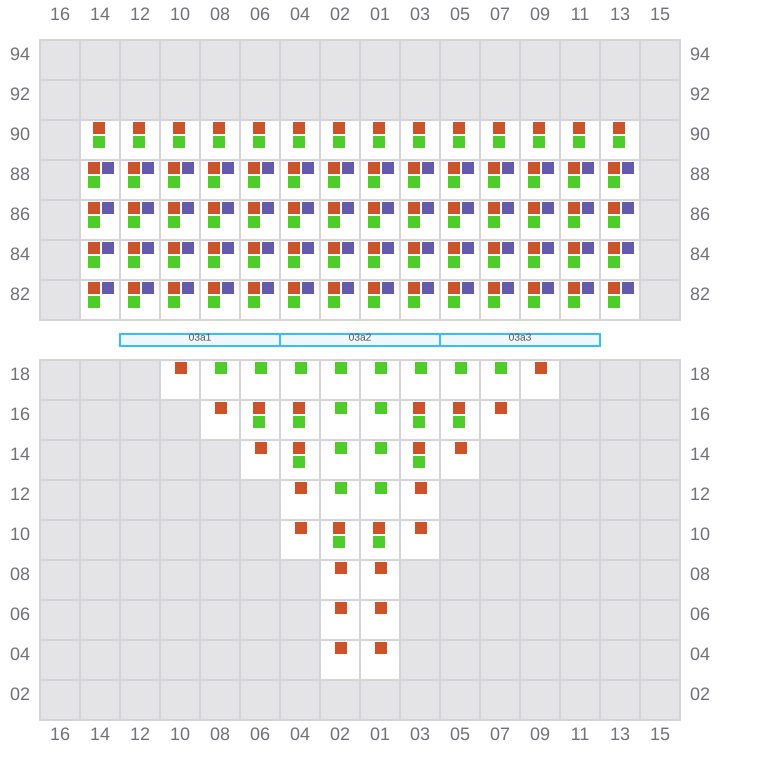

005 (004)
- ←
![Bay 005 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b005.png?v=1711218635529)

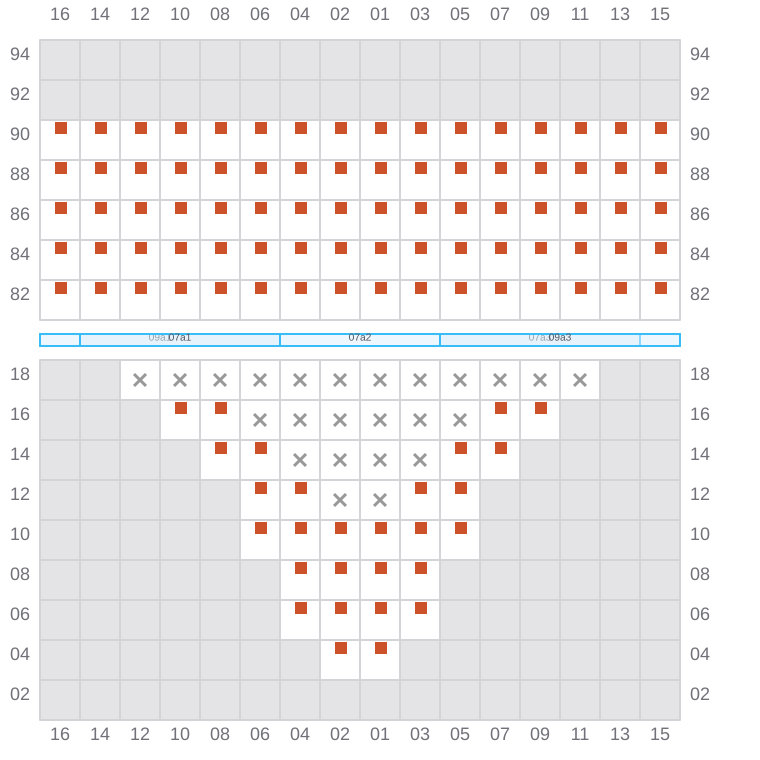

007
- →
![Bay 007 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b007.png?v=1711218635529)
009 (008)
- ←
![Bay 009 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b009.png?v=1711218635529)

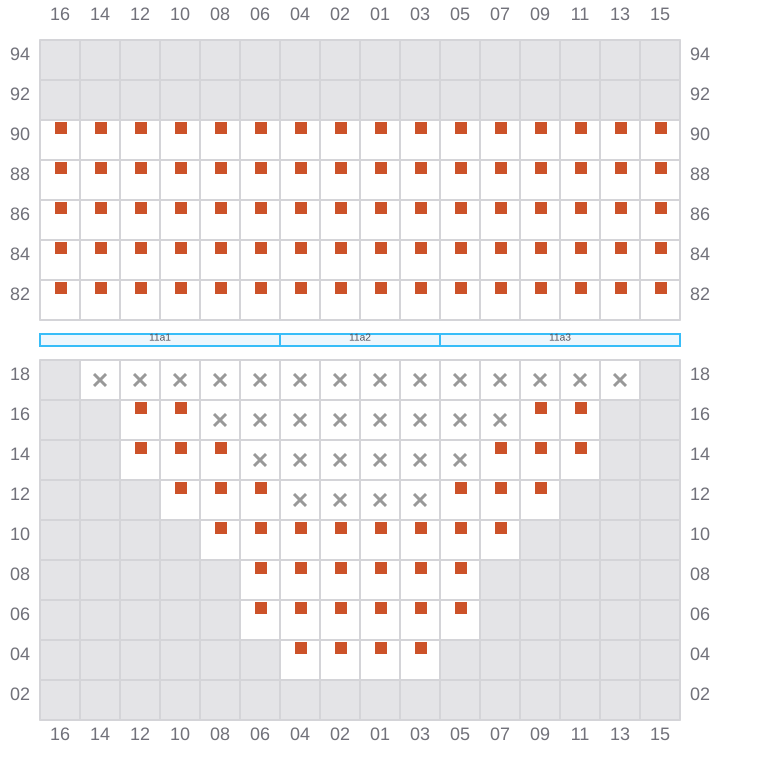

011
- →
![Bay 011 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b011.png?v=1711218635529)

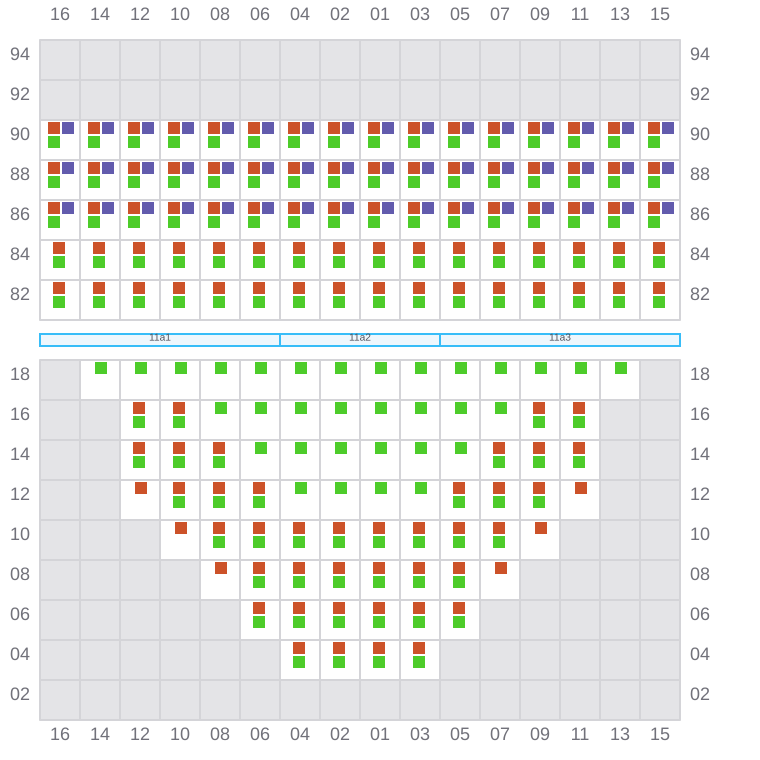

013 (012)
- ←
![Bay 013 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b013.png?v=1711218635529)

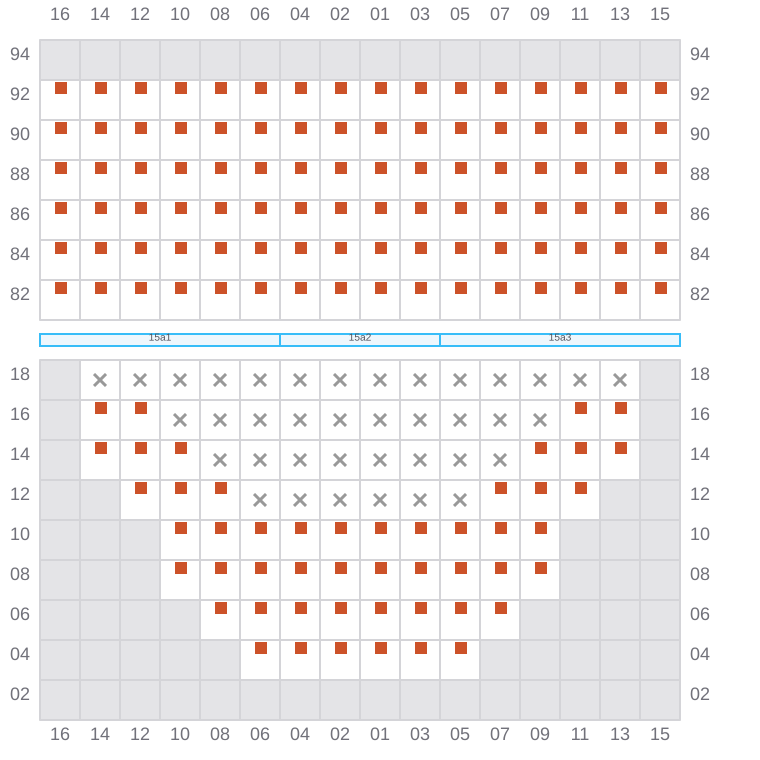

015
- →
![Bay 015 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b015.png?v=1711218635529)
017 (016)
- ←
![Bay 017 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b017.png?v=1711218635529)

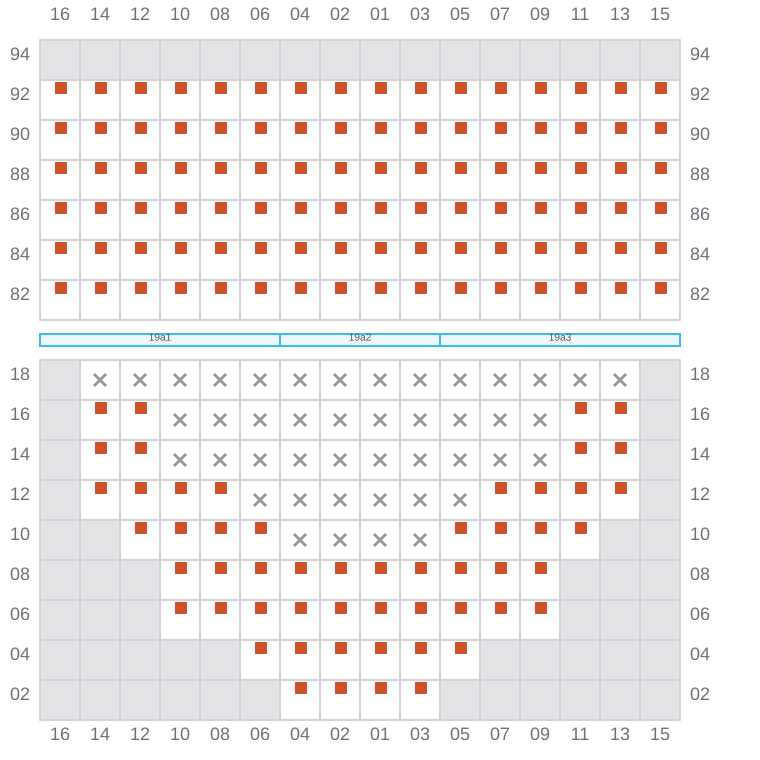

019
- →
![Bay 019 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b019.png?v=1711218635529)

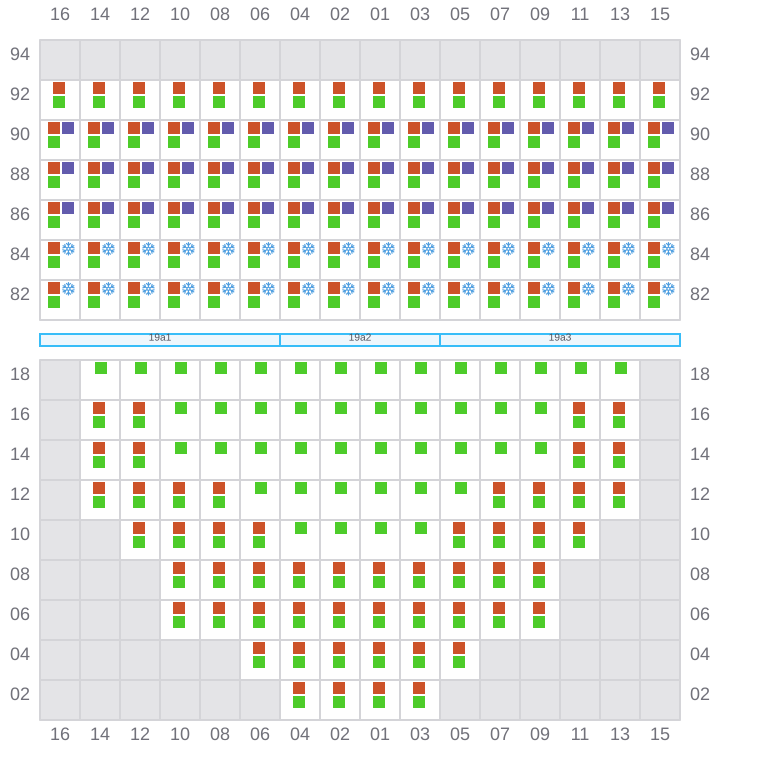

021 (020)
- ←
![Bay 021 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b021.png?v=1711218635529)

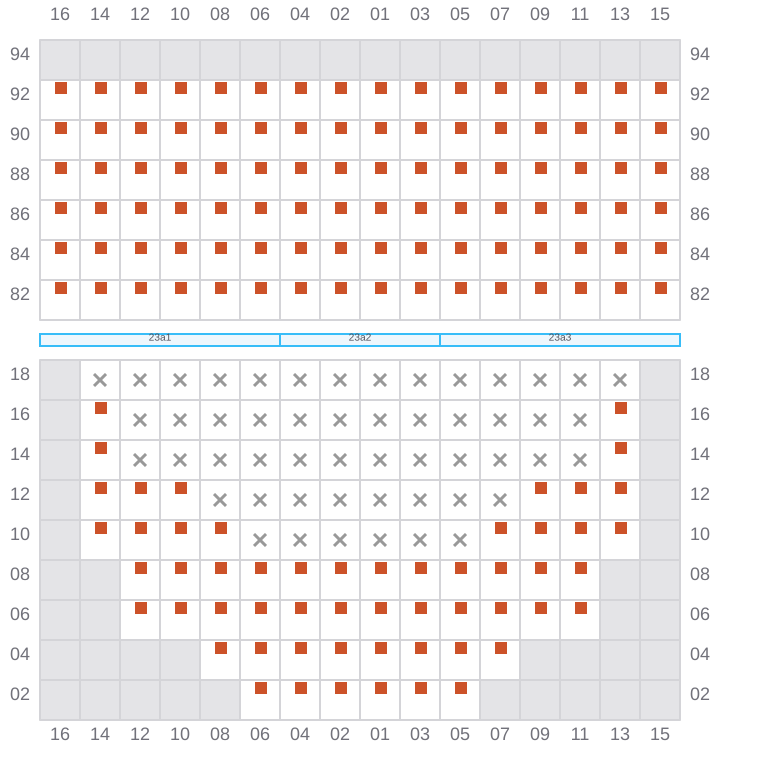

023
- →
![Bay 023 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b023.png?v=1711218635529)
025 (024)
- ←
![Bay 025 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b025.png?v=1711218635529)

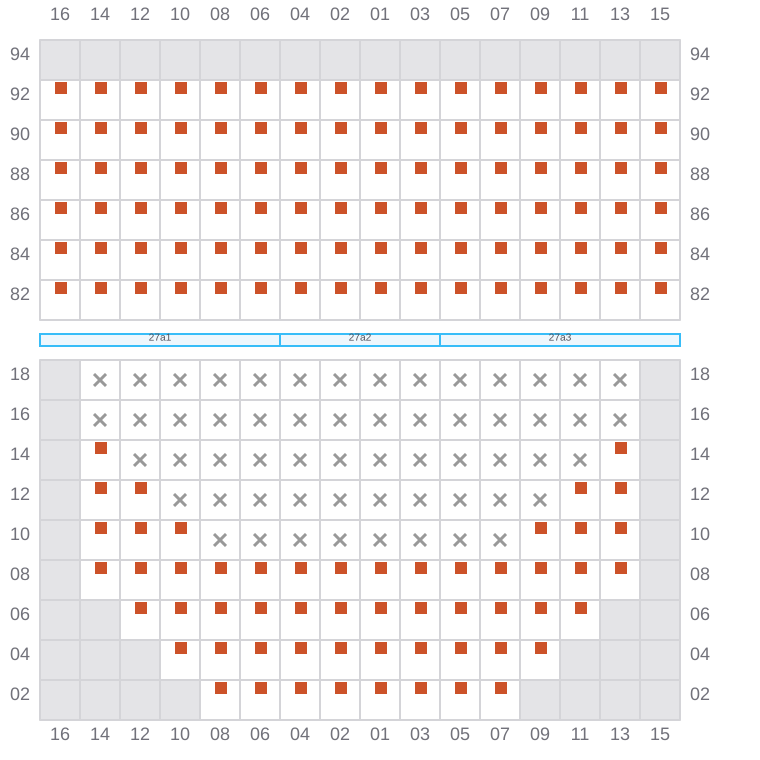

027
- →
![Bay 027 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b027.png?v=1711218635529)

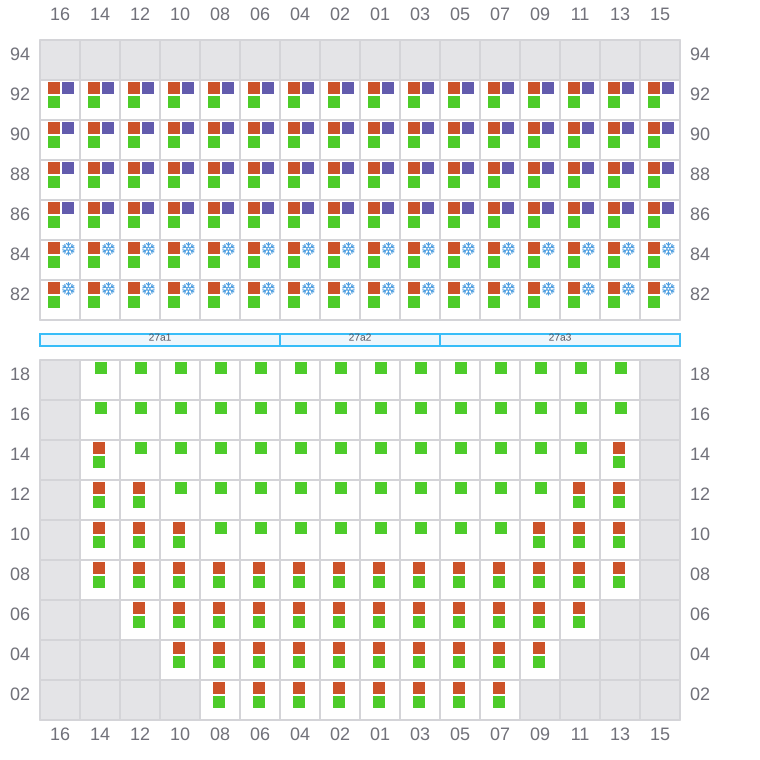

029 (028)
- ←
![Bay 029 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b029.png?v=1711218635529)
031
- →
![Bay 031 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b031.png?v=1711218635529)

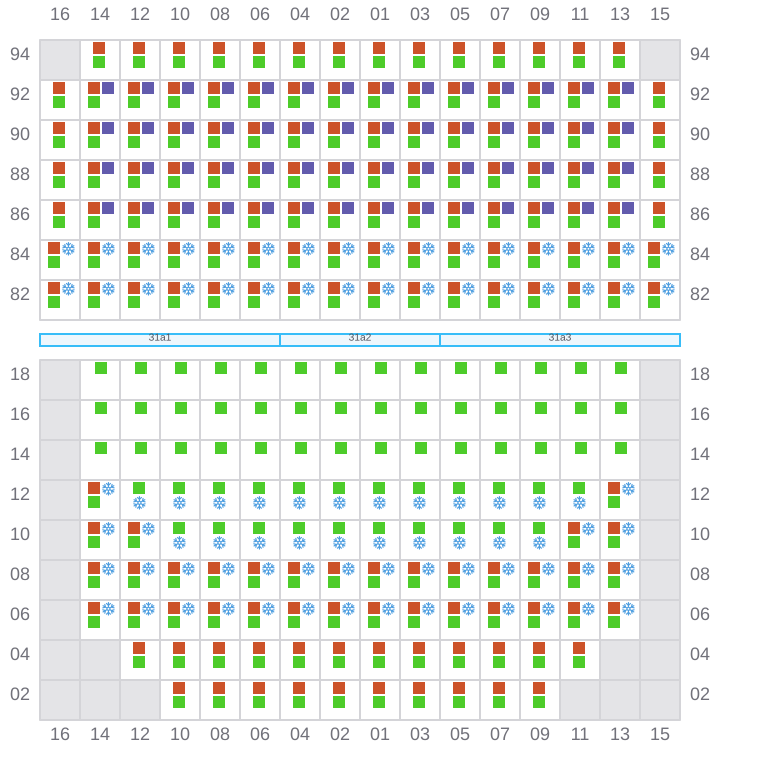

033 (032)
- ←
![Bay 033 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b033.png?v=1711218635529)

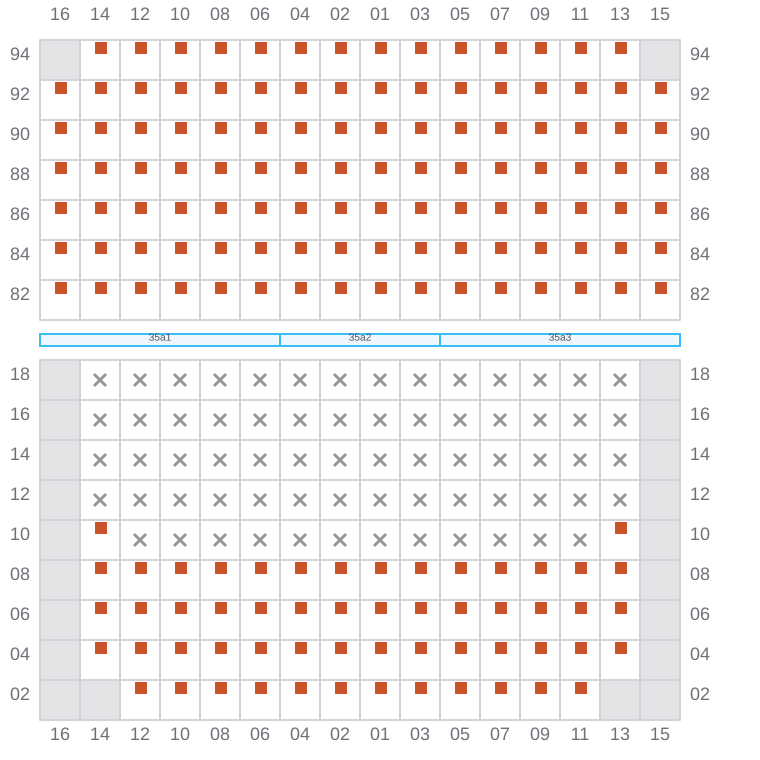

035
- →
![Bay 035 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b035.png?v=1711218635529)
037 (036)
- ←
![Bay 037 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b037.png?v=1711218635529)
039
- →
![Bay 039 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b039.png?v=1711218635529)
041 (040)
- ←
![Bay 041 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b041.png?v=1711218635529)

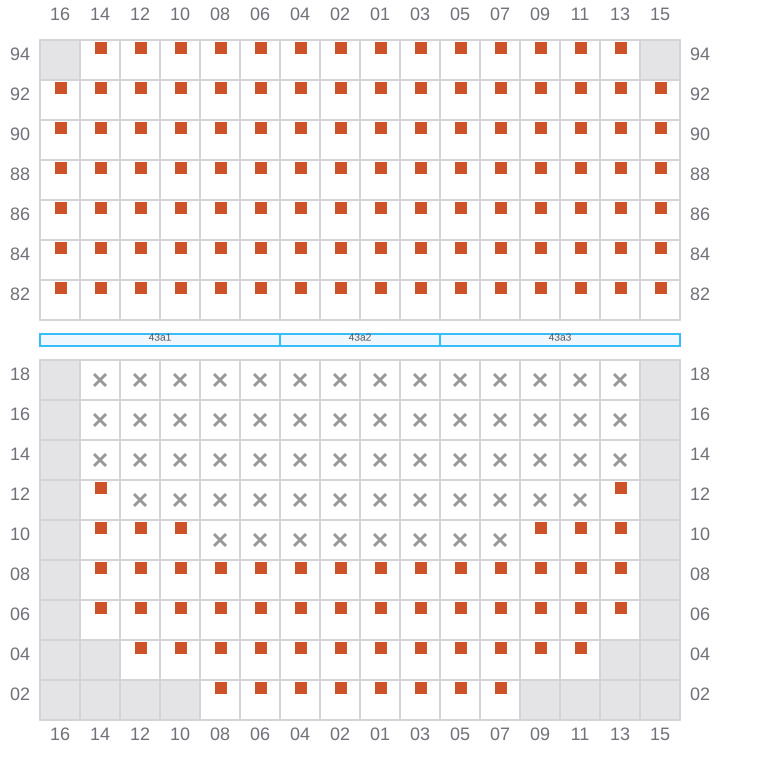

043
- →
![Bay 043 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b043.png?v=1711218635529)
045 (044)
- ←
![Bay 045 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b045.png?v=1711218635529)

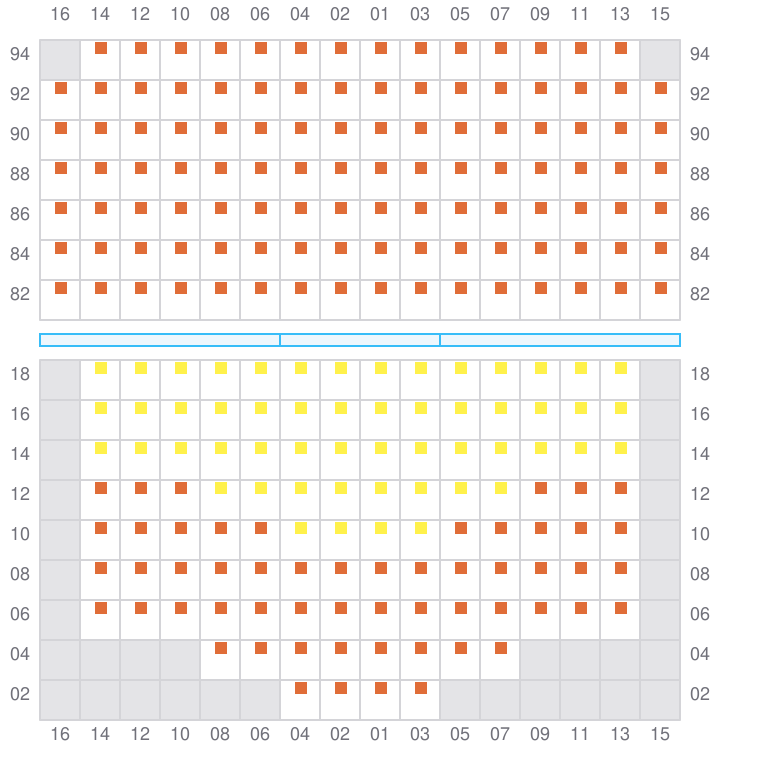

047
- →
![Bay 047 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b047.png?v=1711218635529)
049 (048)
- ←
![Bay 049 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b049.png?v=1711218635529)

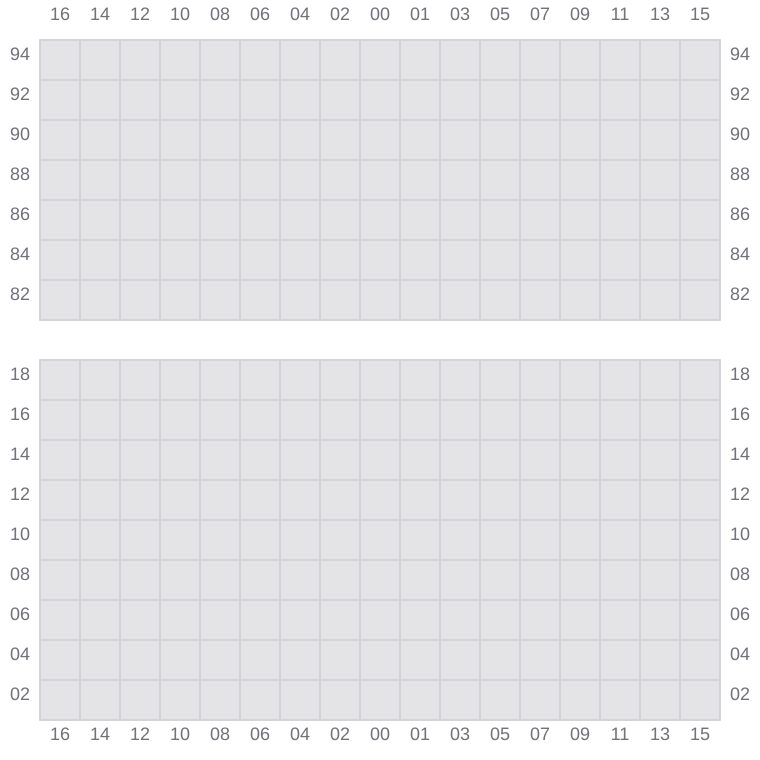

051
![Bay 051 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b051.png?v=1711218635529)

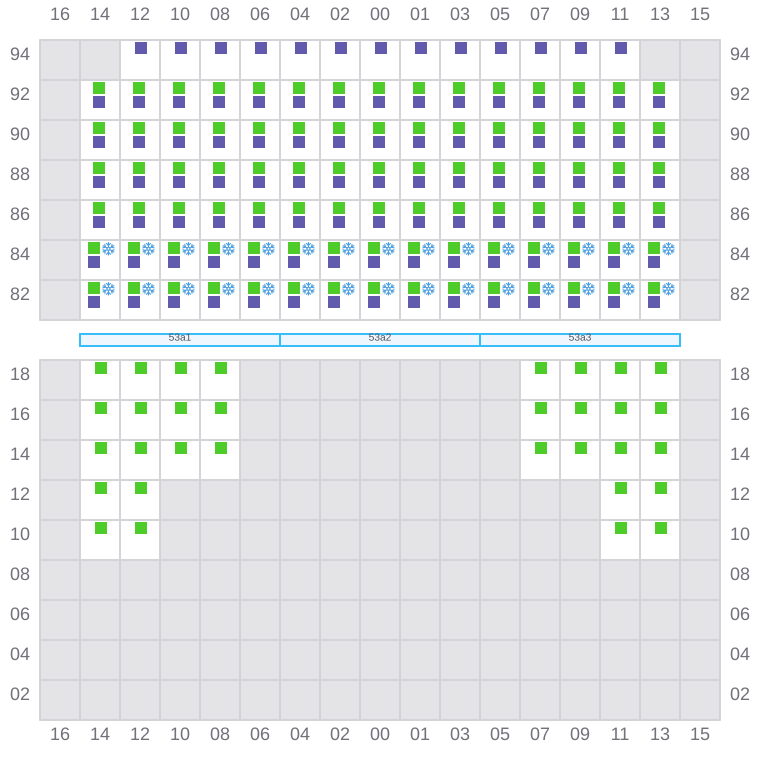

053 (052)
- ←
![Bay 053 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b053.png?v=1711218635529)
055
- →
![Bay 055 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b055.png?v=1711218635529)

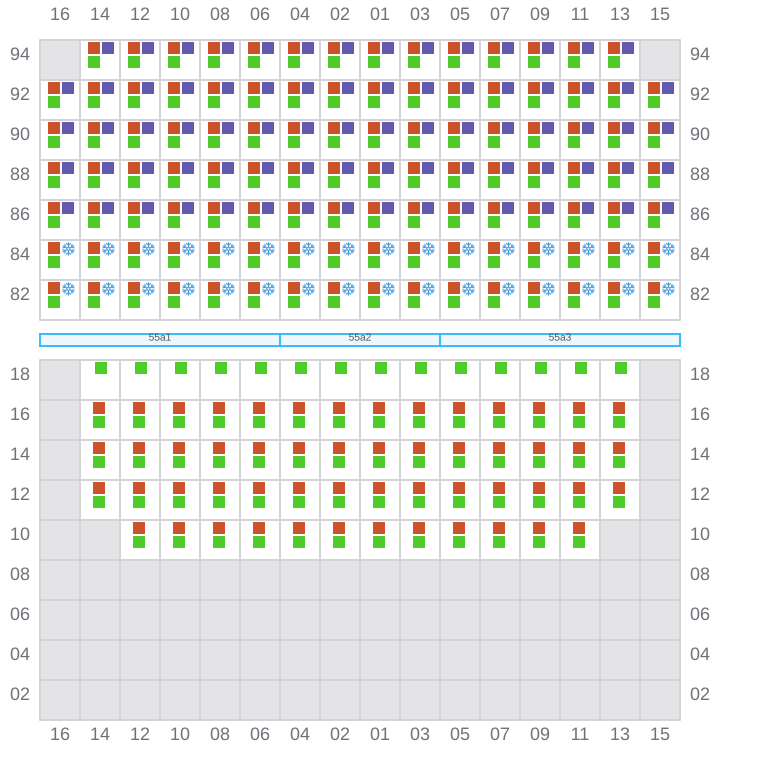

057 (056)
- ←
![Bay 057 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b057.png?v=1711218635529)

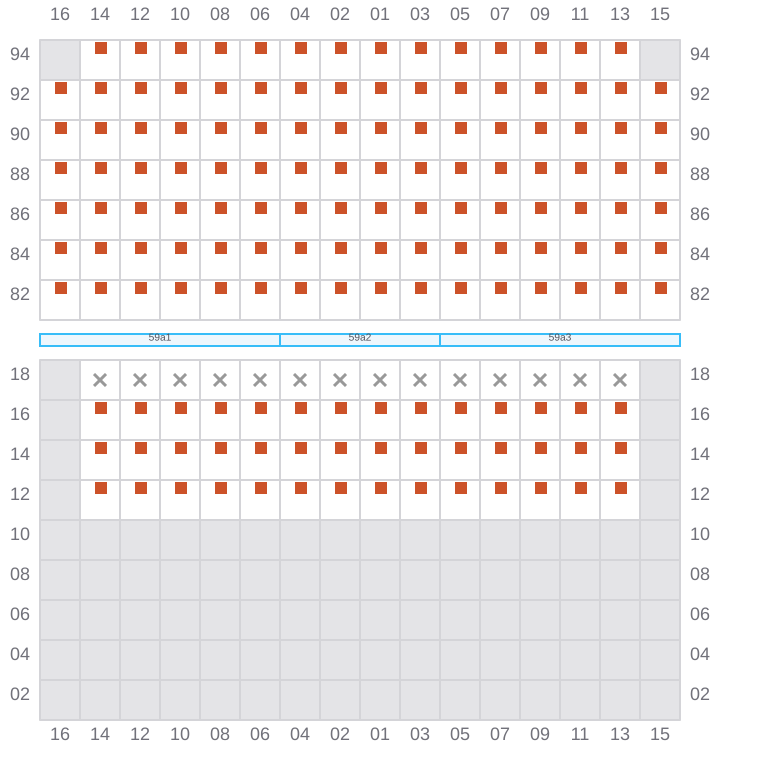

059
- →
![Bay 059 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b059.png?v=1711218635529)
061 (060)
- ←
![Bay 061 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b061.png?v=1711218635529)
063
![Bay 063 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b063.png?v=1711218635529)

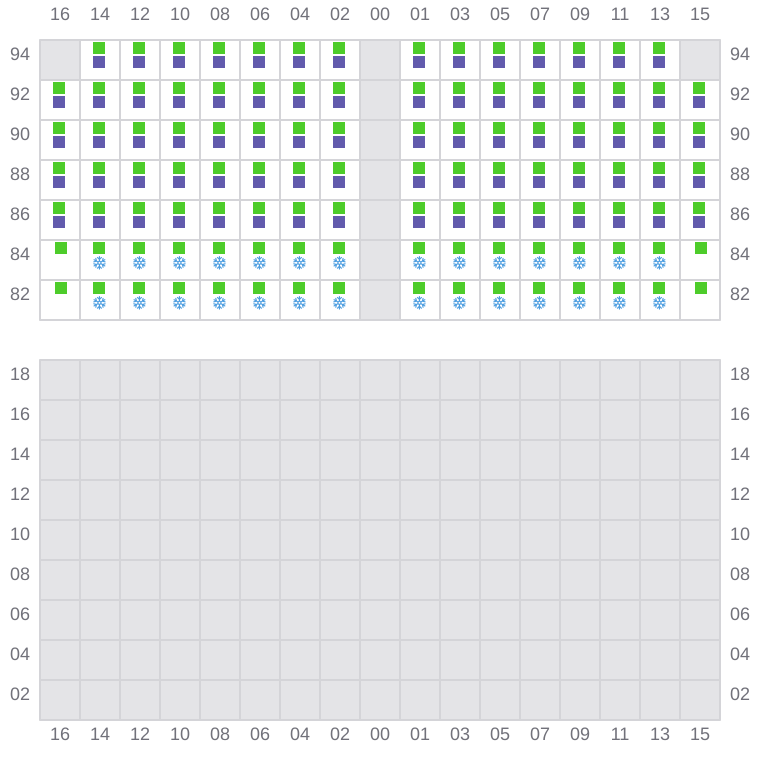

065 (064)
- ← / ?
![Bay 065 view and slots of BREMEN BELLE](/vessel-images/874654de-7657-402d-ad8e-ddaf0b5d1152-b065.png?v=1711218635529)
