BREMEN
9450387 | D5WM8 | HLC by *********************** Last update: Thu Jan 30 2025

General Info

Ship Name:BREMEN

IMO Code:9450387

Call Sign:D5WM8

Line Operator:HLC

Class Name for Sister Ships:VAEX

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,598

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

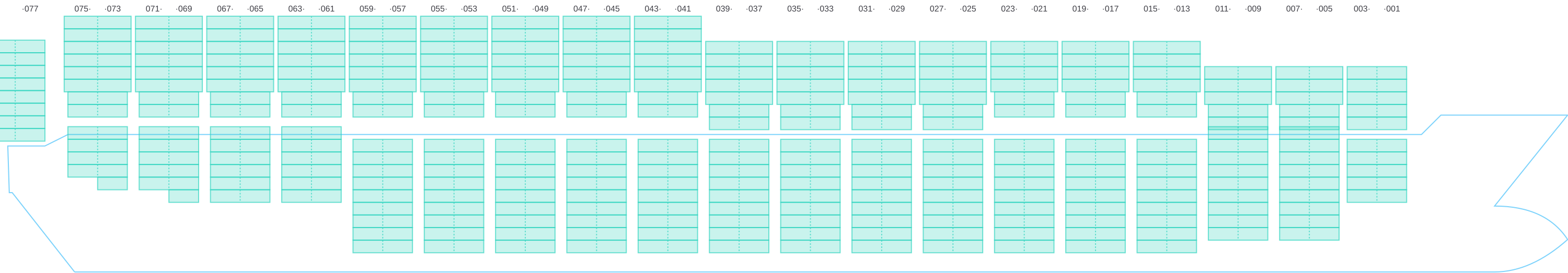

Side view of BREMEN

Hatch-Covers View

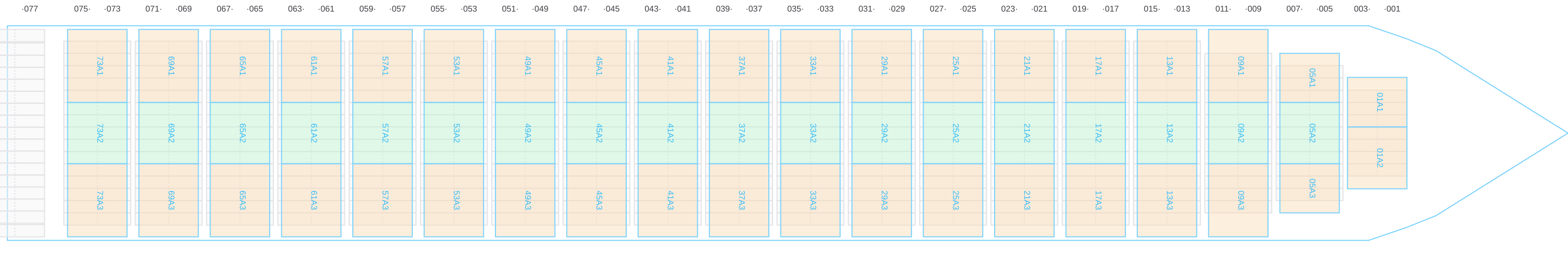

Deck view of BREMEN

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
→

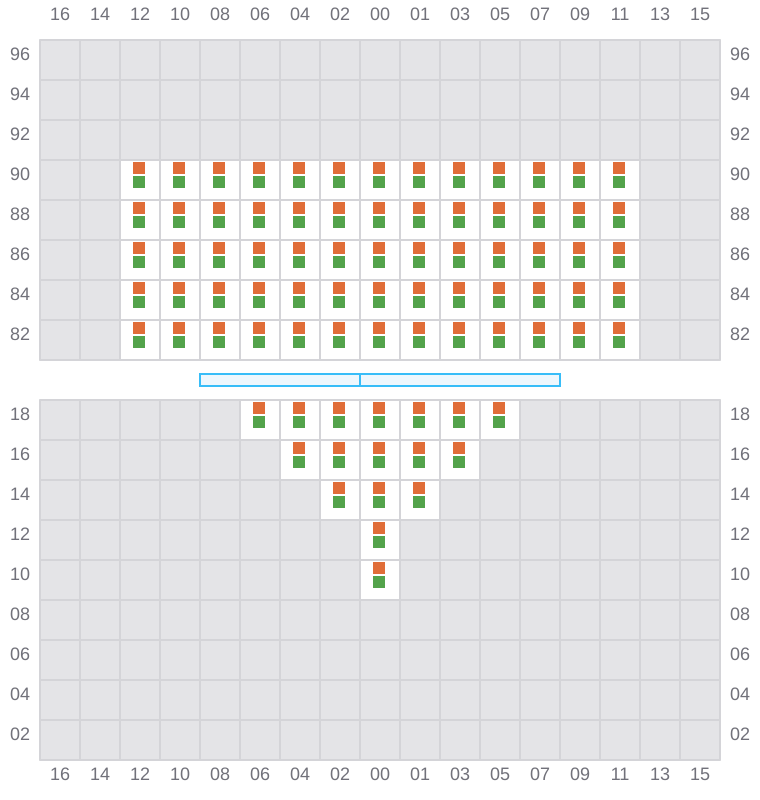

Bay 001 view and slots of BREMEN

003

←
→

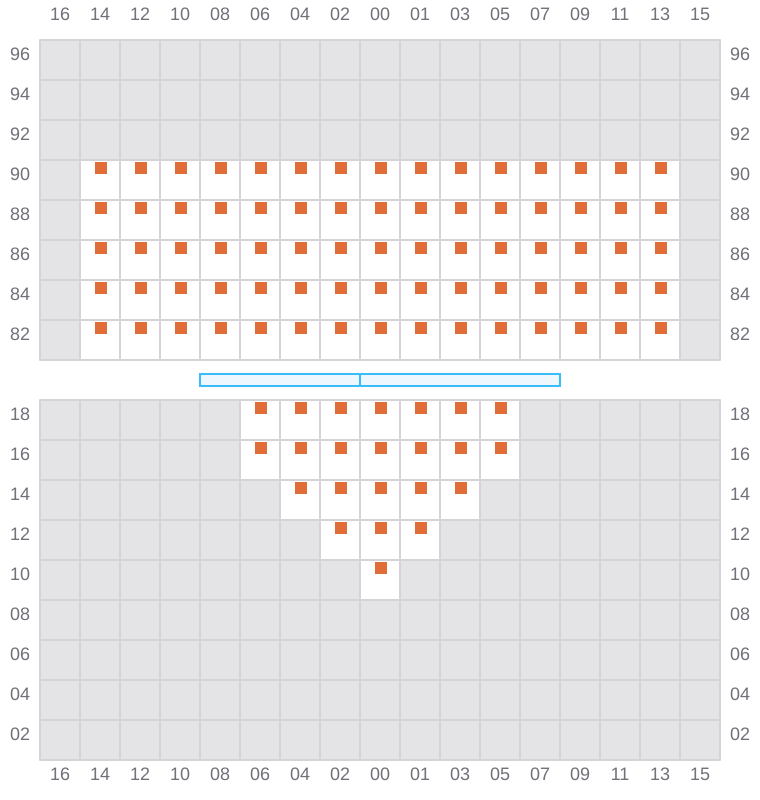

Bay 003 view and slots of BREMEN

005 (006)

→
→

Bay 005 view and slots of BREMEN

007

←
→

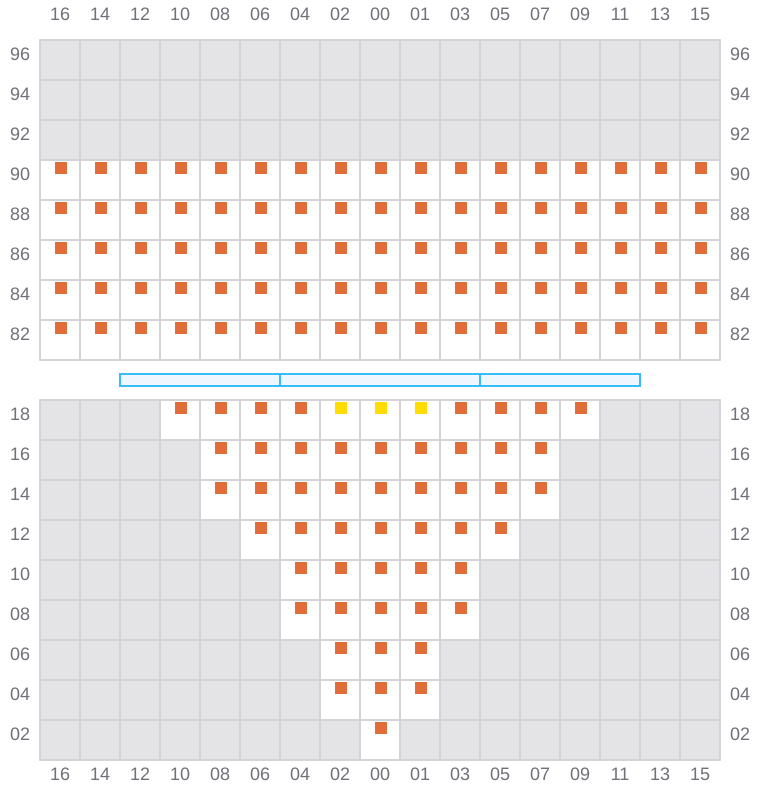

Bay 007 view and slots of BREMEN

009 (010)

→
→

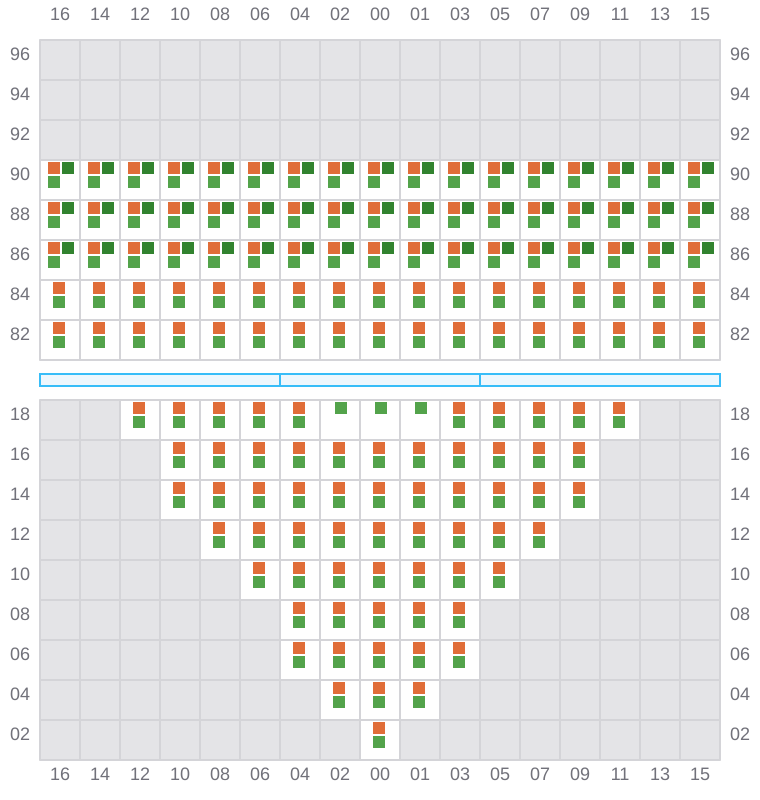

Bay 009 view and slots of BREMEN

011

←
^→ / _?
→

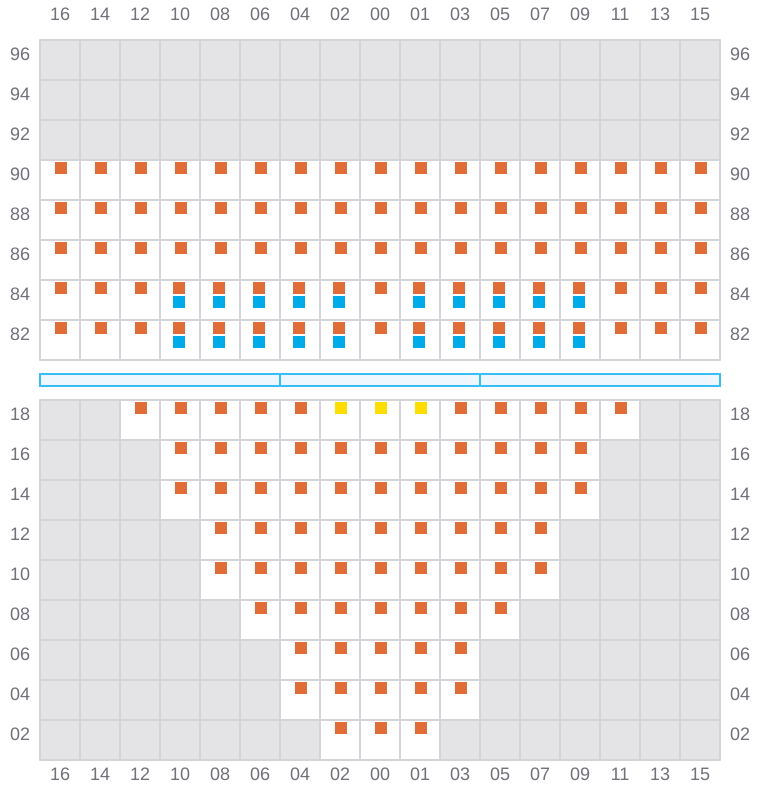

Bay 011 view and slots of BREMEN

013 (014)

→
→

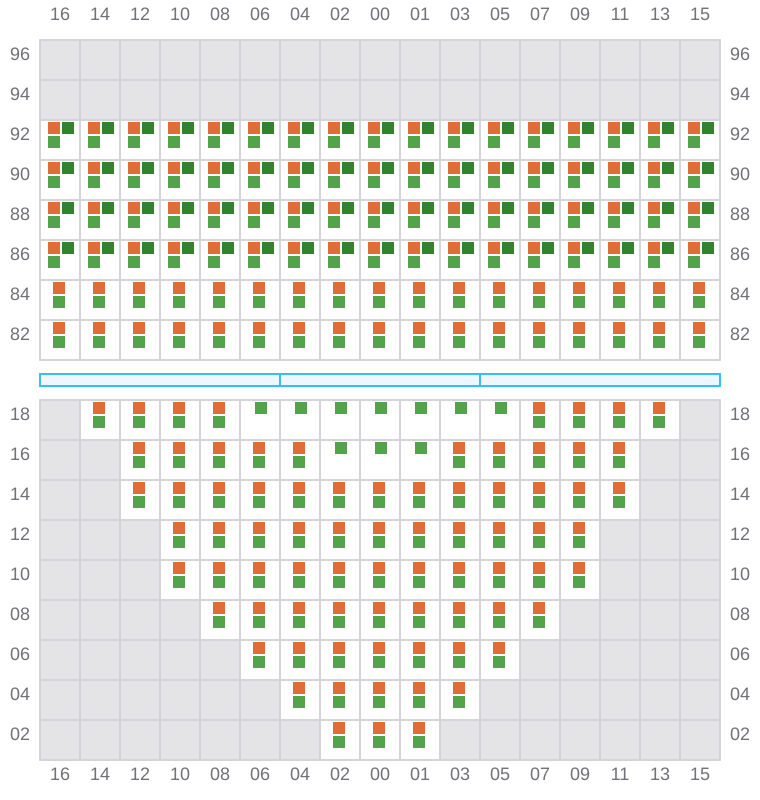

Bay 013 view and slots of BREMEN

015

←
^→ / _?
→

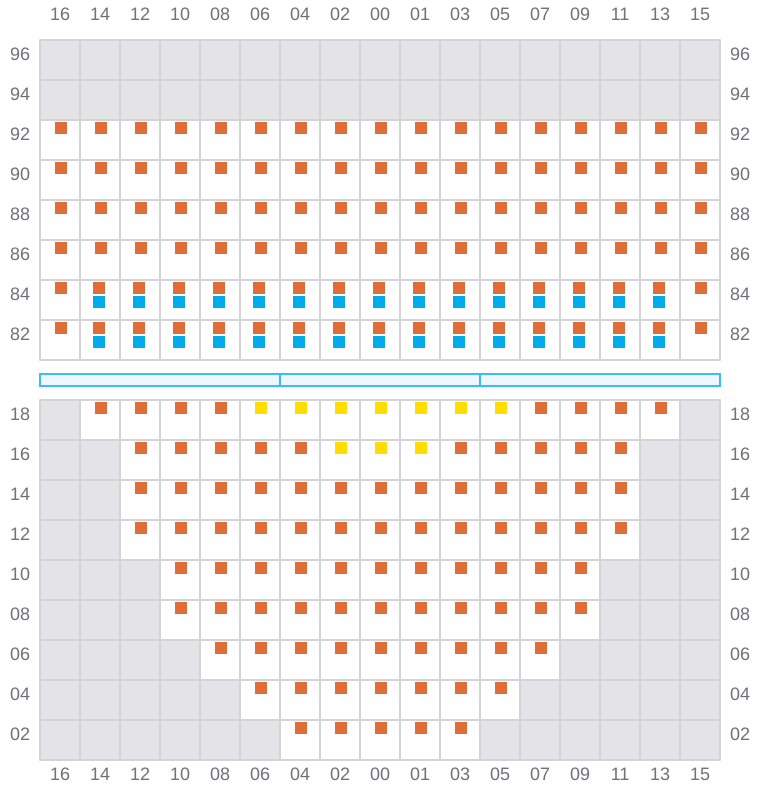

Bay 015 view and slots of BREMEN

017 (018)

→
→

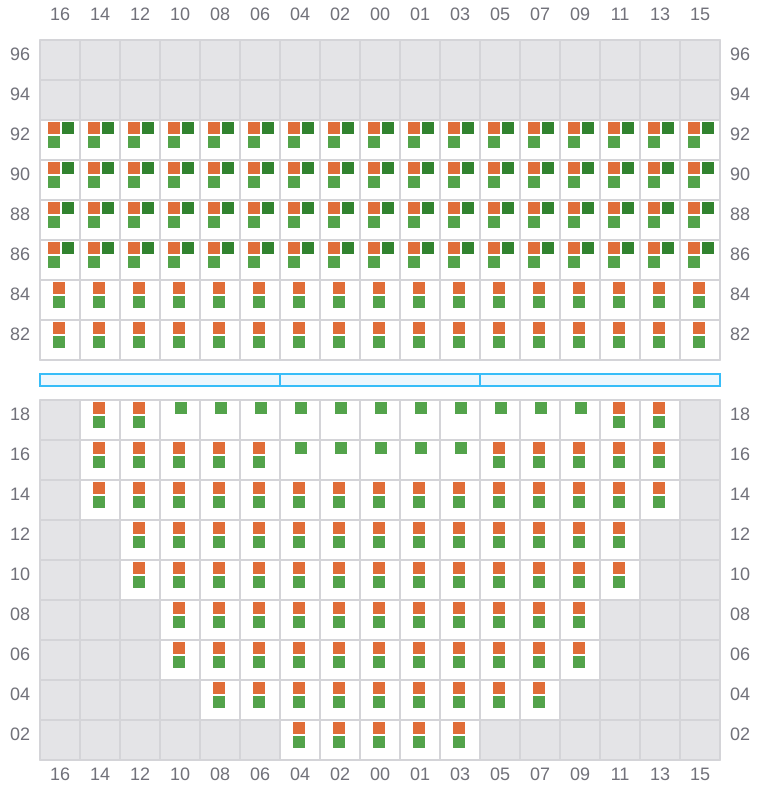

Bay 017 view and slots of BREMEN

019

←
^→ / _?
→

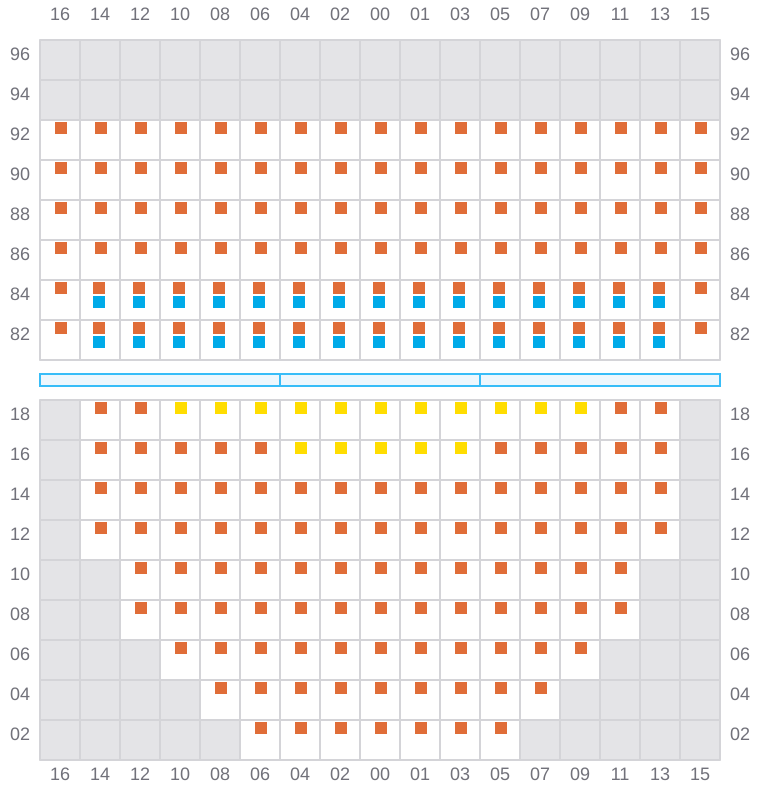

Bay 019 view and slots of BREMEN

021 (022)

→
→

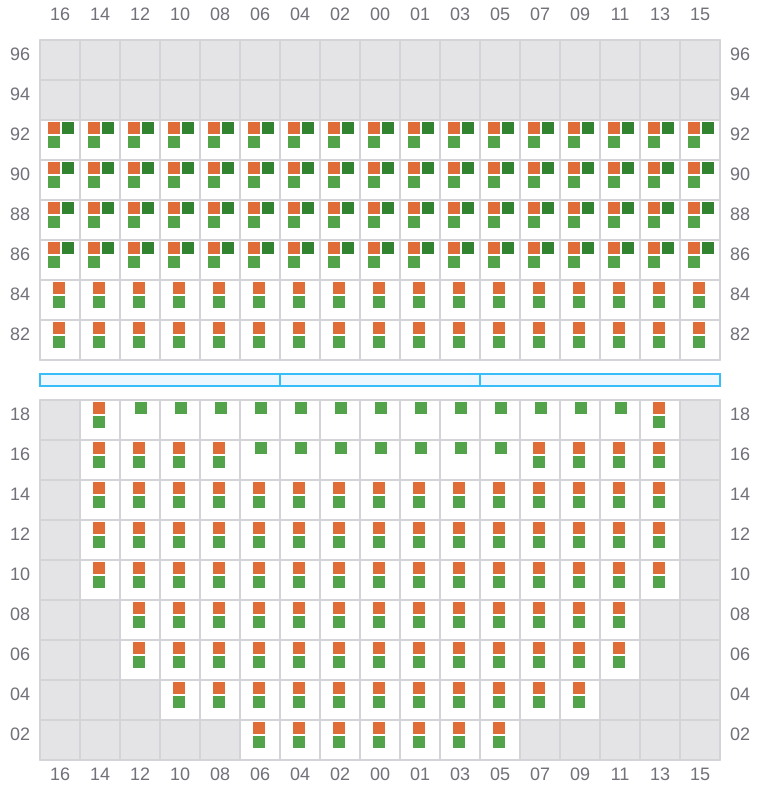

Bay 021 view and slots of BREMEN

023

←
^→ / _?
→

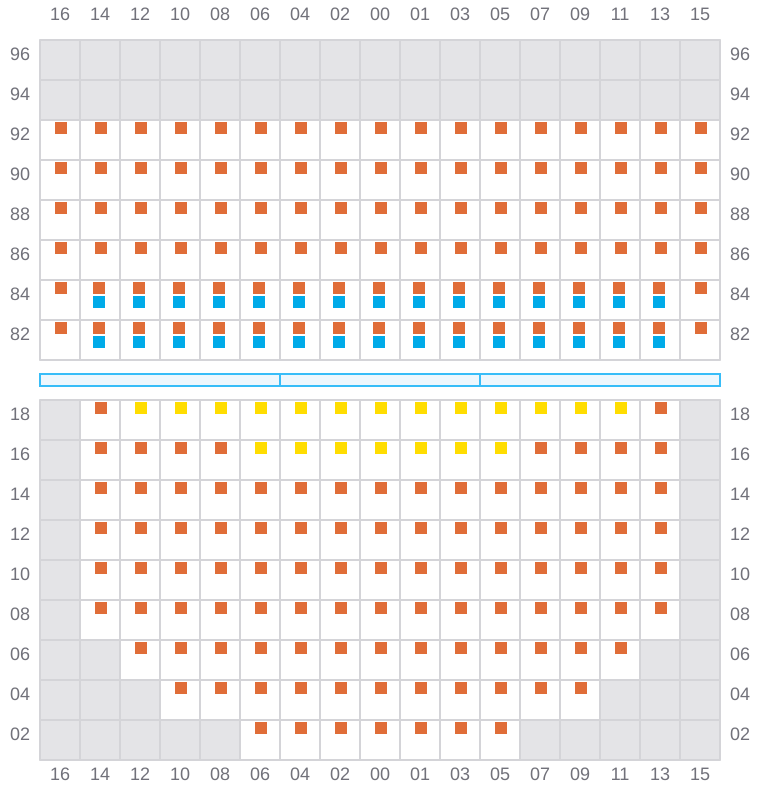

Bay 023 view and slots of BREMEN

025 (026)

→
→

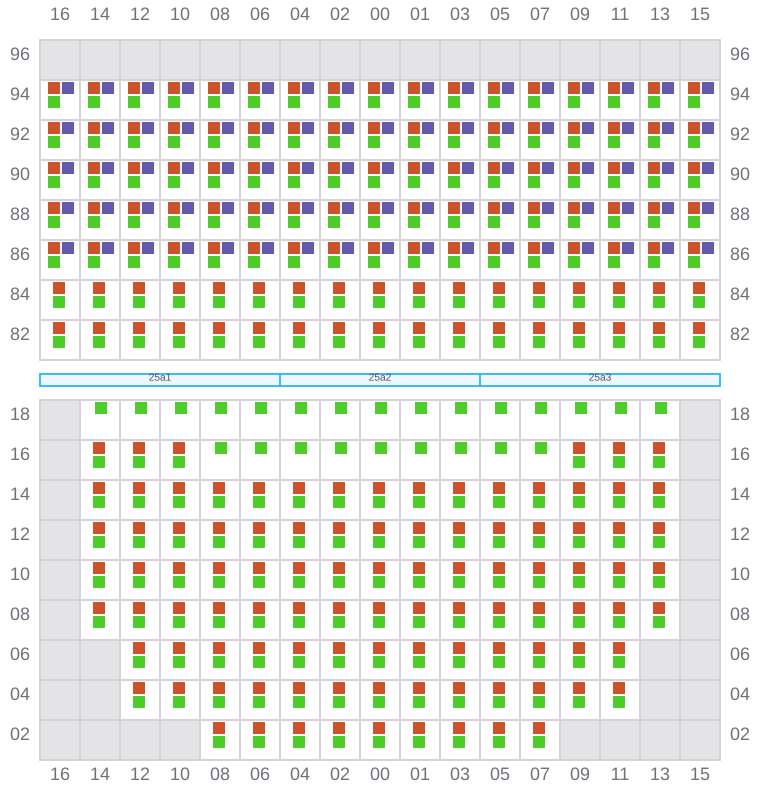

Bay 025 view and slots of BREMEN

027

←
^→ / _?
→

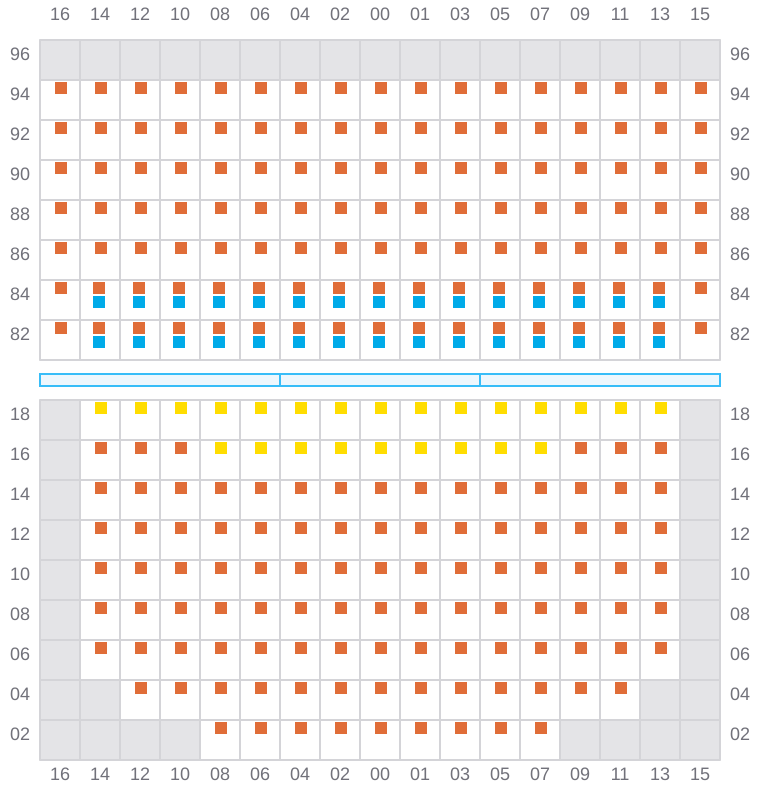

Bay 027 view and slots of BREMEN

029 (030)

→
→

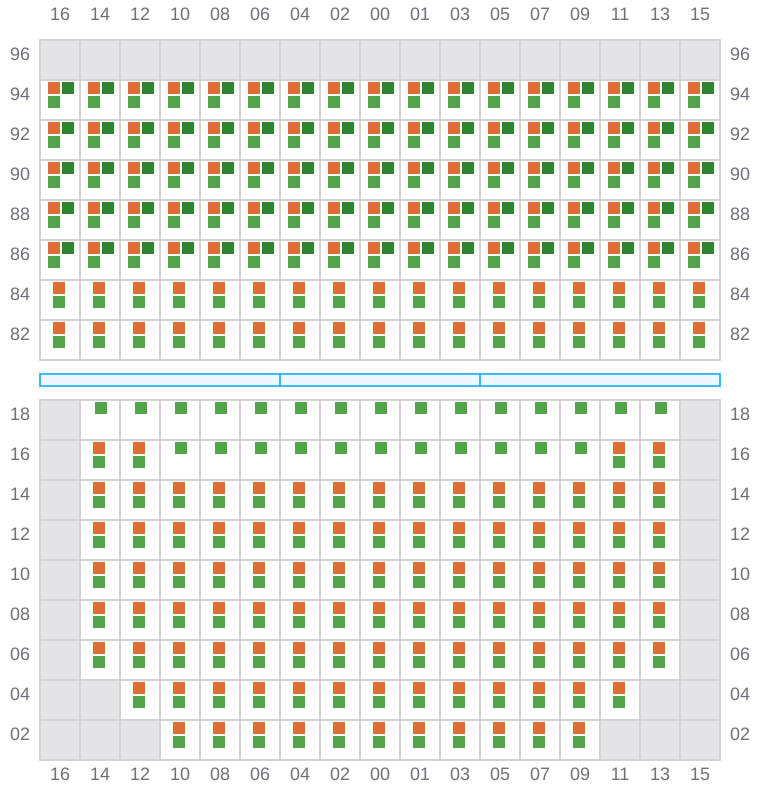

Bay 029 view and slots of BREMEN

031

←
^→ / _?
→

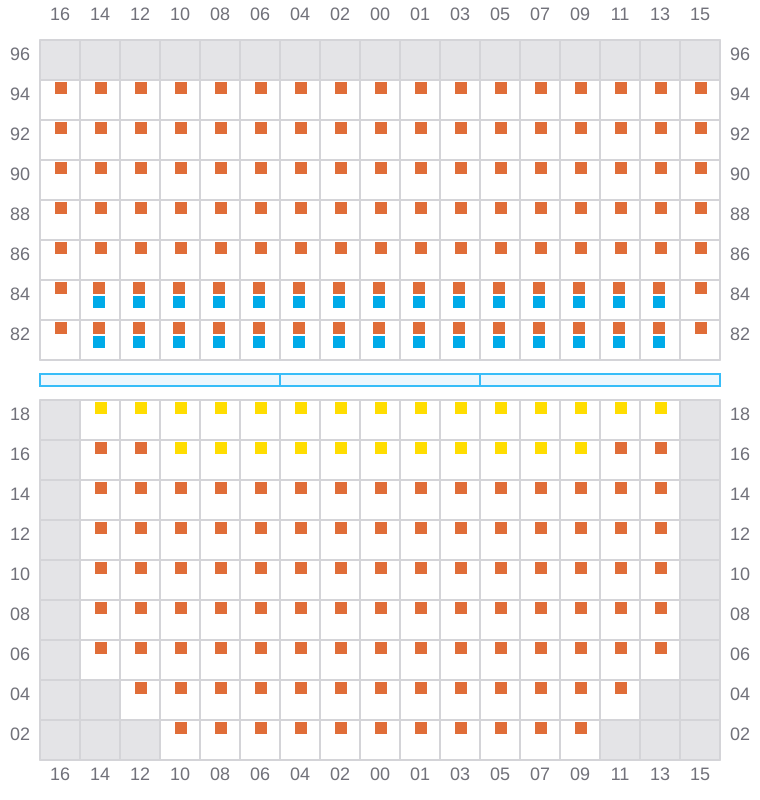

Bay 031 view and slots of BREMEN

033 (034)

→
→

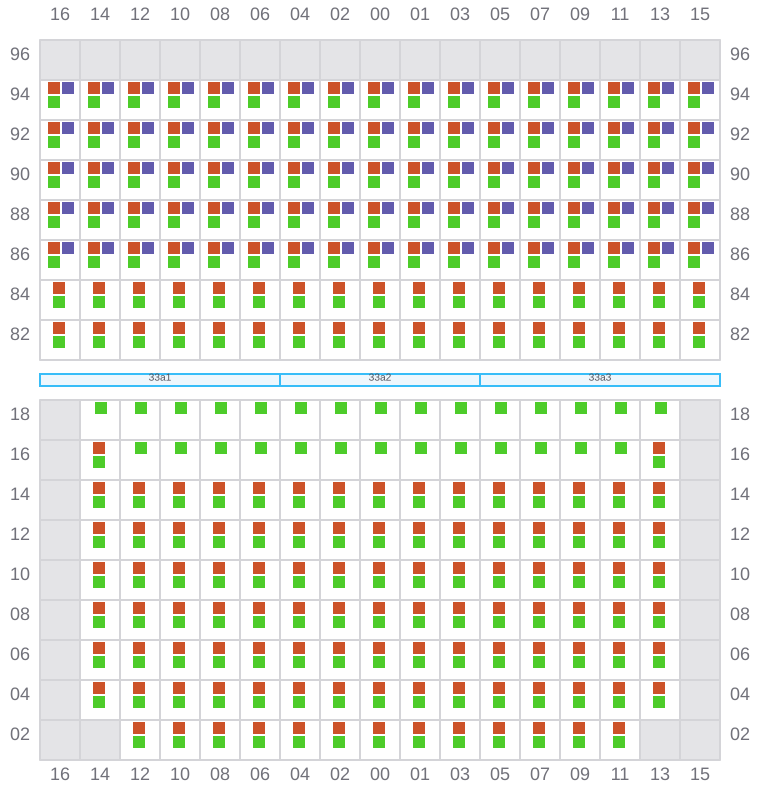

Bay 033 view and slots of BREMEN

035

←
^→ / _?
→

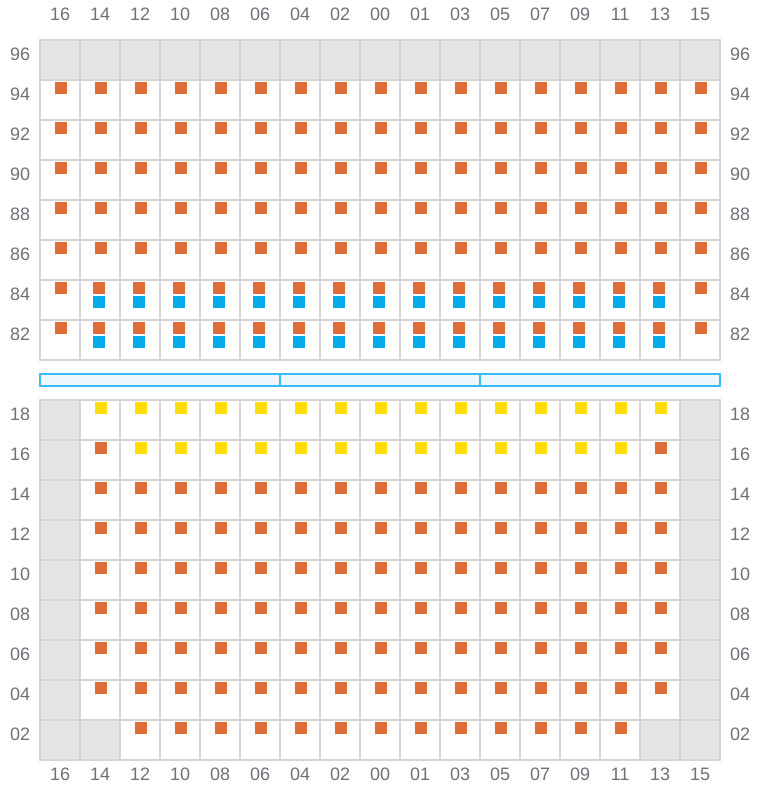

Bay 035 view and slots of BREMEN

037 (038)

→
→

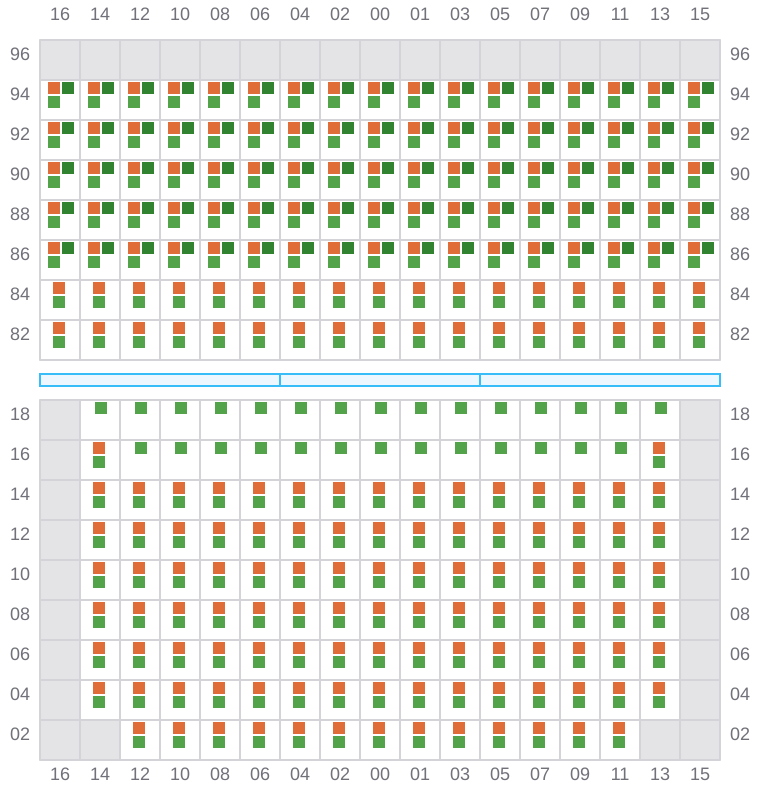

Bay 037 view and slots of BREMEN

039

←
→
→

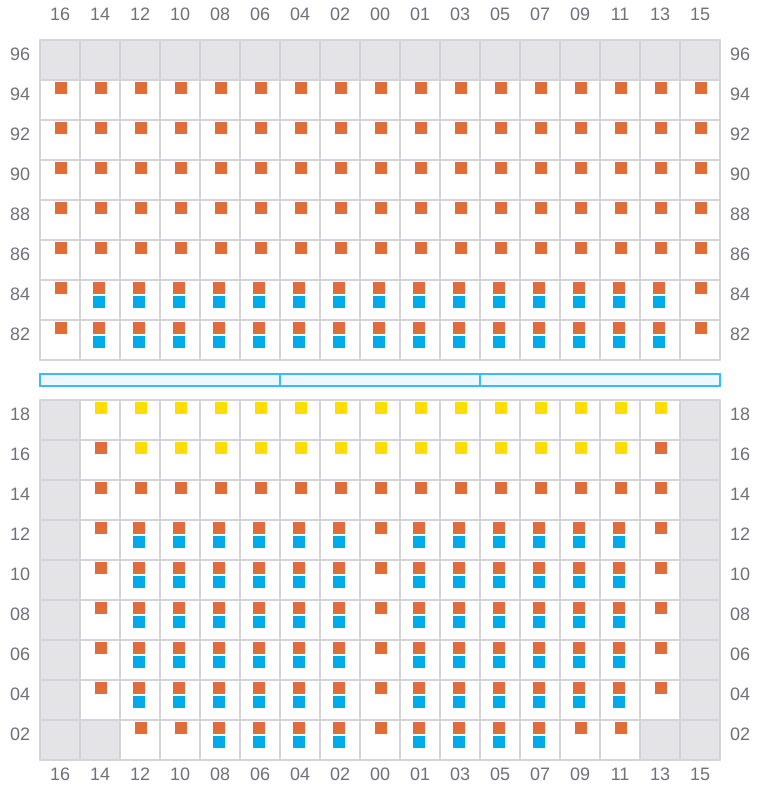

Bay 039 view and slots of BREMEN

041 (042)

→
→

Bay 041 view and slots of BREMEN

043

←
^→ / _?
→

Bay 043 view and slots of BREMEN

045 (046)

→
→

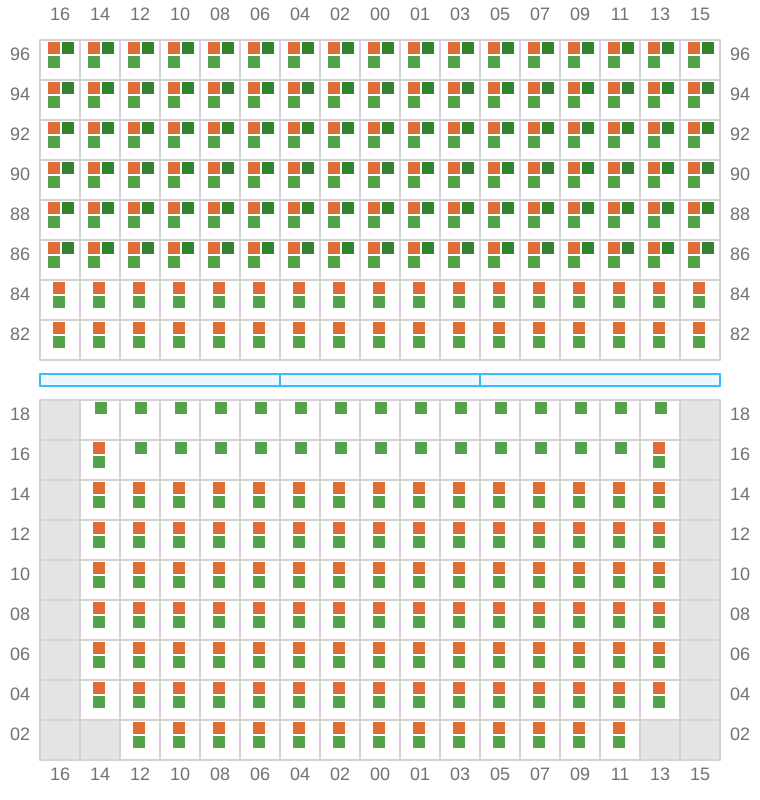

Bay 045 view and slots of BREMEN

047

←
→
→

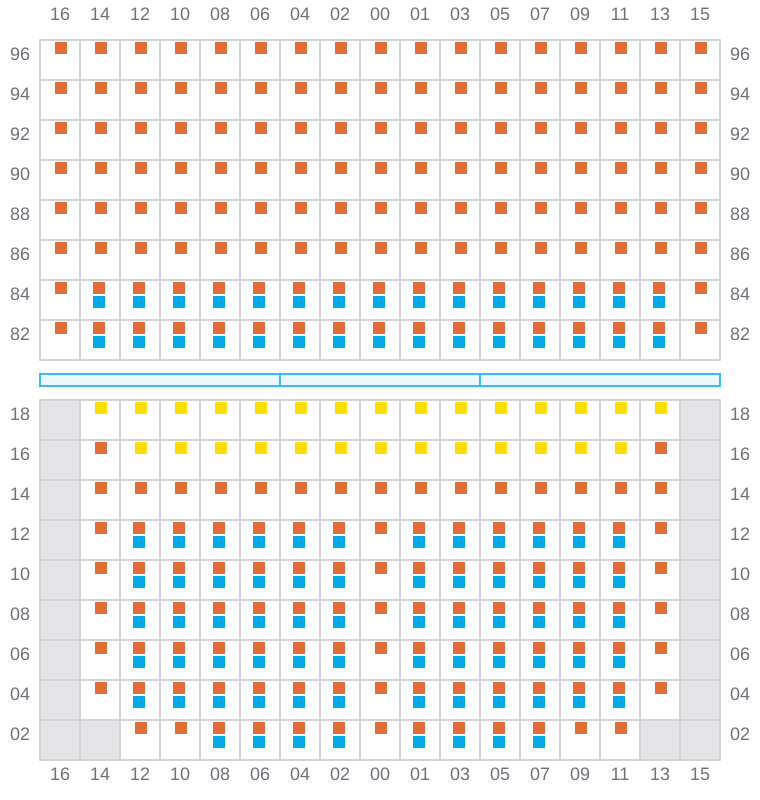

Bay 047 view and slots of BREMEN

049 (050)

→
→

Bay 049 view and slots of BREMEN

051

←
^→ / _?
→

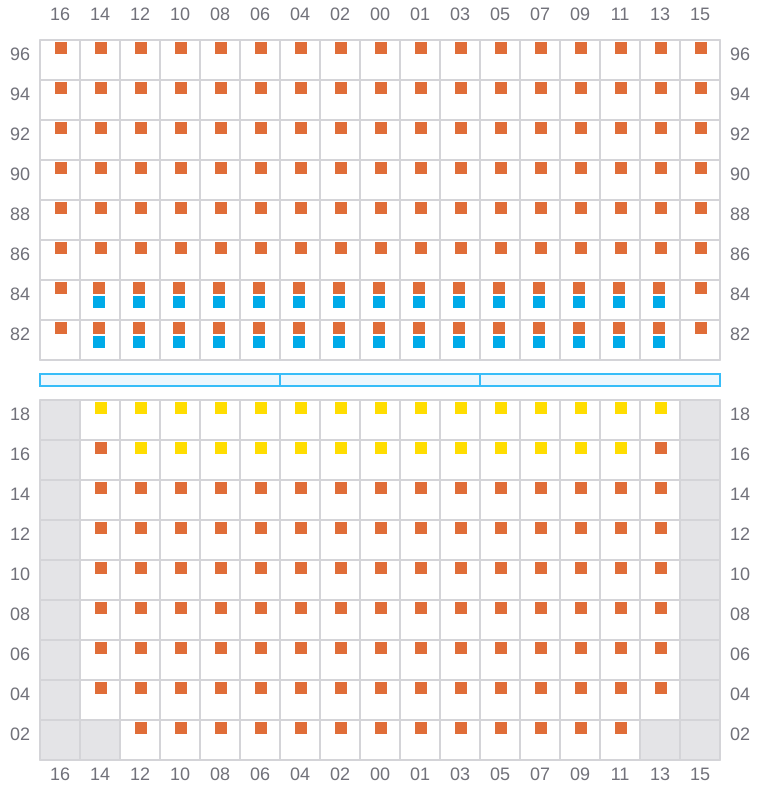

Bay 051 view and slots of BREMEN

053 (054)

→
→

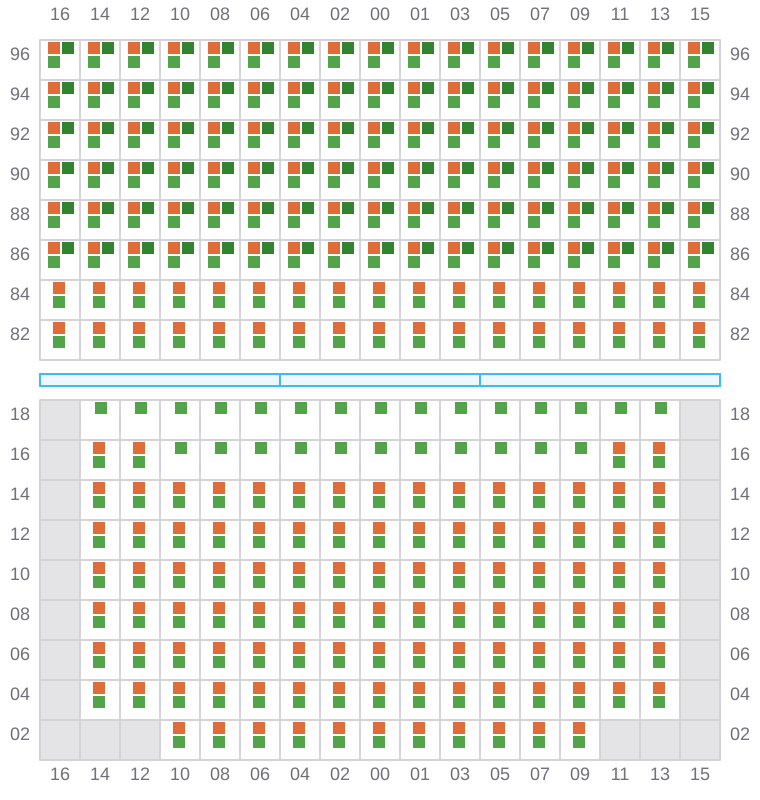

Bay 053 view and slots of BREMEN

055

←
→
→

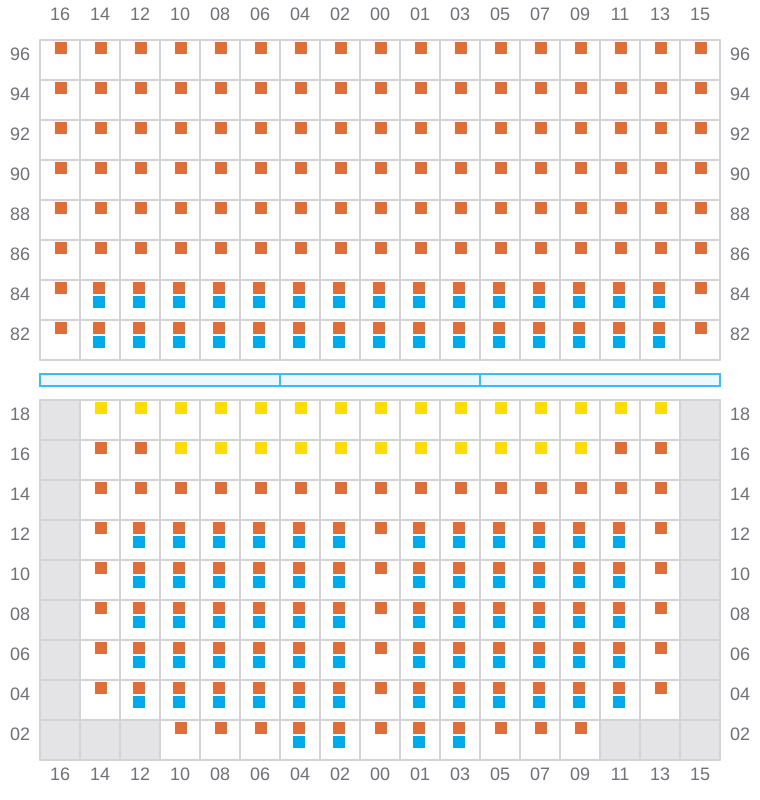

Bay 055 view and slots of BREMEN

057 (058)

→
→

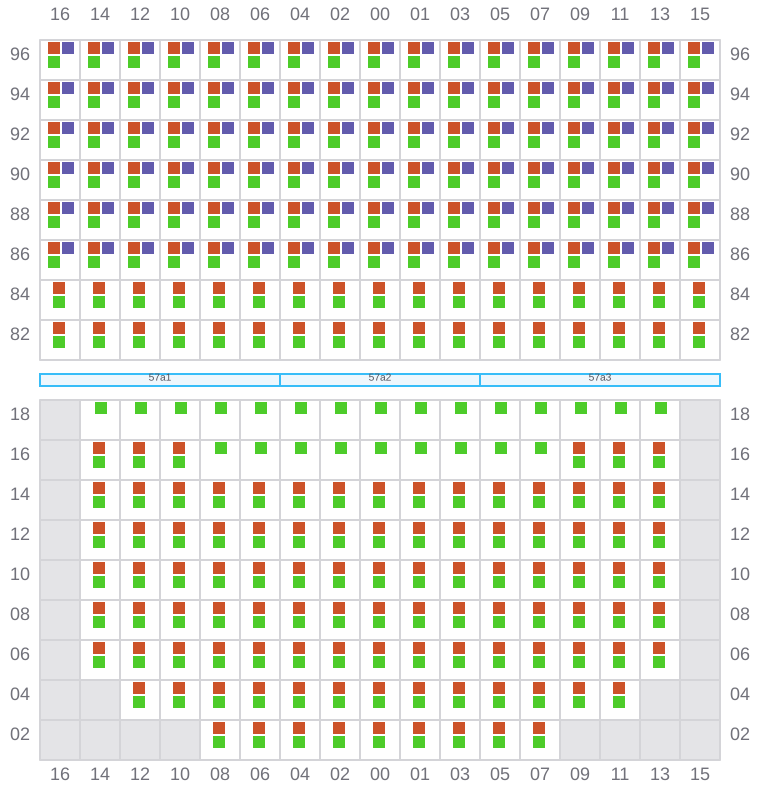

Bay 057 view and slots of BREMEN

059

←
^→ / _?
→

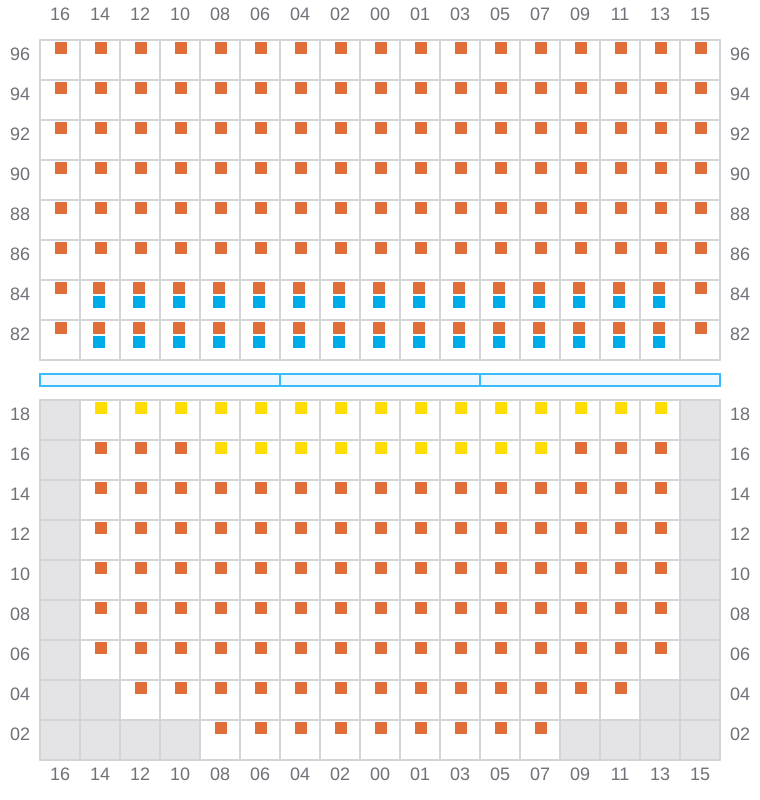

Bay 059 view and slots of BREMEN

061 (062)

→
→

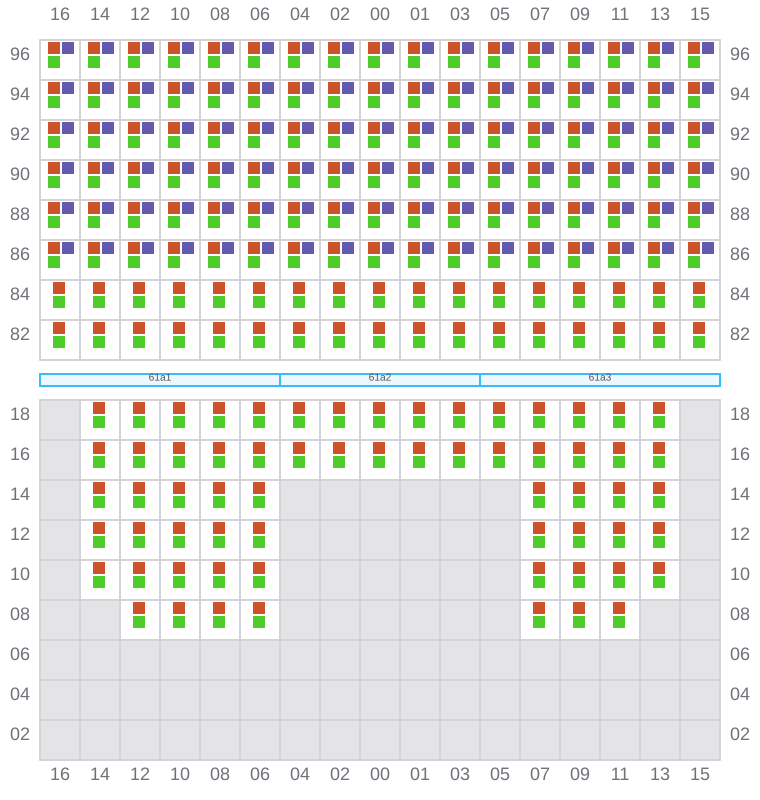

Bay 061 view and slots of BREMEN

063

←
^→ / _?
→

Bay 063 view and slots of BREMEN

065 (066)

→
→

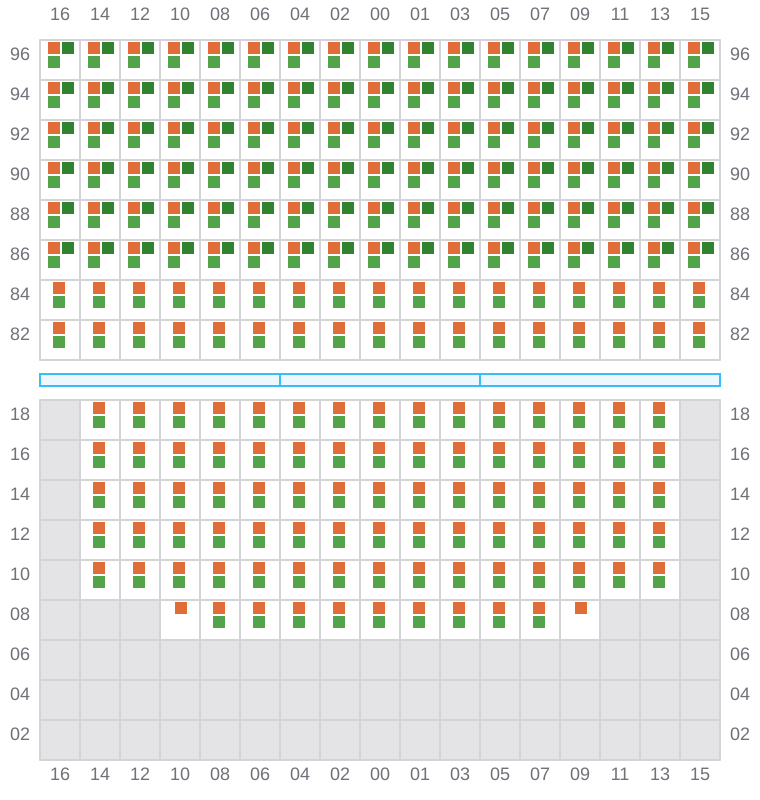

Bay 065 view and slots of BREMEN

067

←
^→ / _?
→

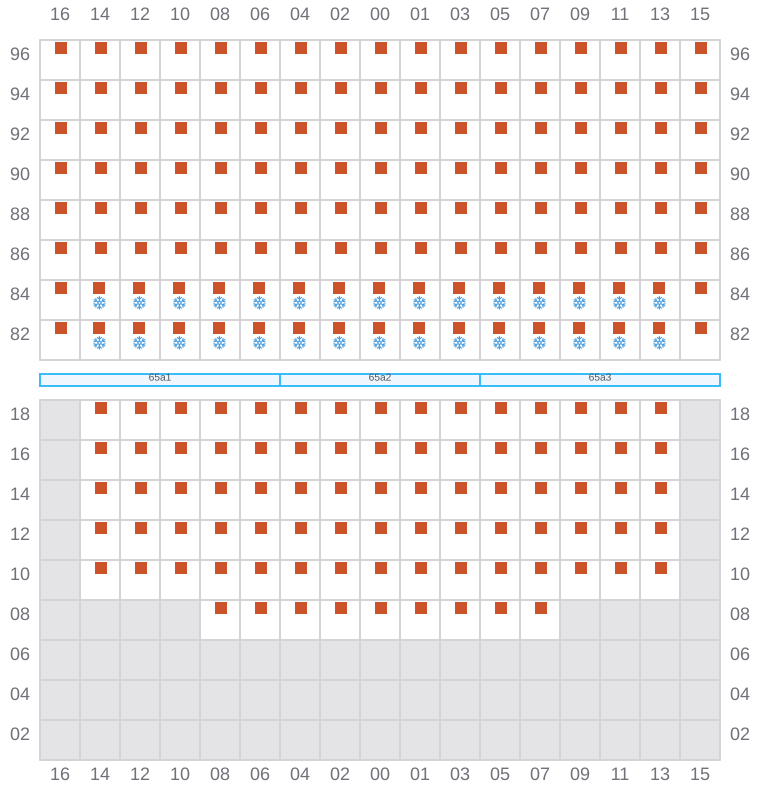

Bay 067 view and slots of BREMEN

069 (070)

→
→

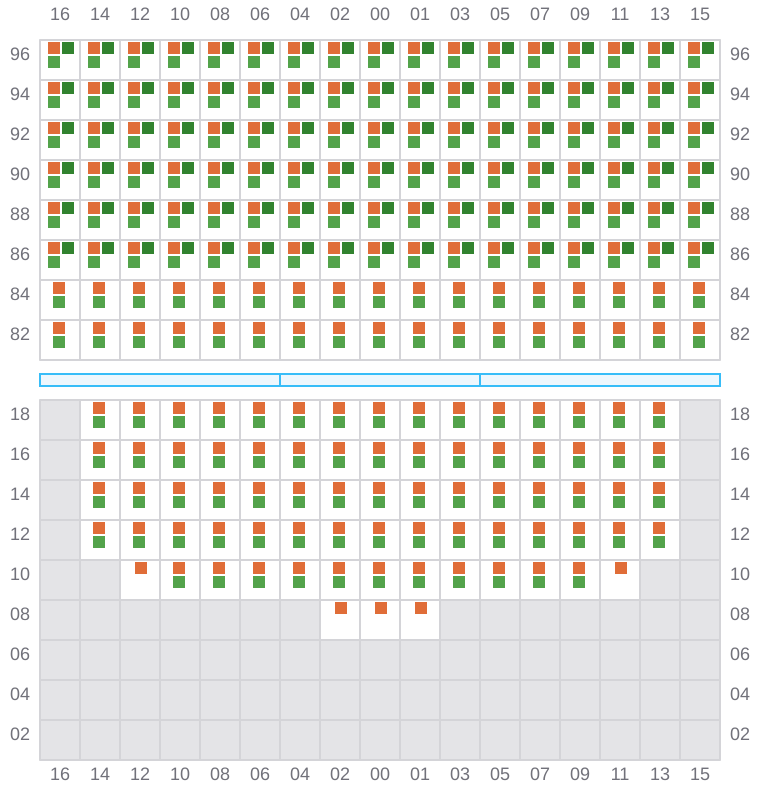

Bay 069 view and slots of BREMEN

071

←
^→ / _?
→

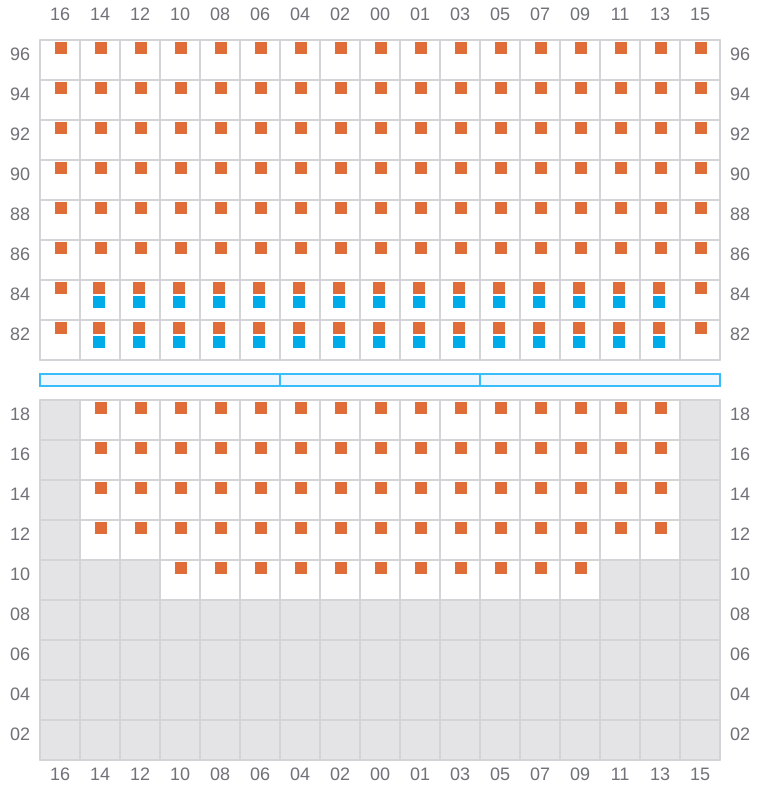

Bay 071 view and slots of BREMEN

073 (074)

→
→

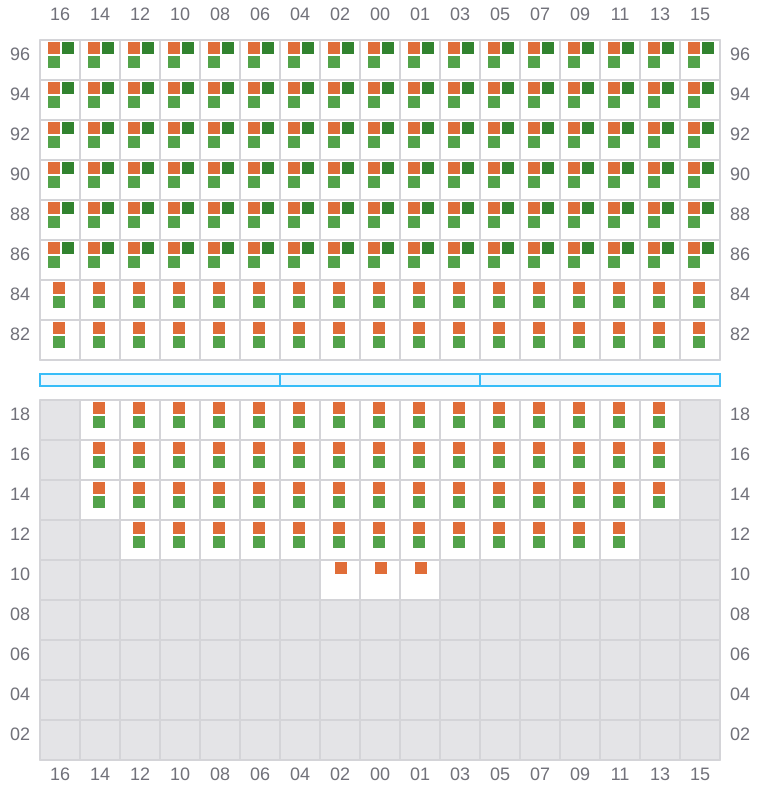

Bay 073 view and slots of BREMEN

075

←
^→ / _?
→

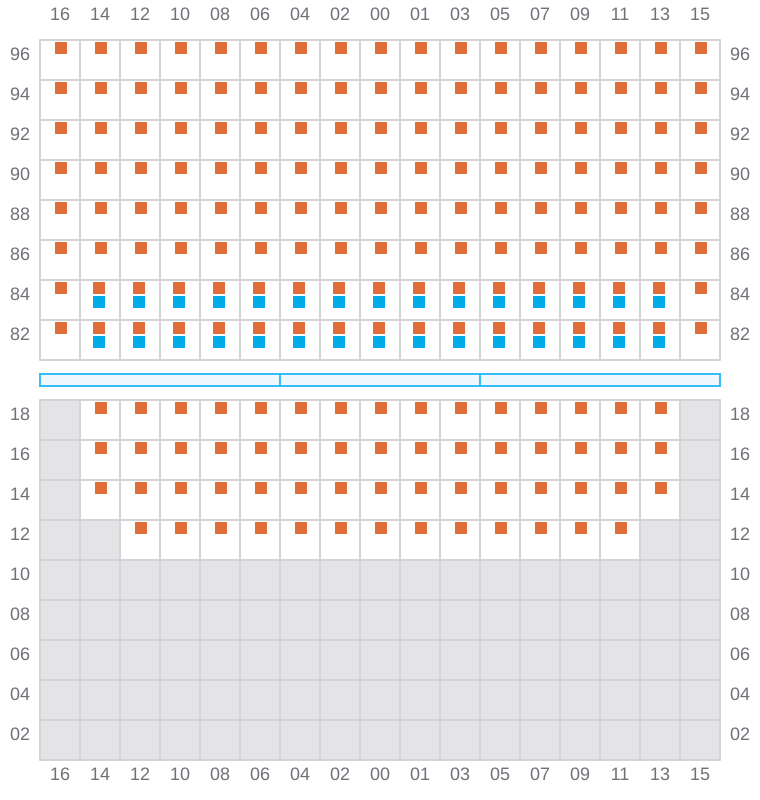

Bay 075 view and slots of BREMEN

077 (078)

^→ / _?
^→ / _?

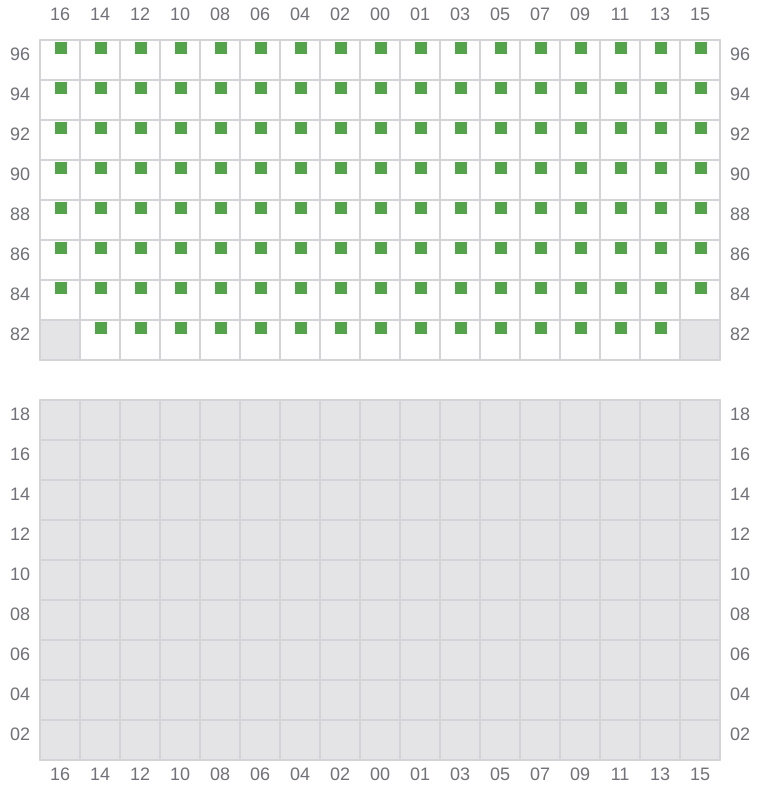

Bay 077 view and slots of BREMEN
