BROOKLYN BRIDGE
9458999 | 7KPG | ONE by *********************** Last update: Thu Jan 30 2025

General Info

Ship Name:BROOKLYN BRIDGE
IMO Code:9458999
Call Sign:7KPG
Line Operator:ONE
Class Name for Sister Ships:OBRB
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):250.00
LOA (Length Overall):266.65
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,436

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of BROOKLYN BRIDGE

Hatch-Covers View

Deck view of BROOKLYN BRIDGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

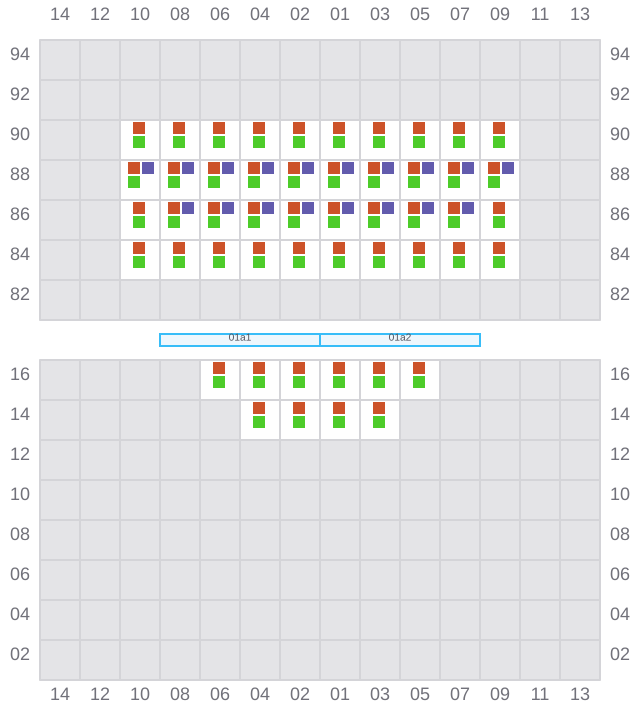

Bay 001 view and slots of BROOKLYN BRIDGE

003

  • ←
  • →

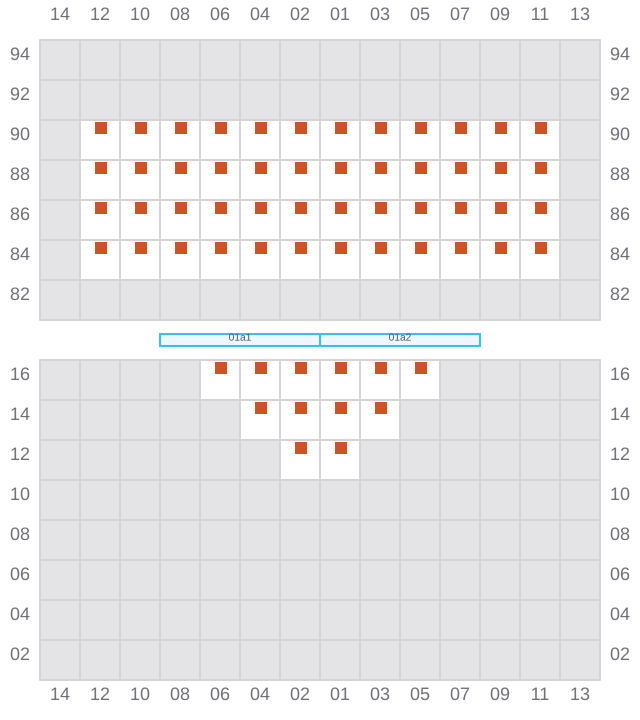

Bay 003 view and slots of BROOKLYN BRIDGE

005 (006)

  • →
  • → / ?
  • →

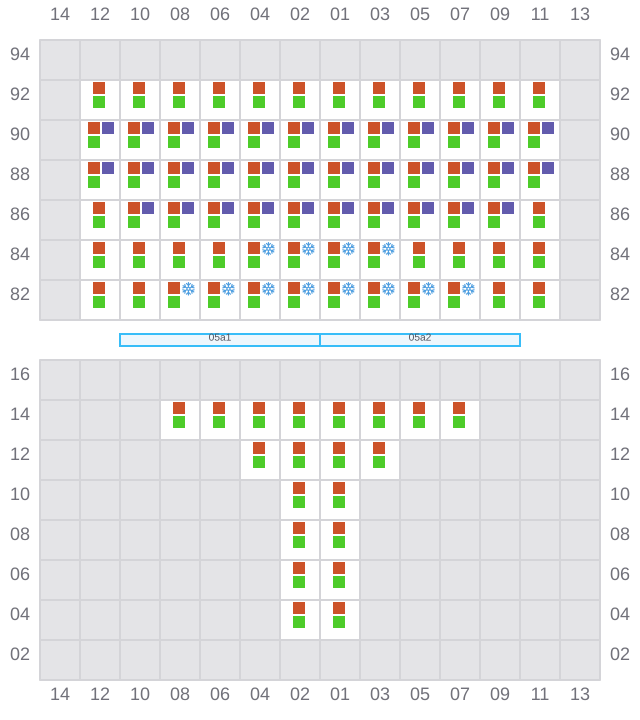

Bay 005 view and slots of BROOKLYN BRIDGE

007

  • ←
  • →
Bay 007 view and slots of BROOKLYN BRIDGE

009 (010)

  • →
  • → / ?
  • →

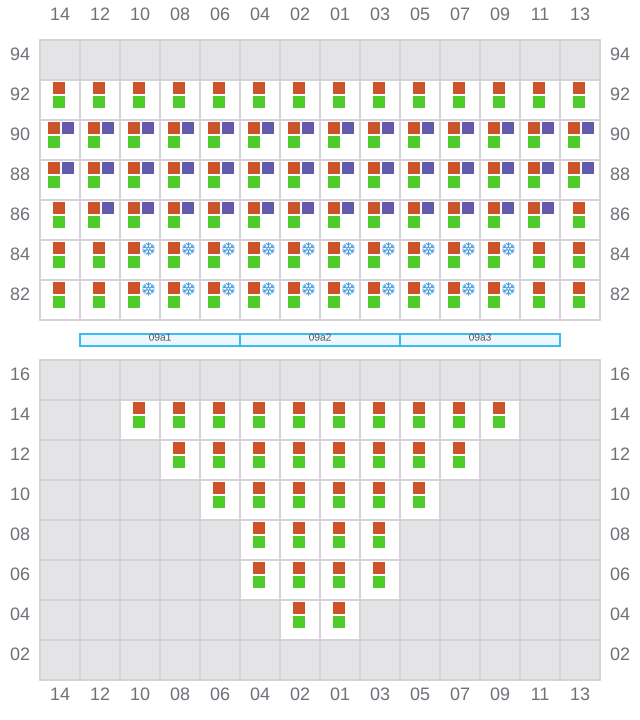

Bay 009 view and slots of BROOKLYN BRIDGE

011

  • ←
  • →

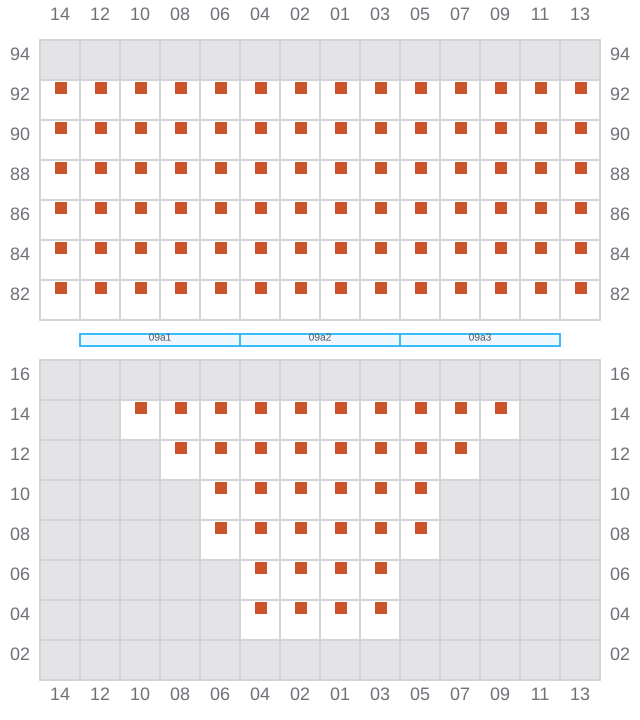

Bay 011 view and slots of BROOKLYN BRIDGE

013 (014)

  • →
  • → / ?
  • →

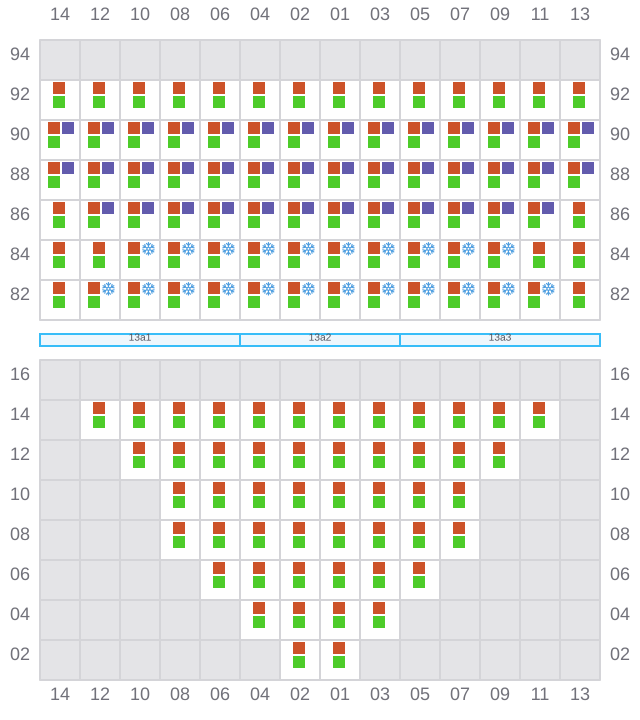

Bay 013 view and slots of BROOKLYN BRIDGE

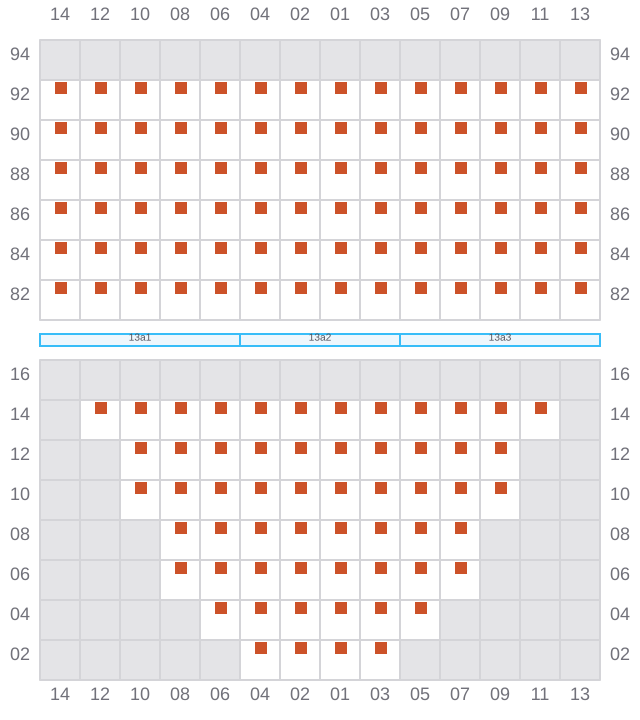

015

  • ←
  • →
Bay 015 view and slots of BROOKLYN BRIDGE

017 (018)

  • →
  • → / ?
  • →

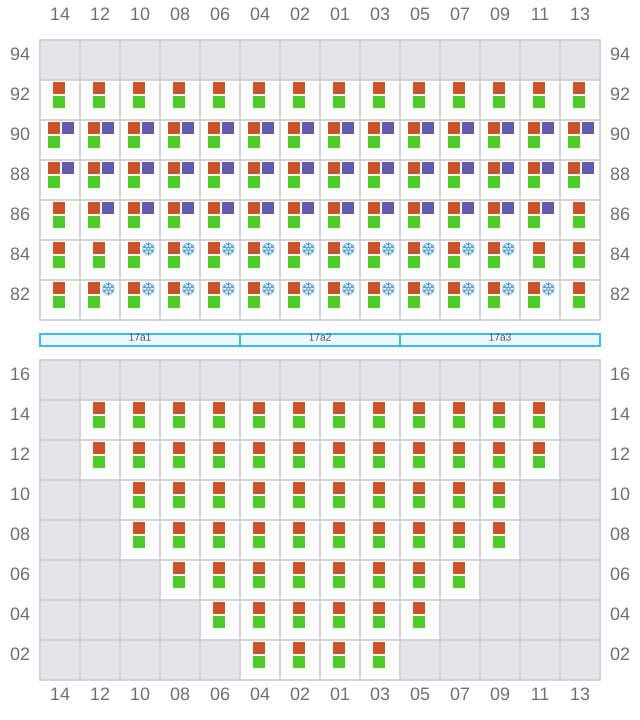

Bay 017 view and slots of BROOKLYN BRIDGE

019

  • ←
  • →

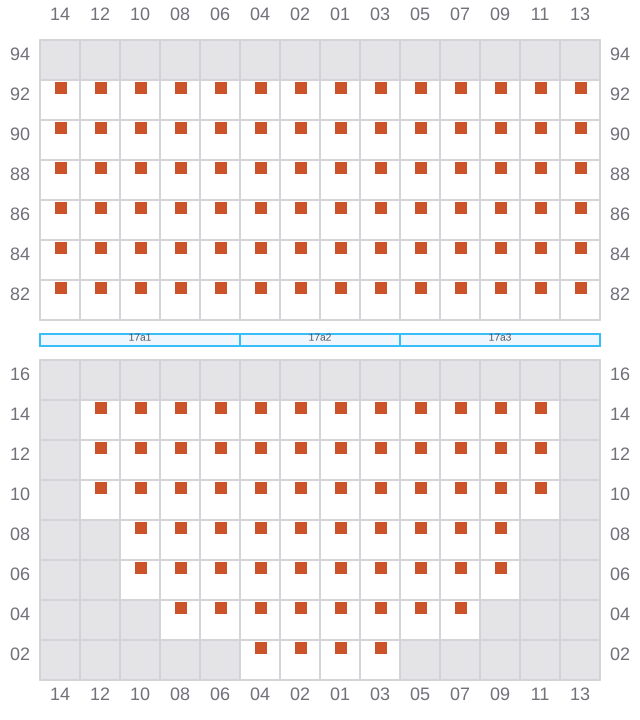

Bay 019 view and slots of BROOKLYN BRIDGE

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of BROOKLYN BRIDGE

023

  • ←
  • →

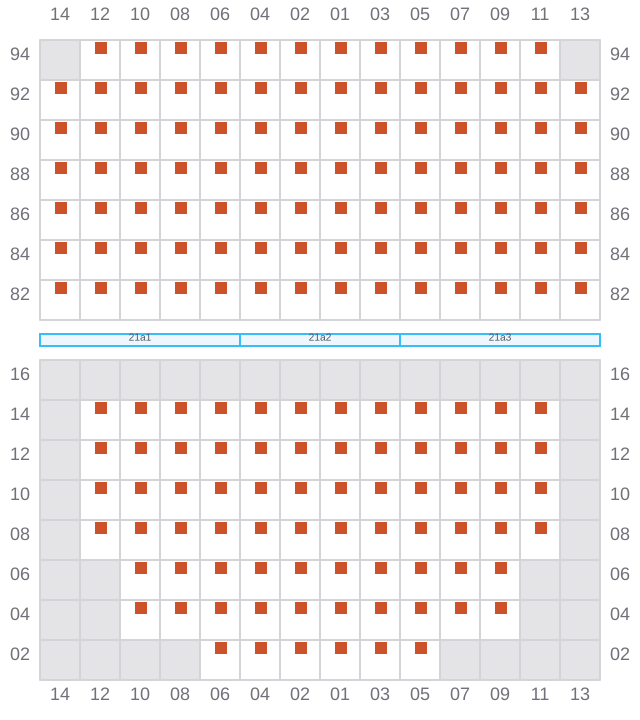

Bay 023 view and slots of BROOKLYN BRIDGE

025 (026)

  • →
  • → / ?
  • →

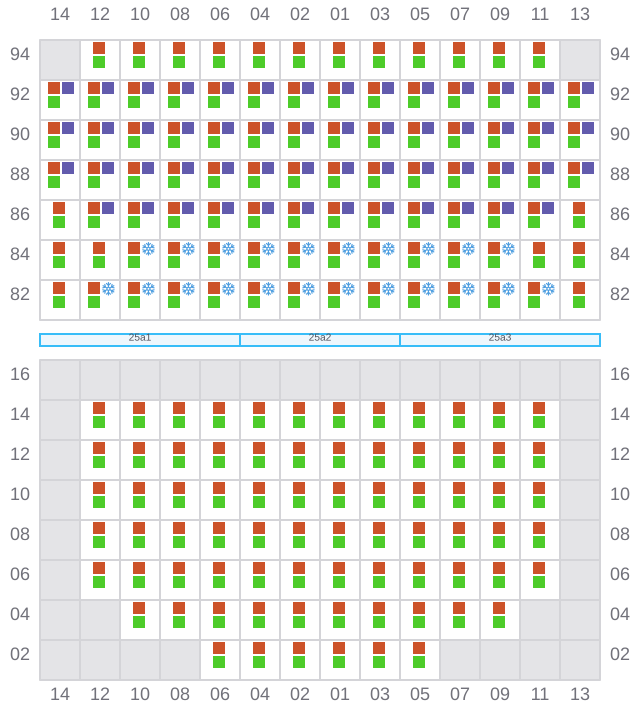

Bay 025 view and slots of BROOKLYN BRIDGE

027

  • ←
  • →

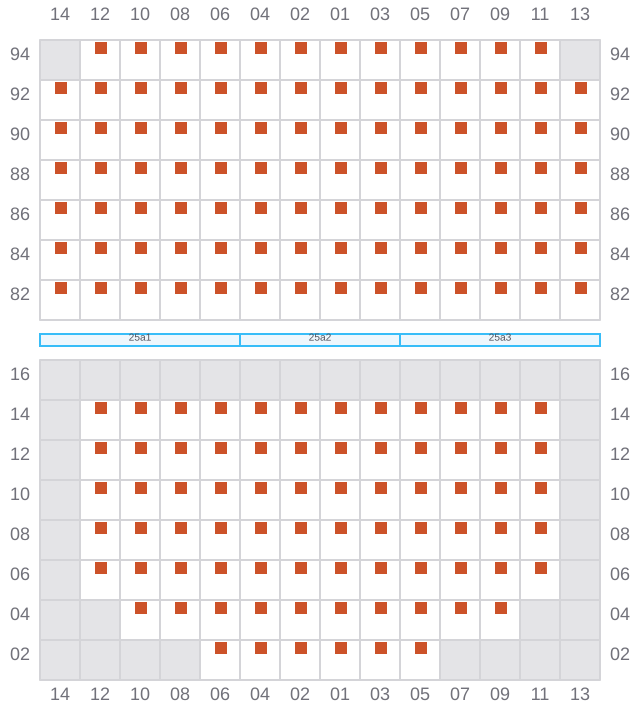

Bay 027 view and slots of BROOKLYN BRIDGE

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of BROOKLYN BRIDGE

031

  • ←
  • →
Bay 031 view and slots of BROOKLYN BRIDGE

033 (034)

  • →
  • → / ?
  • →

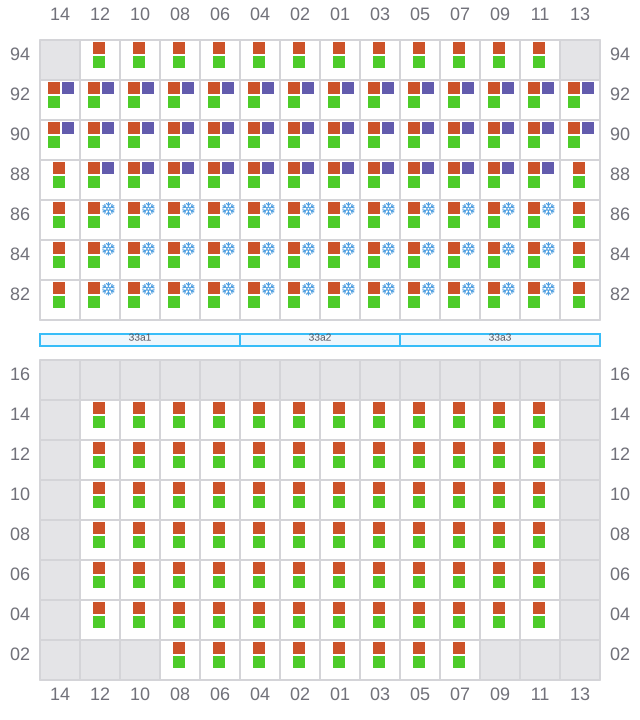

Bay 033 view and slots of BROOKLYN BRIDGE

035

  • ←
  • →
Bay 035 view and slots of BROOKLYN BRIDGE

037 (038)

  • →
  • → / ?
  • →

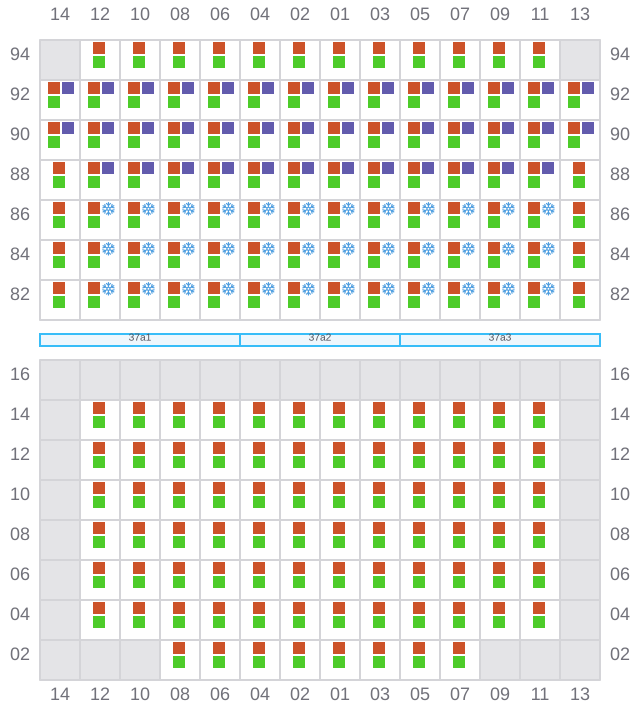

Bay 037 view and slots of BROOKLYN BRIDGE

039

  • ←
  • →

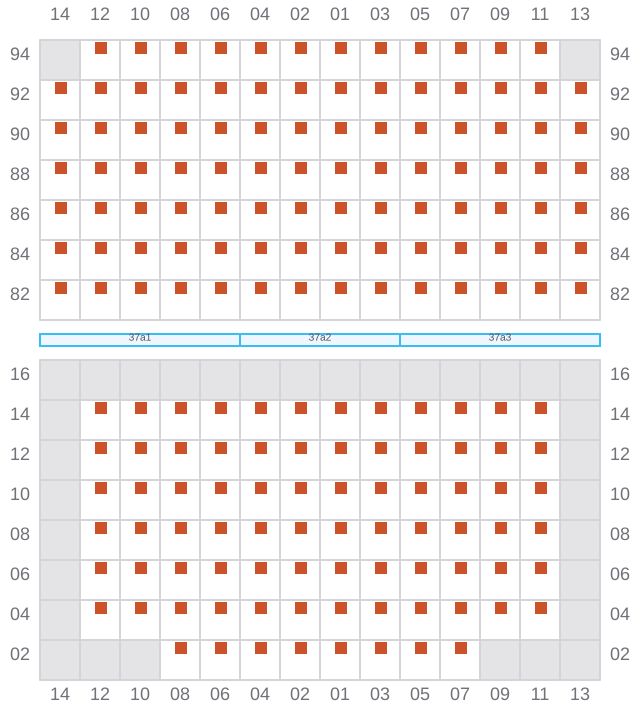

Bay 039 view and slots of BROOKLYN BRIDGE

041 (042)

  • →
  • → / ?
  • →

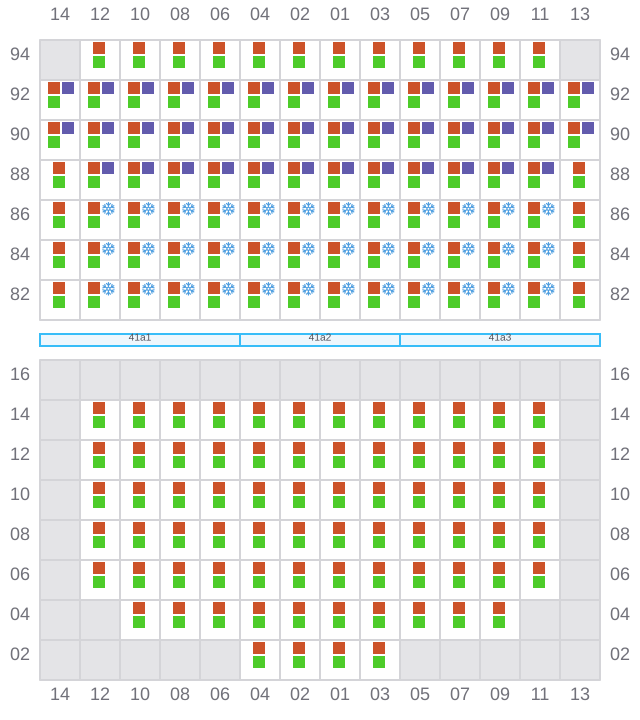

Bay 041 view and slots of BROOKLYN BRIDGE

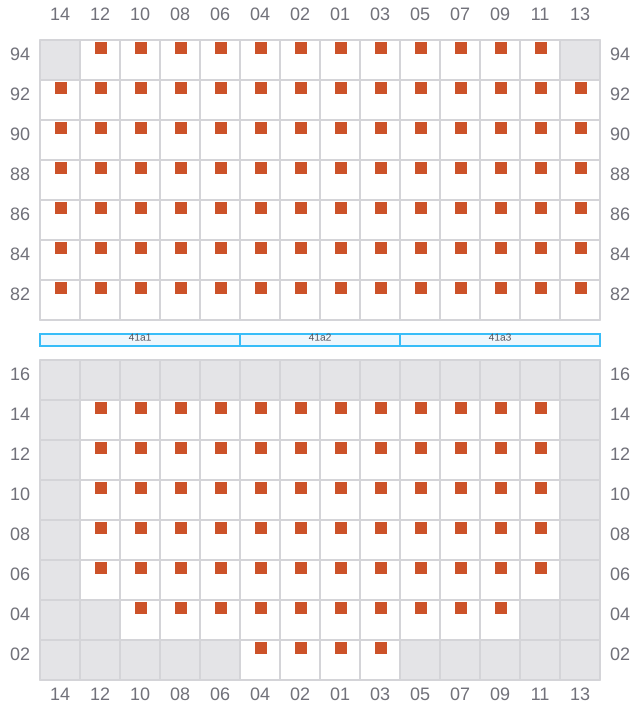

043

  • ←
  • →
Bay 043 view and slots of BROOKLYN BRIDGE

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of BROOKLYN BRIDGE

047

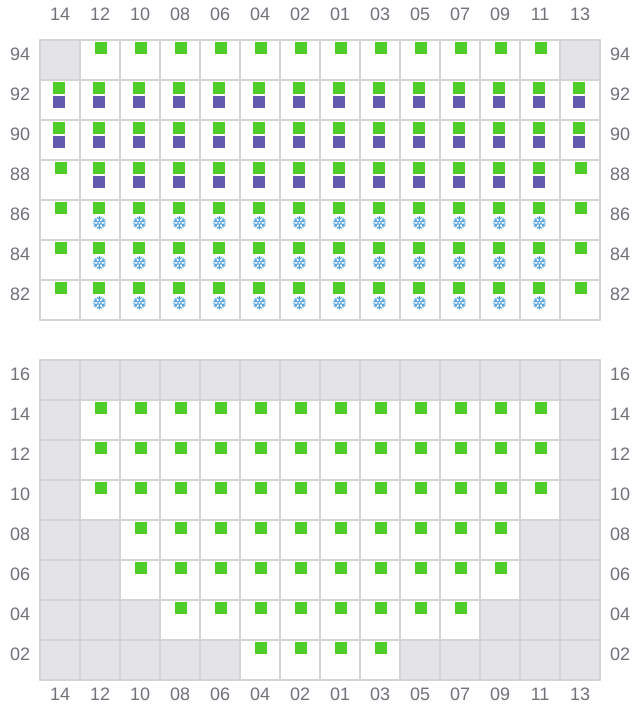

Bay 047 view and slots of BROOKLYN BRIDGE

049 (050)

  • → / ?
  • → / ?
  • → / ?

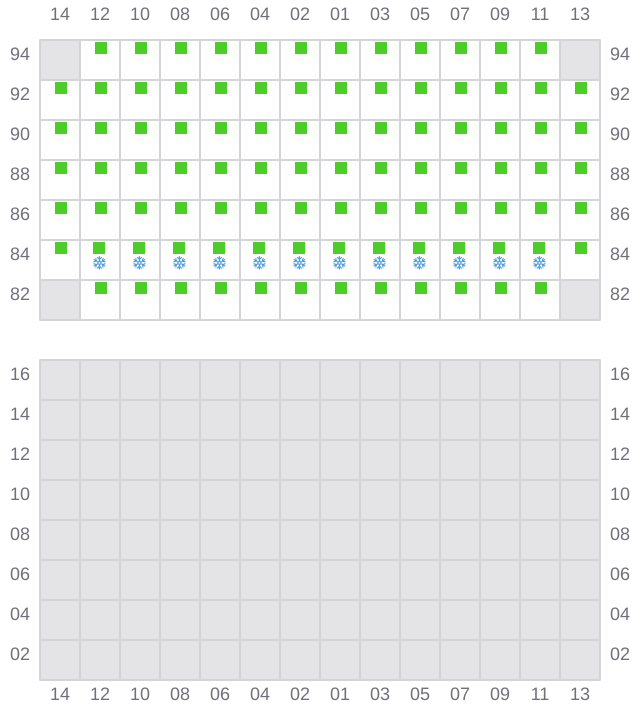

Bay 049 view and slots of BROOKLYN BRIDGE

051

Bay 051 view and slots of BROOKLYN BRIDGE

053 (054)

  • →
  • → / ?
  • →

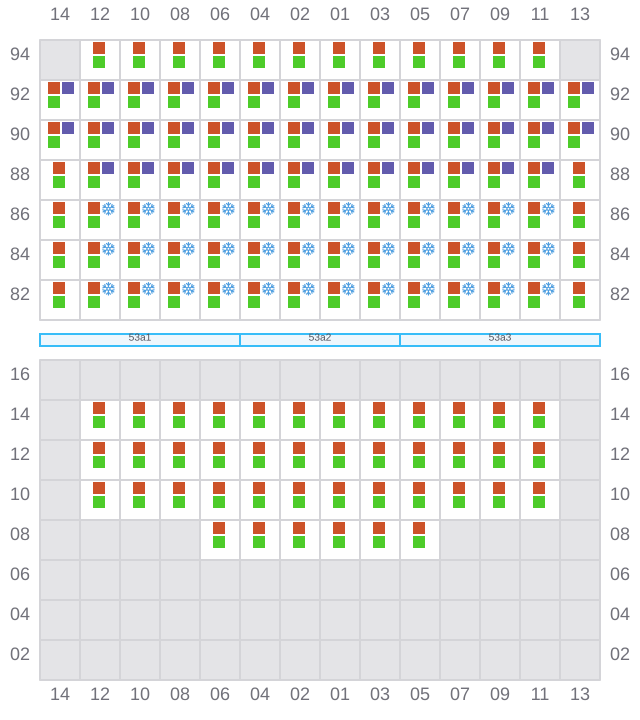

Bay 053 view and slots of BROOKLYN BRIDGE

055

  • ←
  • →

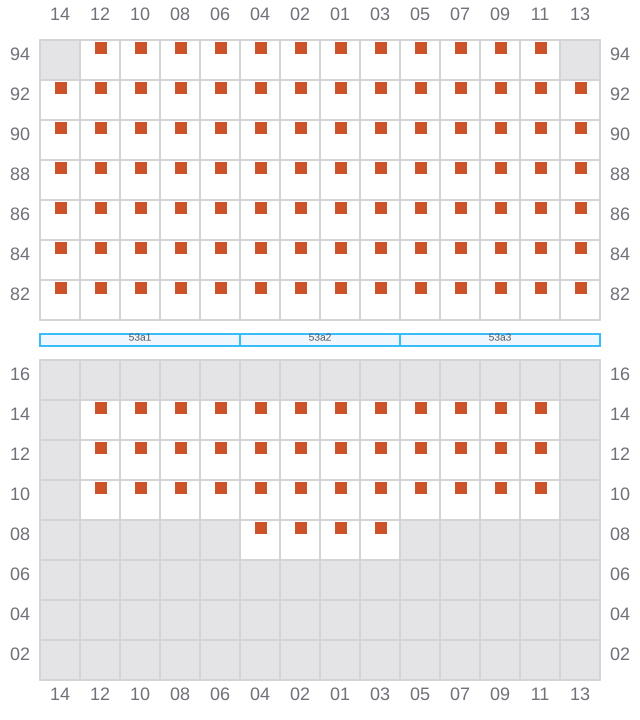

Bay 055 view and slots of BROOKLYN BRIDGE

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of BROOKLYN BRIDGE

059

  • ←
  • →

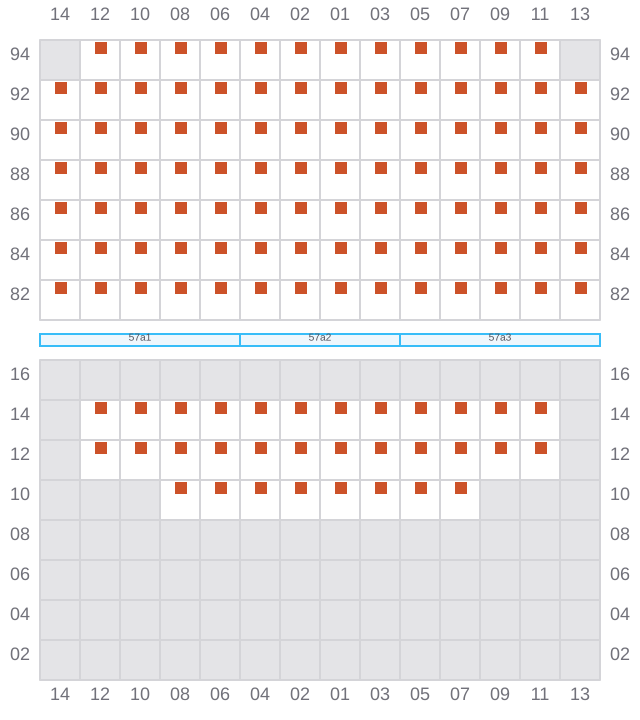

Bay 059 view and slots of BROOKLYN BRIDGE

061 (062)

  • → / ?
  • ← / ?
  • → / ?

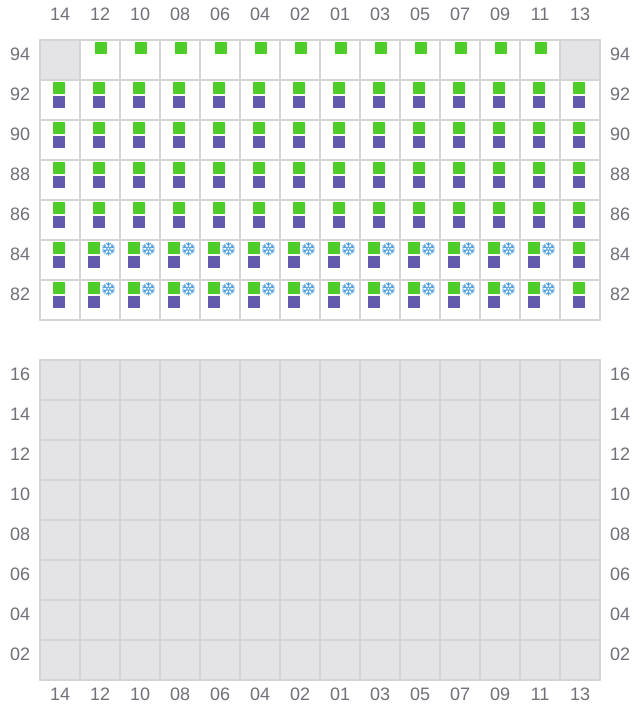

Bay 061 view and slots of BROOKLYN BRIDGE
