BSG BAHAMAS
9439498 | 5LCC6 | CMA by *********************** Last update: Wed Jan 29 2025

General Info

Ship Name:BSG BAHAMAS
IMO Code:9439498
Call Sign:5LCC6
Line Operator:CMA
Class Name for Sister Ships:CHKH
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,267

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

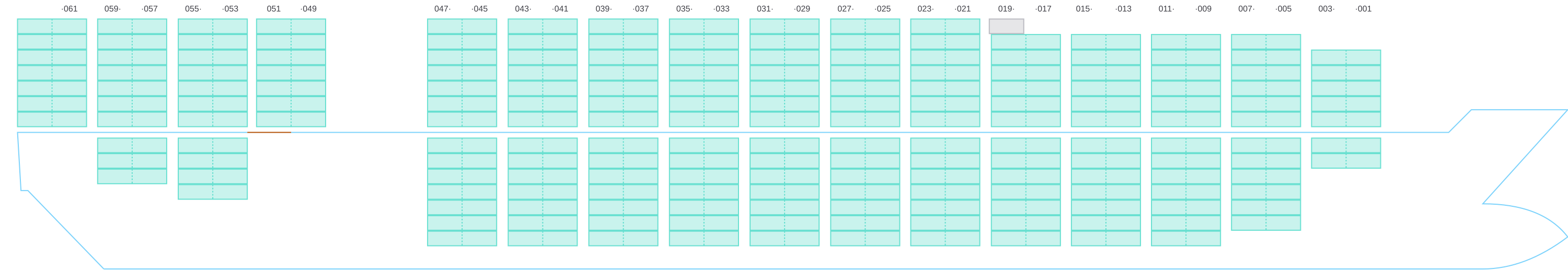

Side View

Side view of BSG BAHAMAS

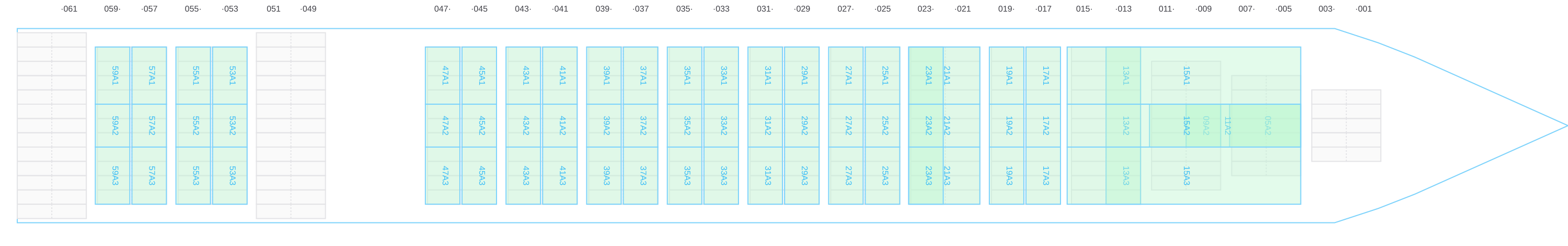

Hatch-Covers View

Deck view of BSG BAHAMAS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

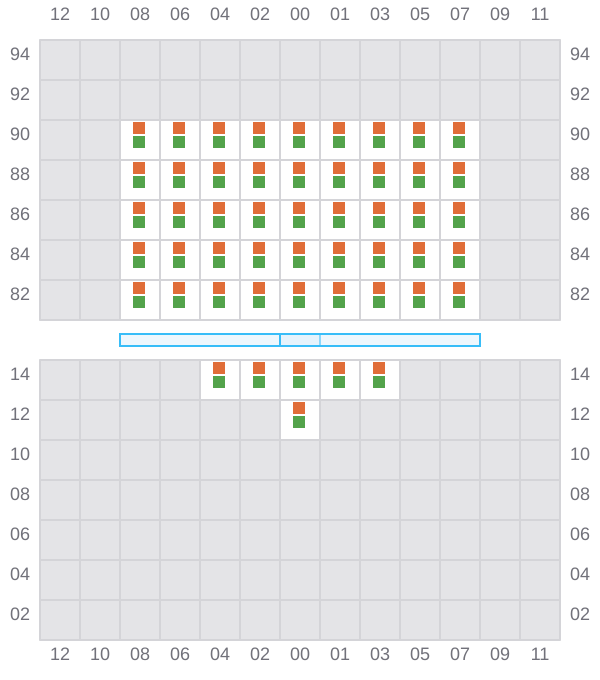

001 (002)

  • / ?
Bay 001 view and slots of BSG BAHAMAS

003

Bay 003 view and slots of BSG BAHAMAS

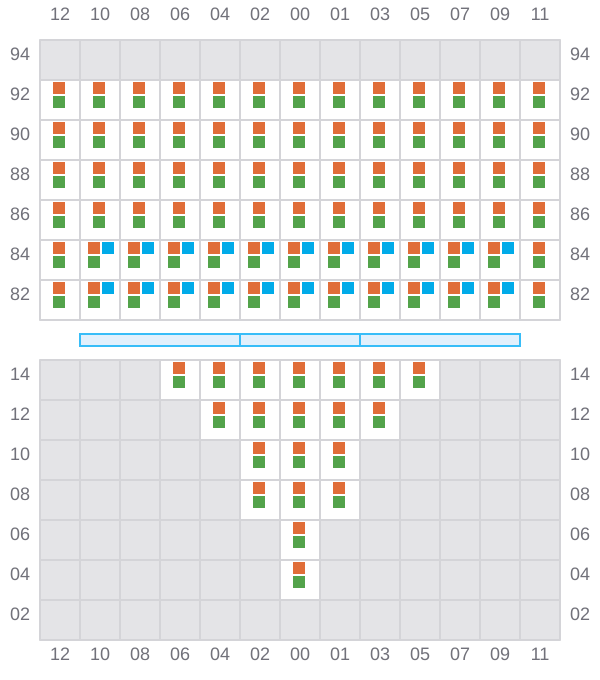

005 (006)

  • / ?
Bay 005 view and slots of BSG BAHAMAS

007

  • / ?

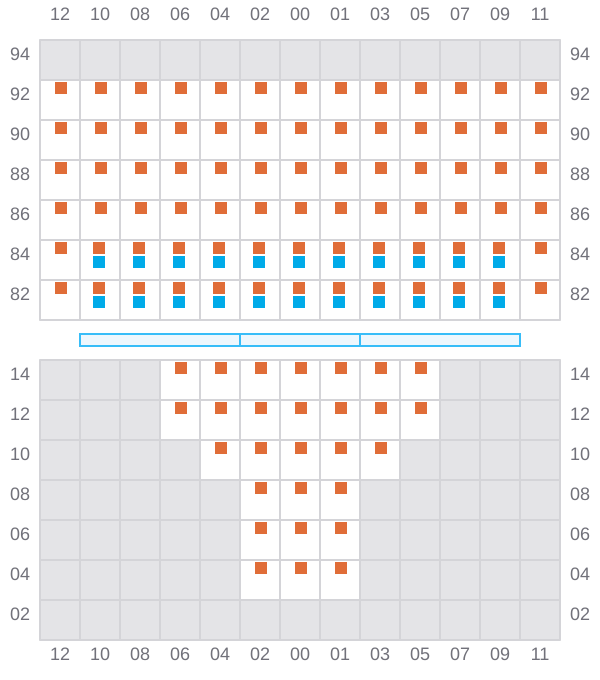

Bay 007 view and slots of BSG BAHAMAS

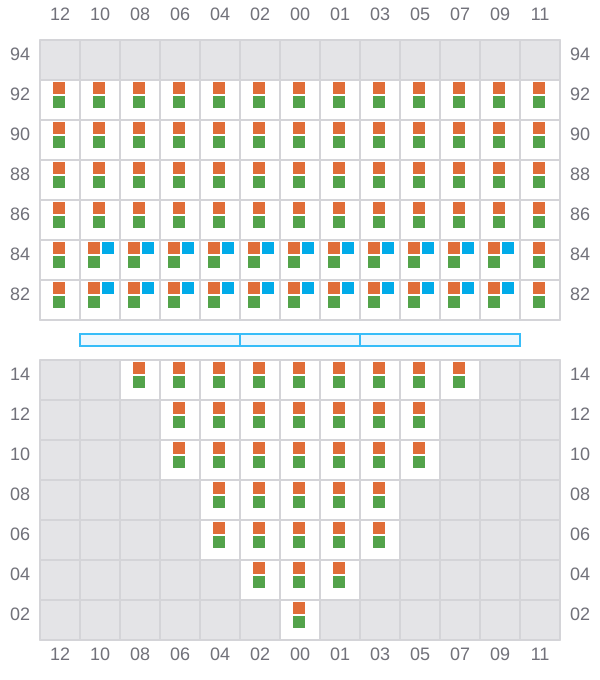

009 (010)

  • / ?
Bay 009 view and slots of BSG BAHAMAS

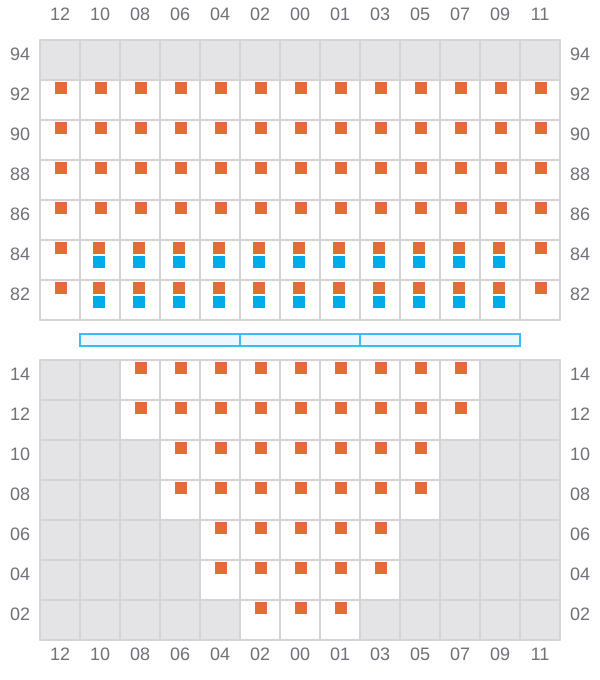

011

  • / ?
Bay 011 view and slots of BSG BAHAMAS

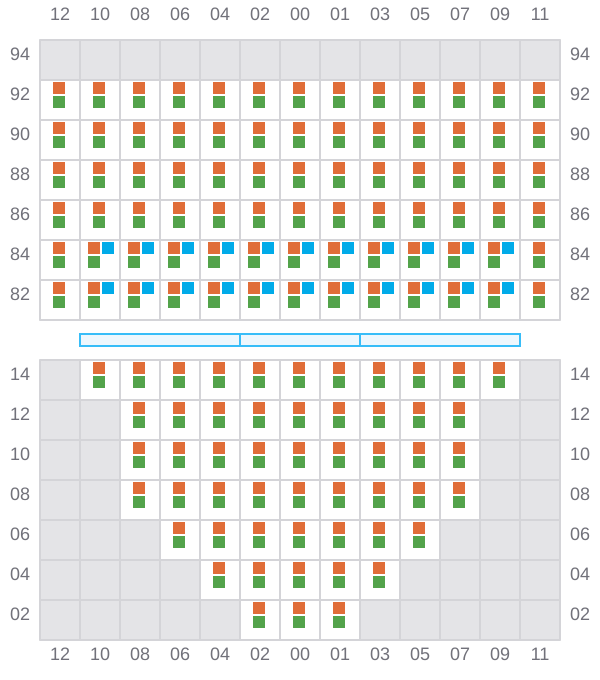

013 (014)

  • / ?
Bay 013 view and slots of BSG BAHAMAS

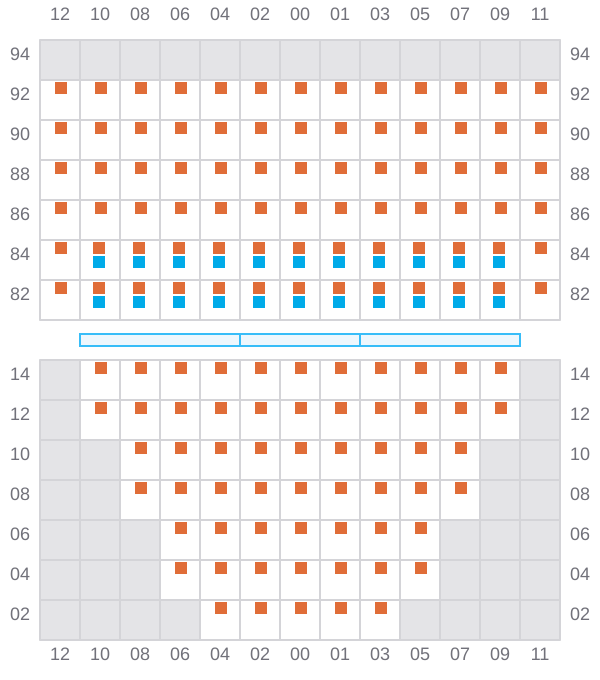

015

  • / ?
Bay 015 view and slots of BSG BAHAMAS

017 (018)

Bay 017 view and slots of BSG BAHAMAS

019

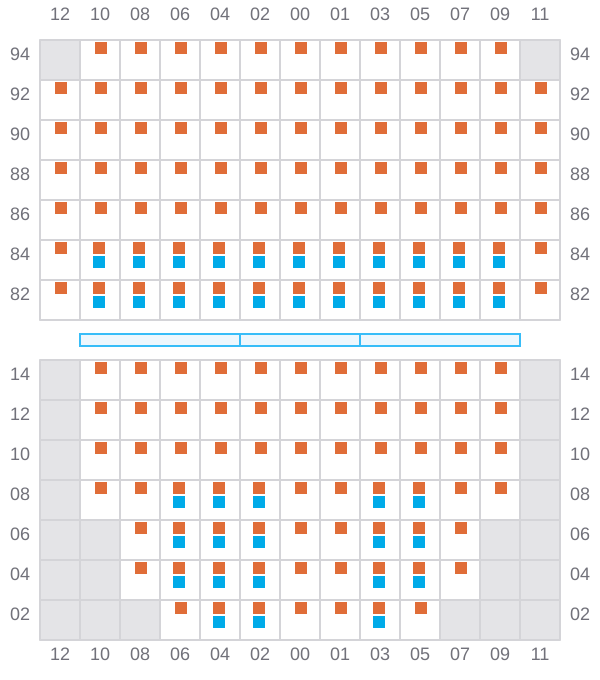

Bay 019 view and slots of BSG BAHAMAS

021 (022)

  • / ?

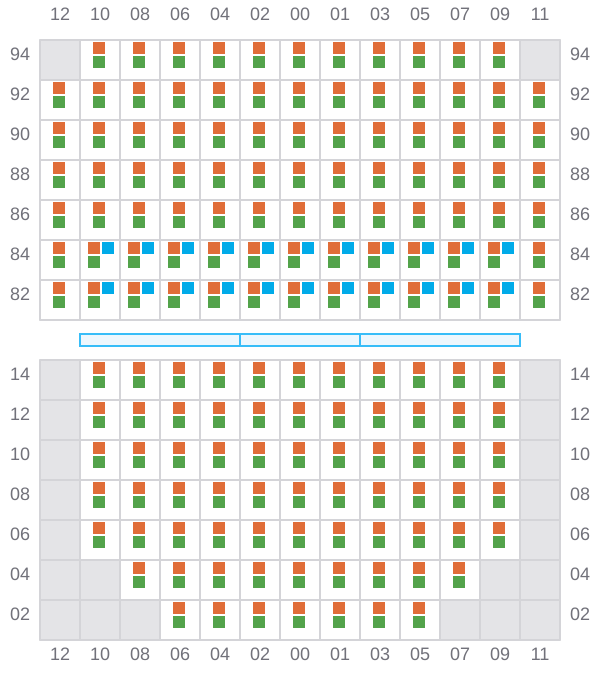

Bay 021 view and slots of BSG BAHAMAS

023

  • / ?

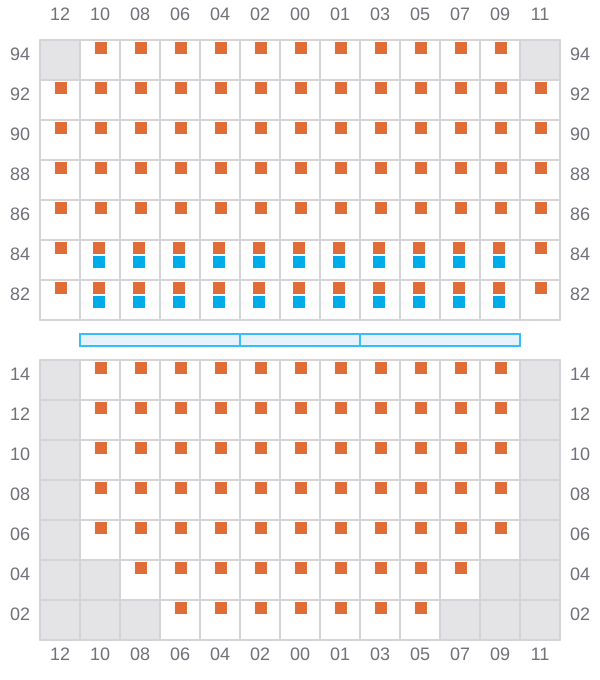

Bay 023 view and slots of BSG BAHAMAS

025 (026)

Bay 025 view and slots of BSG BAHAMAS

027

Bay 027 view and slots of BSG BAHAMAS

029 (030)

Bay 029 view and slots of BSG BAHAMAS

031

Bay 031 view and slots of BSG BAHAMAS

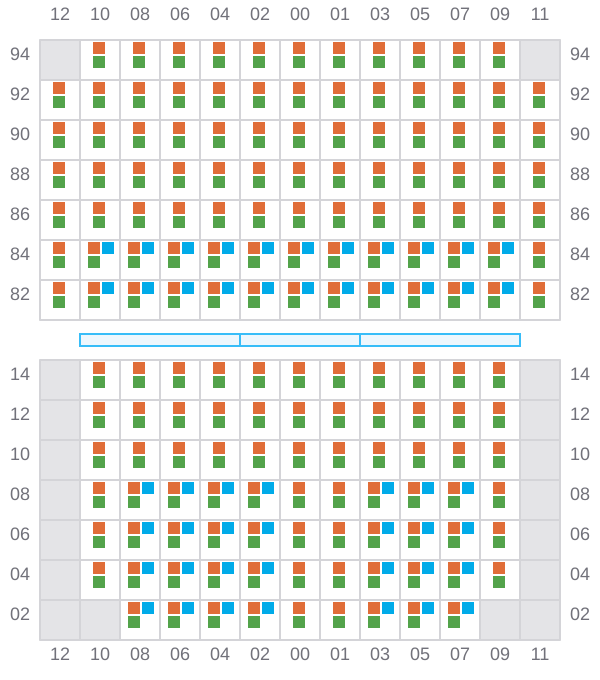

033 (034)

Bay 033 view and slots of BSG BAHAMAS

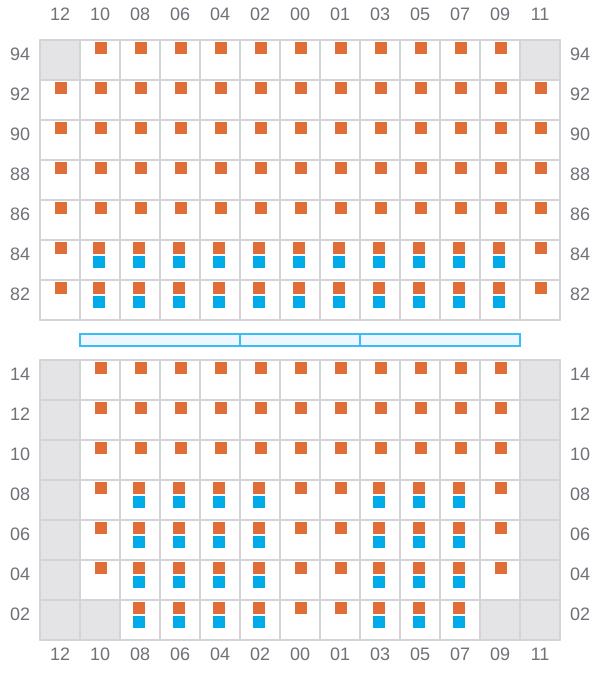

035

Bay 035 view and slots of BSG BAHAMAS

037 (038)

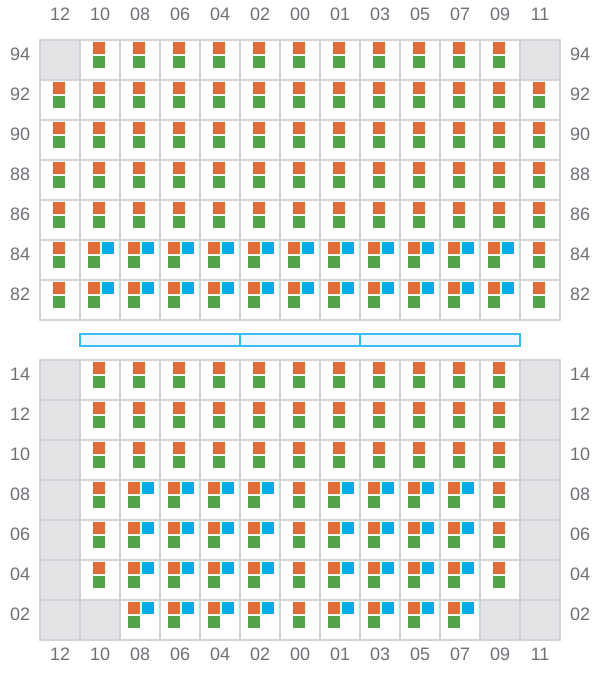

Bay 037 view and slots of BSG BAHAMAS

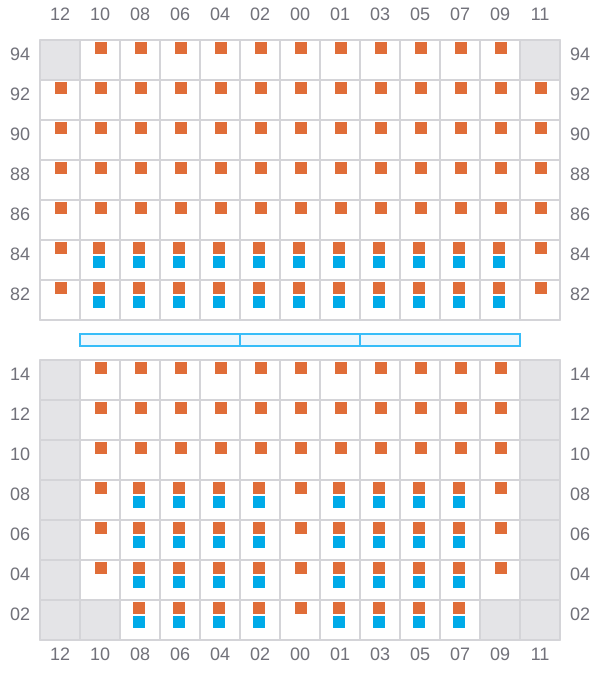

039

Bay 039 view and slots of BSG BAHAMAS

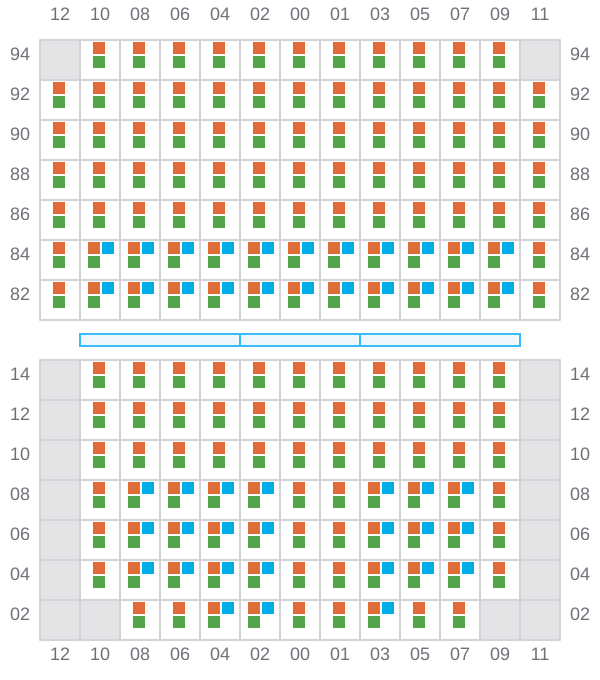

041 (042)

Bay 041 view and slots of BSG BAHAMAS

043

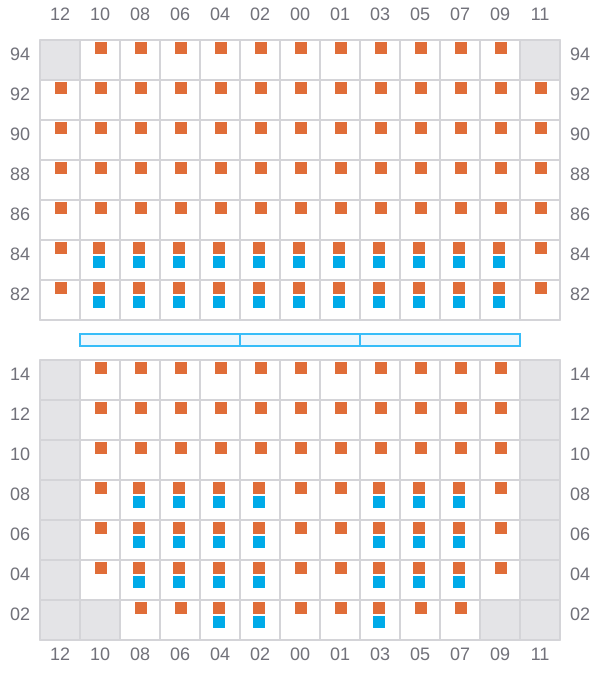

Bay 043 view and slots of BSG BAHAMAS

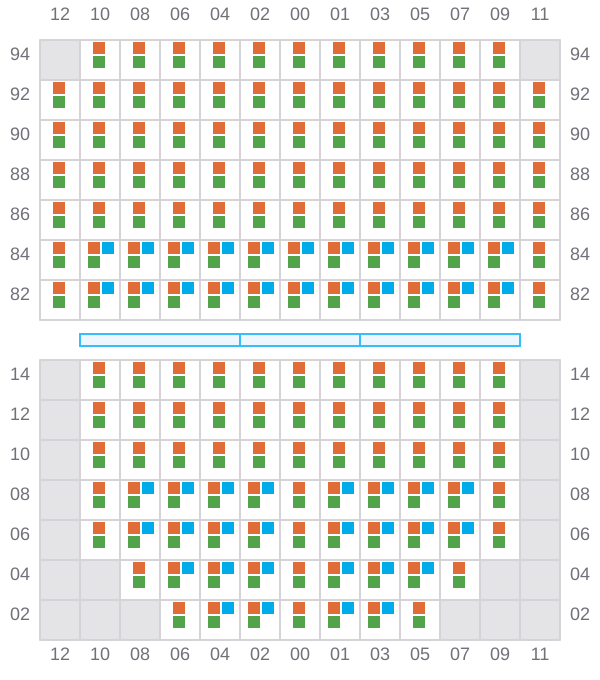

045 (046)

Bay 045 view and slots of BSG BAHAMAS

047

Bay 047 view and slots of BSG BAHAMAS

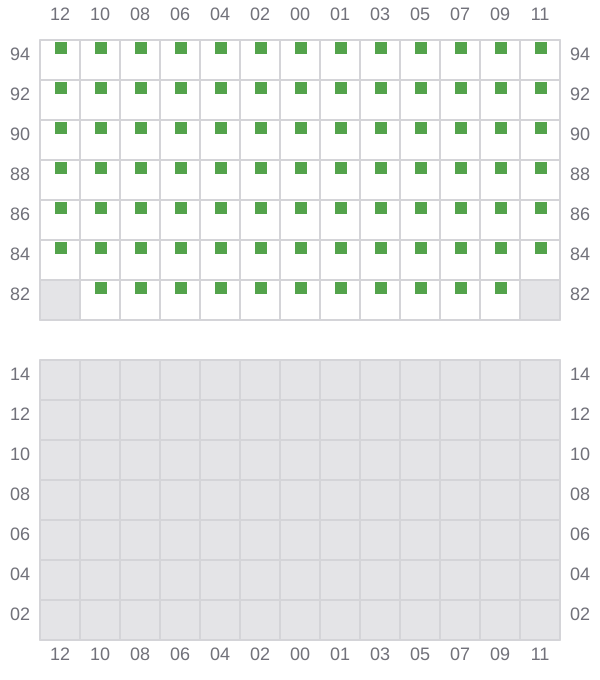

049 (050)

  • / ?
  • / ?
Bay 049 view and slots of BSG BAHAMAS

051

Bay 051 view and slots of BSG BAHAMAS

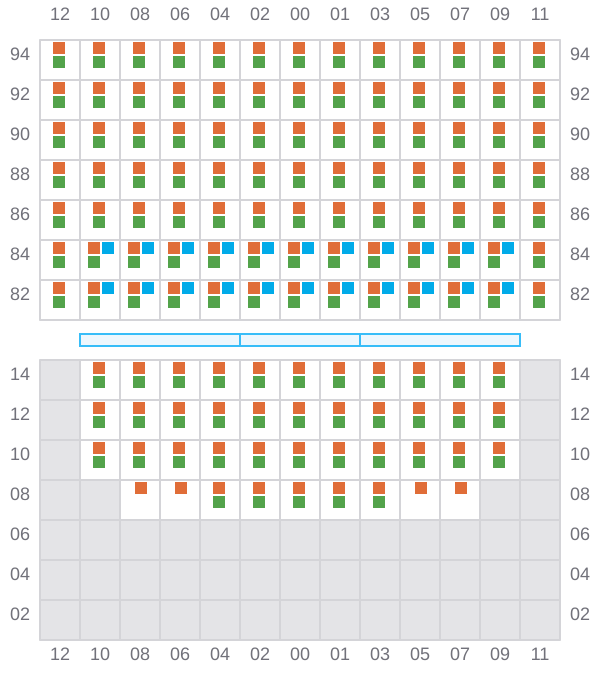

053 (054)

  • / ?
Bay 053 view and slots of BSG BAHAMAS

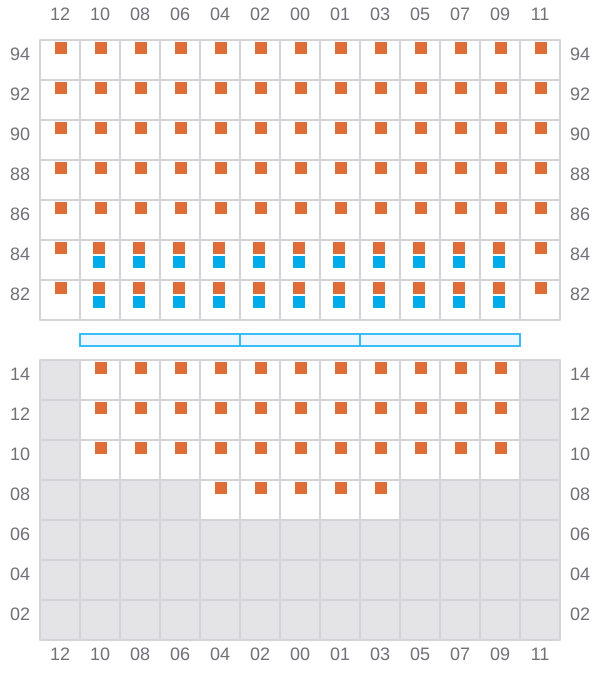

055

  • / ?
Bay 055 view and slots of BSG BAHAMAS

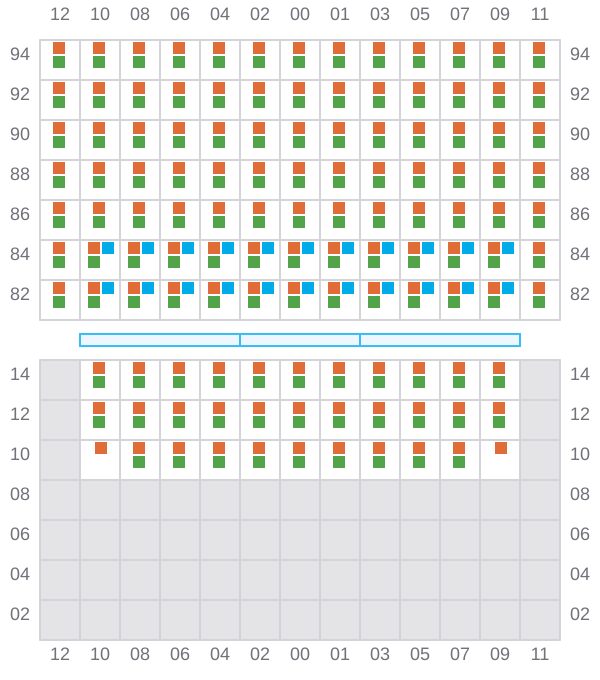

057 (058)

  • / ?
Bay 057 view and slots of BSG BAHAMAS

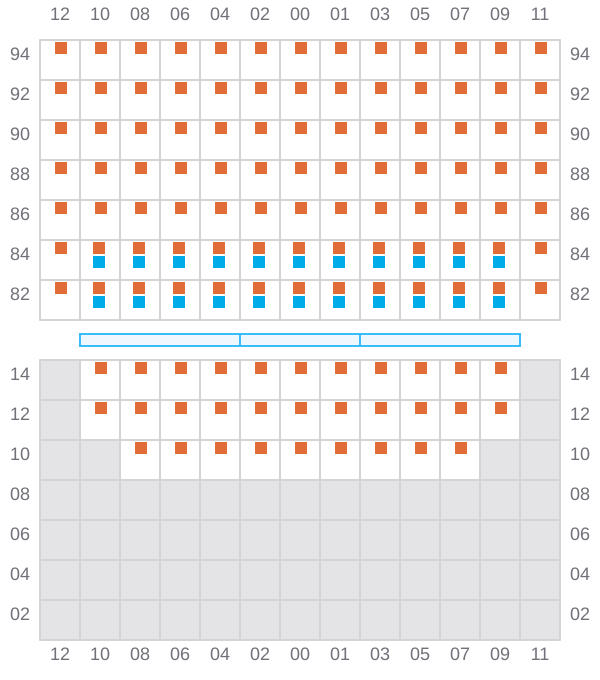

059

  • / ?

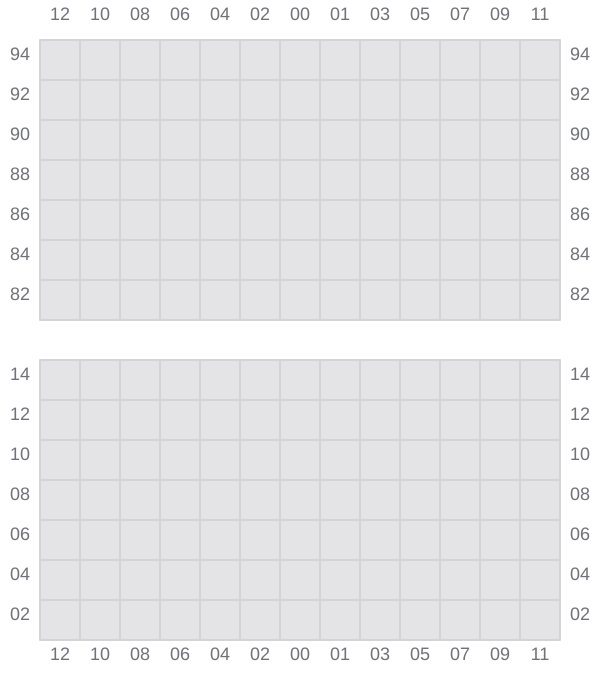

Bay 059 view and slots of BSG BAHAMAS

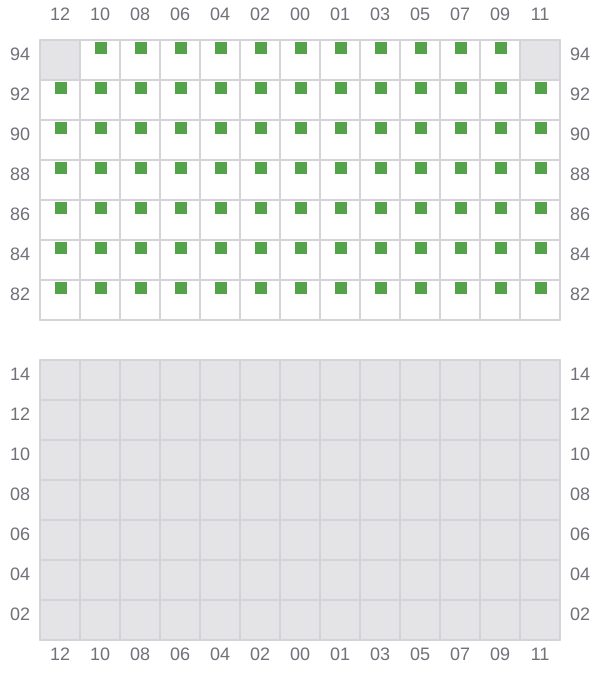

061 (062)

  • / ?
  • / ?
Bay 061 view and slots of BSG BAHAMAS
