BSG BAHAMAS
9439498 | 5LCC6 | 9439498 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:BSG BAHAMAS
IMO Code:9439498
Call Sign:5LCC6
Line Operator:9439498
Class Name for Sister Ships:HSD
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.70
LOA (Length Overall):262.05
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,271

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of BSG BAHAMAS

Hatch-Covers View

Deck view of BSG BAHAMAS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

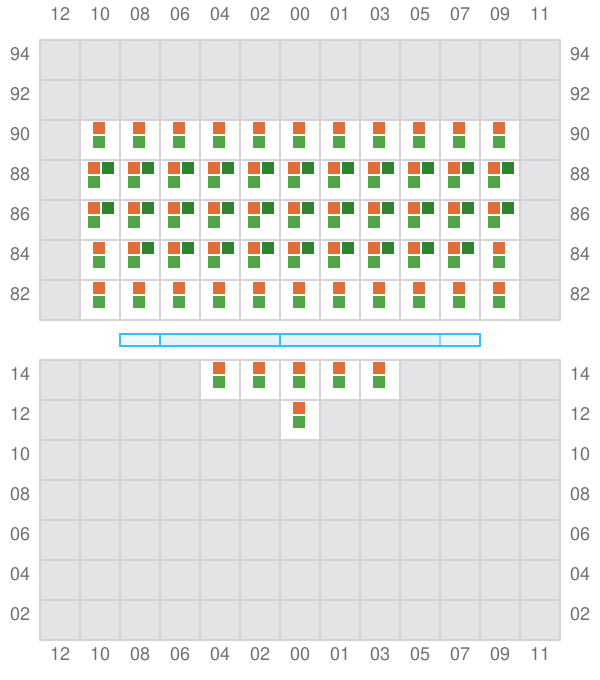

001 (002)

  • →
Bay 001 view and slots of BSG BAHAMAS

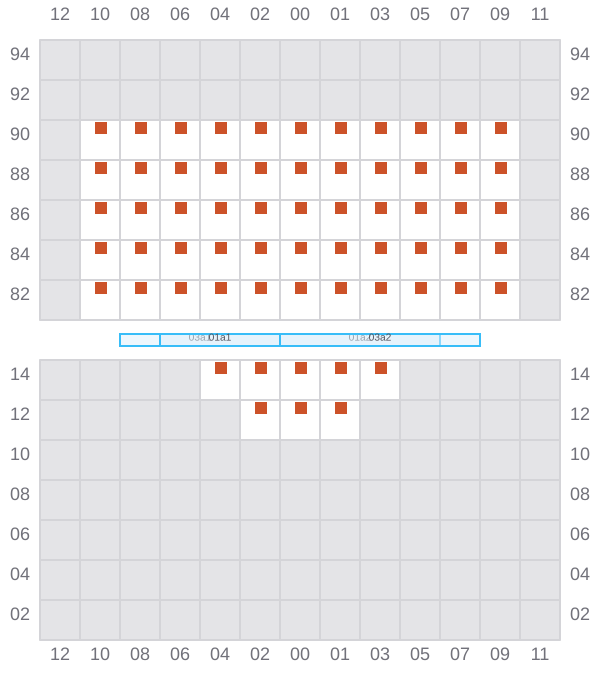

003

  • ←
Bay 003 view and slots of BSG BAHAMAS

005 (006)

  • →

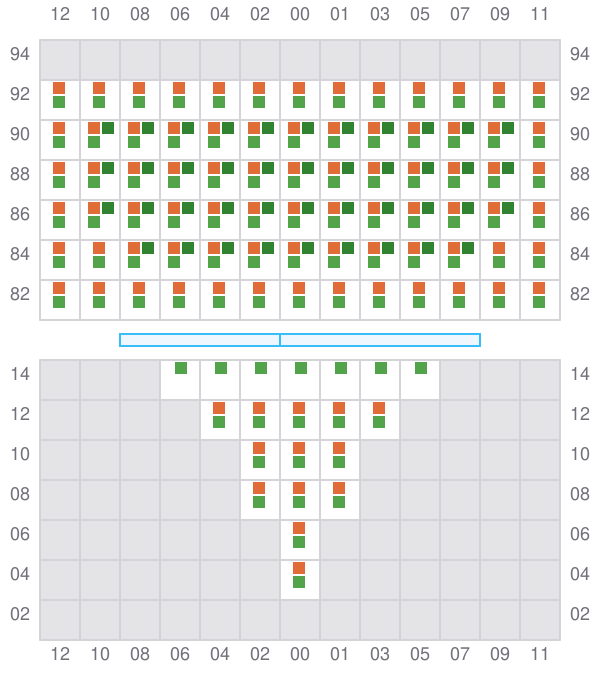

Bay 005 view and slots of BSG BAHAMAS

007

  • ←
  • → / ?

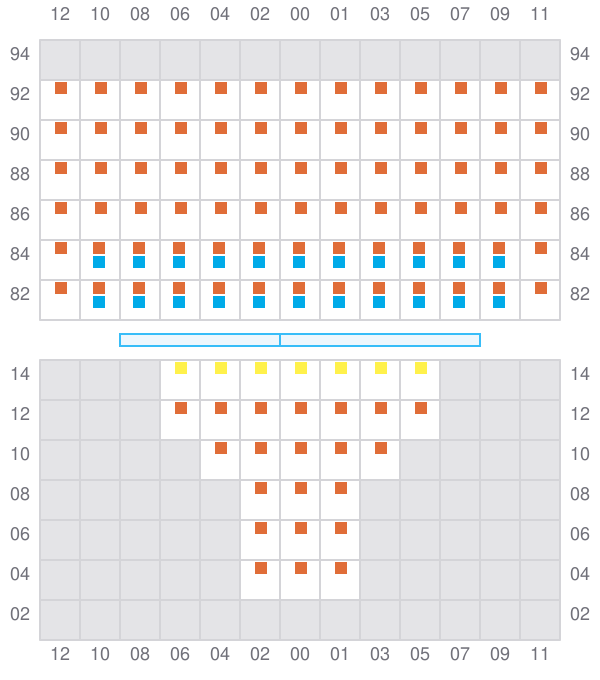

Bay 007 view and slots of BSG BAHAMAS

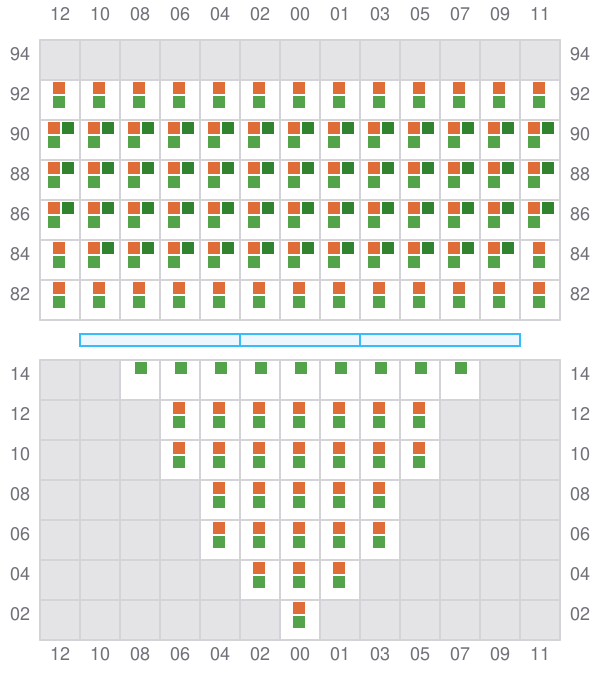

009 (010)

  • →
Bay 009 view and slots of BSG BAHAMAS

011

  • ←
  • → / ?

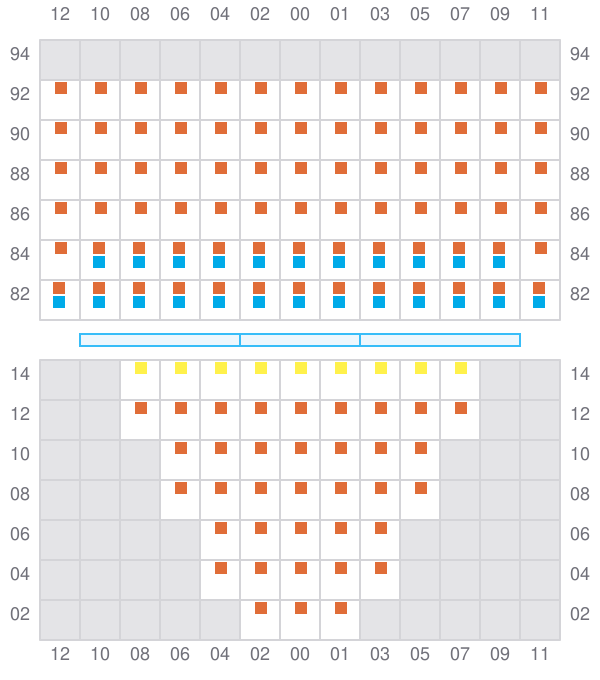

Bay 011 view and slots of BSG BAHAMAS

013 (014)

  • →

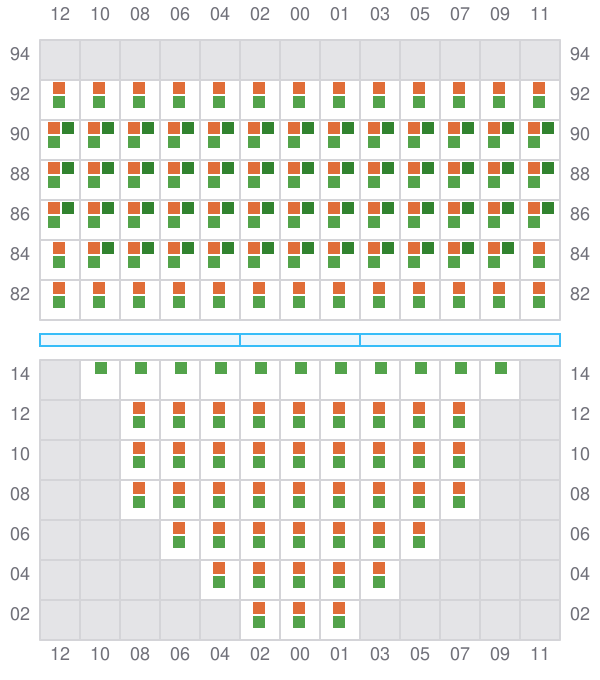

Bay 013 view and slots of BSG BAHAMAS

015

  • ←
  • → / ?

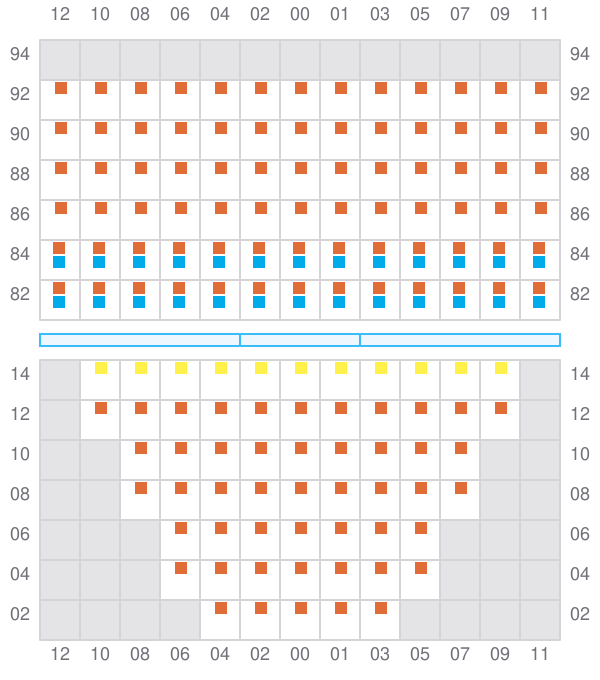

Bay 015 view and slots of BSG BAHAMAS

017 (018)

  • →

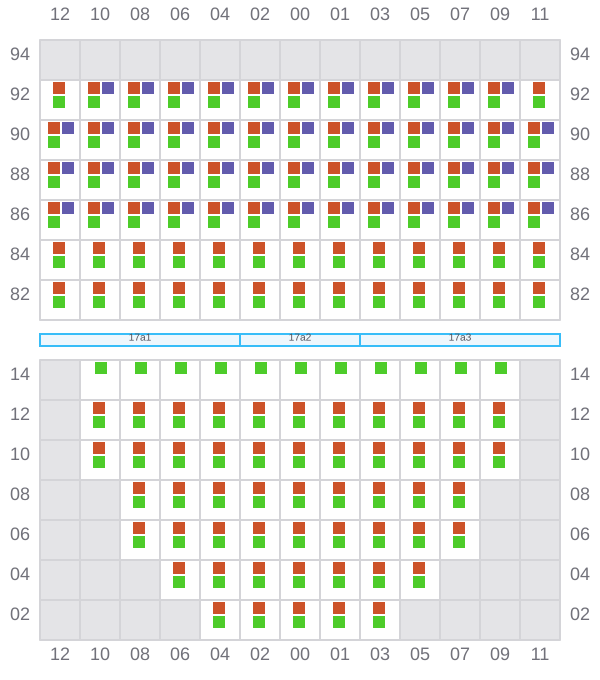

Bay 017 view and slots of BSG BAHAMAS

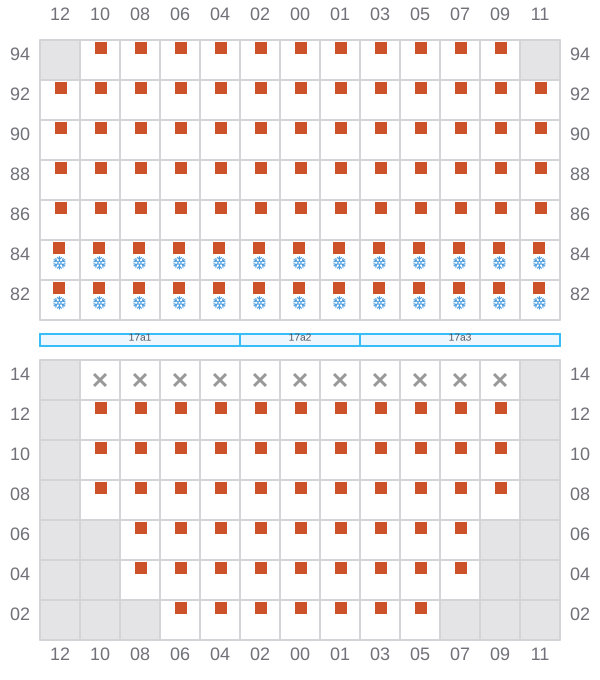

019

  • ←
  • → / ?
Bay 019 view and slots of BSG BAHAMAS

021 (022)

  • →
Bay 021 view and slots of BSG BAHAMAS

023

  • ←
  • → / ?

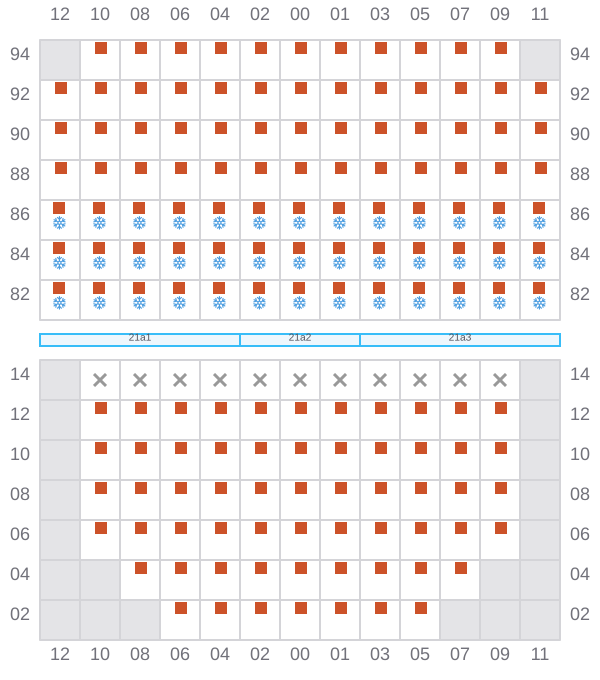

Bay 023 view and slots of BSG BAHAMAS

025 (026)

  • →

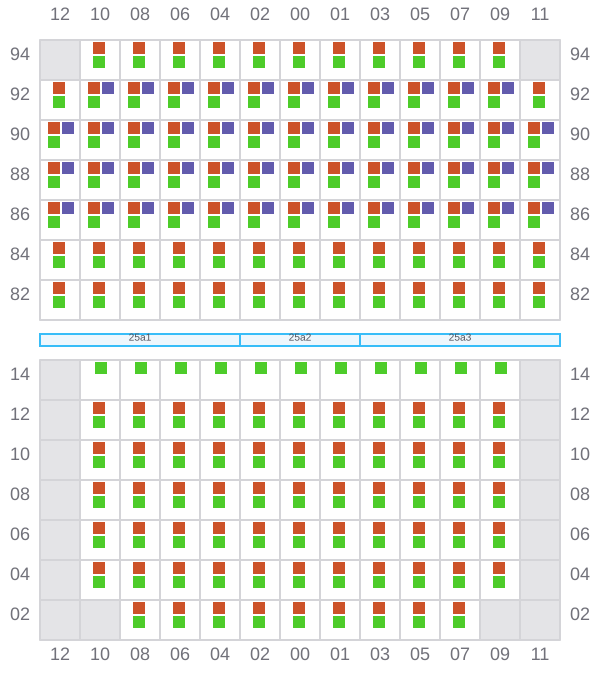

Bay 025 view and slots of BSG BAHAMAS

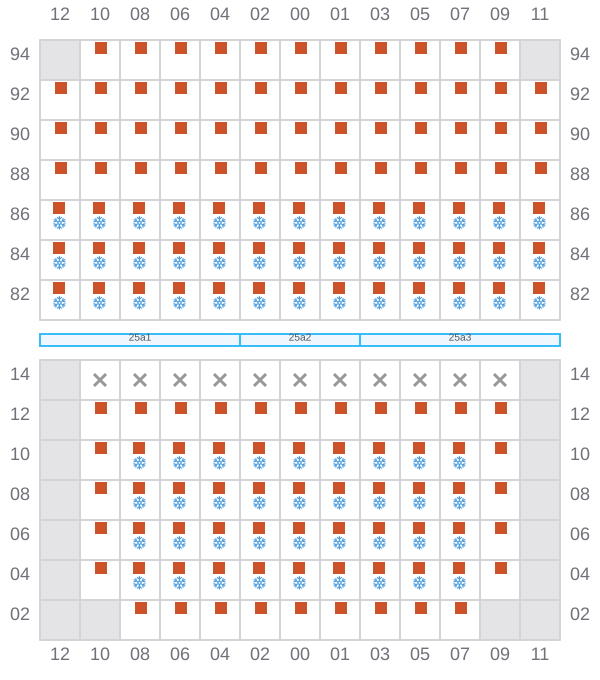

027

  • ←
  • ? / →
Bay 027 view and slots of BSG BAHAMAS

029 (030)

  • →
Bay 029 view and slots of BSG BAHAMAS

031

  • ←
  • →
Bay 031 view and slots of BSG BAHAMAS

033 (034)

  • →
Bay 033 view and slots of BSG BAHAMAS

035

  • ←
  • →

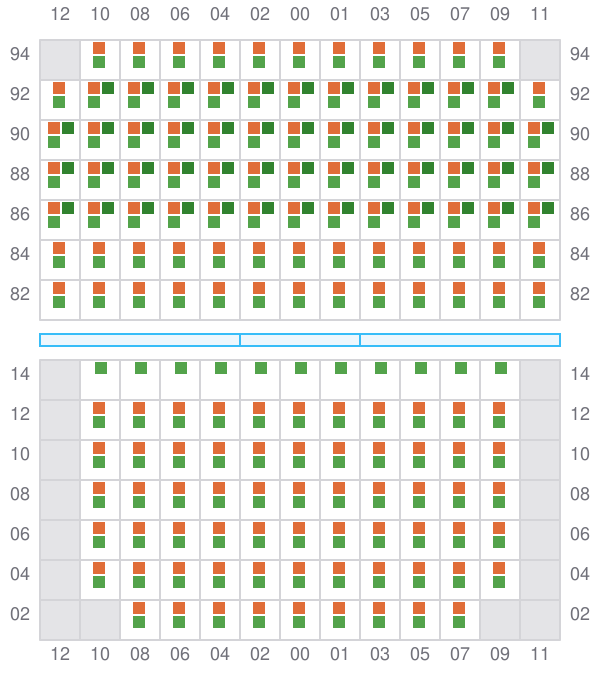

Bay 035 view and slots of BSG BAHAMAS

037 (038)

  • →
Bay 037 view and slots of BSG BAHAMAS

039

  • ←
  • →
Bay 039 view and slots of BSG BAHAMAS

041 (042)

  • →
Bay 041 view and slots of BSG BAHAMAS

043

  • ←
  • →

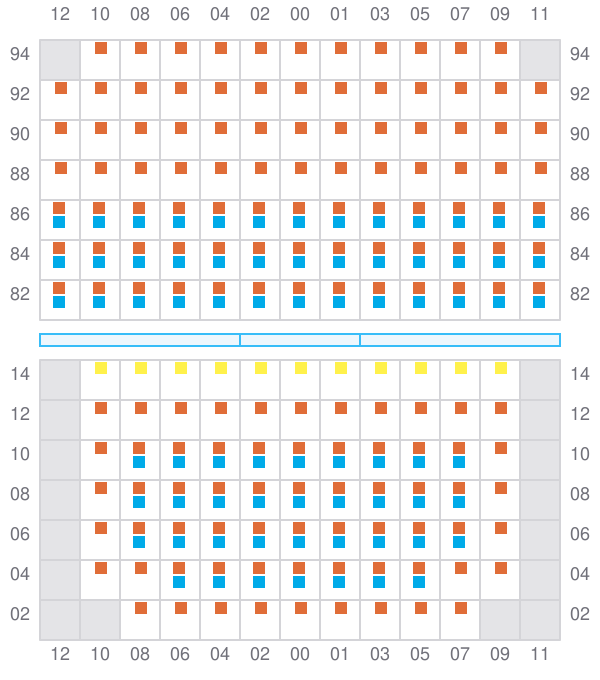

Bay 043 view and slots of BSG BAHAMAS

045 (046)

  • →

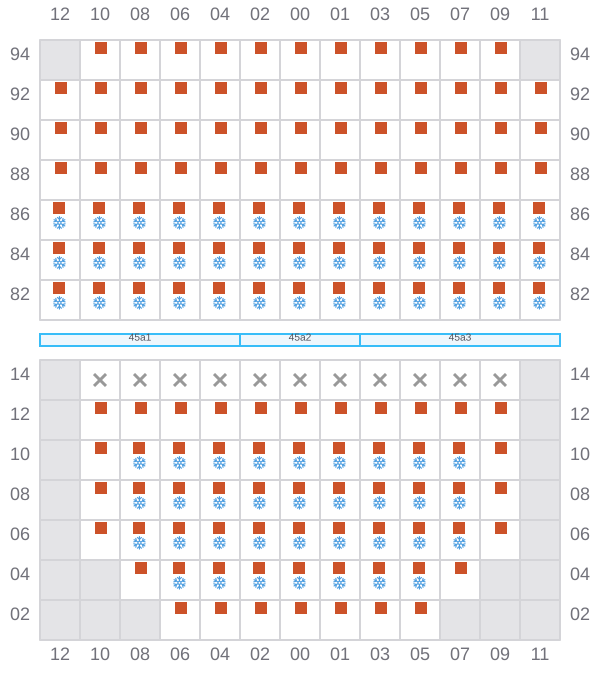

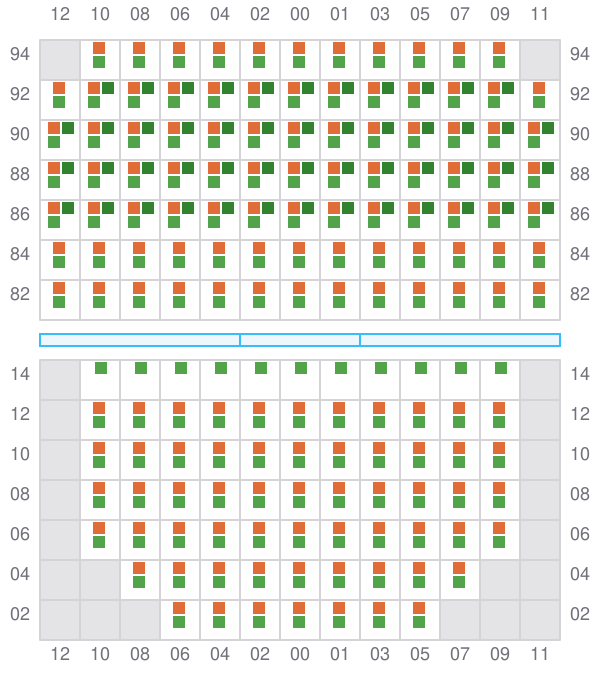

Bay 045 view and slots of BSG BAHAMAS

047

  • ←
  • →
Bay 047 view and slots of BSG BAHAMAS

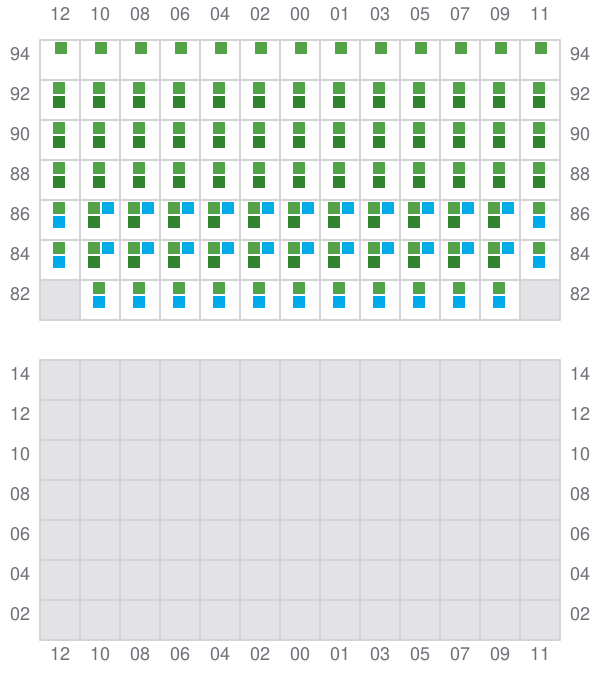

049 (050)

  • → / ?
  • → / ?
Bay 049 view and slots of BSG BAHAMAS

051

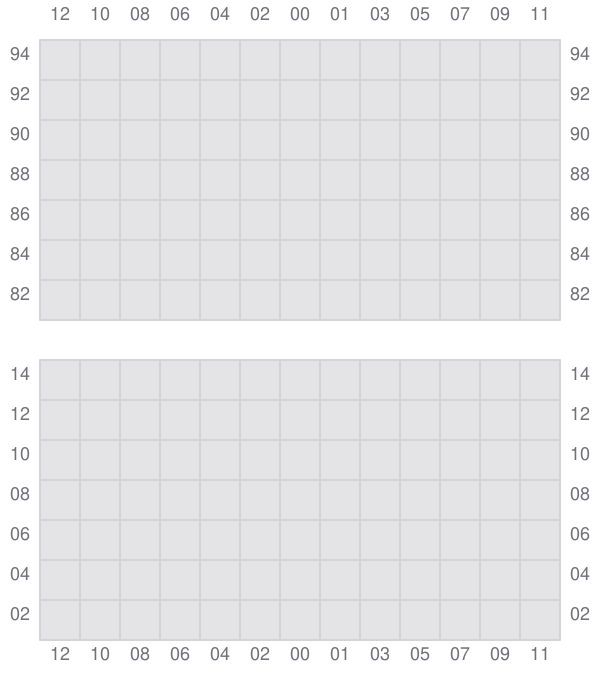

Bay 051 view and slots of BSG BAHAMAS

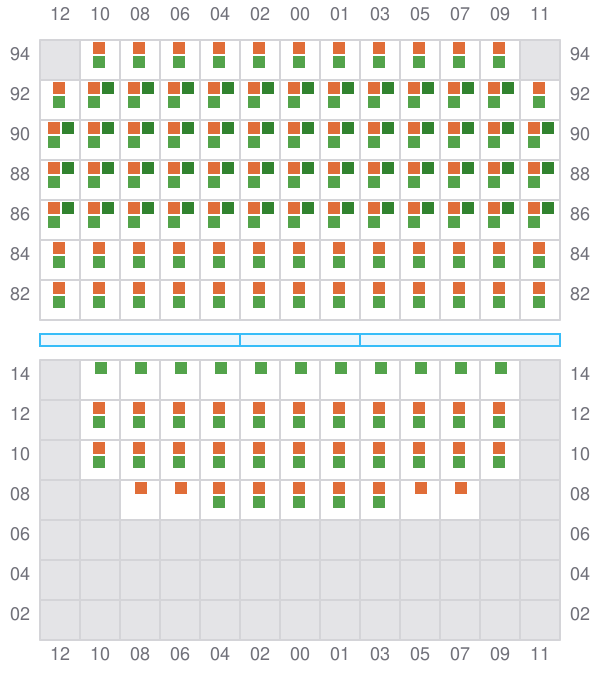

053 (054)

  • →
Bay 053 view and slots of BSG BAHAMAS

055

  • ←
  • → / ?
Bay 055 view and slots of BSG BAHAMAS

057 (058)

  • →

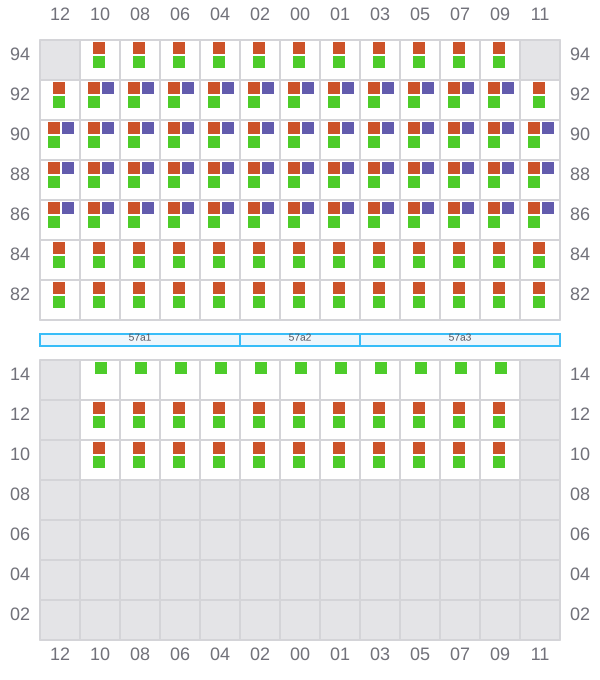

Bay 057 view and slots of BSG BAHAMAS

059

  • ←
  • → / ?

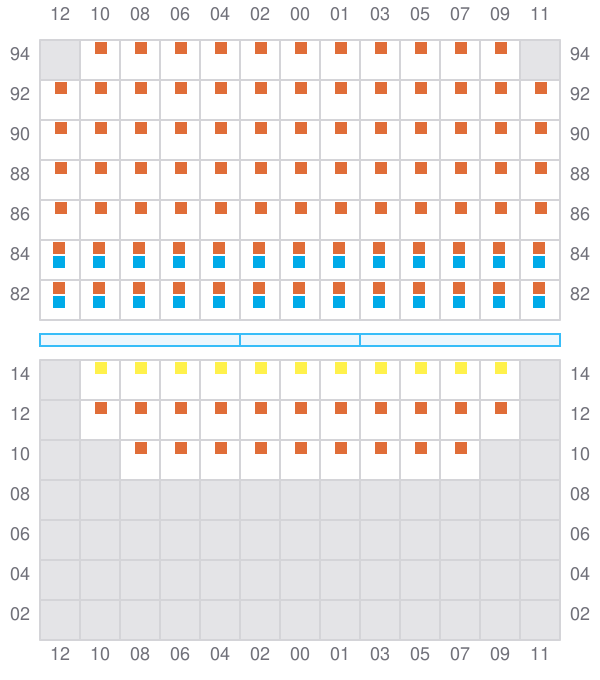

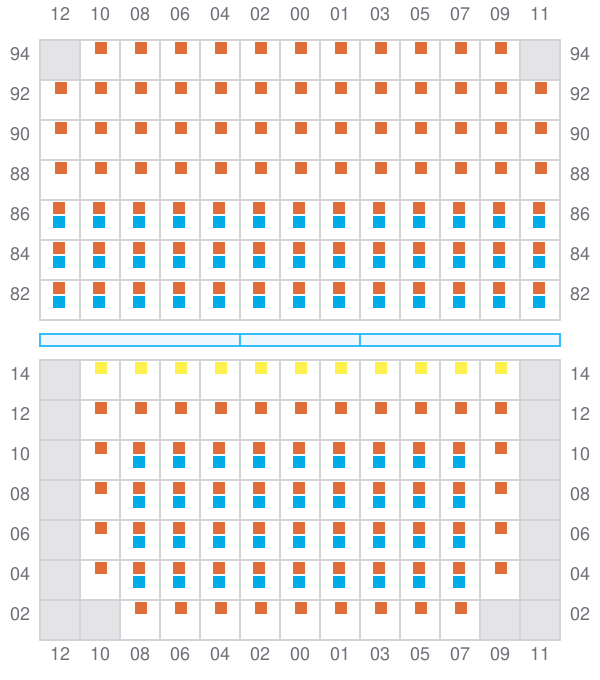

Bay 059 view and slots of BSG BAHAMAS

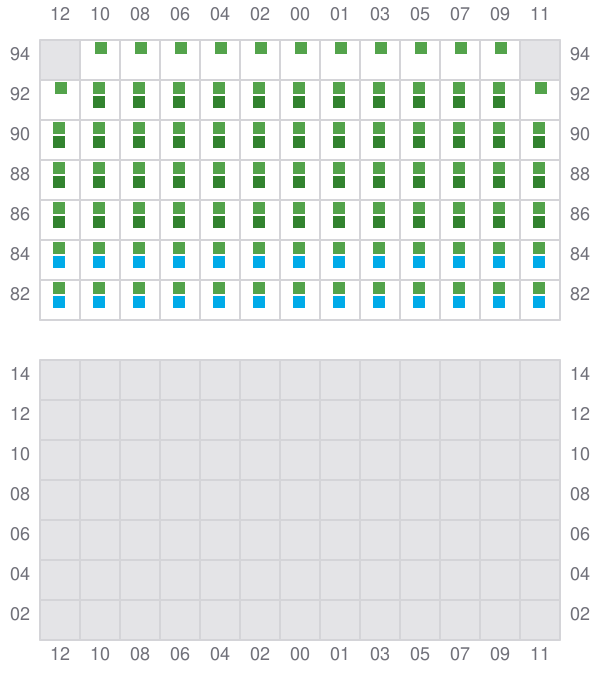

061 (062)

  • → / ?
  • → / ?
Bay 061 view and slots of BSG BAHAMAS
