BSG BARBADOS
9333046 | A8LW9 | ACL by ************************** Last update: Thu Jun 01 2023

General Info

Ship Name:BSG BARBADOS
IMO Code:9333046
Call Sign:A8LW9
Line Operator:ACL
Class Name for Sister Ships:GMA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

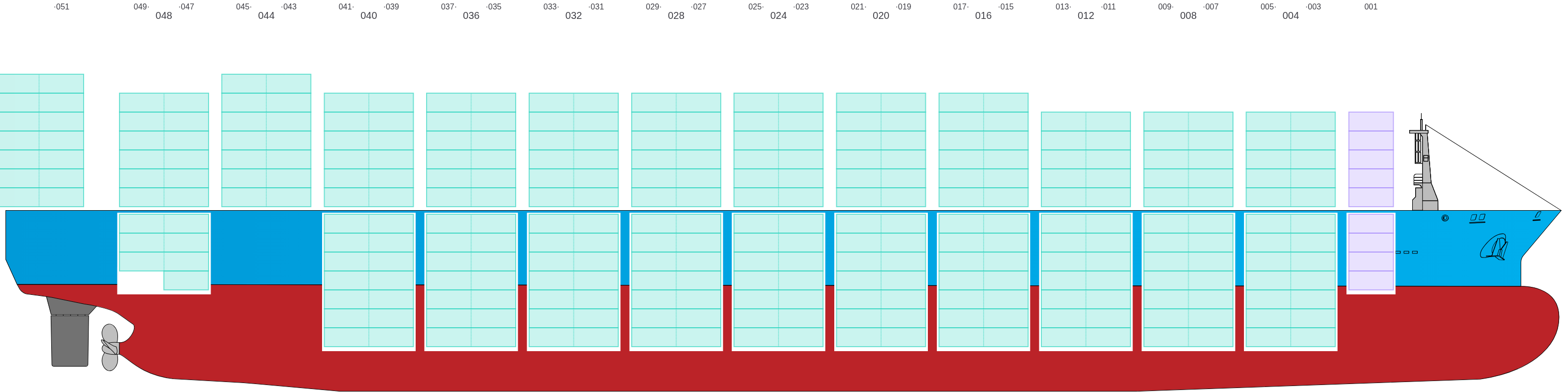

Side view of BSG BARBADOS

Hatch-Covers View

Deck view of BSG BARBADOS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

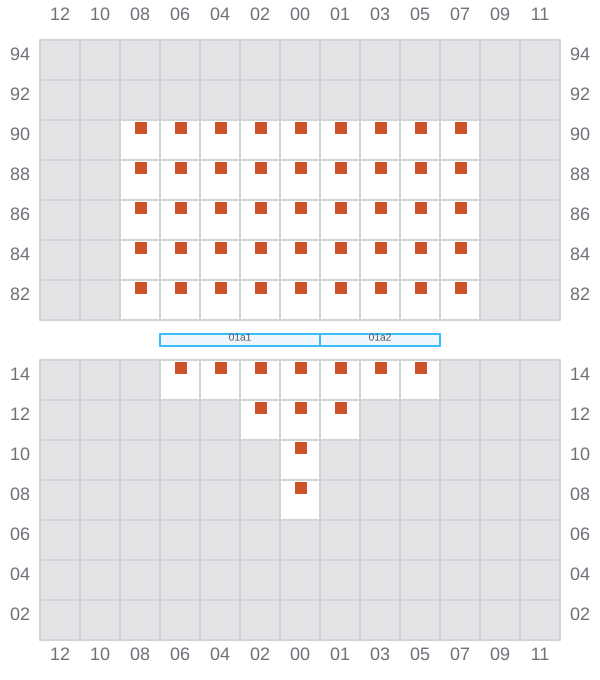

001

Bay 001 view and slots of BSG BARBADOS

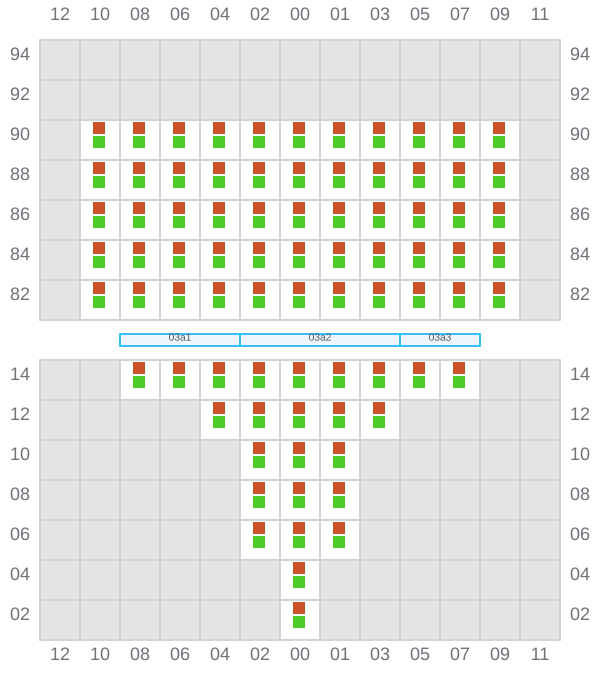

003 (004)

  • / ?
Bay 003 view and slots of BSG BARBADOS

005

  • / ?
Bay 005 view and slots of BSG BARBADOS

007 (008)

  • / ?
Bay 007 view and slots of BSG BARBADOS

009

  • / ?

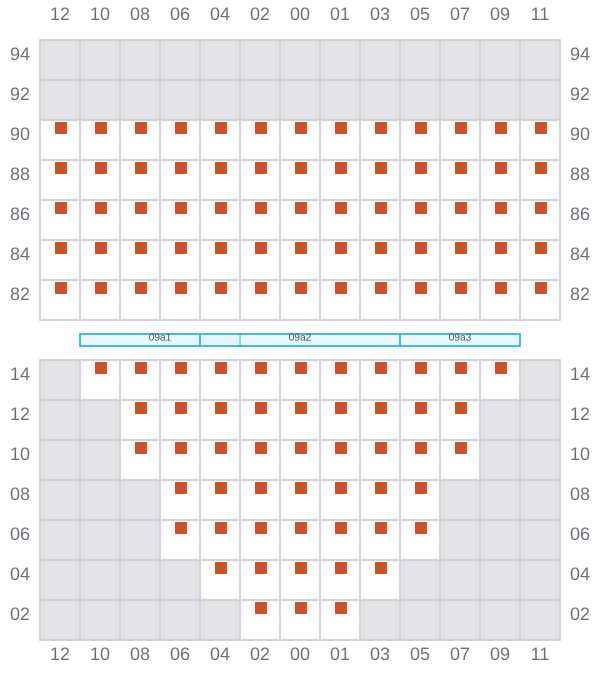

Bay 009 view and slots of BSG BARBADOS

011 (012)

  • / ?
Bay 011 view and slots of BSG BARBADOS

013

  • / ?

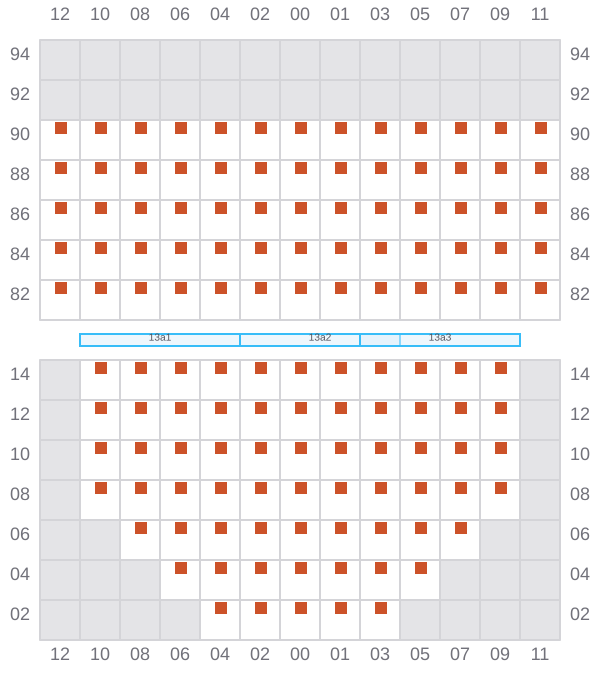

Bay 013 view and slots of BSG BARBADOS

015 (016)

  • / ?
Bay 015 view and slots of BSG BARBADOS

017

  • / ?
Bay 017 view and slots of BSG BARBADOS

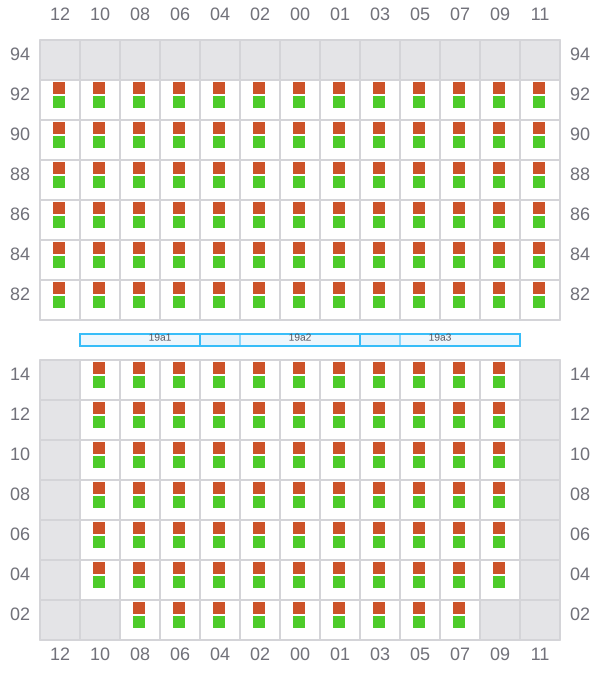

019 (020)

  • / ?
Bay 019 view and slots of BSG BARBADOS

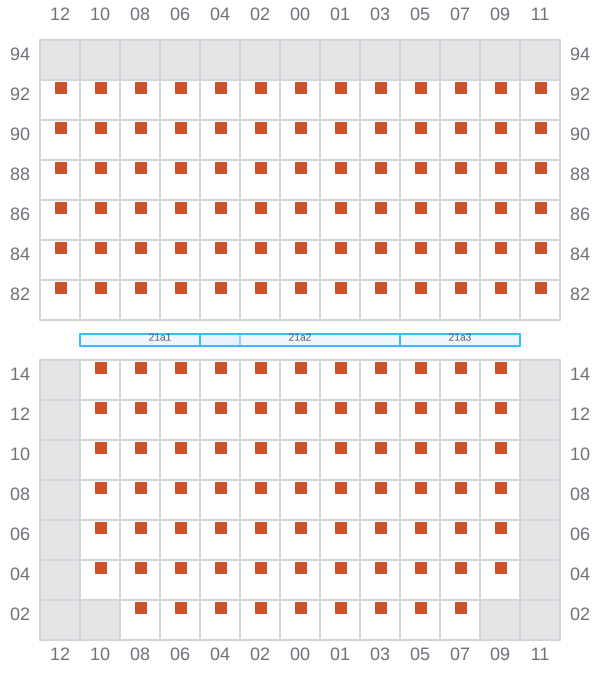

021

  • / ?
Bay 021 view and slots of BSG BARBADOS

023 (024)

  • / ?
Bay 023 view and slots of BSG BARBADOS

025

  • / ?

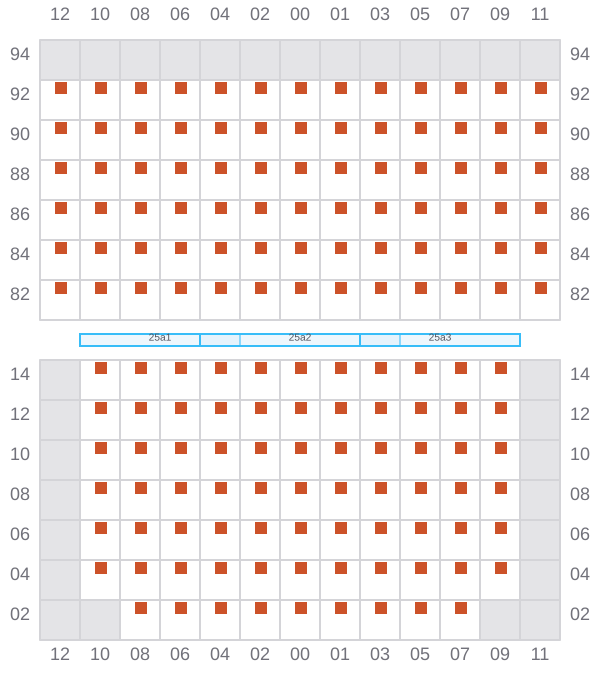

Bay 025 view and slots of BSG BARBADOS

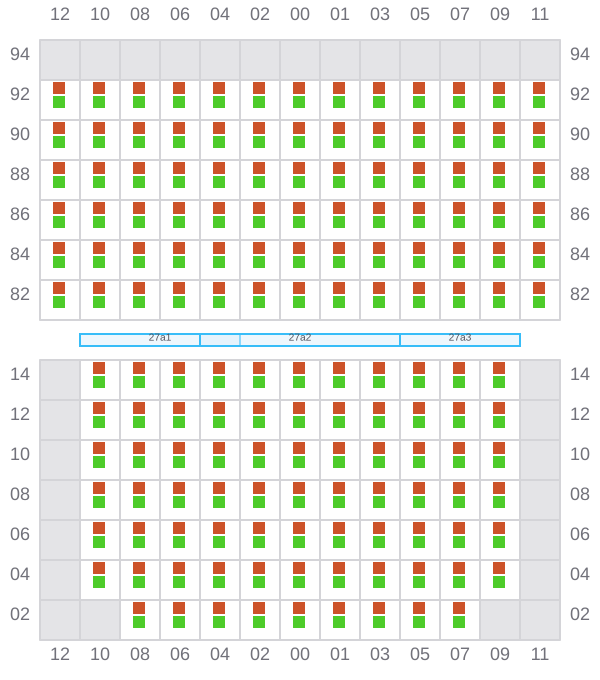

027 (028)

  • / ?
Bay 027 view and slots of BSG BARBADOS

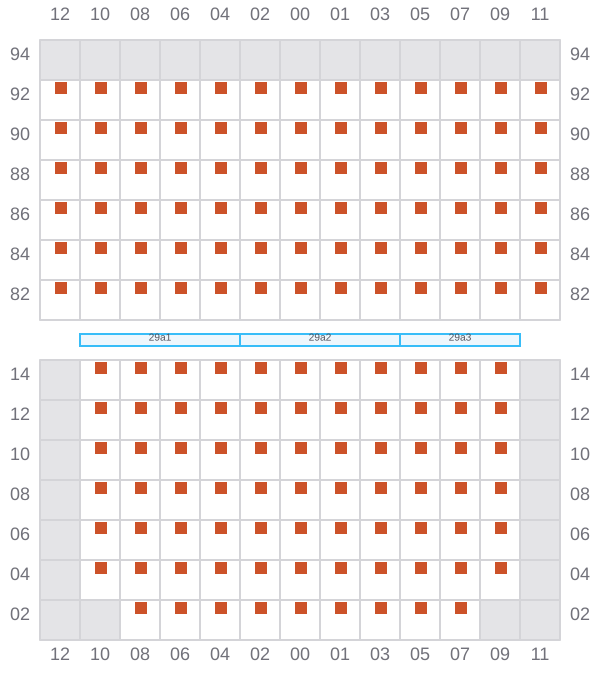

029

  • / ?
Bay 029 view and slots of BSG BARBADOS

031 (032)

  • / ?

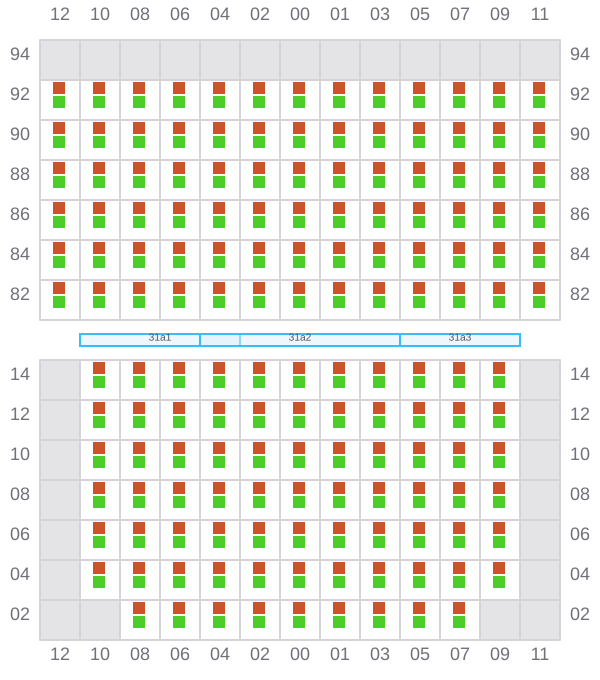

Bay 031 view and slots of BSG BARBADOS

033

  • / ?
Bay 033 view and slots of BSG BARBADOS

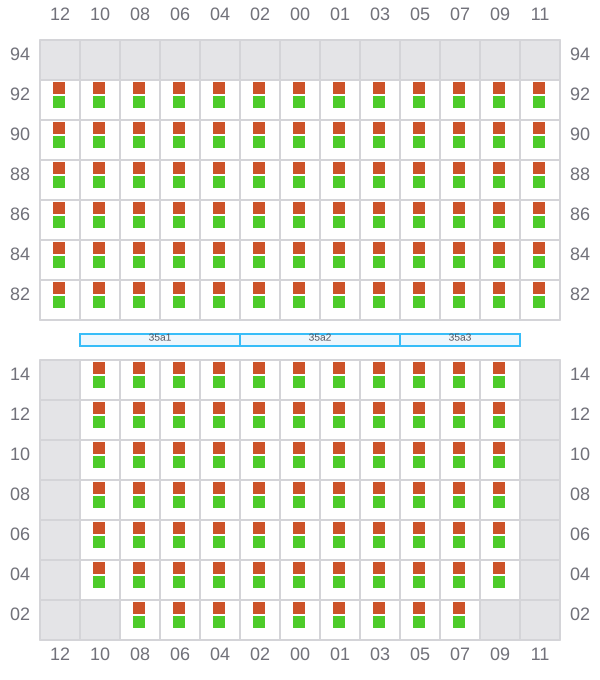

035 (036)

  • / ?
Bay 035 view and slots of BSG BARBADOS

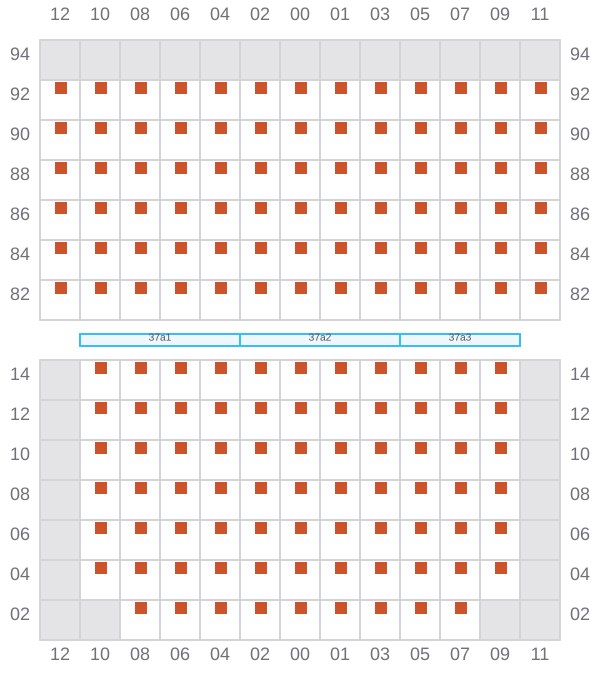

037

  • / ?
Bay 037 view and slots of BSG BARBADOS

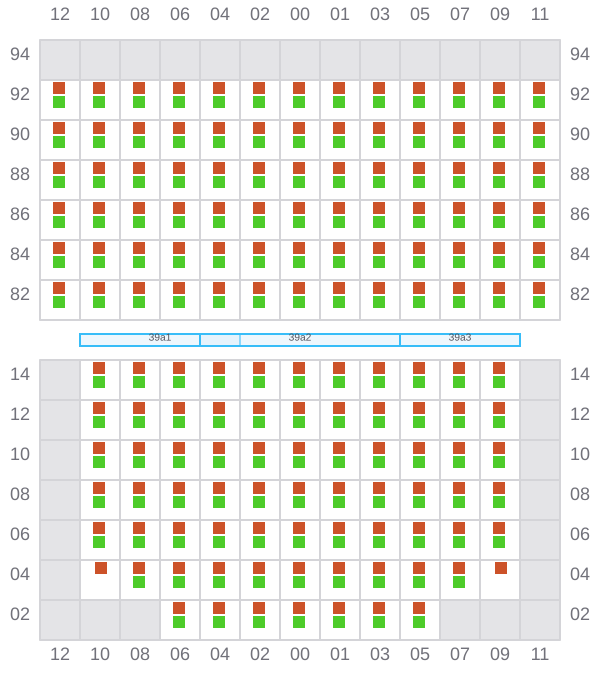

039 (040)

  • / ?
Bay 039 view and slots of BSG BARBADOS

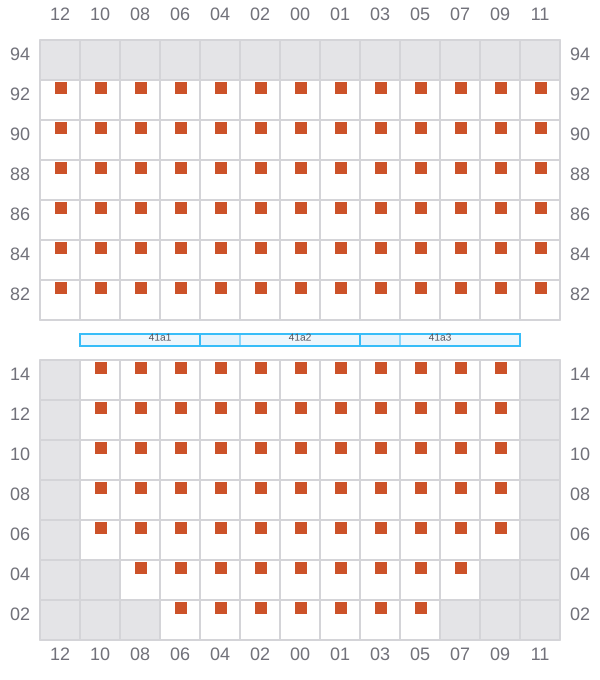

041

  • / ?
Bay 041 view and slots of BSG BARBADOS

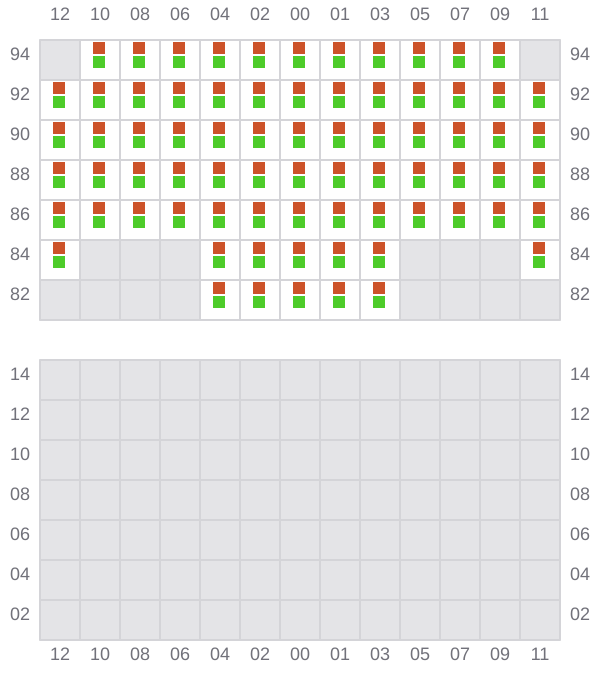

043 (044)

  • / ?
Bay 043 view and slots of BSG BARBADOS

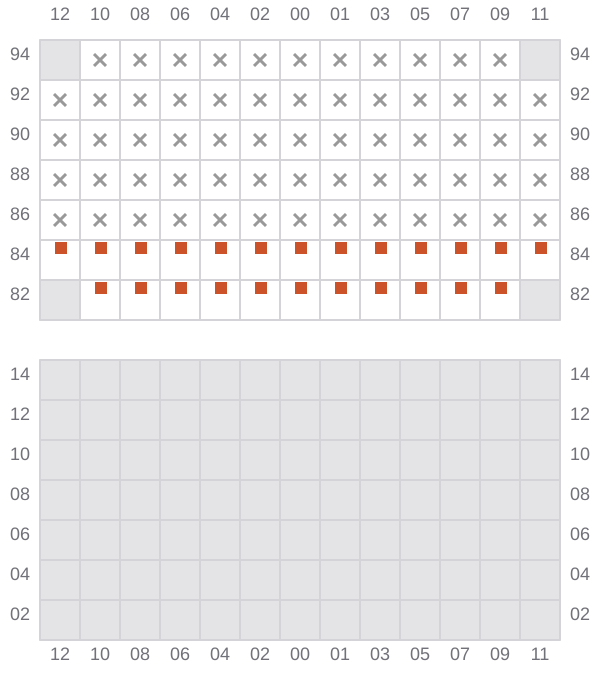

045

  • / ?
Bay 045 view and slots of BSG BARBADOS

047 (048)

  • / ?
Bay 047 view and slots of BSG BARBADOS

049

  • / ?

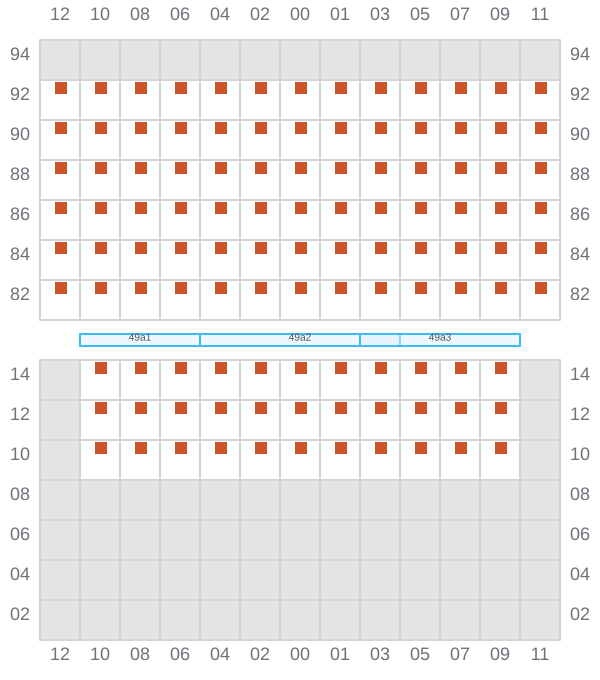

Bay 049 view and slots of BSG BARBADOS

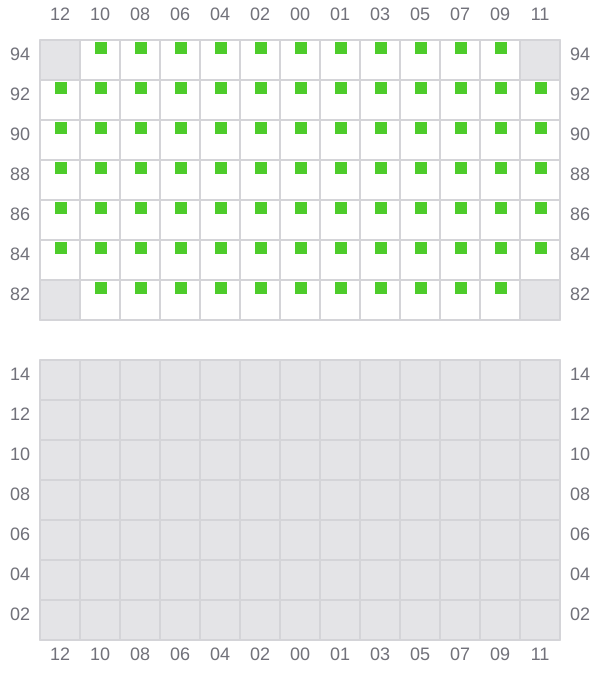

051 (052)

  • / ?
Bay 051 view and slots of BSG BARBADOS
