BSG BARBADOS
9333046 | A8LW9 | 933304 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:BSG BARBADOS
IMO Code:9333046
Call Sign:A8LW9
Line Operator:933304
Class Name for Sister Ships:APL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.01
LOA (Length Overall):222.51
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

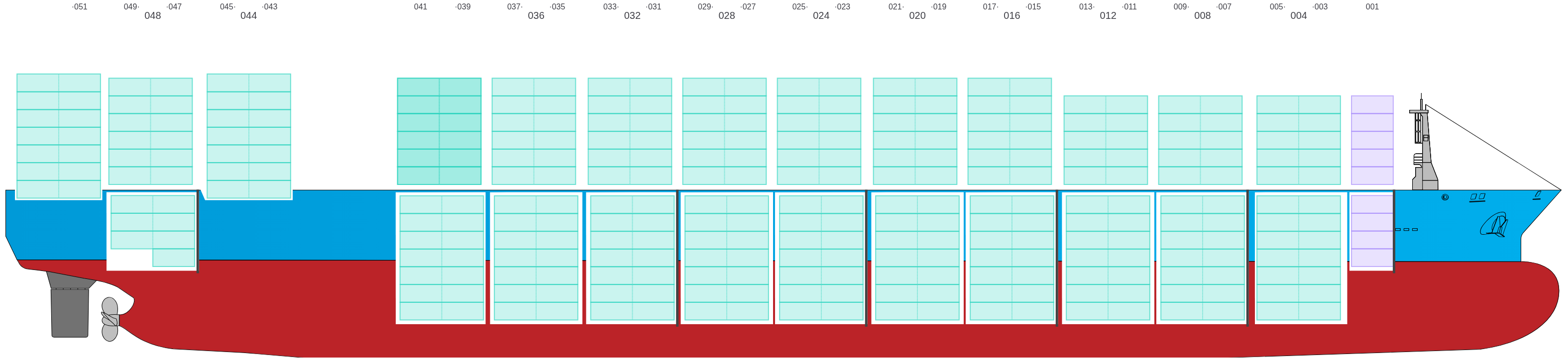

Side View
![Side view of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-sideView.png?v=1712259521490)
Hatch-Covers View
![Deck view of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-deckView.png?v=1712259521490)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

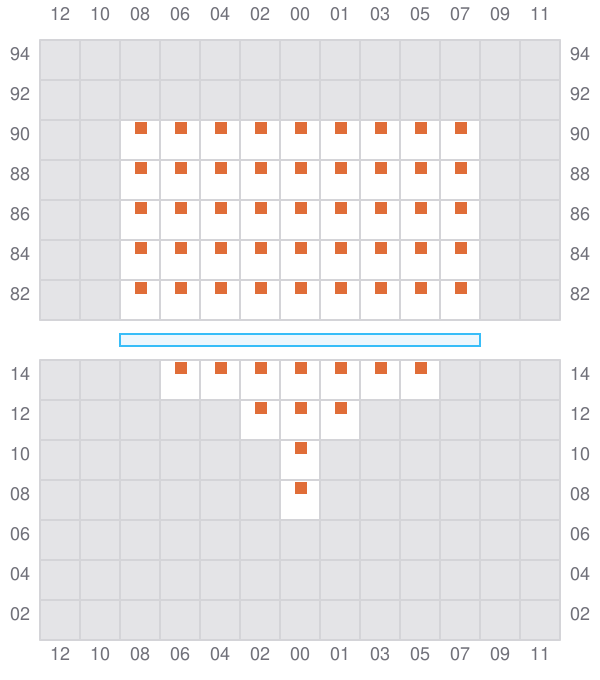

001
![Bay 001 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b001.png?v=1712259521490)

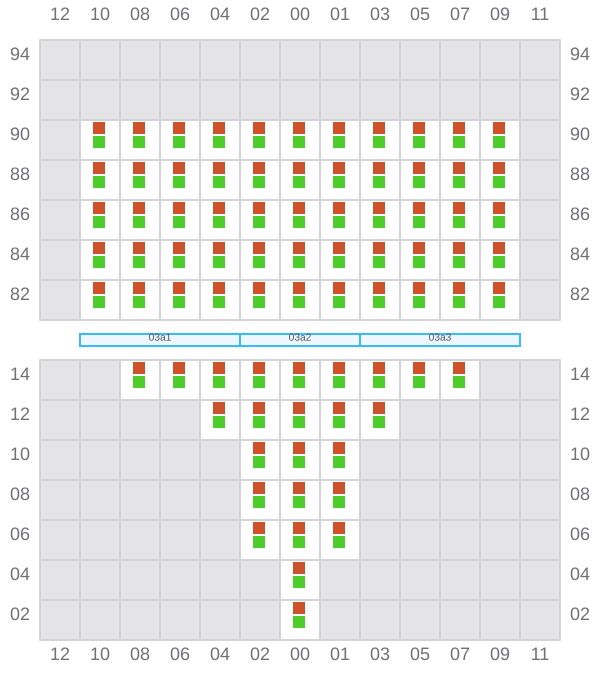

003 (004)
- →
![Bay 003 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b003.png?v=1712259521490)

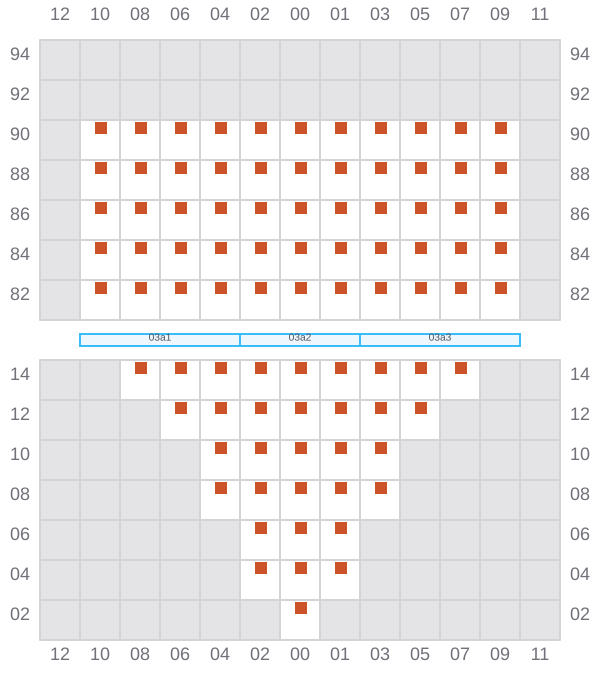

005
- ←
- → / ?
![Bay 005 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b005.png?v=1712259521490)

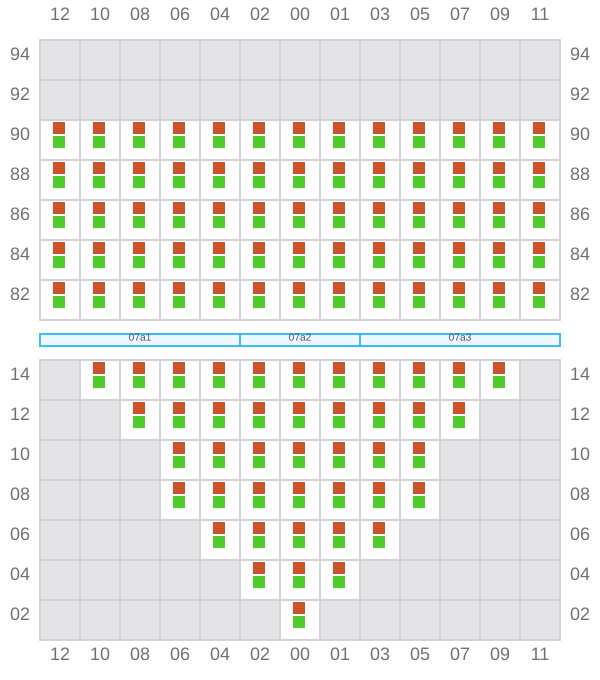

007 (008)
- →
- ← / ?
![Bay 007 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b007.png?v=1712259521490)

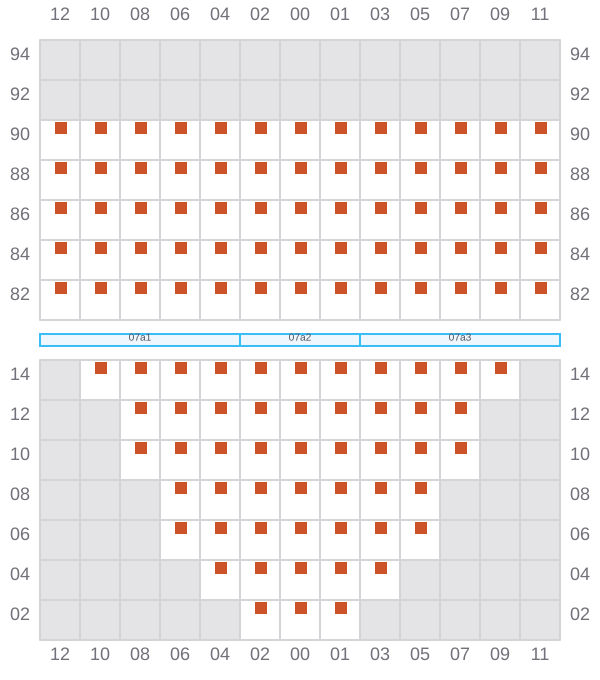

009
- ←
- → / ?
![Bay 009 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b009.png?v=1712259521490)

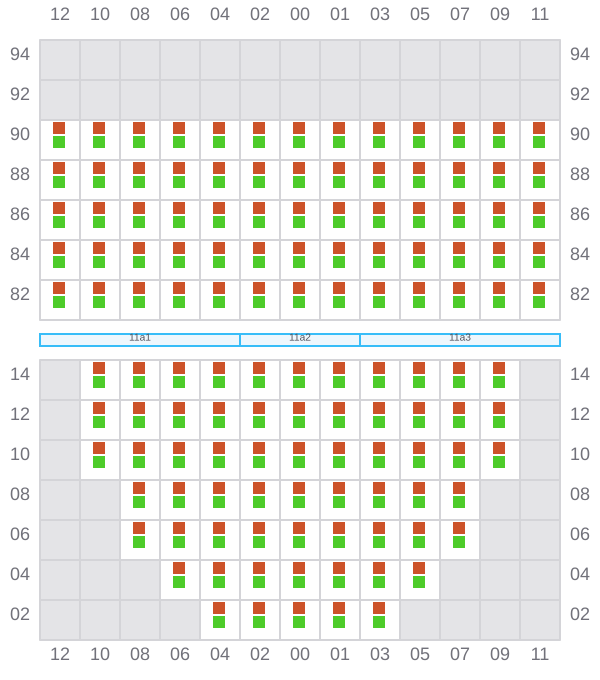

011 (012)
- →
- ← / ?
![Bay 011 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b011.png?v=1712259521490)

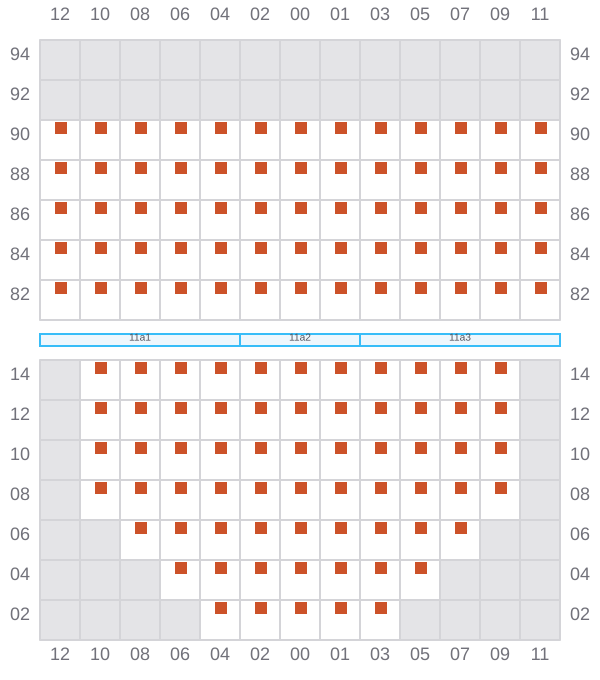

013
- ←
- → / ?
![Bay 013 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b013.png?v=1712259521490)

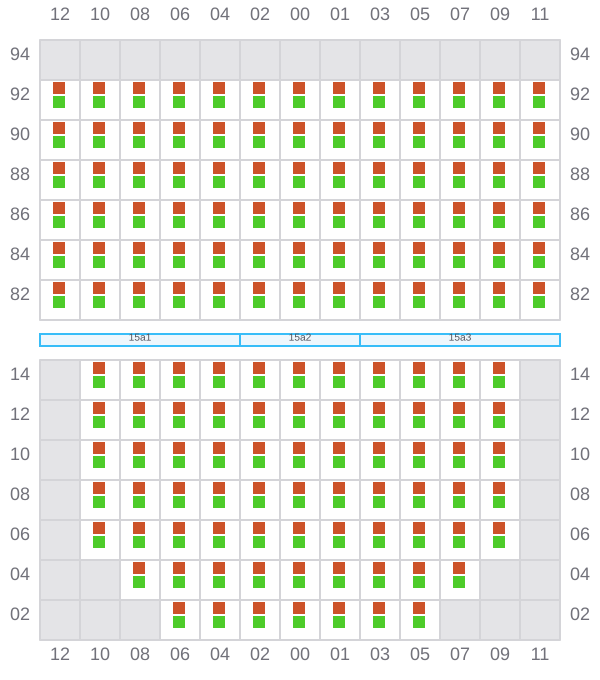

015 (016)
- →
- ← / ?
![Bay 015 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b015.png?v=1712259521490)

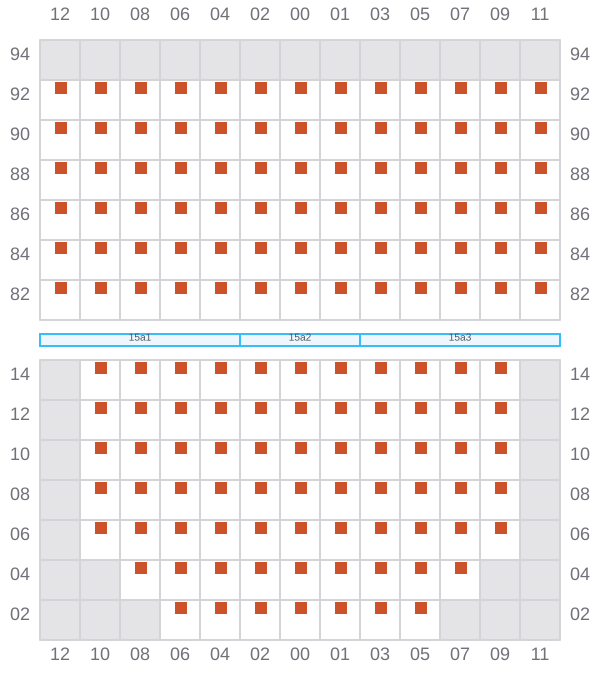

017
- ←
- → / ?
![Bay 017 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b017.png?v=1712259521490)
019 (020)
- →
- ← / ?
![Bay 019 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b019.png?v=1712259521490)
021
- ←
- → / ?
![Bay 021 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b021.png?v=1712259521490)
023 (024)
- →
- ← / ?
![Bay 023 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b023.png?v=1712259521490)
025
- ←
- → / ?
![Bay 025 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b025.png?v=1712259521490)

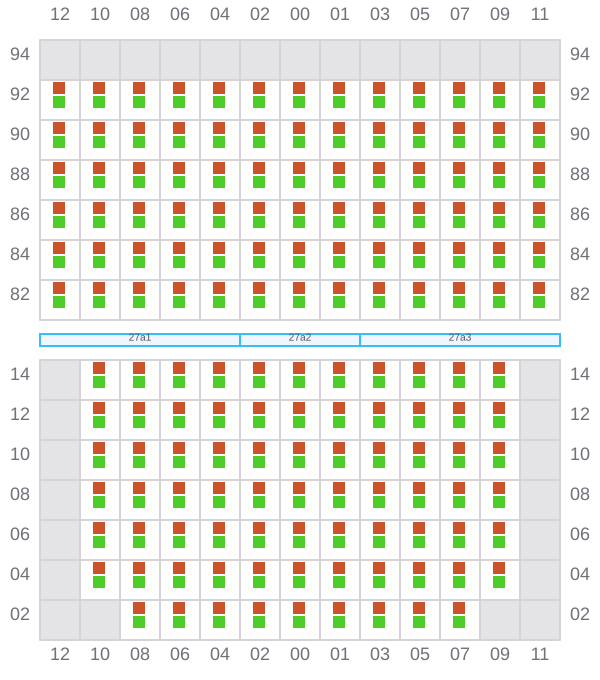

027 (028)
- →
- ← / ?
![Bay 027 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b027.png?v=1712259521490)
029
- ←
- → / ?
![Bay 029 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b029.png?v=1712259521490)
031 (032)
- →
- ← / ?
![Bay 031 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b031.png?v=1712259521490)
033
- ←
- → / ?
![Bay 033 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b033.png?v=1712259521490)

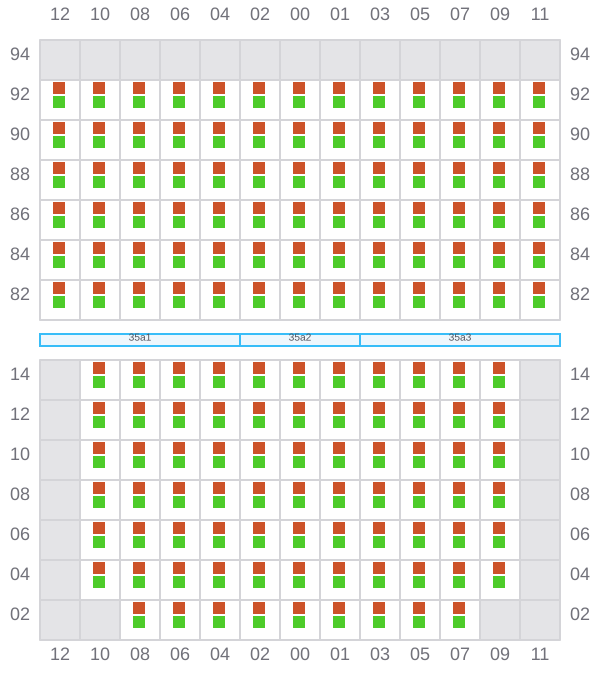

035 (036)
- →
- ← / ?
![Bay 035 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b035.png?v=1712259521490)

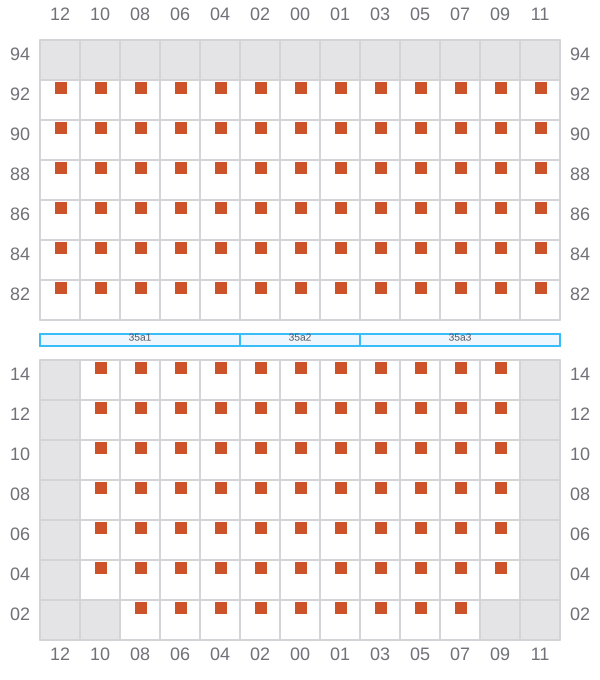

037
- ←
- → / ?
![Bay 037 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b037.png?v=1712259521490)

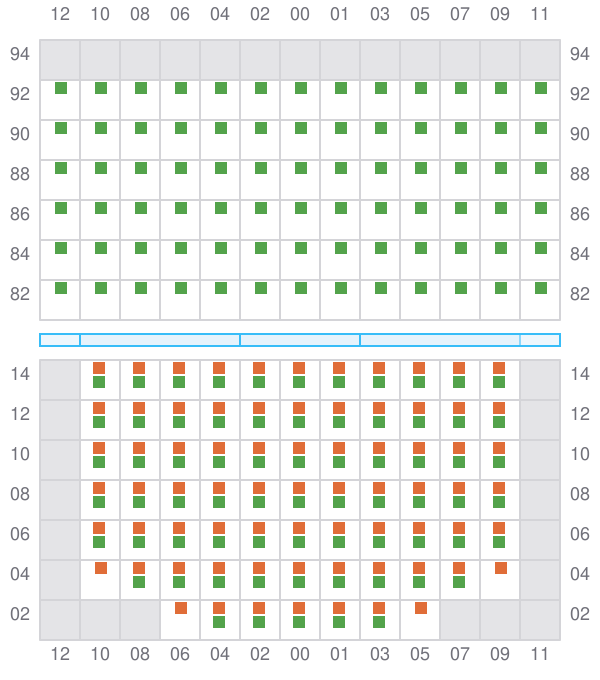

039 (040)
- →
- → / ?
![Bay 039 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b039.png?v=1712259521490)

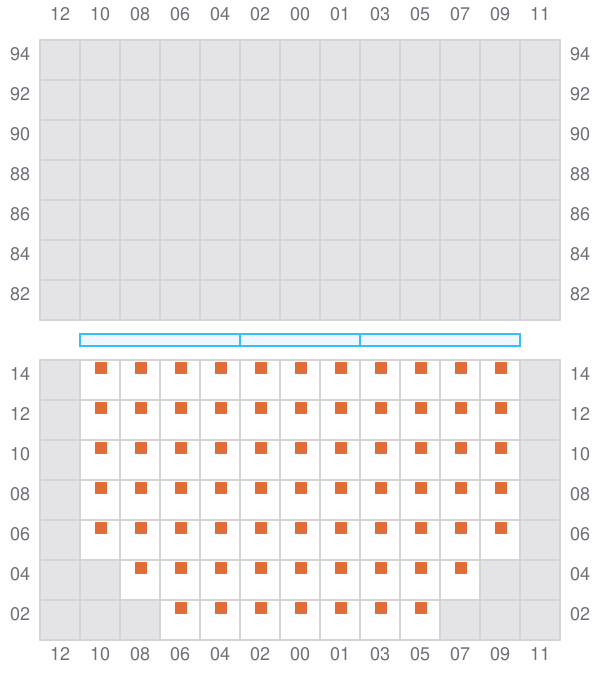

041
- ? / ←
![Bay 041 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b041.png?v=1712259521490)

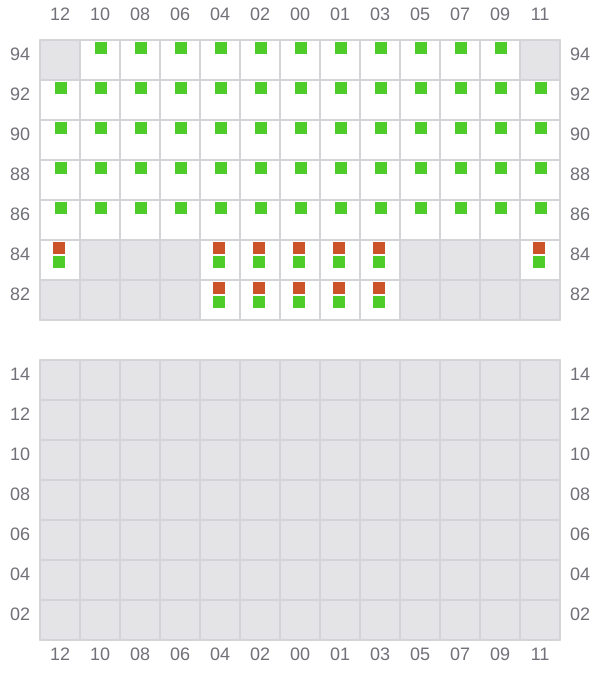

043 (044)
- → / ?
![Bay 043 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b043.png?v=1712259521490)

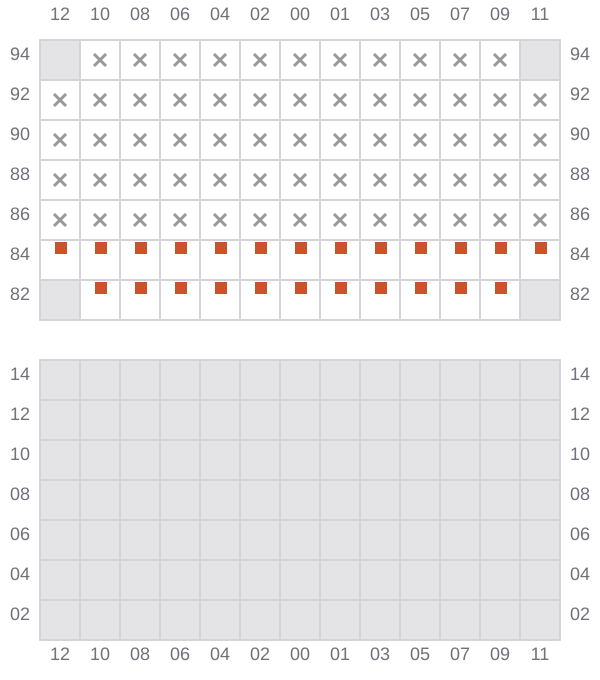

045
- ← / ?
- → / ?
![Bay 045 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b045.png?v=1712259521490)

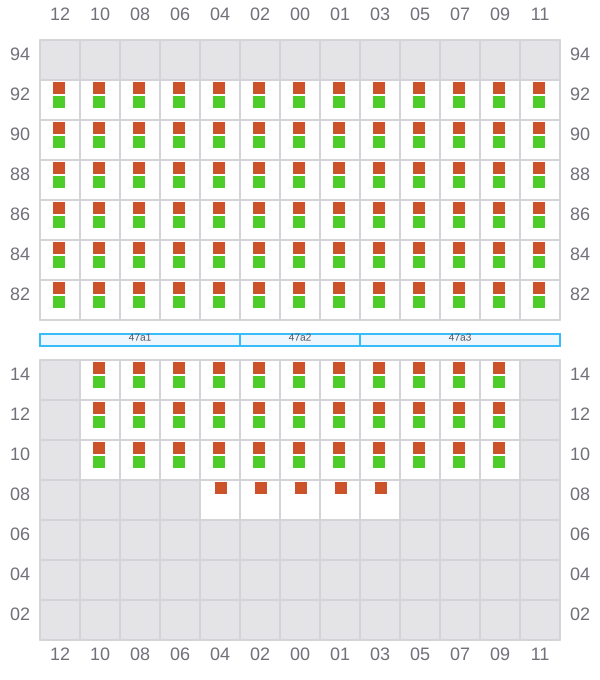

047 (048)
- →
- ← / ?
![Bay 047 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b047.png?v=1712259521490)

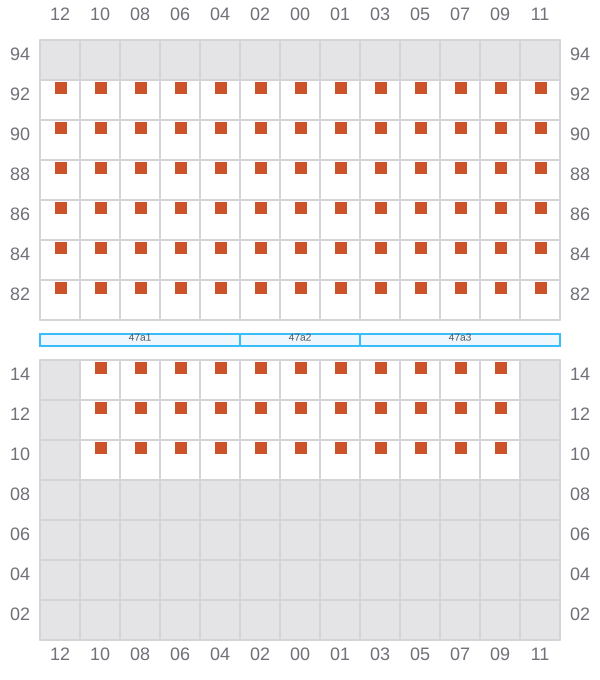

049
- ←
- → / ?
![Bay 049 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b049.png?v=1712259521490)

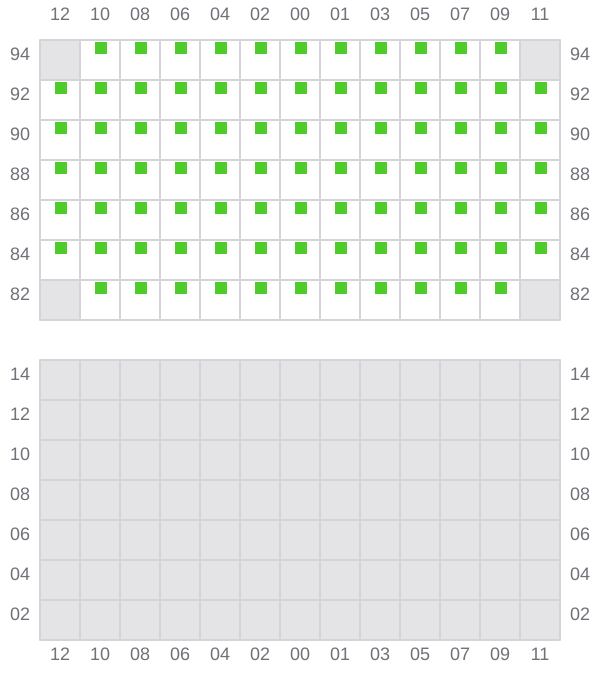

051 (052)
- → / ?
- → / ?
![Bay 051 view and slots of BSG BARBADOS](/vessel-images/d6358467-35cc-483a-94b3-c8776849621a-b051.png?v=1712259521490)
