BSG BONAIRE
9303766 | 5LBS9 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:BSG BONAIRE
IMO Code:9303766
Call Sign:5LBS9
Line Operator:MSK
Class Name for Sister Ships:BSB
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):222.50
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-sideView.png?v=1687562767767)
Hatch-Covers View
![Deck view of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-deckView.png?v=1687562767767)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

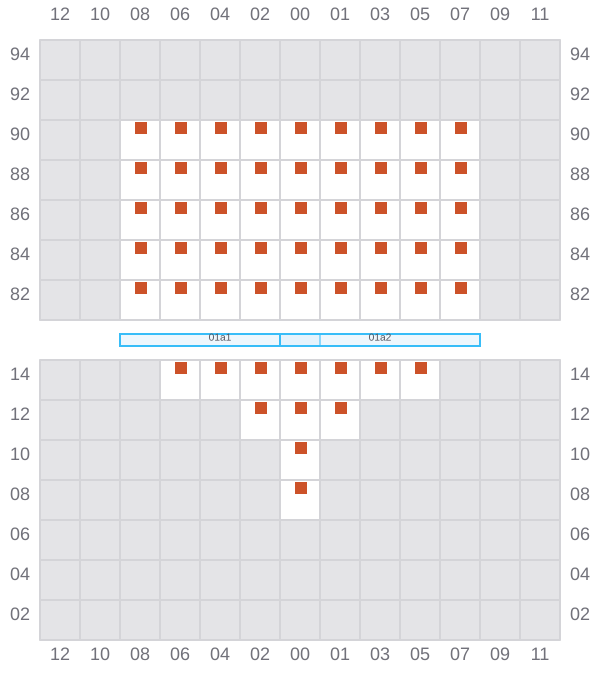

001
![Bay 001 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b001.png?v=1687562767767)

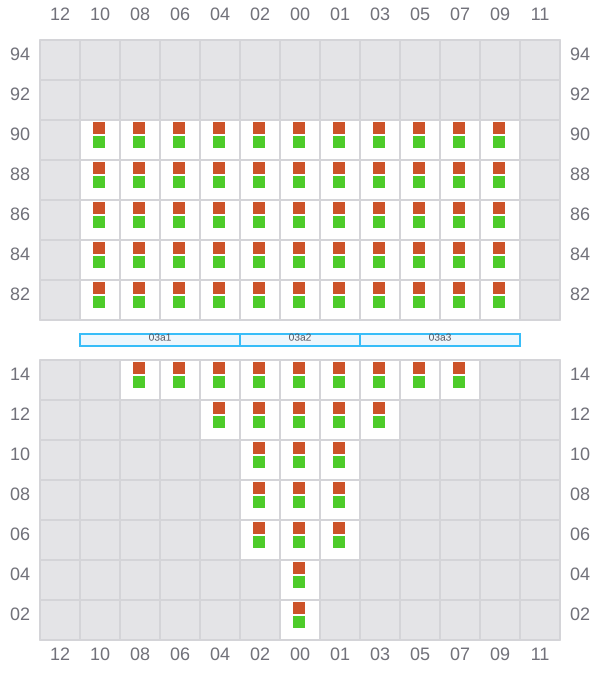

003 (004)
- →
![Bay 003 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b003.png?v=1687562767767)

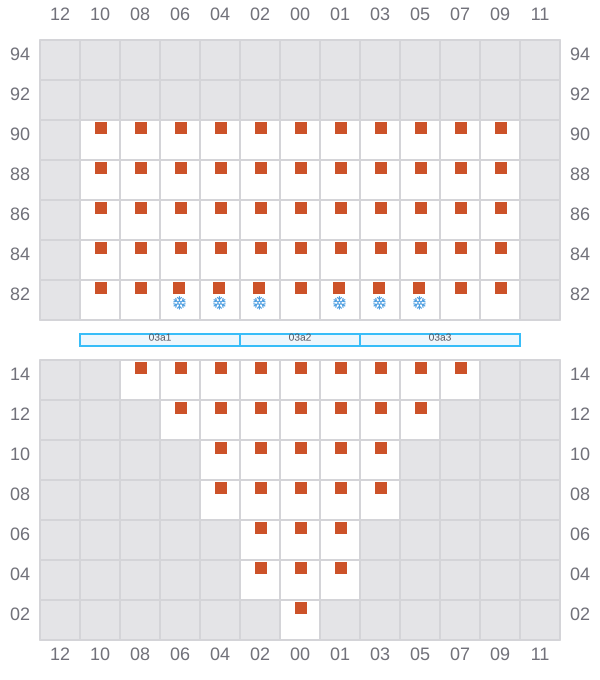

005
- ←
- → / ?
![Bay 005 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b005.png?v=1687562767767)

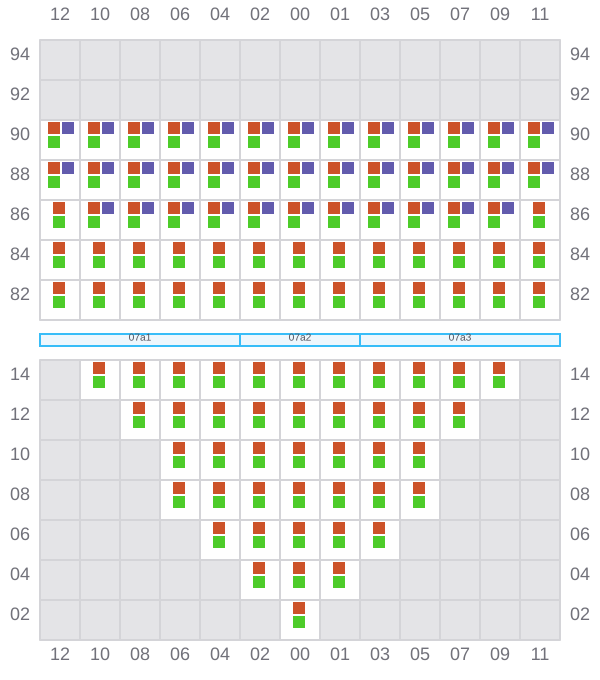

007 (008)
- →
![Bay 007 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b007.png?v=1687562767767)

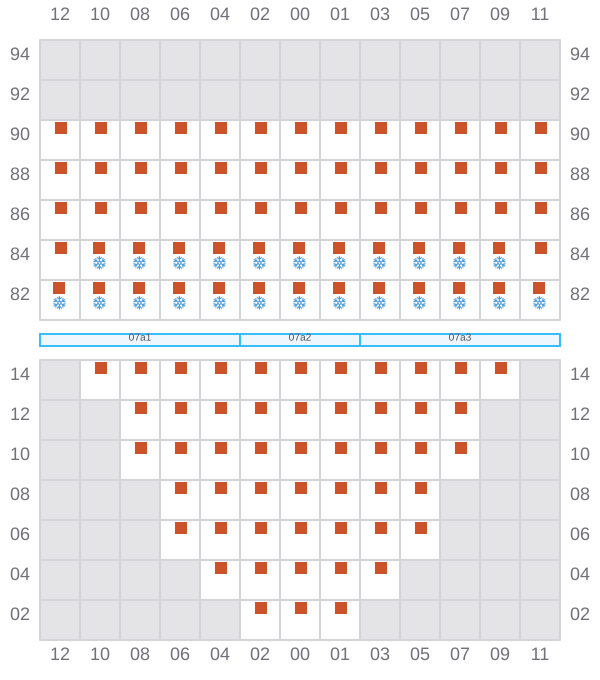

009
- ←
- → / ?
![Bay 009 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b009.png?v=1687562767767)

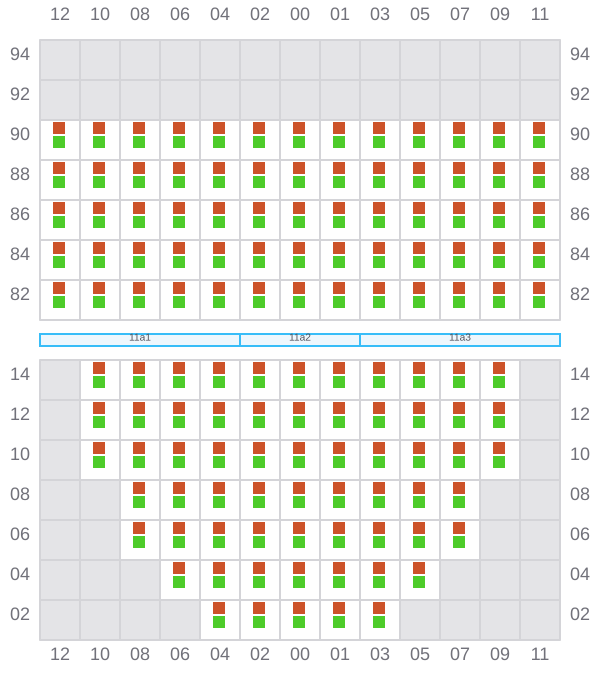

011 (012)
- →
![Bay 011 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b011.png?v=1687562767767)

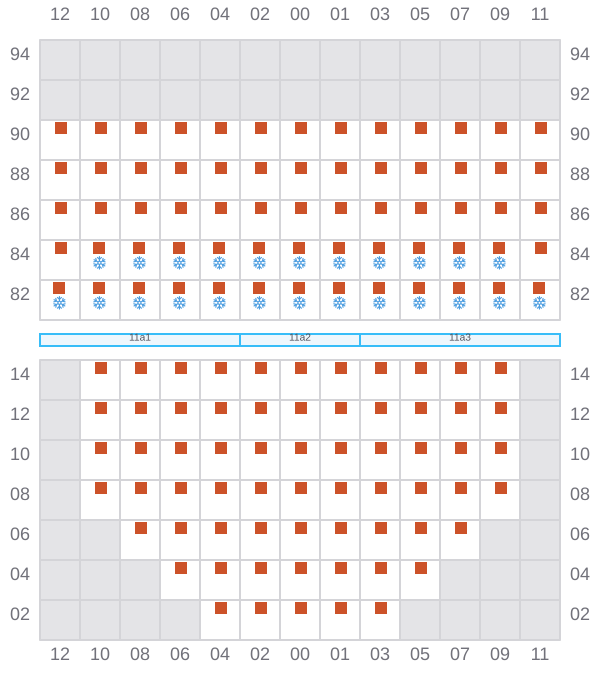

013
- ←
- → / ?
![Bay 013 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b013.png?v=1687562767767)

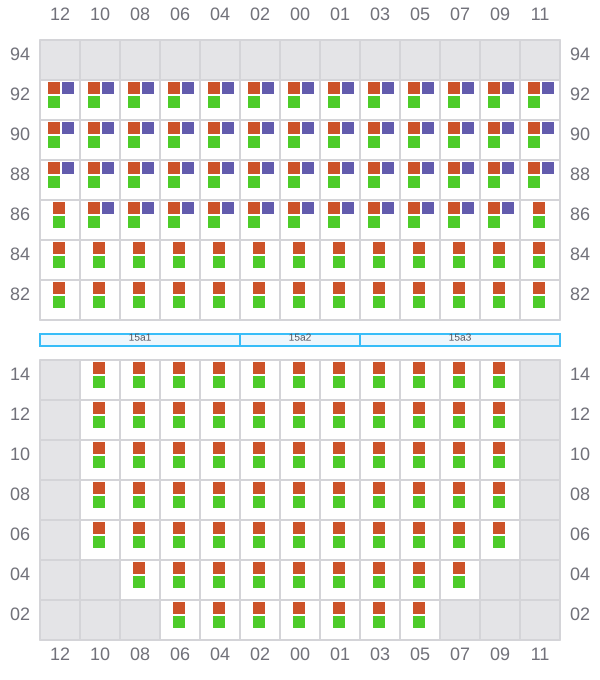

015 (016)
- →
![Bay 015 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b015.png?v=1687562767767)

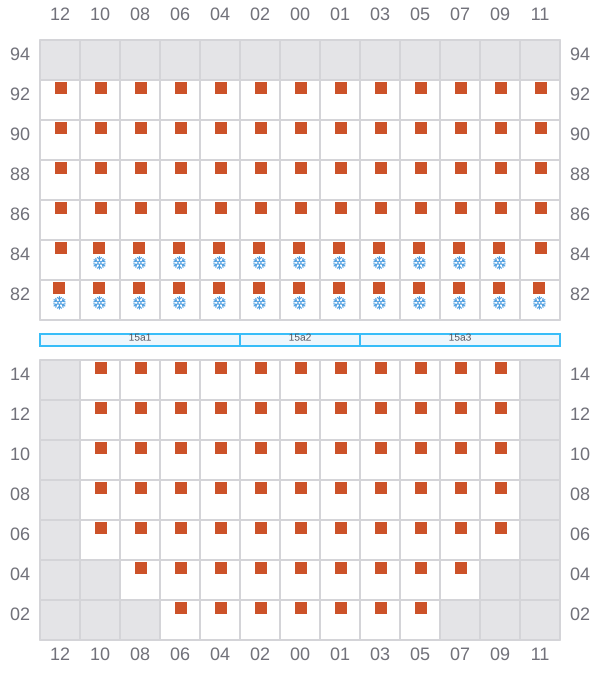

017
- ←
- → / ?
![Bay 017 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b017.png?v=1687562767767)

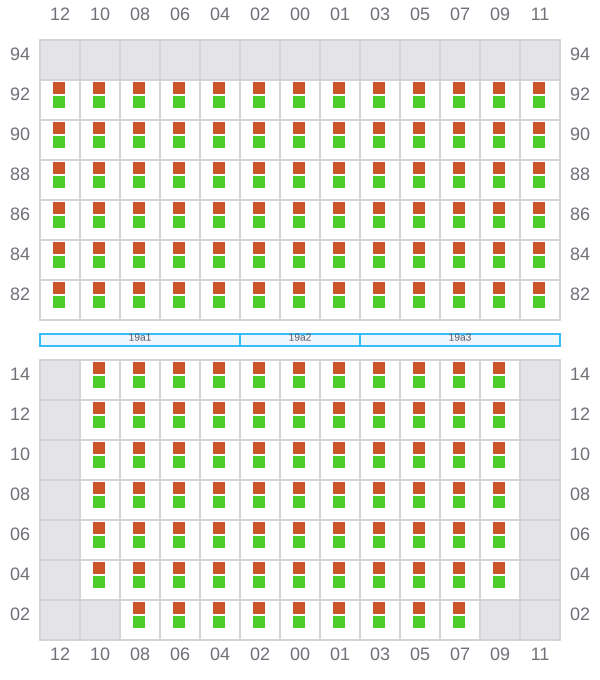

019 (020)
- →
![Bay 019 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b019.png?v=1687562767767)
021
- ←
- → / ?
![Bay 021 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b021.png?v=1687562767767)
023 (024)
- →
![Bay 023 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b023.png?v=1687562767767)

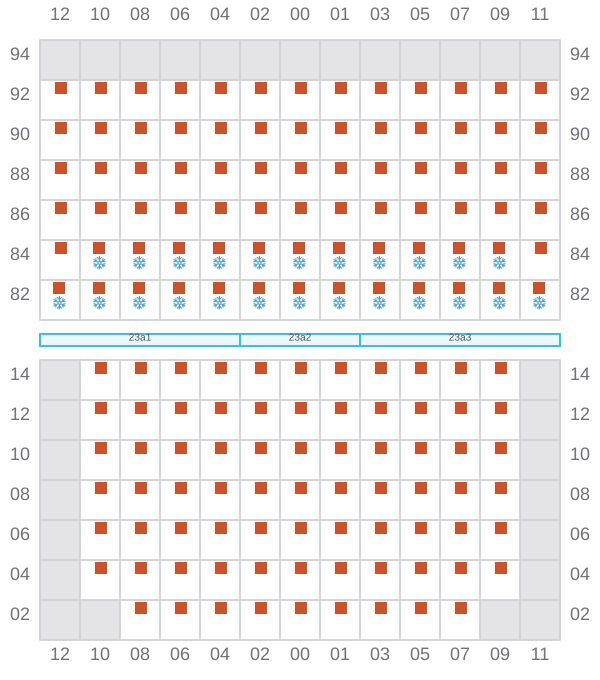

025
- ←
- → / ?
![Bay 025 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b025.png?v=1687562767767)

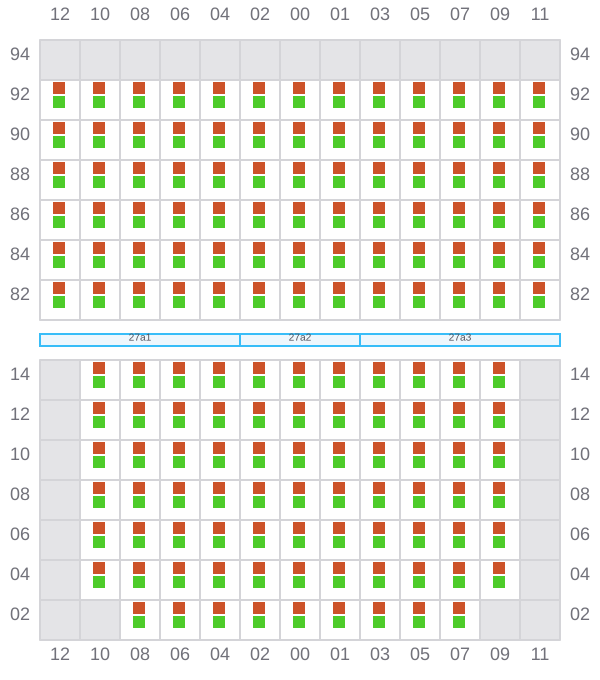

027 (028)
- →
![Bay 027 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b027.png?v=1687562767767)
029
- ←
- → / ?
![Bay 029 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b029.png?v=1687562767767)

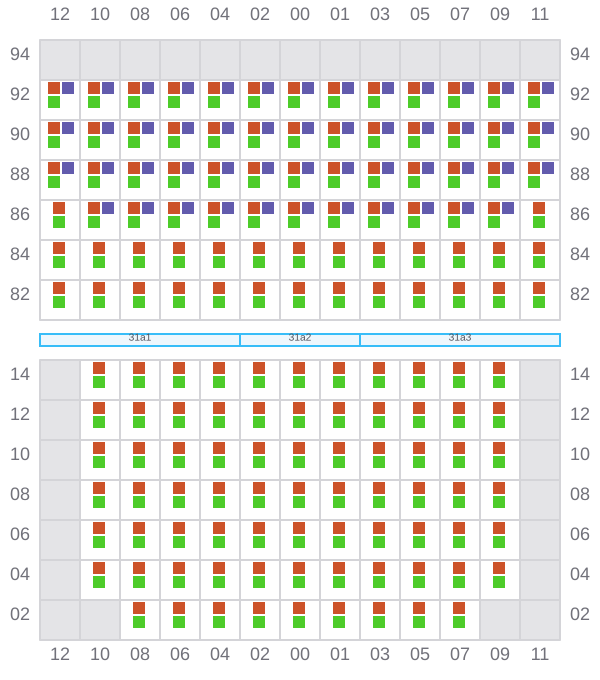

031 (032)
- →
![Bay 031 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b031.png?v=1687562767767)
033
- ←
- → / ?
![Bay 033 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b033.png?v=1687562767767)
035 (036)
- →
![Bay 035 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b035.png?v=1687562767767)
037
- ←
- → / ?
![Bay 037 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b037.png?v=1687562767767)

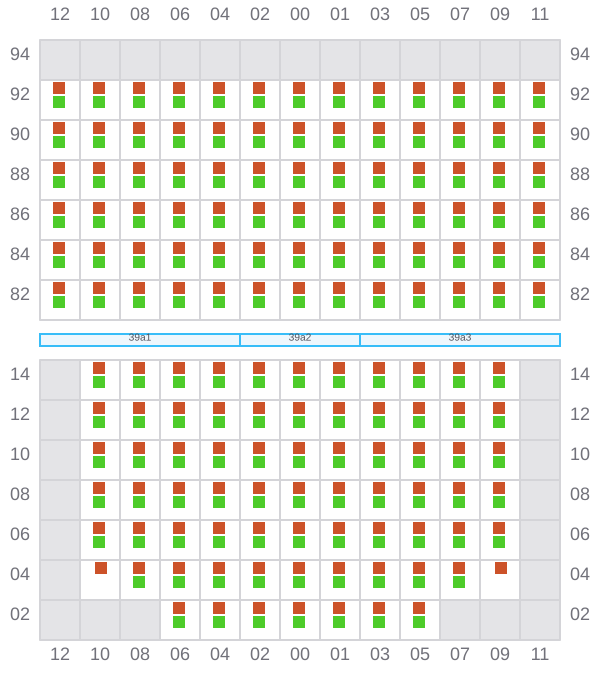

039 (040)
- →
![Bay 039 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b039.png?v=1687562767767)

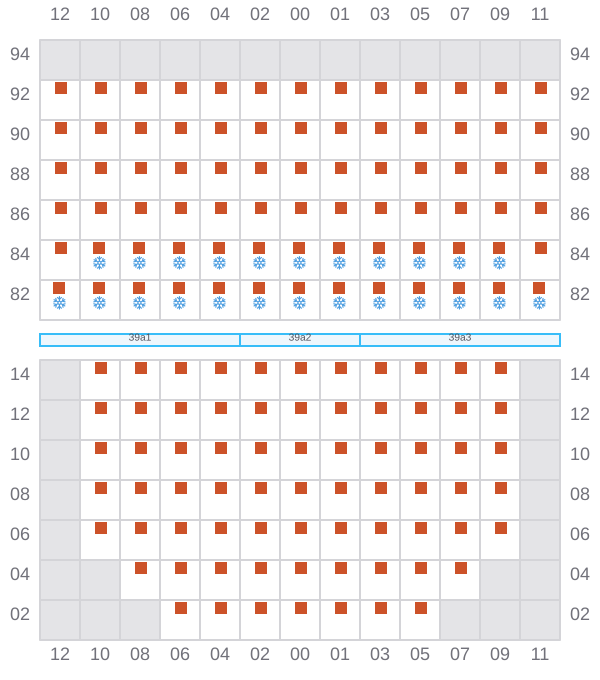

041
- ←
- → / ?
![Bay 041 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b041.png?v=1687562767767)

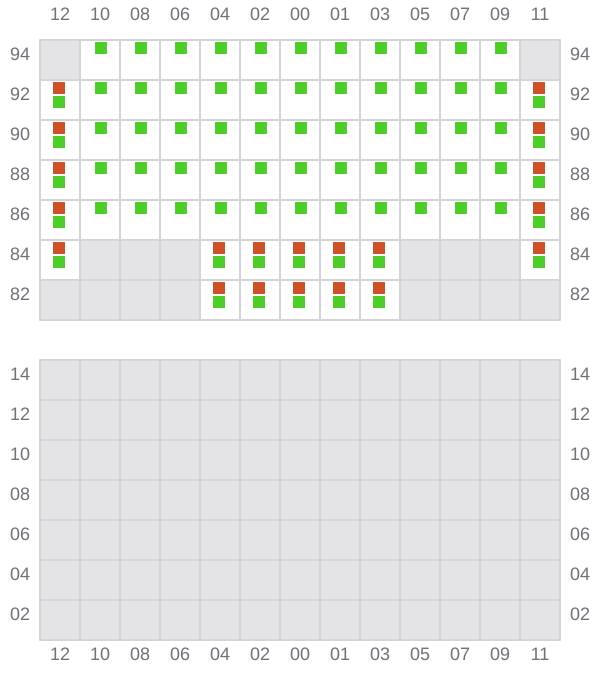

043 (044)
- → / ?
![Bay 043 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b043.png?v=1687562767767)

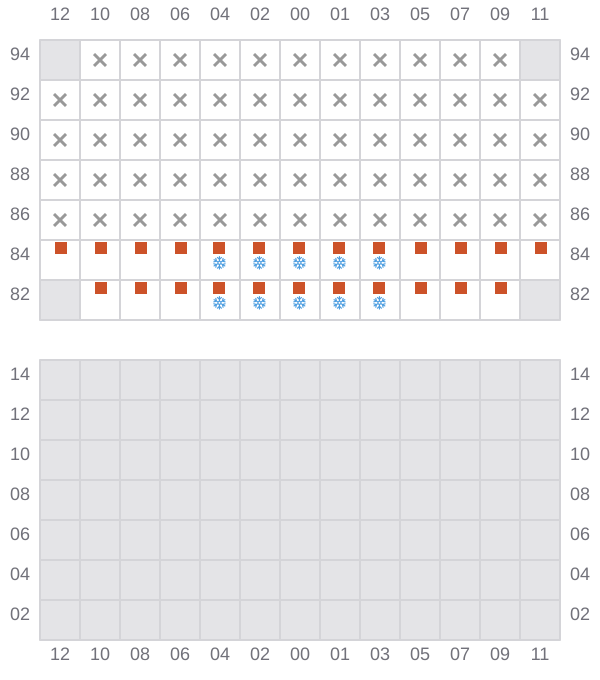

045
- ← / ?
- → / ?
![Bay 045 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b045.png?v=1687562767767)

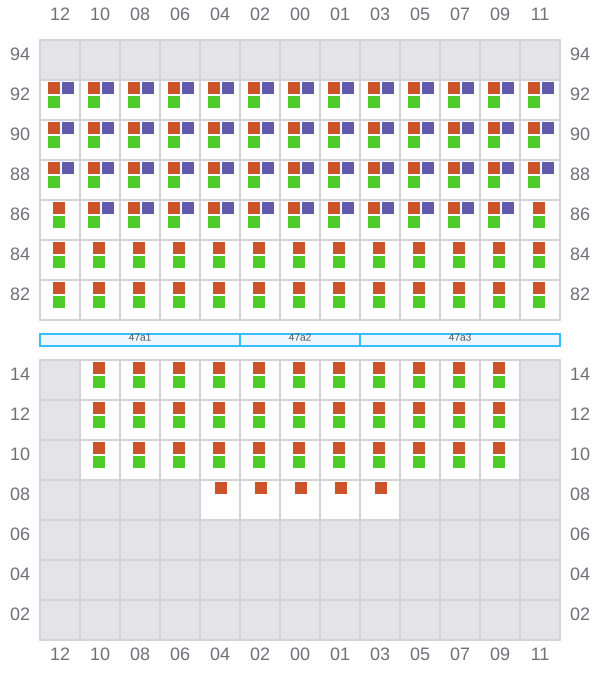

047 (048)
- →
![Bay 047 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b047.png?v=1687562767767)

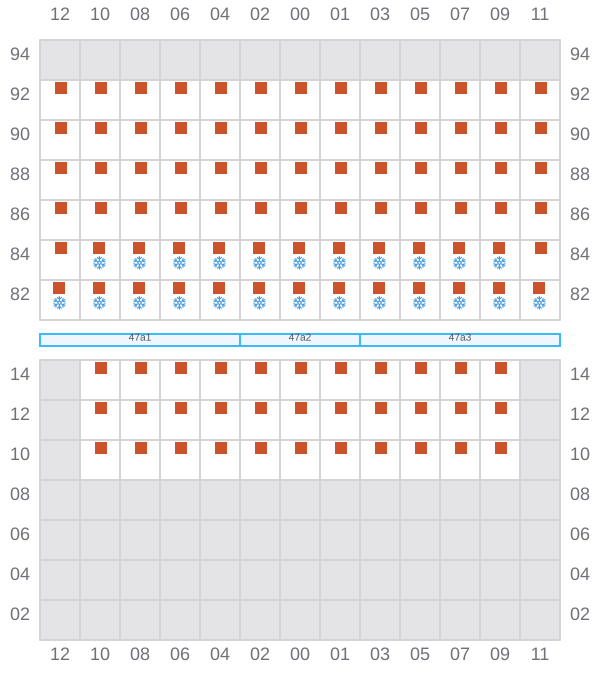

049
- ←
- → / ?
![Bay 049 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b049.png?v=1687562767767)

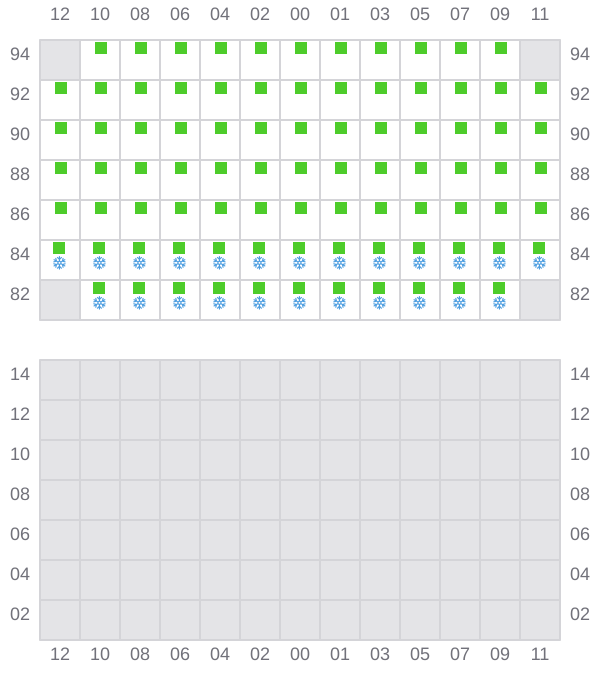

051 (052)
- → / ?
- → / ?
![Bay 051 view and slots of BSG BONAIRE](/vessel-images/402c2667-2d8e-4d7c-ba61-a553148cbec7-b051.png?v=1687562767767)
