BSG BONAIRE
9303766 | 5LBS9 | MSK by ******************** Last update: Tue Aug 06 2024
General Info
Ship Name:BSG BONAIRE
IMO Code:9303766
Call Sign:5LBS9
Line Operator:MSK
Class Name for Sister Ships:BSB
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):222.50
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398
Centers of Gravity
LCG Values:Known
LCG Data:96%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

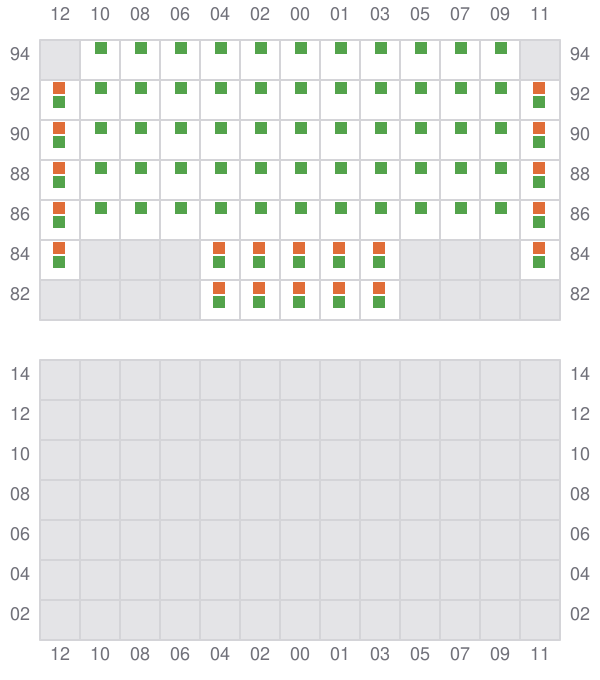

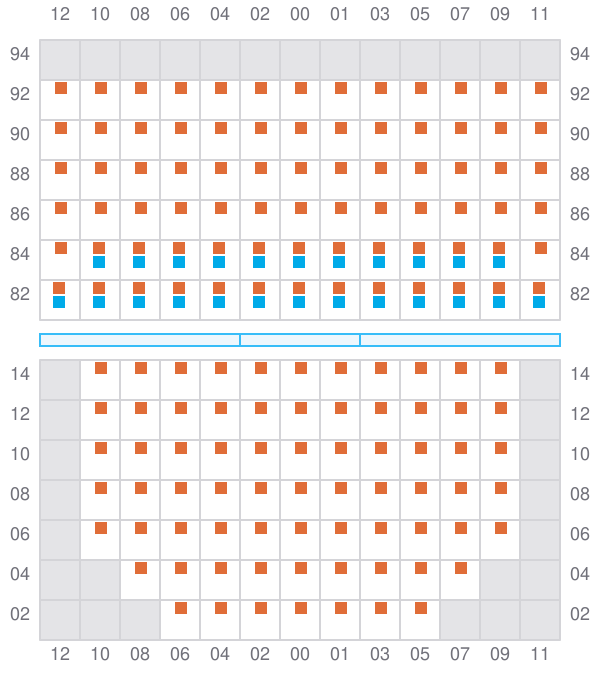

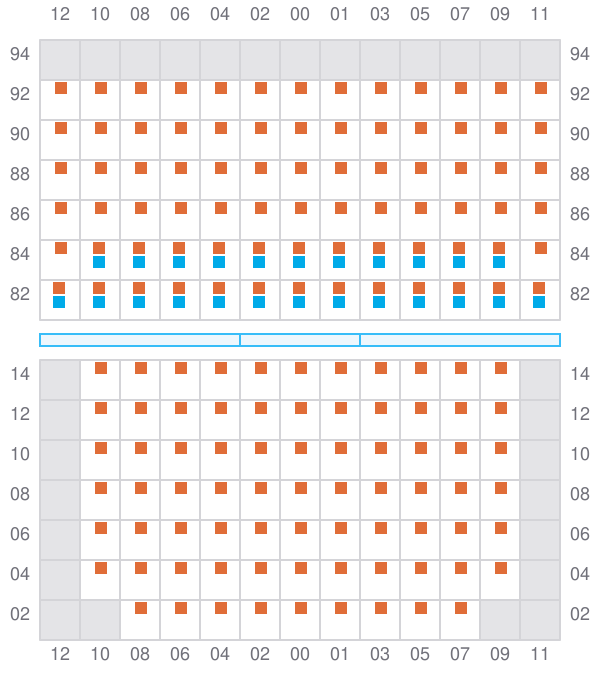

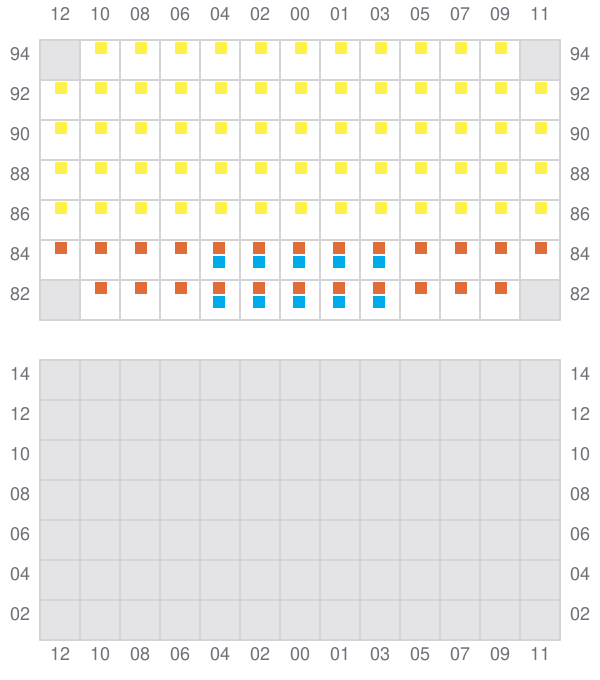

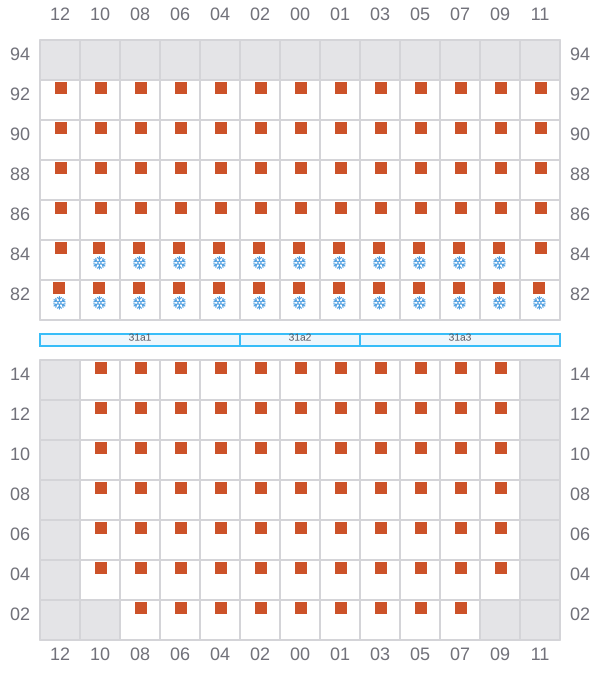

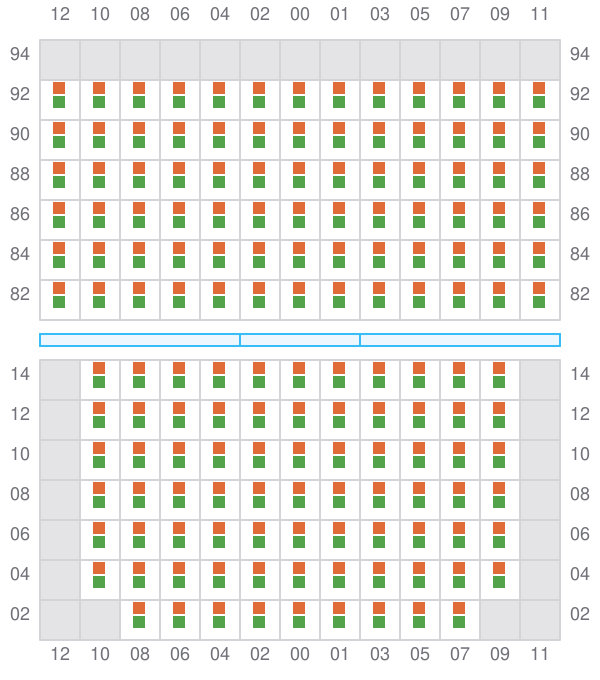

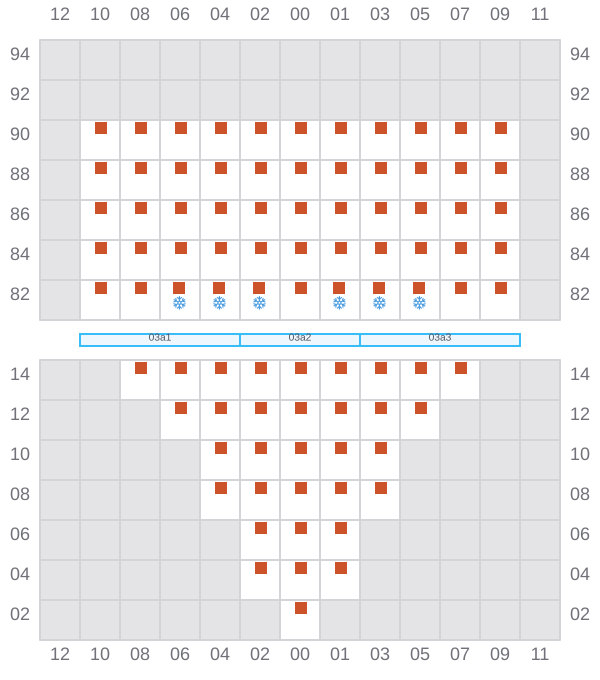

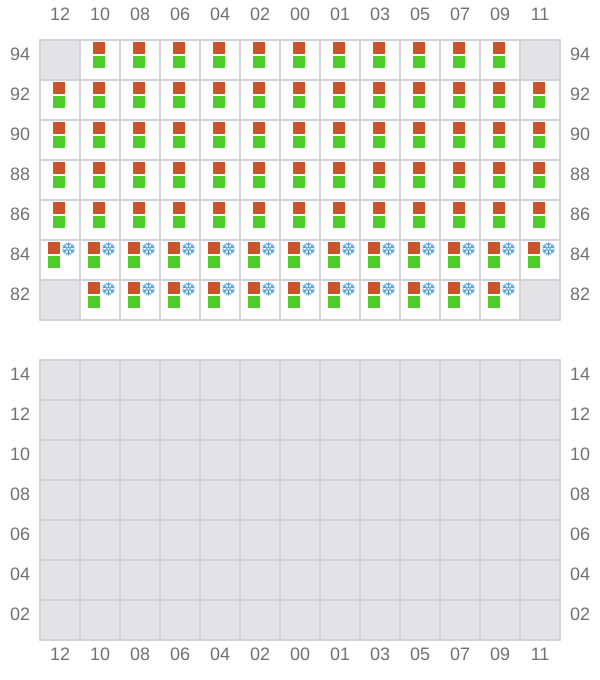

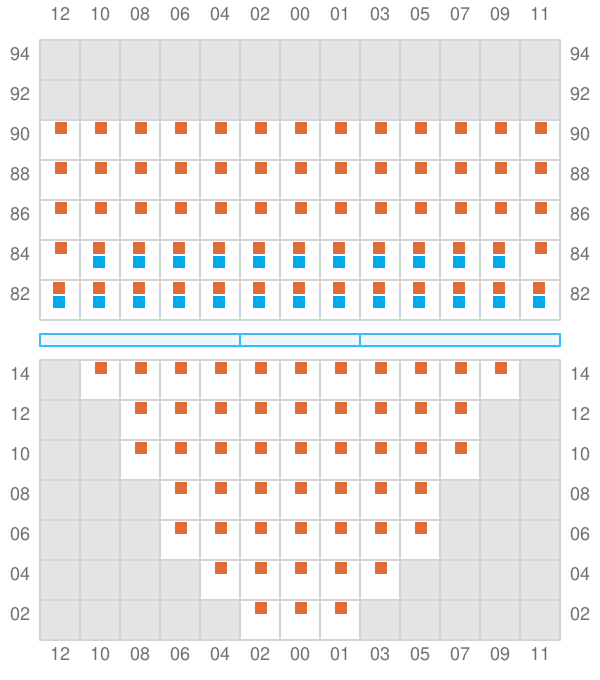

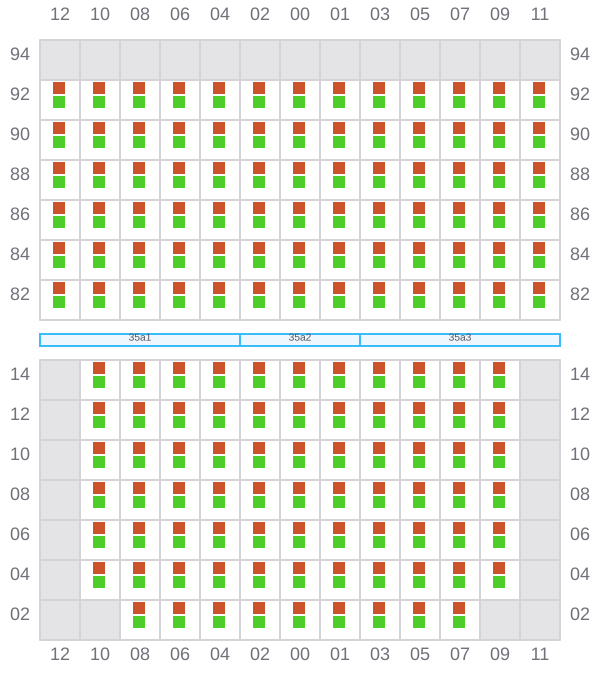

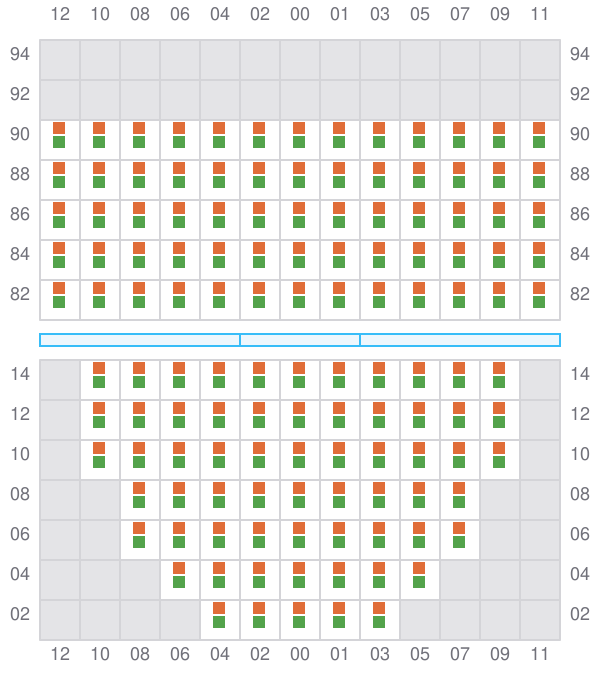

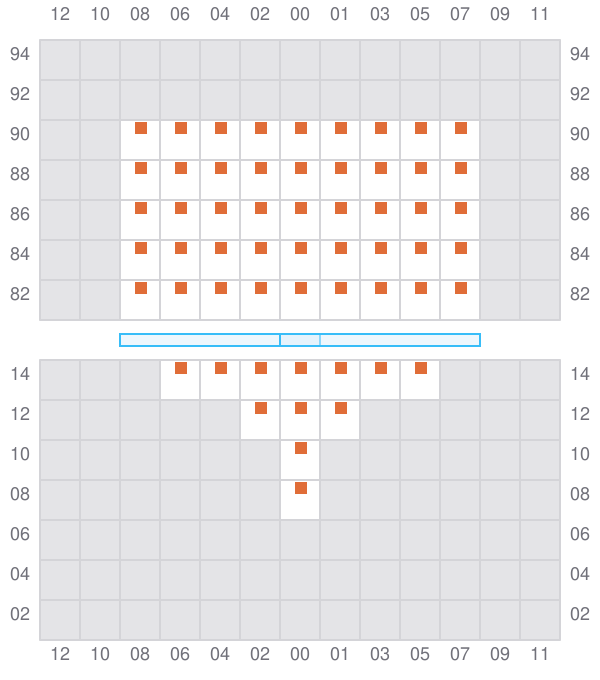

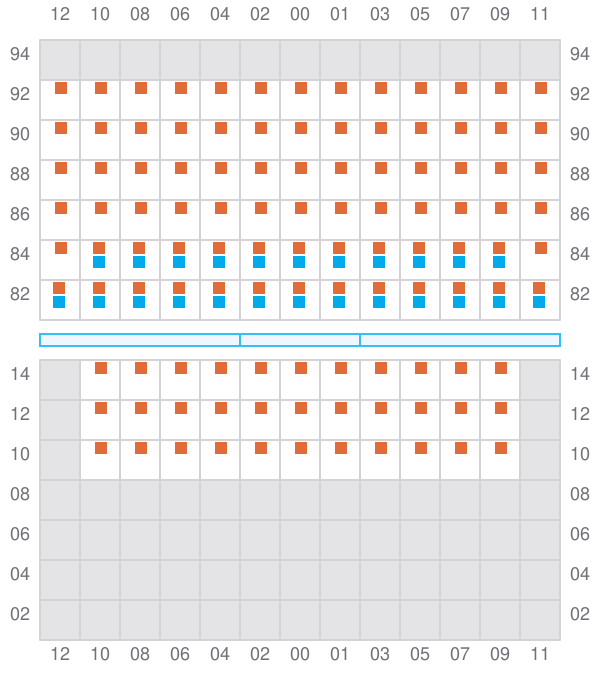

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001

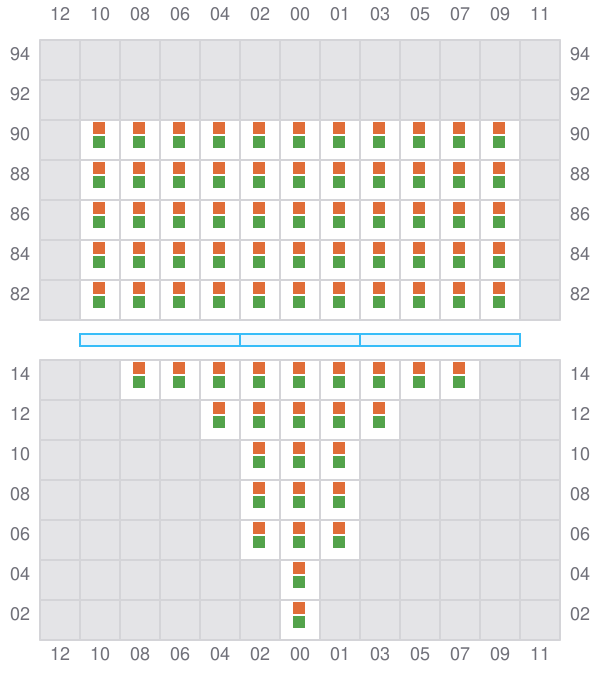

003 (004)
- →
005
- ←
- → / ?

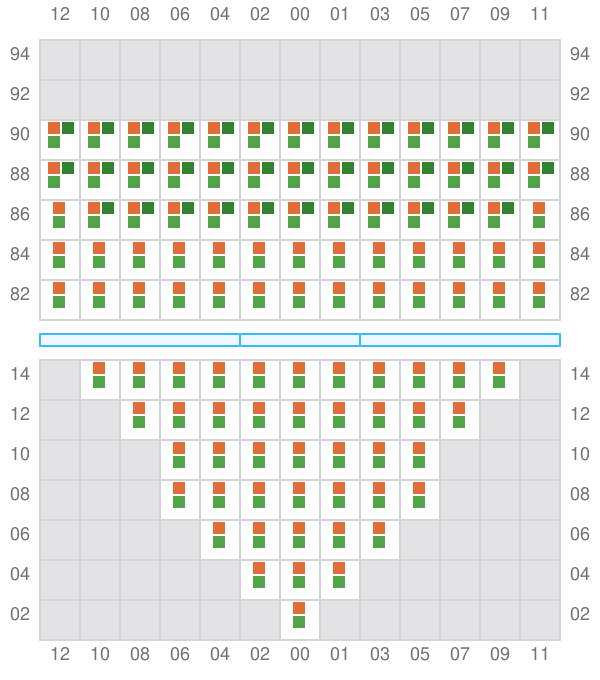

007 (008)
- →
009
- ←
- → / ?
011 (012)
- →

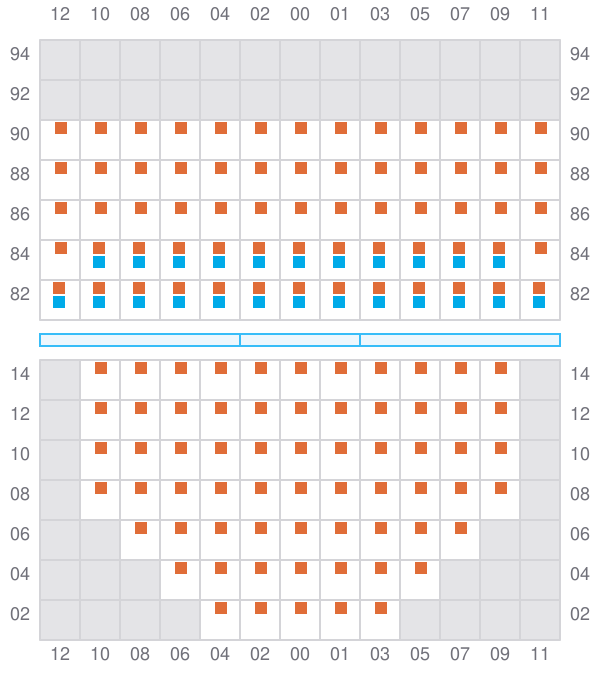

013
- ←
- → / ?

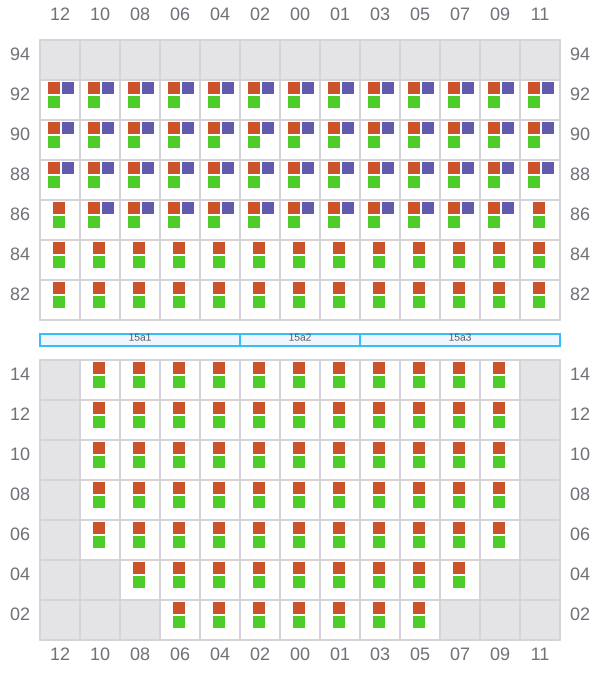

015 (016)
- →
017
- ←
- → / ?
019 (020)
- →
021
- ←
- → / ?

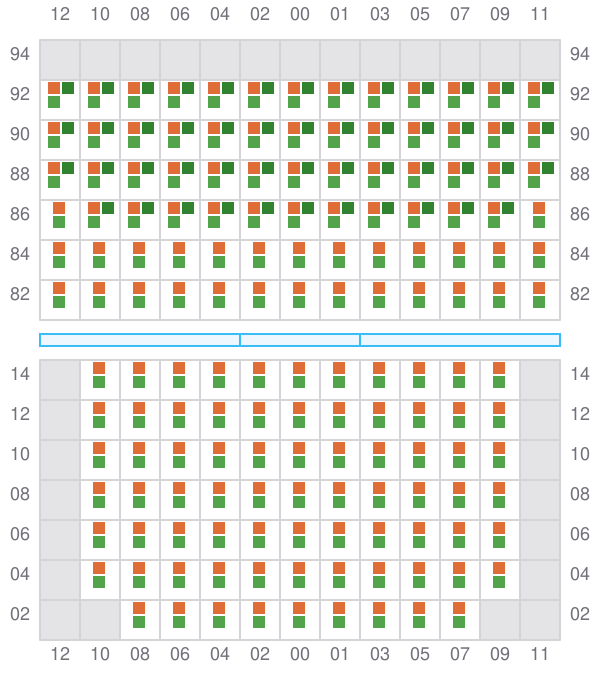

023 (024)
- →
025
- ←
- → / ?
027 (028)
- →
029
- ←
- → / ?
031 (032)
- →
033
- ←
- → / ?
035 (036)
- →
037
- ←
- → / ?

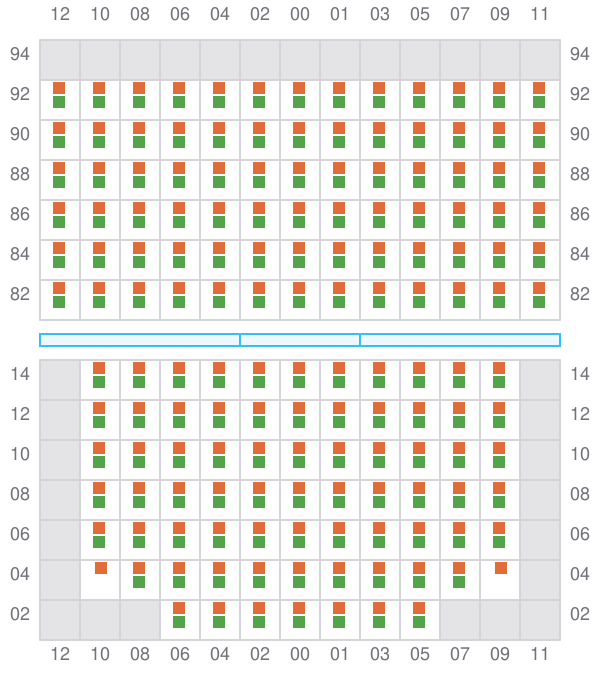

039 (040)
- →
041
- ←
- → / ?
043 (044)
- → / ?
045
- ← / ?
- → / ?

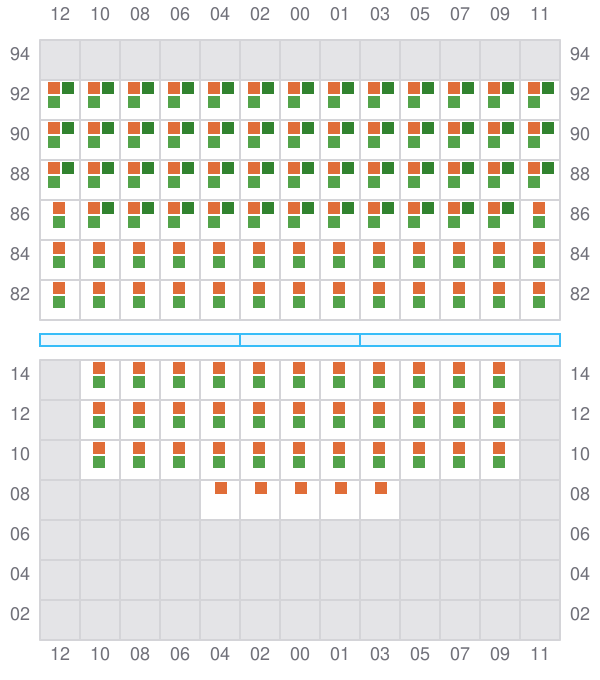

047 (048)
- →
049
- ←
- → / ?
051 (052)
- → / ?
- → / ?

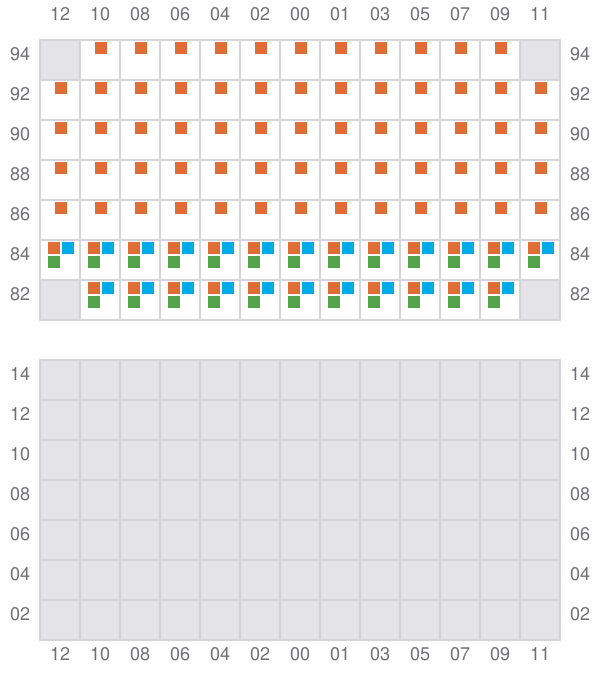

053 (052)
- ← / ?
