BURGUNDY
9372872 | ICHC | CSAV by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:BURGUNDY
IMO Code:9372872
Call Sign:ICHC
Line Operator:CSAV
Class Name for Sister Ships:ROM
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,426
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

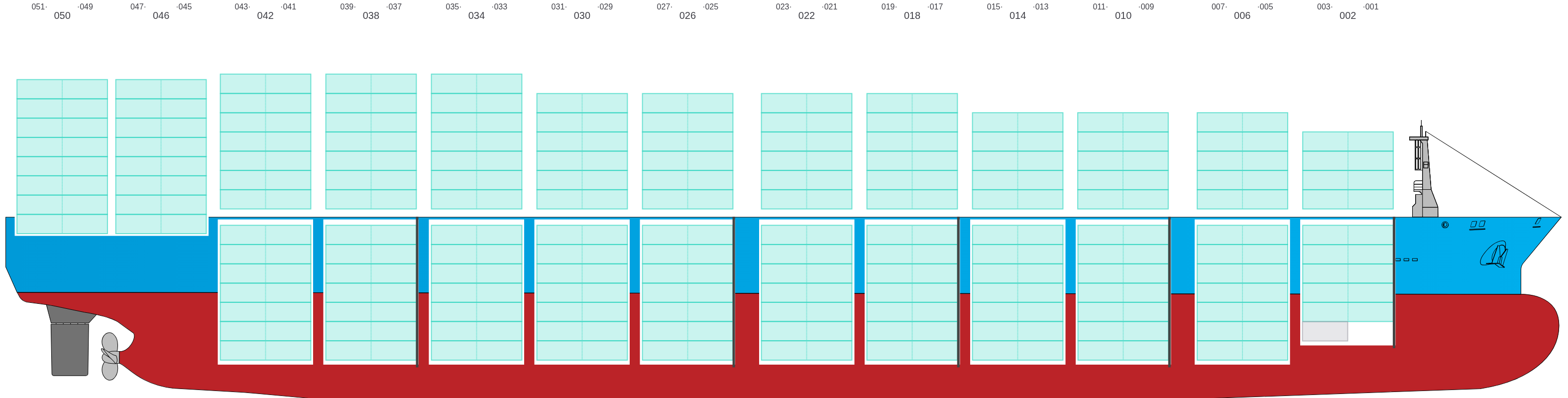

Side View
![Side view of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-sideView.png?v=1687543361102)

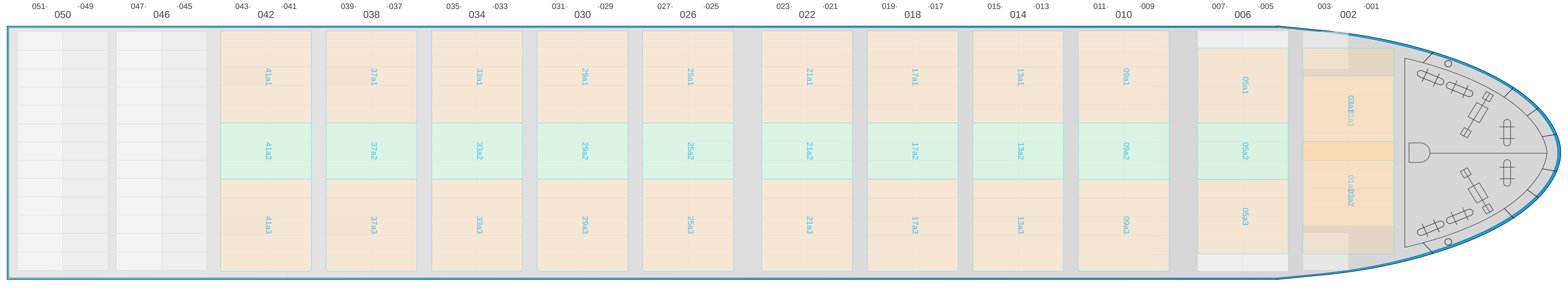

Hatch-Covers View
![Deck view of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-deckView.png?v=1687543361102)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

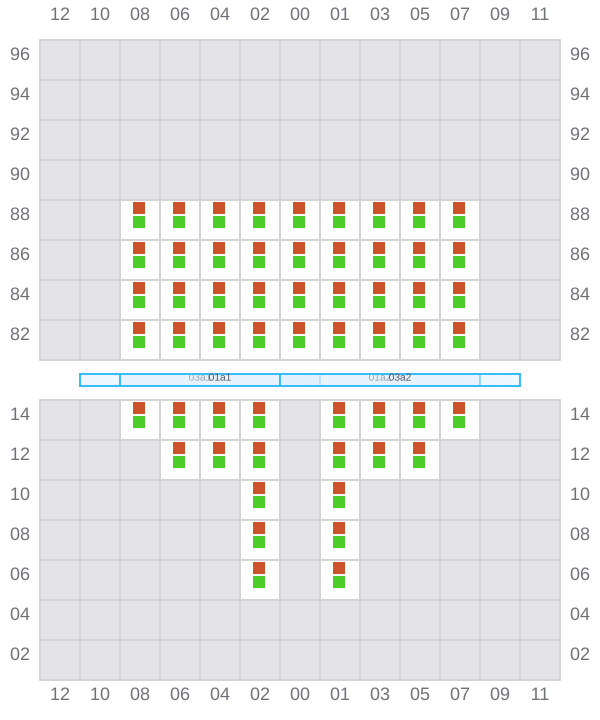

001 (002)
- →
![Bay 001 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b001.png?v=1687543361102)

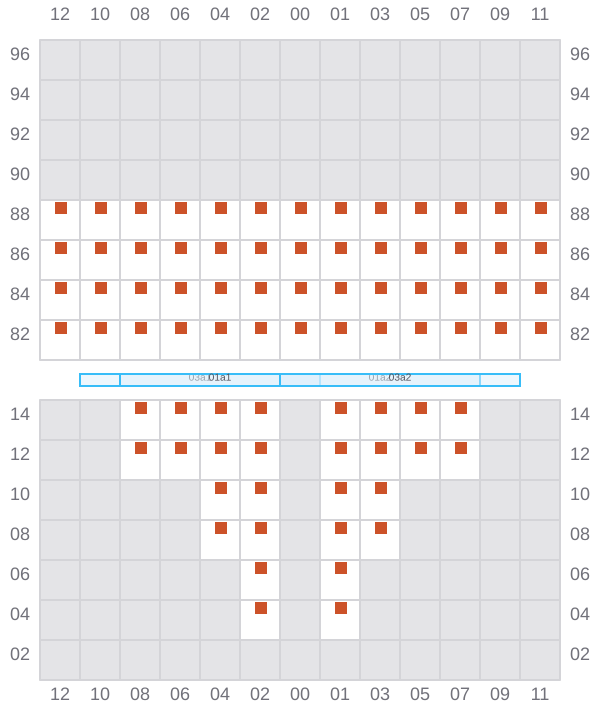

003
- ←
![Bay 003 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b003.png?v=1687543361102)

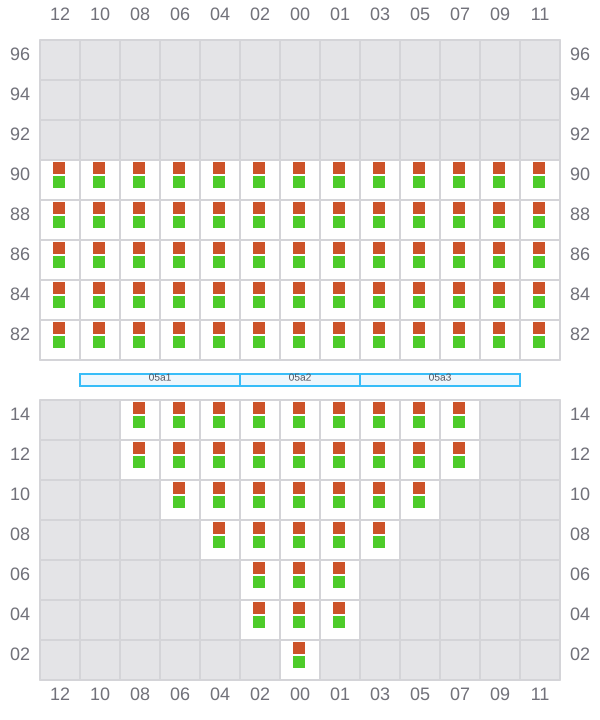

005 (006)
- →
![Bay 005 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b005.png?v=1687543361102)

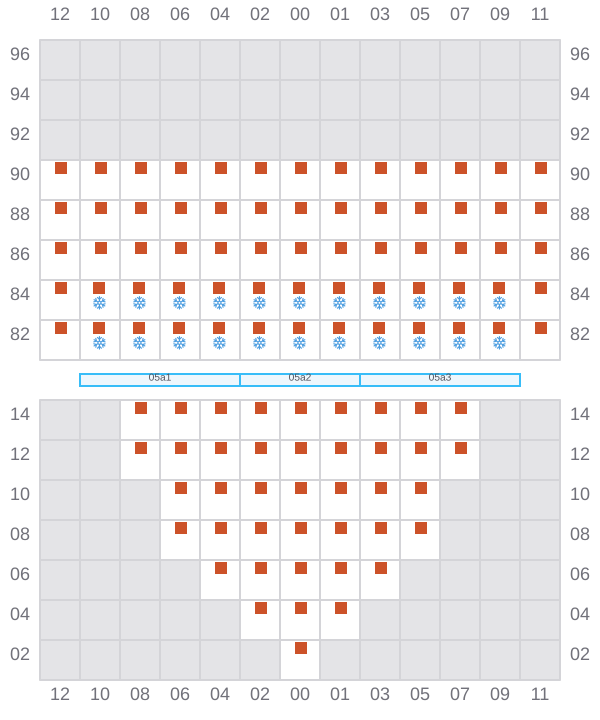

007
- ←
- → / ?
![Bay 007 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b007.png?v=1687543361102)

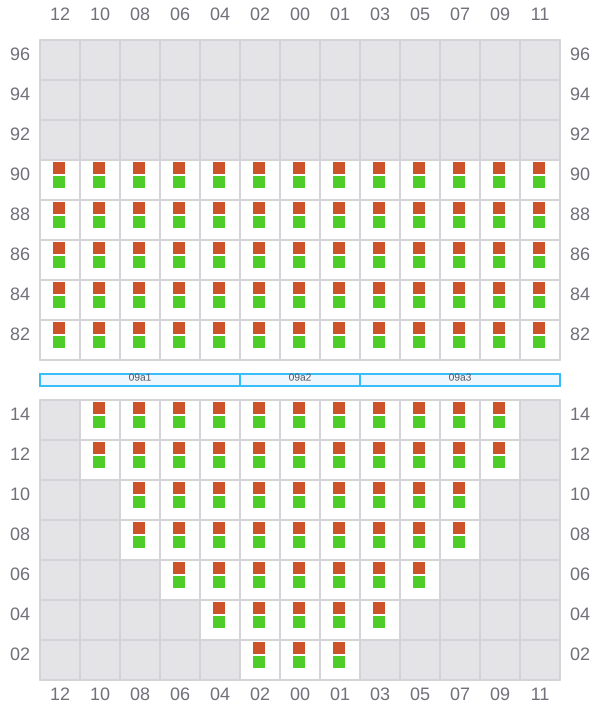

009 (010)
- →
![Bay 009 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b009.png?v=1687543361102)

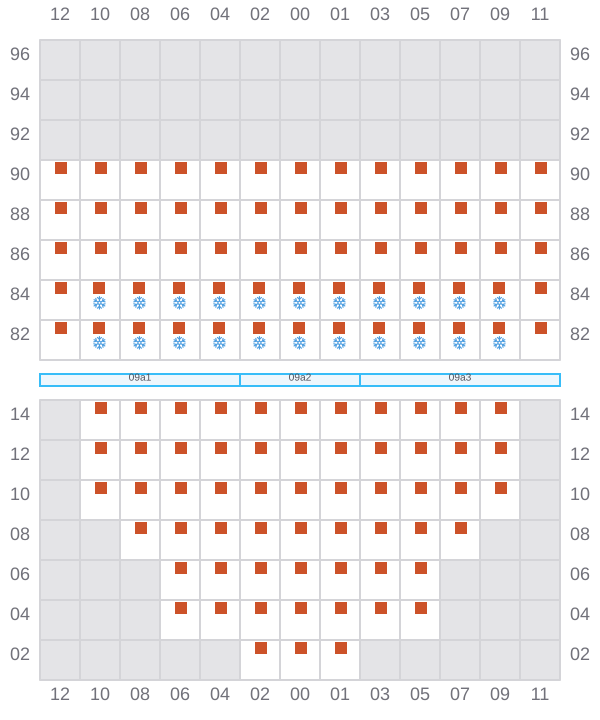

011
- ←
- → / ?
![Bay 011 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b011.png?v=1687543361102)

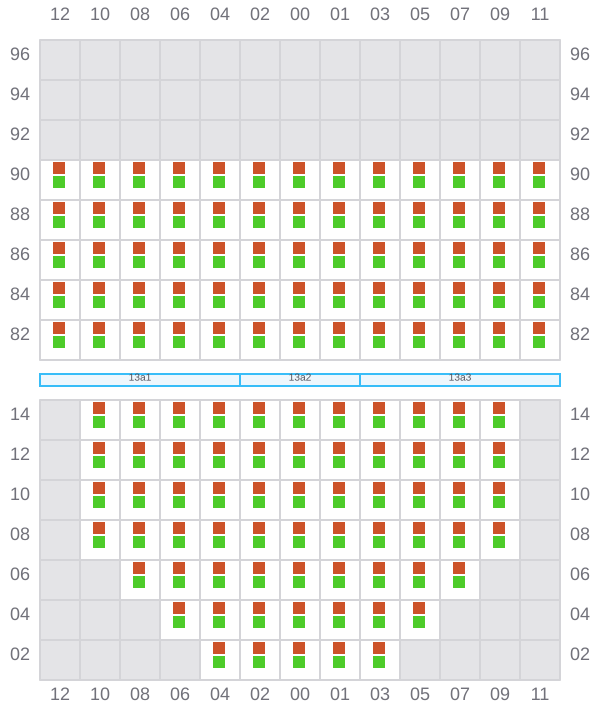

013 (014)
- →
![Bay 013 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b013.png?v=1687543361102)
015
- ←
- → / ?
![Bay 015 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b015.png?v=1687543361102)

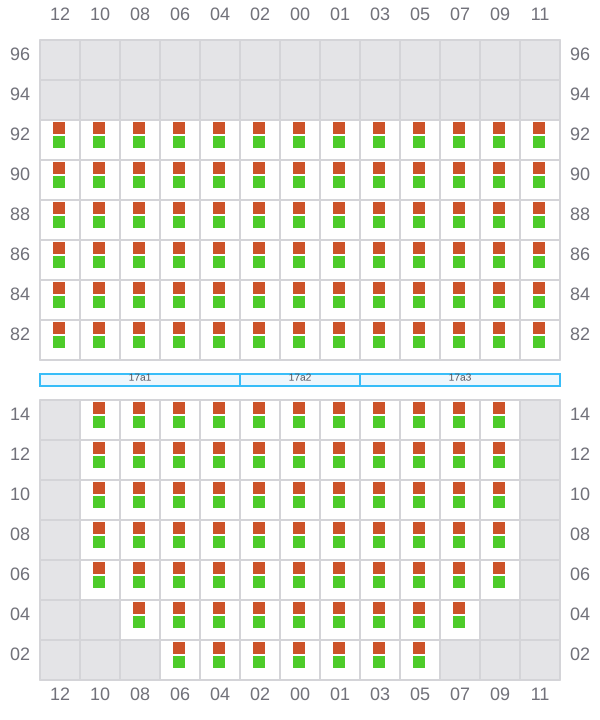

017 (018)
- →
![Bay 017 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b017.png?v=1687543361102)

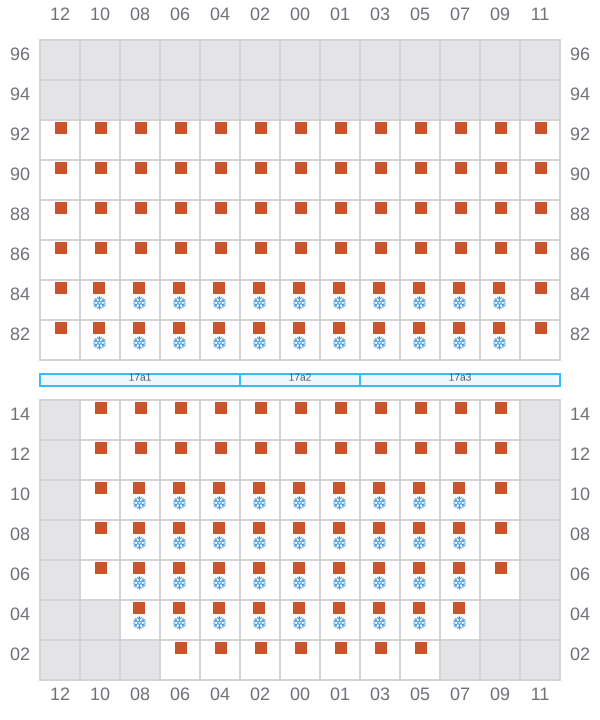

019
- ←
- →
![Bay 019 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b019.png?v=1687543361102)
021 (022)
- →
![Bay 021 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b021.png?v=1687543361102)
023
- ←
- → / ?
![Bay 023 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b023.png?v=1687543361102)

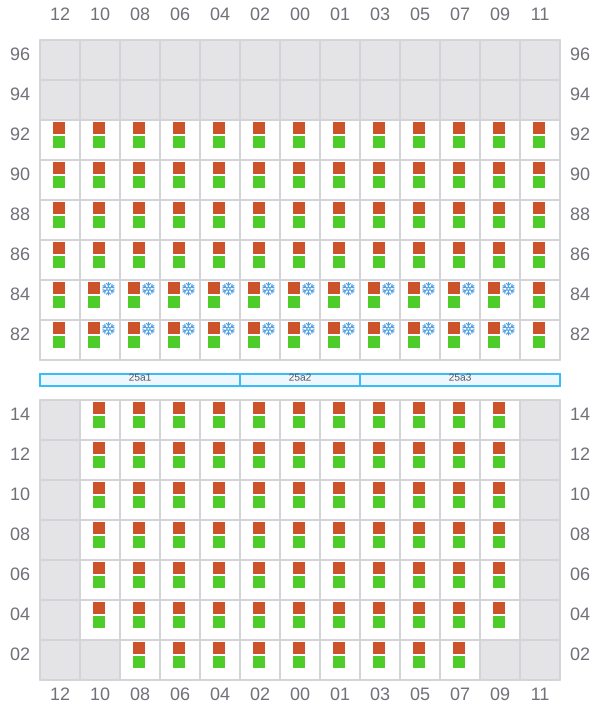

025 (026)
- →
- ← / ?
![Bay 025 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b025.png?v=1687543361102)

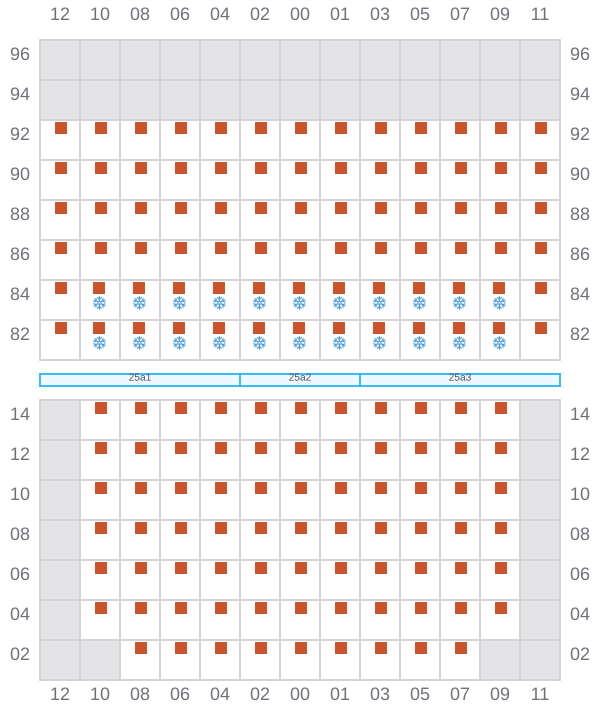

027
- ←
- → / ?
![Bay 027 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b027.png?v=1687543361102)
029 (030)
- →
- ← / ?
![Bay 029 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b029.png?v=1687543361102)

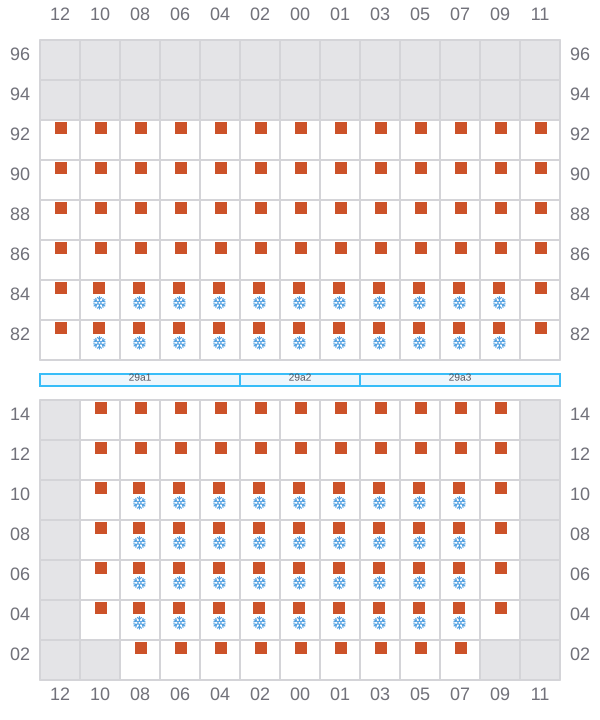

031
- ←
- →
![Bay 031 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b031.png?v=1687543361102)
033 (034)
- →
- ← / ?
![Bay 033 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b033.png?v=1687543361102)

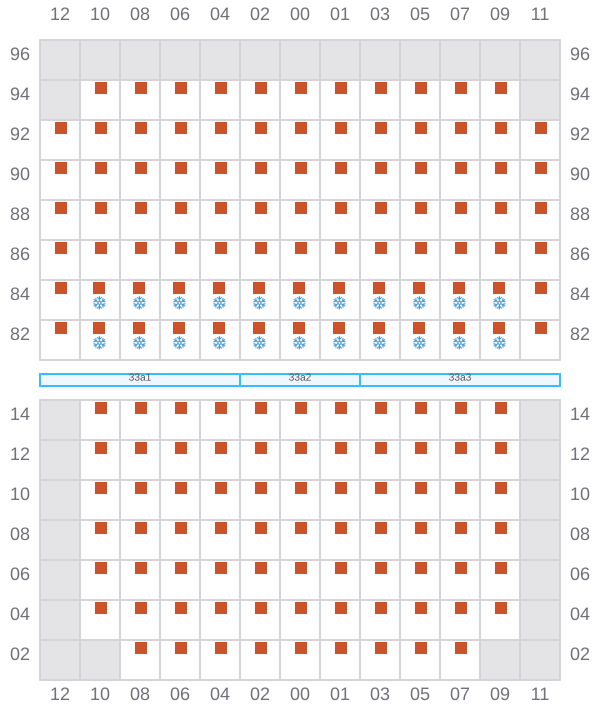

035
- ←
- → / ?
![Bay 035 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b035.png?v=1687543361102)

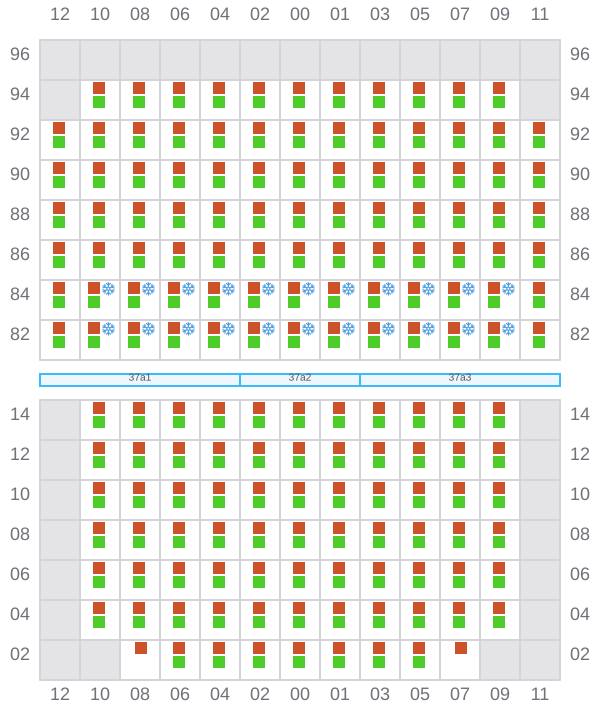

037 (038)
- →
- ← / ?
![Bay 037 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b037.png?v=1687543361102)

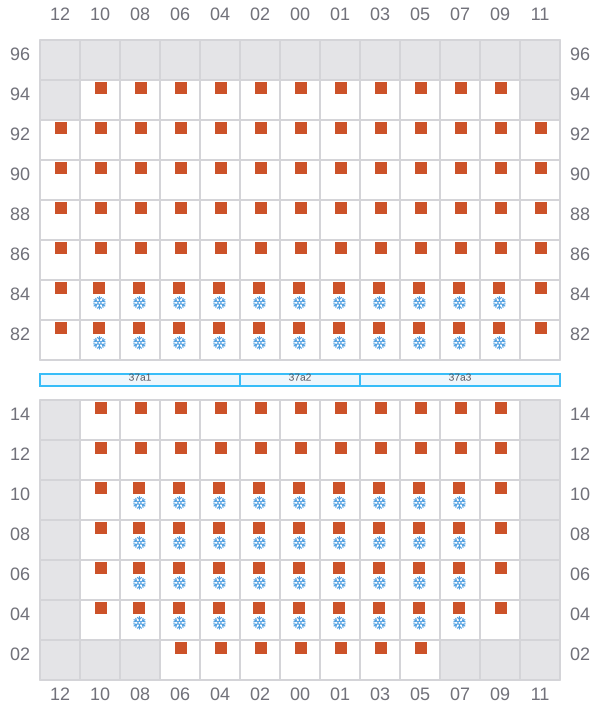

039
- ←
- →
![Bay 039 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b039.png?v=1687543361102)

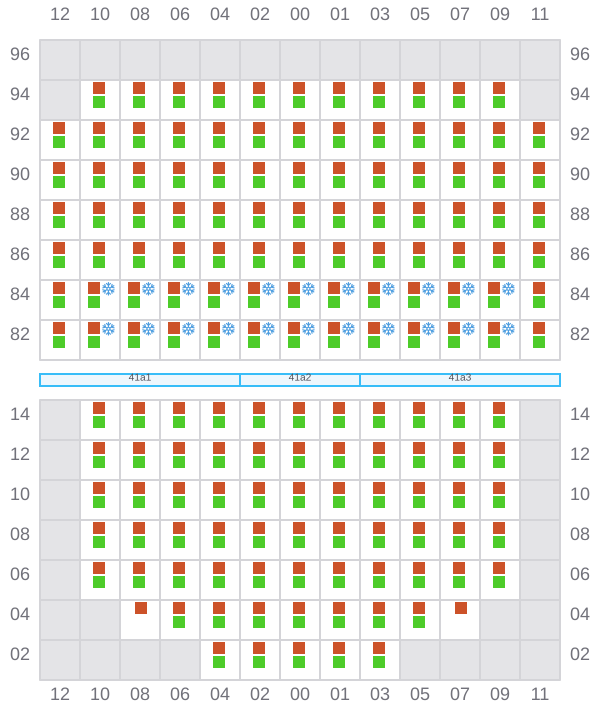

041 (042)
- →
- ← / ?
![Bay 041 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b041.png?v=1687543361102)

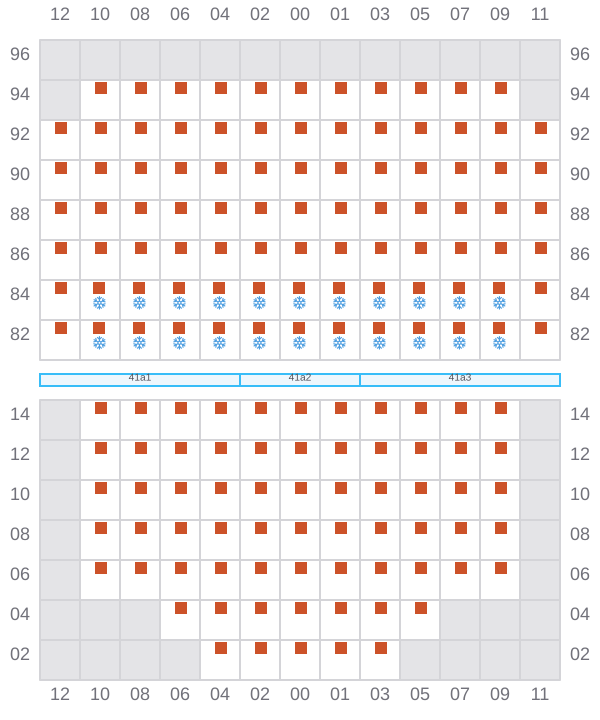

043
- ←
- → / ?
![Bay 043 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b043.png?v=1687543361102)

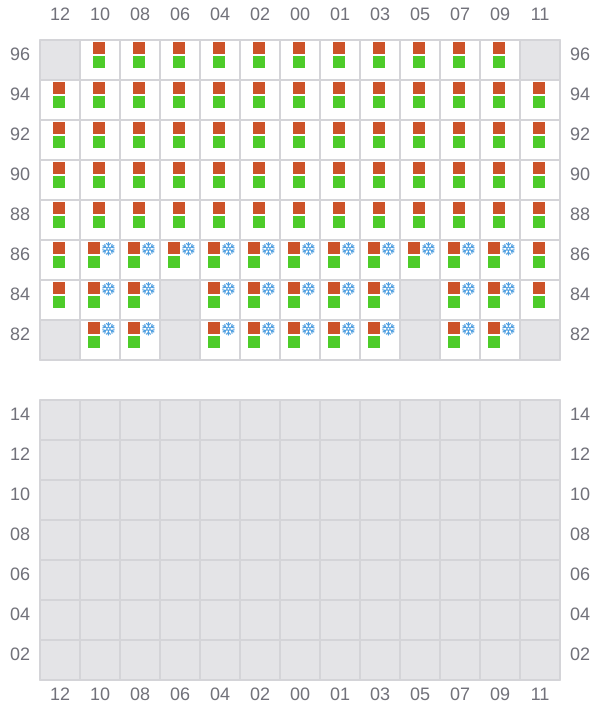

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b045.png?v=1687543361102)

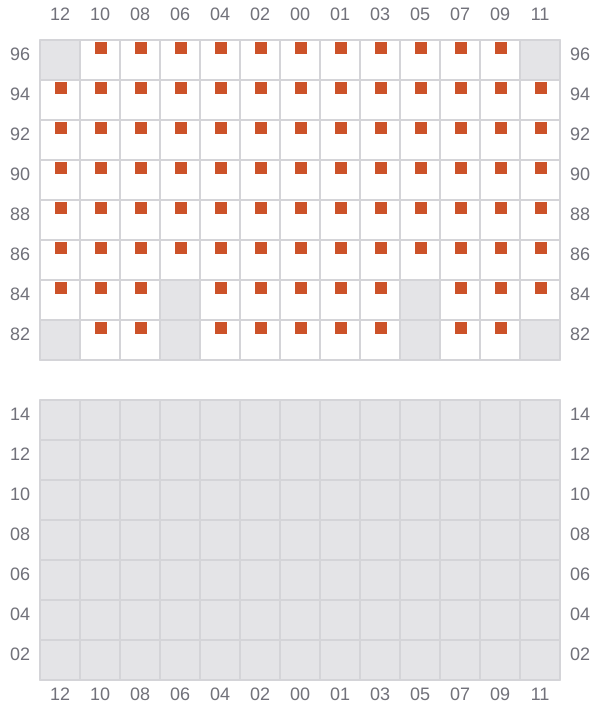

047
- ← / ?
![Bay 047 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b047.png?v=1687543361102)

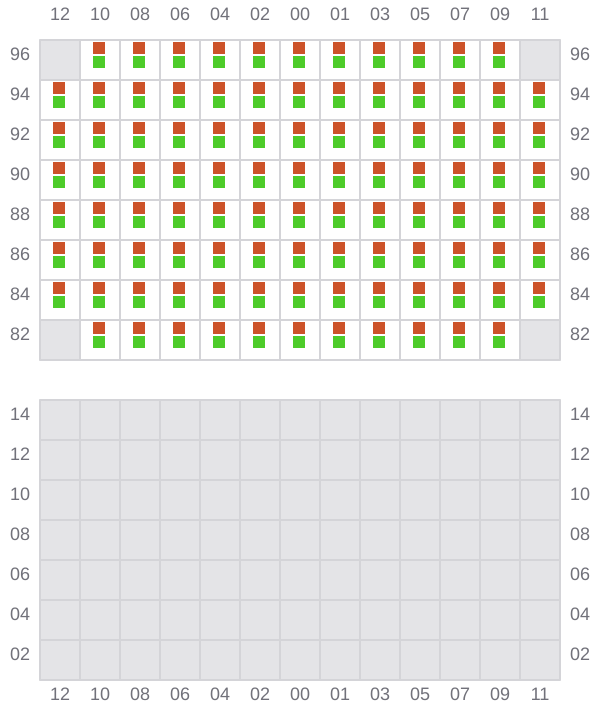

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b049.png?v=1687543361102)

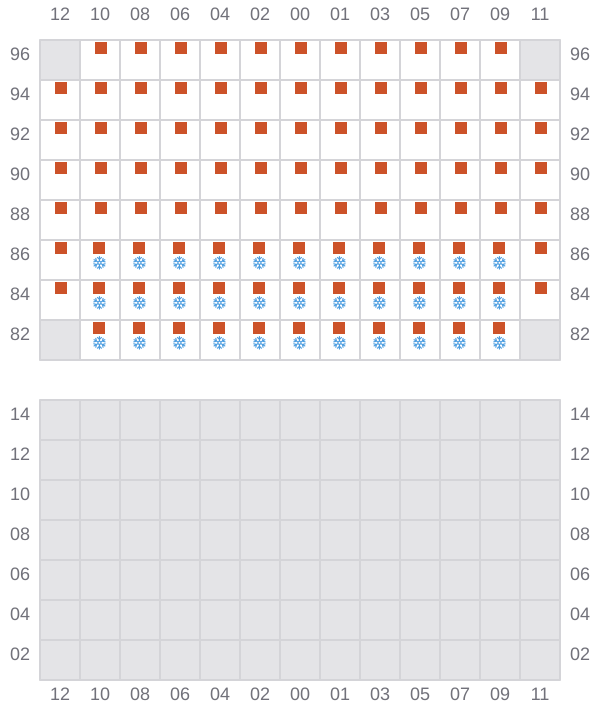

051
- ← / ?
- → / ?
![Bay 051 view and slots of BURGUNDY](/vessel-images/3c26676d-1421-4fea-91d1-fa24a772369c-b051.png?v=1687543361102)
