BUXCOAST
9221827 | CQEB | MSC by ************************** Last update: Wed Jun 14 2023

General Info

Ship Name:BUXCOAST
IMO Code:9221827
Call Sign:CQEB
Line Operator:MSC
Class Name for Sister Ships:BCC
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,478

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of BUXCOAST

Hatch-Covers View

Deck view of BUXCOAST

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

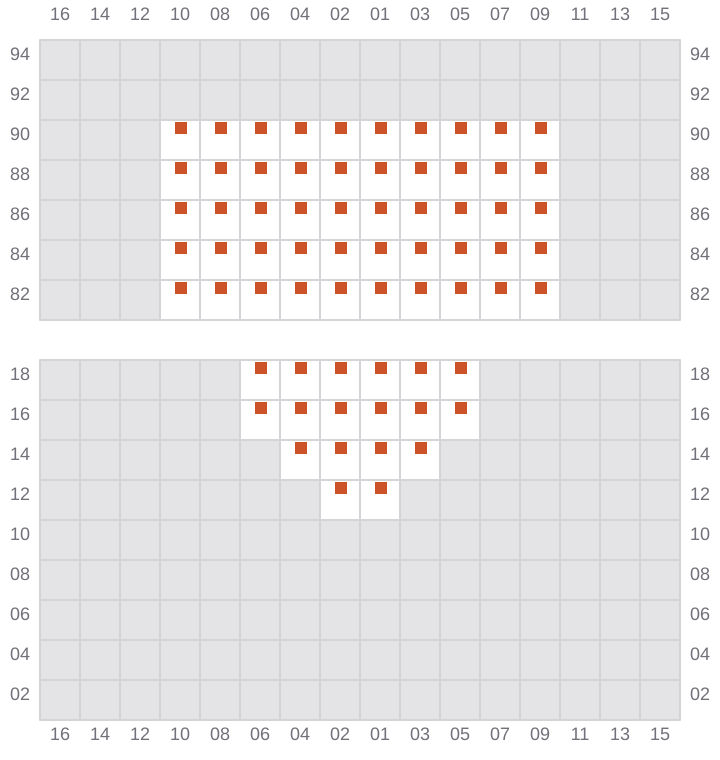

001

Bay 001 view and slots of BUXCOAST

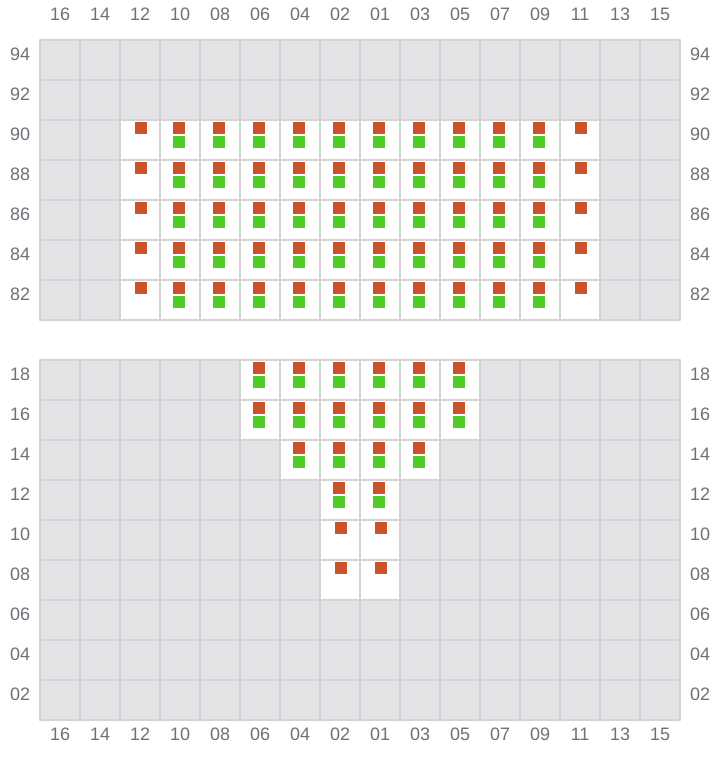

003 (002)

Bay 003 view and slots of BUXCOAST

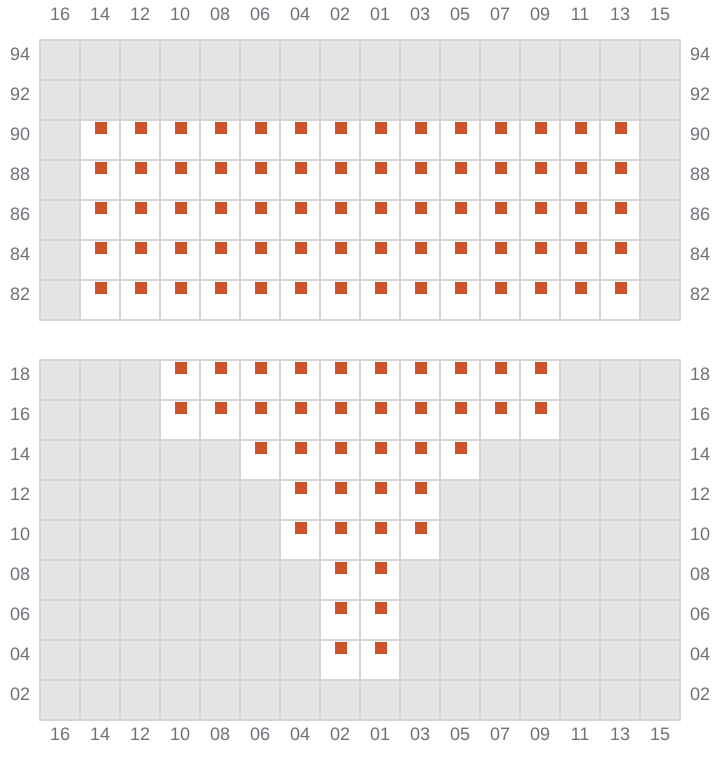

005

Bay 005 view and slots of BUXCOAST

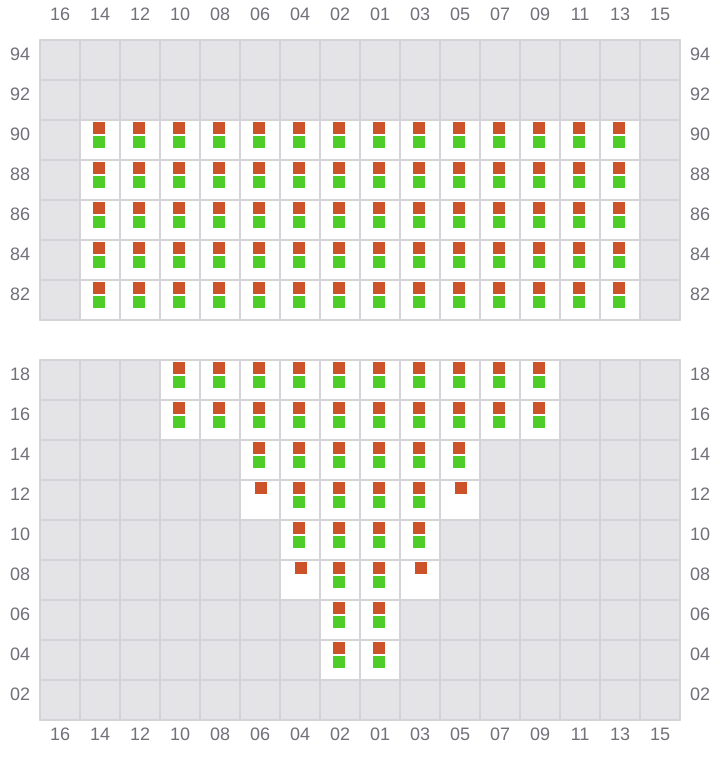

007 (006)

Bay 007 view and slots of BUXCOAST

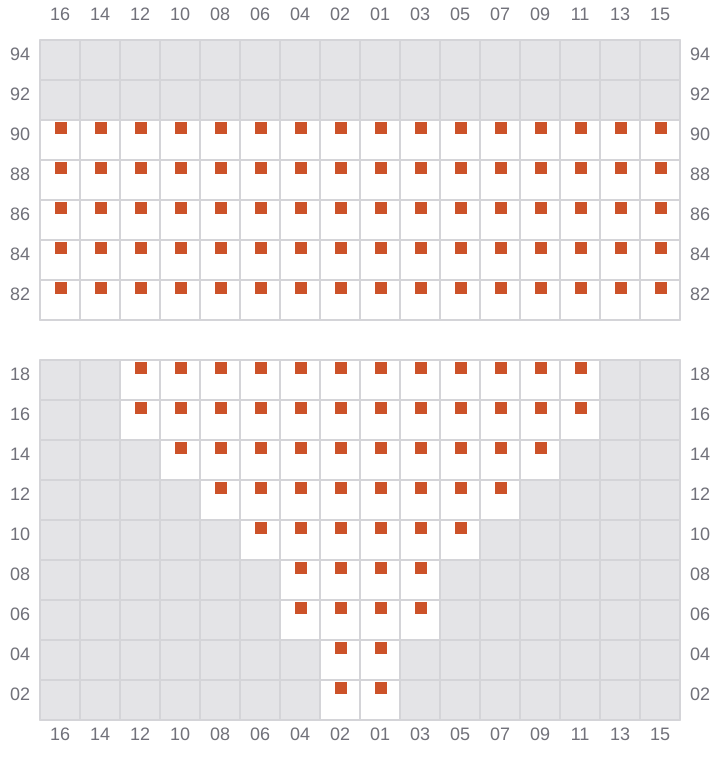

009

Bay 009 view and slots of BUXCOAST

011 (010)

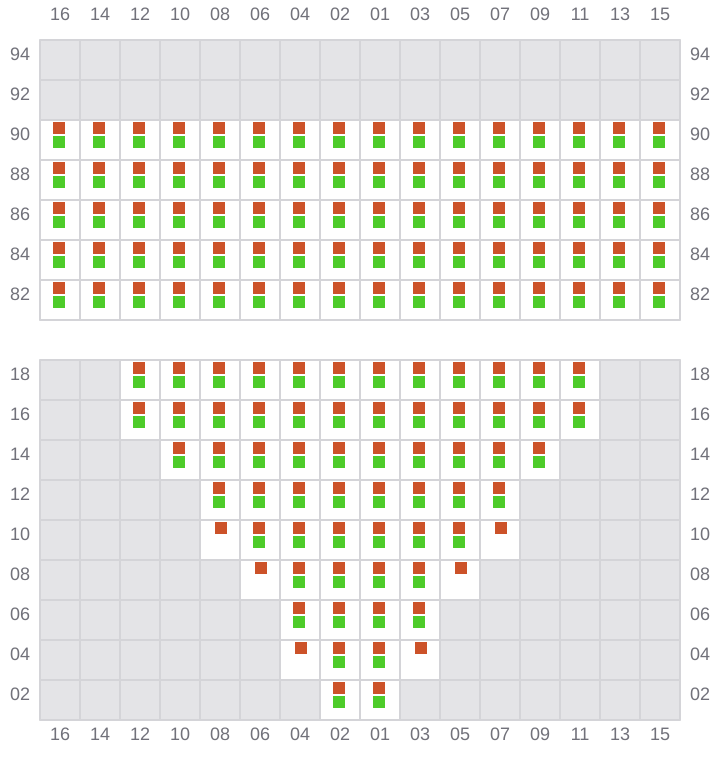

Bay 011 view and slots of BUXCOAST

013

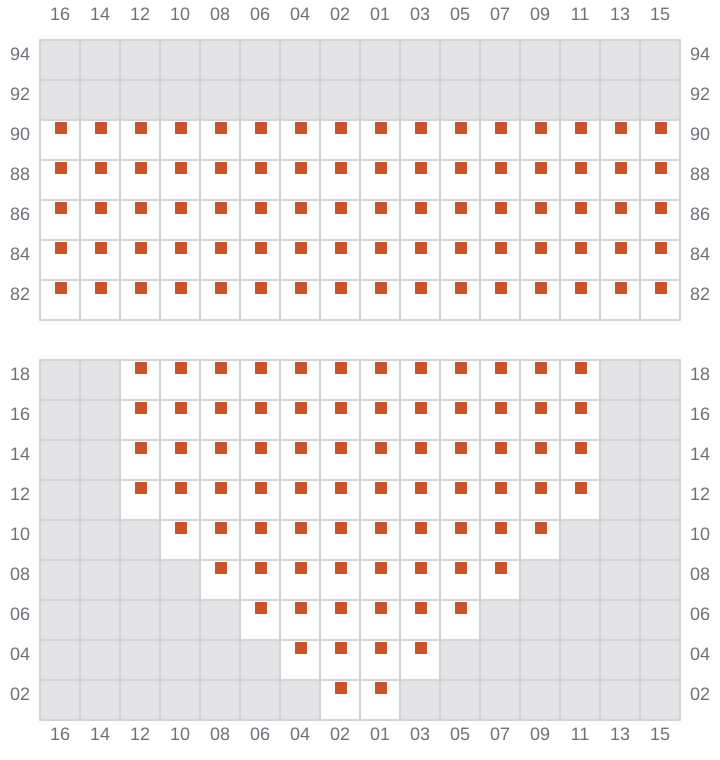

Bay 013 view and slots of BUXCOAST

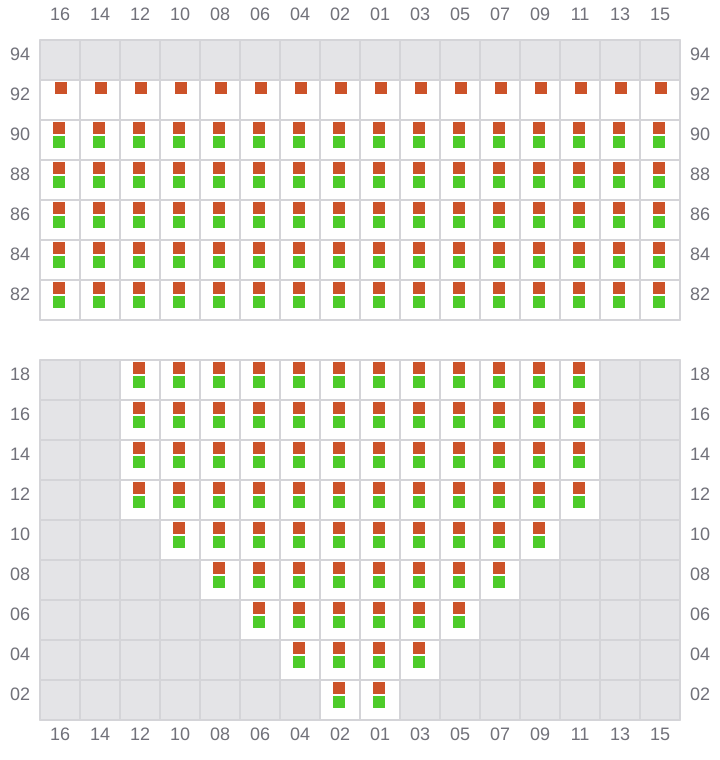

015 (014)

Bay 015 view and slots of BUXCOAST

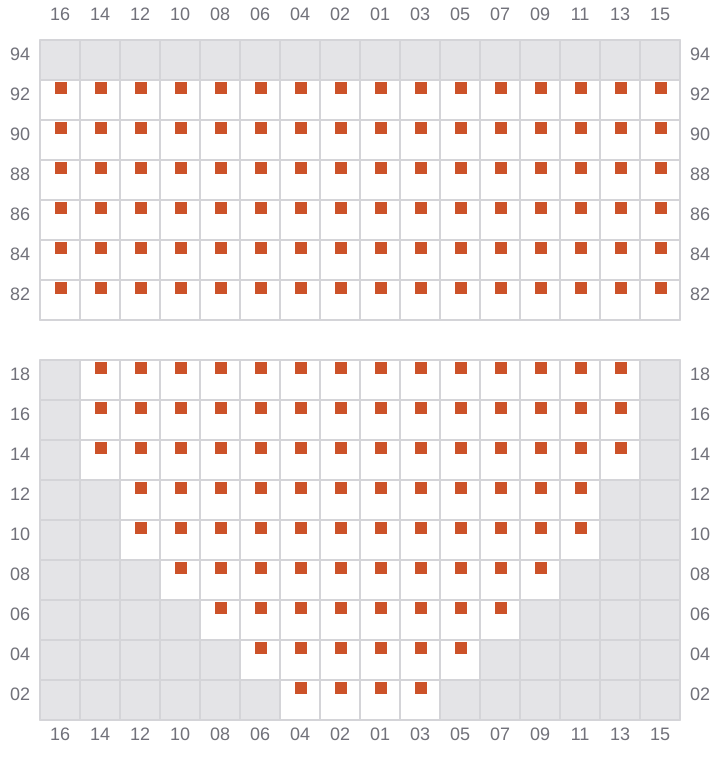

017

Bay 017 view and slots of BUXCOAST

019 (018)

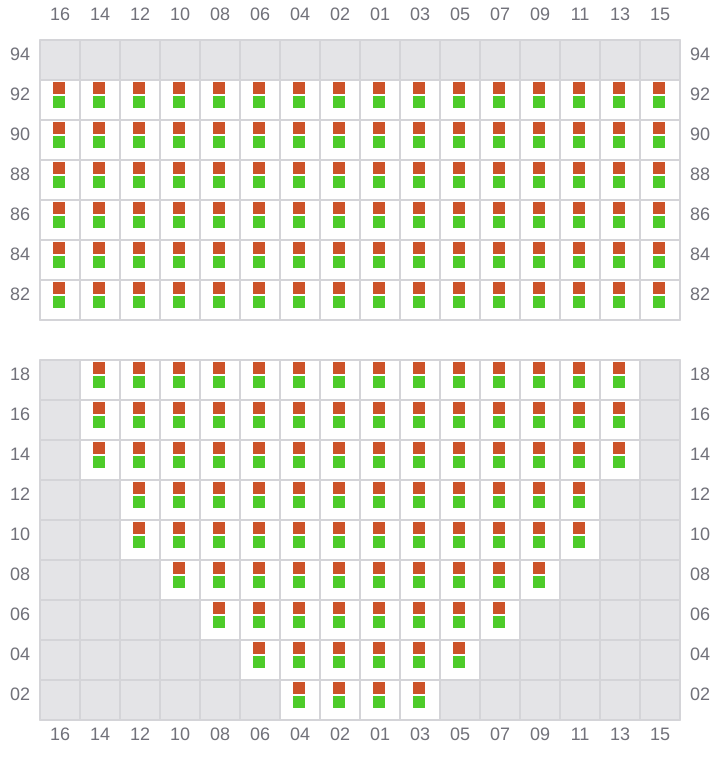

Bay 019 view and slots of BUXCOAST

021

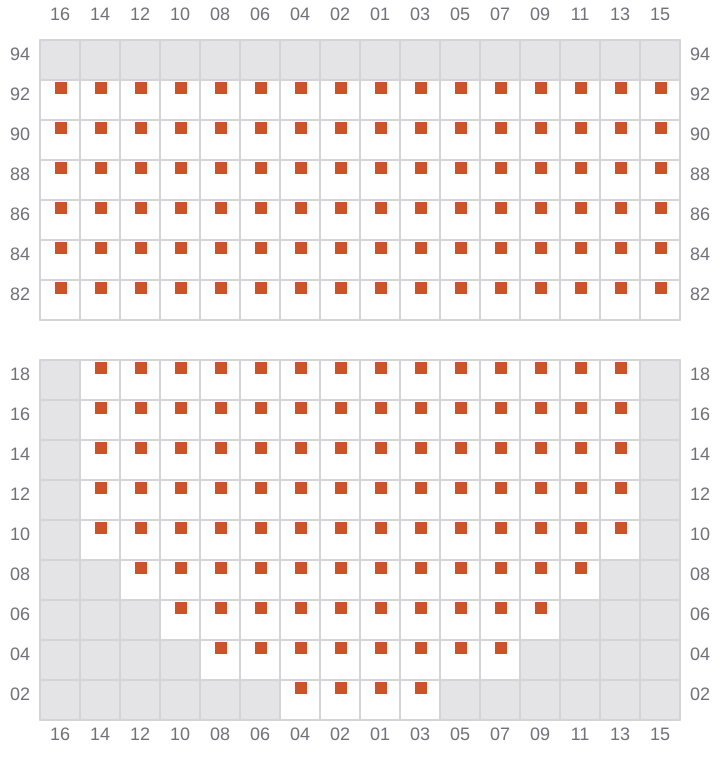

Bay 021 view and slots of BUXCOAST

023 (022)

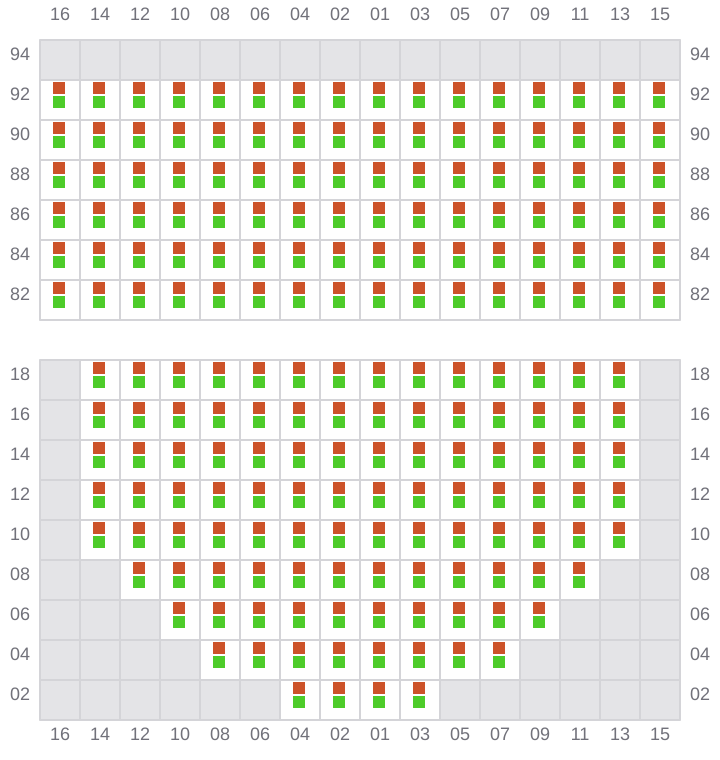

Bay 023 view and slots of BUXCOAST

025

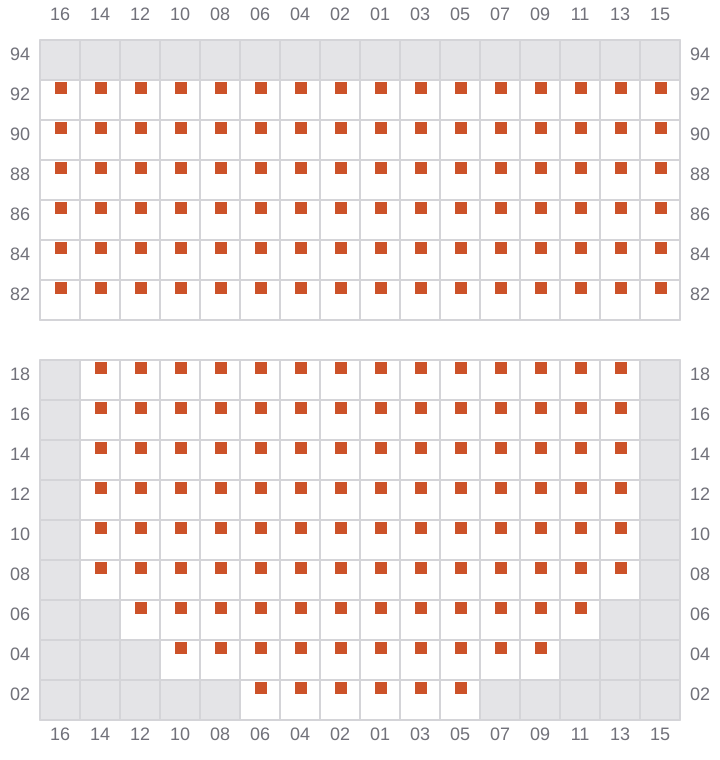

Bay 025 view and slots of BUXCOAST

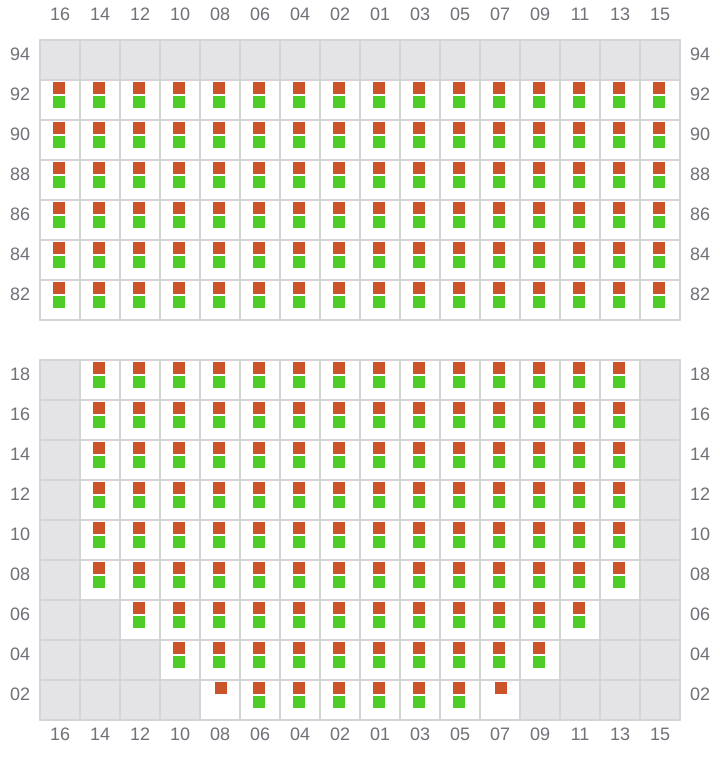

027 (026)

Bay 027 view and slots of BUXCOAST

029

Bay 029 view and slots of BUXCOAST

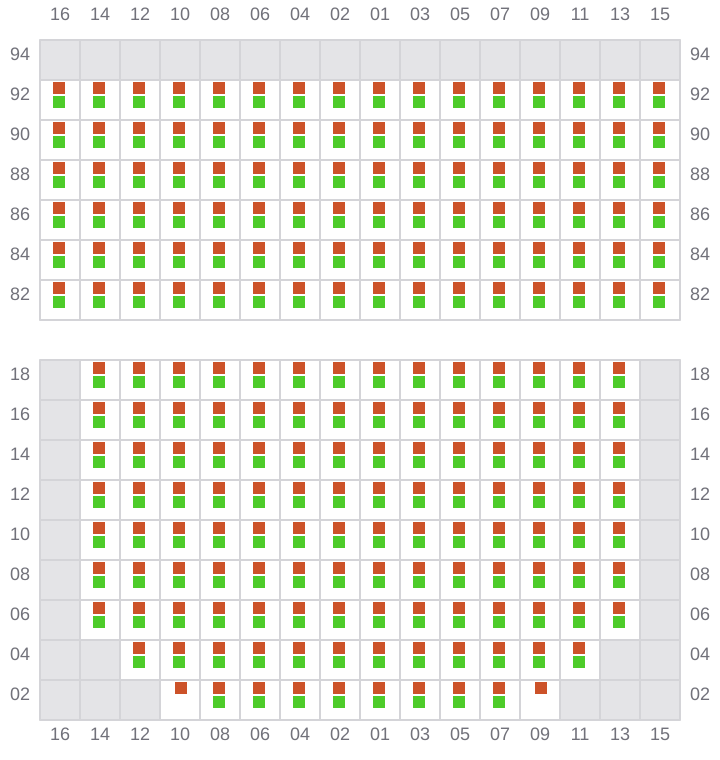

031 (030)

Bay 031 view and slots of BUXCOAST

033

Bay 033 view and slots of BUXCOAST

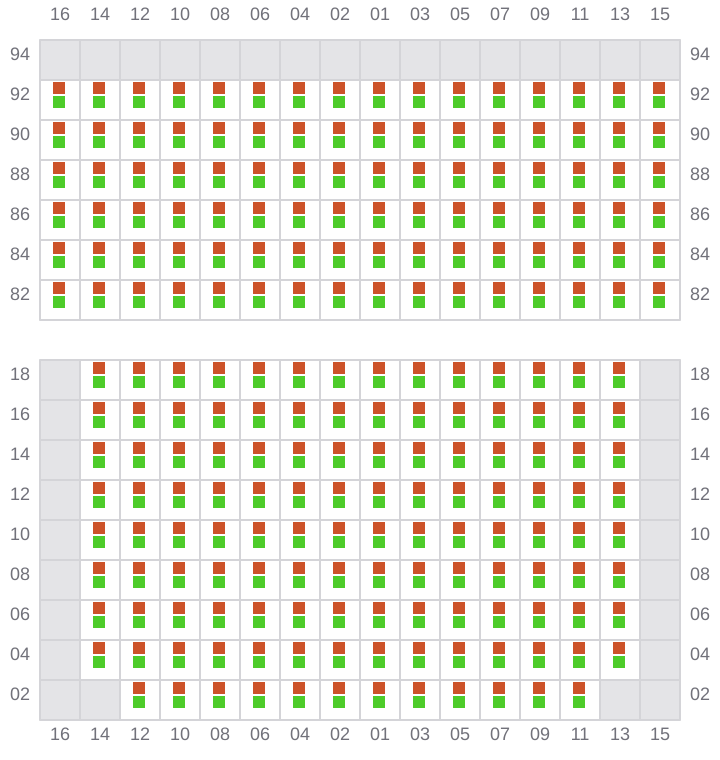

035 (034)

Bay 035 view and slots of BUXCOAST

037

Bay 037 view and slots of BUXCOAST

039 (038)

Bay 039 view and slots of BUXCOAST

041

Bay 041 view and slots of BUXCOAST

043 (042)

Bay 043 view and slots of BUXCOAST

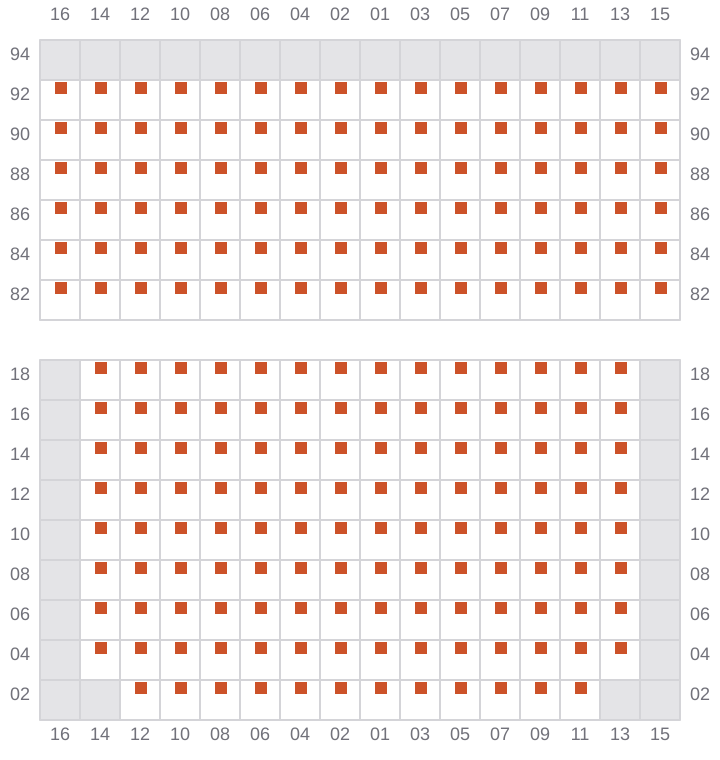

045

Bay 045 view and slots of BUXCOAST

047 (046)

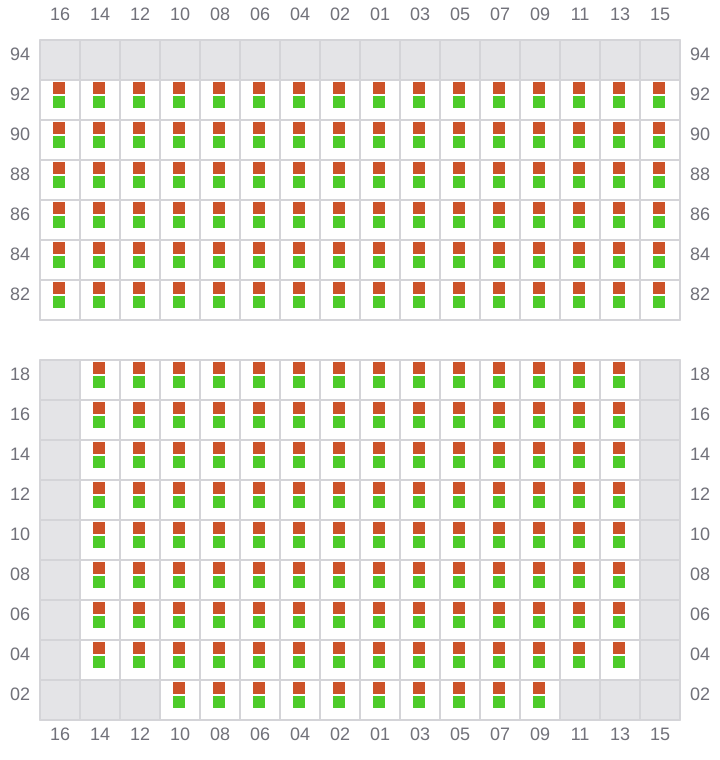

Bay 047 view and slots of BUXCOAST

049

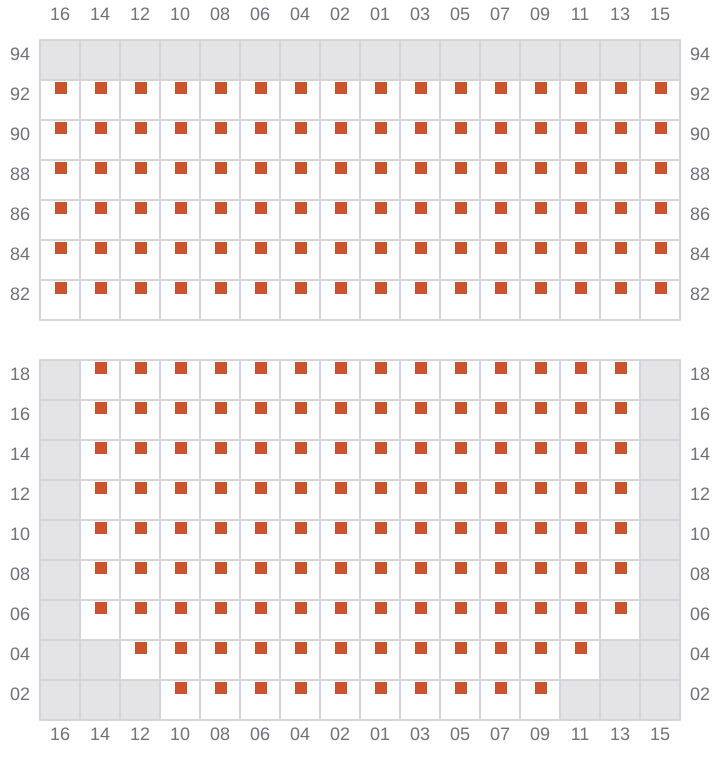

Bay 049 view and slots of BUXCOAST

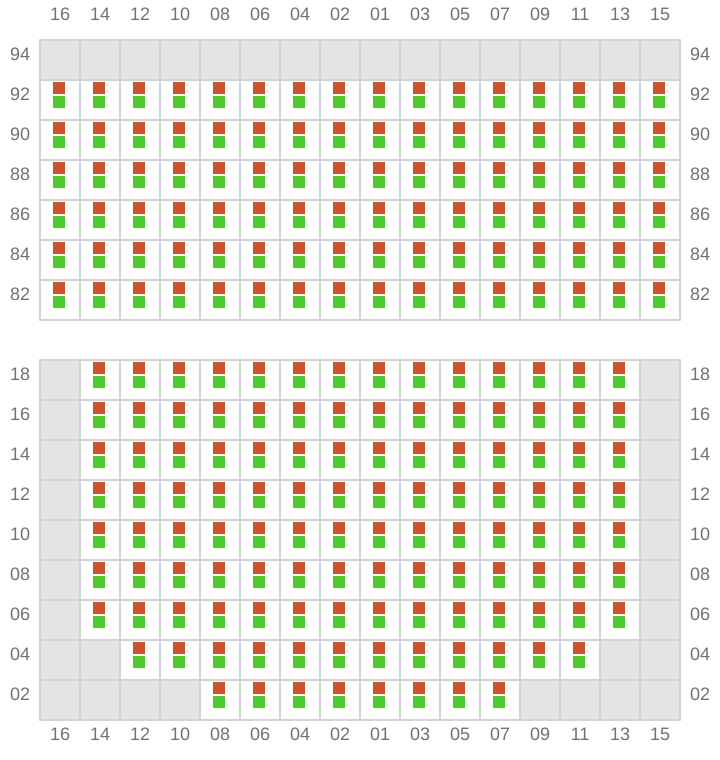

051 (050)

Bay 051 view and slots of BUXCOAST

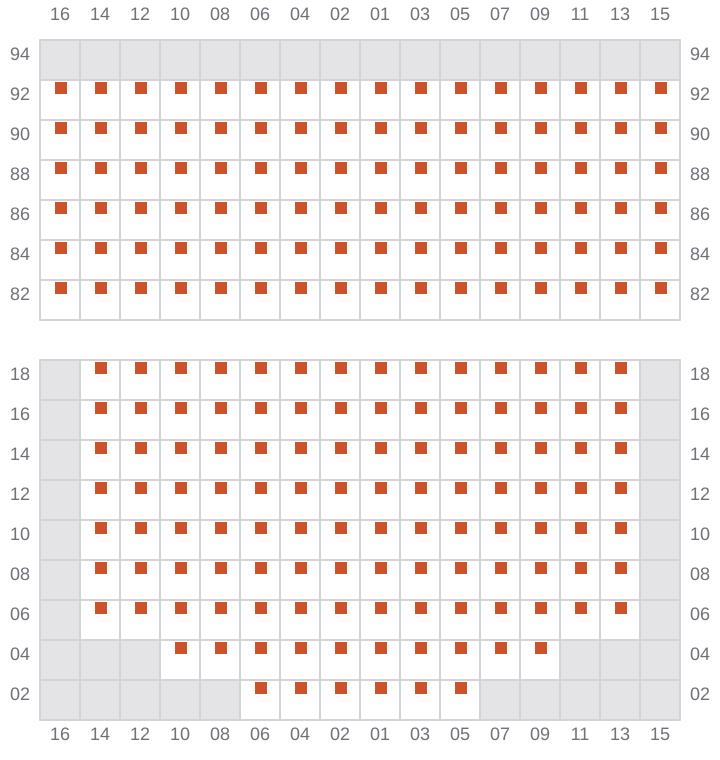

053

Bay 053 view and slots of BUXCOAST

055 (054)

Bay 055 view and slots of BUXCOAST

057

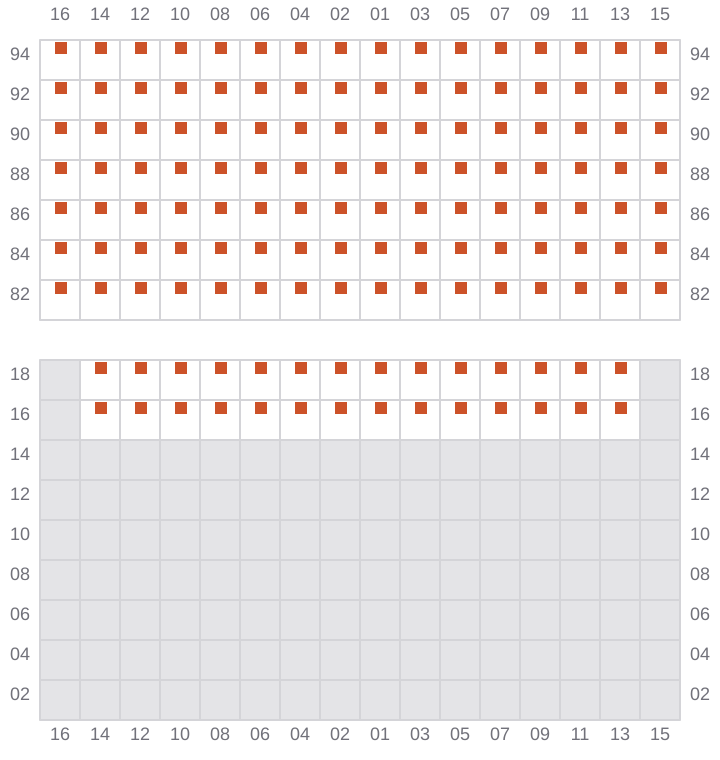

Bay 057 view and slots of BUXCOAST

059 (058)

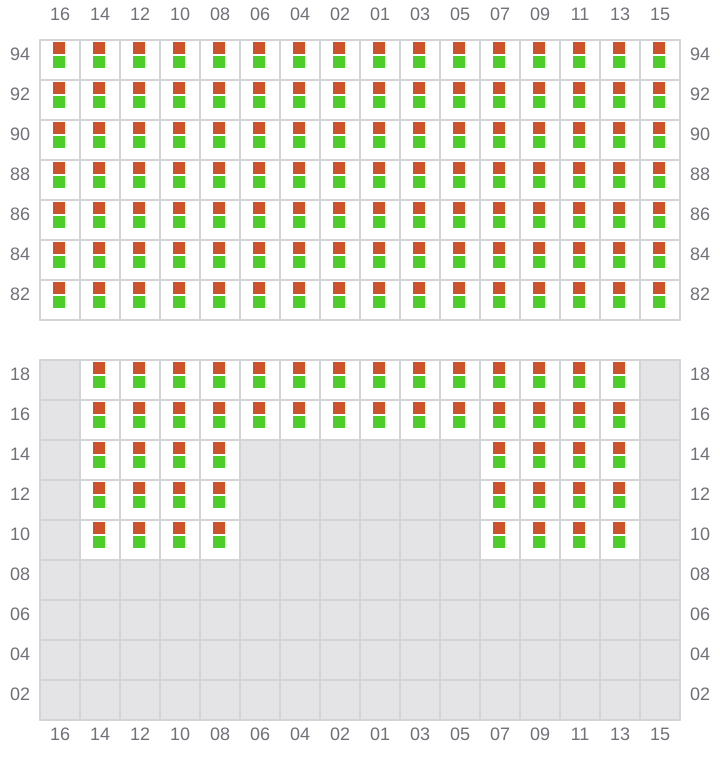

Bay 059 view and slots of BUXCOAST

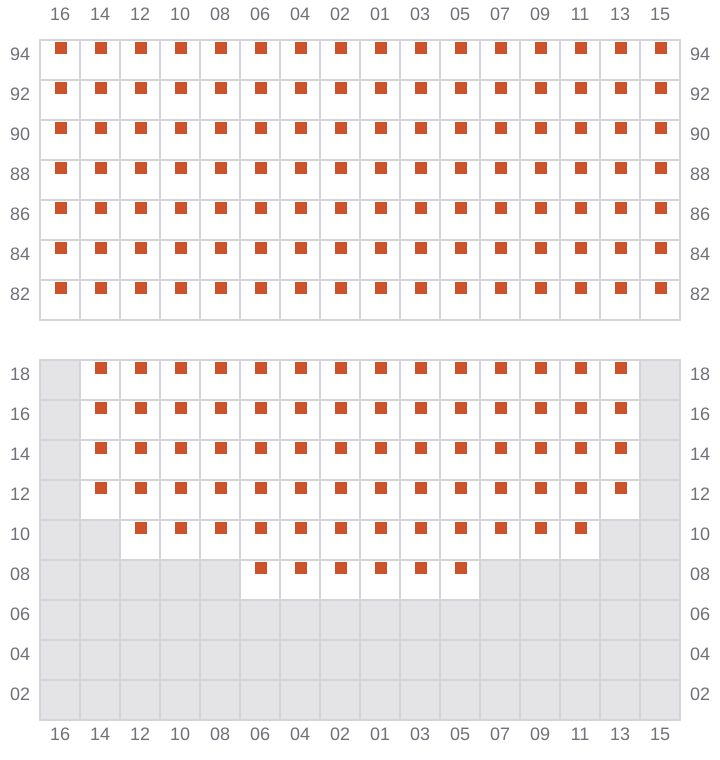

061

Bay 061 view and slots of BUXCOAST

063 (062)

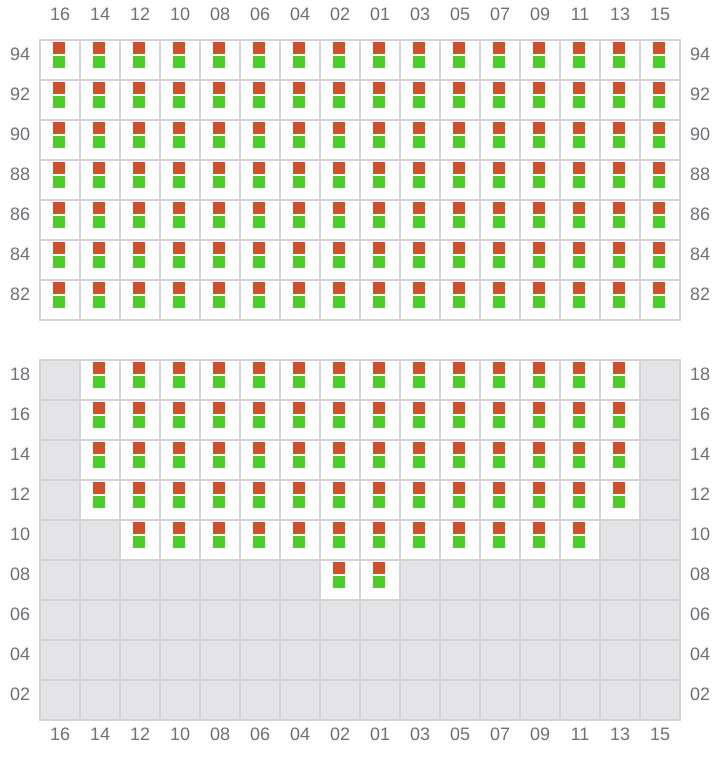

Bay 063 view and slots of BUXCOAST

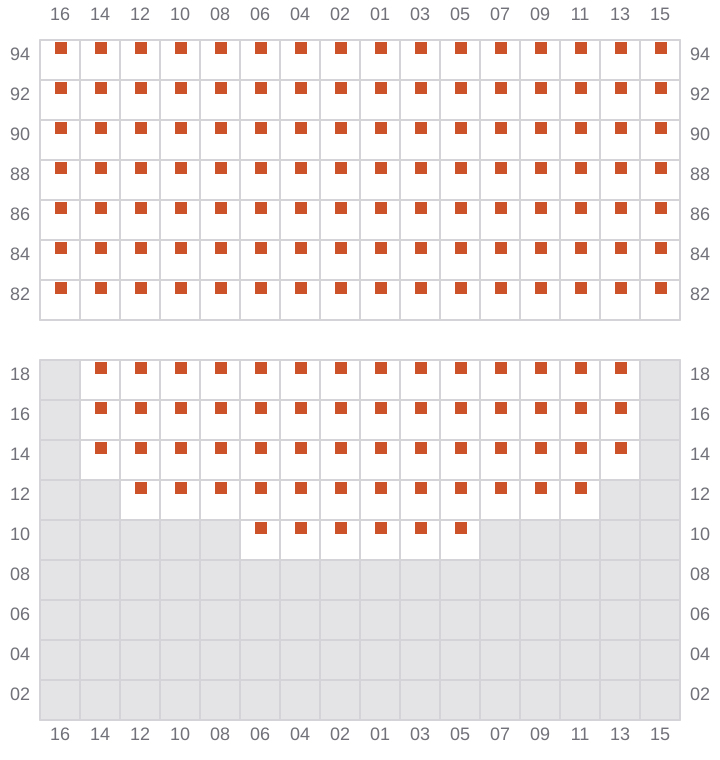

065

Bay 065 view and slots of BUXCOAST

067 (066)

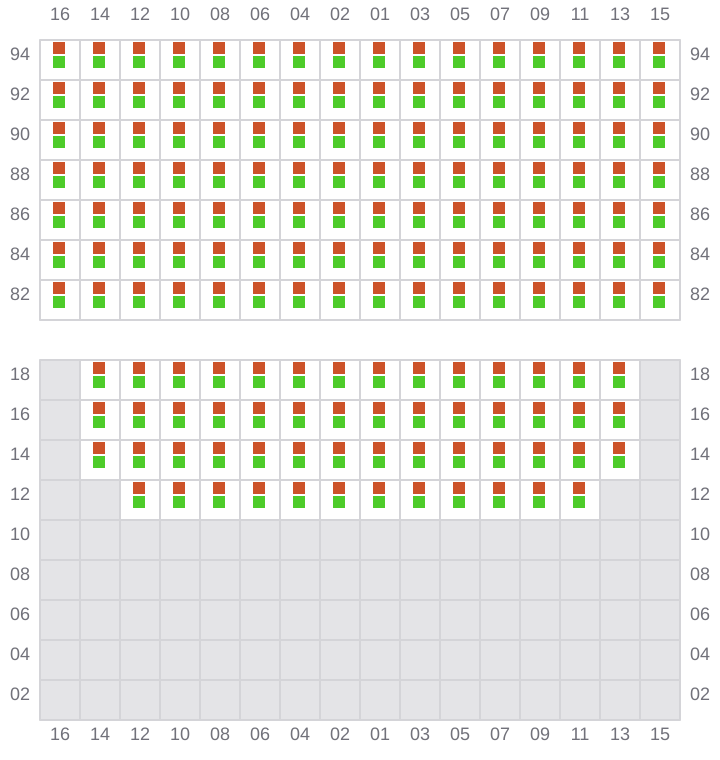

Bay 067 view and slots of BUXCOAST

069

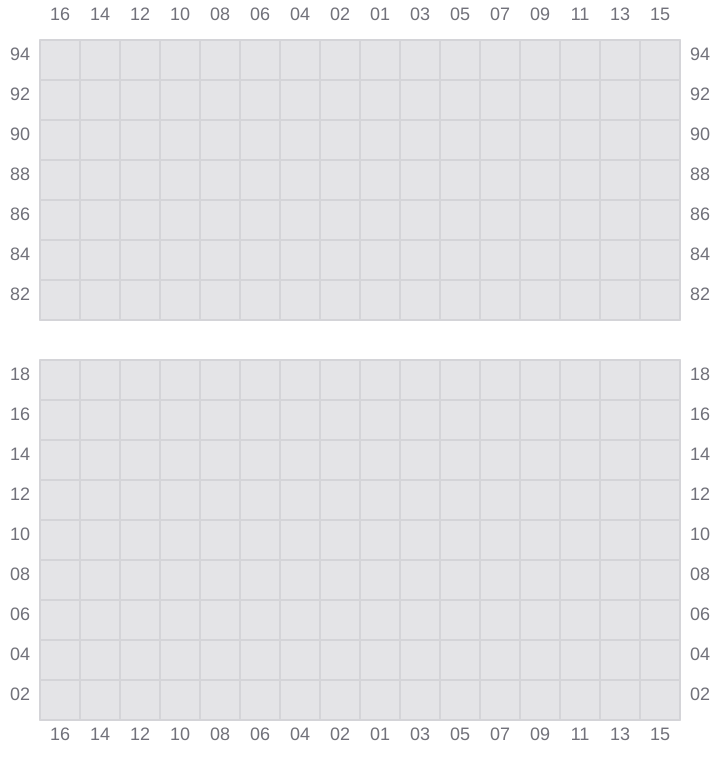

Bay 069 view and slots of BUXCOAST

071 (070)

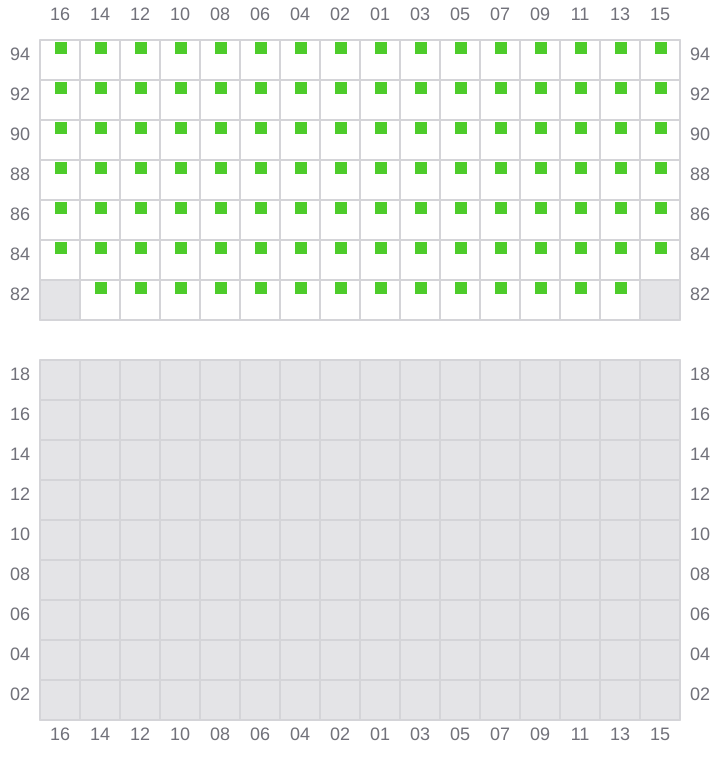

Bay 071 view and slots of BUXCOAST
