BUXLINK
9235816 | A8SW3 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:BUXLINK
IMO Code:9235816
Call Sign:A8SW3
Line Operator:MSK
Class Name for Sister Ships:BUL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,480
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

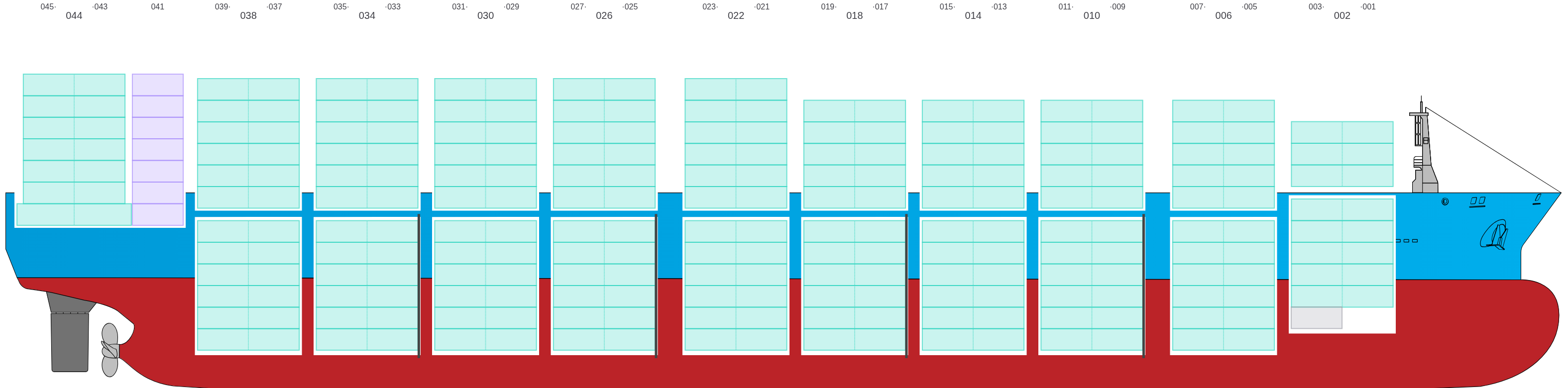

Side View
![Side view of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-sideView.png?v=1687562821097)
Hatch-Covers View
![Deck view of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-deckView.png?v=1687562821097)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

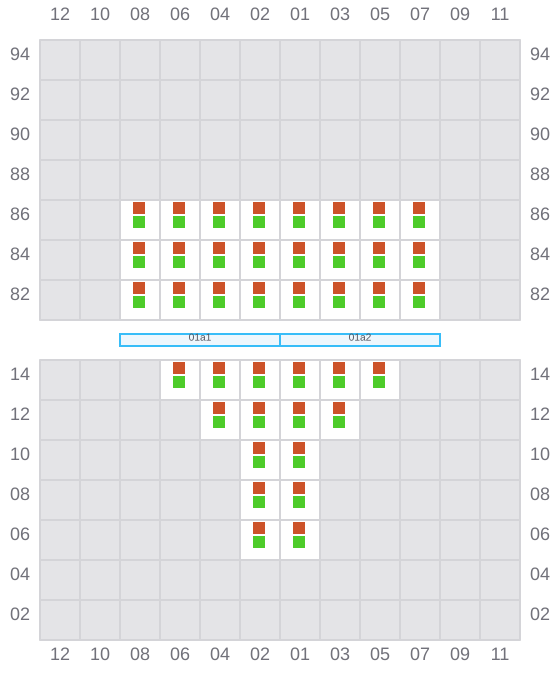

001 (002)
- →
- →
![Bay 001 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b001.png?v=1687562821097)

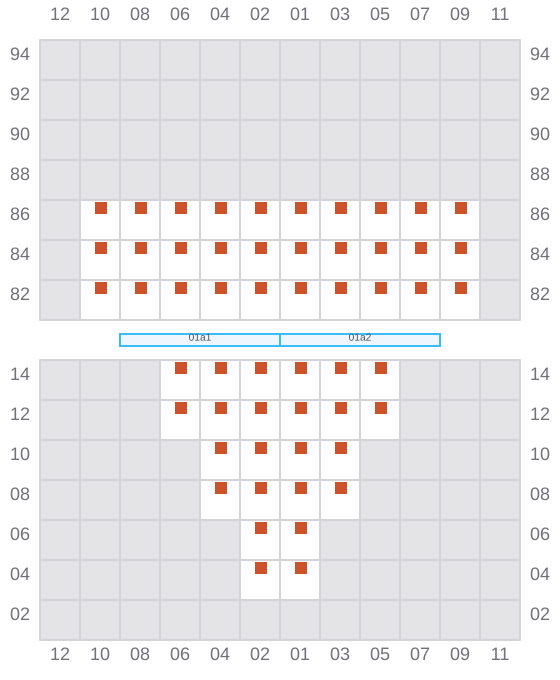

003
- ←
- →
![Bay 003 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b003.png?v=1687562821097)
005 (006)
- →
- →
![Bay 005 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b005.png?v=1687562821097)
007
- ←
- → / ?
- →
![Bay 007 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b007.png?v=1687562821097)

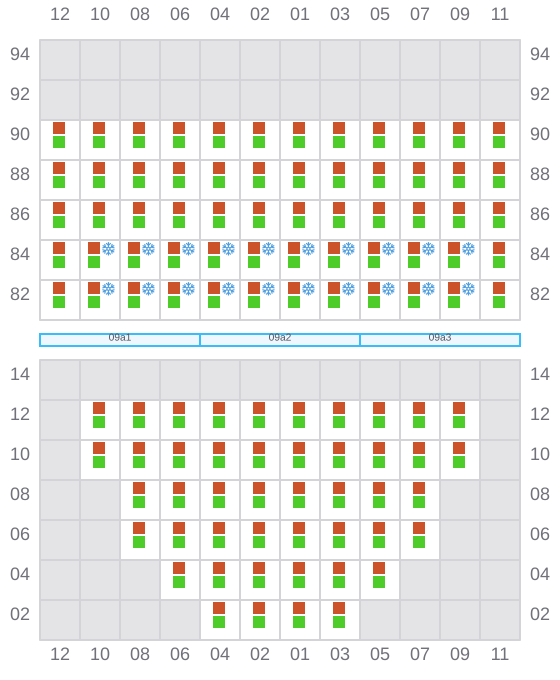

009 (010)
- →
- ← / ?
- →
![Bay 009 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b009.png?v=1687562821097)

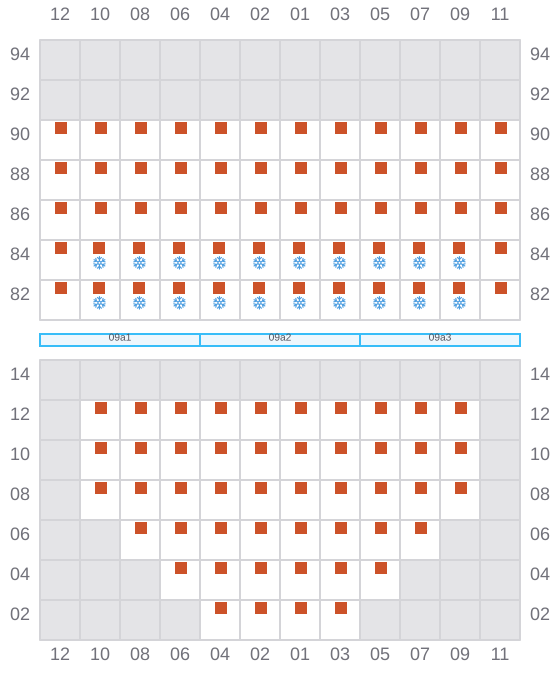

011
- ←
- → / ?
- →
![Bay 011 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b011.png?v=1687562821097)

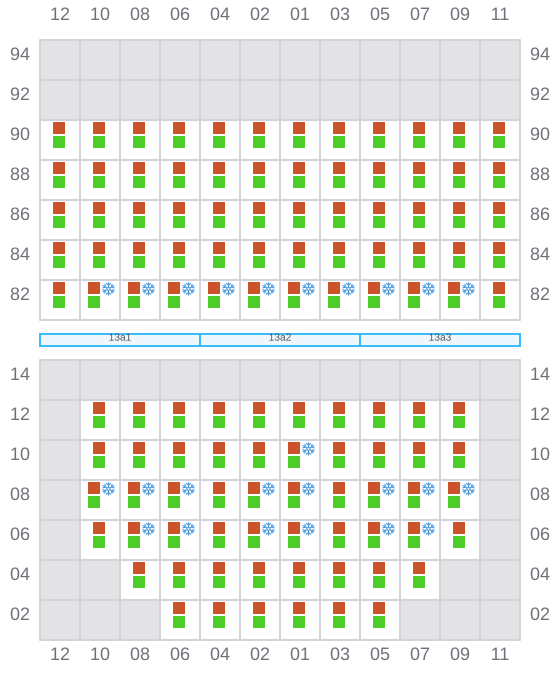

013 (014)
- →
- ←
- →
![Bay 013 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b013.png?v=1687562821097)
015
- ←
- → / ?
- →
![Bay 015 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b015.png?v=1687562821097)

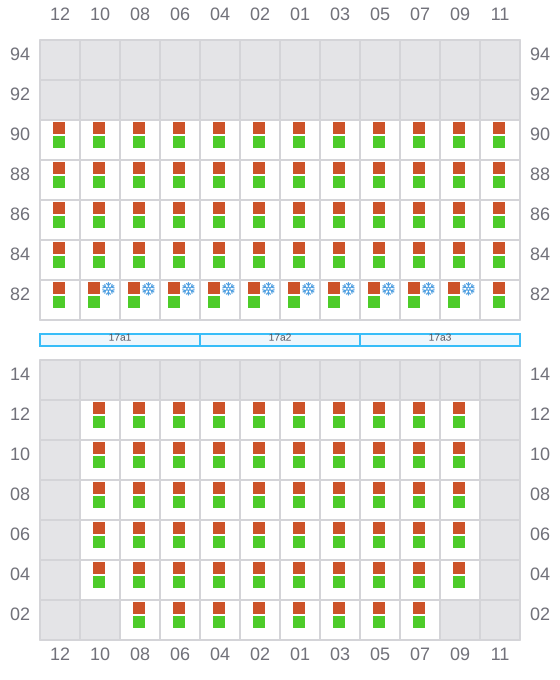

017 (018)
- →
- ← / ?
- →
![Bay 017 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b017.png?v=1687562821097)

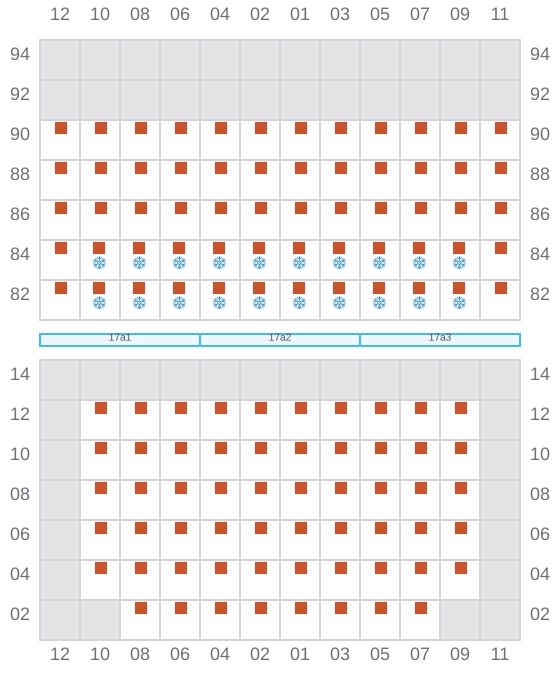

019
- ←
- → / ?
- →
![Bay 019 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b019.png?v=1687562821097)

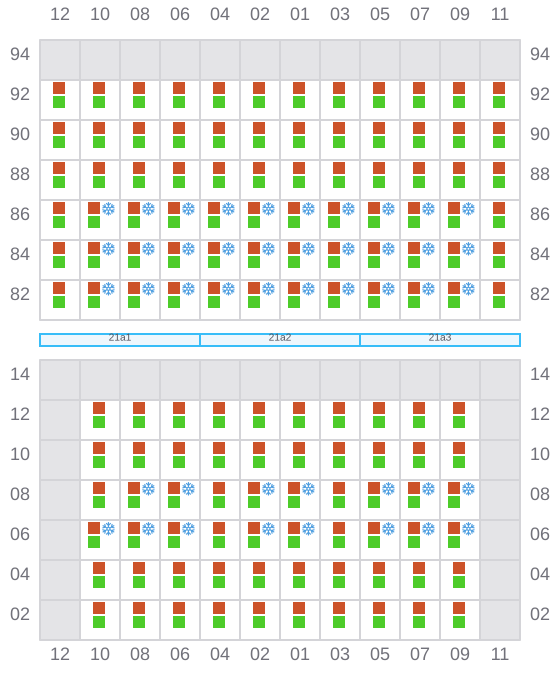

021 (022)
- →
- ←
- →
![Bay 021 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b021.png?v=1687562821097)
023
- ←
- → / ?
- →
![Bay 023 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b023.png?v=1687562821097)

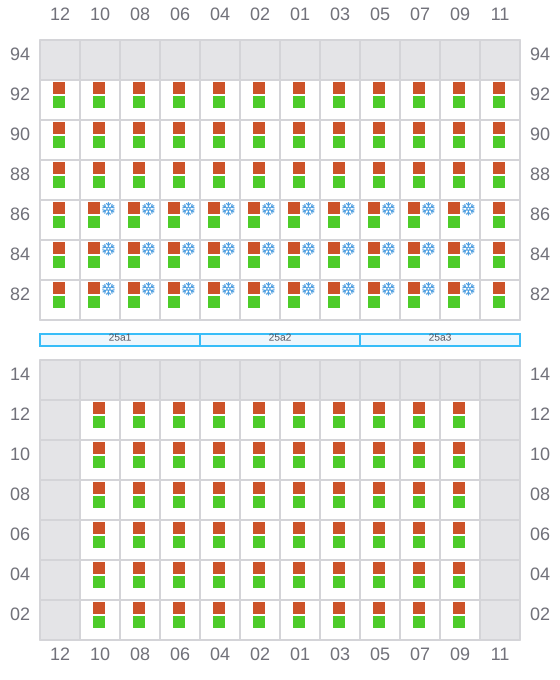

025 (026)
- →
- ← / ?
- →
![Bay 025 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b025.png?v=1687562821097)

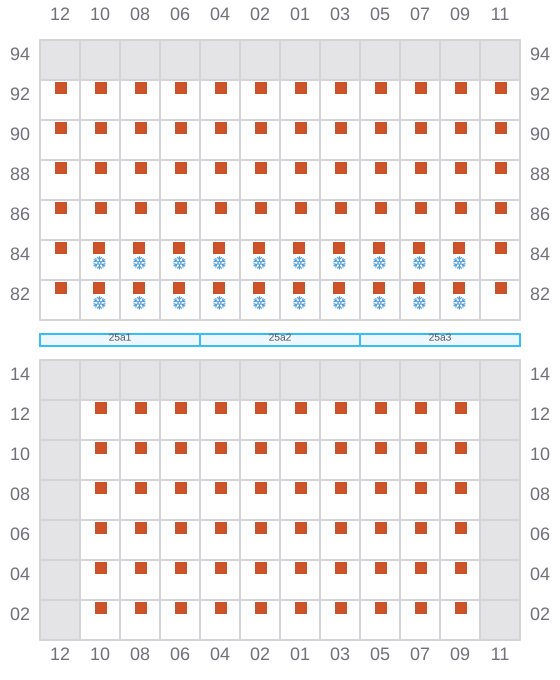

027
- ←
- → / ?
- →
![Bay 027 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b027.png?v=1687562821097)

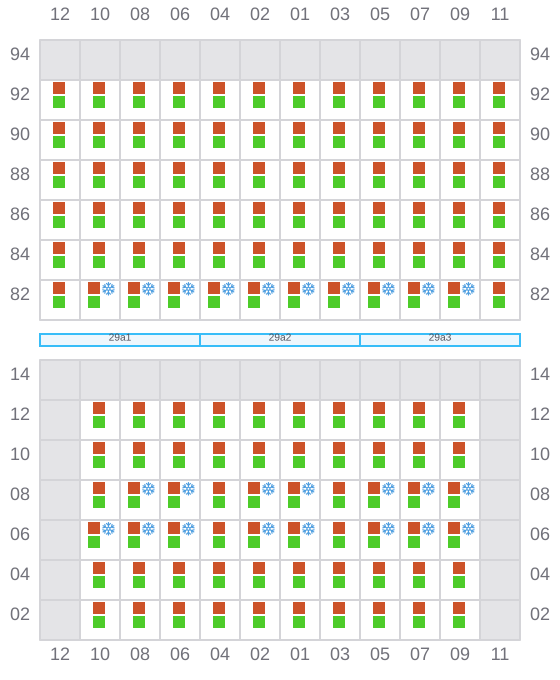

029 (030)
- →
- ←
- →
![Bay 029 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b029.png?v=1687562821097)
031
- ←
- → / ?
- →
![Bay 031 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b031.png?v=1687562821097)

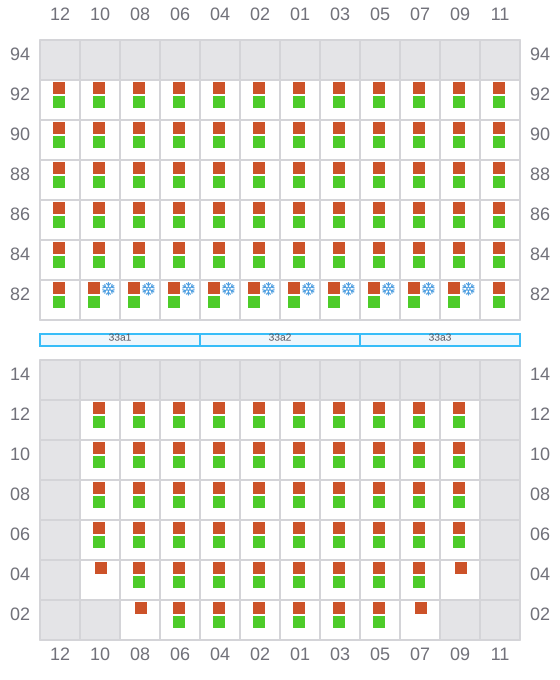

033 (034)
- →
- ← / ?
- →
![Bay 033 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b033.png?v=1687562821097)

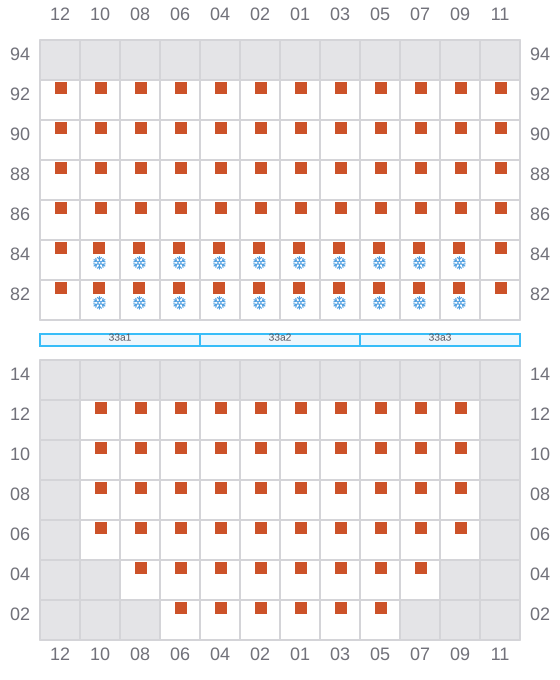

035
- ←
- → / ?
- →
![Bay 035 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b035.png?v=1687562821097)
037 (038)
- →
- ←
- →
![Bay 037 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b037.png?v=1687562821097)

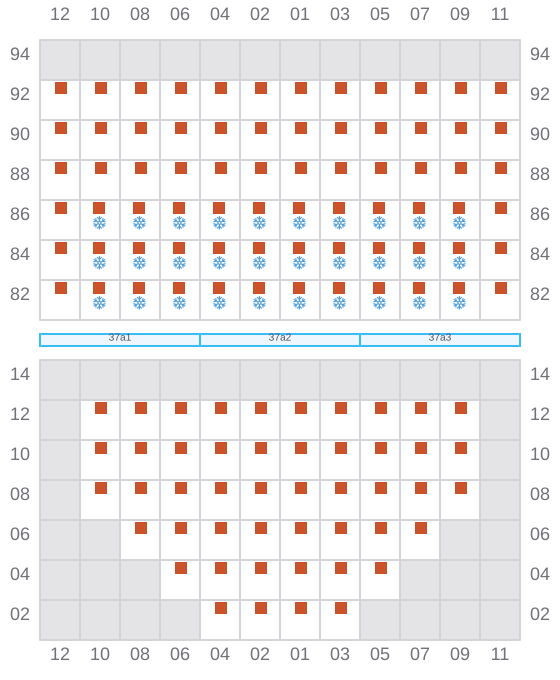

039
- ←
- → / ?
- →
![Bay 039 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b039.png?v=1687562821097)
041
- → / ?
![Bay 041 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b041.png?v=1687562821097)

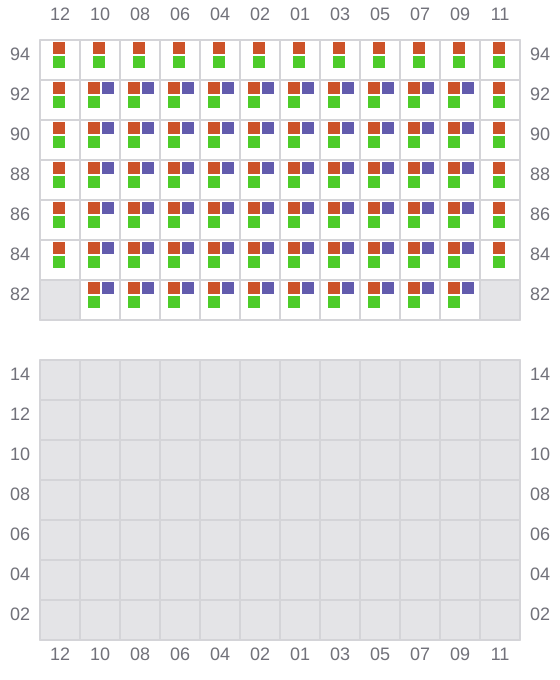

043 (044)
- → / ?
- → / ?
![Bay 043 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b043.png?v=1687562821097)

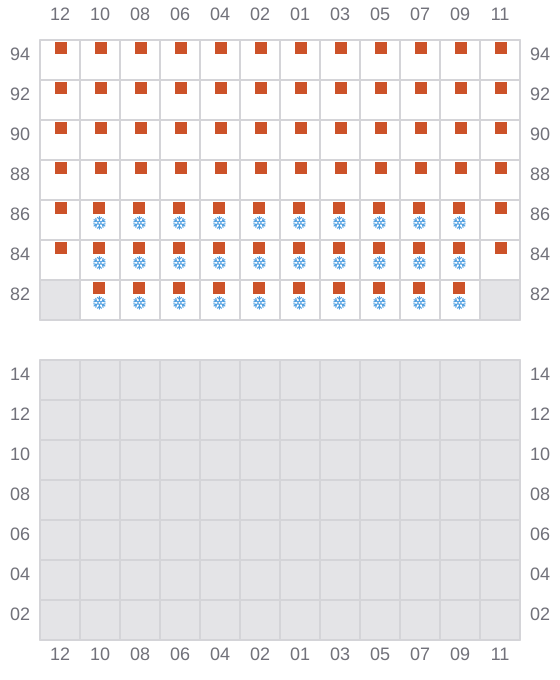

045
- ← / ?
- → / ?
- → / ?
![Bay 045 view and slots of BUXLINK](/vessel-images/011642c2-5574-440c-9e1e-9a385b60500f-b045.png?v=1687562821097)
