BUXMELODY
9377145 | A8SW4 | 9377145 by ********* Last update: Wed May 01 2024

General Info

Ship Name:BUXMELODY
IMO Code:9377145
Call Sign:A8SW4
Line Operator:9377145
Class Name for Sister Ships:BUXMELODY
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,714

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

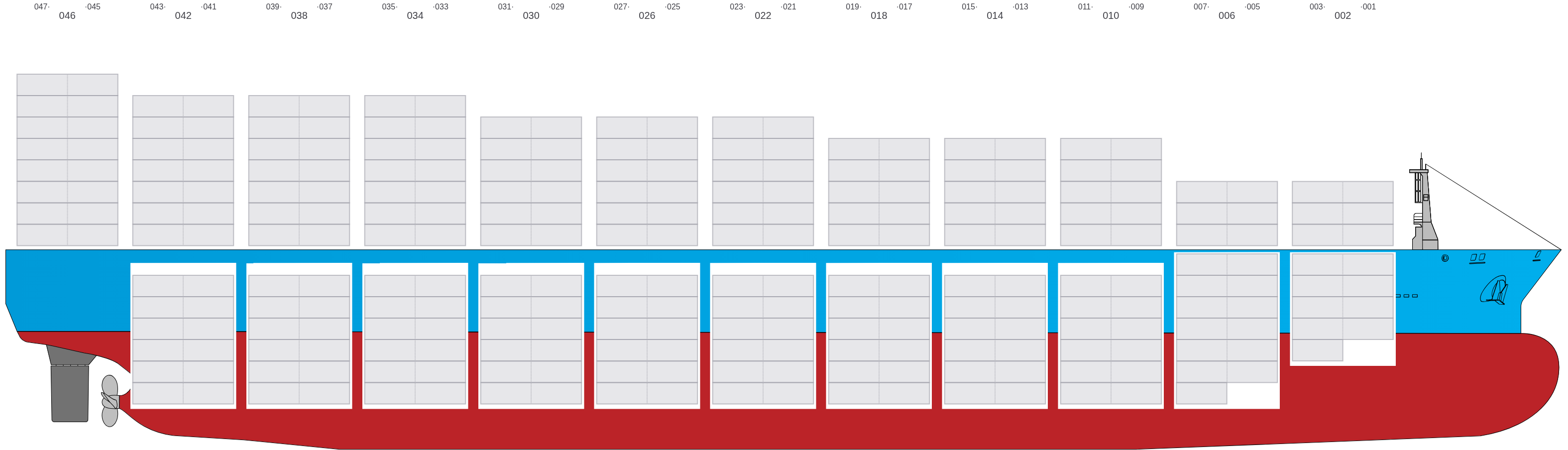

Side View

Side view of BUXMELODY

Hatch-Covers View

Deck view of BUXMELODY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

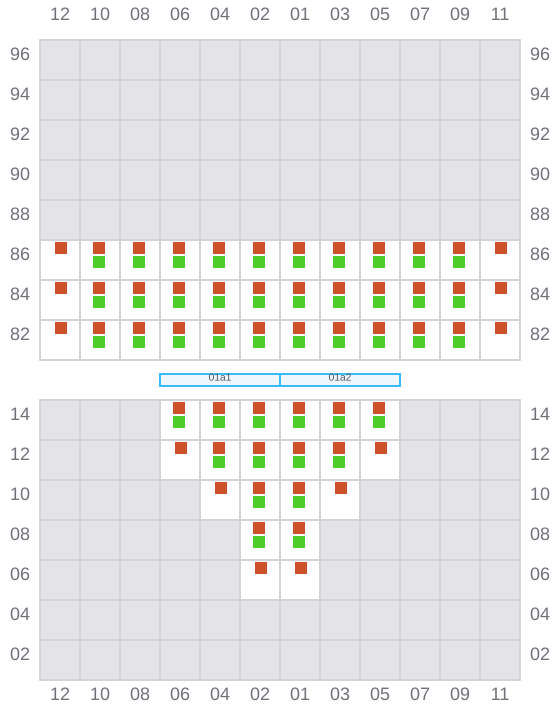

001

Bay 001 view and slots of BUXMELODY

003 (002)

Bay 003 view and slots of BUXMELODY

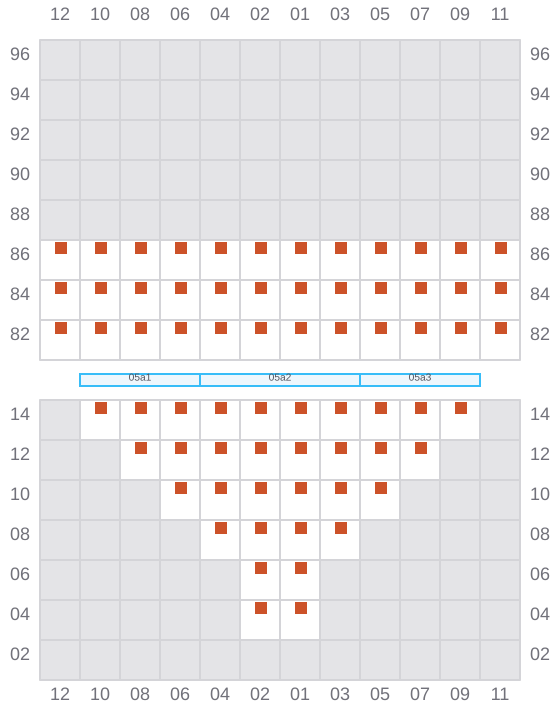

005

Bay 005 view and slots of BUXMELODY

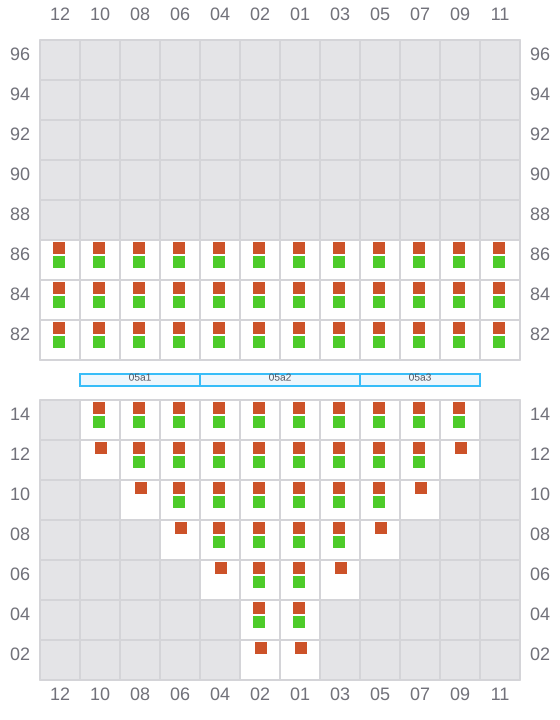

007 (006)

Bay 007 view and slots of BUXMELODY

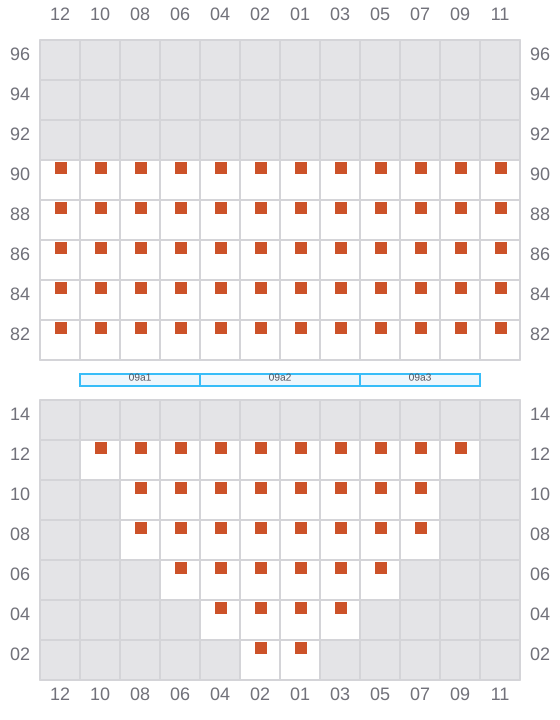

009

Bay 009 view and slots of BUXMELODY

011 (010)

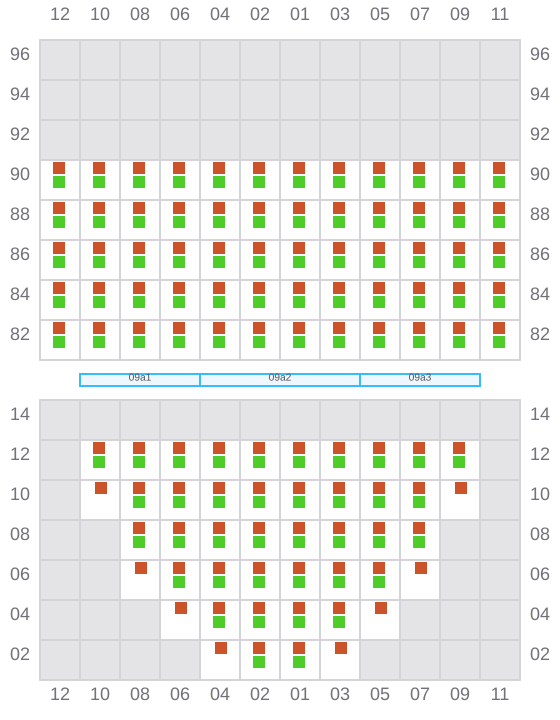

Bay 011 view and slots of BUXMELODY

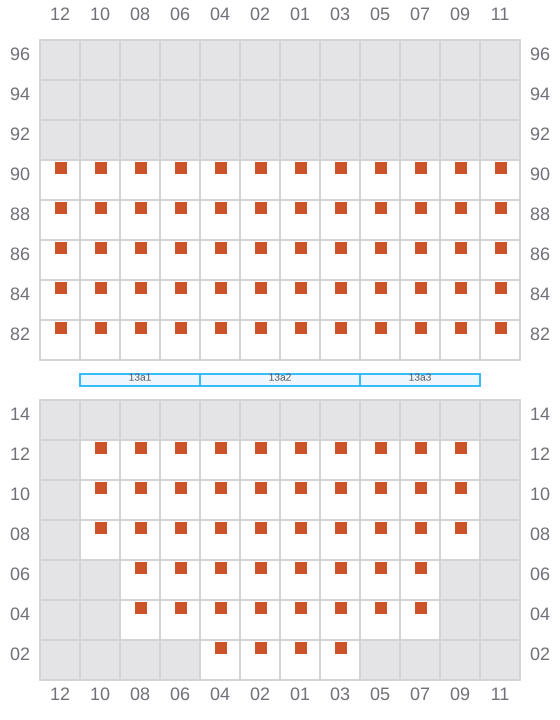

013

Bay 013 view and slots of BUXMELODY

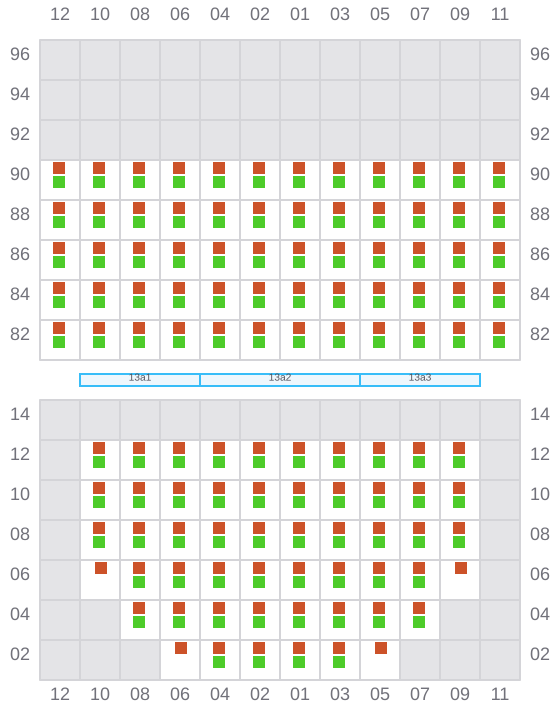

015 (014)

Bay 015 view and slots of BUXMELODY

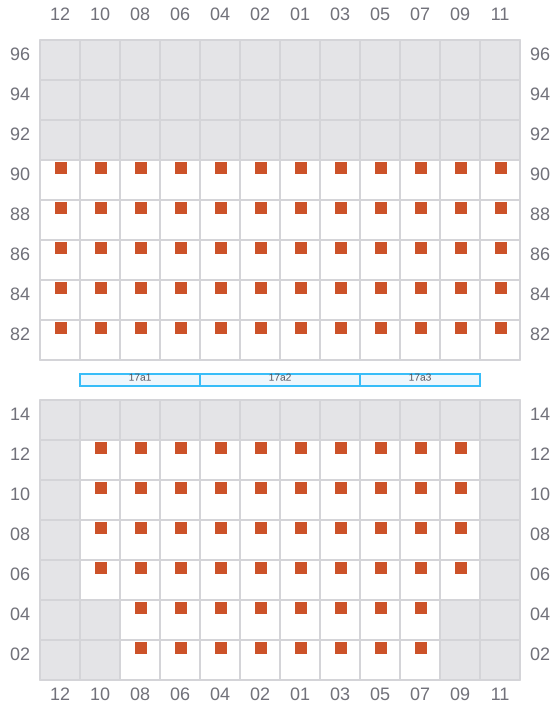

017

Bay 017 view and slots of BUXMELODY

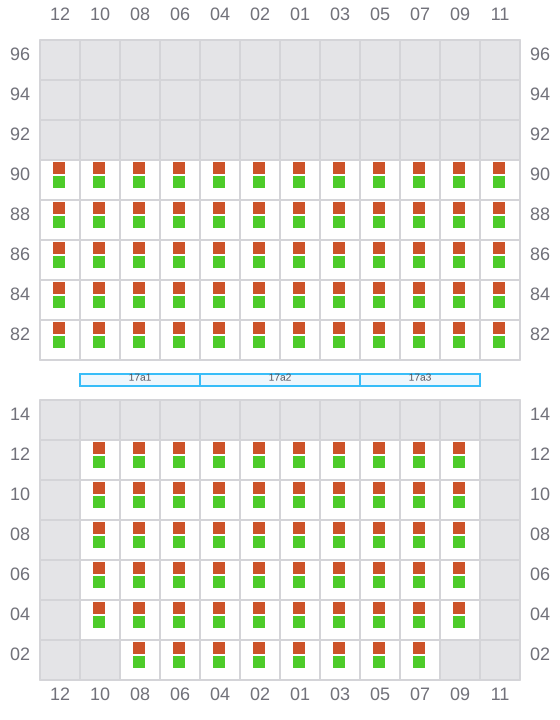

019 (018)

Bay 019 view and slots of BUXMELODY

021

Bay 021 view and slots of BUXMELODY

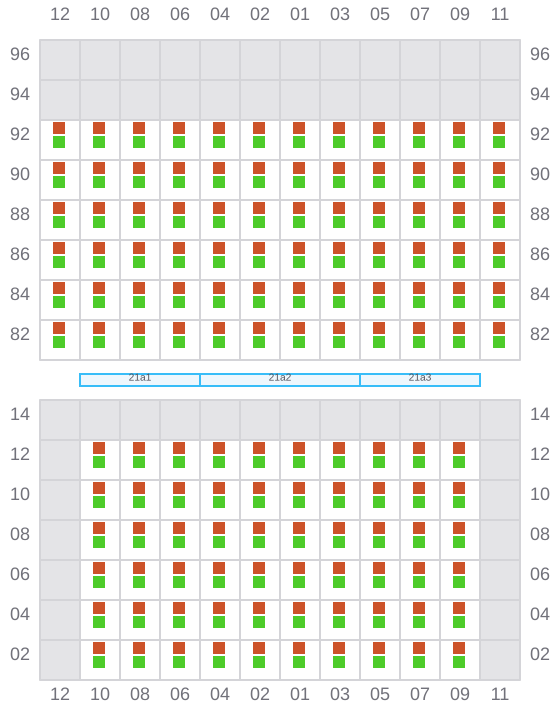

023 (022)

Bay 023 view and slots of BUXMELODY

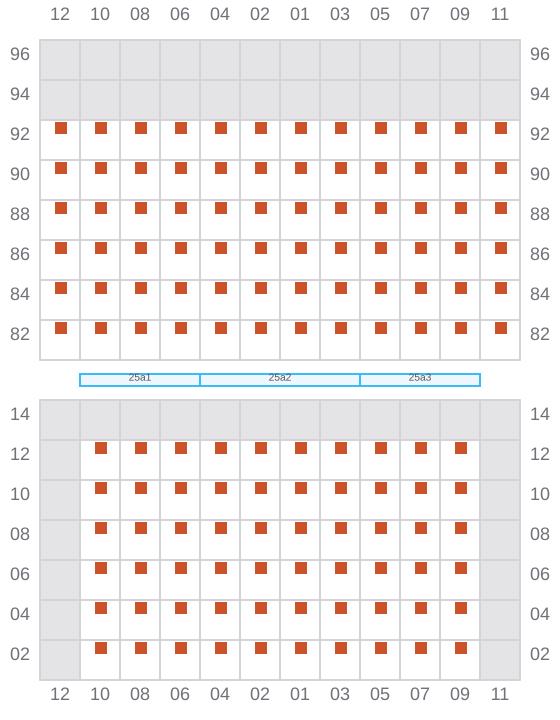

025

Bay 025 view and slots of BUXMELODY

027 (026)

Bay 027 view and slots of BUXMELODY

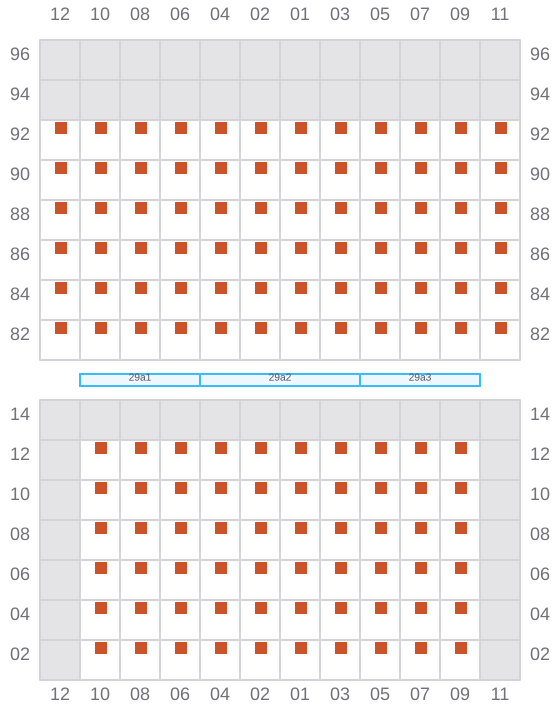

029

Bay 029 view and slots of BUXMELODY

031 (030)

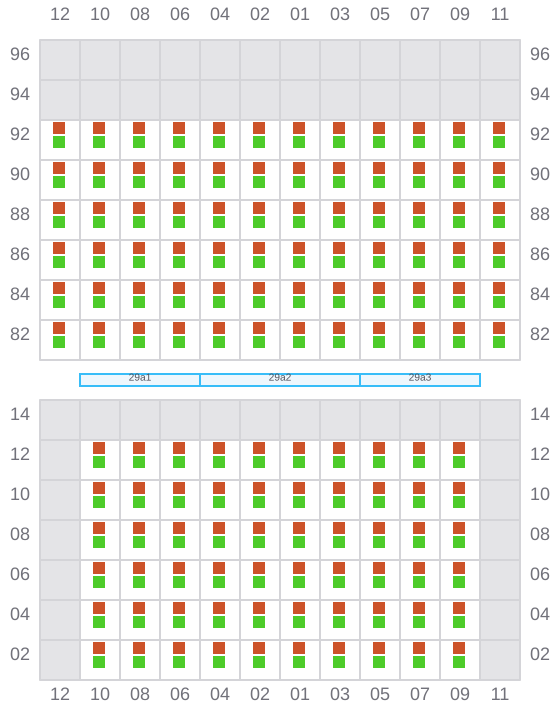

Bay 031 view and slots of BUXMELODY

033

Bay 033 view and slots of BUXMELODY

035 (034)

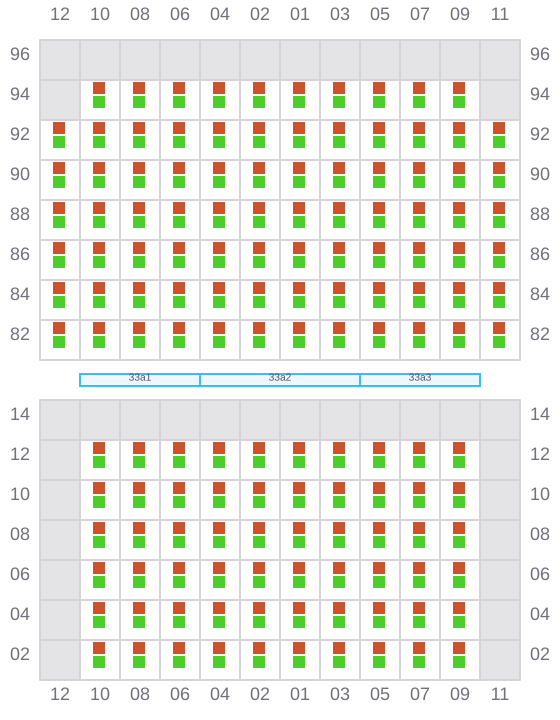

Bay 035 view and slots of BUXMELODY

037

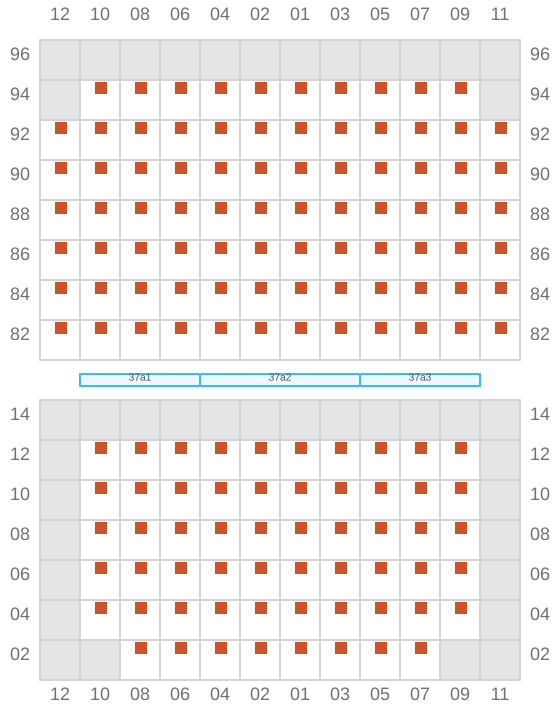

Bay 037 view and slots of BUXMELODY

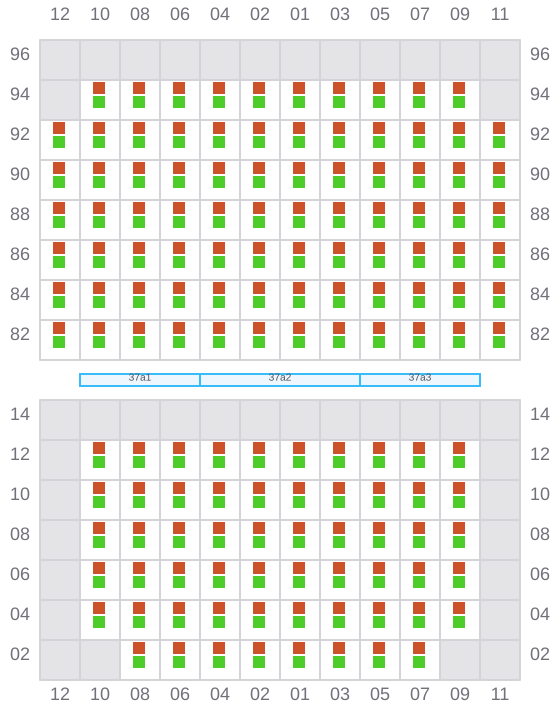

039 (038)

Bay 039 view and slots of BUXMELODY

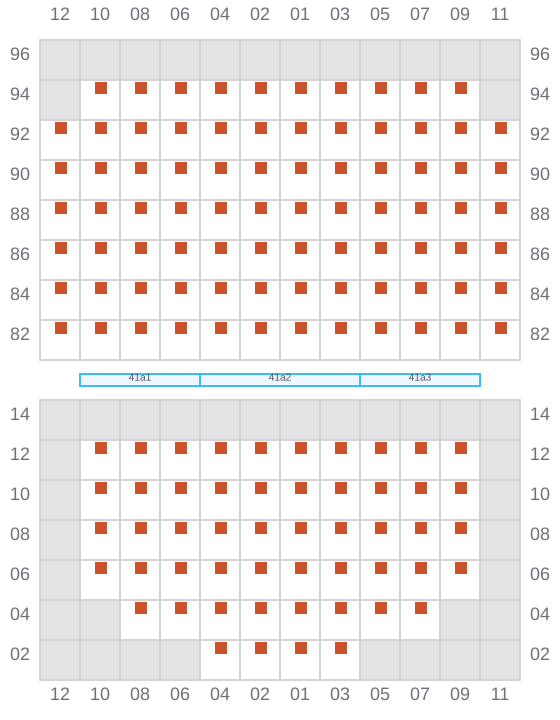

041

Bay 041 view and slots of BUXMELODY

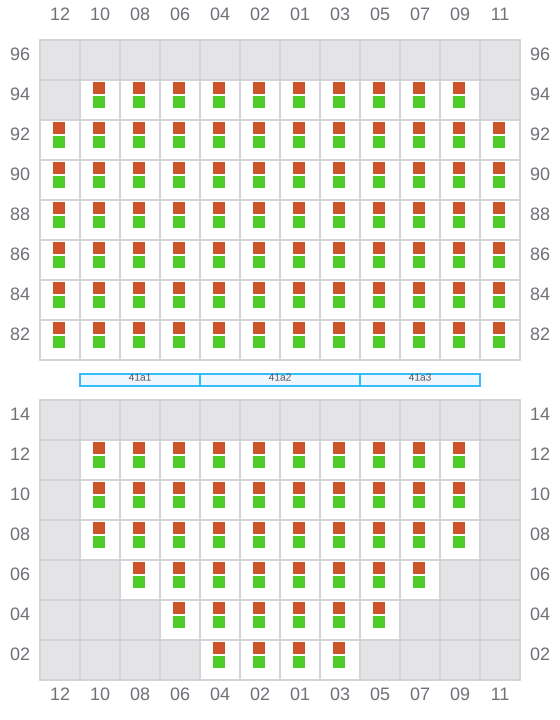

043 (042)

Bay 043 view and slots of BUXMELODY

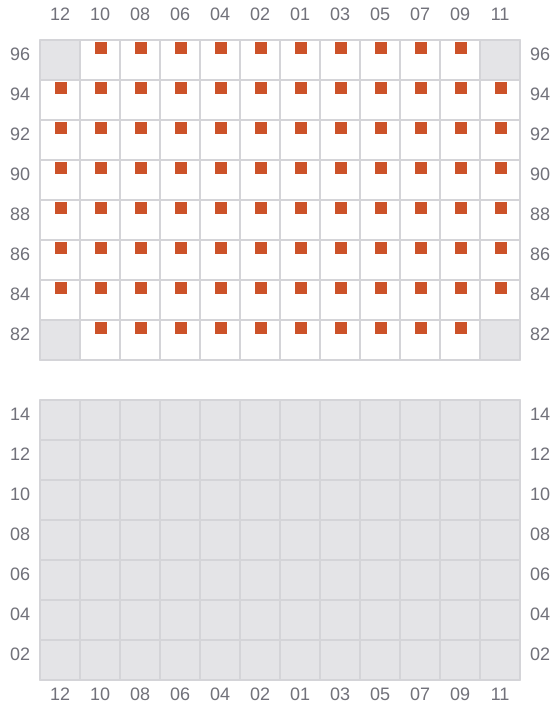

045

Bay 045 view and slots of BUXMELODY

047 (046)

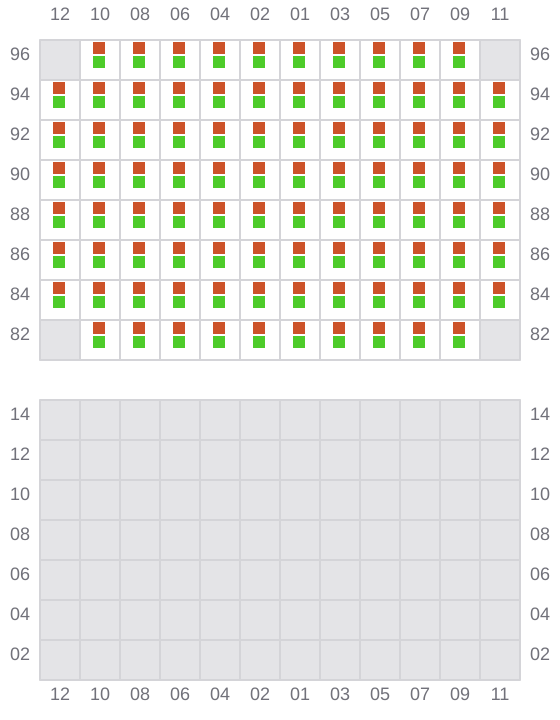

Bay 047 view and slots of BUXMELODY
